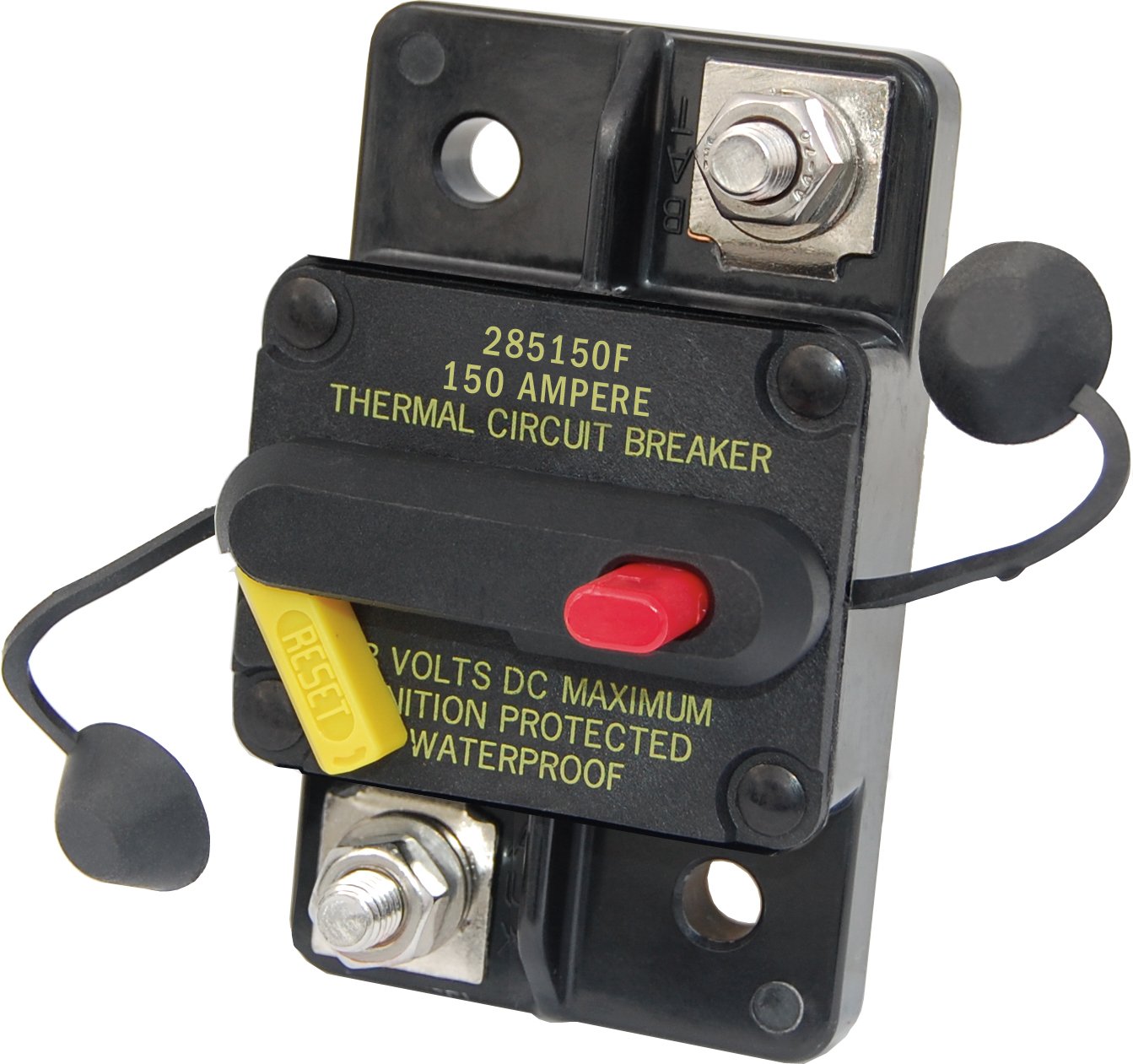

Blue Sea Systems 7189-285 Series Thermal Circuit Breaker, Surface Mount, 48V DC, 150A

Overview

The Blue Sea Systems 7189-285 Series Thermal Circuit Breaker is a compact, all-in-one protector that merges switching and circuit protection in a single medium-duty unit. Rated for 48V DC and up to 150A, it’s designed to handle the demands of marine systems such as windlasses and electric winches, providing essential protection without adding extra hardware. Built to withstand salt air, vibration, and temperature changes, it remains reliable under typical marine conditions.

In real-world use, this breaker offers a clear, visible indicator when it trips, helping crew quickly assess a fault. The trip-free design ensures the switch cannot be held in the ON position while a fault is present, reducing the risk of continued current flow and potential damage. The robust housing minimizes exposure to moisture and debris, contributing to long-term durability.

Key features

• Combine switching and circuit protection into single switch
• Drop in replacement for 185 series circuit breakers
• Trip-Free feature means switch cannot be held in ON position when a fault is detected
• Ignition protected; can be installed in engine rooms of gasoline powered boats
• Five-year warranty

Construction and installation details emphasize practicality for confined engine spaces and variable conditions. The housing is ignition-protected and water resistant, broadening installation options to engine rooms and other challenging locations. Terminal caps protect terminals from accidental contact and help prevent cross-current shorts, while terminal studs are located on the face of the breaker for straightforward wiring and service. The design also supports quick swaps on existing 185-series circuits with minimal downtime.

Real-world use and installation tips

• Windlasses and electric winches benefit from a combined switch and protection unit, reducing clutter and simplifying wiring.
• Face-mounted terminal studs streamline wiring during installation and service checks.
• The visible trip lever enables quick fault assessment, without guesswork or trial-and-error testing.
• Designed for demanding marine environments, the unit’s ignition protection and water resistance support installation in engine rooms or other harsh spaces.

Warranty and support add further reassurance for boat owners and technicians seeking dependable protection for critical systems. This breaker’s balanced combination of control, protection, and rugged construction makes it a practical choice for reliable on-board electrical protection.
