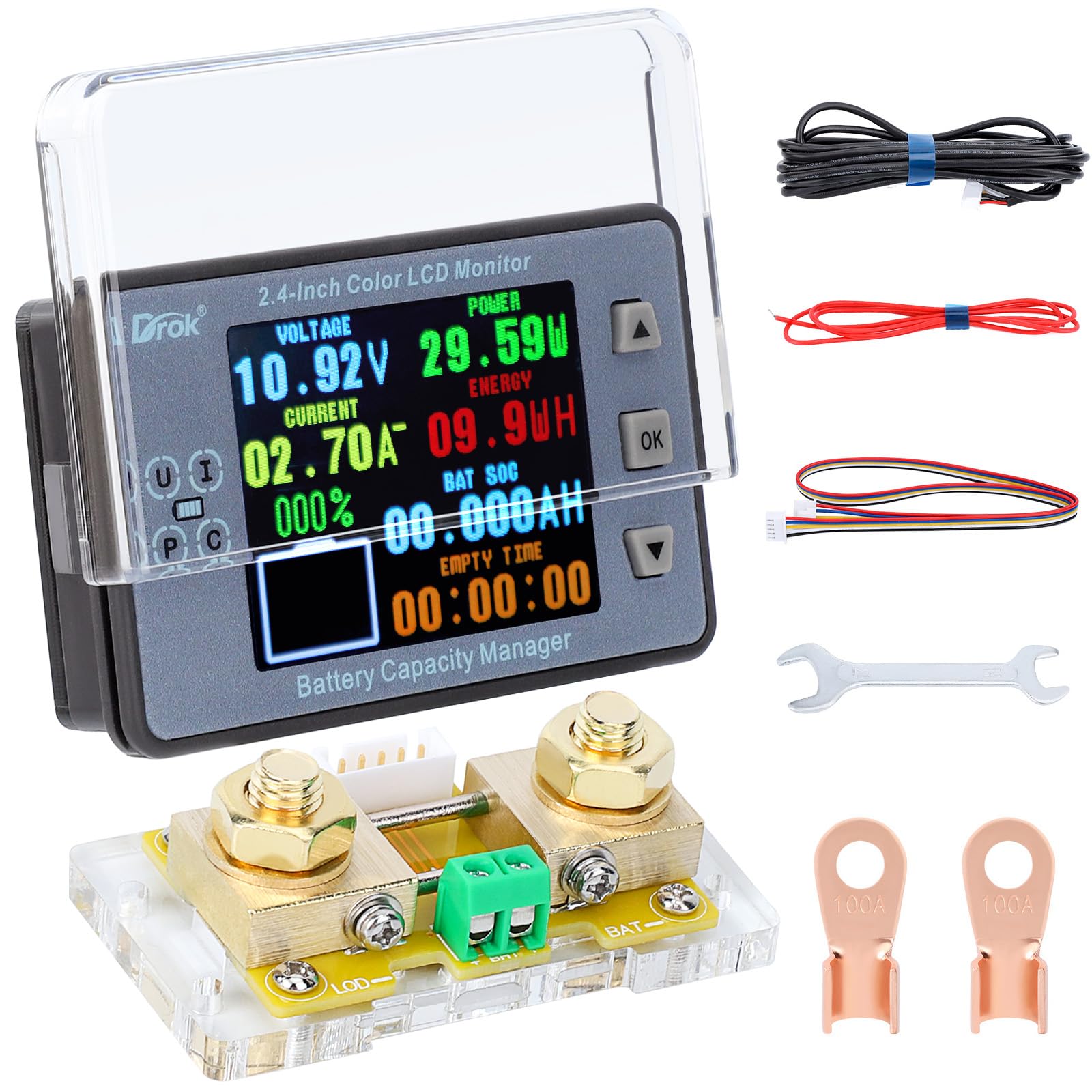

DROK Digital Multimeter 8–100V 100A Battery Monitor — Color LCD Display

Overview

The DROK digital multimeter is a compact coulometer and power monitor designed for a range of on‑grid and off‑grid setups. It reads voltage, current, and capacity with a bright color display, making it suitable for RVs, solar systems, and automotive projects. You can rely on its clear readouts as you monitor system health and energy flow throughout the day and night.

Key specifications at a glance

• Voltage range: 8–100 V
• Current range: 0.05–100 A
• Power monitoring: 0–50 kW
• Battery capacity: 0.1–99,999 Ah
• Voltage accuracy: ±1% + 2 digits
• Current accuracy: ±0.5% + 2 digits
• Measurement speed: 20 updates per second

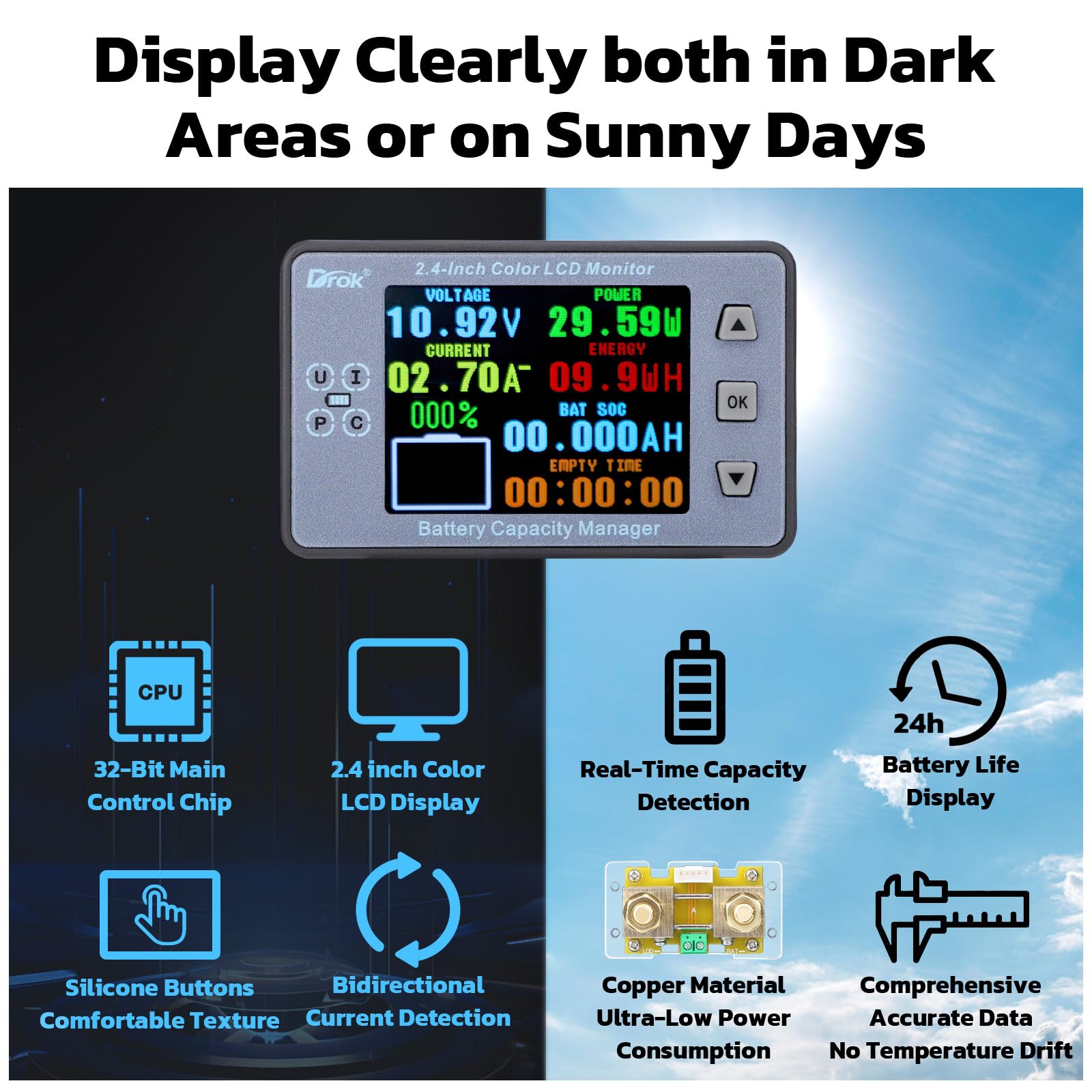

• Display: 2.4" color LCD with high contrast

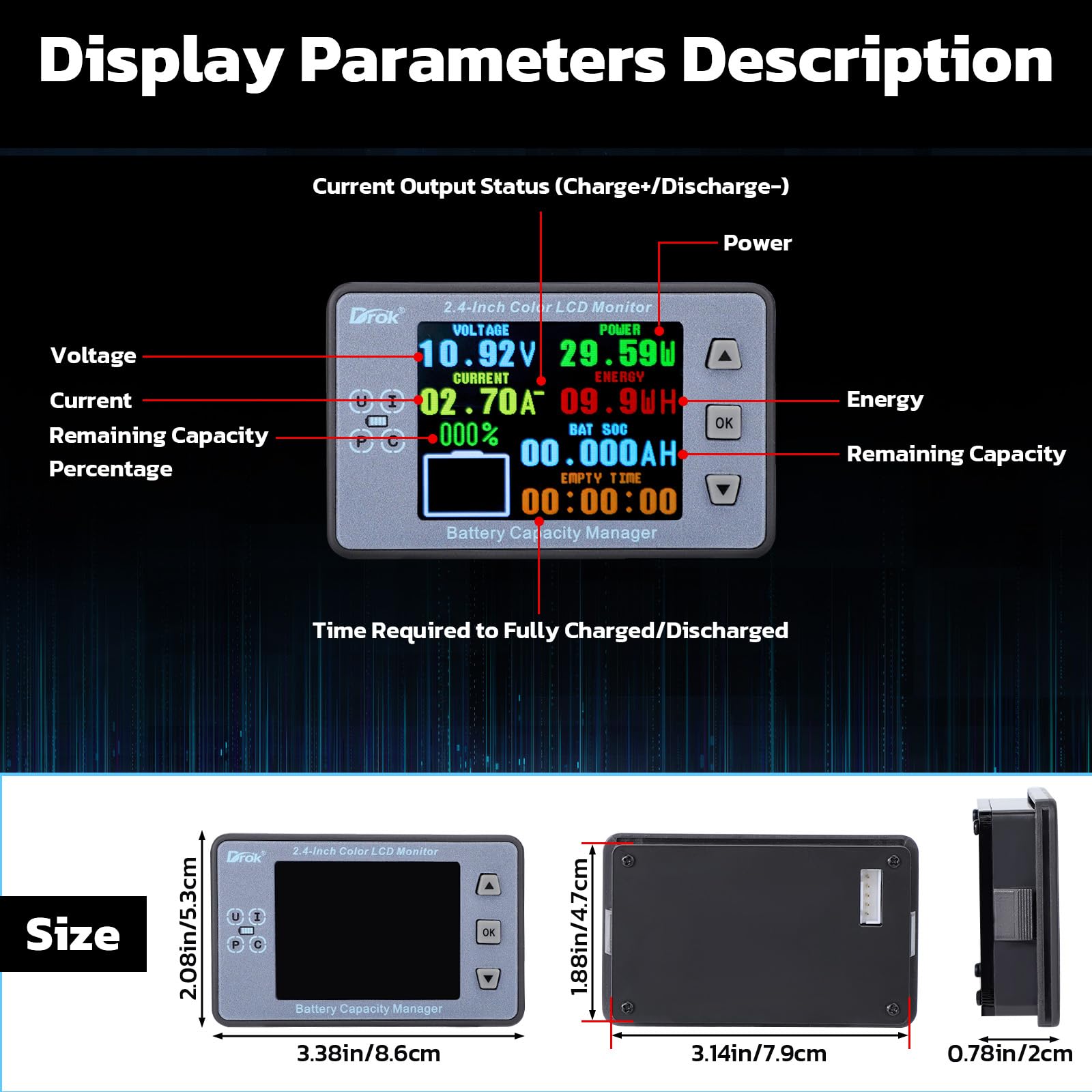

Display, alerts, and controls

• CLR clears no-load current when needed for an accurate baseline
• BAT stores the total battery capacity for your pack
• BPC sets available capacity percentage for quick checks
• LED brightness from 0 to 10 for day or night visibility
• STE and STI manage screen turn-off and wake behavior based on time and current
• BKC offers two color modes: black‑white or colorful for personal preference
• LAG language option (English/Chinese) for broader use
• LVP low voltage alarm to warn when voltage dips below a user preset level
• LBR backlight alarm flashes when remaining capacity is low or charging current rises beyond STI
• ADS device addressing to fit into existing monitoring networks
• PAI zeroes spurious readings after no-load clear to keep data reliable
• OVP safeguards against over‑voltage scenarios by auto‑balancing capacity

Real‑world use cases

Use this device as a battery capacity monitor for solar panels, a voltage and current meter for RVs and boats, or a portable power meter for automotive charging. Its compact form and stable base allow quick mounting on dashboards or panels, while the color display remains readable in bright sun or dim interiors.

Why choose DROK

Designed for fast reading and easy setup, the unit emphasizes practical monitoring—helping you observe energy trends, manage battery health, and plan charging cycles with confidence. While results depend on your specific system, you’ll find the color display, alarm options, and multiple settings useful for everyday monitoring.

Warranty and setup notes

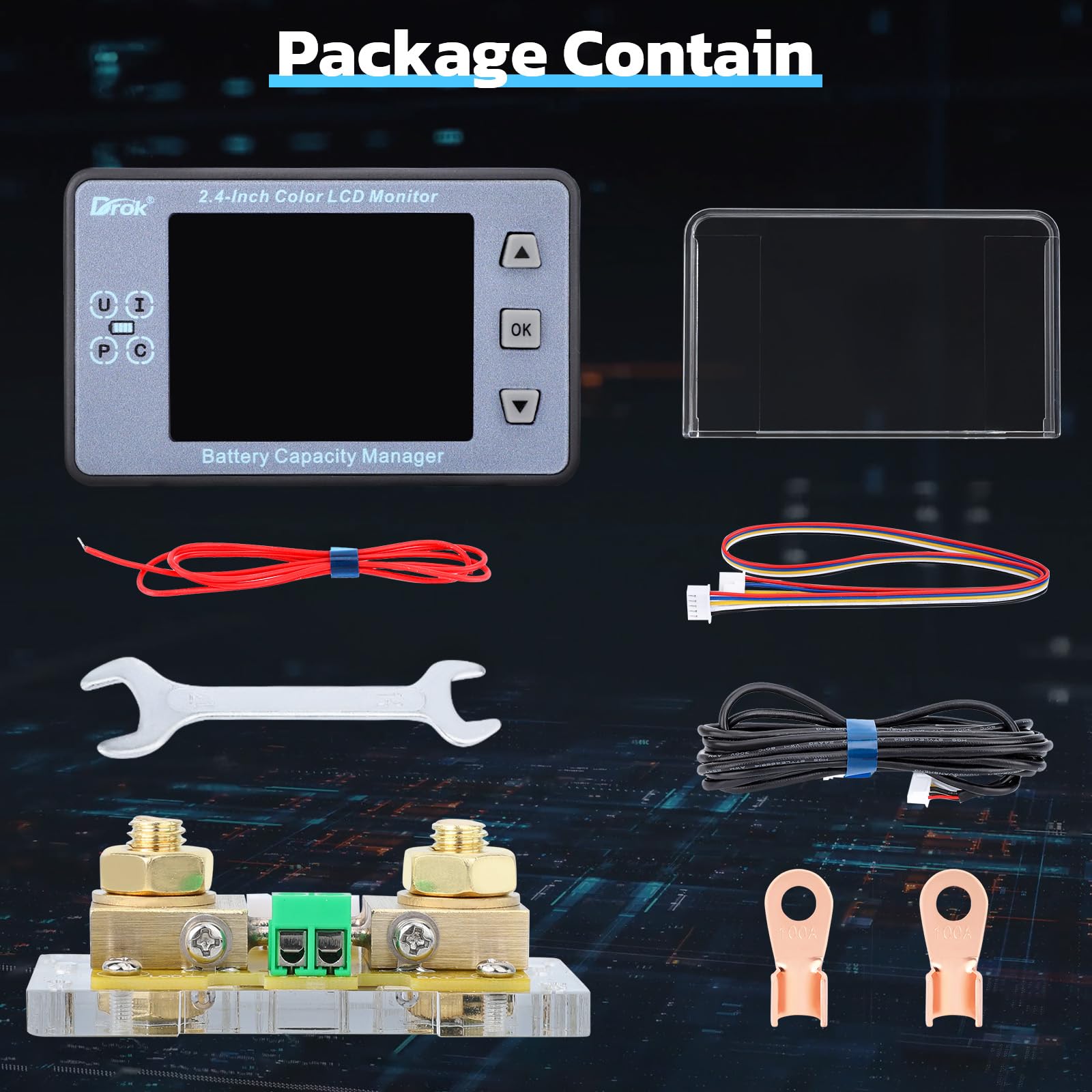

Includes a one‑year warranty from delivery. A small mounting base provides stability in stationary installations, and the device can be configured to match your preferred language, backlight style, and alert thresholds.
