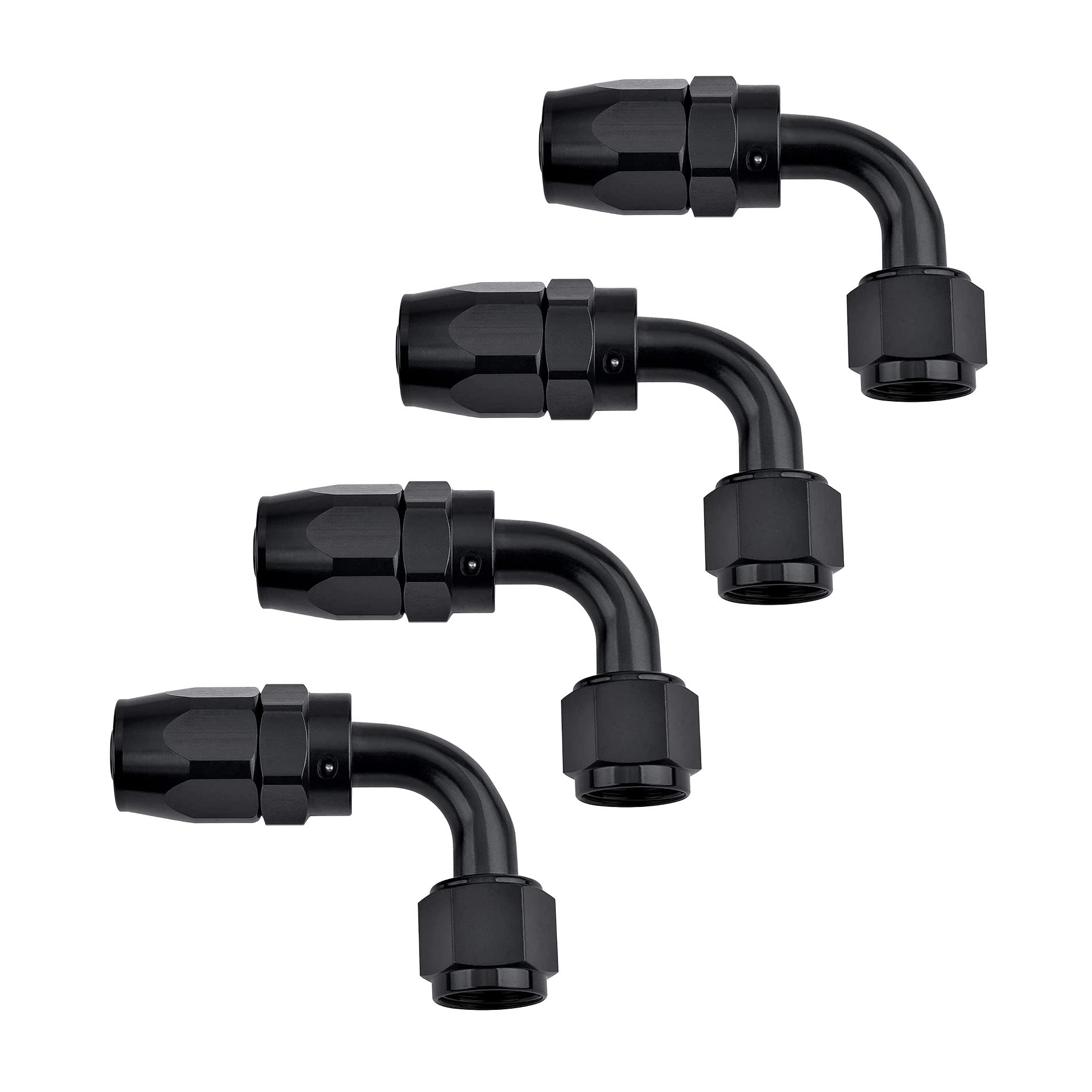

EVIL ENERGY 10AN 90° Swivel Hose End Fitting for CPE Braided Hose – Black, 4-Pack
- £42.67
- £42.67
- Unit price
- per
Couldn't load pickup availability
Free UK Delivery on All Orders
Free Returns
Description
xOverview
The EVIL ENERGY 10AN Hose End Fitting with a 90‑degree swivel is engineered for CPE braided hoses, delivering an adaptable solution for tight spaces and complex installations. The black finish adds a clean, automotive-ready look while exposing a durable build designed to withstand demanding environments.
Designed with real‑world use in mind, this fitting blends robust materials, precise threading, and a smooth swivel action to help you align lines quickly, reduce kinks, and maintain secure connections across your high‑pressure setup. While not guaranteeing specific results, it offers a reliable option for users pursuing cleaner routing and dependable performance in their hose assemblies.
Key benefits

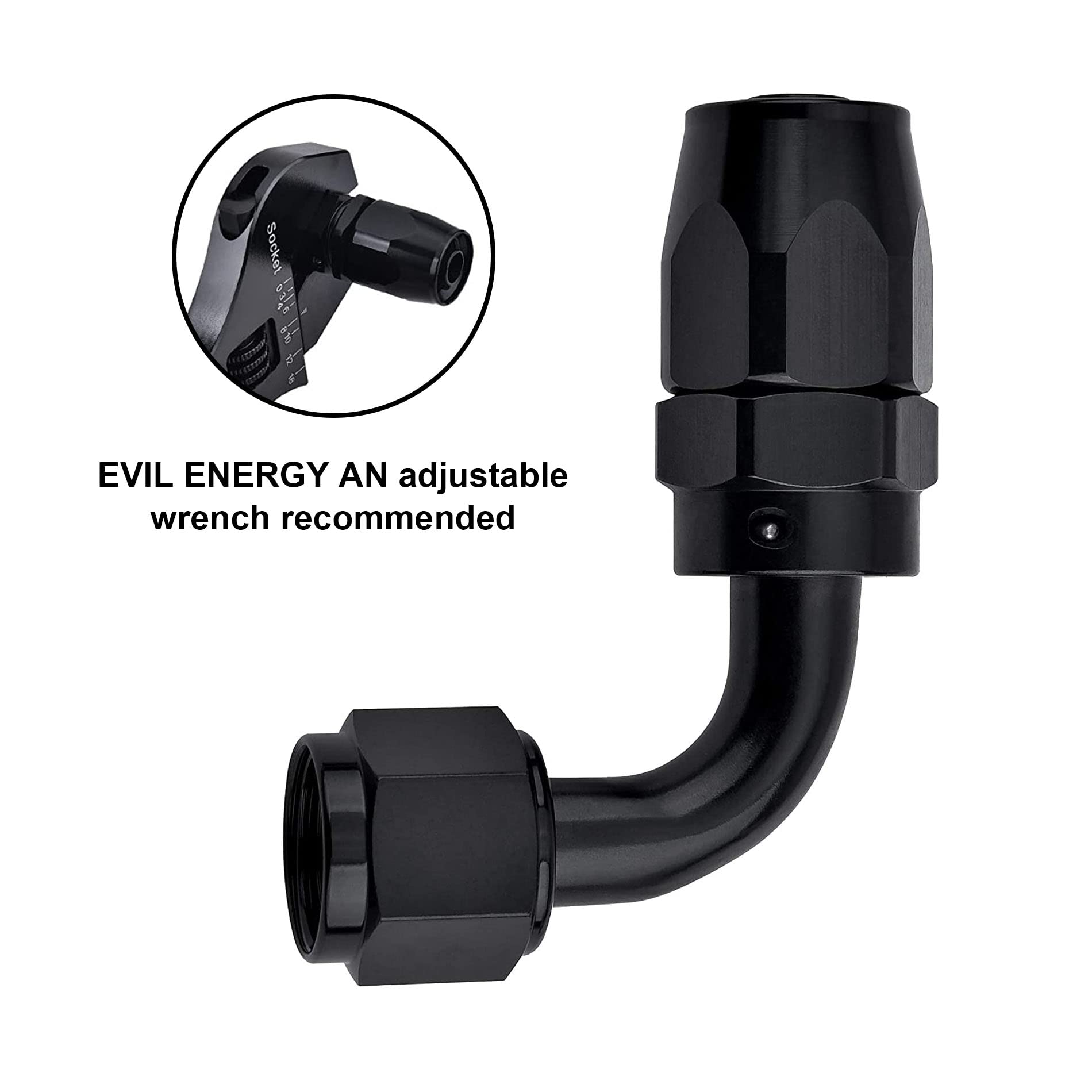

- 360° swivel design for flexible alignment and easier assembly in crowded engine bays.
- Made from 6061‑T6 aluminum for strength with lightweight handling and corrosion resistance.
- Sealed by a 37° flare on the AN side to promote proper seating and consistent sealing behavior.
- Rated up to 1,500 PSI, supporting high‑pressure lines in performance or utility applications.
- Wide operating temperature range: -65℉ to 252℉ (-53℃ to 122℃), suitable for diverse environments.

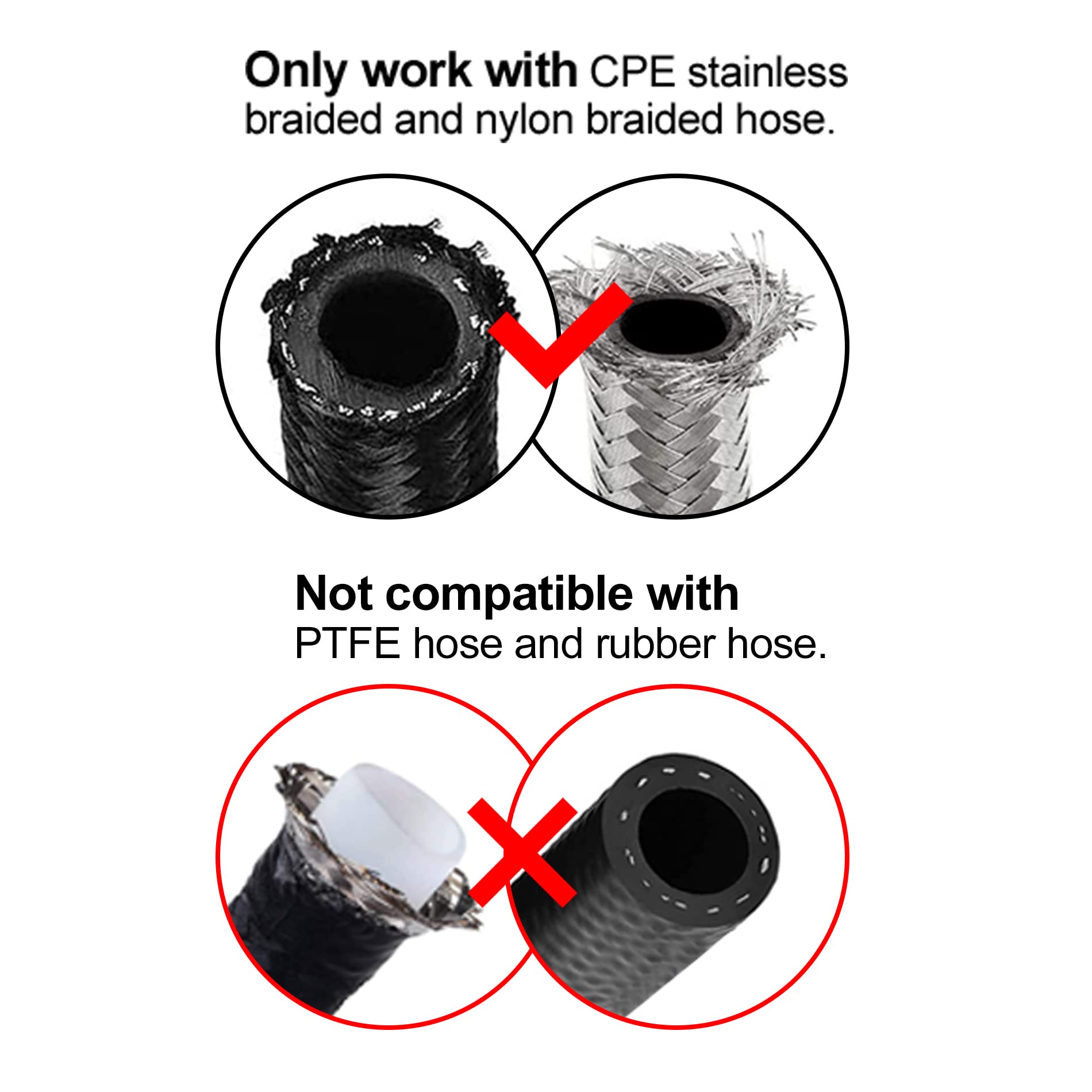

- Compatible with stainless steel braided and nylon braided hoses, expanding your hose pairing options.
- Revisable, reusable, and recyclable design helps support sustainable use over time.

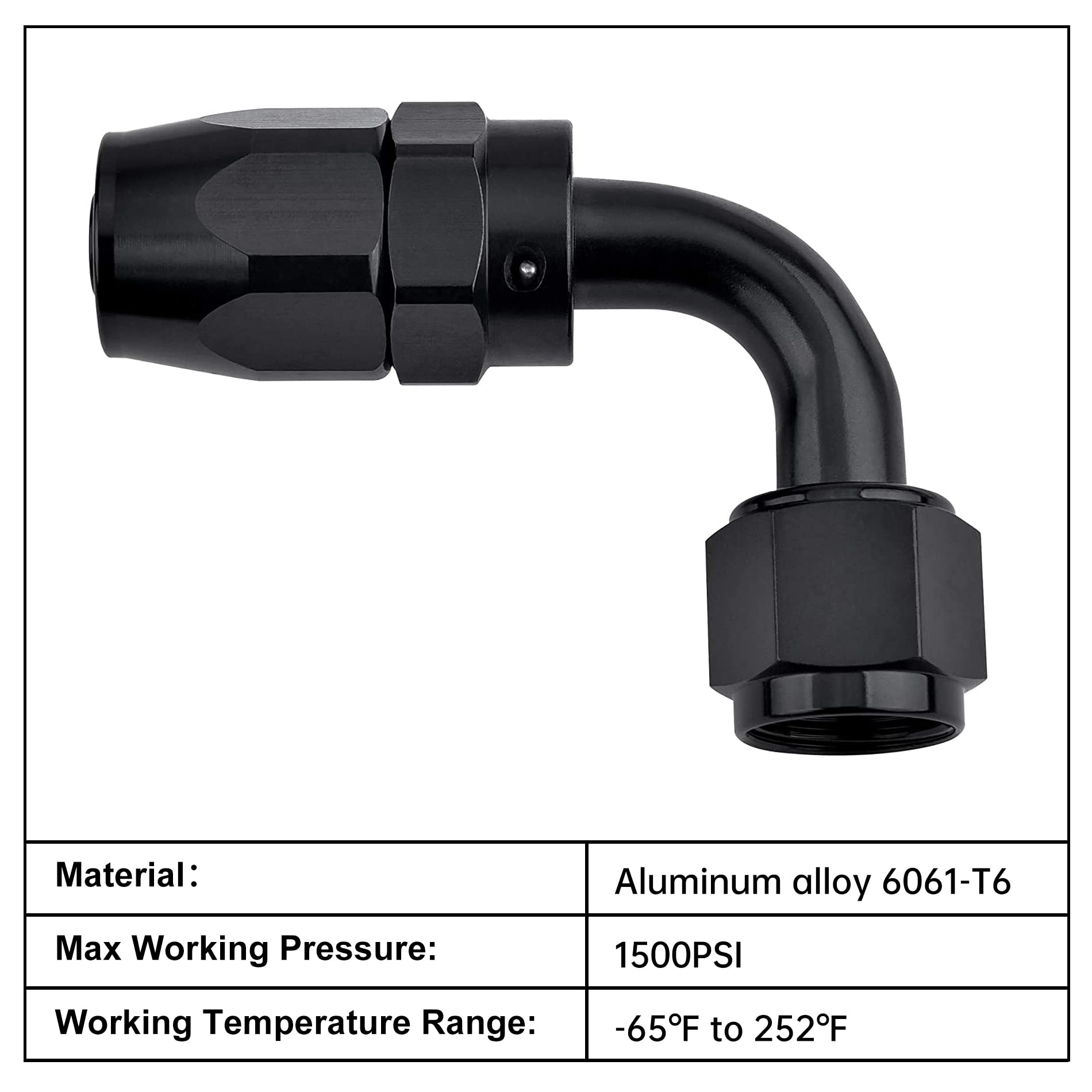

Specifications at a glance

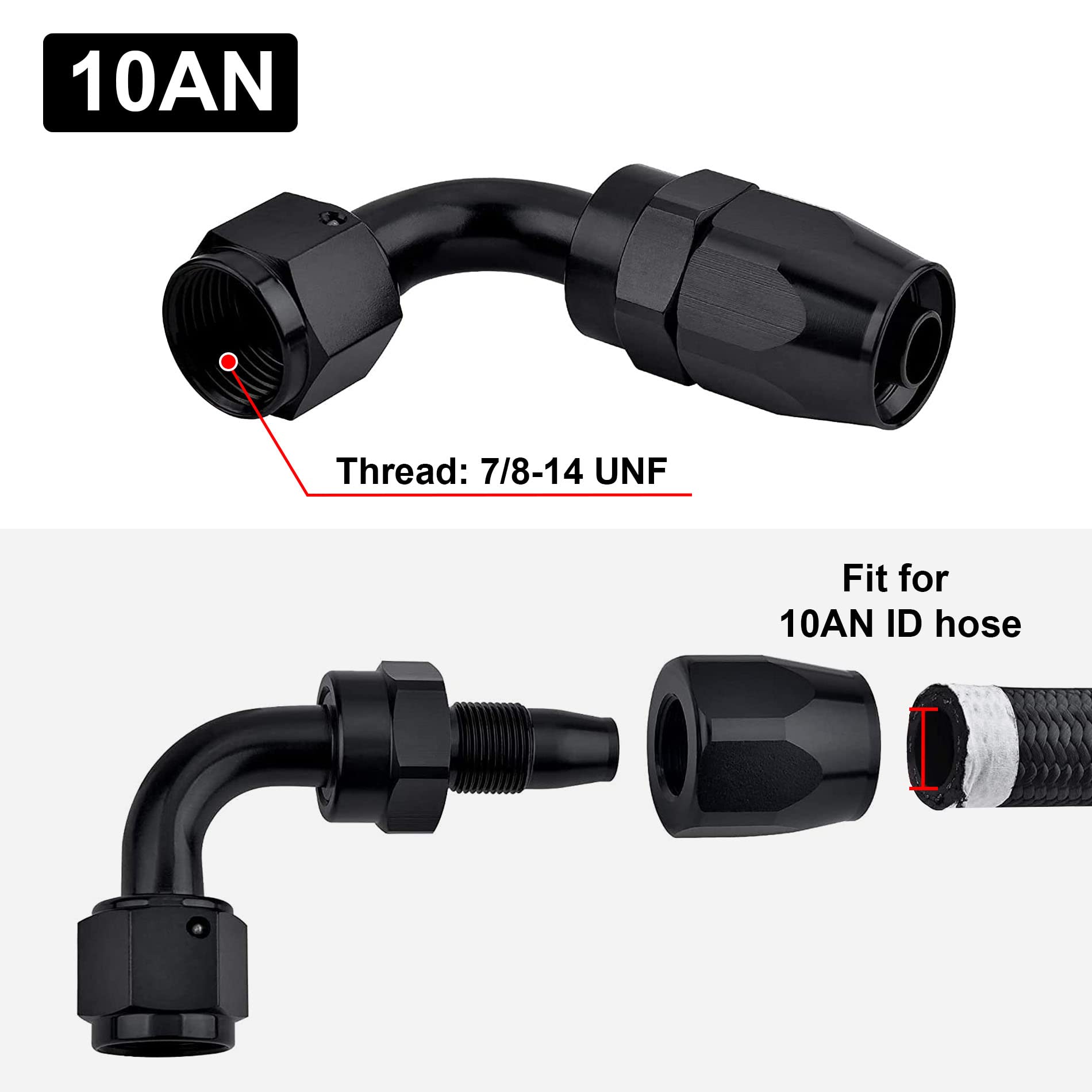

- Thread size: 7/8-14 UNF (AN side sealed by 37° angle)
- Material: 6061-T6 aluminum alloy
- Maximum working pressure: 1,500 PSI
- Working temperature: -65℉ to 252℉ (-53℃ to 122℃)
- Swivel: 360° for easier installation
- Compatibility: Stainless steel braided and nylon braided hoses
- Reusability: Designed to be reused and recycled

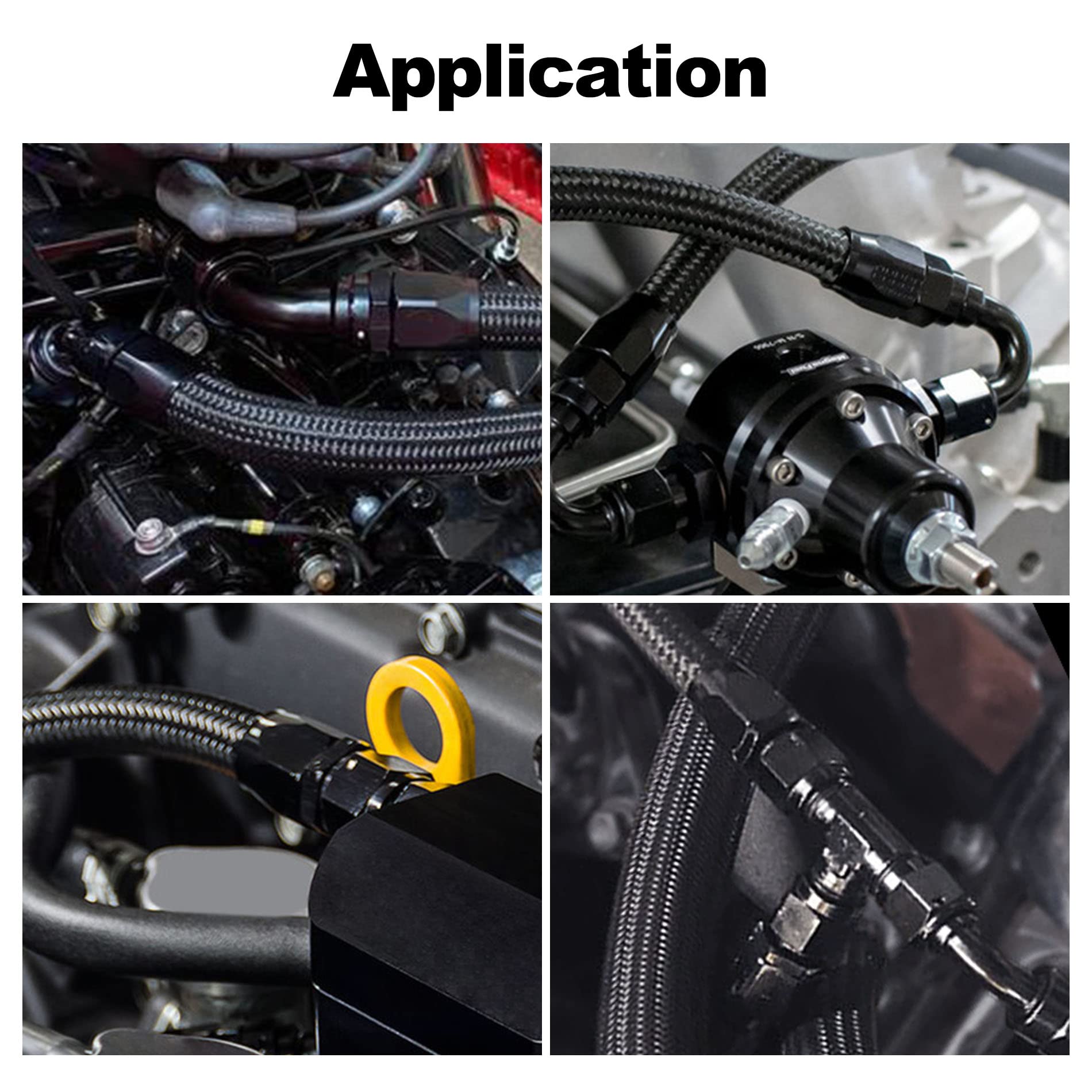

Usage ideas
Use these fittings to improve routing in tight engine compartments, under dashboards, or along chassis rails where space is at a premium. The 90° elbow helps you maintain clean, organized lines while reducing the risk of abrasion and bending fatigue on high‑pressure hoses. Designed for performance or utility setups, these fittings pair well with compatible CPE braided hoses to support durable, long‑lasting assemblies.
Note: Always follow manufacturer guidelines for compatible hose types and secure connections before pressurizing lines. Variations in hoses, fluids, and ambient conditions can influence sealing and performance.
FAQ
Q: What thread size does the EVIL ENERGY 10AN 90° swivel fitting use?
A: The thread size is 7/8-14 UNF and is designed for 10AN hose ends.
Q: What benefits does the 360° swivel design offer?
A: It enables easy alignment and flexible routing in tight spaces, reducing installation stress.
