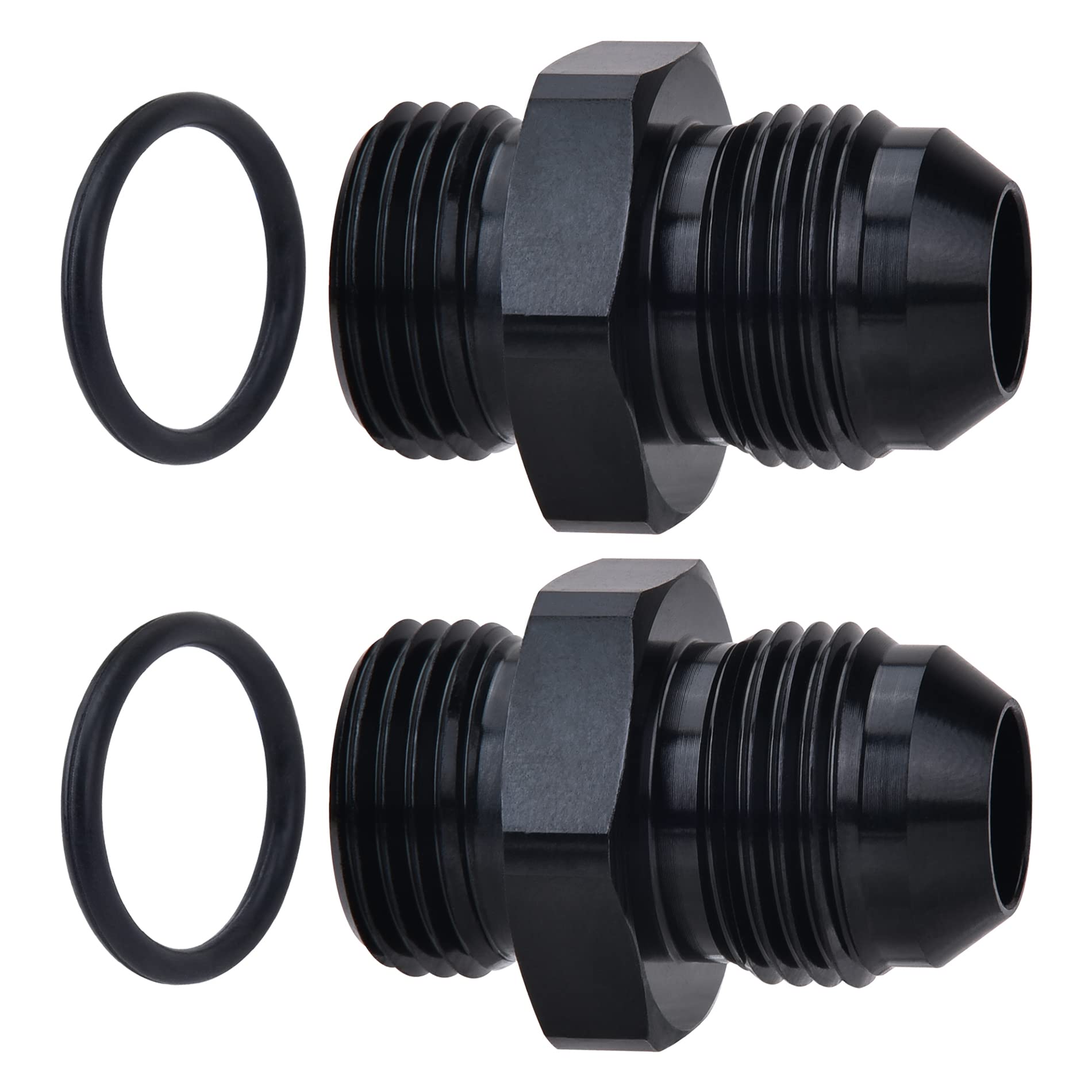

EVIL ENERGY 10AN Flare to 10AN ORB Male Fuel Rail Adapter Set – Black

EVIL ENERGY 10AN flare to 10AN ORB adapter set

This compact two piece kit from EVIL ENERGY blends precise machining with practical sealing for modern fuel systems. The flare side uses a 37 degree angle to establish a tight seal, while the ORB side relies on an O ring to provide a second line of defense. Finished in matte black, the adapters are designed to fit neatly within typical engine bays and with compatible 10AN components.

What the design delivers

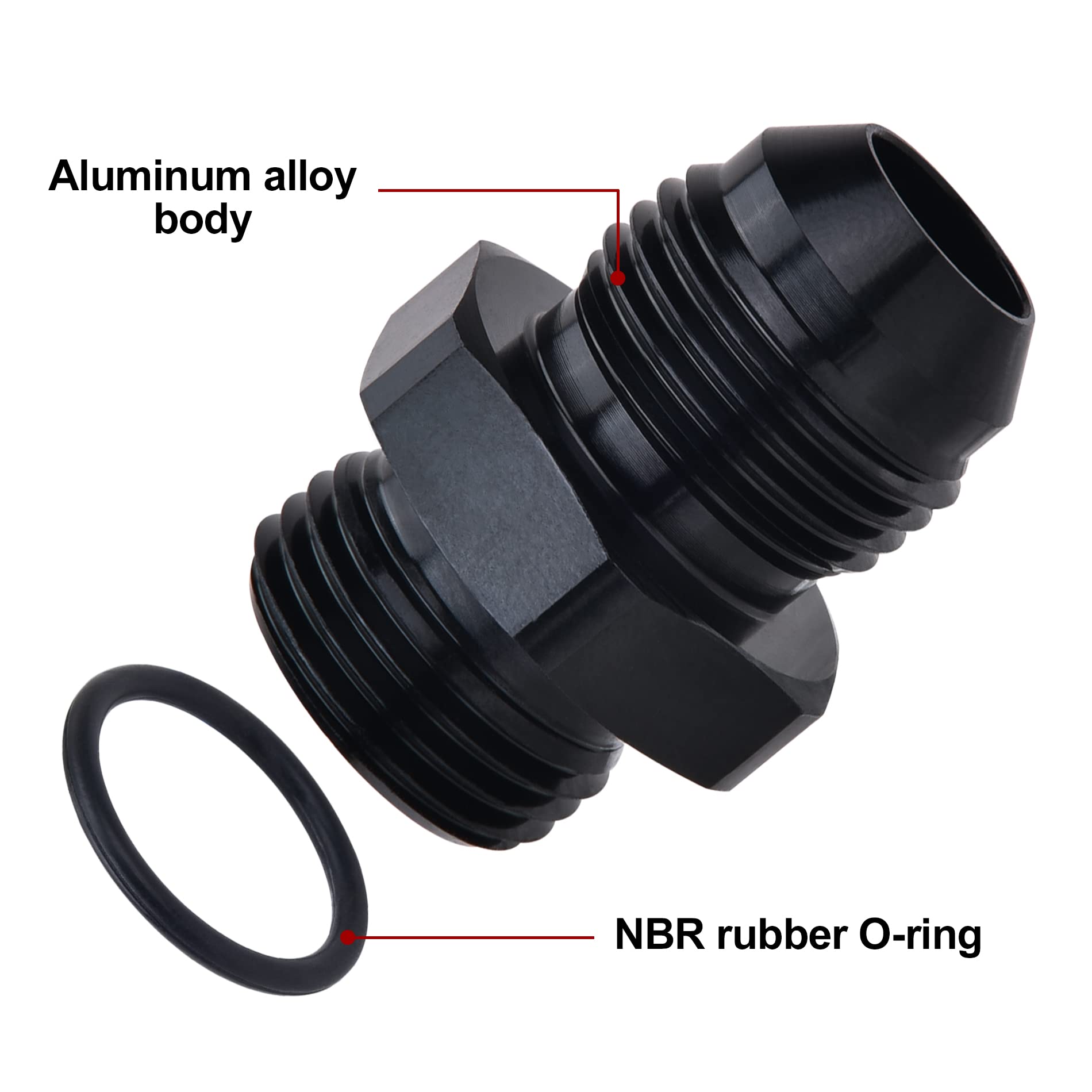

• Material and seals: a rugged aluminum 6061 T6 body paired with a NBR O ring for dependable sealing surfaces.
• Seal strategy: a 37 degree flare seal on the AN side paired with an ORB seal using an O ring on the mating side.

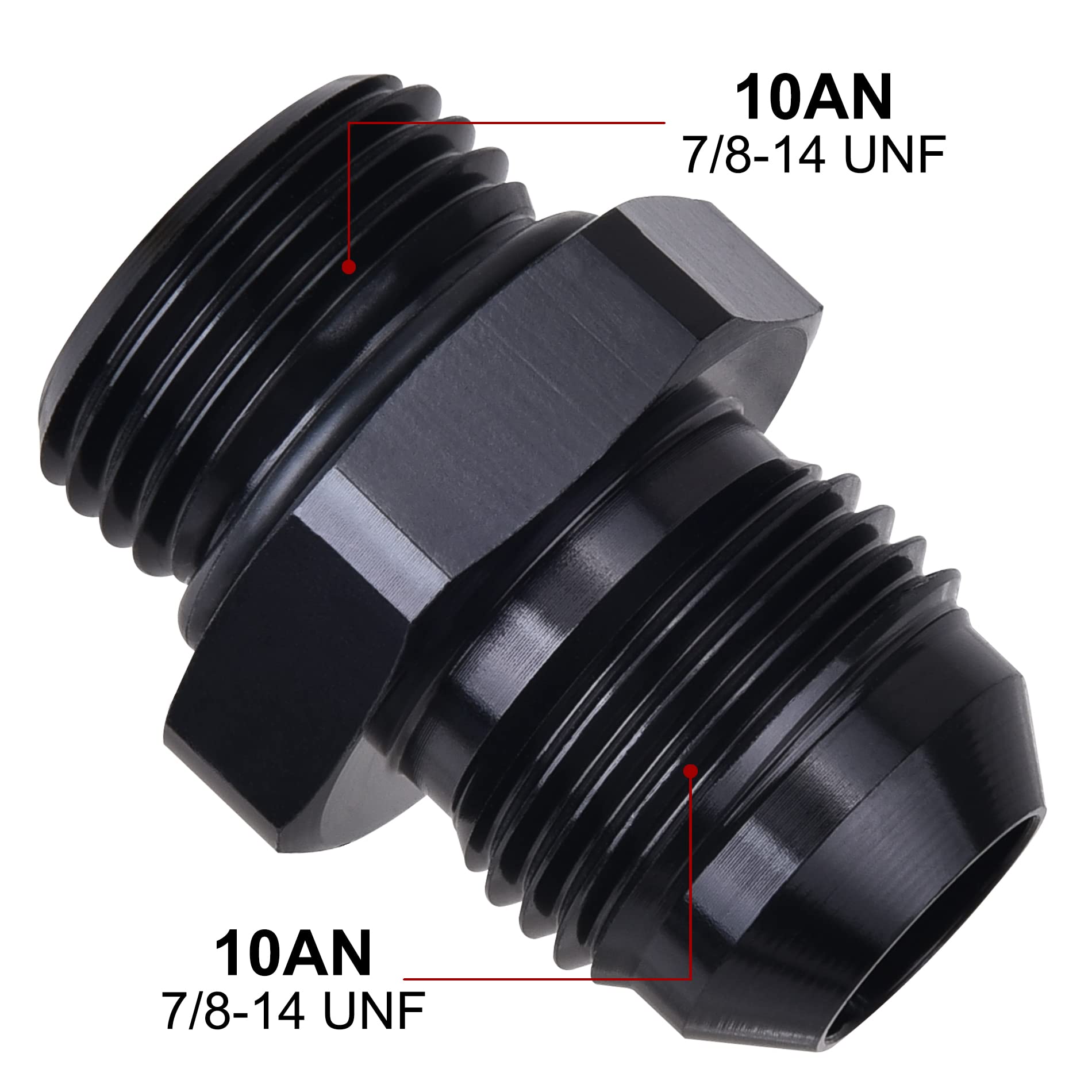

• Threading compatibility: 10AN flare to 10AN ORB with a 7/8-14 UNF flare thread for broad applicability.
• Thermal and pressure resilience: rated for up to 1500 psi and operating from -65 F to 252 F, with O ring tolerance up to 392 F.
• Rugged finish: durable matte black exterior that holds up under engine heat and exposure to automotive environments.

Key specifications at a glance

• Thread size on flare side: 10AN 7/8-14 UNF
• Seal arrangement: 37 degree flare seal on AN side; ORB seal with O ring on the other side
• Material: aluminum alloy 6061 T6; NBR O ring
• Working pressure: up to 1500 psi
• Operating temperature: -65 F to 252 F; O ring range -4 F to 392 F

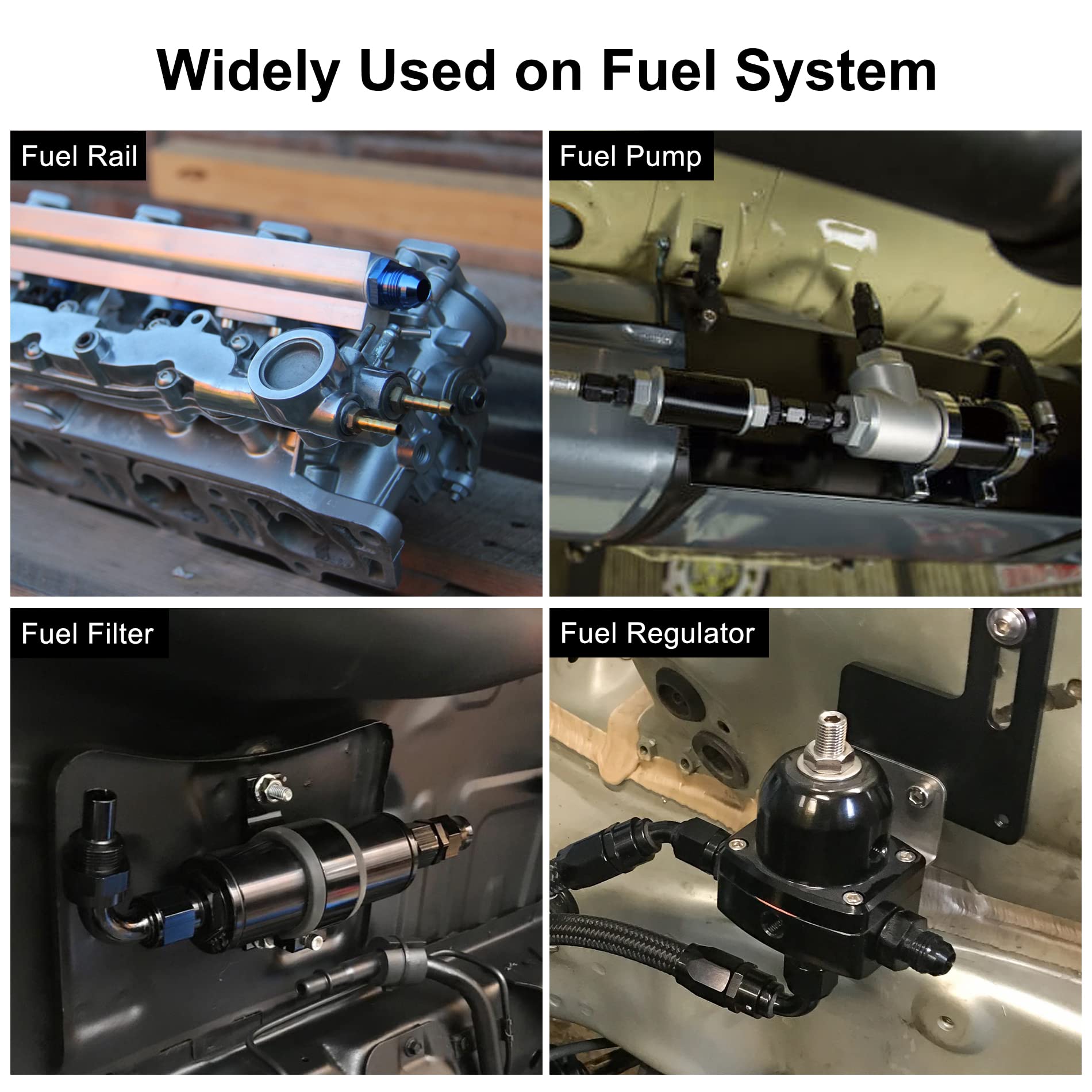

• Applications: fuel rail, oil cooler, fuel pump, fuel pressure regulator, fuel filter

Finish and usage notes: The two piece construction supports straightforward installation in many fuel system layouts. While the adapters alone do not guarantee performance improvements, they offer a reliable pathway for connecting 10AN to ORB components in environments where space and fit are important.

Real world usage ideas

• Use to upgrade an aging 10AN to ORB connection in a fuel rail or filter line
• Install in tight engine bays where a compact, durable adapter helps maintain clean routing

Careful handling and periodic inspection of seals can help maintain consistent connections over time. This adapter kit is designed to complement a range of EVIL ENERGY fittings and accessories, providing a flexible solution for custom fuel system configurations.
