EVIL ENERGY 12AN 90-Degree One-Piece Full-Flow Swivel Hose End Fitting for CPE Braided Hose
- £44.32
- £44.32
- Unit price
- per
Couldn't load pickup availability
Free UK Delivery on All Orders
Free Returns
Description
xOverview

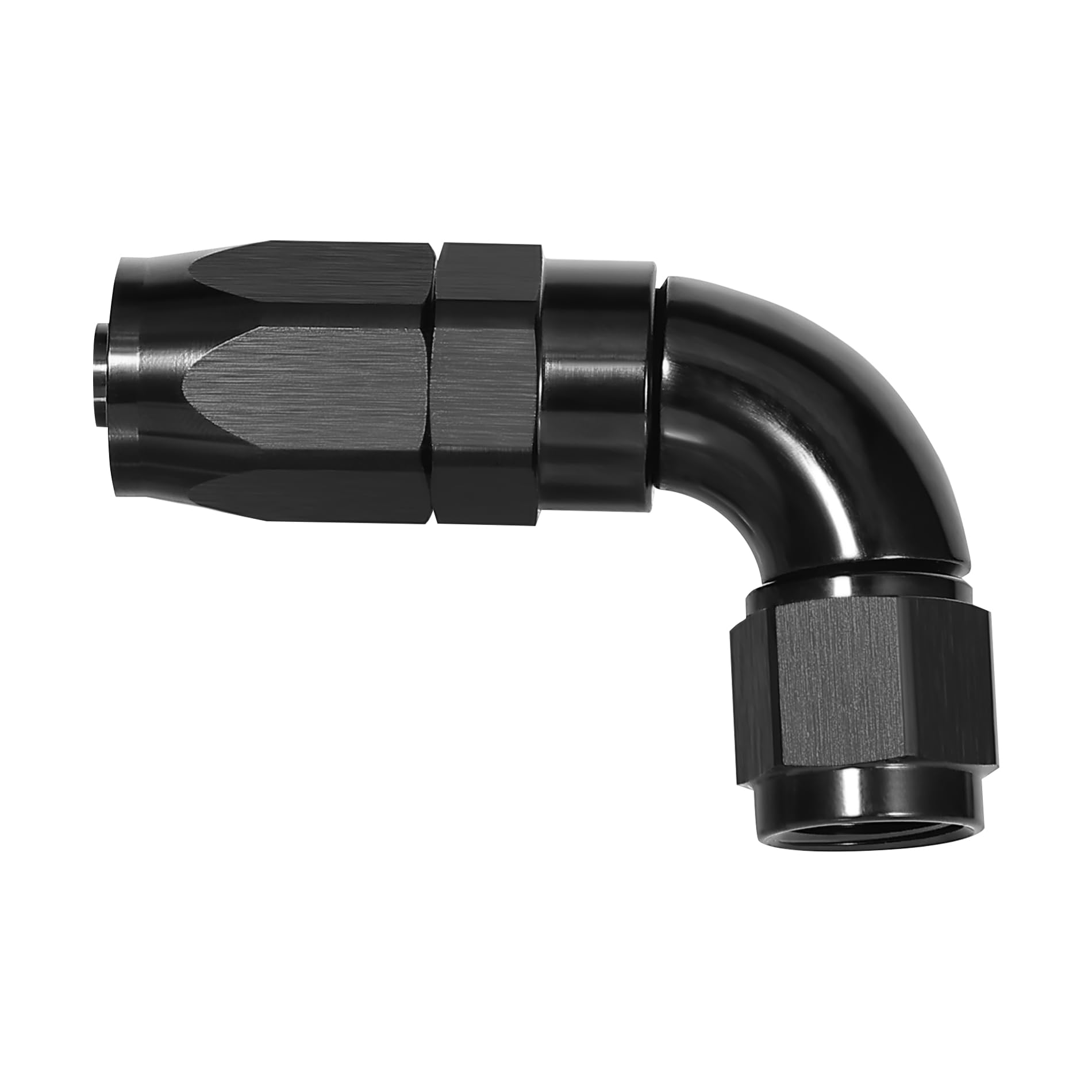

Designed for performance challenges in tight engine bays, the EVIL ENERGY 12AN 90-Degree One-Piece Full-Flow Swivel Hose End Fitting offers a compact, dependable connection between braided hoses and adapters. The all in one piece construction helps reduce leak points and simplifies installation, while the durable aluminum body presents a clean, professional finish to any build.
Key specifications

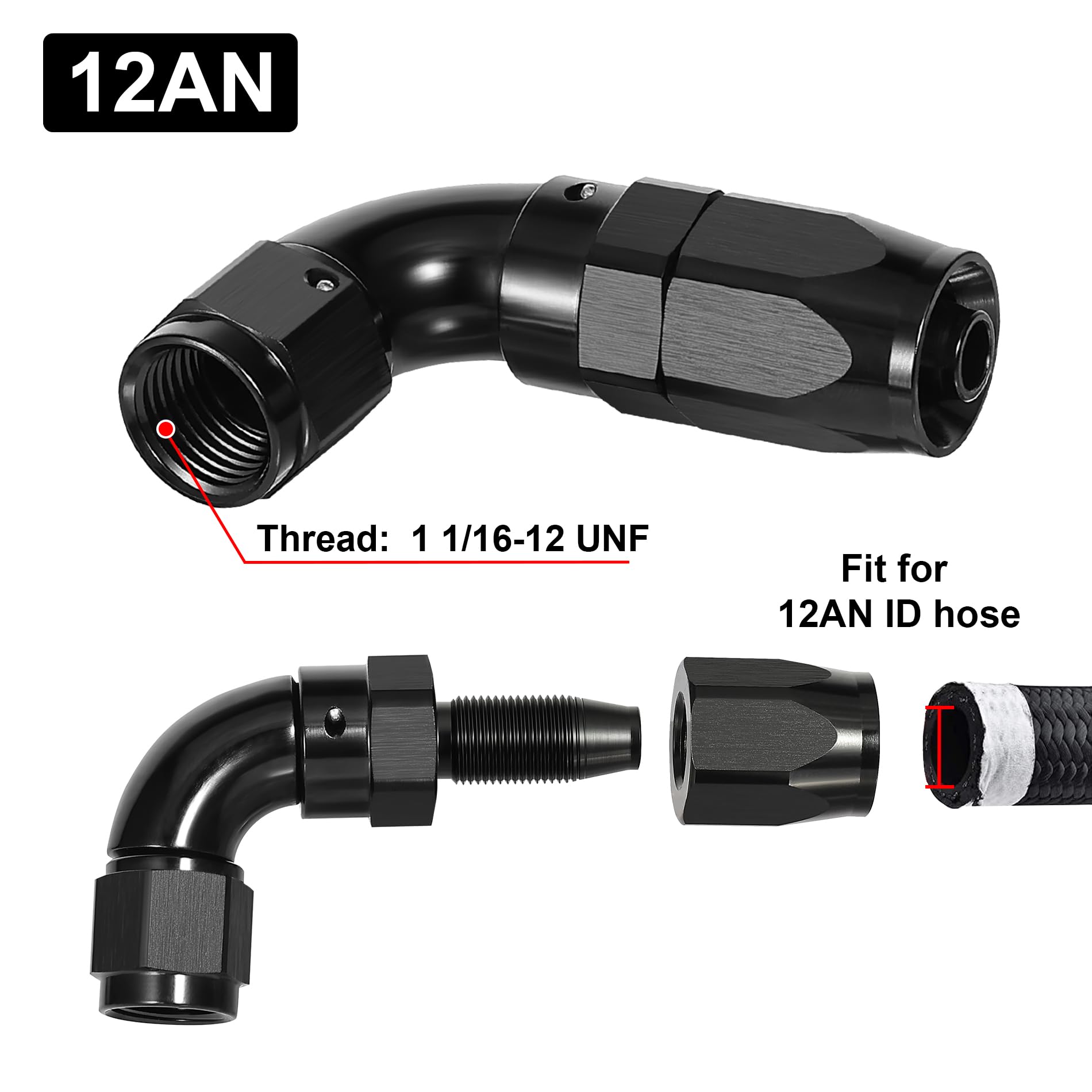

- Thread: 1 1/16-12 UNF; AN side is sealed at a 37 degree angle

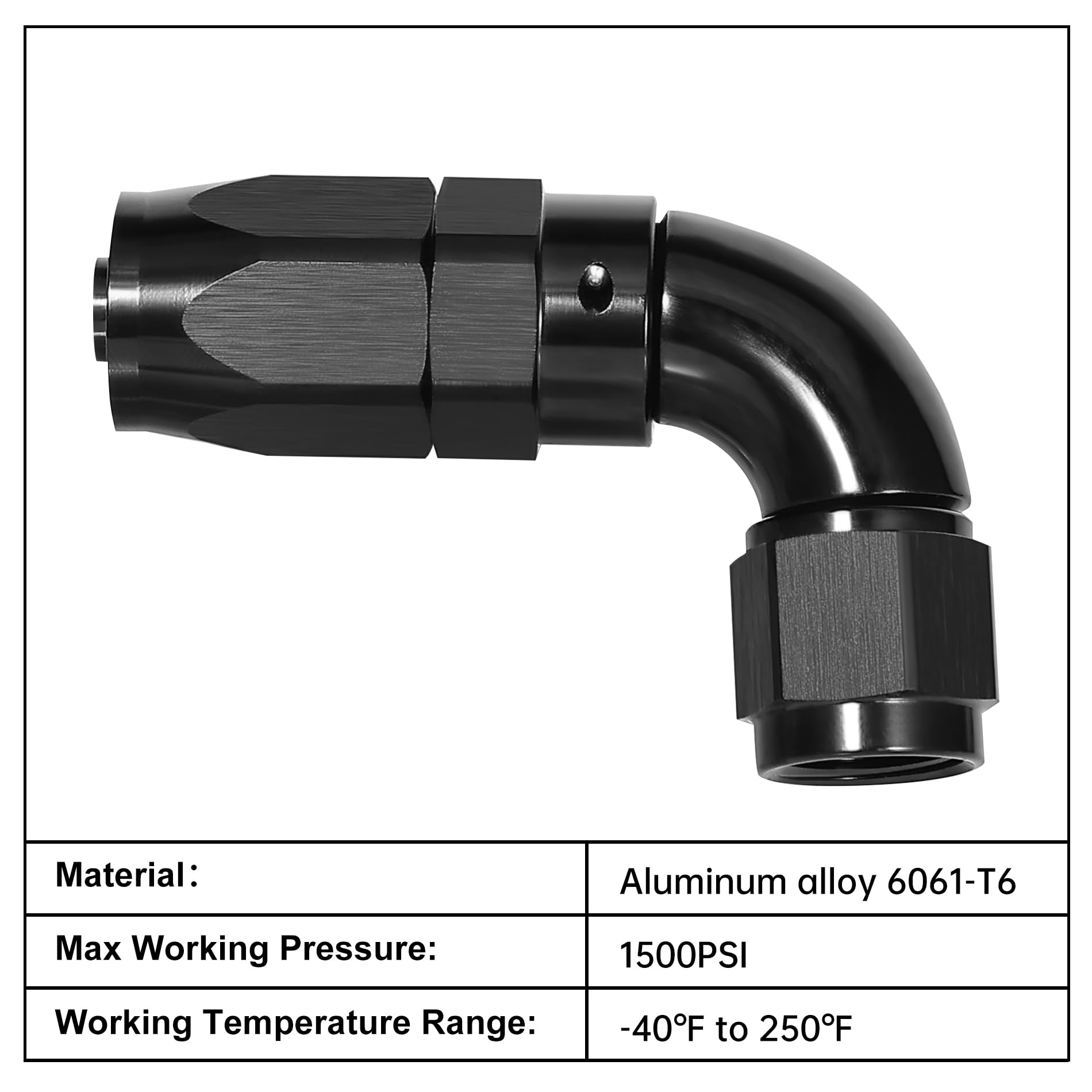

- Material: 6061-T6 aluminum alloy for strength and light weight

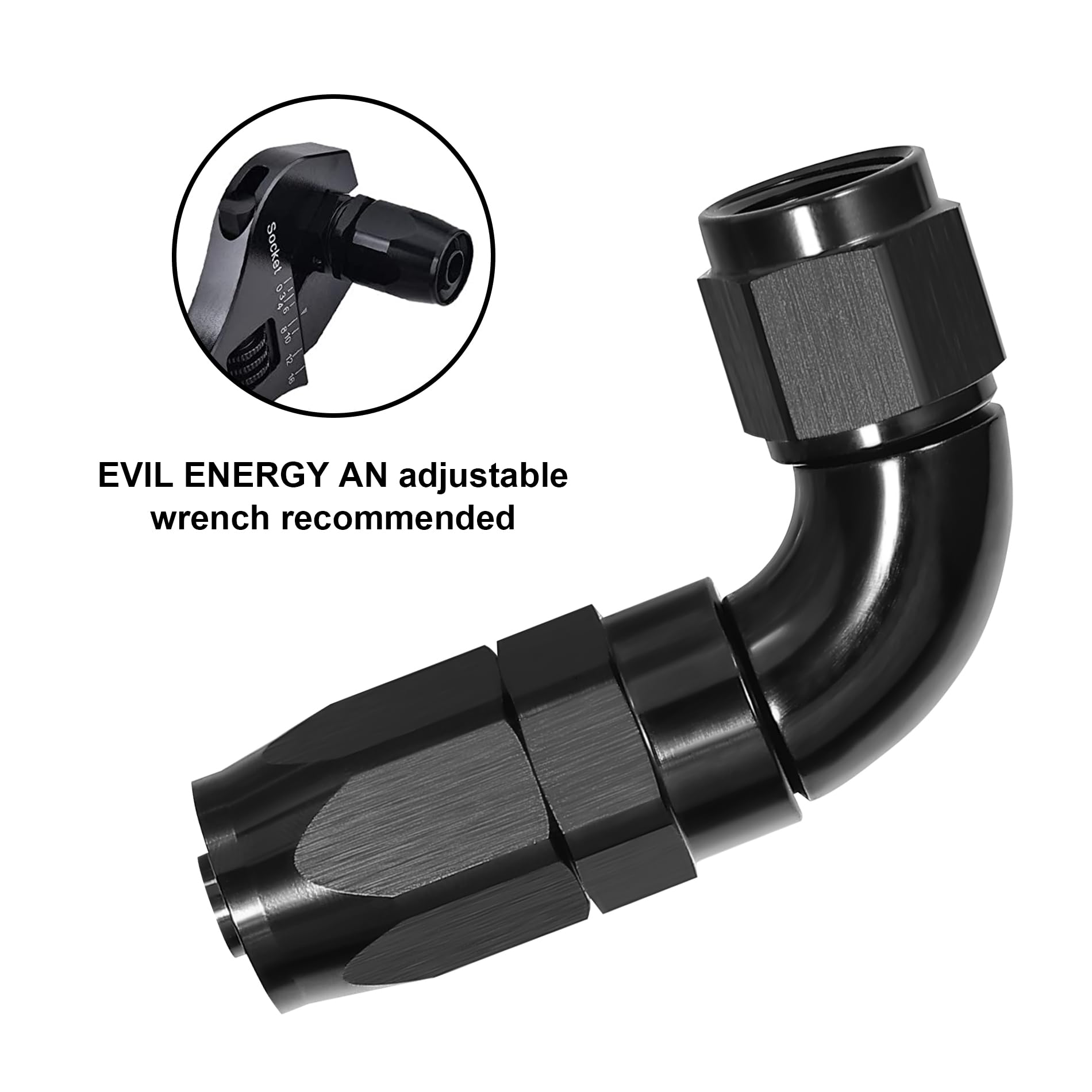

- Max working pressure: 1500 PSI; Temperature range: -40F to 250F
- Design: 90 degree, one piece full-flow construction for smoother flow
- Application: works with stainless steel braided and nylon braided hoses
Performance and compatibility
- Smooth fluid routing in tight spaces thanks to the 90 degree elbow and full-flow design
- Durable aluminum body delivers rigidity without adding excessive weight
- Sealed AN side promotes reliable connections under high pressure
- Compatibility with common braided hoses simplifies sourcing and installation
In practice, installers report cleaner hose runs, reduced clearance issues, and a professional finish when using a dedicated hose end like this. While results vary with the rest of the system, the part is positioned to contribute to a tidy, functional plumbing layout in performance builds.
Who should consider this fitting

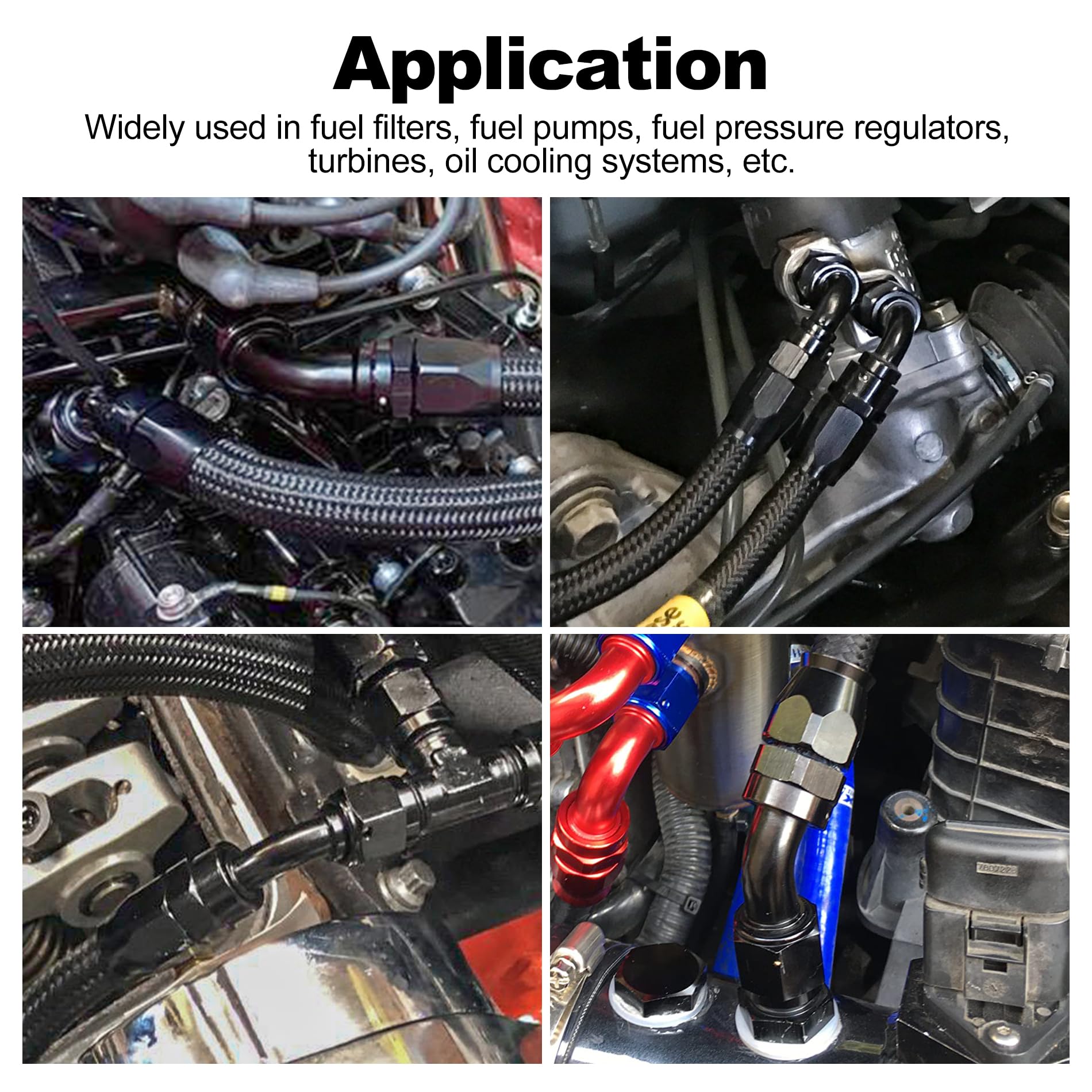

Ideal for high performance fuel, oil, or coolant line projects in cars, trucks, and racing vehicles where braided hoses are used and tight routing is required. It pairs well with CPE braided hoses that match 12AN sizing.
FAQ
Q: What are the key specifications of the EVIL ENERGY 12AN 90-Degree One-Piece Full-Flow Fitting?
A: Thread is 1 1/16-12 UNF; AN side seals at 37 degrees. 6061-T6 aluminum; max 1500 PSI; -40F to 250F; works with stainless or nylon braided hoses.
Q: Where is this fitting best used?
A: Ideal for high-performance fuel, oil, or coolant lines in automotive braided hose systems with tight routing requirements.
