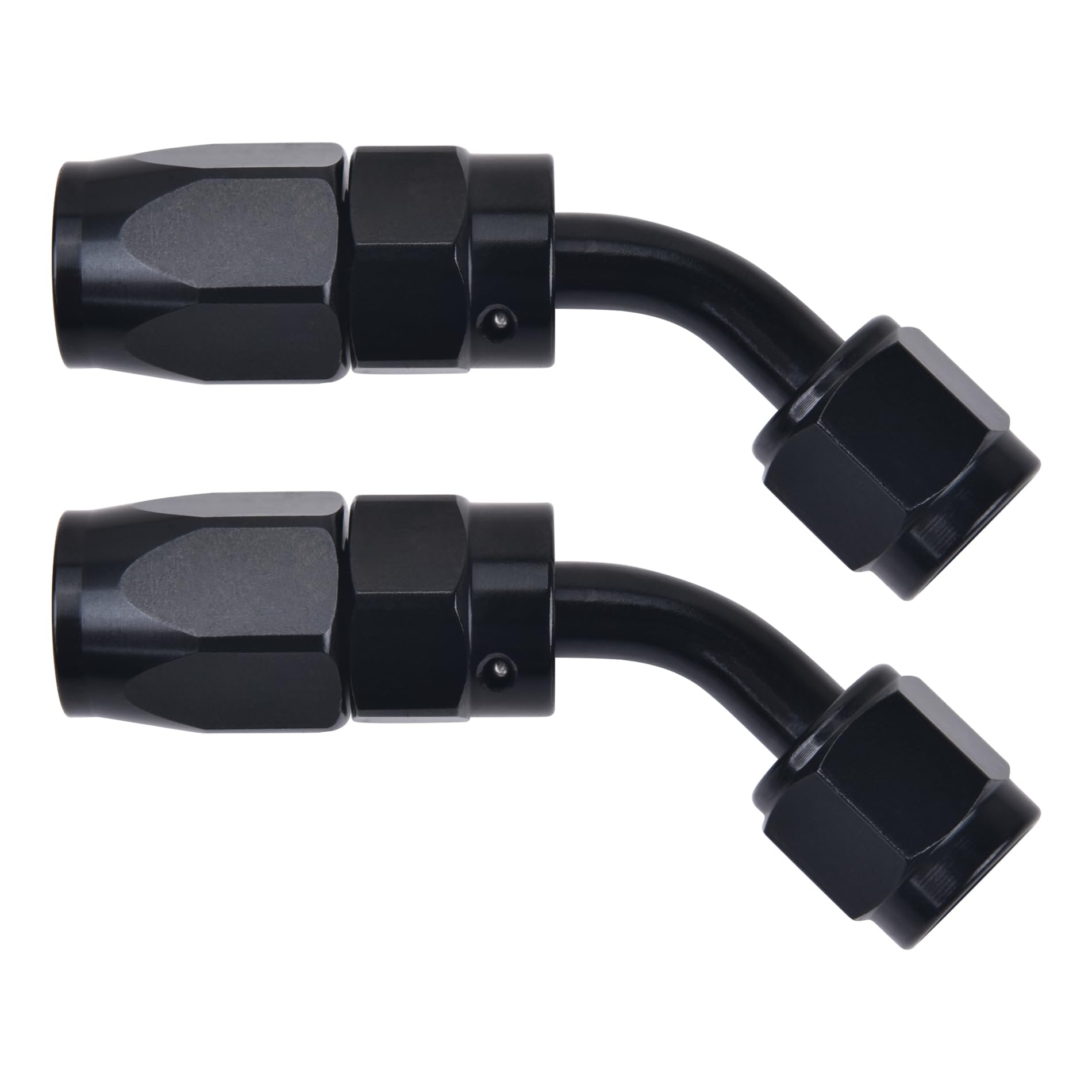

EVIL ENERGY 12AN Hose End Fitting 45° Swivel for CPE Braided Hose – 2 Pack

Overview

Meet the EVIL ENERGY 12AN Hose End Fitting with a 45 degree swivel, designed for clean, reliable connections to CPE braided hoses. This durable 2 pack helps you achieve neater routing in tight spaces while supporting dependable performance across a range of configurations. The fittings emphasize ease of handling, reuse, and recyclability, making them a practical addition to your upgrade kit without overpromising results.

Key features

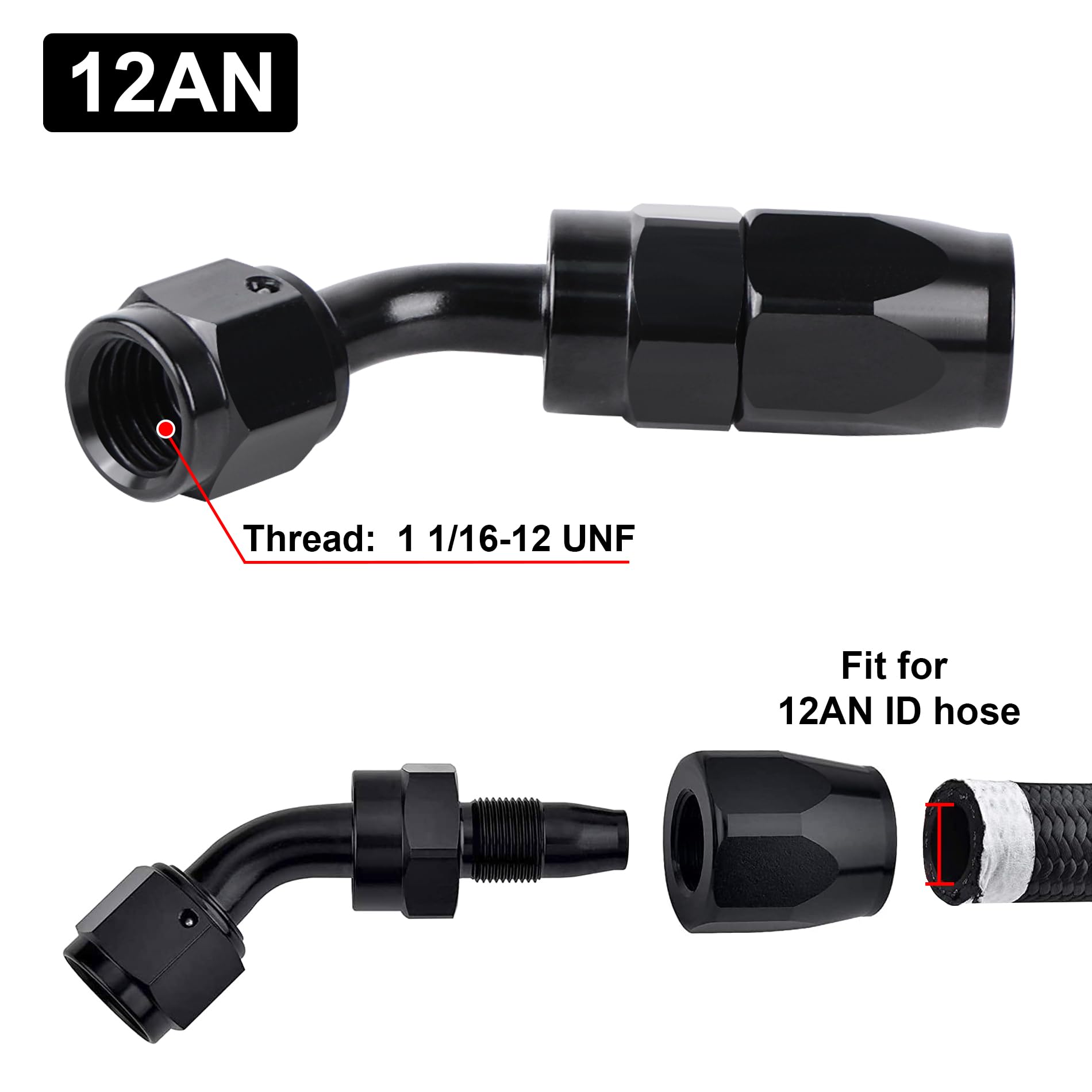

• Thread size: 1 1/16-12 UNF; the AN side uses a 37 degree seating angle for a tight seal.

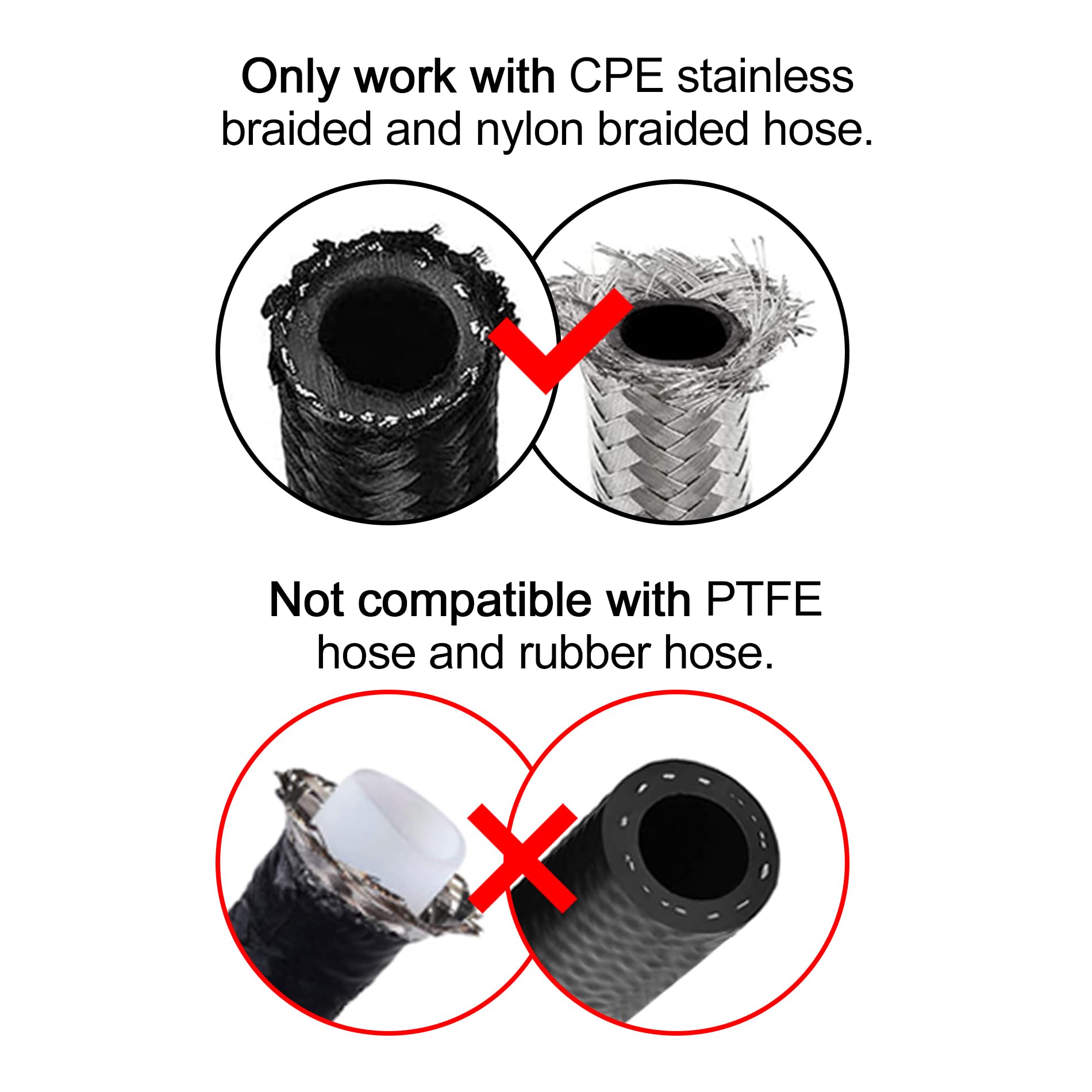

• Compatibility: works with stainless steel braided and nylon braided hoses for flexible upgrades.
• Material: constructed from 6061-T6 aluminum alloy for a balance of strength and light weight.
• Performance: maximum working pressure rated up to 1,500 PSI with a wide operating temperature range.

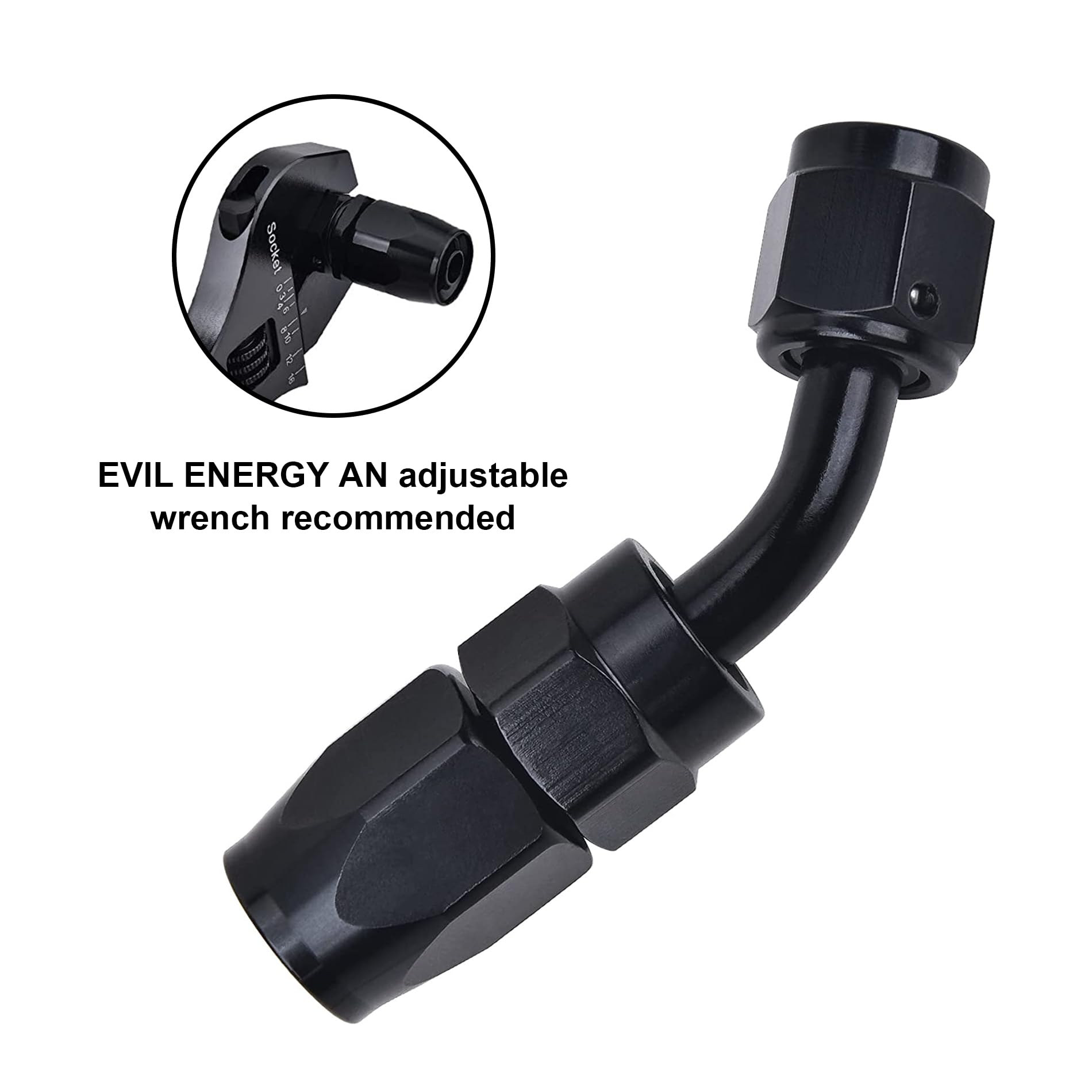

• Design: 360° swivel enables effortless alignment during assembly and convenient adjustments on install day.
• Eco friendly: reusable and recyclable, supporting sustainable maintenance of your hose assemblies.

Materials and durability

The 6061-T6 aluminum body delivers reliable durability while keeping overall mass low. This makes it suitable for installations where weight savings and rigid construction matter, such as automotive, racing, or industrial hose routing scenarios. The 37 degree seating at the AN side helps promote a solid seal in typical braided hose systems, contributing to cleaner appearances and fewer nuisance leaks over time.

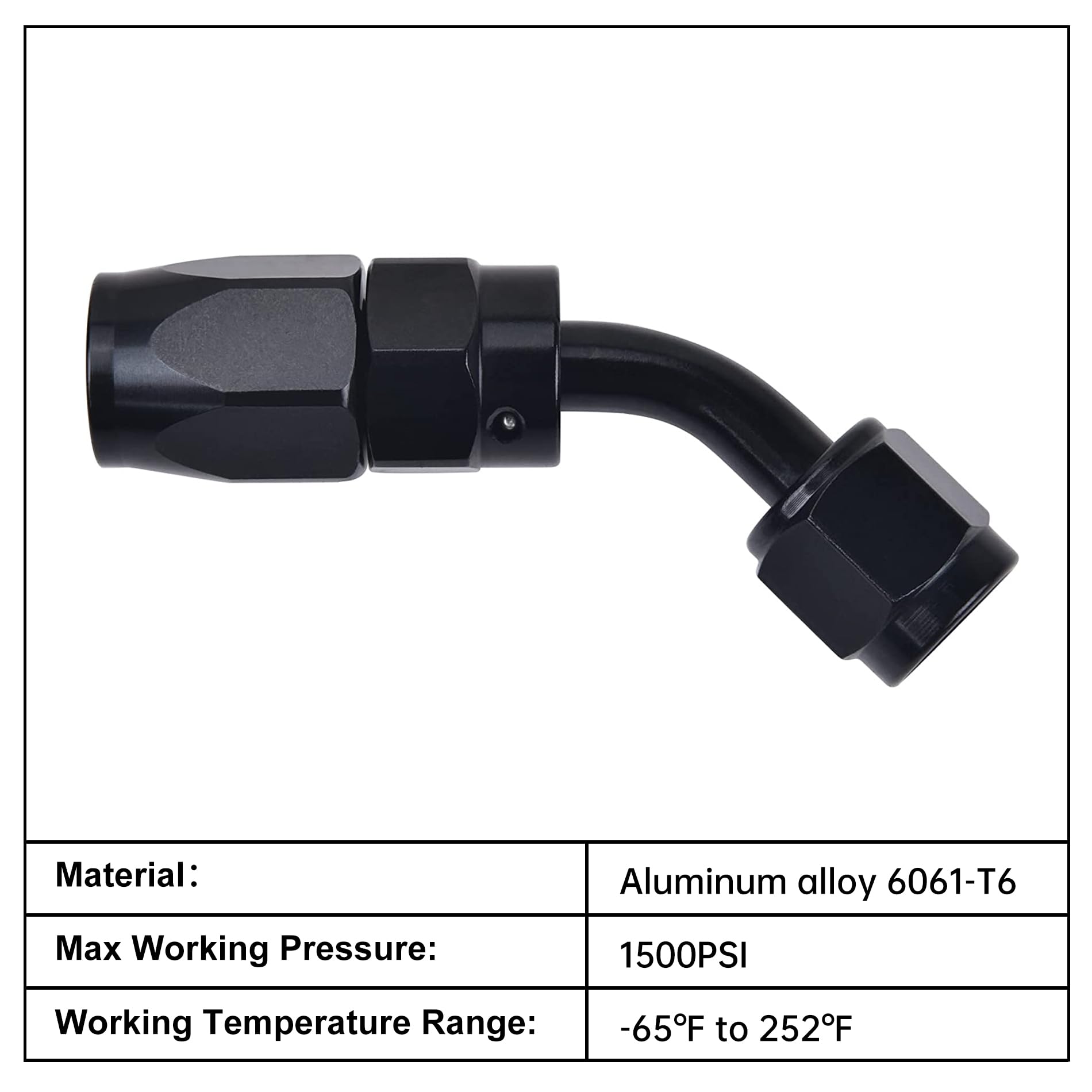

Technical specs at a glance

• Thread: 1 1/16-12 UNF
• AN side seating: 37 degree angle
• Hose compatibility: stainless steel braided and nylon braided hoses
• Material: 6061-T6 aluminum alloy
• Max PSI: 1,500
• Temperature range: -65°F to 252°F
• Swivel: 360 degree rotation
• Pack contents: 2 fittings per package

Real world use and tips

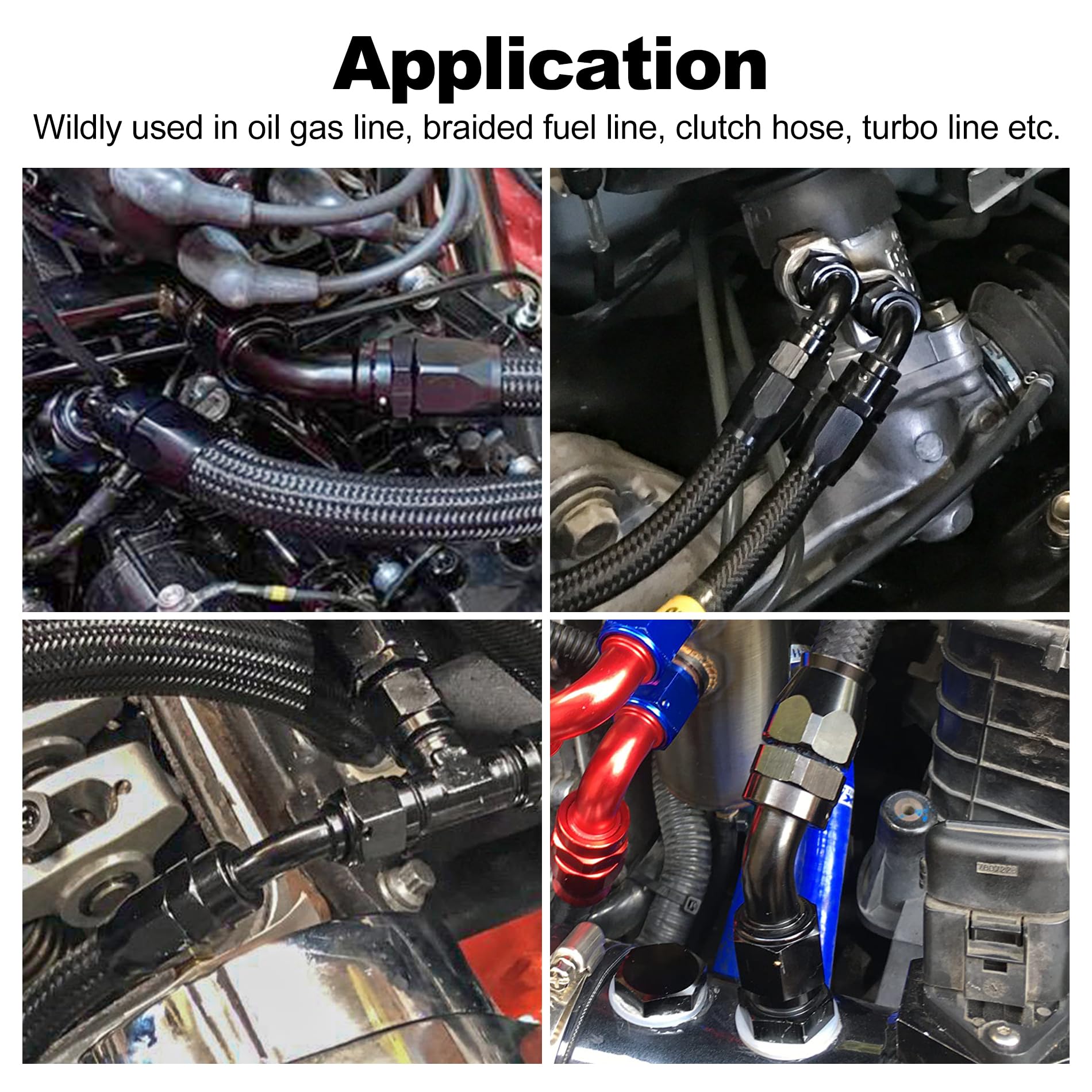

When routing hoses around engine bays, frames, or brackets, the 45 degree bend reduces strain and helps avoid sharp kinks. The 360 degree swivel makes it easier to align the AN thread with precision, even in confined spaces. For best results, pair with compatible braided hoses and confirm the overall assembly remains within the 1,500 PSI limit and temperature range of the system.

Tips for installation include minimal thread torque to avoid over tightening, checking for proper seating, and ensuring the hose ends are clean prior to connection. The fittings can be reused across projects with compatible hoses, supporting a streamlined upgrade workflow.

Care and sustainability

Regular inspections of threads and seating surfaces help maintain performance. The aluminum body is designed for multiple uses and, when replaced, the fittings can be recycled, aligning with sustainable maintenance practices for your hose networks.
