EVIL ENERGY 12AN Straight Swivel Hose End Fitting Black – 2PCS for CPE Braided Hose
- £35.00
- £35.00
- Unit price
- per
Couldn't load pickup availability
Free UK Delivery on All Orders
Free Returns
Description
xOverview

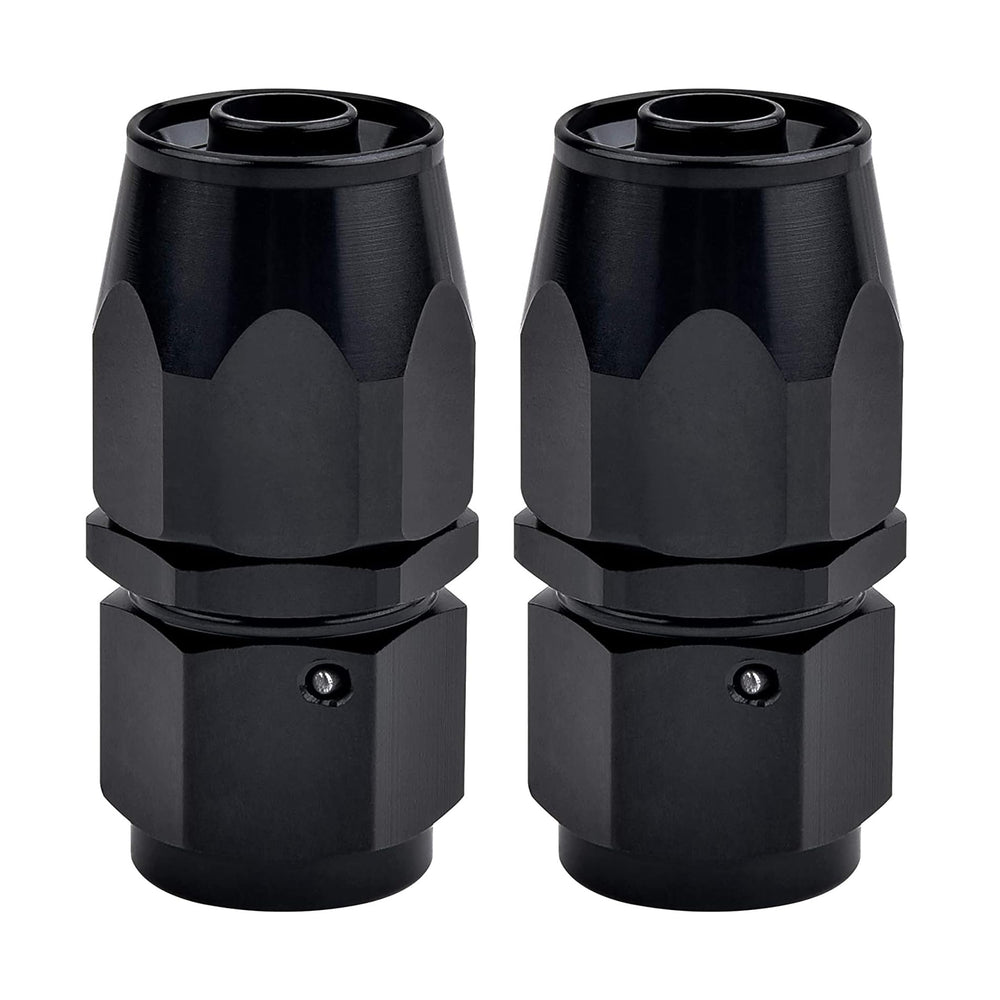

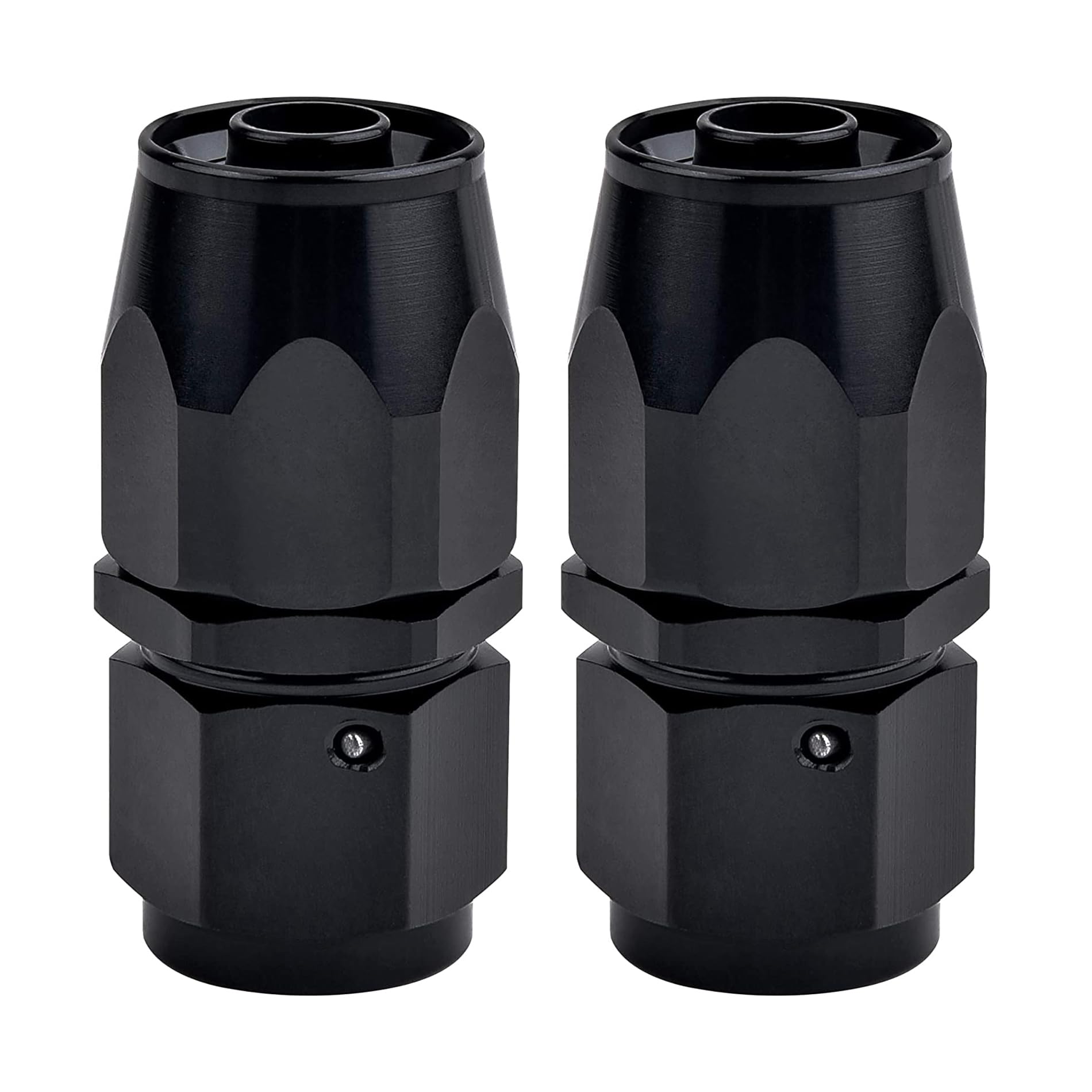

EVIL ENERGY delivers a compact, high‑performing 12AN straight swivel hose end fitting in a sleek black finish. Designed to connect CPE braided hoses, it combines a 1 1/16-12 UNF thread with an AN seal that employs a 37 degree seating surface for a clean, reliable fit. The 360 degree swivel feature helps streamline routing, making installation smoother in tight spaces while reducing tension on hoses during operation. Constructed from durable 6061 T6 aluminum alloy, this fitting balances strength with lightweight handling, which is especially helpful in performance builds where weight matters.
In use, the straight swivel design minimizes line kinks and simplifies rework, so you can adjust layouts without sacrificing a secure seal. The combination of material choice and precision machining provides a robust connection that can handle demanding environments, from automotive upgrades to marine or industrial applications, while keeping a low profile on the engine bay or hardware deck.
Key specs

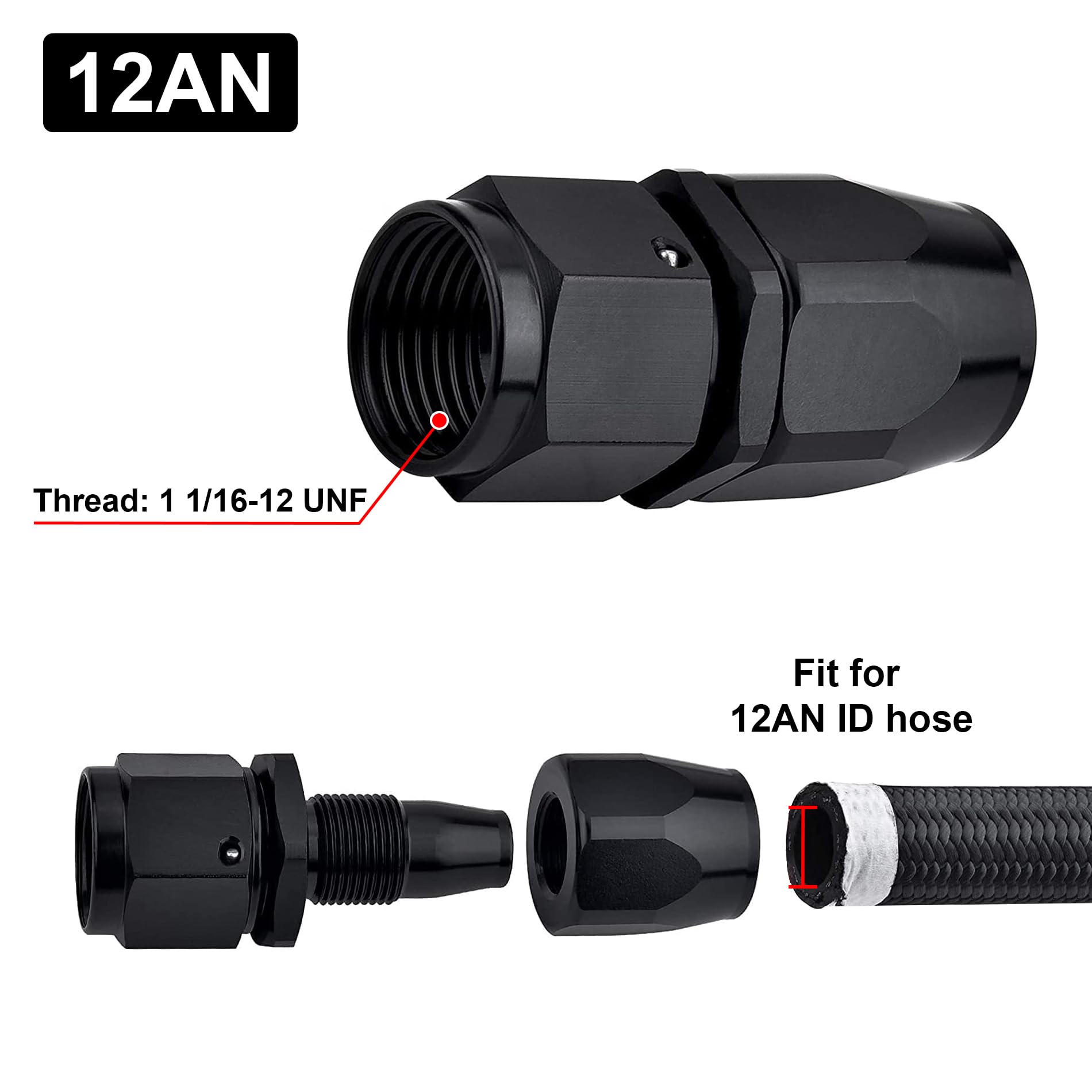

- Thread size and seal: 12AN with 1 1/16-12 UNF and a 37 degree AN seating surface
- Material: 6061 T6 aluminum alloy for strength with light weight
- Swivel: 360 degree design for easy positioning and assembly
- Compatibility: works with stainless steel braided and nylon braided hoses

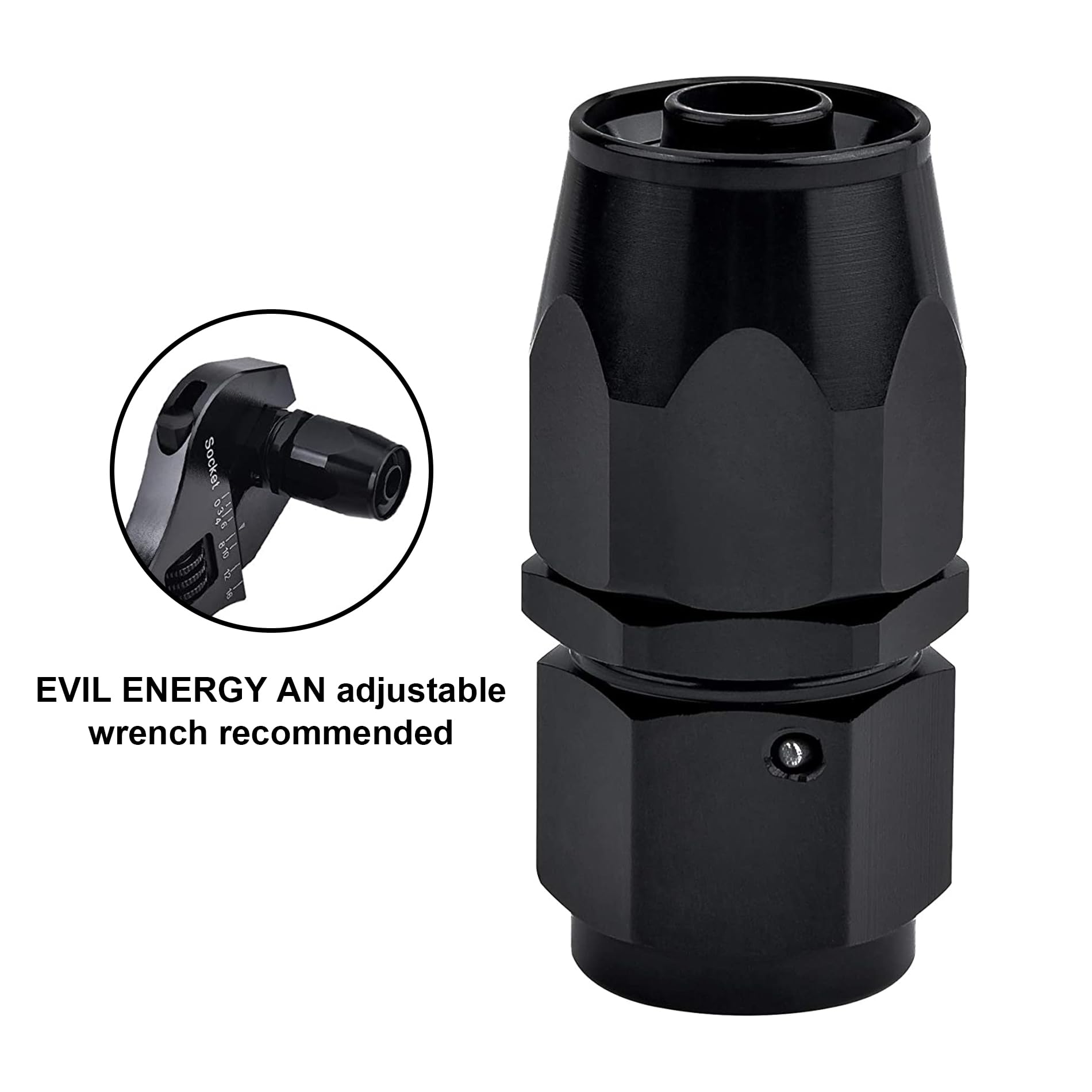

- Maximum pressure: up to 1,500 PSI
- Operating temperature: -40 F to 248 F
Practical uses

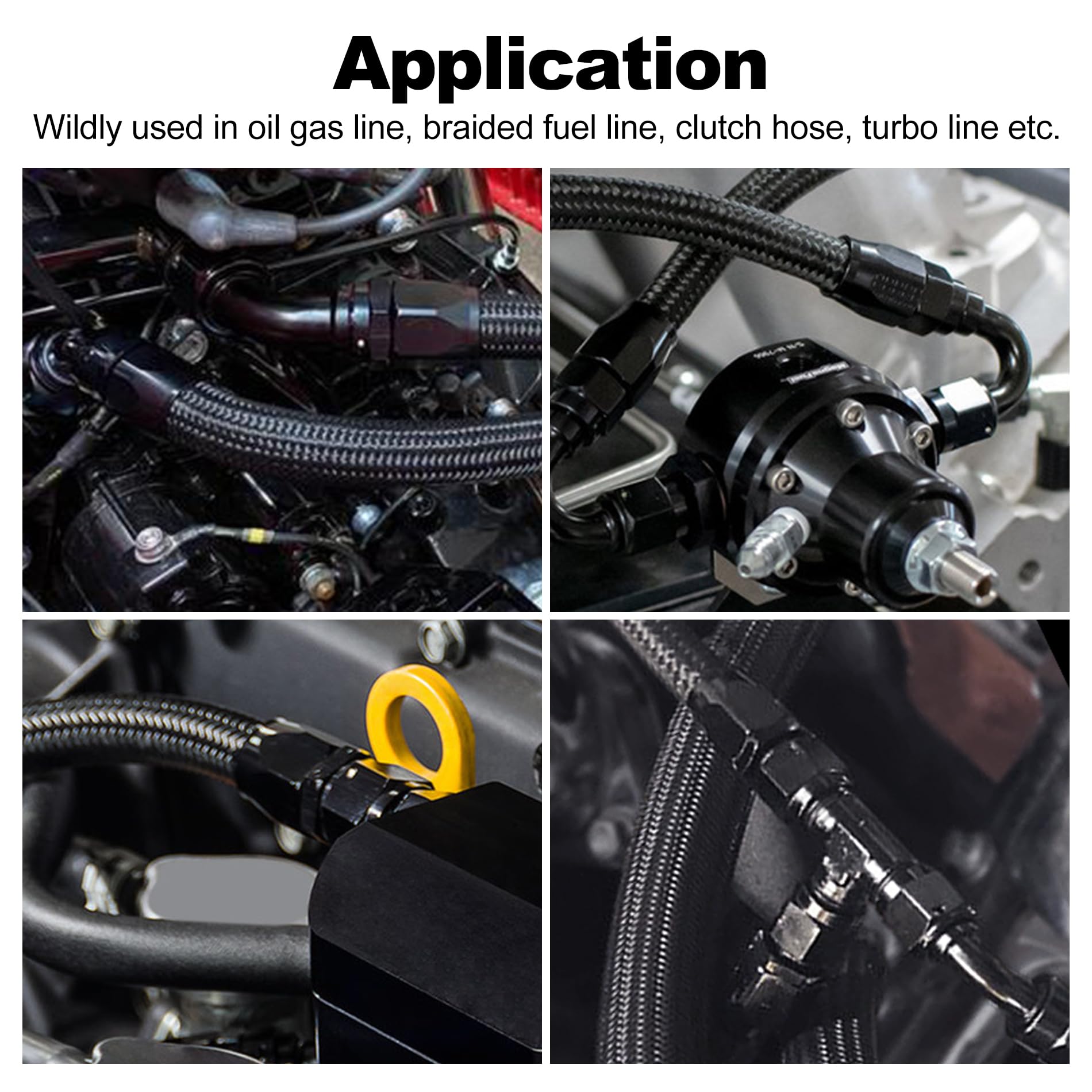

- Automotive and performance builds where space is tight and routing matters
- High pressure fuel, oil, or hydraulic lines that benefit from flexible positioning
- Marine or industrial installations requiring a reliable, reusable swivel connection
- DIY projects where quick disassembly and reassembly are convenient
What’s in the box
- 2 x EVIL ENERGY 12AN straight swivel hose end fittings in black
Care and notes
The design is reusable and recyclable, supporting sustainable practices. This description highlights possibilities based on the listed specifications; actual performance can vary with the broader system setup and installation quality.
FAQ
Q: What is the thread size of the EVIL ENERGY 12AN hose end fitting?
A: The thread is 1 1/16-12 UNF; the AN side seals with a 37-degree seating surface.
Q: Which hoses are compatible with this swivel fitting?
A: Designed for stainless steel braided and nylon braided hoses.
