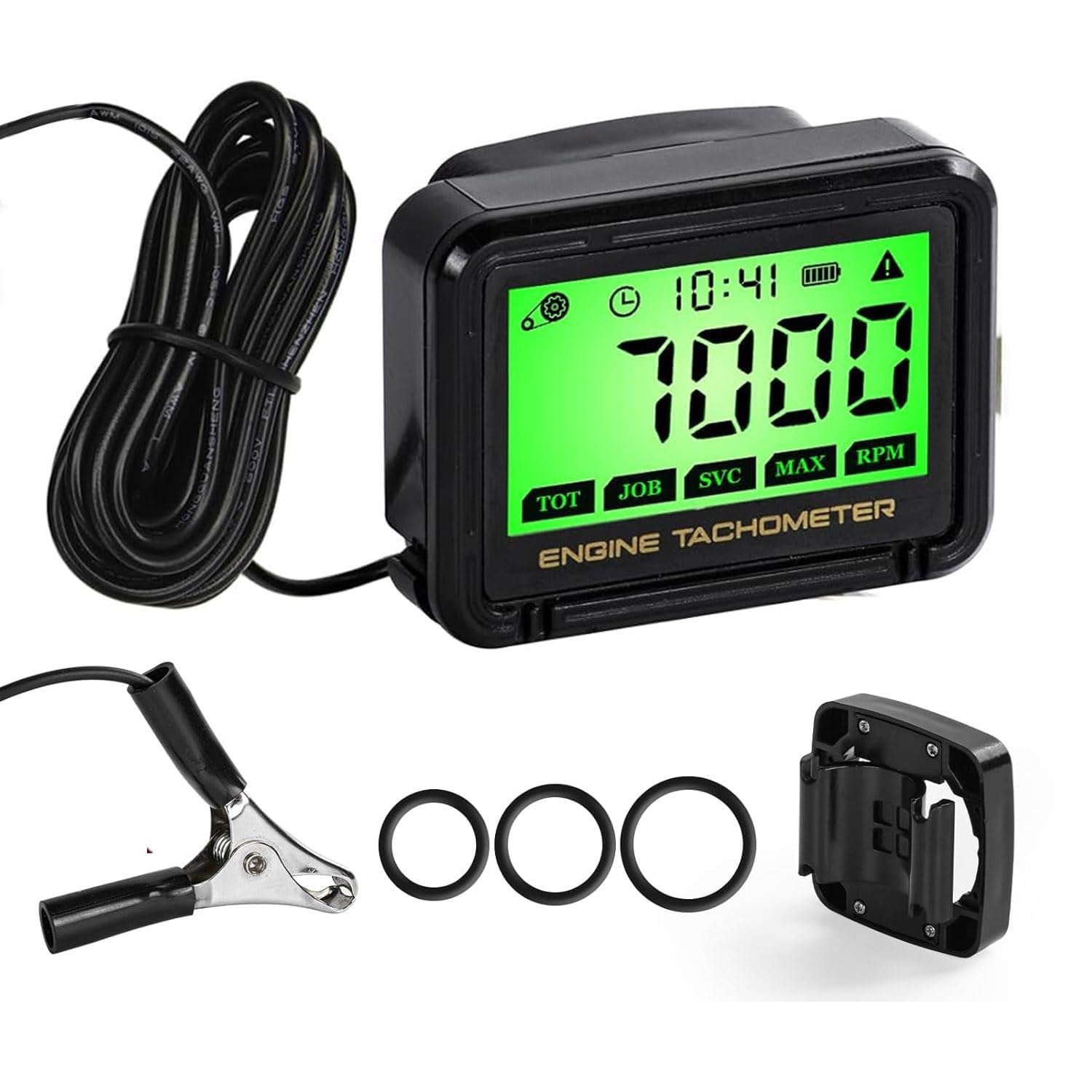

HTPREC Digital Chainsaw Tachometer – Green Backlit RPM Gauge for Small Engines (ATV, Lawn Mower, Dirt Bike)

Overview

HTPREC presents a compact digital tachometer designed for small engines and portable machines. Its clear LCD display with a bright green backlight stays readable in busy workshops or shaded outdoors, helping you monitor engine speed with confidence. The device is built to integrate smoothly with a range of equipment—from lawn mowers to dirt bikes and small watercraft—so you can rely on a single tool for routine RPM checks and maintenance planning.

Key capabilities

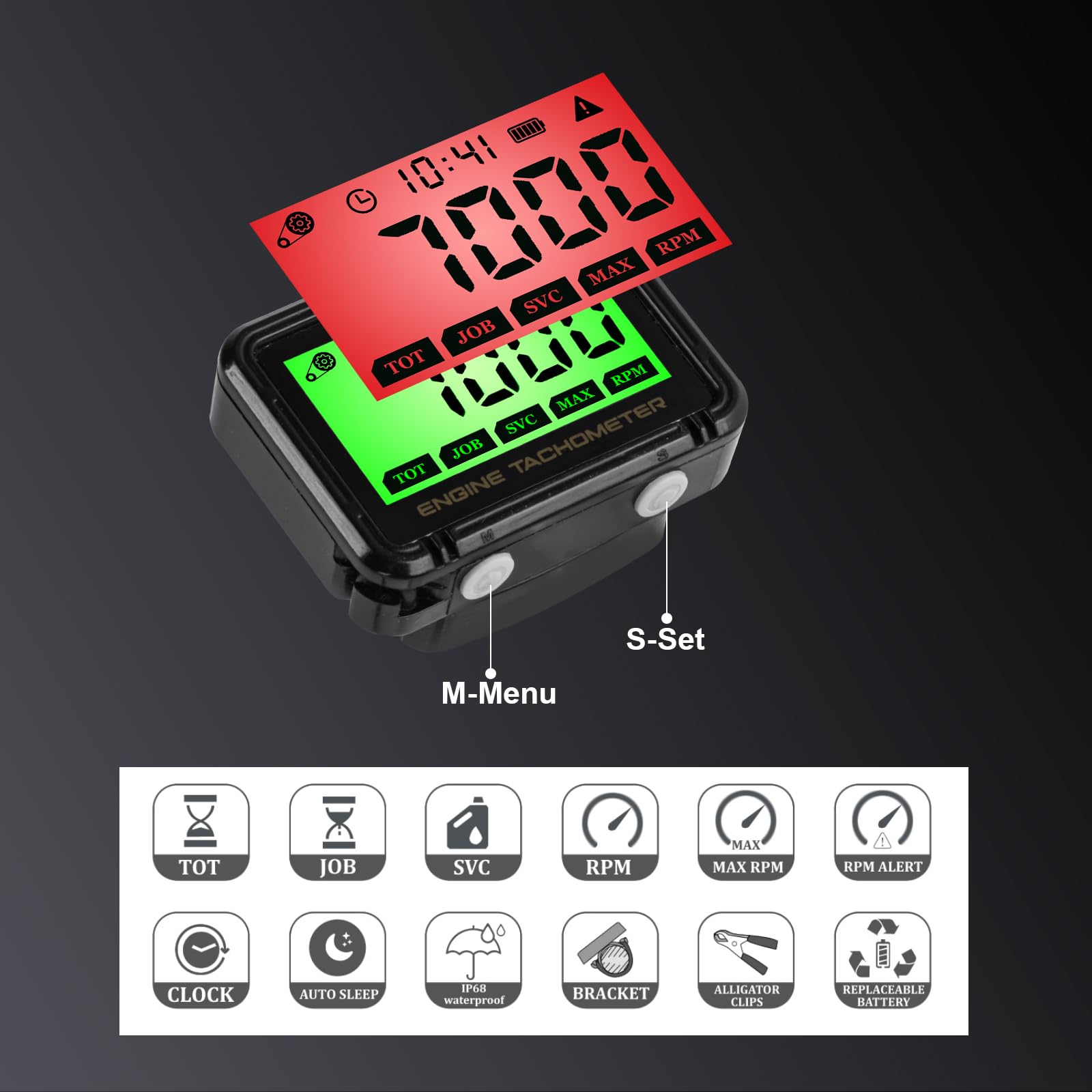

Designed with a multifunction interface, this tachometer offers TOT, JOB, SVC, MAX RPM, RPM mode setting, RPM Alarm, CLOCK, Battery and memory functions, Auto sleep, and Reset. The RPM range starts at 0 and extends to 18,000 RPM in the standard 02 mode, with an enhanced 03 mode reaching up to 36,000 RPM for higher-performance checks. A robust signal pickup lets you capture signals from the spark plug wire safely, providing accurate readings without complicated wiring.

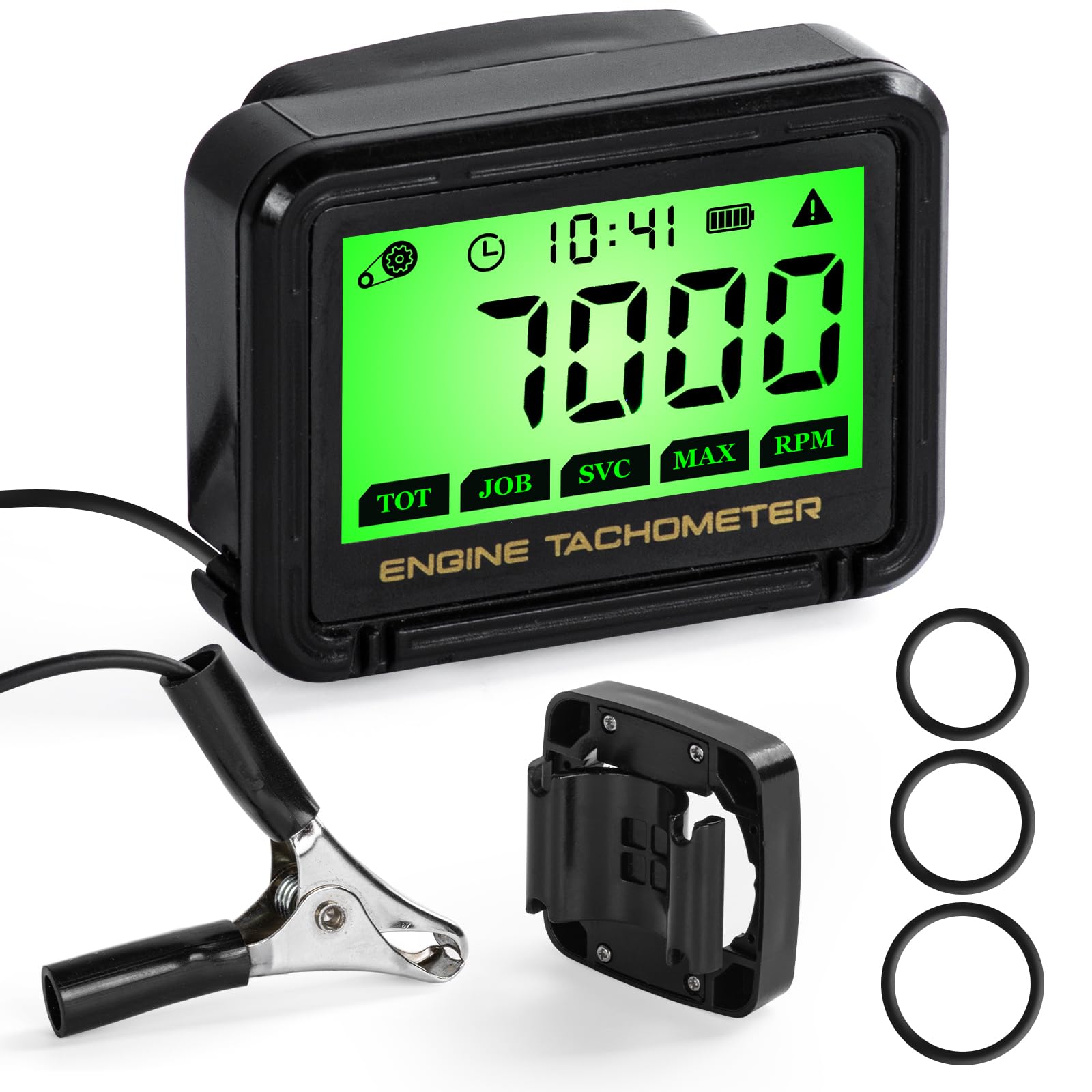

The display is more than a number readout. It includes a configurable backlight system (green by default and red for alerts) and a practical power management setup. When the engine stops, the unit conserves energy by powering down; when the engine runs, it automatically resumes testing, so you can focus on the task at hand rather than on data gathering.

Backlight and power saving

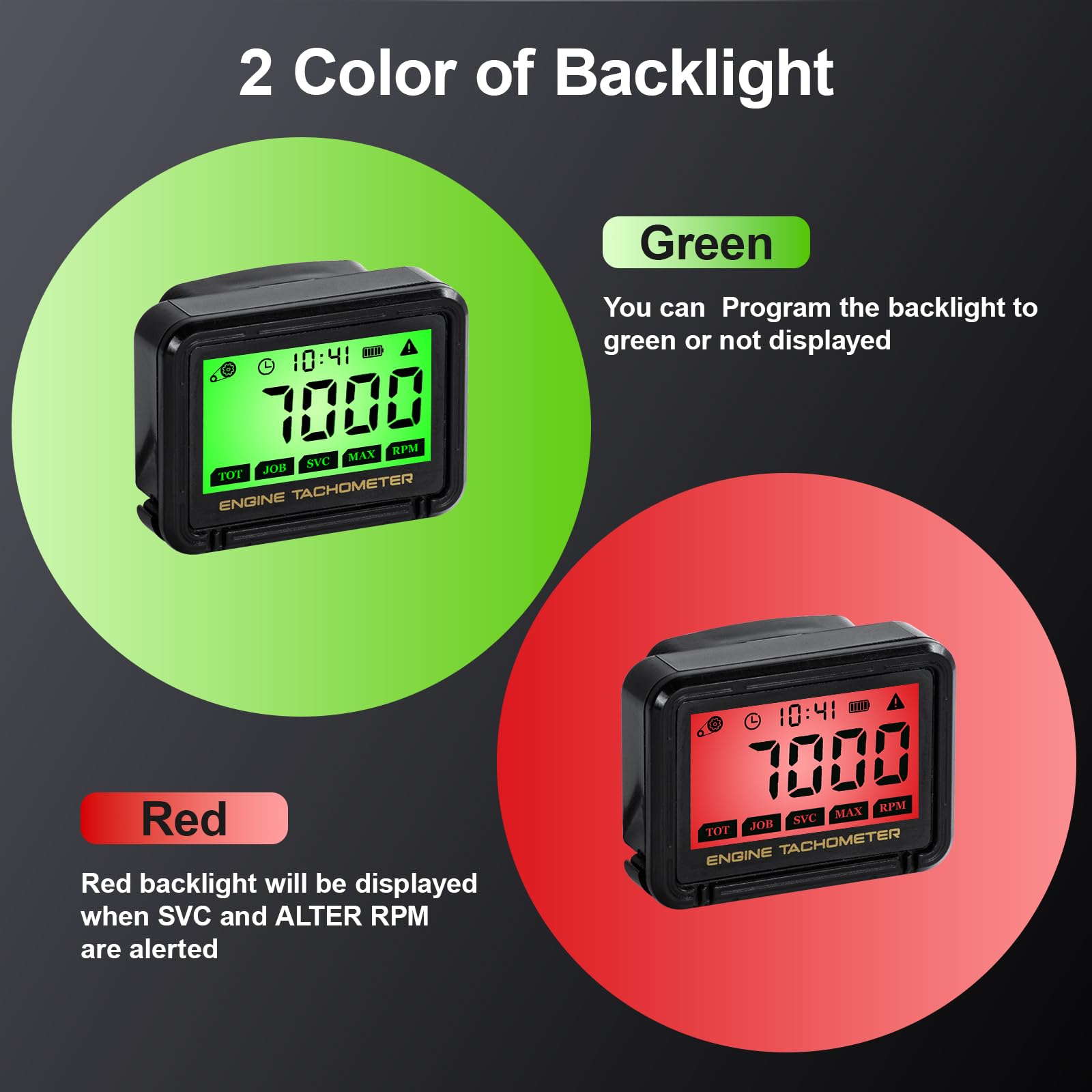

The green backlight supports readability in dim garages or during dawn and dusk sessions, while the red backlight serves as a non-intrusive alert cue when RPM or temperature readings exceed a preset threshold. The battery is replaceable, enabling extended use without frequent replacements and simplifying long-term maintenance planning.

Installation and compatibility

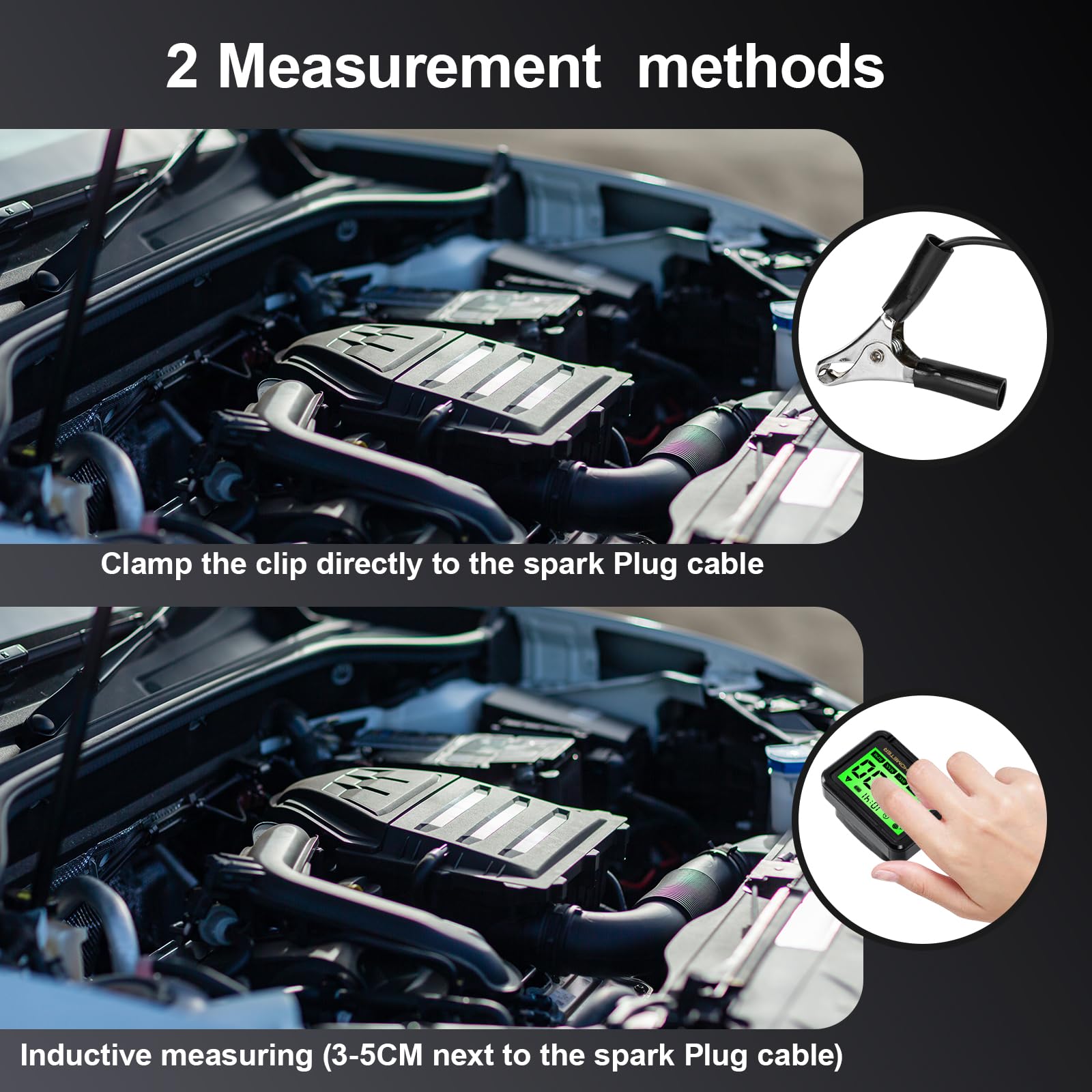

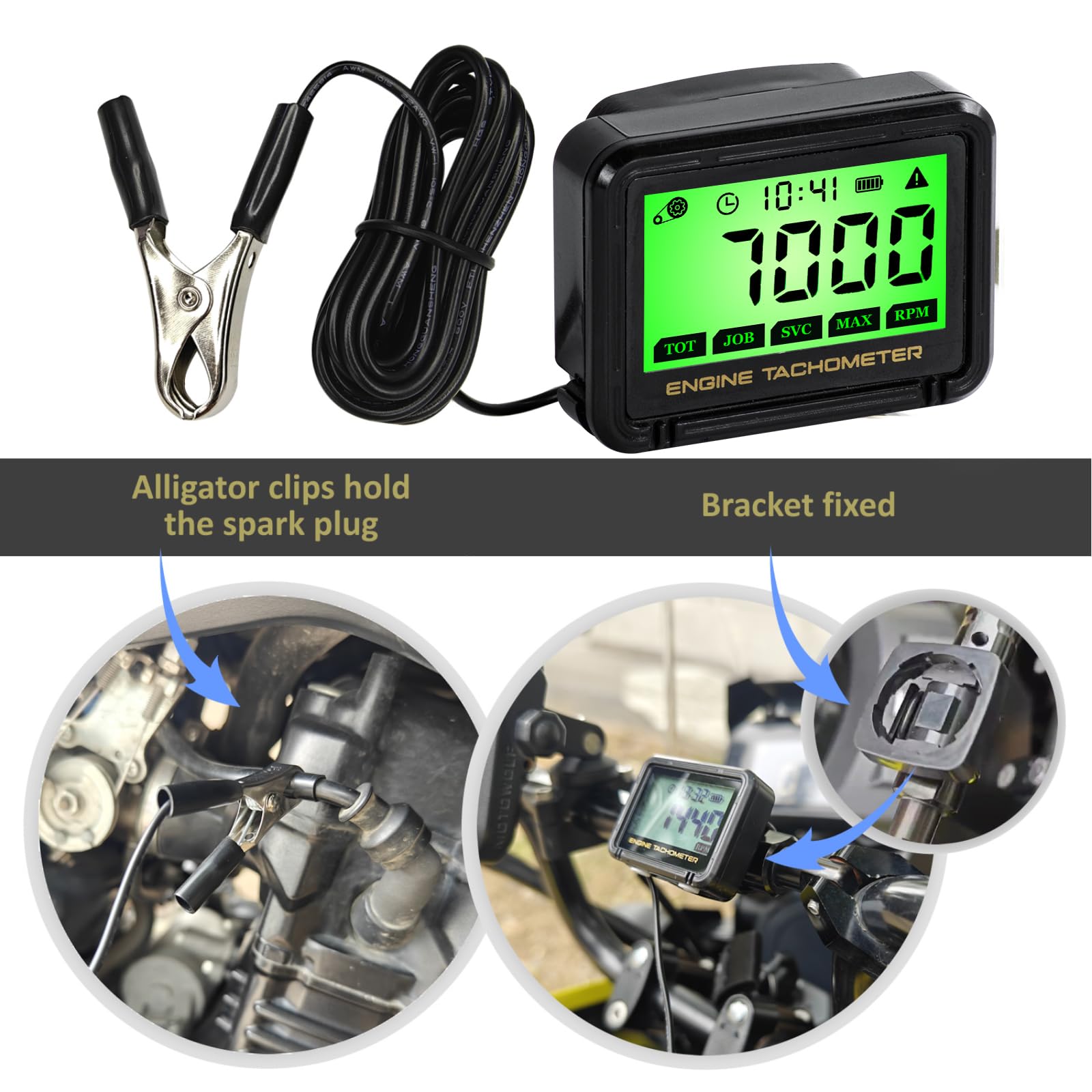

Installation is straightforward: clamp the signal pickup wire to the spark plug lead, secure the unit, and power it with the replaceable battery. The tachometer is suitable for a broad set of gasoline engines—1 to 8 cylinders, including both 2-stroke and 4-stroke configurations—making it a versatile maintenance companion for lawn mowers, generators, crop machines, motorcycles, ATVs, outboards, dirt bikes, boats, and other small engines.

Real-world use cases

Use it to monitor RPM during cold starts, track shifts in throttle response, or observe engine performance during routine service. With clear readings and versatile modes, you can approach maintenance with data-driven insight while keeping workflow simple and efficient.

• Multifunction RPM tachometer with RPM alarm, clock and memory for organized maintenance records
• Wide RPM range (0–18,000 RPM standard; up to 36,000 RPM in extended mode) for diverse engines
• Green backlight for day and night readability, plus red alert lighting for critical readings

• Plug-and-play installation using the spark plug wire clamp for safe signal capture
• Replaceable battery design supports extended use and easy field maintenance
• Broad compatibility with lawn mowers, ATVs, dirt bikes, outboard motors, and more
