iRhapsody 80/60A 12V SPDT Relay Kit, 6-Pack — Heavy-Duty Automotive Relays

Overview

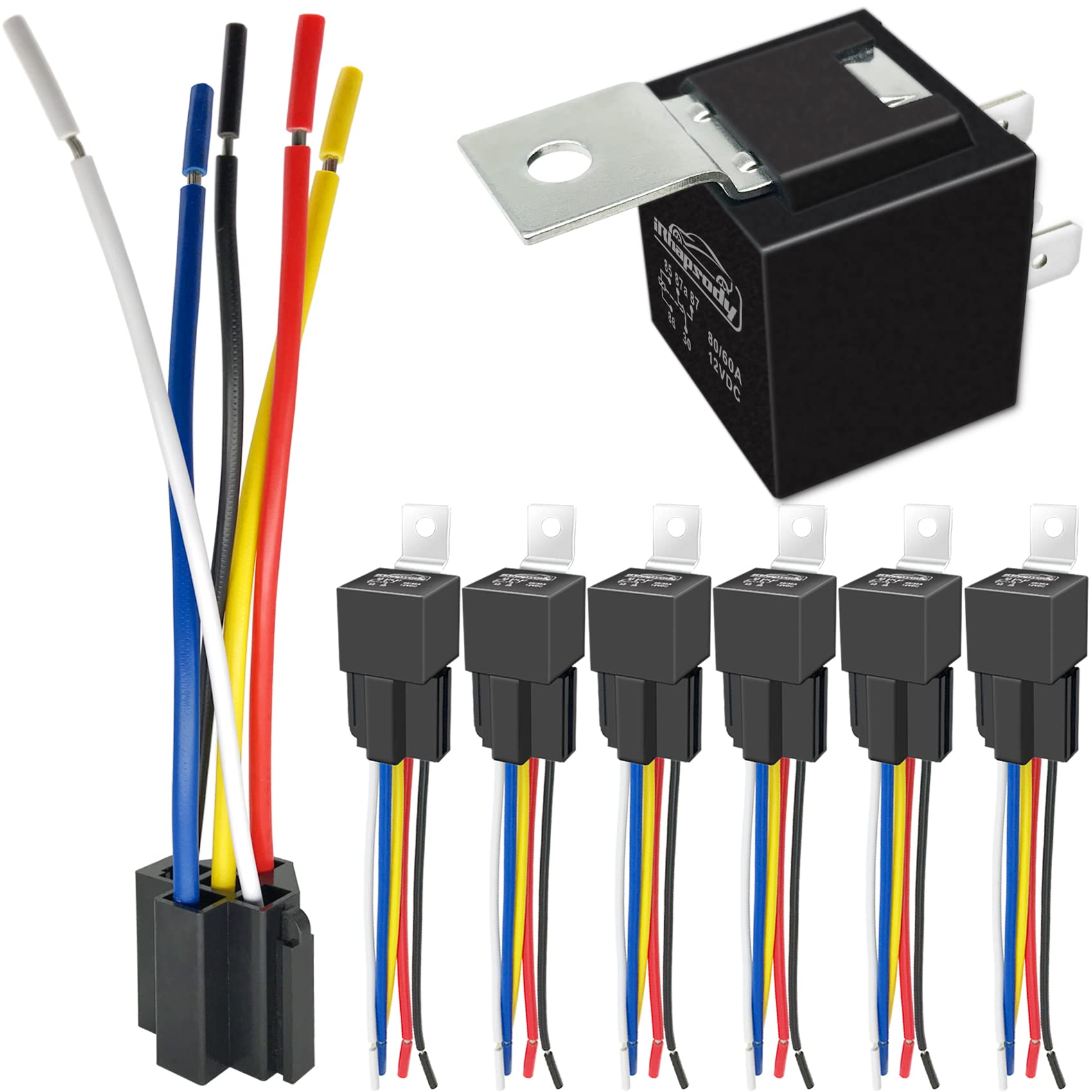

Whether you are upgrading an older vehicle or wiring a new project, the iRhapsody 80/60A Relay Kit offers a compact, dependable switching solution. Each relay is designed to handle substantial current, with a tidy, plug‑and‑play layout that keeps installations clean in tight compartments. This is a 6‑pack equipped with heavy‑duty pigtails, making it easier to stage multiple circuits without swapping parts mid‑project.

Key specifications at a glance

• Coil voltage: 12 V DC; Coil power: 1.8 W; Coil resistance: 80 Ω
• Contact ratings: NO 80 A at 14 V DC; Max switching current: 80 A; Max switching power: 560 W
• Operate voltage: 6–8 V DC; Release voltage: 0.6–3.6 V DC
• Electrical durability: 100,000 electrical operations; 10,000,000 mechanical operations
• Dielectric strength: 500 VAC between open contacts; 750 VAC between coil and contact

Durability and environmental tolerance

• Temperature range: -30 to +80 °C; Vibration: 10–55 Hz, 1.5 mm; Shock: 10 g (operating), 100 g (damage)
• Humidity: 40% to 85%; Insulation resistance: 100 mΩ min at 500 V DC

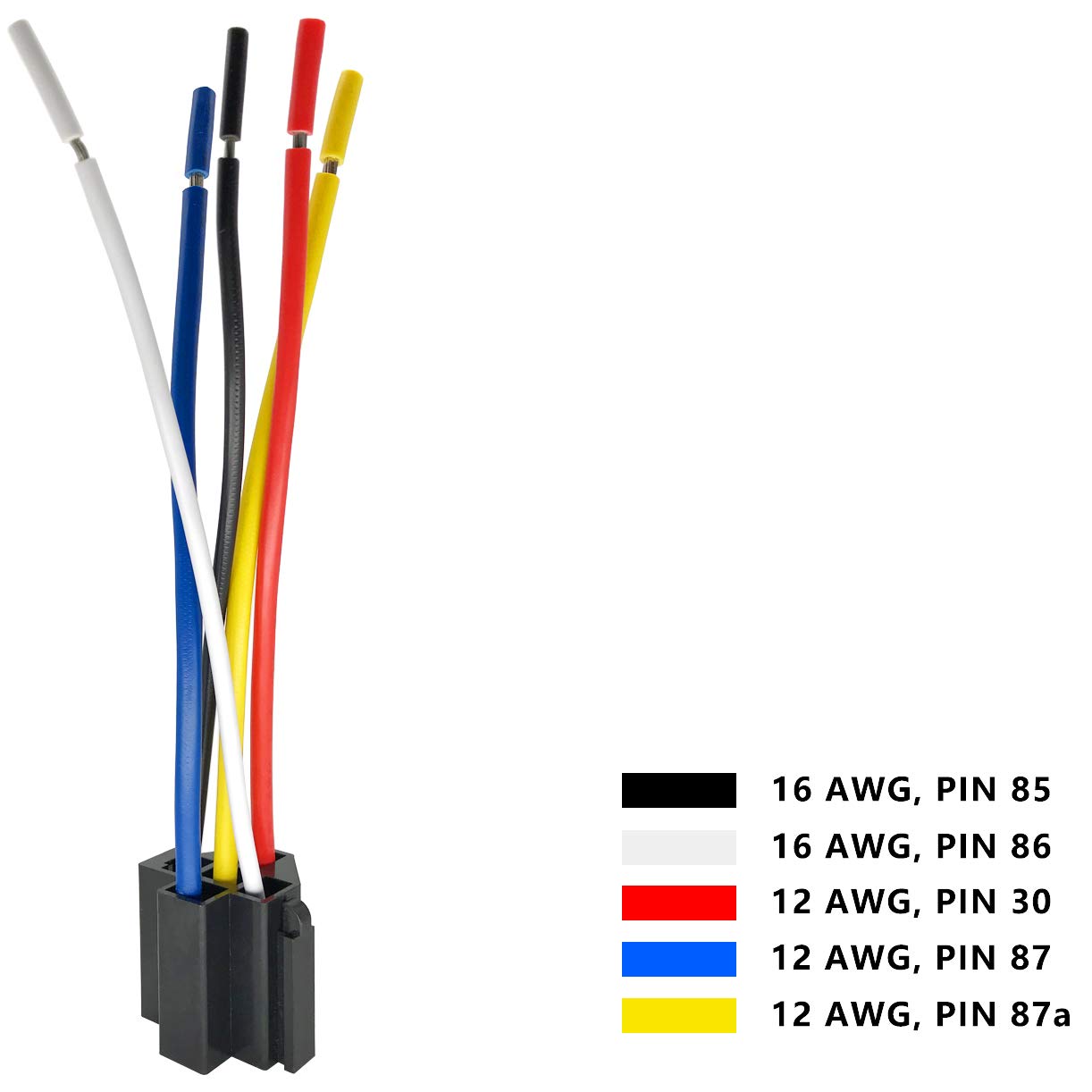

• Includes a rugged wiring harness with 12 AWG and 16 AWG tinned copper wires for improved conductivity and corrosion resistance

What you can do with this kit

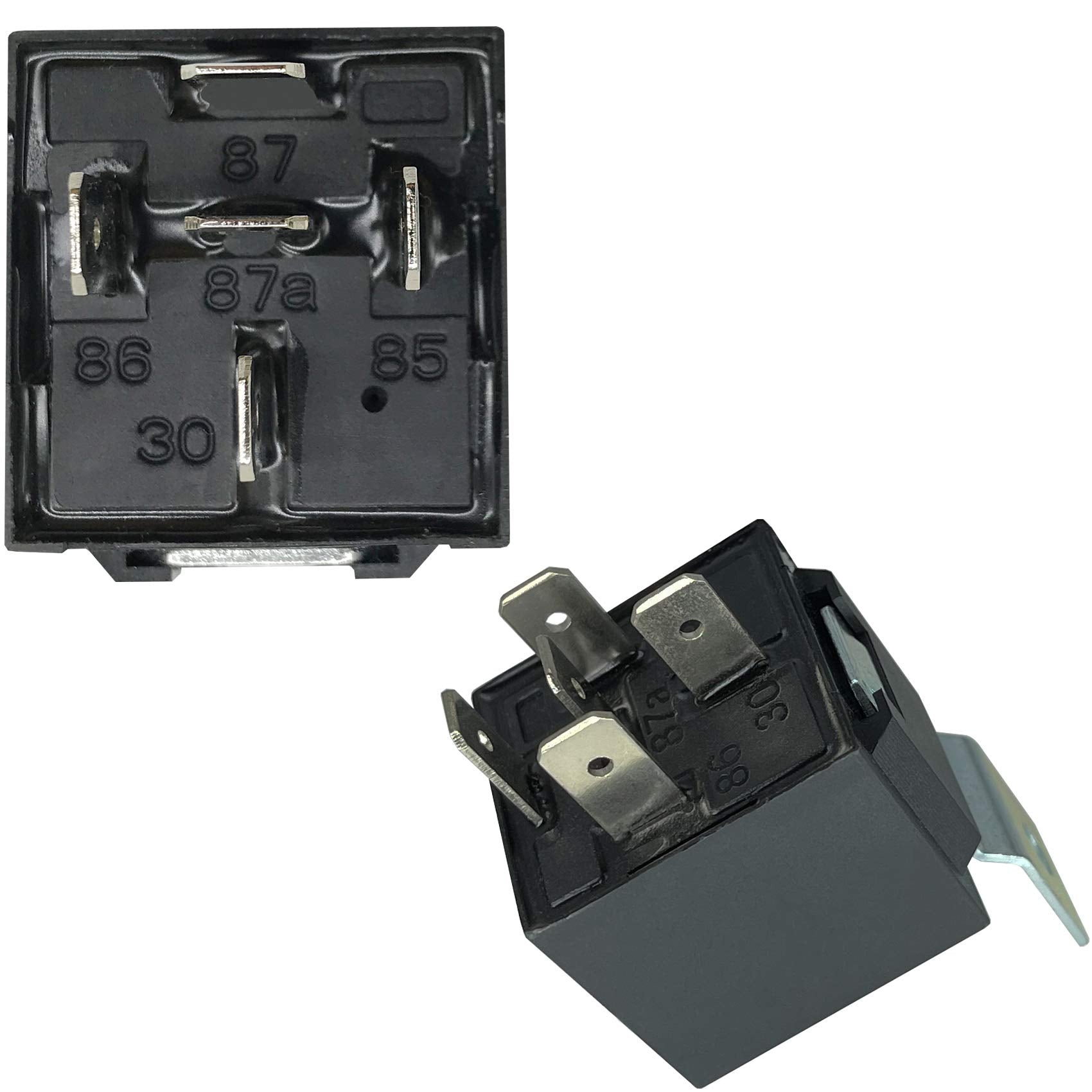

Use these relays to manage high‑current loads such as auxiliary lighting, fans, horns, or solenoids in cars, trucks, trailers, or boats. The 5‑pin universal design aligns with common automotive wiring, and color‑coded terminals simplify circuit planning and troubleshooting.

Tips for best results

• Avoid pushing any circuit beyond its rated capacity; plan to stay about 10–15% below the maximum for longevity.
• Ensure tight connections, especially on load wires, to prevent intermittent operation and heat buildup.

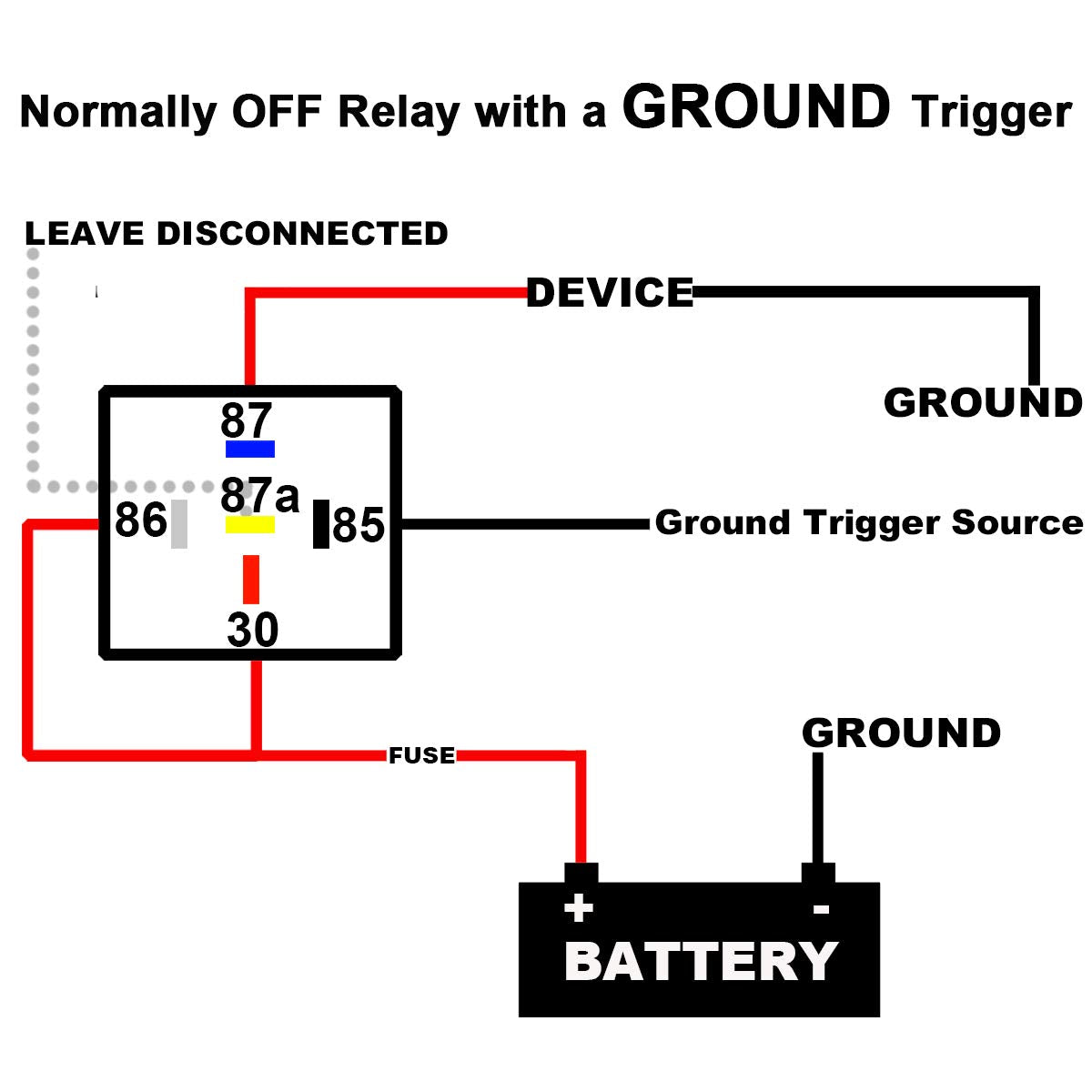

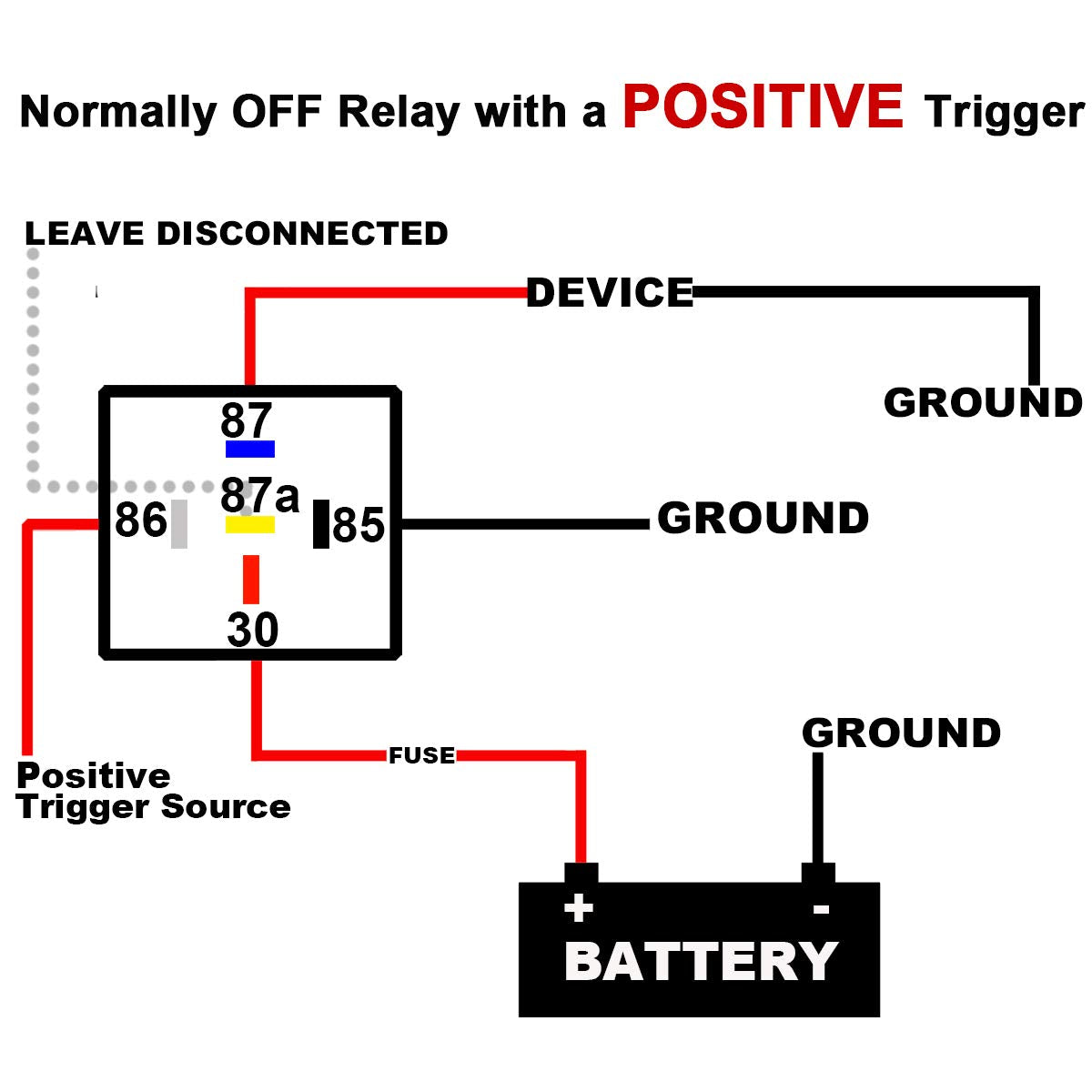

• Follow the 5‑terminal labeling (85 ground, 86 trigger, 87 output, 87a NC) for predictable behavior.

In short, this iRhapsody kit provides a compact, scalable solution for automotive switching with clear labeling, solid wiring harnesses, and enduring performance in everyday wiring projects. It supports flexible configurations and can adapt to a range of practical switching needs without promising guaranteed results.
