LIMICAR RV Tail Lights – 39-LED Dual-Color Stop/Turn/Tail/Reverse for Jeep, Trailer & RV

Overview

LIMICAR's RV tail lights offer a modern LED solution for 12V systems, combining bright, energy-efficient illumination with durable construction designed for years of service. The assembly pairs a polycarbonate lens with a chrome ABS housing, delivering a robust rear signal unit suitable for trailers, Jeeps, and RVs.

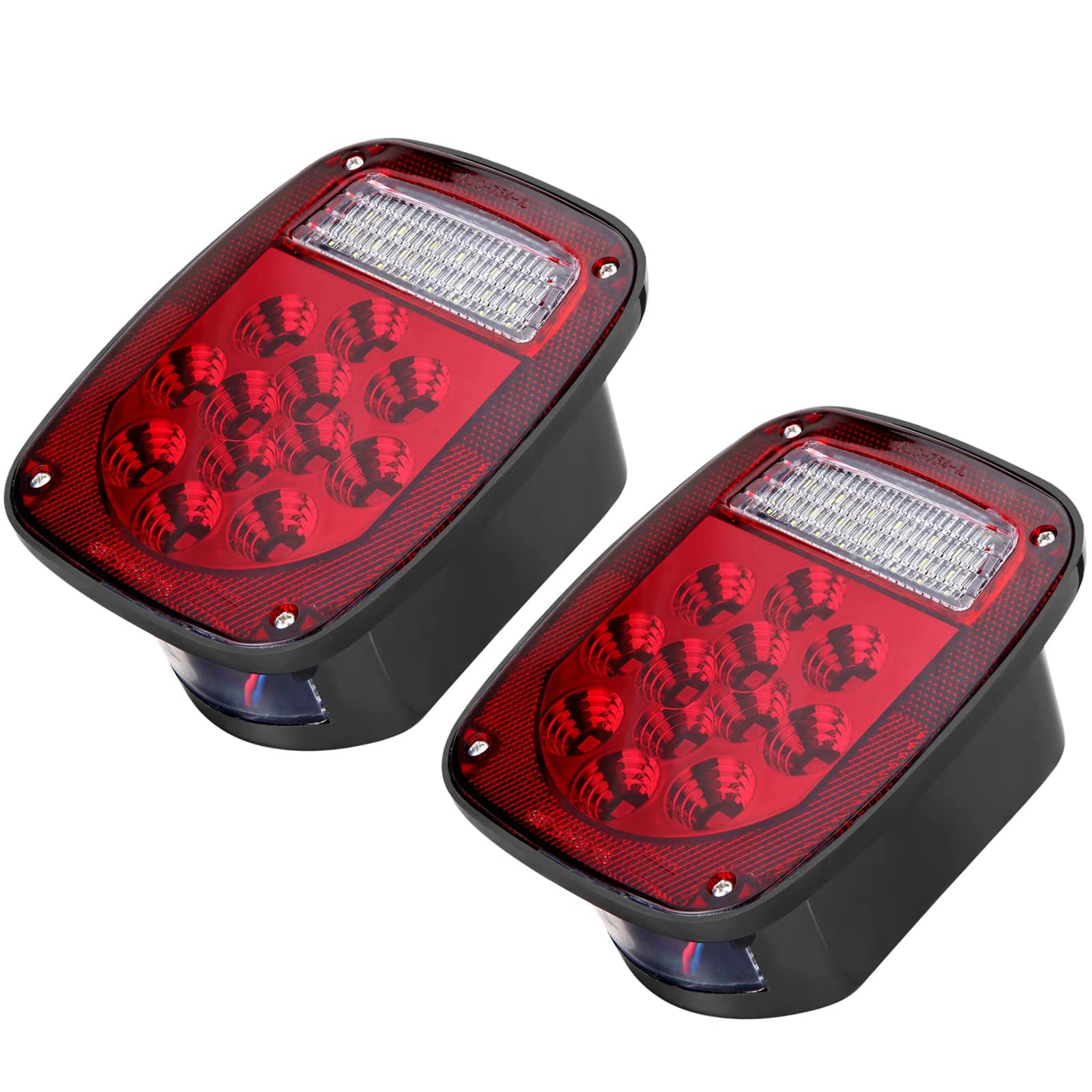

Designed with a dual-color lighting system, the unit uses 39 LEDs in total: 12 red LEDs for Stop/Turn/Tail signaling, 21 white LEDs for reverse illumination, and 6 white LEDs to illuminate the license plate. This configuration aims to provide distinct, crisp signaling while maintaining a compact rear footprint for a wide range of vehicle setups.

Key benefits at a glance

• Bright lighting without glare: 39 LED modules deliver strong visibility in rain, fog, or dusk.
• Efficient power usage: designed for low amperage draw to help preserve battery life on longer trips.
• Durable build: a polycarbonate lens with a chrome high-impact ABS housing stands up to road spray and vibration.
• Weatherproof protection: IP65 rating shields the assembly from dust and water ingress.
• All-in-one signaling: combines stop, turn, tail, and reverse functions in a single unit for simplified wiring.

Materials, durability, and weather resistance

The lens sits behind a clear surface crafted to maximize light output while maintaining clarity. The chrome ABS housing adds a rugged touch, and a foam mounting gasket helps seal the unit against field conditions. IP65 sealing means resistance to dust and water jets, so performance remains consistent in challenging weather.

Wiring, installation, and compatibility

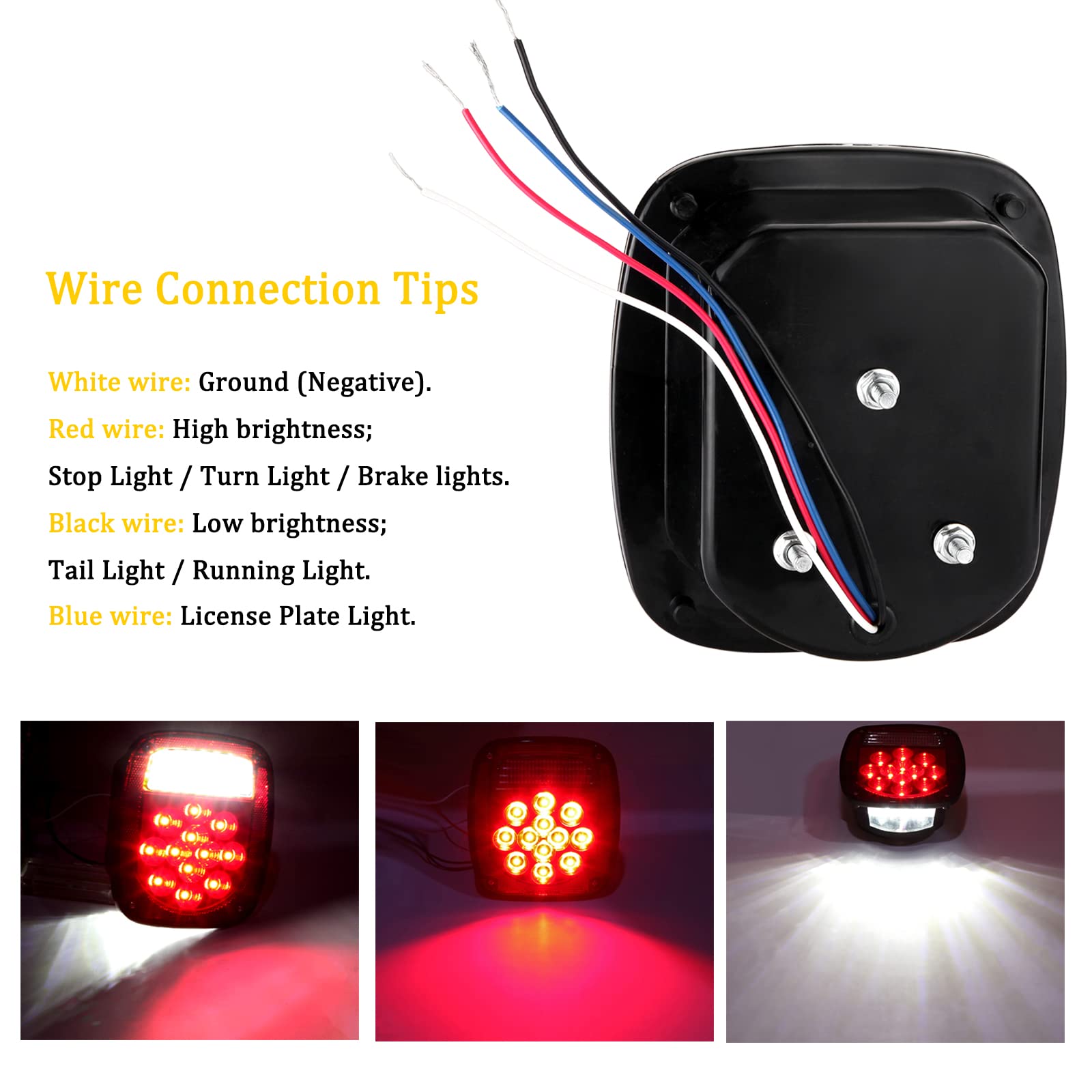

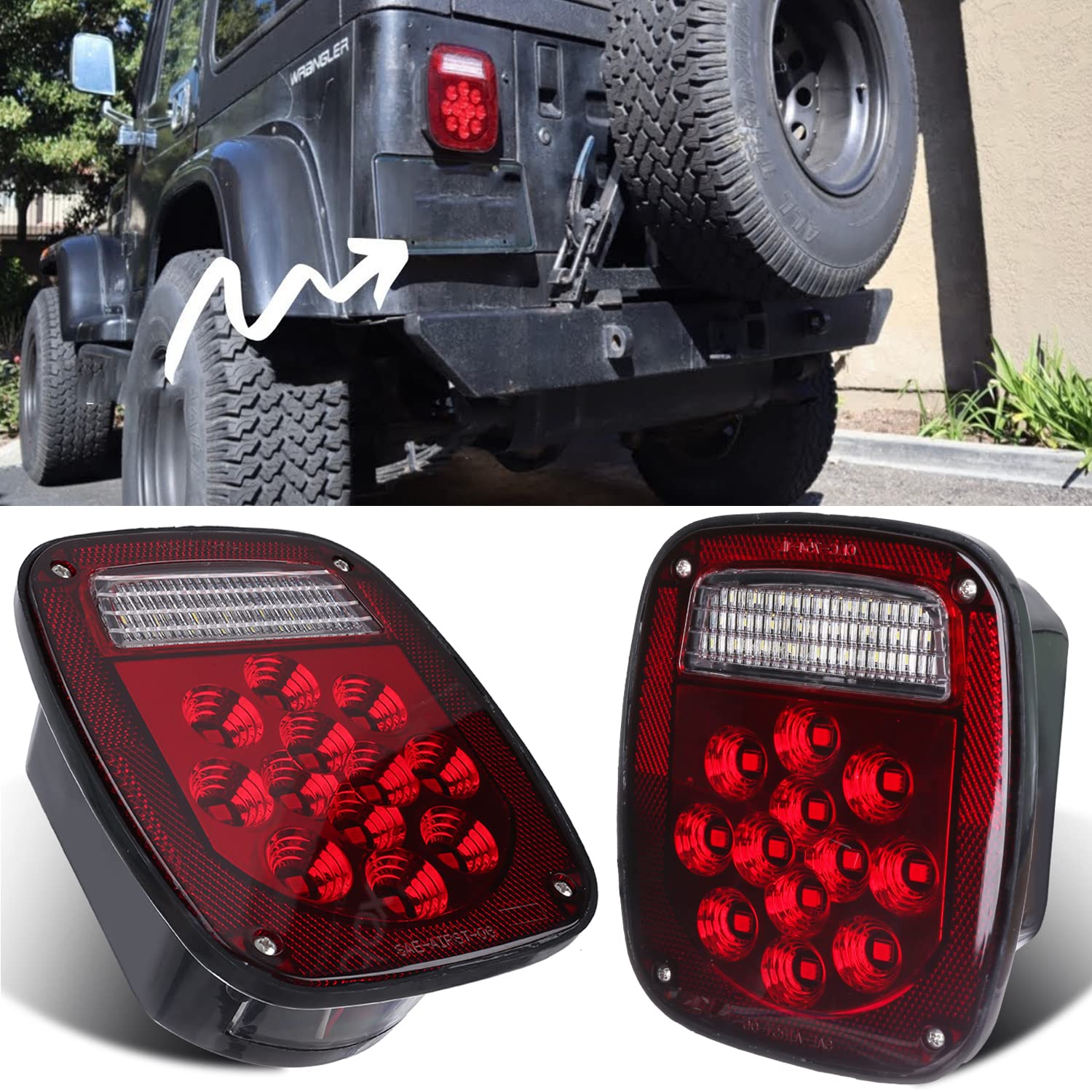

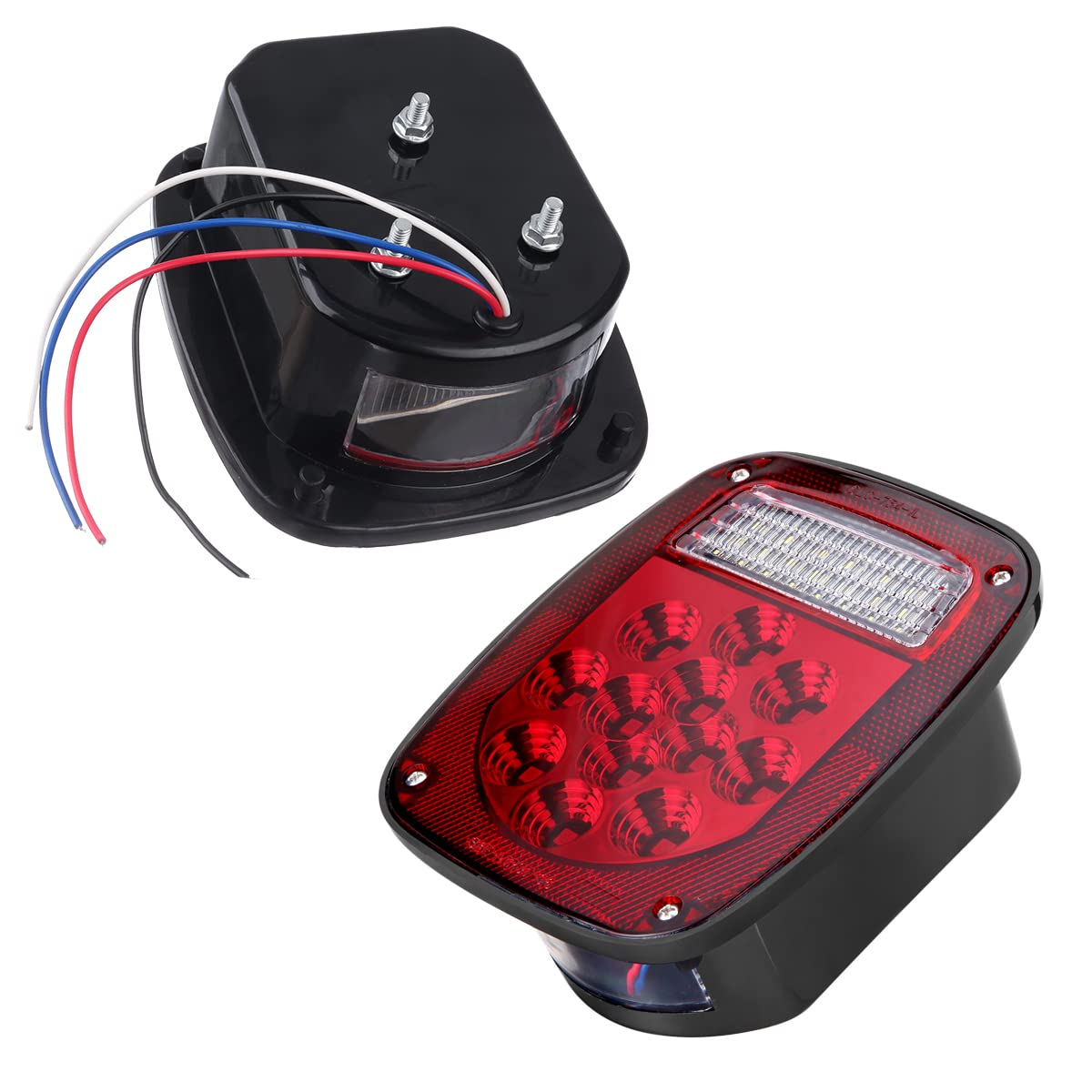

The installation uses four color-coded wires for a straightforward hookup: White is negative, Red handles stop/turn/brake, Black provides the tail light, and Blue powers the license plate light. The unit is built for 12V systems and is broadly compatible with trailers, trucks, SUVs, RVs, caravans, vans, boats, and Jeep models such as YJ, TJ, JK, and CJ variants.

What to expect in real use

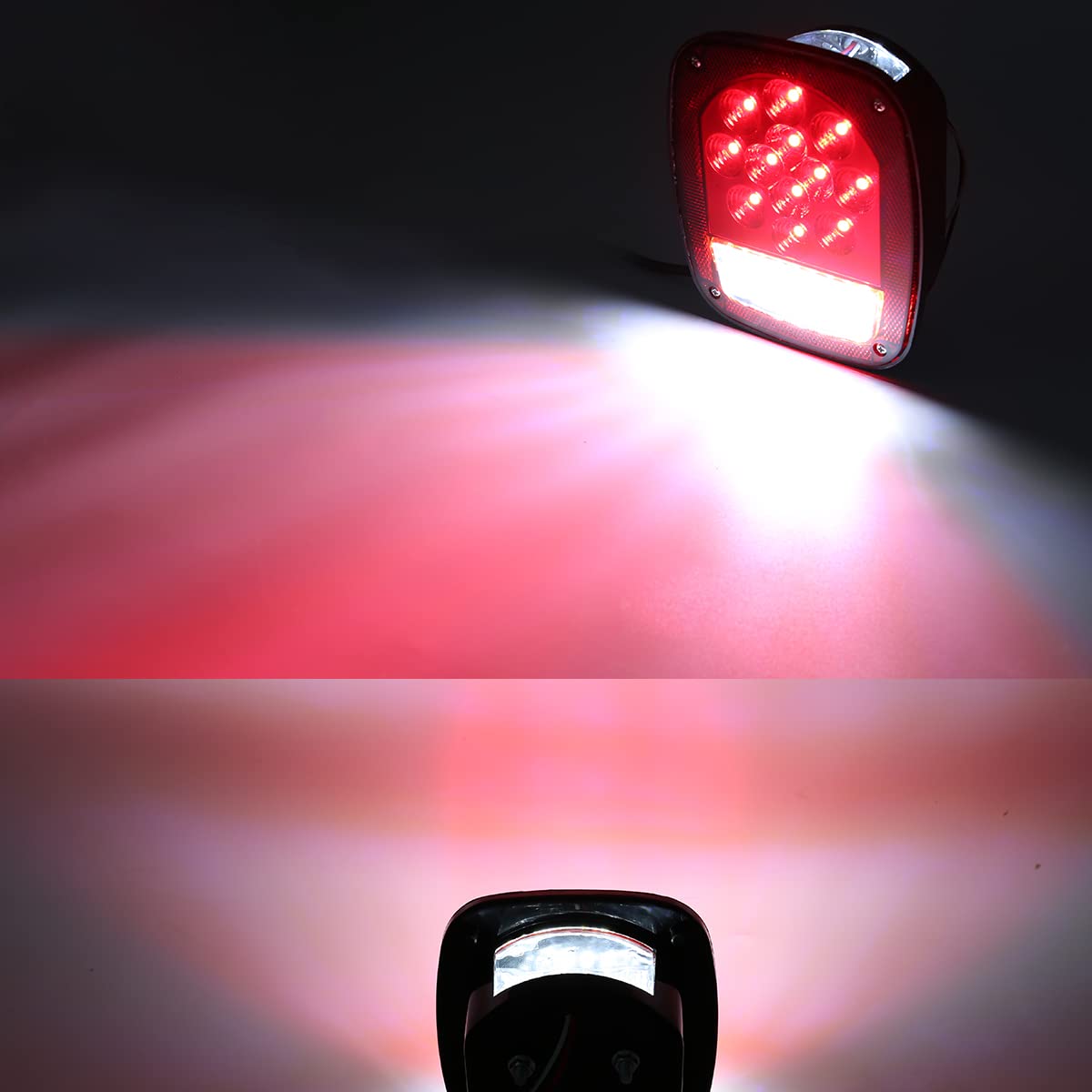

On the road, these lights respond quickly and signal clearly, helping other drivers understand your movements sooner. The clear lens aids light projection, reducing the chance of misinterpretation by following traffic. While not a medical claim, the combination of bright red stop signals and bright white reverse lights contributes to clearer rear visibility in low-light environments.

Each package includes two LED tail light assemblies, designed to replace or upgrade your existing units with a unified look. With their compact dimensions (approximately 6.7 inches by 5.8 inches by 2.5 inches) and 12V operation, LIMICAR tail lights are designed to fit a wide range of setups without requiring extensive modification.

Designed to meet OE-style performance, LIMICAR emphasizes easy maintenance and long service life, with quality-tested components and a straightforward replacement path for a variety of vehicle applications.

Note: This description is informational and does not imply guaranteed outcomes. Real-world results may vary based on vehicle wiring and usage.
