MH Triple Gauge Set 2in 52mm – Water Temp, Oil Pressure & Voltmeter
- £56.37
- £56.37
- Unit price
- per
Couldn't load pickup availability
Free UK Delivery on All Orders
Free Returns
Description
xThe MH Triple Gauge Set is a compact 3-in-1 monitoring instrument designed for 12V and 24V vehicles, including boats, trucks, and other marine and automotive applications. The kit combines a water temperature gauge, an oil pressure gauge, and a voltmeter into a single 2-inch (52 mm) display. It ships with sensors and a robust bezel in a sleek black finish, ready to install on your dash or console.
All-in-One Monitoring at a Glance

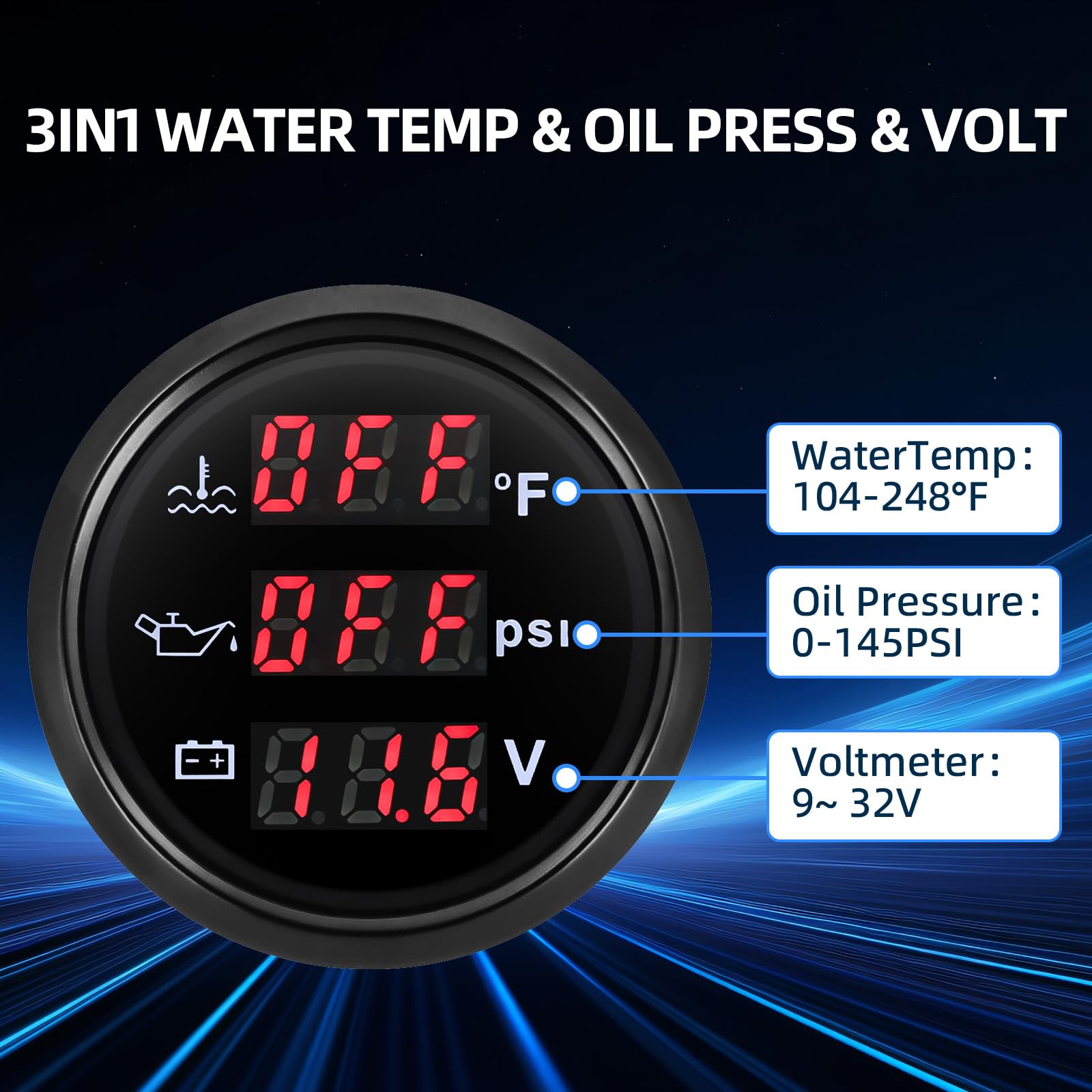

With three functions in one compact unit, you can keep an eye on essential engine data without swapping gauges. The water temperature range spans from 104 to 248 degrees Fahrenheit, the oil pressure reads 0 to 145 PSI, and the voltmeter covers 9 to 32 volts. Built for real-world conditions, the 316 stainless bezel and scratch-resistant curved glass lens stay legible even in glare and heat.
Key specs at a glance:

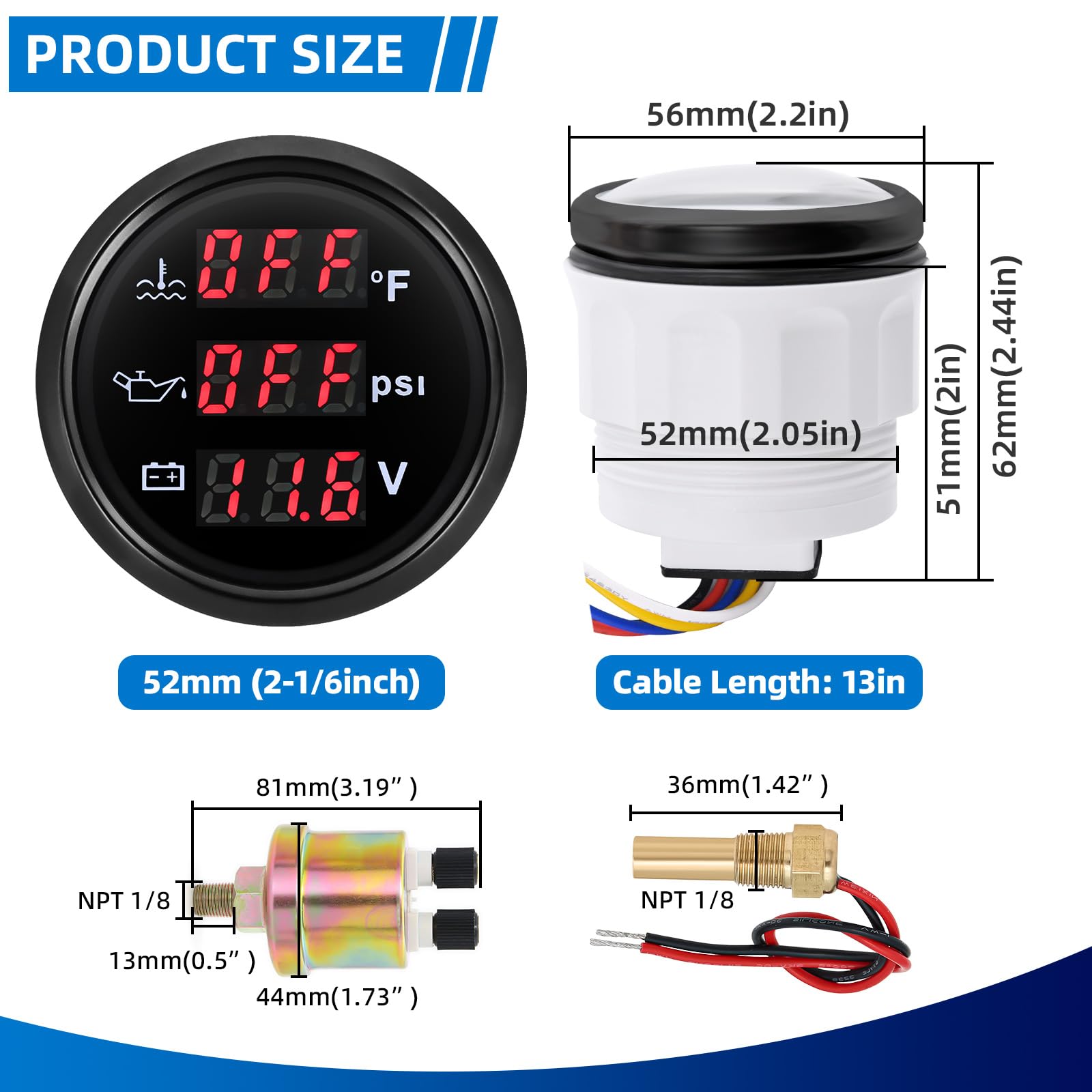

- 2-inch (52 mm) gauge trio with a single bezel
- Water Temp: 104°F – 248°F
- Oil Pressure: 0 – 145 PSI
- Voltmeter: 9 – 32 V
- 1/8 NPT water temp sensor
- 1/8 NPT oil pressure sensor

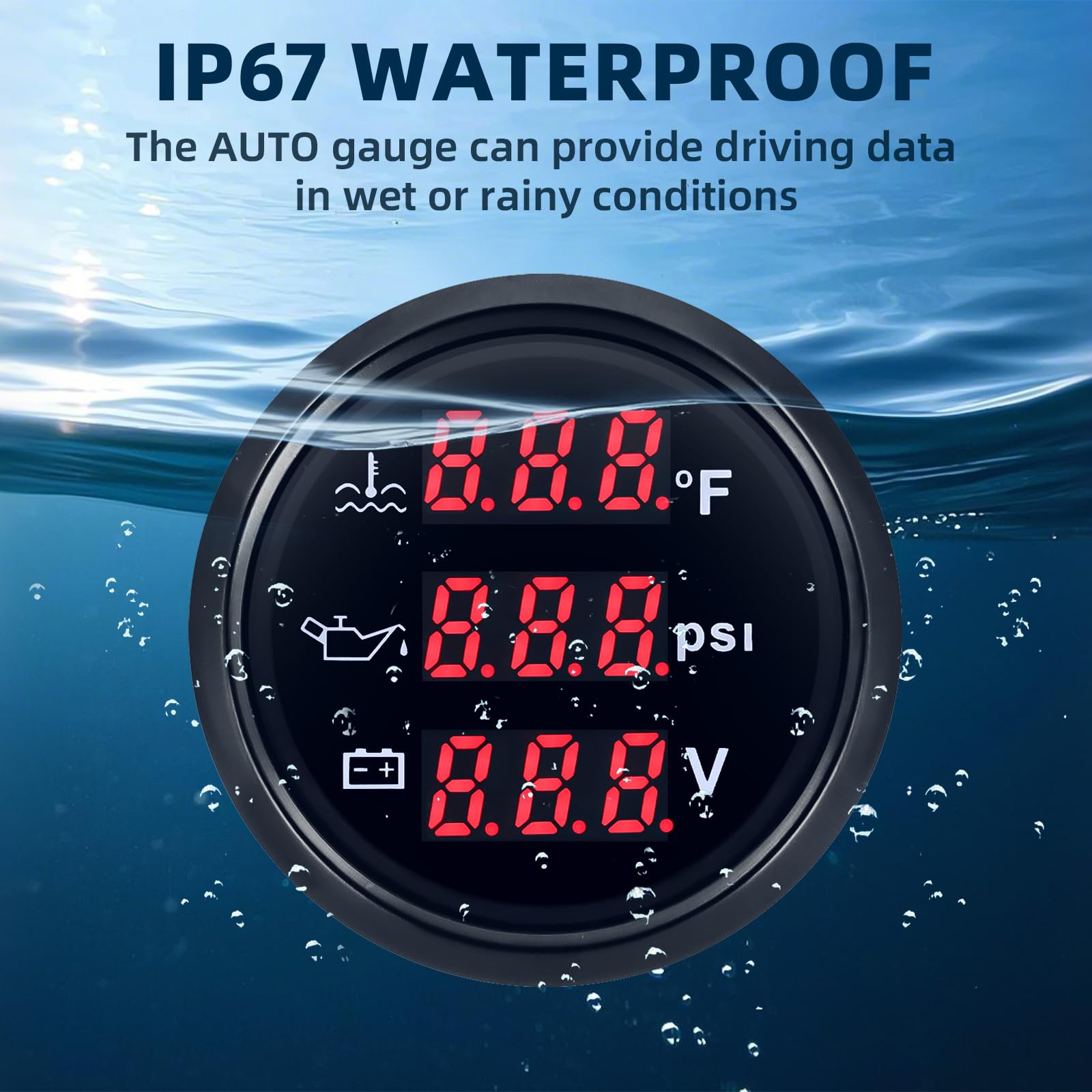

- 316 stainless bezel and IP67 waterproof/dustproof design

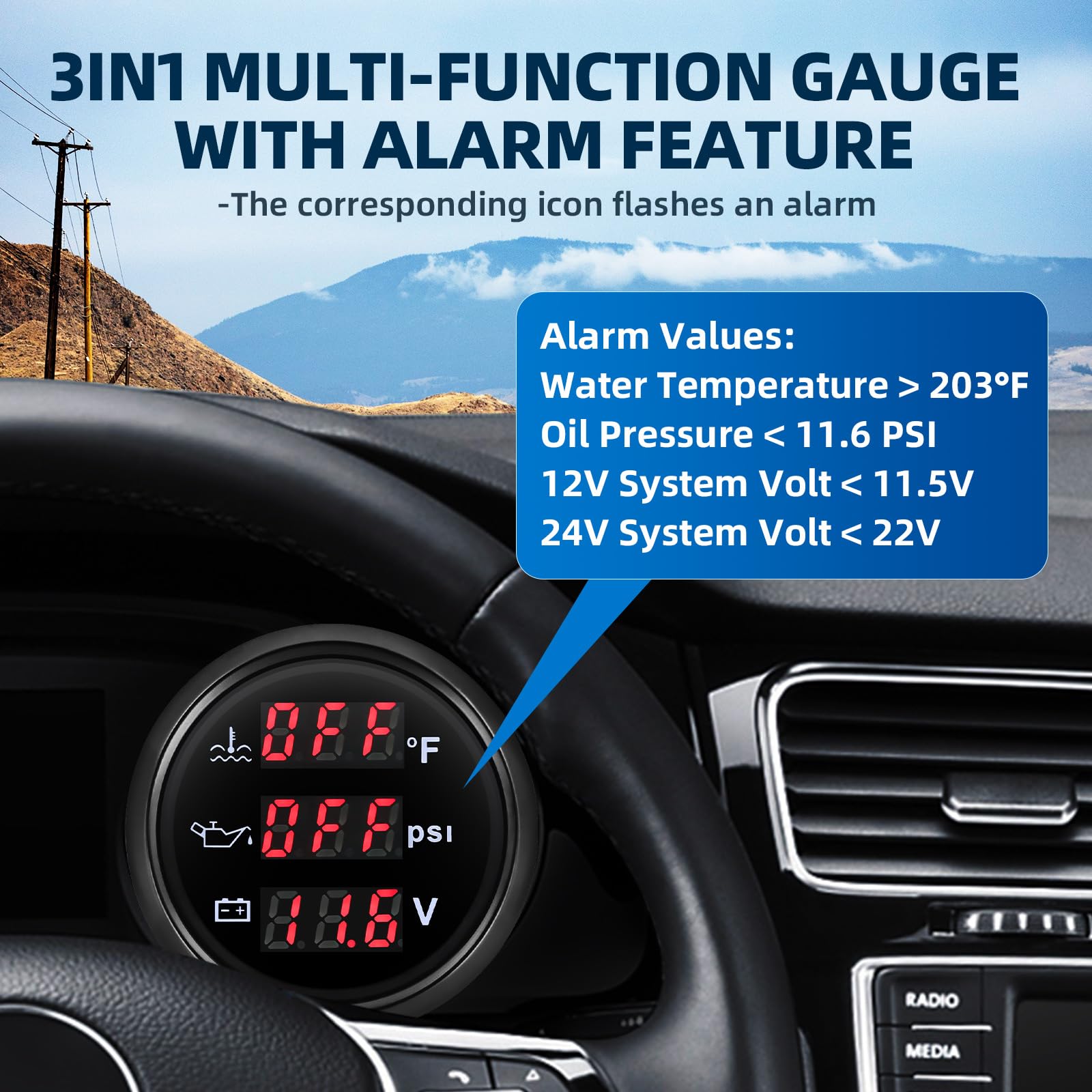

Smart alerts help you notice potential issues before they become problems. When readings exceed the set thresholds, the corresponding icon lights red to signal attention. Thresholds include water temp above 203°F, oil pressure below 11.6 PSI, and voltage conditions of less than 11.5V for 12V systems or less than 22V for 24V systems.

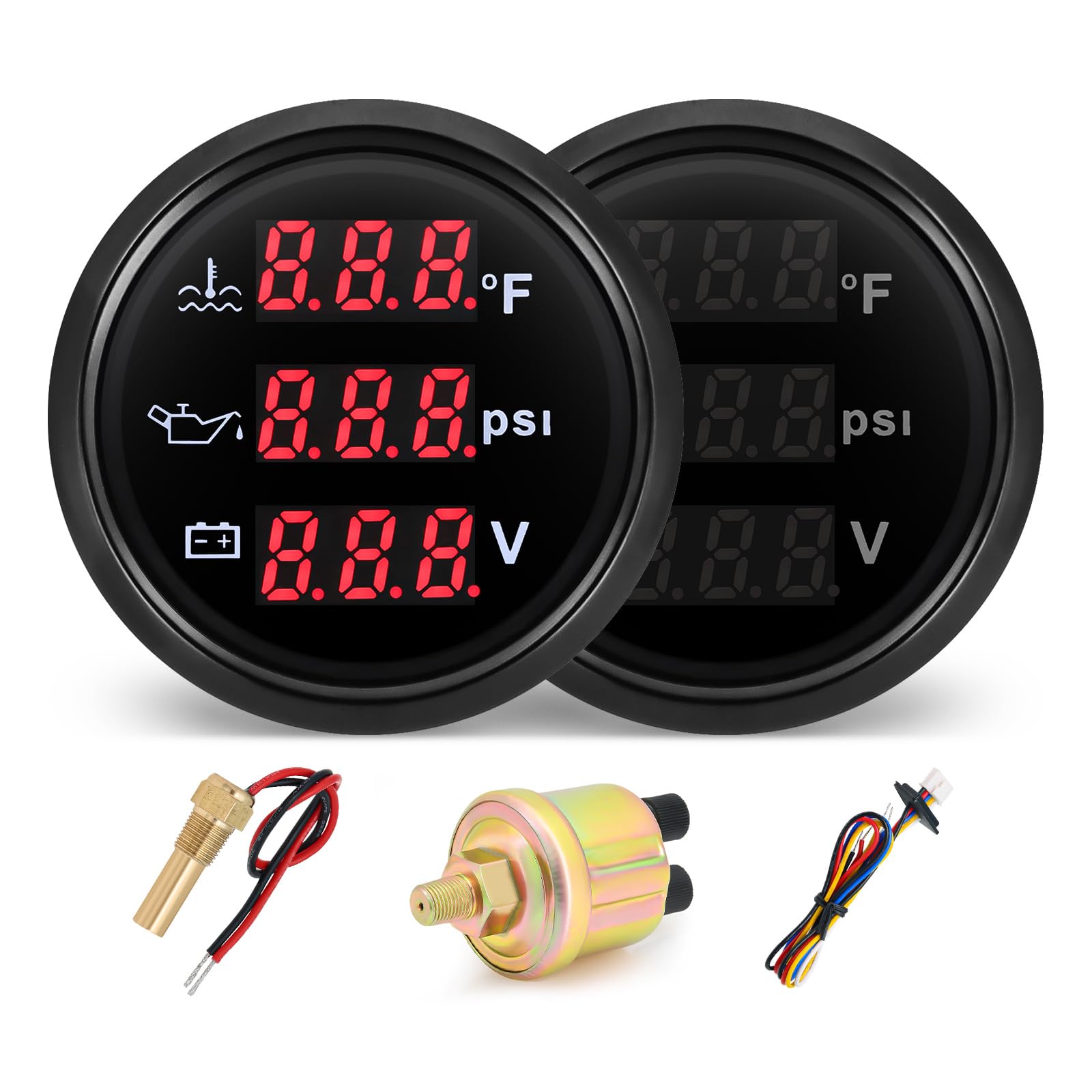

What’s in the Box
- 1x 3-in-1 multifunction gauge
- 1x water temperature sensor
- 1x oil pressure sensor
- 1x multi-plug socket
- 1x instruction manual
Why choose this MH gauge set? It fits a wide range of vehicles and environments where reliable, at-a-glance readings matter. The durable construction and sealed design help readings stay clear, while the compact form factor preserves dashboard space. Consider it for boat dashboards, trucks, or other 12V/24V installations where space and clarity matter.
Installation and Use
With standard 1/8 NPT sensors and a universal 2-inch display, installation is straightforward for many dash configurations. The included sensors and plug deliver a clean setup, so you can focus on interpreting the data rather than chasing wiring.
FAQ
Q: Is the MH Triple Gauge Set compatible with 12V and 24V systems?
A: Yes, it supports both 12V and 24V systems, suitable for boats, trucks, and other equipment.
Q: What’s included in the box and how is installation handled?
A: Includes gauge, water temp sensor, oil sensor, multi-plug socket, and manual; sensors thread 1/8 NPT.
