Partsam 2-Pack 4-Inch Round Red Stop/Turn Lights with White Backup Light Kit – 19 LEDs, IP65, 3-Prong Pigtails

Overview

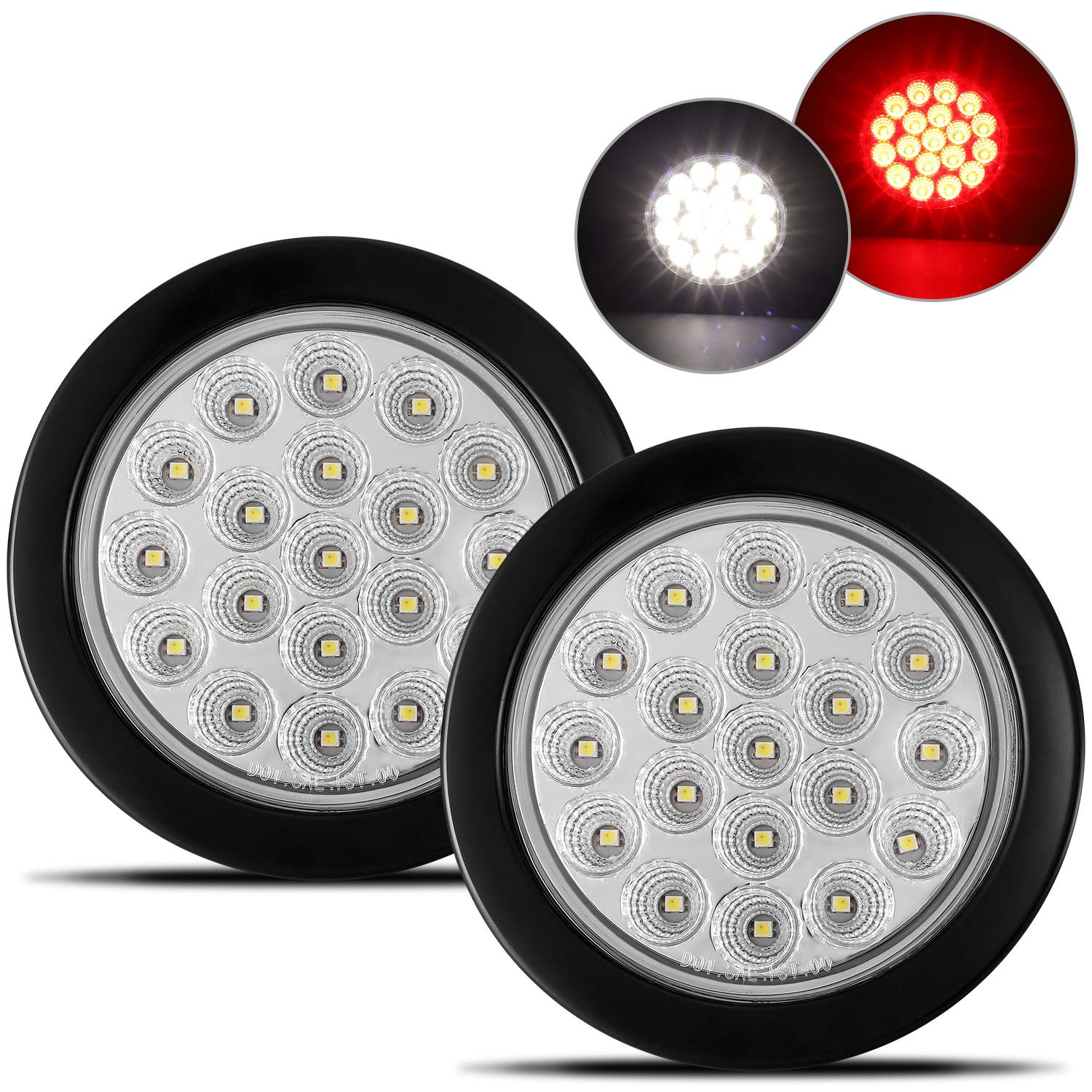

Partsam presents a 2‑pack of 4‑inch round LED lights that combine red stop/turn/tail signaling with a white backup light in a single, compact module. Each unit uses 19 high‑brightness diodes to deliver strong visibility from the rear of a truck or trailer while keeping wiring tidy with included features like rubber grommets and standard three‑prong pigtails.

Key Benefits

• Dual color LEDs provide red stop/turn/tail signaling and white back‑up illumination in one module, reducing parts and wiring effort.

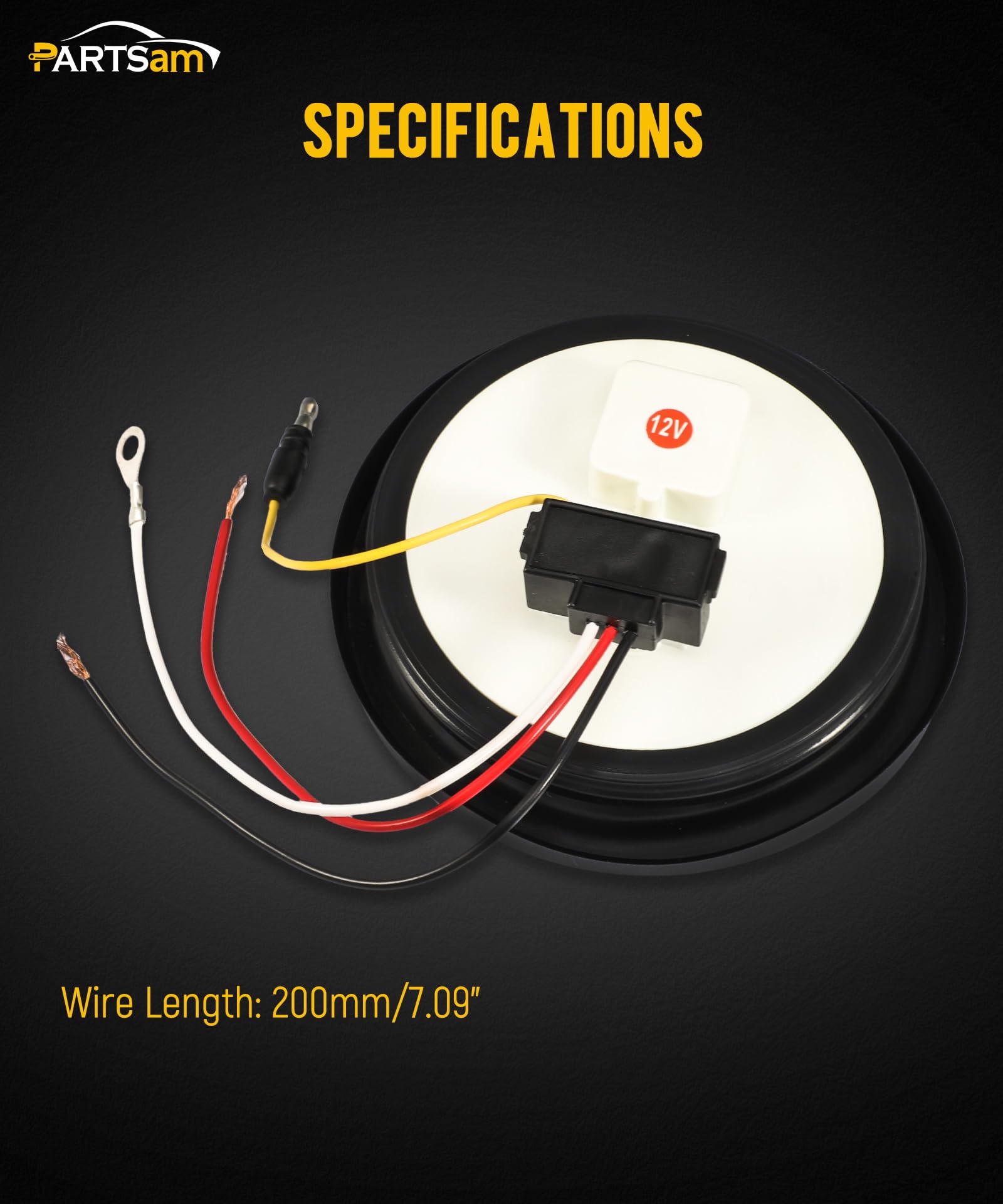

• Integrated wiring with standard three‑prong offset pigtails simplifies installation; a yellow lead powers the white backup light for reverse signaling.
• 12V DC operation with an IP65 waterproof rating helps you stay visible in varying weather while resisting water spray from the road.
• The compact round design fits common mounting approaches and works with 4‑inch round grommets, aided by rubber sealing for vibration resistance.

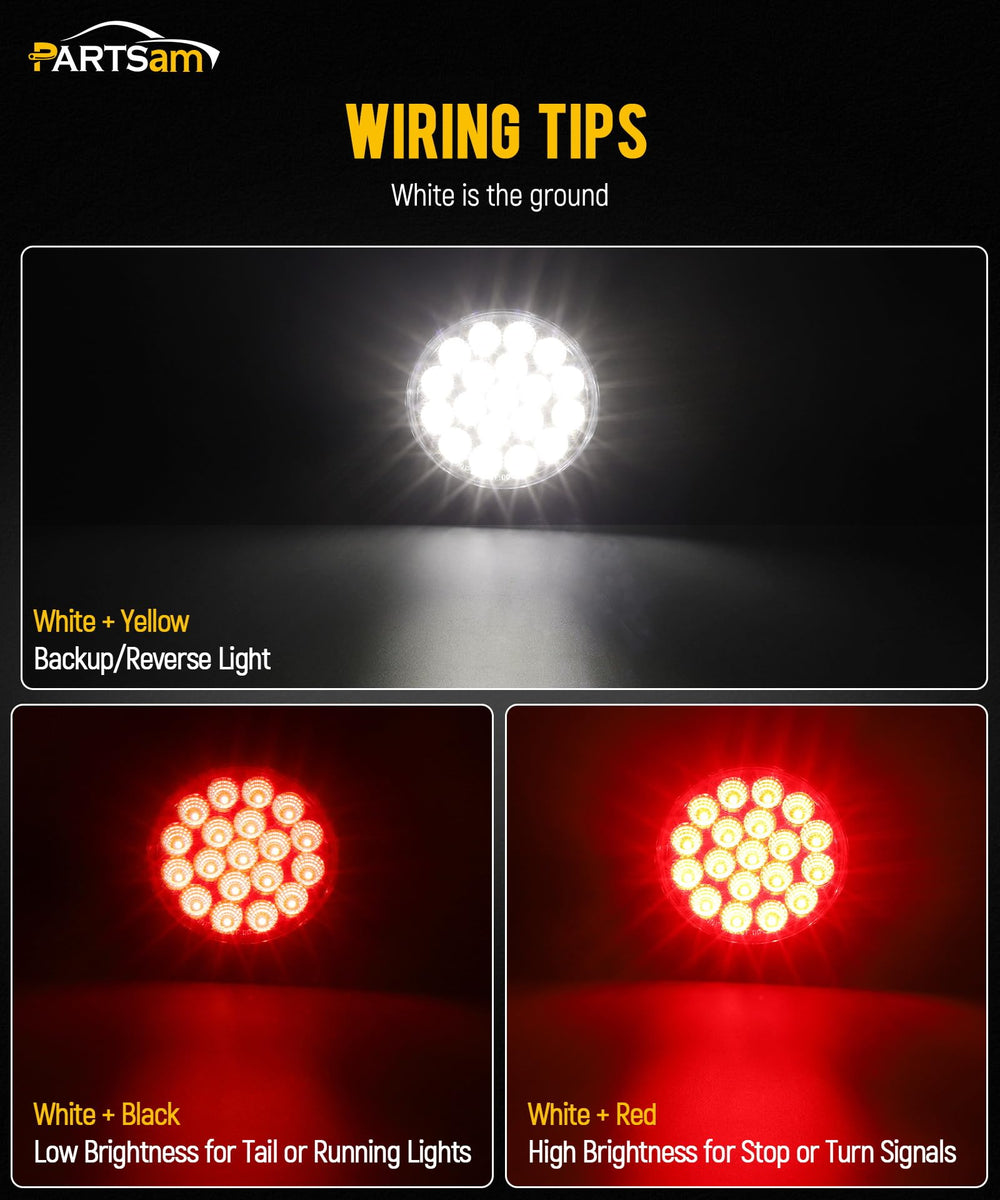

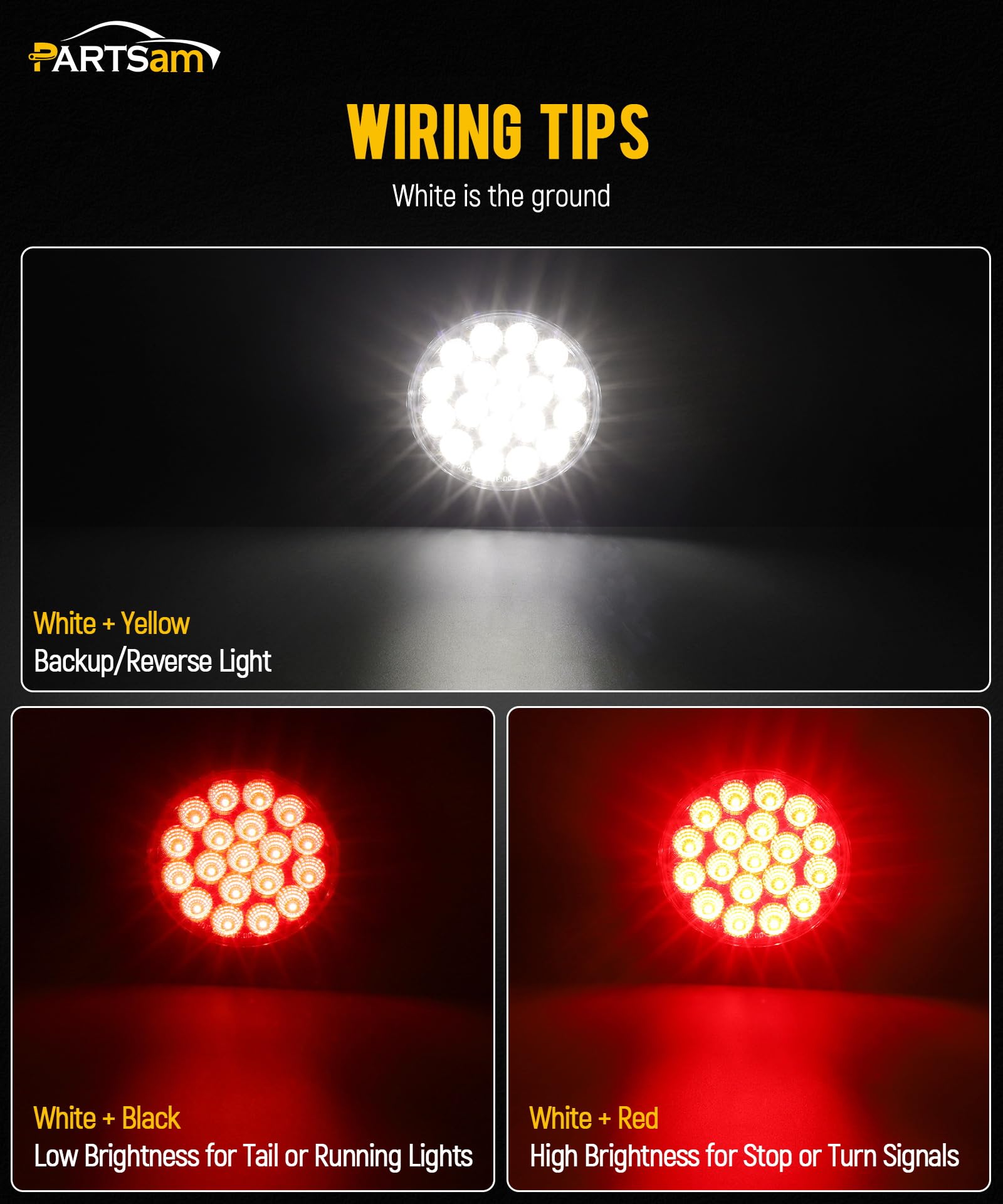

• Wiring color mapping is clear: white = ground, black = tail light brightness, red = high brightness stop/turn, yellow = backup light; included documentation guides connections.
• Made for heavy duty use on trucks and trailers, these lights are suitable for a range of 12V automotive applications and can complement existing lighting setups.

What’s Included

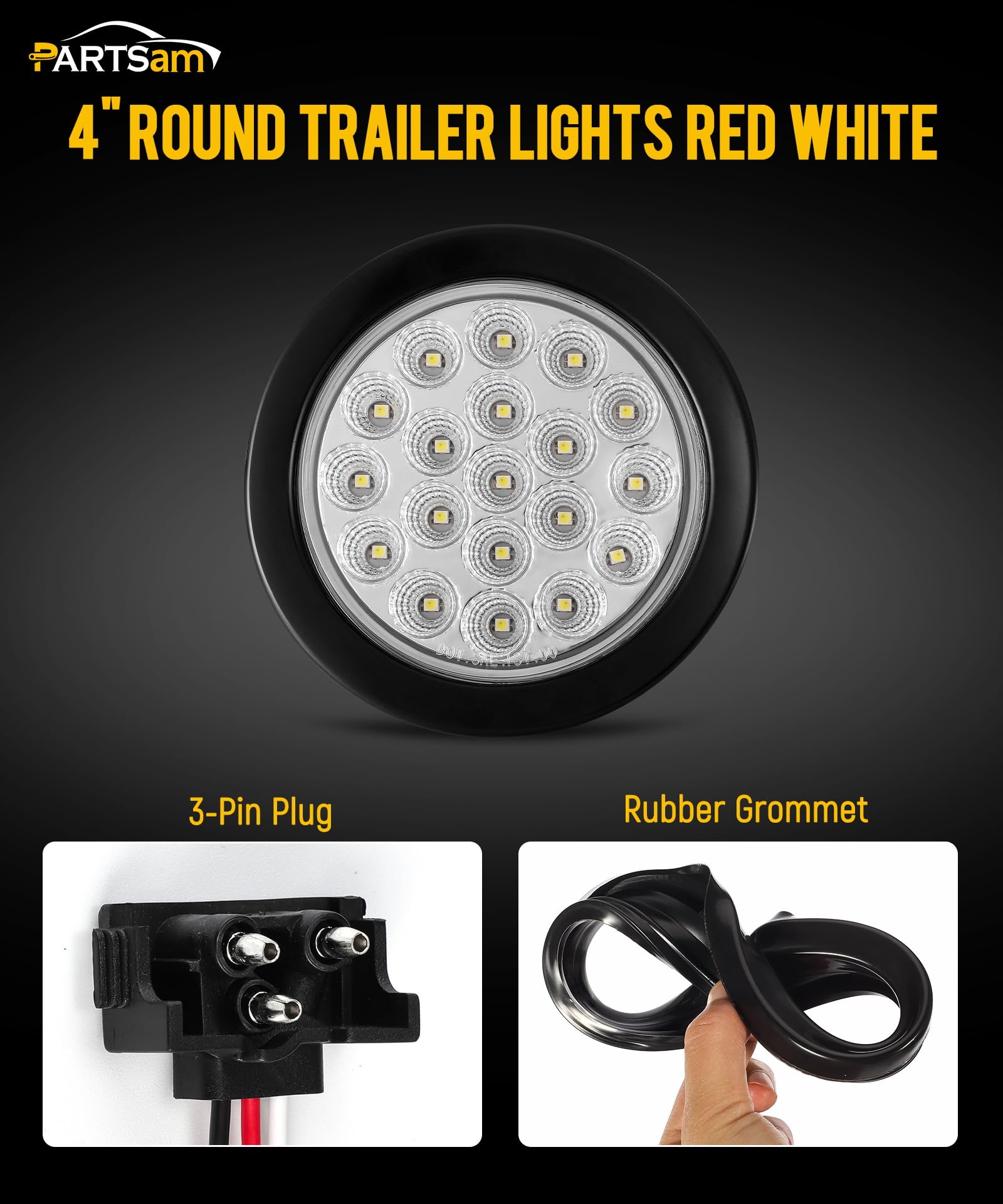

Each package contains 2 round LED lights with 19 diodes, rubber grommets, and standard three‑prong pigtails. An additional 180‑bullet style male plug is included for the backup circuit via a short yellow lead.

Installation Tips

• Follow the indicated wire colors to connect ground, tail, stop/turn, and backup circuits accurately for reliable signaling.

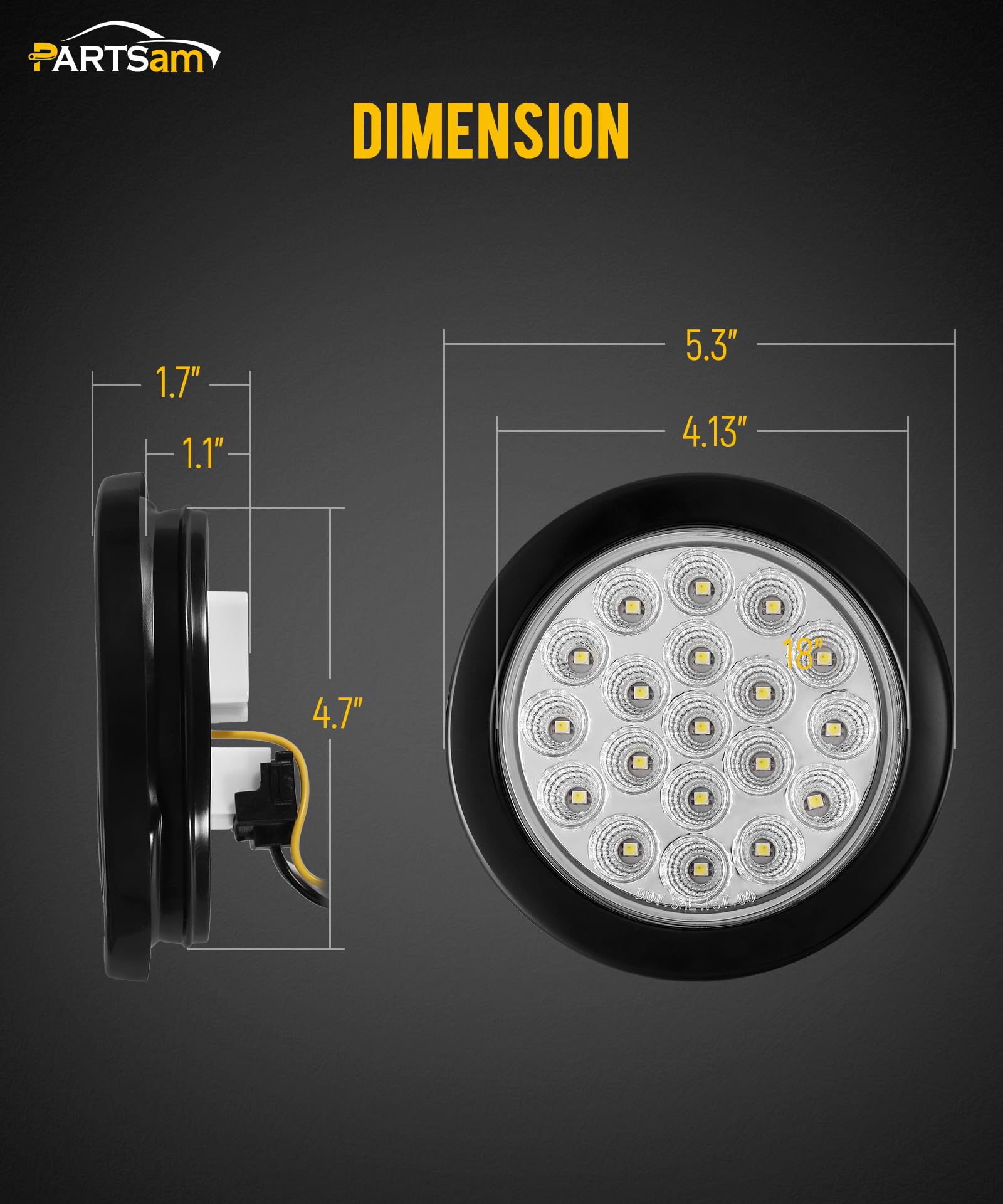

• Use standard 4‑inch round grommets (about 4.7 inches mounting area) for a secure fit and minimal vibration.

Usage Scenarios

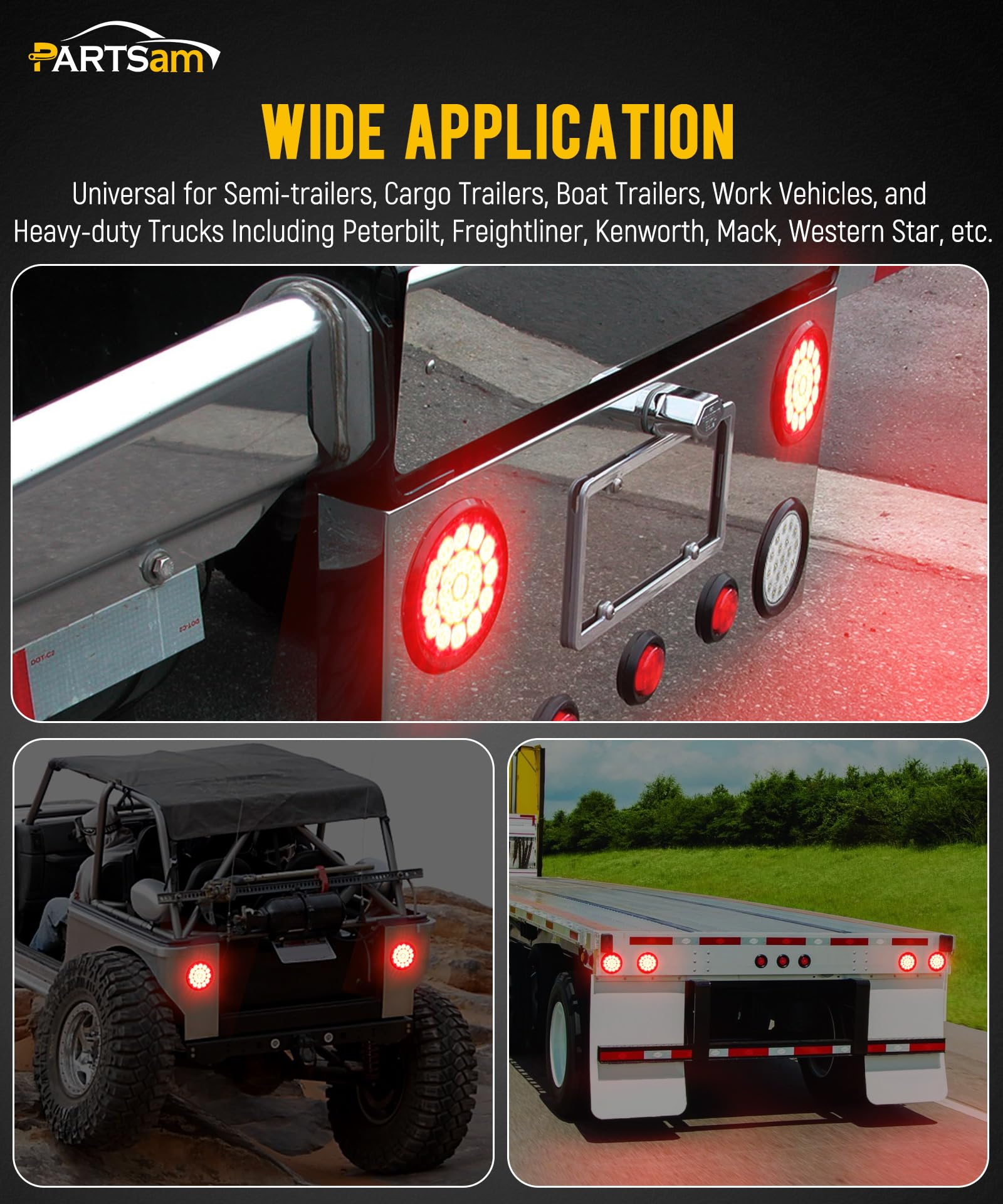

Ideal for trailers, utility platforms, and light to heavy‑duty trucks where compact dual‑purpose lighting can simplify wiring and signaling on the road. The white backup light adds reverse visibility during parking or backing up in tight spaces.

Care and Compatibility

With IP65 water‑resistant protection, these lights perform well in outdoor environments; they are designed for 12V DC systems and compatibility with most standard mounting and wiring setups. Note that the white backup lights override the red in reverse, and you may choose to install two red units for enhanced rear signaling.
