PICKER PC775-1A-12C-X | 75A 12V DC Automotive High Current Relay with Bifurcated Contacts
- £37.69
- £37.69
- Unit price
- per
Couldn't load pickup availability
Free UK Delivery on All Orders
Free Returns
Description
xOverview
Meet the PICKER PC775-1A-12C-X, a high-current automotive relay engineered to switch demanding circuits with precision. Rated for 75 A continuous carry at 14 VDC, it supports robust performance even when electrical loads surge. The 12 VDC coil draws only 2.9 W, helping to minimize heat and wiring strain while delivering quick, reliable actuation. With a SPST-NO contact configuration and bifurcated contacts, it provides a dependable path for current across a compact footprint. The relay is designed to operate from -40°C to 125°C, enabling use in challenging environments—from the engine bay to aftermarket installations.
Key specifications
- 75 A continuous carry at 14 VDC

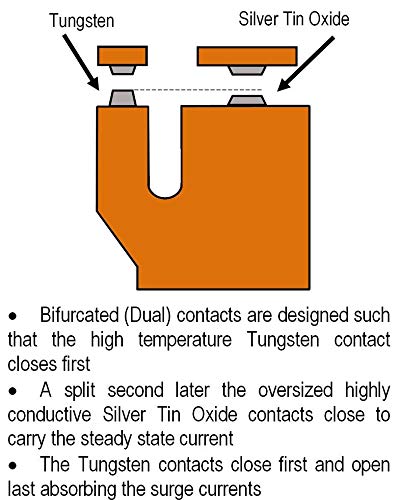

- SPST-NO contact configuration with bifurcated contacts
- Coil: 12 VDC, 2.9 W
- Operating temperature: -40°C to 125°C
- Cross references: TE V23232-D0010-X001 and Bosch 332002168
Design and reliability
Designed for automotive use, the PC775-1A-12C-X combines a compact footprint with dependable switching action. Bifurcated contacts help maintain stable current paths under varying loads, while the 12 V coil offers straightforward compatibility with standard electrical systems.
Real-world uses
- Power distribution for aftermarket lighting and audio systems in cars
- High-current accessories like winches, pumps, and cooling fans
- Engine bay relays for auxiliary circuits in custom builds
- Battery management and controlled circuits in complex installations
Cross references support compatibility with legacy designs: TE V23232-D0010-X001 and Bosch 332002168.
FAQ
Q: What coil voltage does the PC775-1A-12C-X use?
A: The relay uses a 12 VDC coil, drawing about 2.9 W for actuation.
Q: What makes this relay suitable for high-current automotive applications?
A: It handles up to 75 A at 14 VDC, operates from -40°C to 125°C, with bifurcated contacts for stable paths.
