Pilida Battery Terminal Connectors – Aluminum 5-Way Multi Power Block (SAE/DIN/EN)
- £56.37
- £56.37
- Unit price
- per
Couldn't load pickup availability
Free UK Delivery on All Orders
Free Returns
Description
xOverview

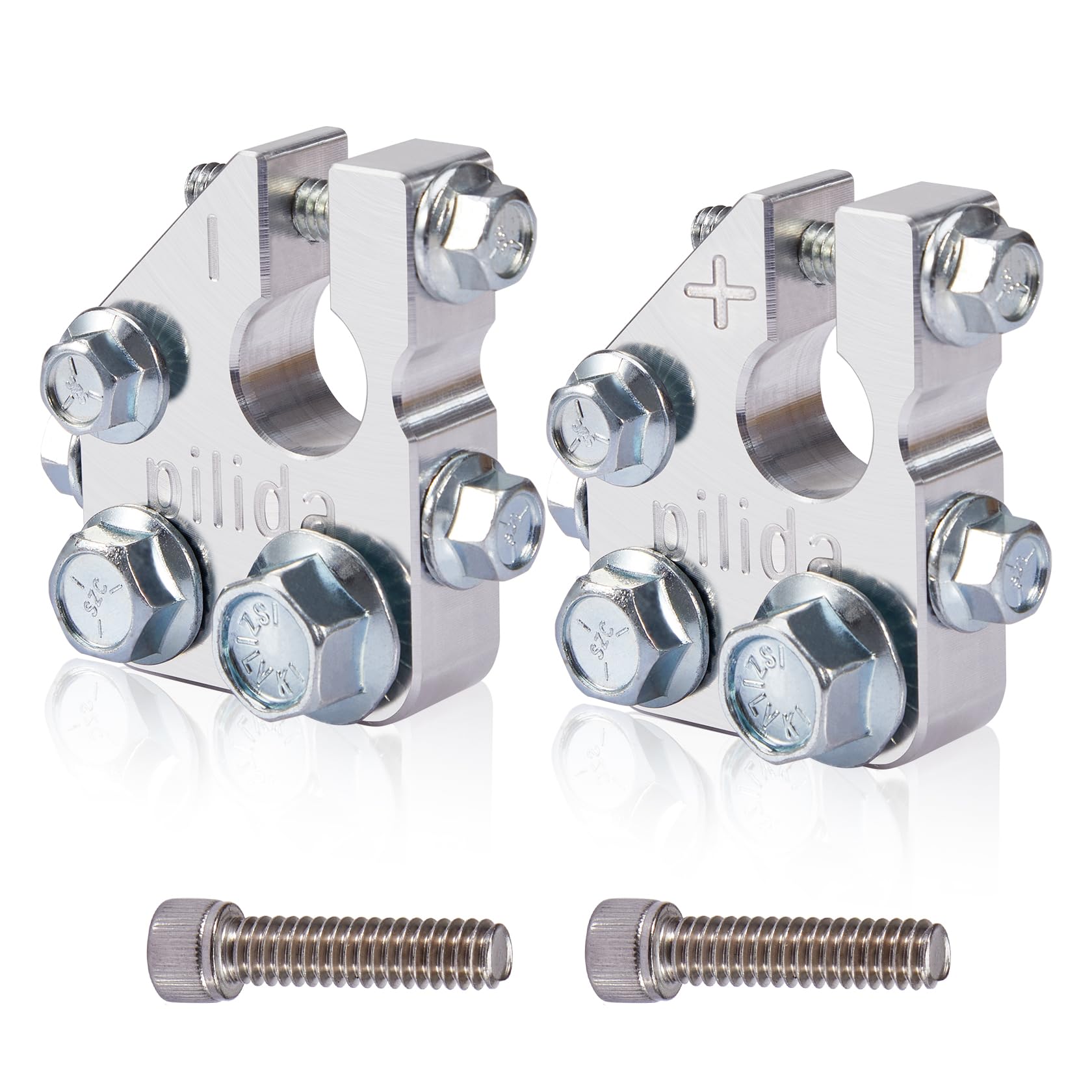

The Pilida Battery Terminal Connectors deliver a sturdy aluminum multi power block designed to streamline power distribution across multiple circuits. This 5 way terminal set pairs a positive and a negative terminal with a compact layout that fits comfortably in engine bays, cabins, and cargo areas. It supports SAE, DIN, and EN configurations, making it a versatile upgrade for a range of vehicles and marine setups.
Why this setup works
Built from aluminum, the block offers lasting toughness and corrosion resistance, helping a power system stand up to salt air, vibration, and weather exposure. By consolidating power posts in one block, you may save time during installations or upgrades by reducing the need for additional splices or harness alterations. The design aims to keep wiring neat and accessible while providing reliable cross connections for essential accessories.
Key specifications at a glance

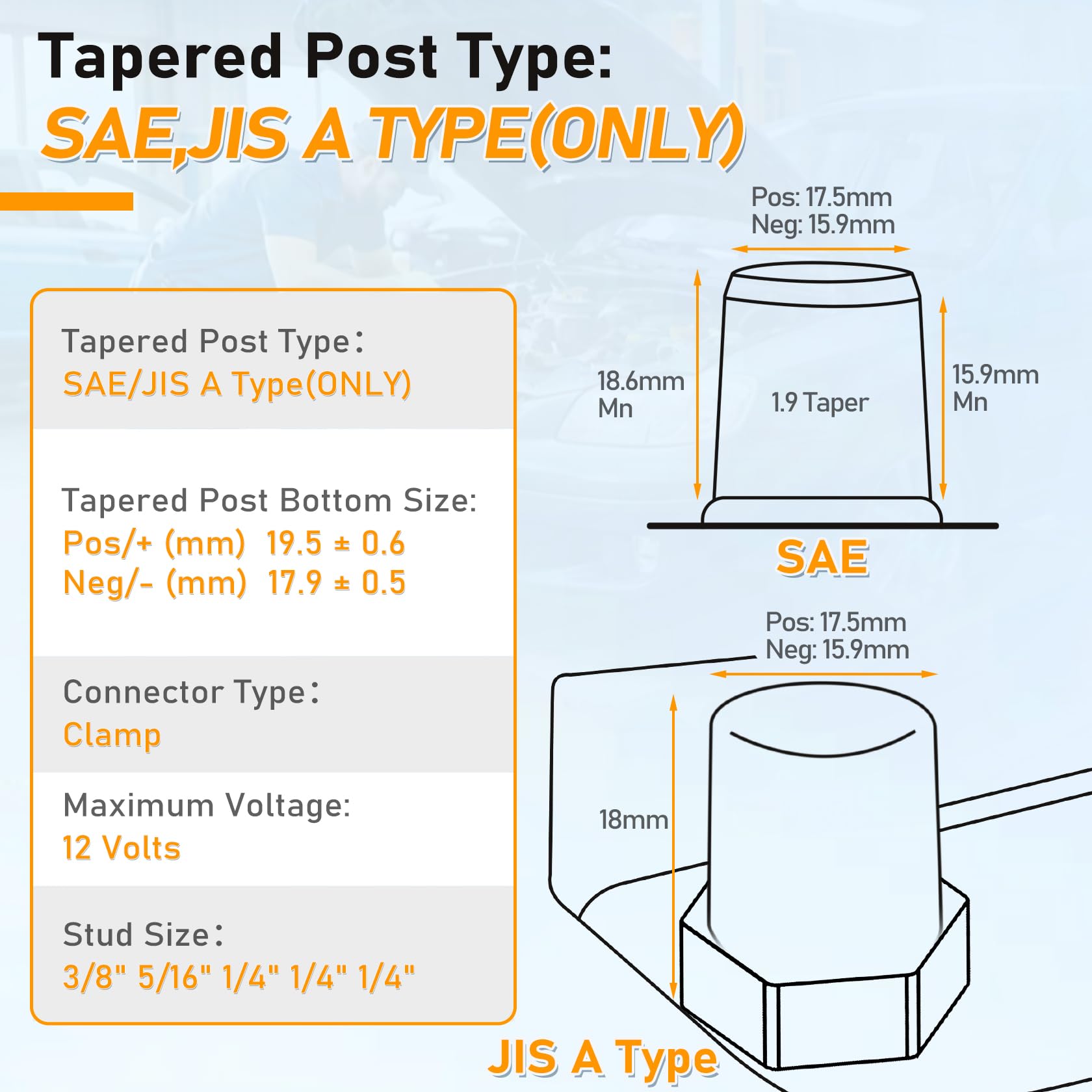

- Battery Terminal Type: SAE, DIN, and EN compatible
- Multi Power Block enables distribution to multiple circuits without cutting into the wiring harness

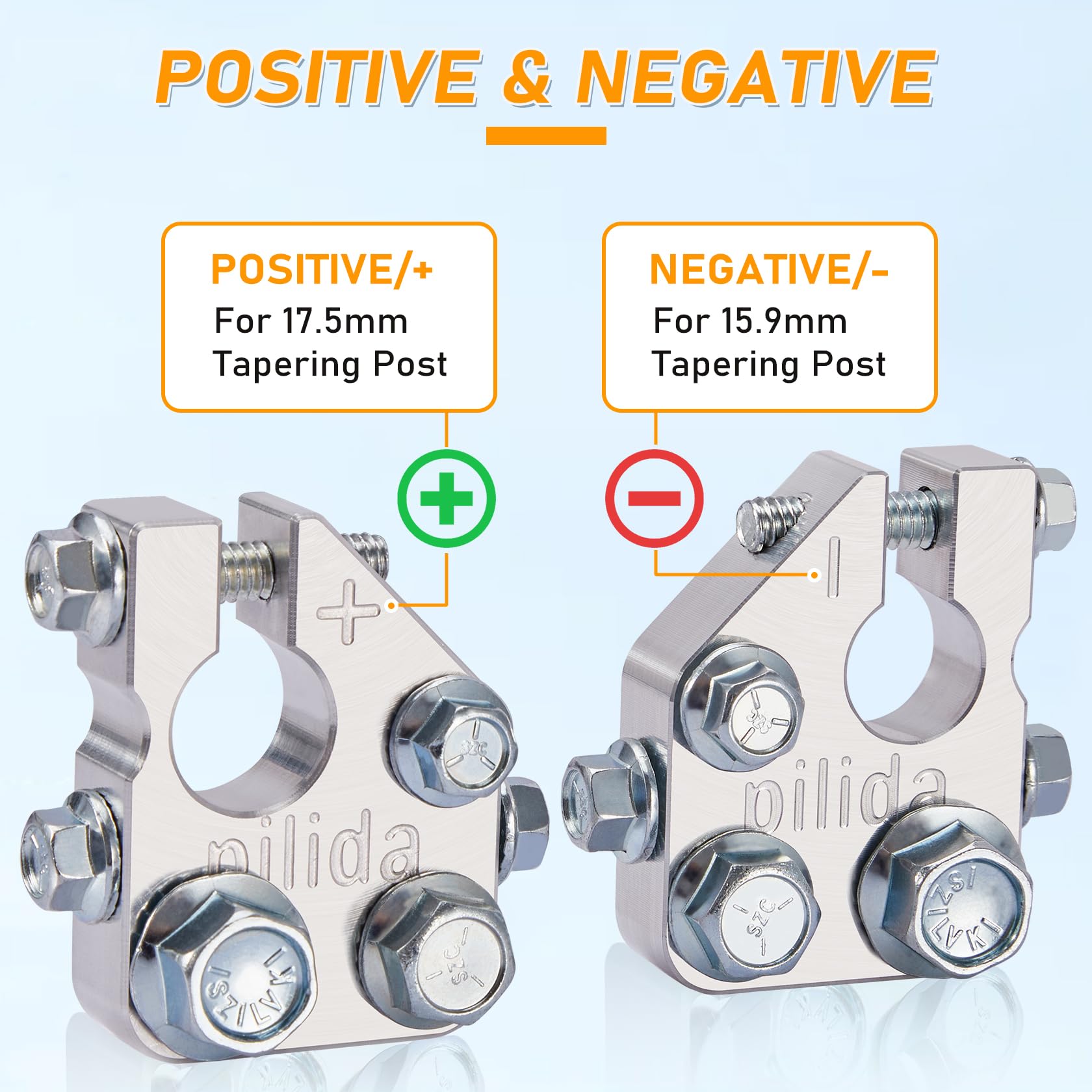

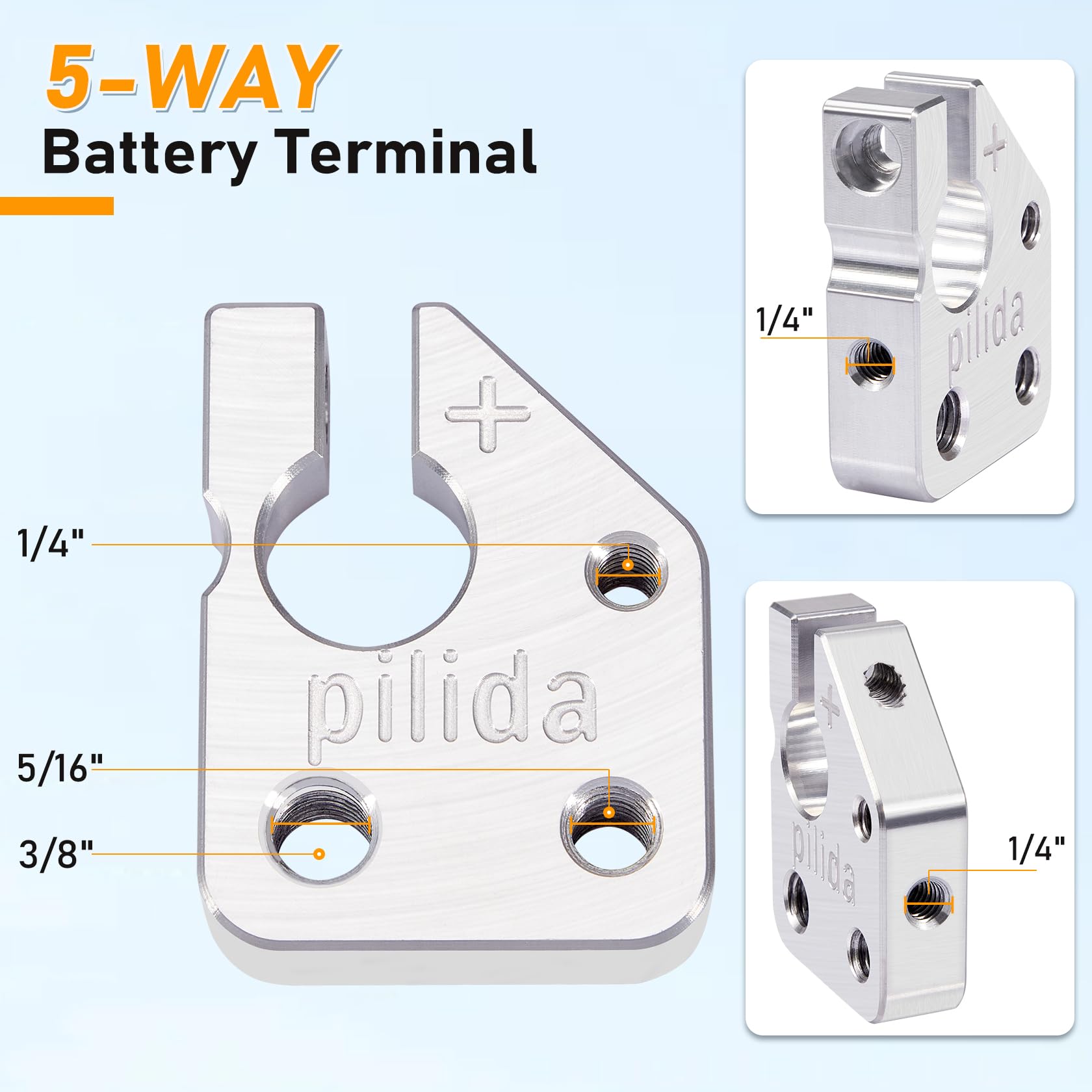

- 1 pair of heavy duty clamps including positive and negative terminals; one 3/8 inch post, one 5/16 inch post, and three 1/4 inch posts
- Top Post terminal crafted from aluminum for high toughness and good corrosion resistance
- Compatible with cars, caravans, motorhomes, RVs, buses, trucks, pickups, yachts, motorcycles, forklifts, cranes, and more

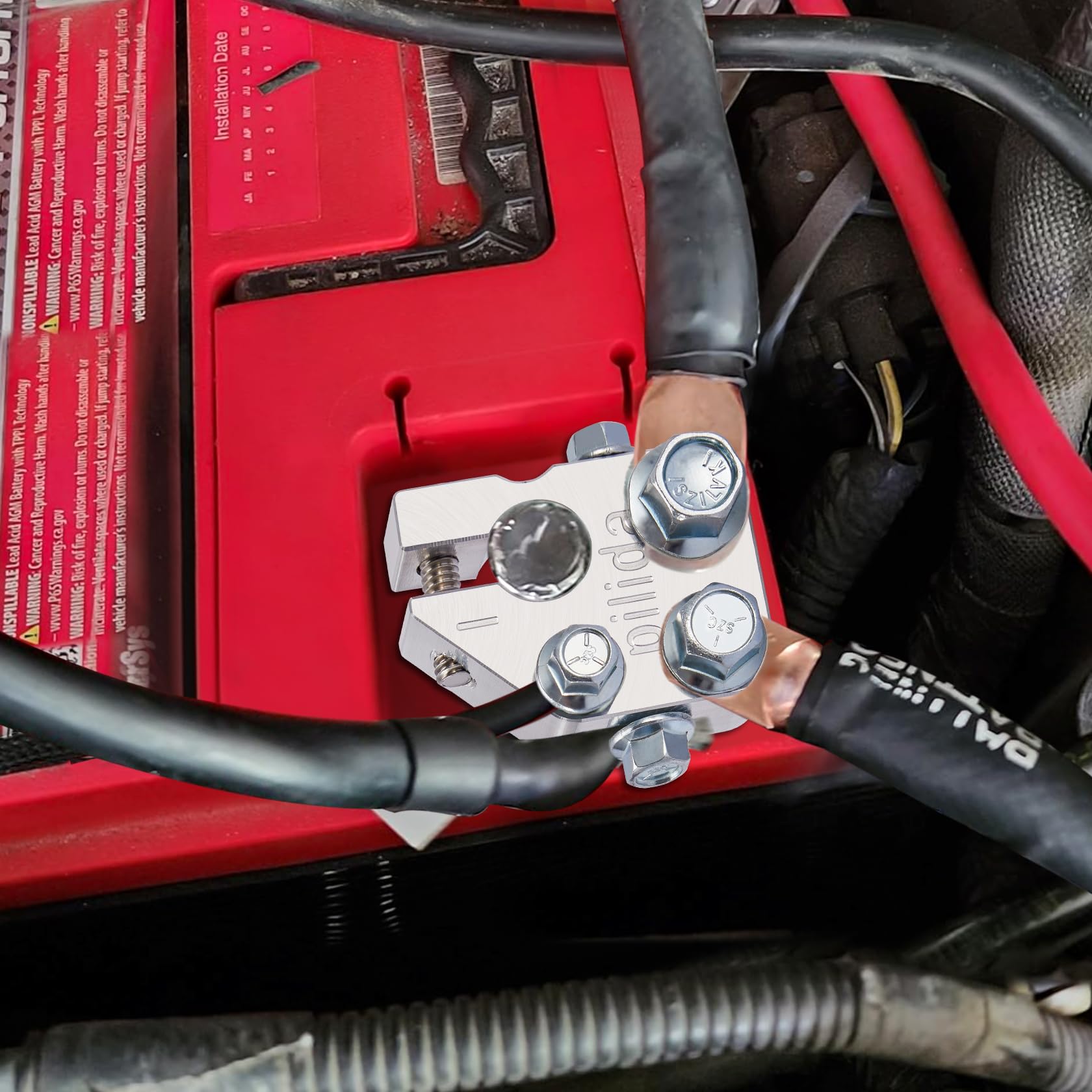

- Tip: If a clamp feels loose, loosen the clips completely before final installation for a better fit
Practical uses
Whether you are upgrading a vehicle electrical system, outfitting a boat, or tidying a small fleet’s power layout, this block provides flexible options for powering multiple devices. Its compact footprint helps you keep critical connections organized in tight spaces while preserving easy access for servicing or future expansions.
Installation tips
- Inspect connections before final tightening to ensure solid contact
- Avoid overtightening to prevent damage to the posts
- Keep terminals clean and dry for reliable performance
FAQ
Q: Is this compatible with SAE, DIN, and EN battery standards?
A: Yes, the block supports SAE, DIN, and EN configurations for broad compatibility.
Q: How should I install to avoid over tightening and ensure a secure fit?
A: Loosen the clips if needed, then tighten evenly to secure the connections without exerting excess force.
