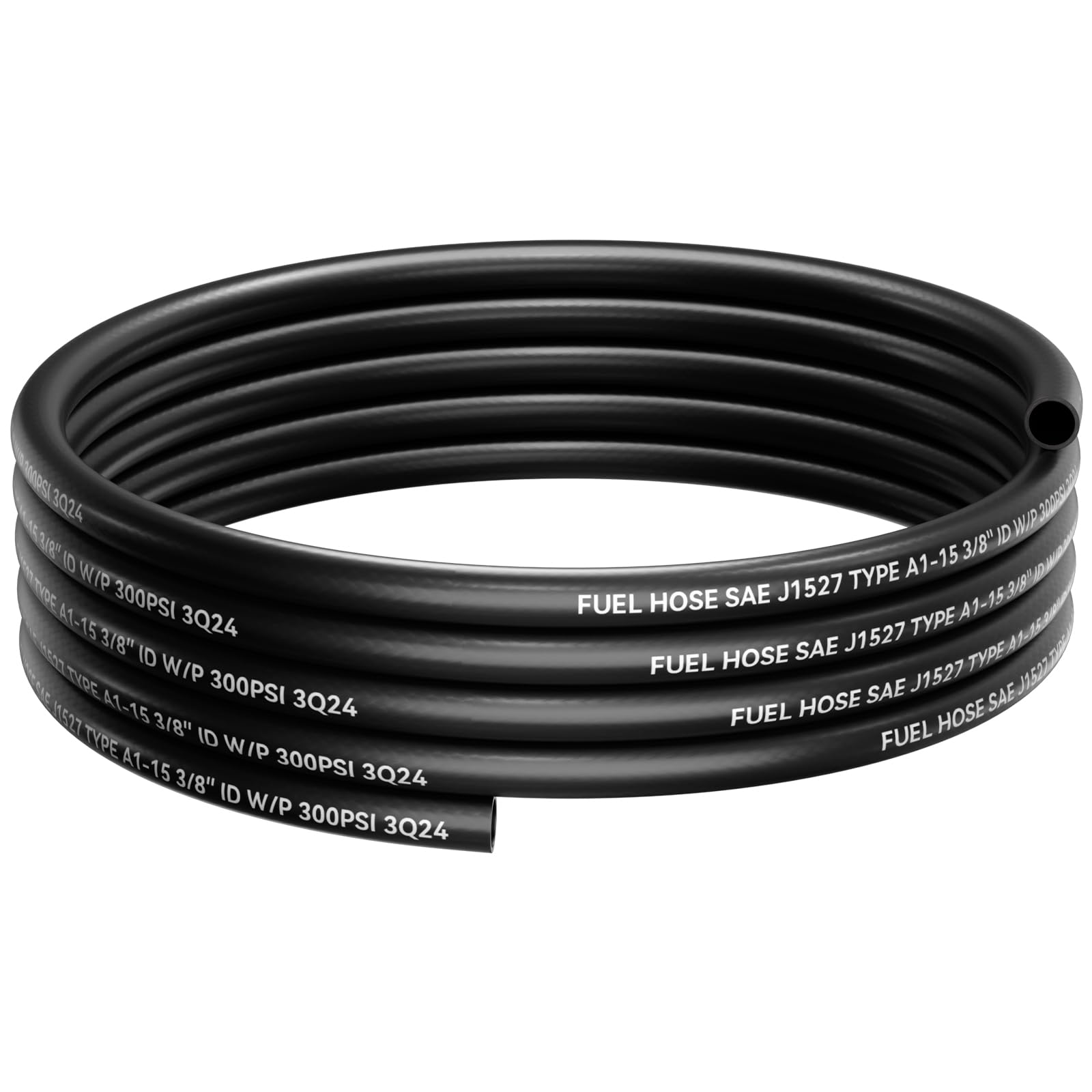

POHIR 3/8-inch Marine Fuel Line Hose SAE J1527 Type A1-15, 300 PSI, 10 ft

Overview

The POHIR 3/8-inch Marine Fuel Line Hose is designed to deliver steady fuel supply to marine engines, pumps, filters, and generators. Built for boats and ships, this hose emphasizes durability, safety, and compatibility across common fuels while remaining flexible enough for tight installations on deck or in engine bays.

Key capabilities

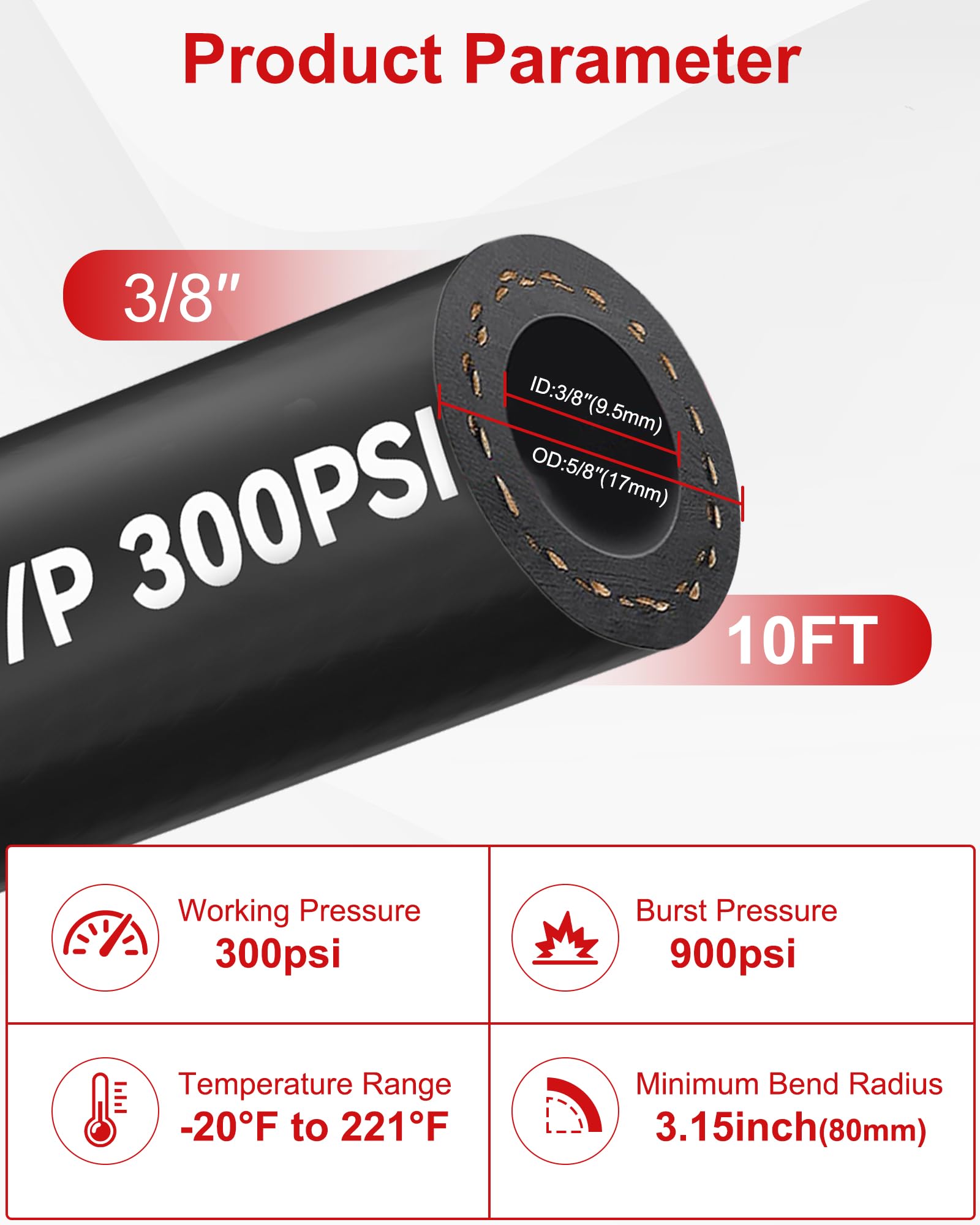

• Max working pressure: 300 psi; bursting pressure: 900 psi
• Temperature range: -22°F to 212°F (-30°C to 100°C) for varied marine climates
• Inside diameter: 3/8 inch; Outside diameter: 5/8 inch
• Length: 10 feet, offering flexible routing for different boat configurations

With these specs, you can plan fuel routing from tanks to pumps or engines with confidence, especially in environments where fluctuations in pressure and temperature are common.

Layered design and safety features

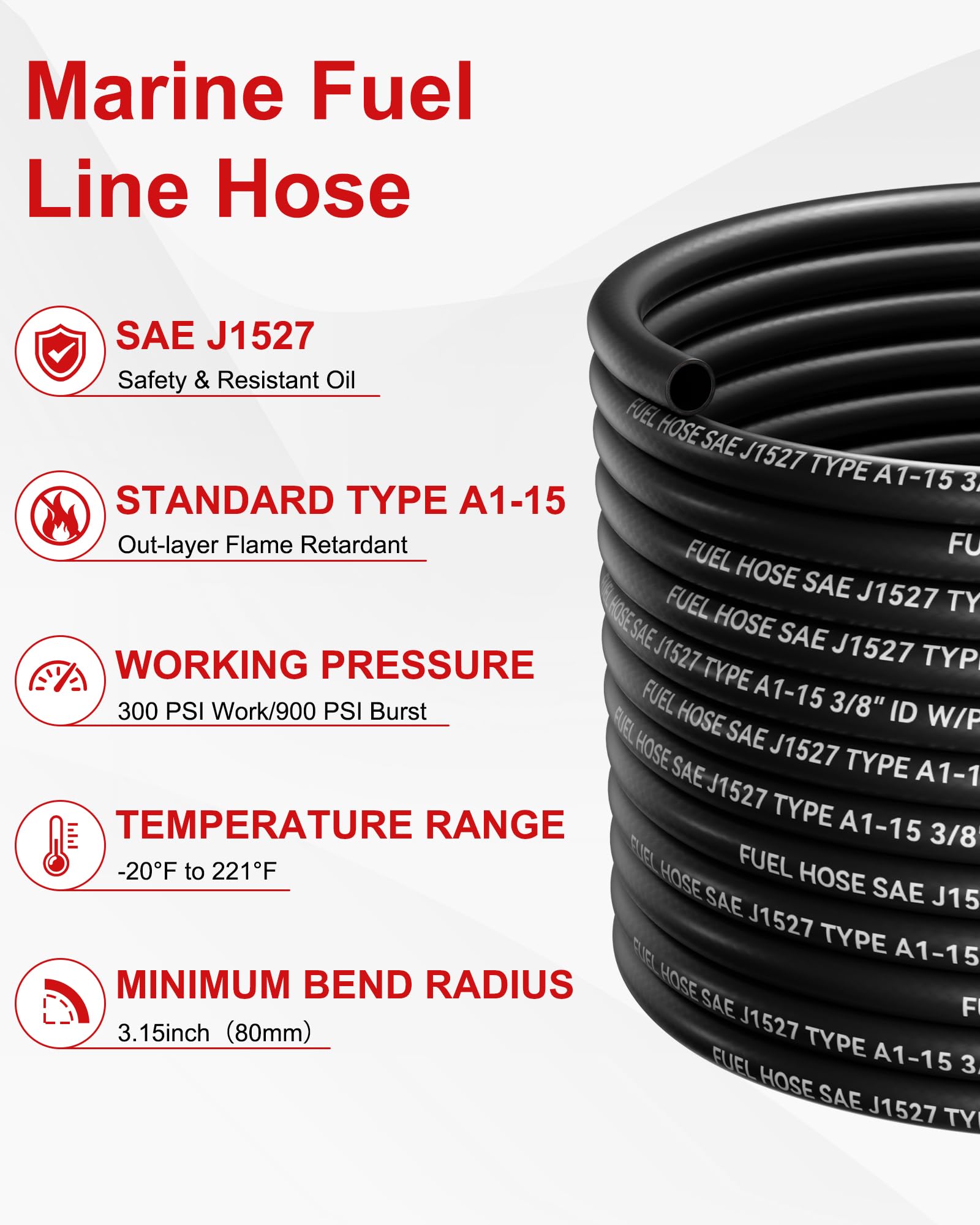

• Upgraded flame retardant Level V-0 outer jacket

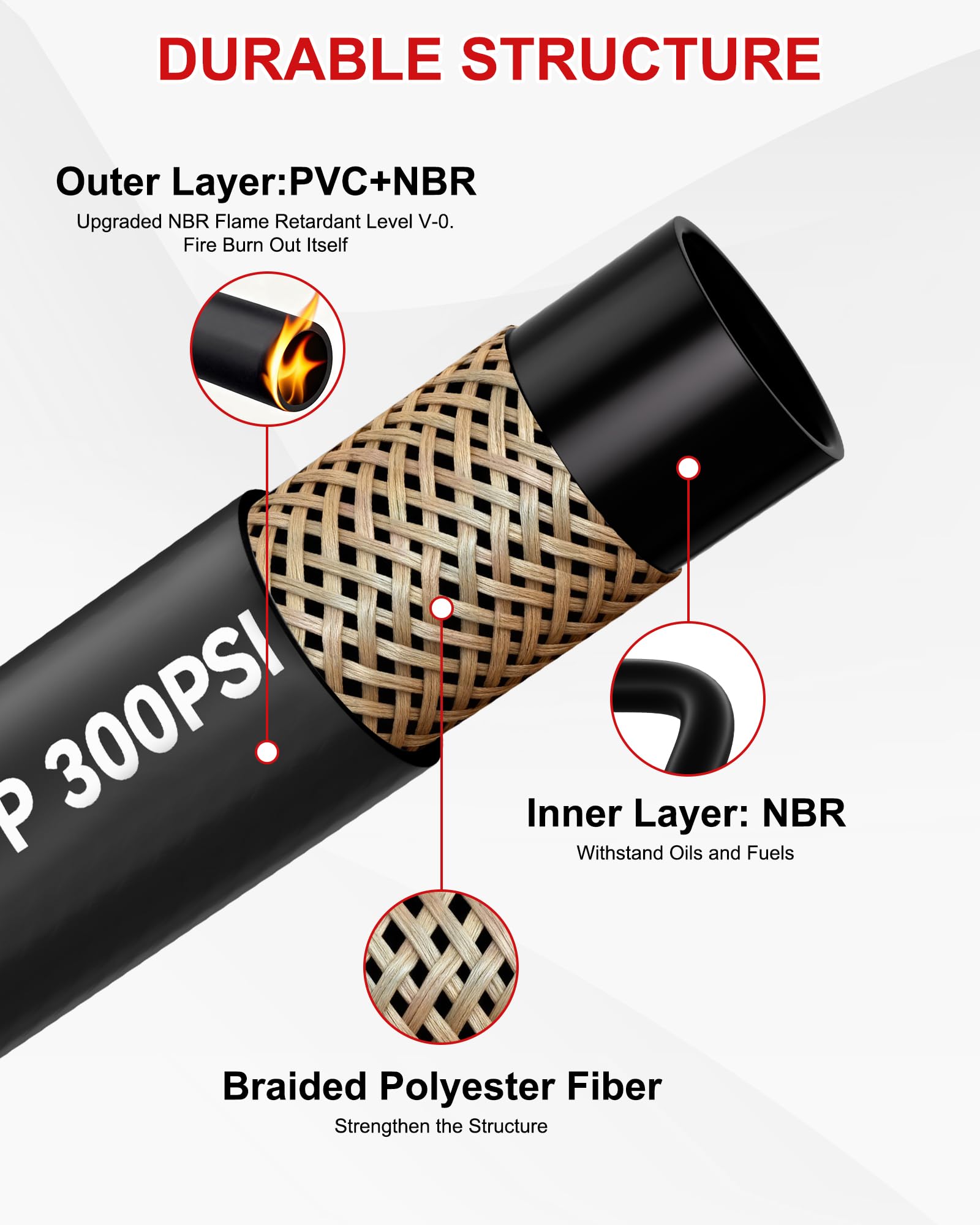

• Three-layer structure: NBR inner, NBR+PVC outer, reinforced with polyester fiber braid
• Outer NBR material supports enhanced flame resistance while maintaining flexibility
• Weather and UV resistant for long-term marine exposure

The combination of a flame-retardant outer layer and a reinforced braid contributes to durability during regular marine use. While not a claim of guaranteed safety, this construction is intended to help resist wear in challenging conditions.

Materials, compatibility, and use cases

• Compatible with gasoline, diesel, and E85 fuels
• Suitable for supplying fuel to motors in boats or marine equipment, including connections to tanks, filters, pumps, engines, and generators
• Low permeation helps minimize fuel loss and odor transmission through the hose wall

This hose is designed to support typical marine fueling tasks, from routine engine maintenance to temporary fuel routing during setup or repairs. Its 10 ft length provides installation flexibility in tight engine rooms or under decks.

Standards, installation, and support

• Conforms to SAE J1527 Type A1-15 requirements for pleasure boats
• Weather and UV resistance helps with outdoor exposure at docks or launch sites
• Dedicated customer service with professional consulting available within 24 hours

When selecting a fuel line for marine use, consider compatibility with your fuel type, the routing space on your vessel, and any regulatory or warranty considerations. POHIR aims to offer a practical option that aligns with common marine fuels and standard fittings.
