RUPSE Fuel Sender Unit & Gauge Kit | Stainless Steel Marine & Automotive Fuel Level Sensor (6 inch)
- £34.45
- £34.45
- Unit price
- per
Couldn't load pickup availability
Free UK Delivery on All Orders
Free Returns
Description
xOverview

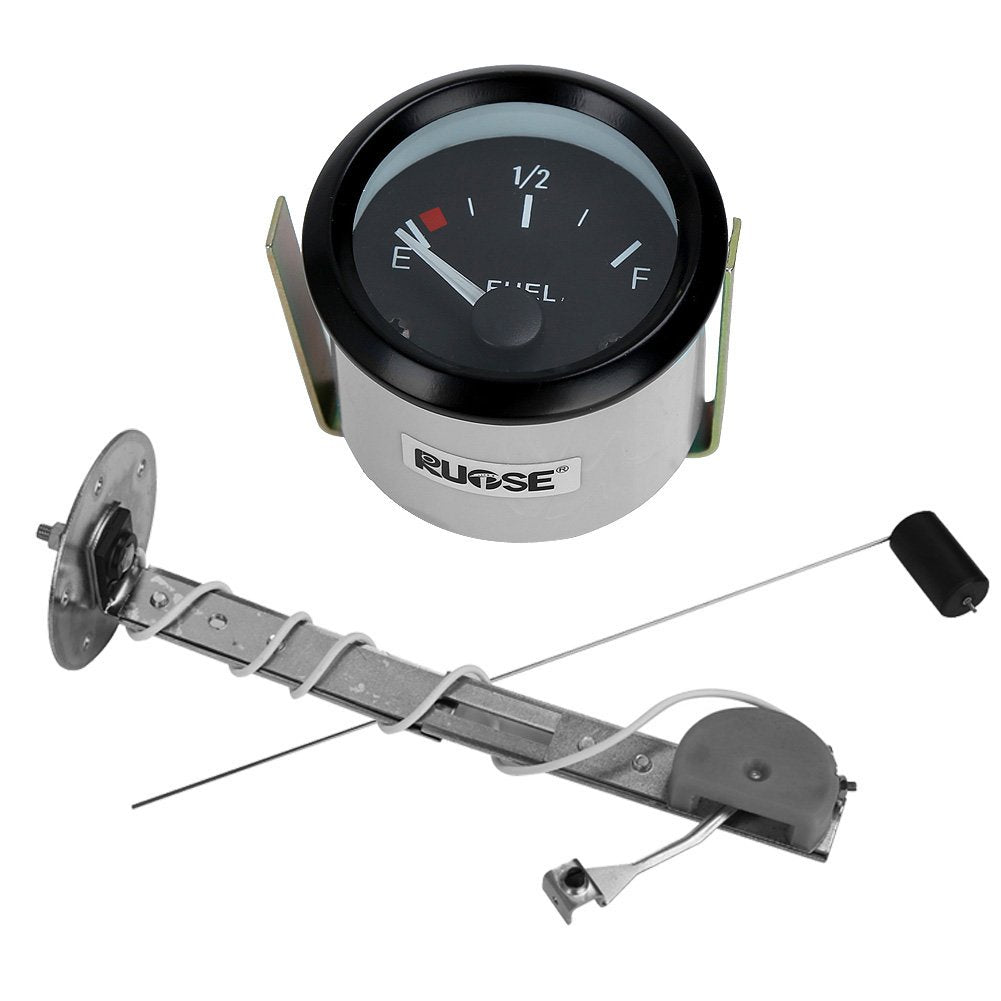

RUPSE brings a durable Fuel Sender Unit and Gauge Kit designed to deliver reliable fuel level information for boats and vehicles. The sending unit uses a corrosion resistant stainless steel exterior with precise reed switches inside, while the gauge module combines stainless steel with ABS for a robust, long lasting display. This pairing aims to provide stable readings and practical level awareness across common fuels and select liquids used in everyday operations.
Operating across a wide voltage range from 9 to 32 volts DC, this kit supports both 12V and 24V systems, making it suitable for boats, cars, trucks, RVs, or light industrial equipment. The sensor signals range from 240 ohms at empty to 33 ohms at full, which aligns with compatible level gauges. Compatible liquids include gasoline, diesel, water, and methanol, giving you flexibility for diverse applications.

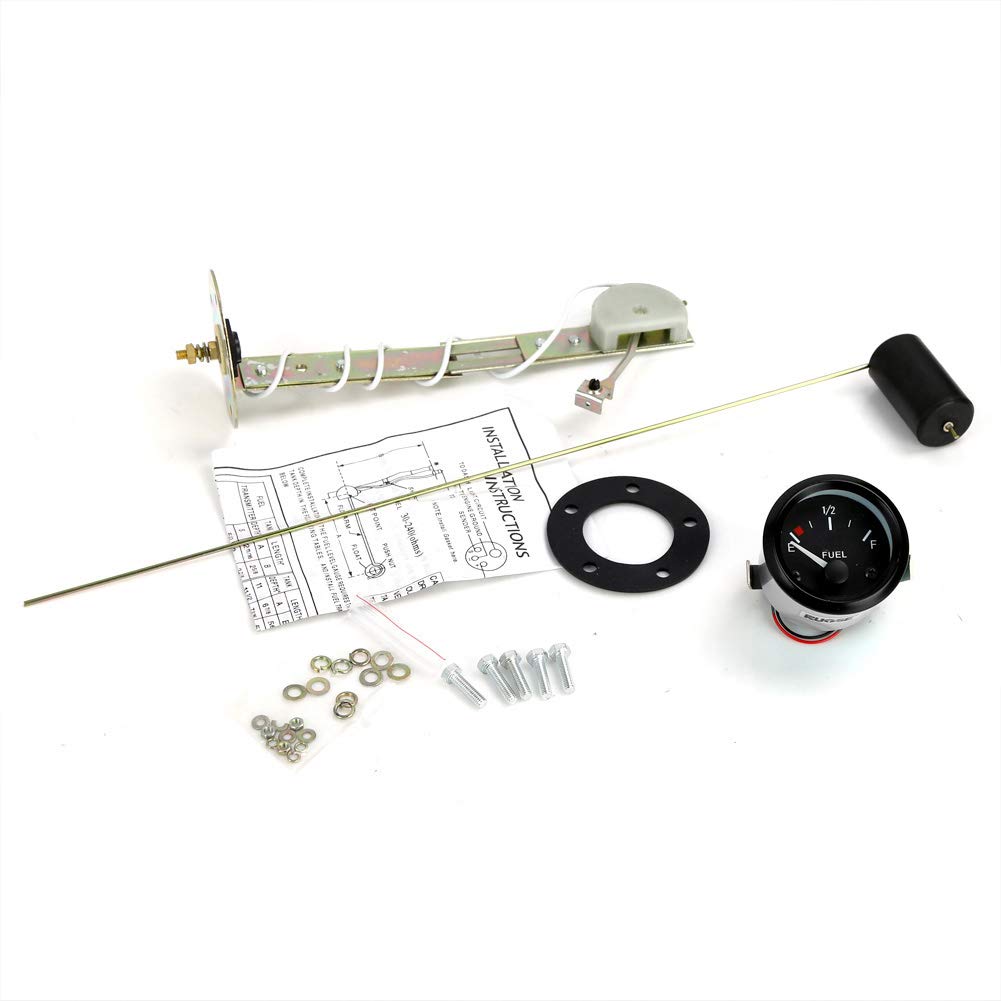

What is included
- 1x Fuel Sending Unit
- 1x NBR Gasket
- 5x M5 Screws
- 1x Fuel Level Gauge
- 1x Wiring Harness
- 10x Butt Terminals
- 1x Installation Instruction
Easy to install and versatile

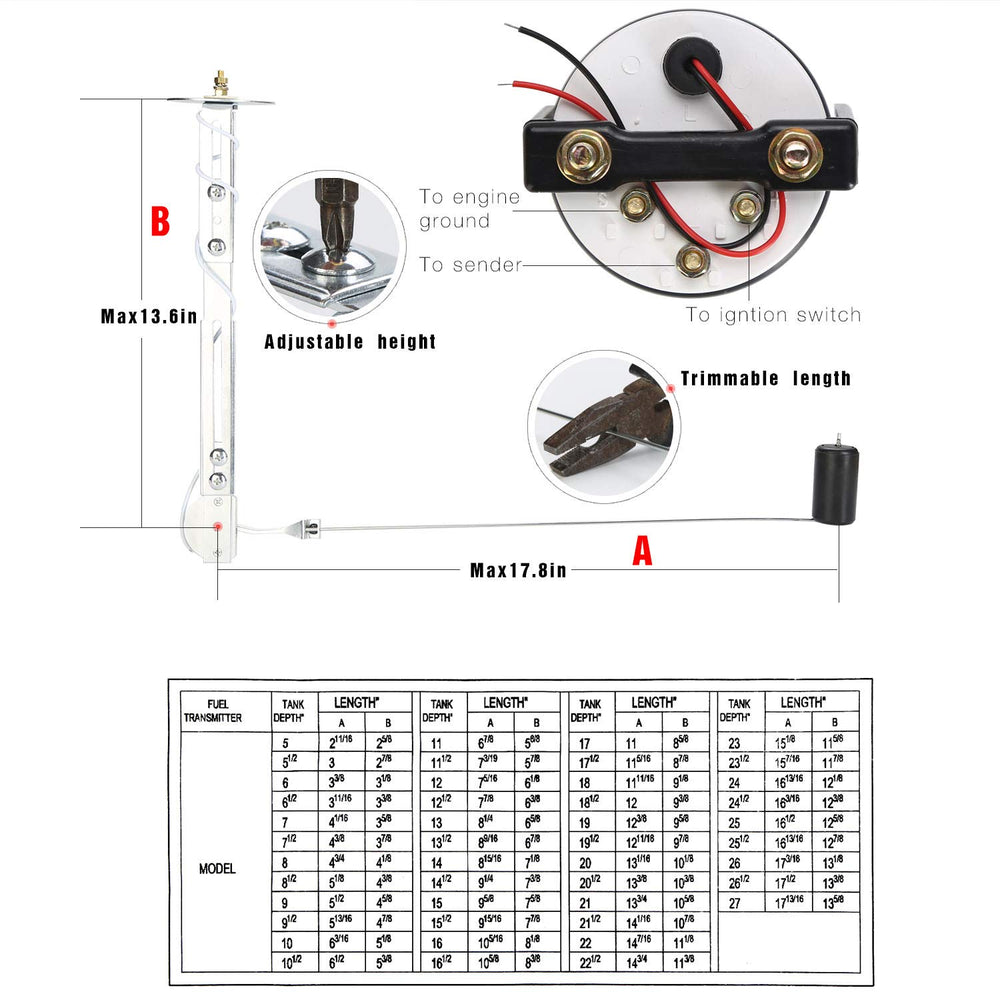

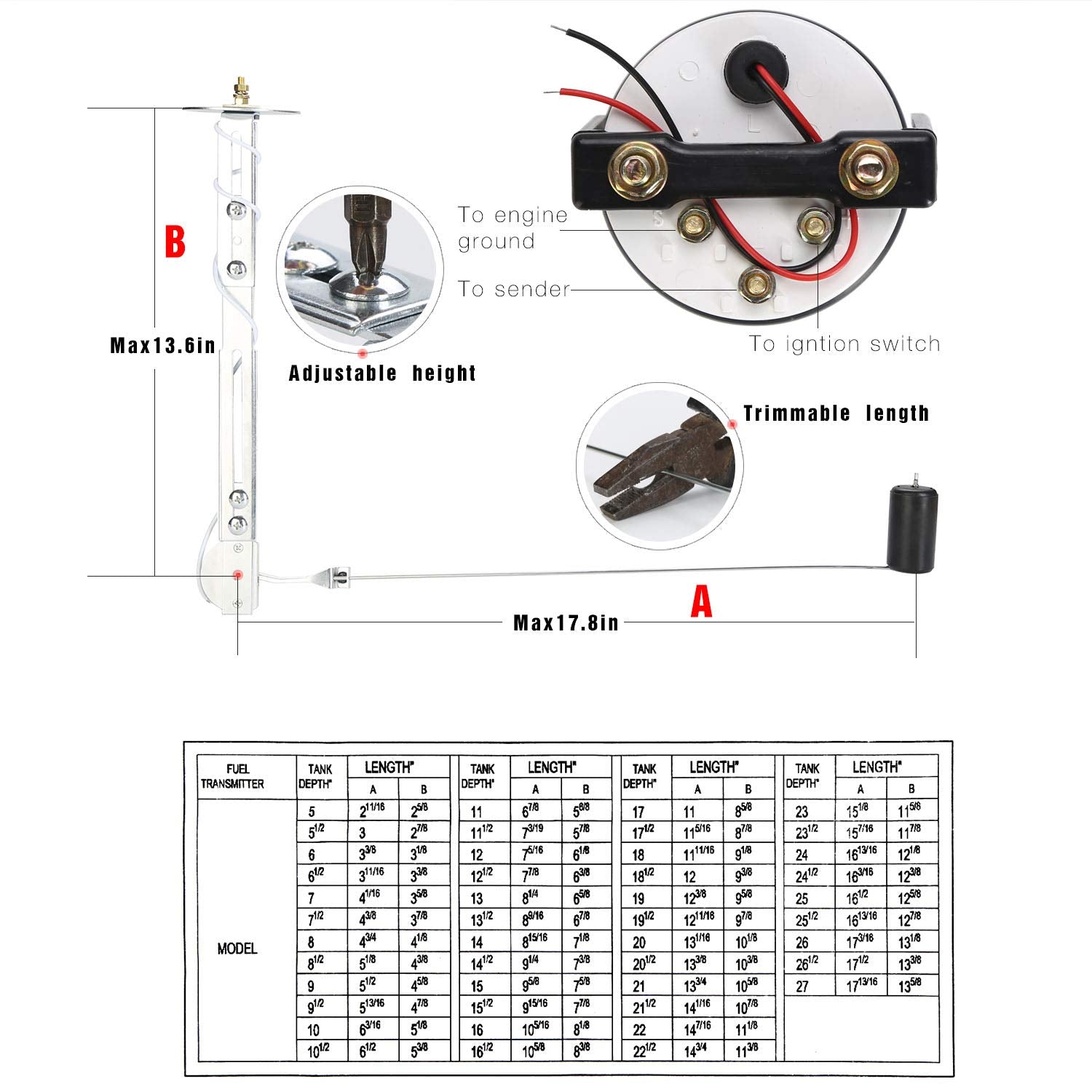

- SAE standard 5 hole mounting pattern simplifies mounting on many tanks
- 52 mm 2 inch fixing diameter fits common tank openings
- Gasket and seals provide good sealing and oil resistance
- Included wiring harness and 10 terminals speed up connections
Readability and protection

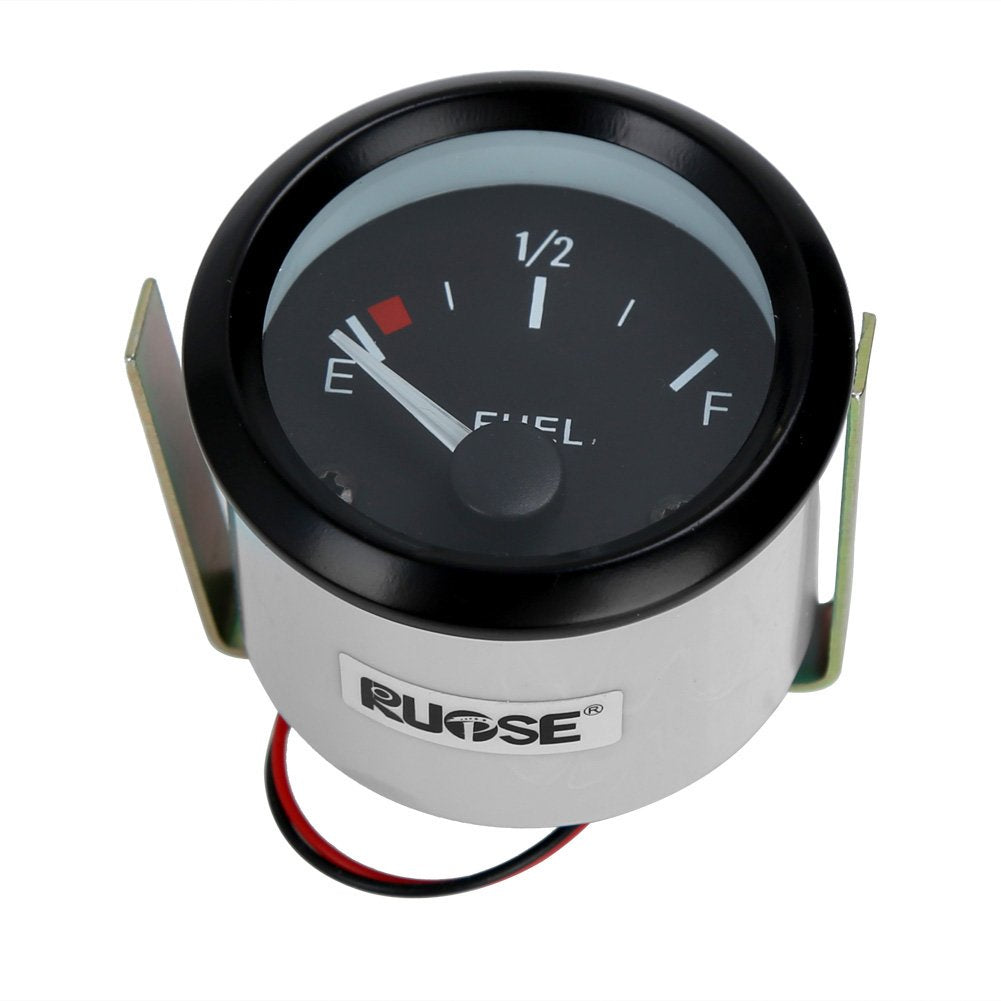

- Gauge features 8 adjustable backlight colors for night readability

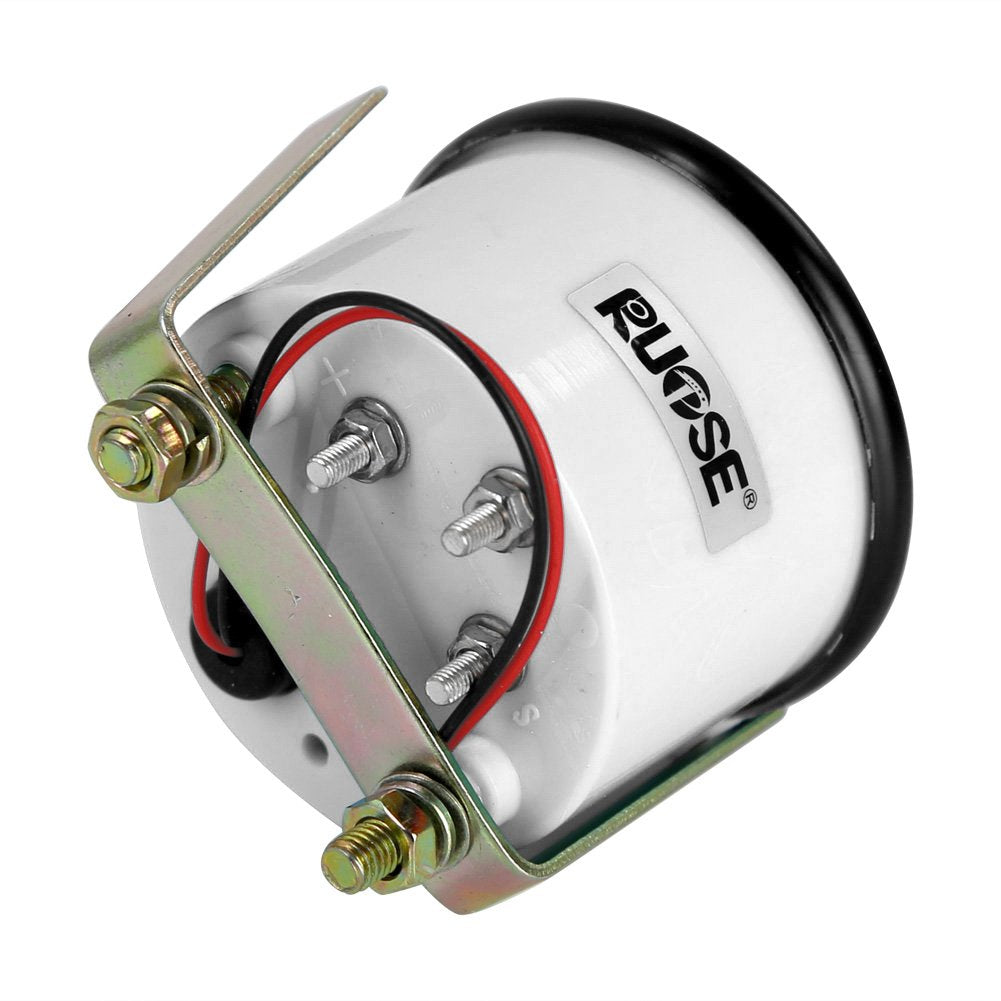

- IP67 waterproof rating guards against immersion and dust
- Anti fog curved glass helps maintain a clear view of levels
- LCD style display with a clear E to F indicator arc
Size options and compatibility

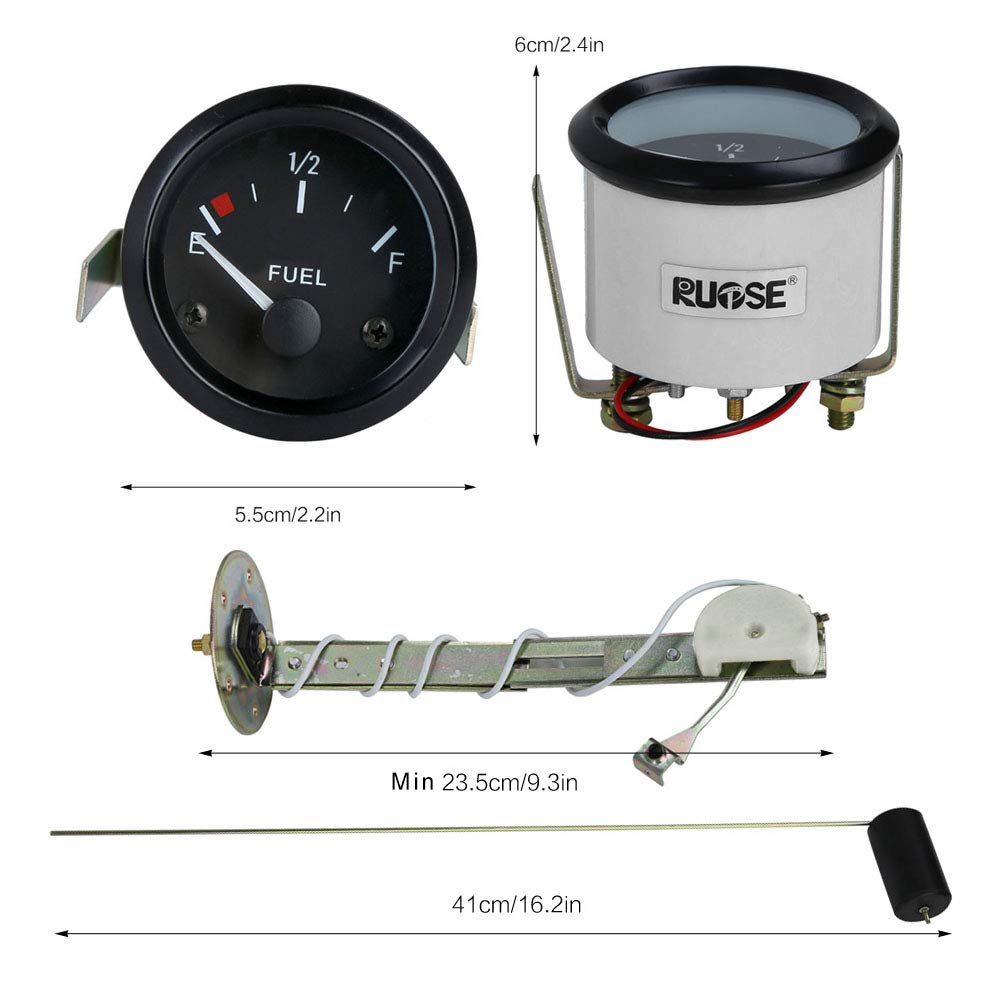

Multiple lengths are available including 4, 6, 6.8, 8, 8.8, 10, 11, 12 and 13 inches to suit different fuel tanks in boats, cars, trucks, and RVs. The 6 inch version is a common choice for many vessels with a 52 mm fixing diameter.
Usage notes
This kit provides dependable readings that may help you plan refueling and monitor fuel status. While it does not promise specific outcomes, it offers a practical data point for informed decisions in daily use.
FAQ
Q: What vehicles and tanks is the Rupse fuel sender compatible with?
A: Suitable for boats, cars, trucks, RVs and industrial equipment with multiple lengths to fit various tanks.
Q: What signal range and voltage does the unit use?
A: The sending unit uses a 240 to 33 ohm signal across 9 to 32 VDC.
