Vgate 12-Way Lead Acid Battery Terminal Connector | Multi-Size Hole Holder, 8AWG–4/0 XL
- £51.99
- £51.99
- Unit price
- per
Couldn't load pickup availability
Free UK Delivery on All Orders
Free Returns
Description
xOverview
The Vgate 12-Way Lead Acid Battery Terminal Connector is a versatile, space-saving solution designed to simplify complex battery setups. It offers a multi-size hole holder compatible with 8 AWG up to 4/0 (XL) gauge leads, delivering a neat, secure hub for both positive and negative posts across a range of vehicles and power systems.
Key benefits at a glance

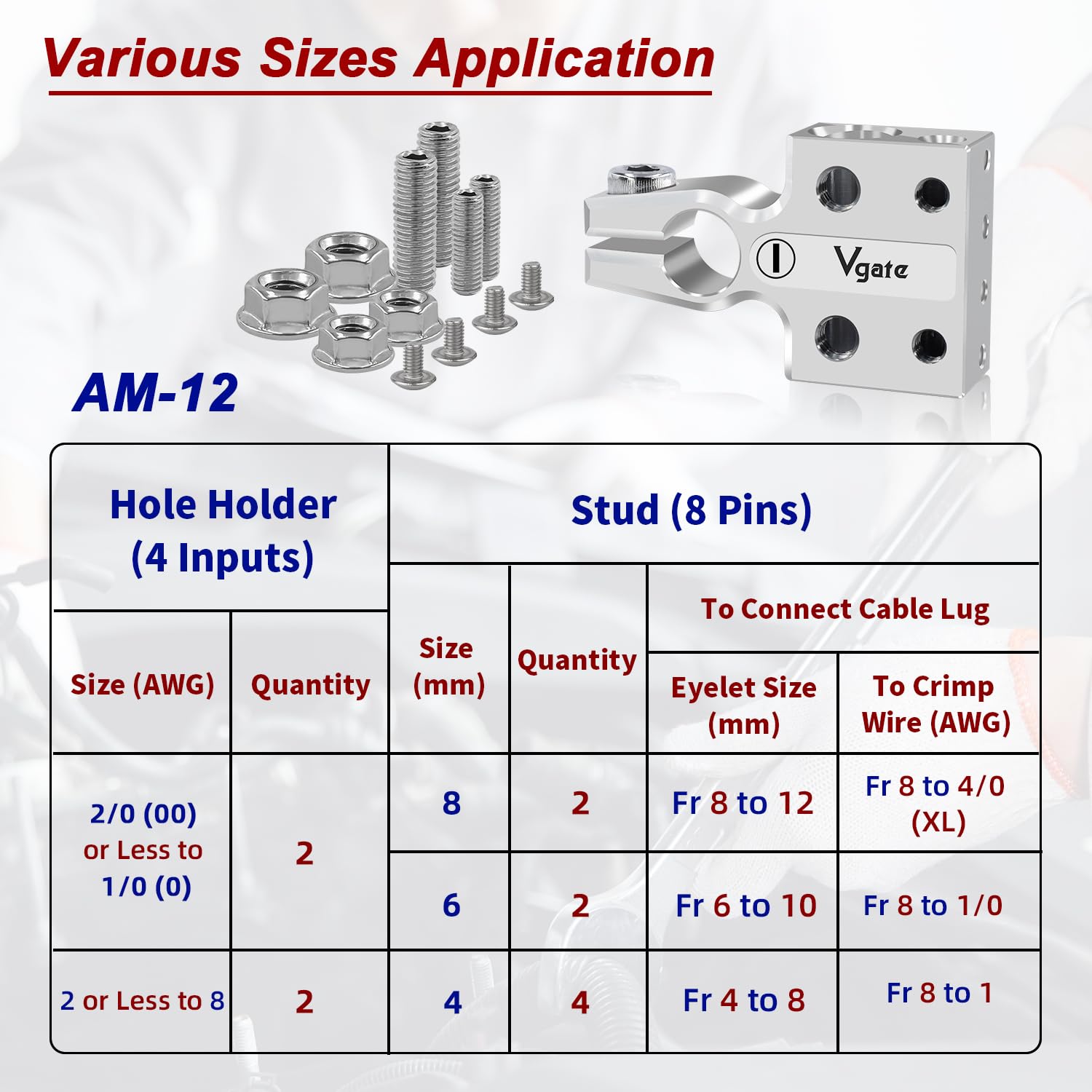

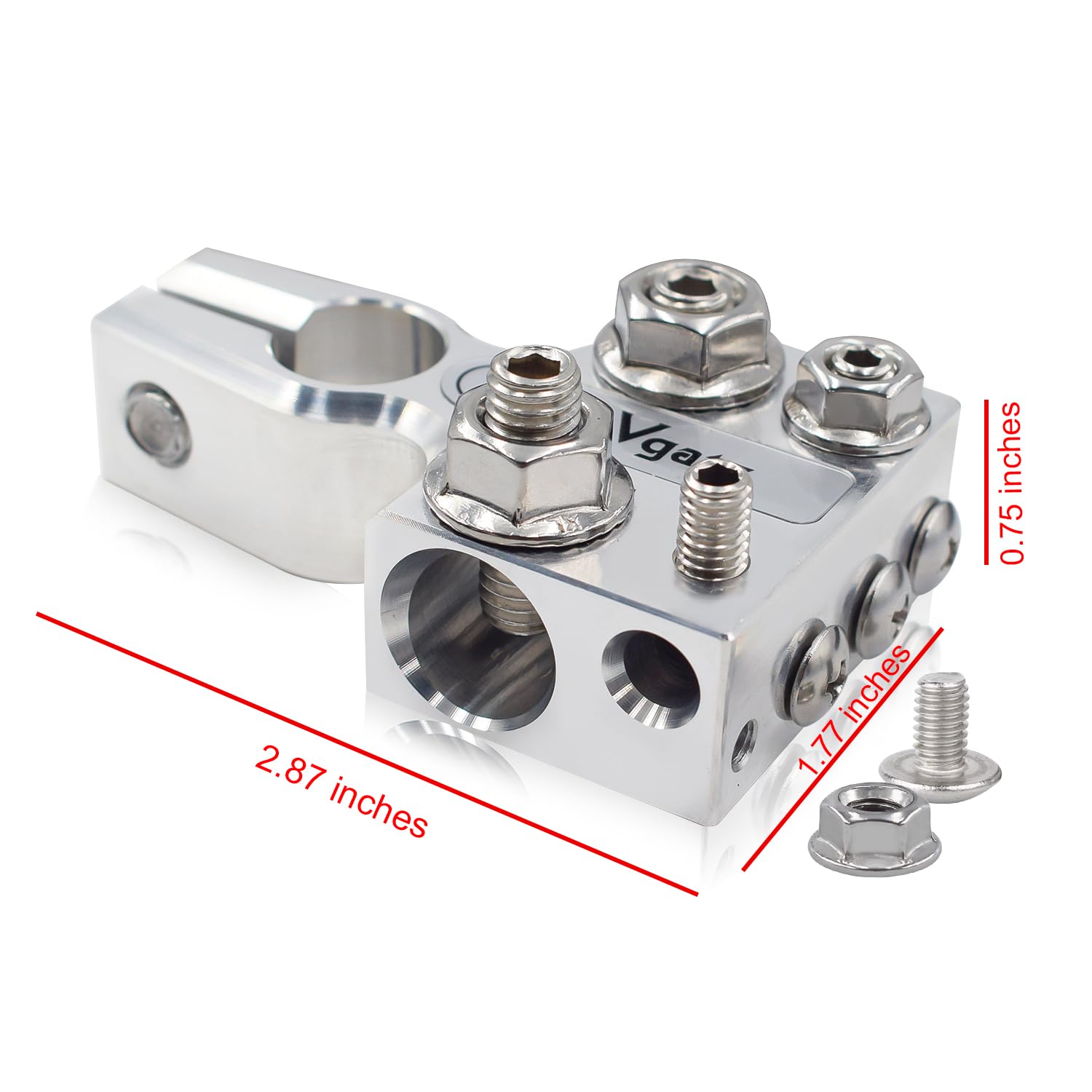

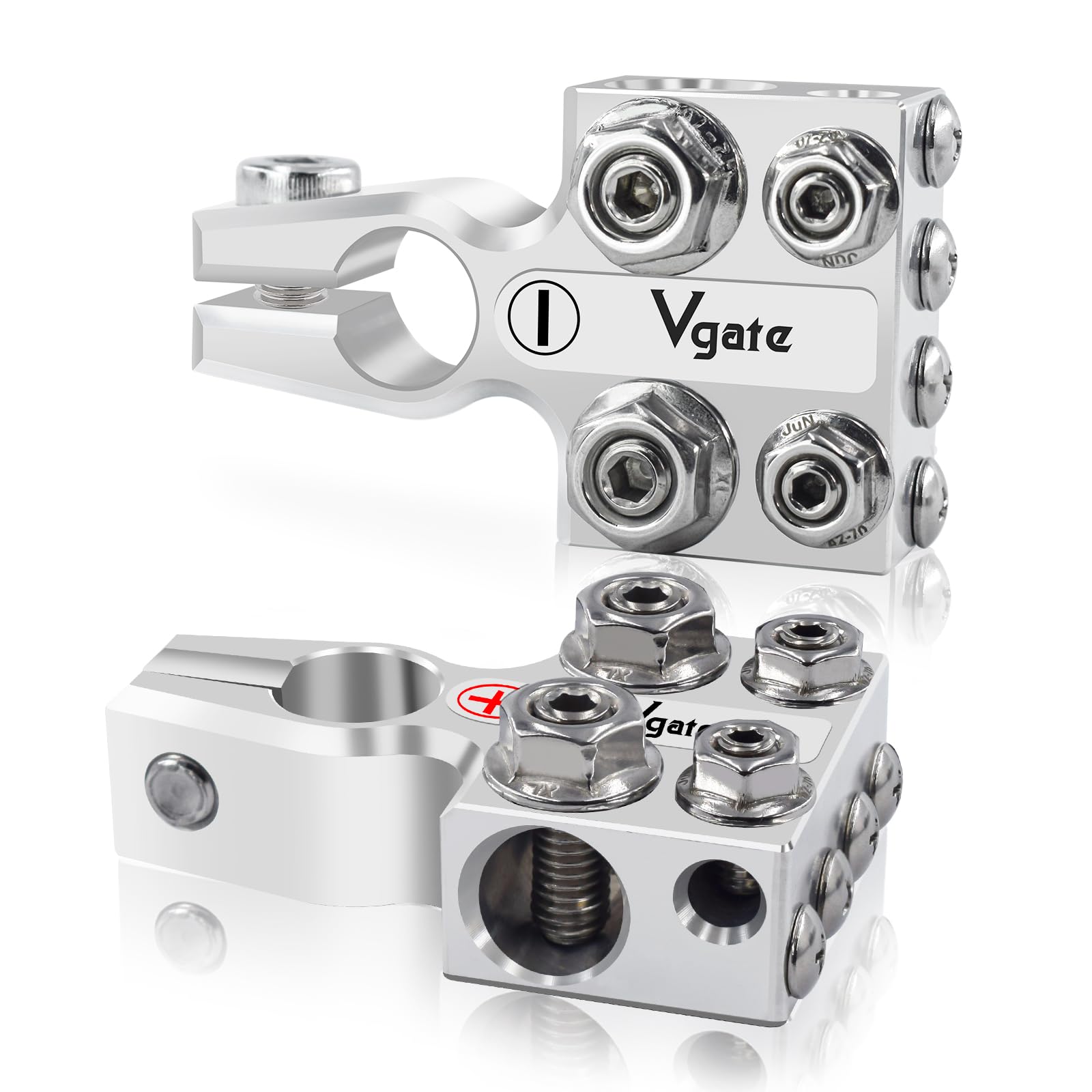

- 12-way configuration with 4 hole-holders and 8 threaded studs for flexible wiring layouts

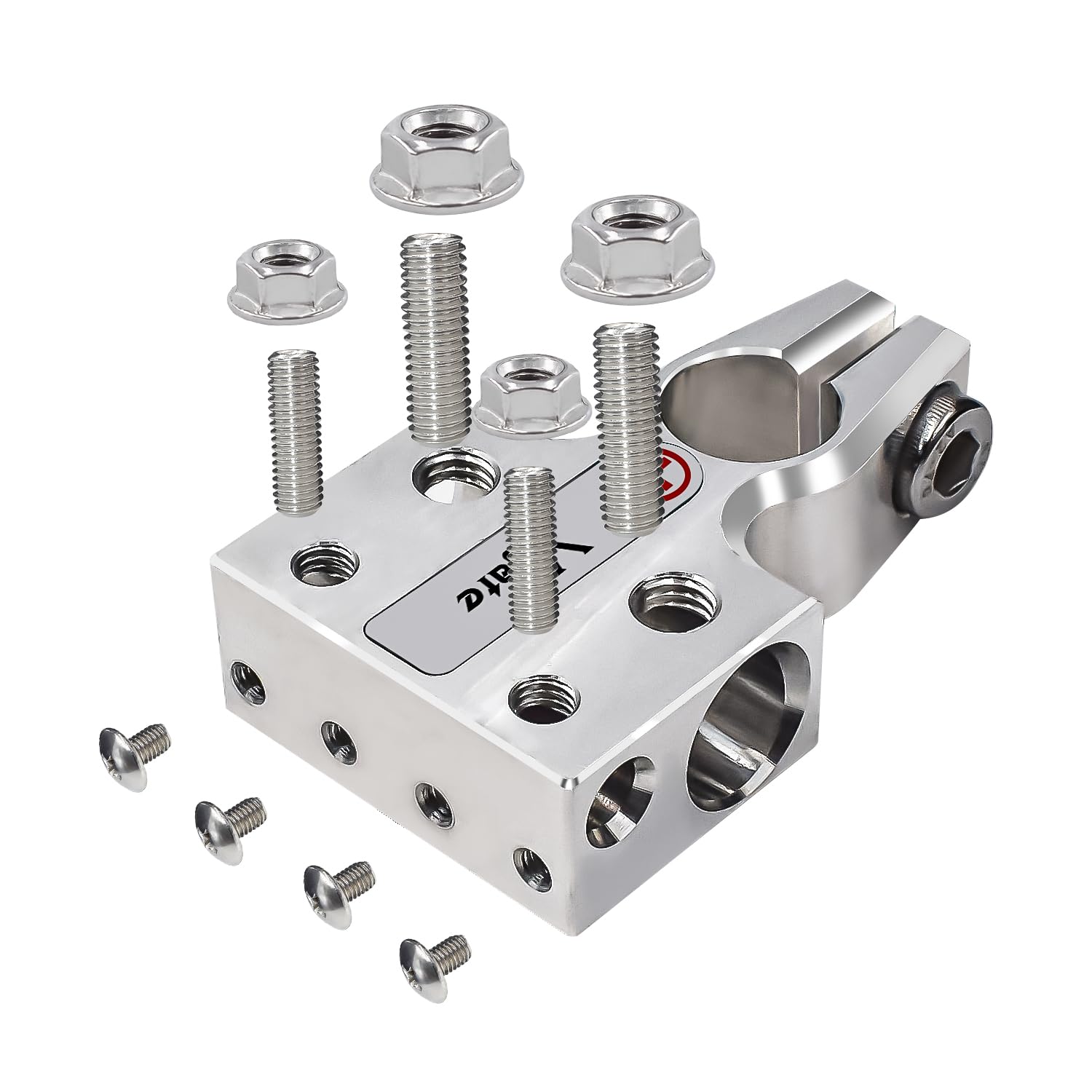

- Supports two 2/0 AWG and two 2 AWG hole holders with 4, 6, and 8 mm screws for secure mounting
- Compatibility with lead-acid chemistries (AGM, GEL, WET, MF and CA/CA)

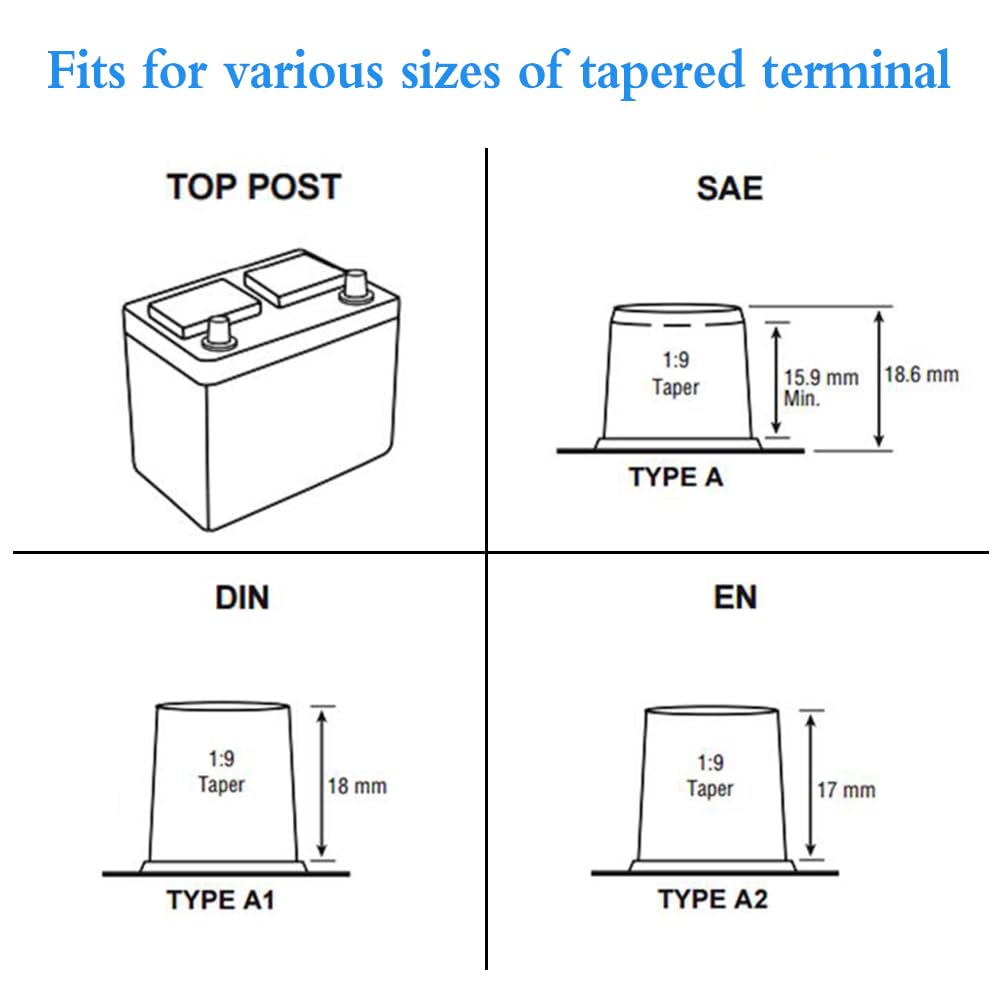

- Post type versatility covers SAE, DIN, and EN formats; JIS pencil posts are not included
- Designed for a wide range of applications: cars, caravans, motorhomes, RVs, buses, trucks, boats, and more
Compatibility and notes
- Battery types: lead-acid family including AGM, GEL, WET, MF, CA/CA
- Post formats: SAE, DIN, EN (JIS pencil post not included)

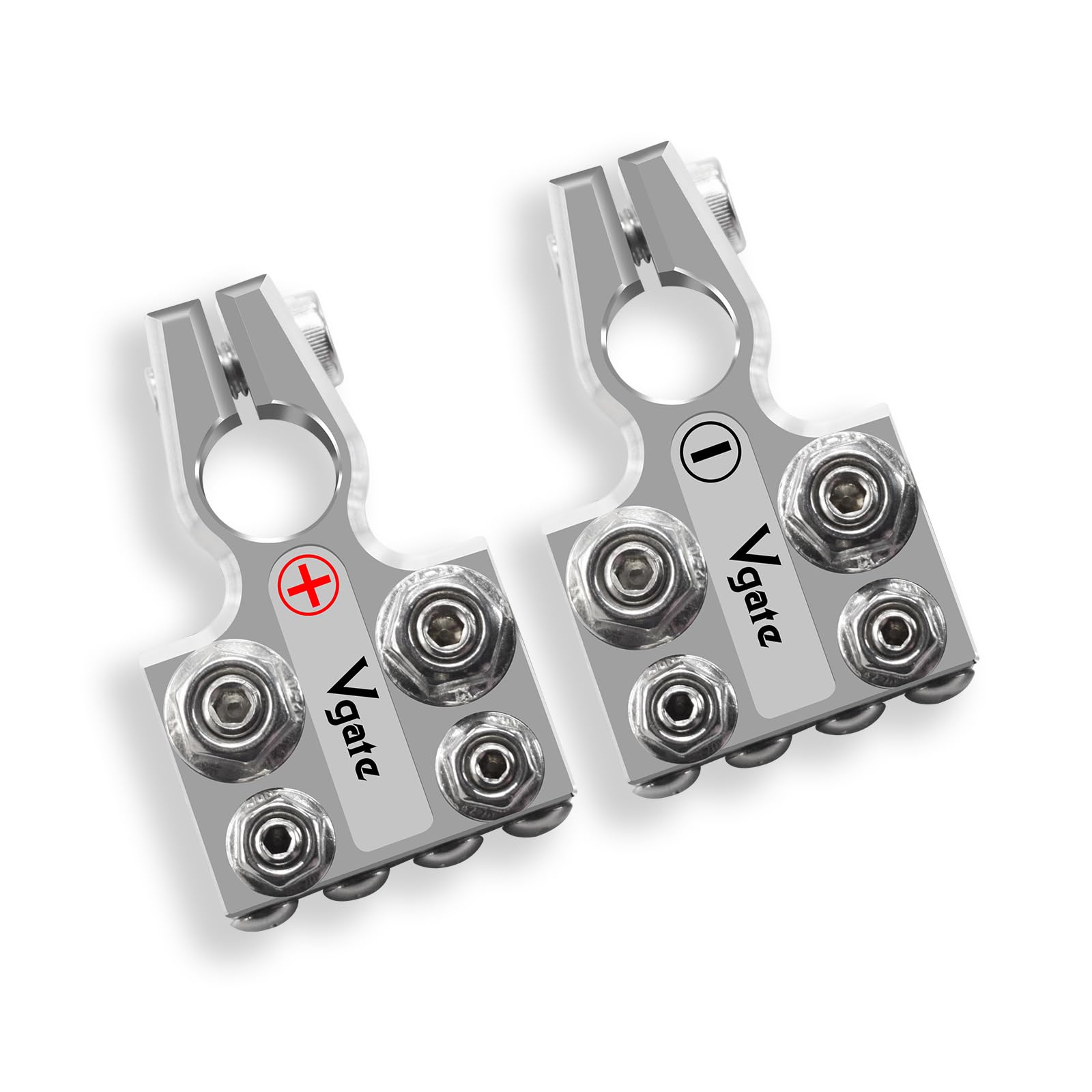

- For lithium batteries, consider the Stud-to-Post Adapter or dedicated M-series terminals (M10/M8/M6 options)
Installation tips and care

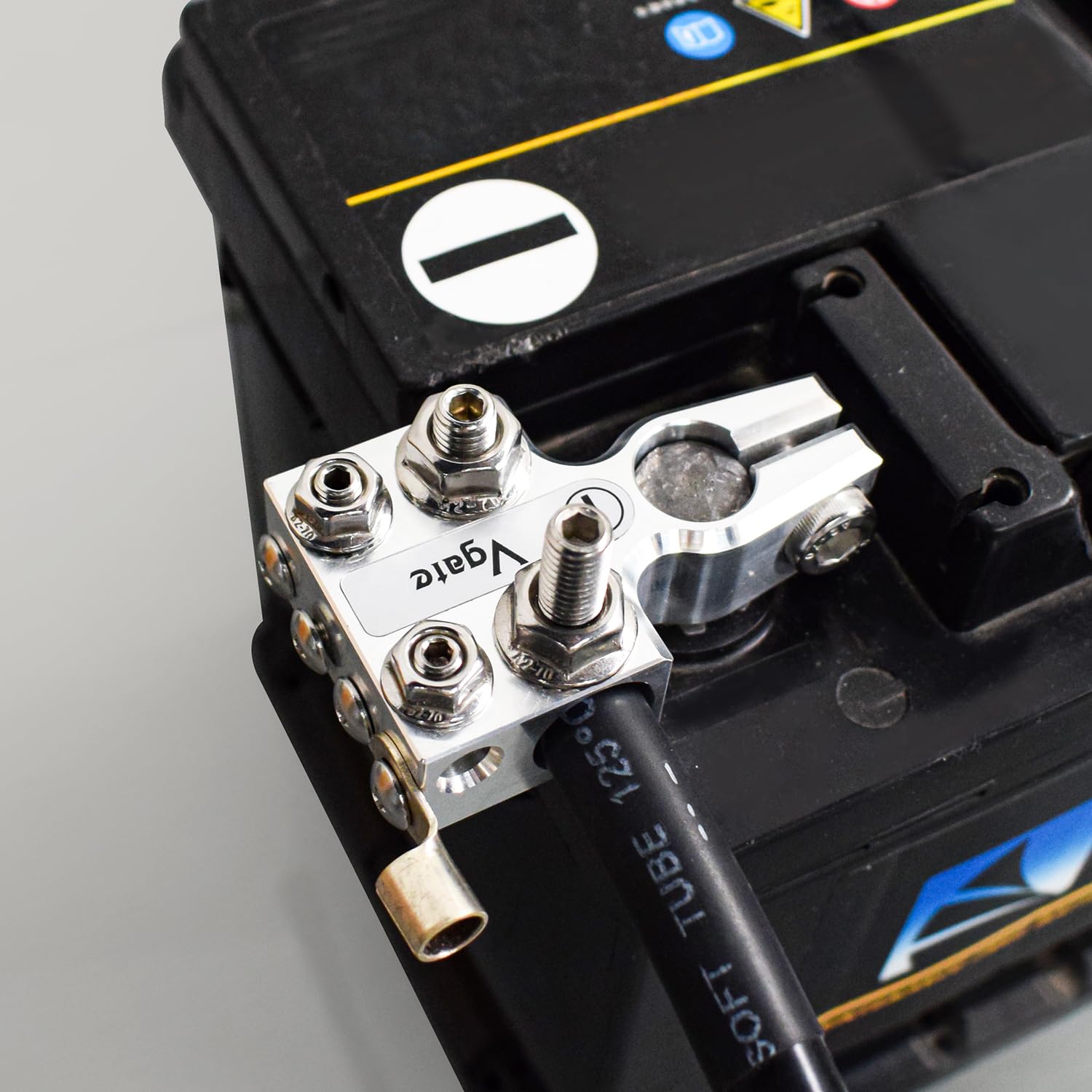

- During assembly, if the clamp feels overly tight, fully loosen first, then tighten to secure a reliable grip

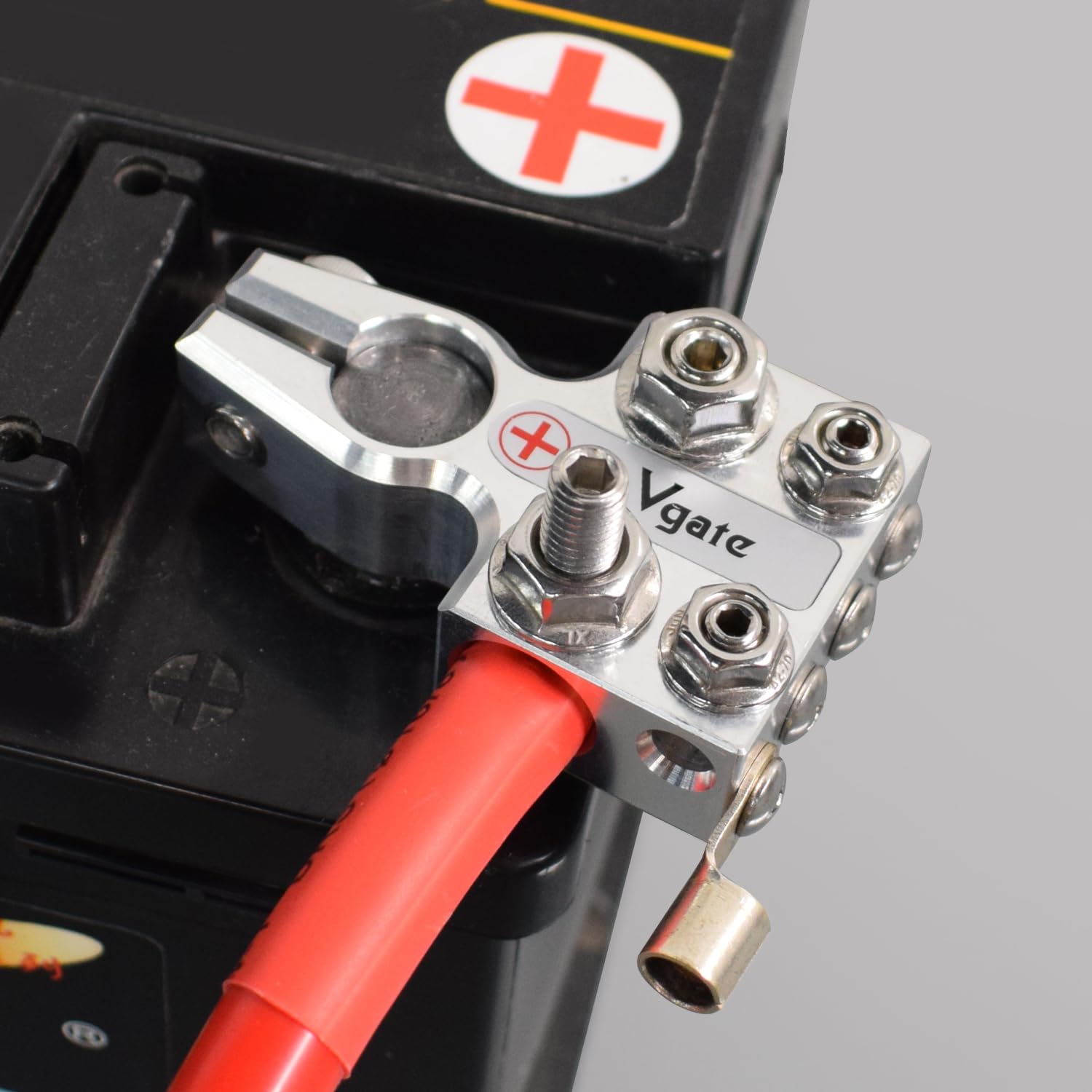

- Avoid placing a corrosion pad on the post; the groove at the bottom helps keep acid away from the contact area
- Ensure compatible hole sizes and screws (4, 6, 8 mm) for a precise, snug fit
Real-world use cases
- Organize multi-battery rigs in cars, motorhomes, and RVs for clean, accessible connections
- Support heavy gauge leads in solar power banks, boats, and fleet vehicles
- Provide a flexible, expandable terminal hub for workshop and maintenance setups
With these features, the Vgate 12-Way Terminal Connector aims to offer a practical, durable option for users who manage varied battery types and post configurations. It presents a balanced blend of versatility and clarity without promising guaranteed results, instead highlighting possibilities for safer, neater, and more manageable battery wiring.
FAQ
Q: What battery types and post formats does the Vgate 12-Way Terminal Connector support?
A: It supports lead-acid chemistries (AGM, GEL, WET, MF, CA/CA) and SAE, DIN, EN post formats; JIS pencil post is not included.
Q: Are there installation tips to ensure a secure fit?
A: Yes. If the clamp is tight, fully loosen first, then re-tighten for security; avoid placing a corrosion pad on the post.
