BILLFARO LS Timing Cover Alignment Tool – Billet Aluminum Front/Rear Seal Installer for GM LS Engines (LS1-LS6, LQ4, LQ9) – Red

OverviewThe BILLFARO LS Timing Cover Alignment Tool is a precision-made accessory designed for GM LS series engines....
Vendor: BILLFARO
Availability: In stock
£34.45
£34.45
Please hurry! Only 5 left in stock
Subtotal: £34.45
10 customers are viewing this product

Free UK Delivery on All Orders

No Minimum Spend Fast & Reliable Delivery Ships Across the UK

Free Returns

30-Day Free Returns
BILLFARO LS timing cover alignment tool centers front and rear seals precisely.

BILLFARO LS Timing Cover Alignment Tool – Billet Aluminum Front/Rear Seal Installer for GM LS Engines (LS1-LS6, LQ4, LQ9) – Red

£34.45
BILLFARO LS timing cover alignment tool centers front and rear seals precisely.
BILLFARO billet aluminum seal installer ensures accurate seal placement during LS engine work.
BILLFARO LS engine front cover centering tool helps align crank snout.
BILLFARO front cover seal tool aids accurate installation around the crankshaft.
BILLFARO seal locator provides consistent fit with LS oil pump opening.
BILLFARO two-installation-methods guide helps pros install seals securely.
BILLFARO two-keyways design supports single or dual-key crankshafts.
BILLFARO billet steel and aluminum construction delivers durable, repeatable alignment.

BILLFARO LS Timing Cover Alignment Tool – Billet Aluminum Front/Rear Seal Installer for GM LS Engines (LS1-LS6, LQ4, LQ9) – Red

£34.45
Description
Description
x

Overview

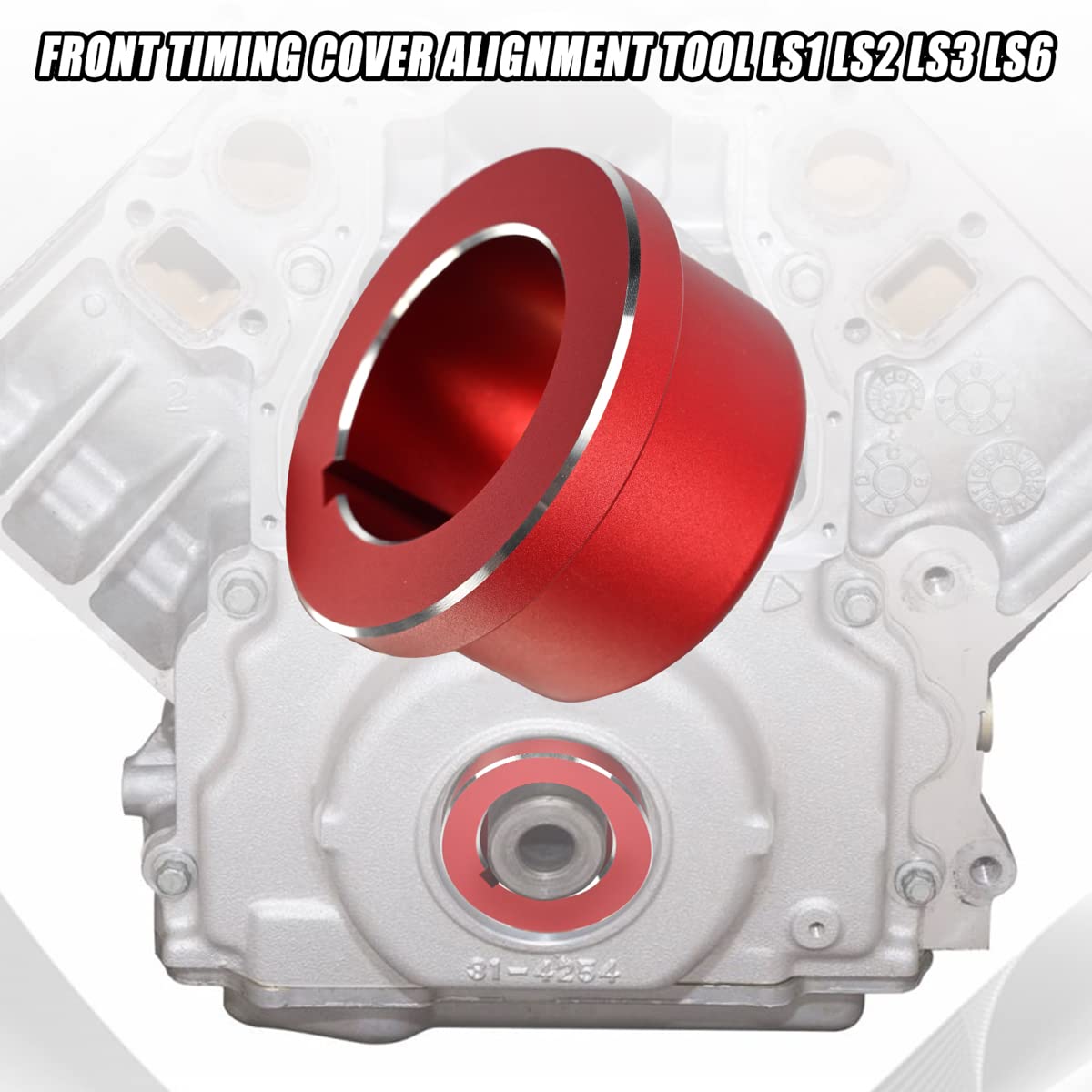

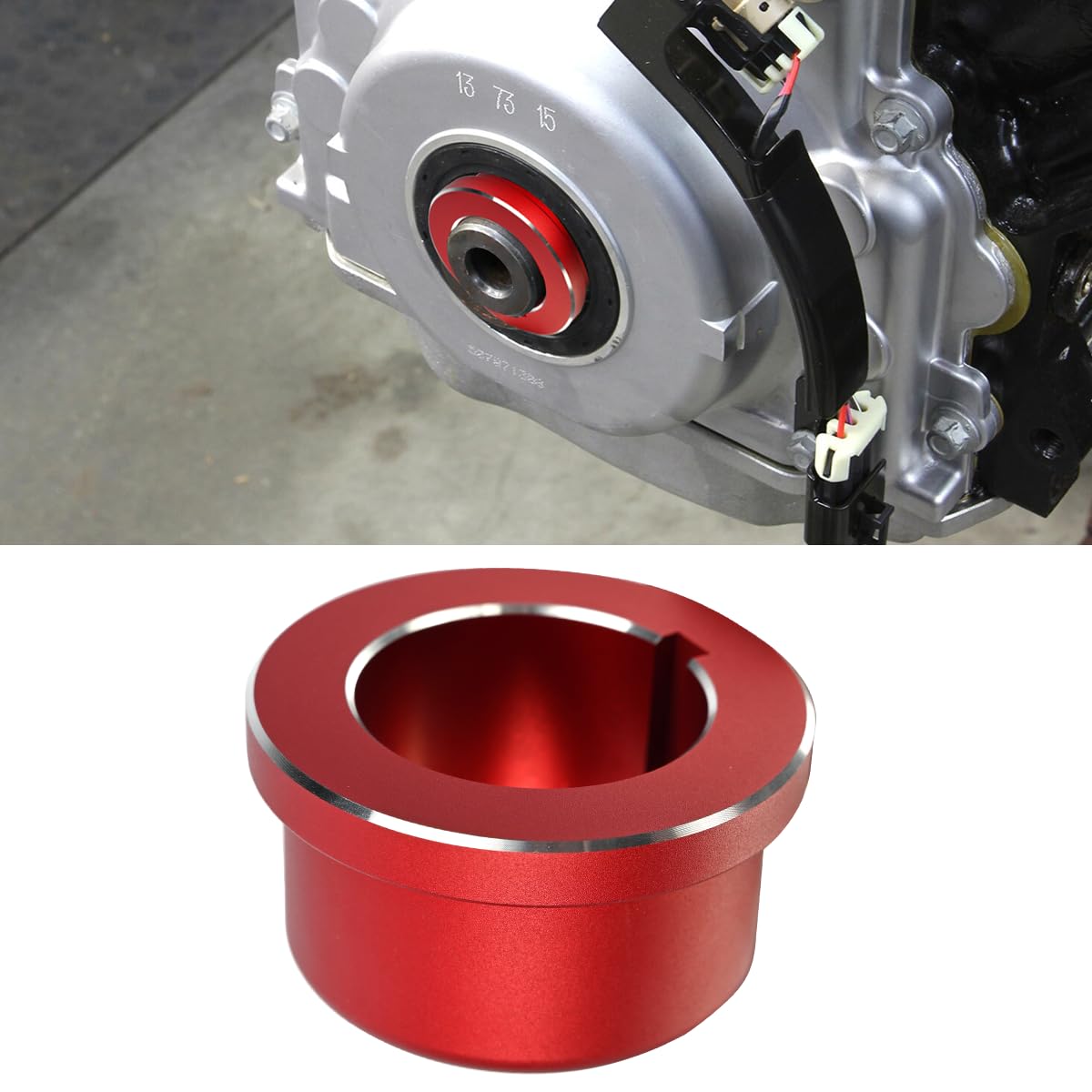

The BILLFARO LS Timing Cover Alignment Tool is a precision-made accessory designed for GM LS series engines. Crafted from billet aluminum with sturdy steel components, it helps position the timing cover with the front seal bore and crank snout in mind, supporting careful seal installation on engines such as LS1, LS2, LS3, LS6, LQ4, and LQ9 across a range of displacements from 4.8 to 6.2 liters. This tool is built to fit professional workflows and shop environments where repeatable accuracy matters.

Why precision matters

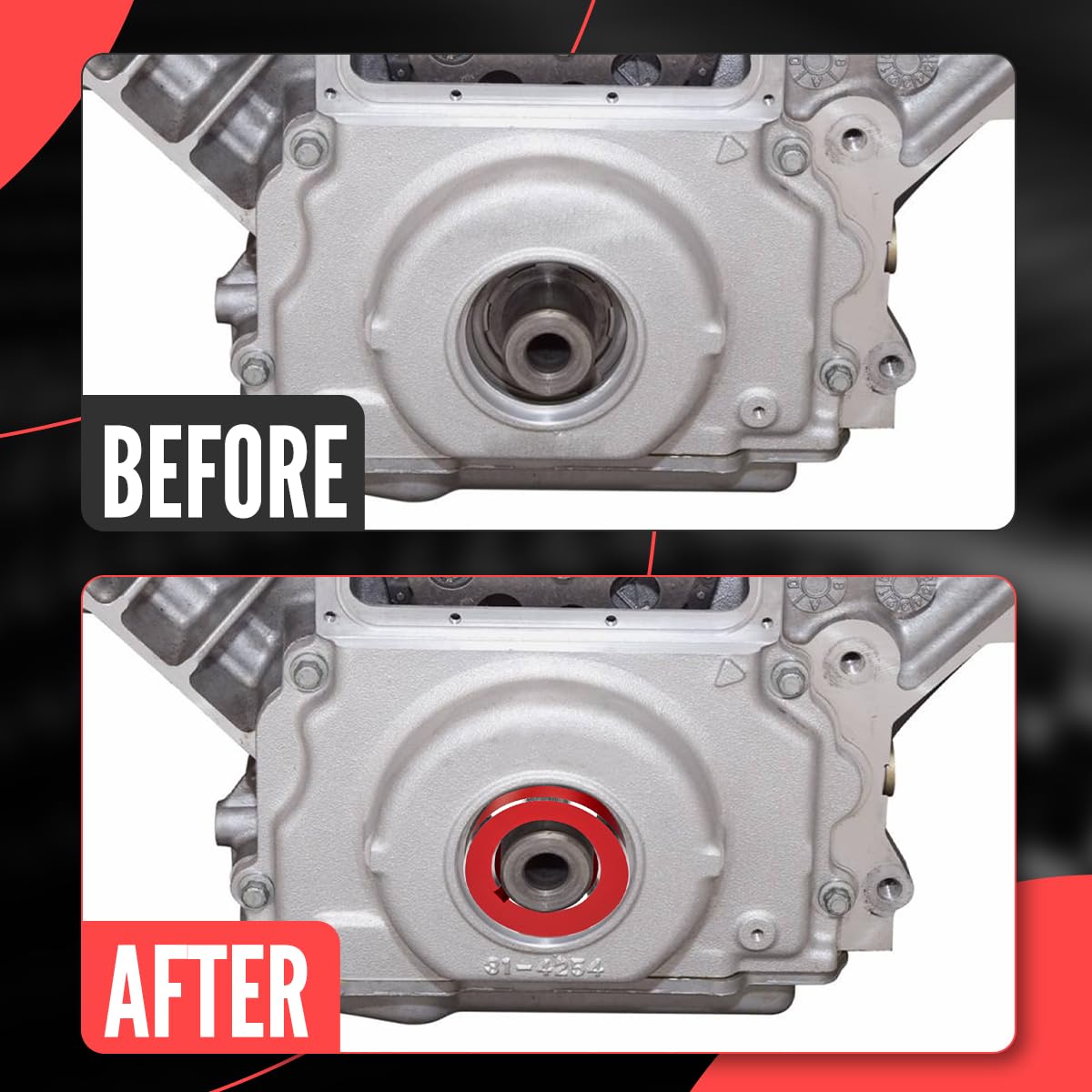

  • Centered covers reduce unknowns during assembly, giving you a clearer path to proper seal seating.
  • Consistent alignment can streamline installation and minimize rework in busy workshops.

Key features and benefits

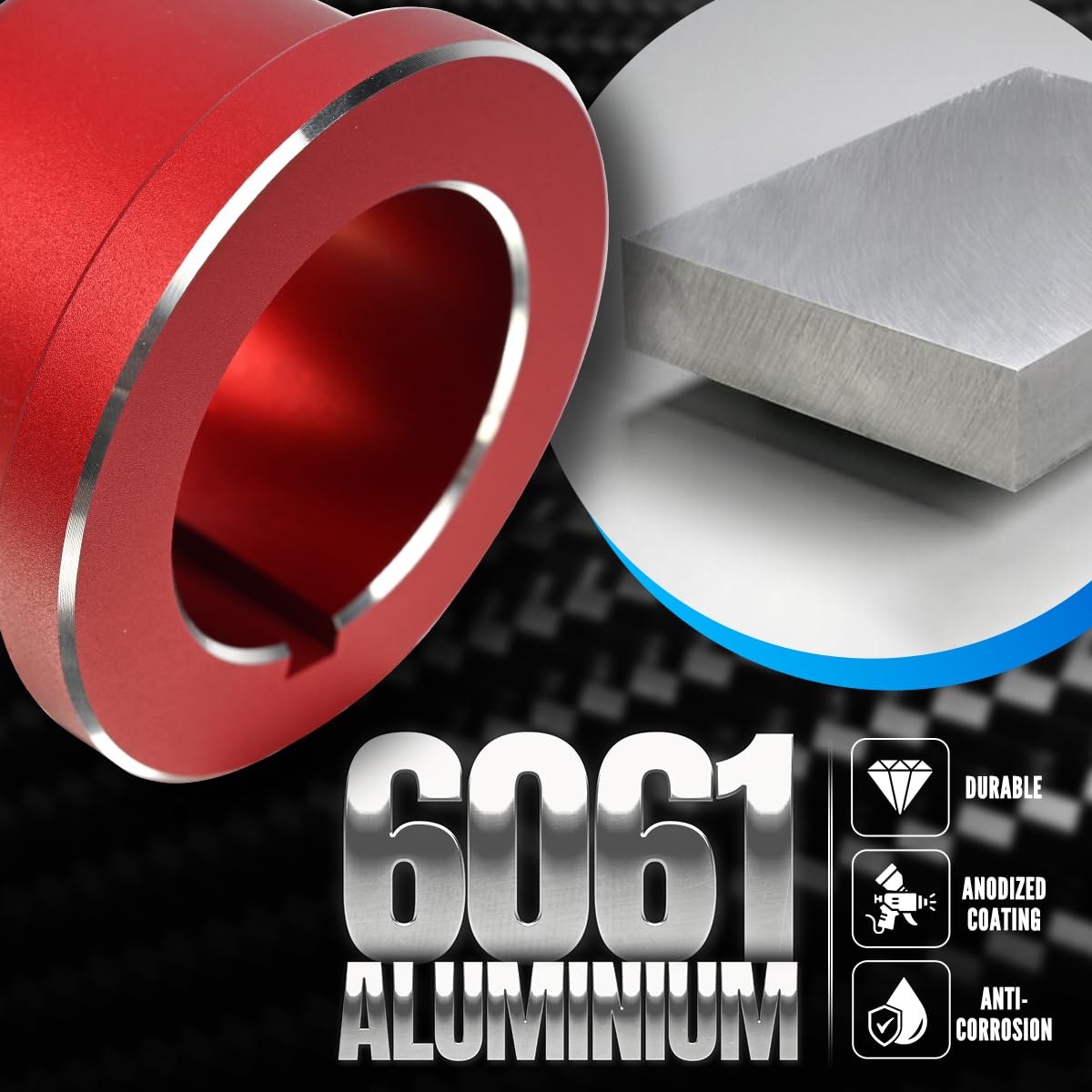

  • Billet aluminum construction paired with quality steel delivers durability and tight tolerances for dependable alignment.

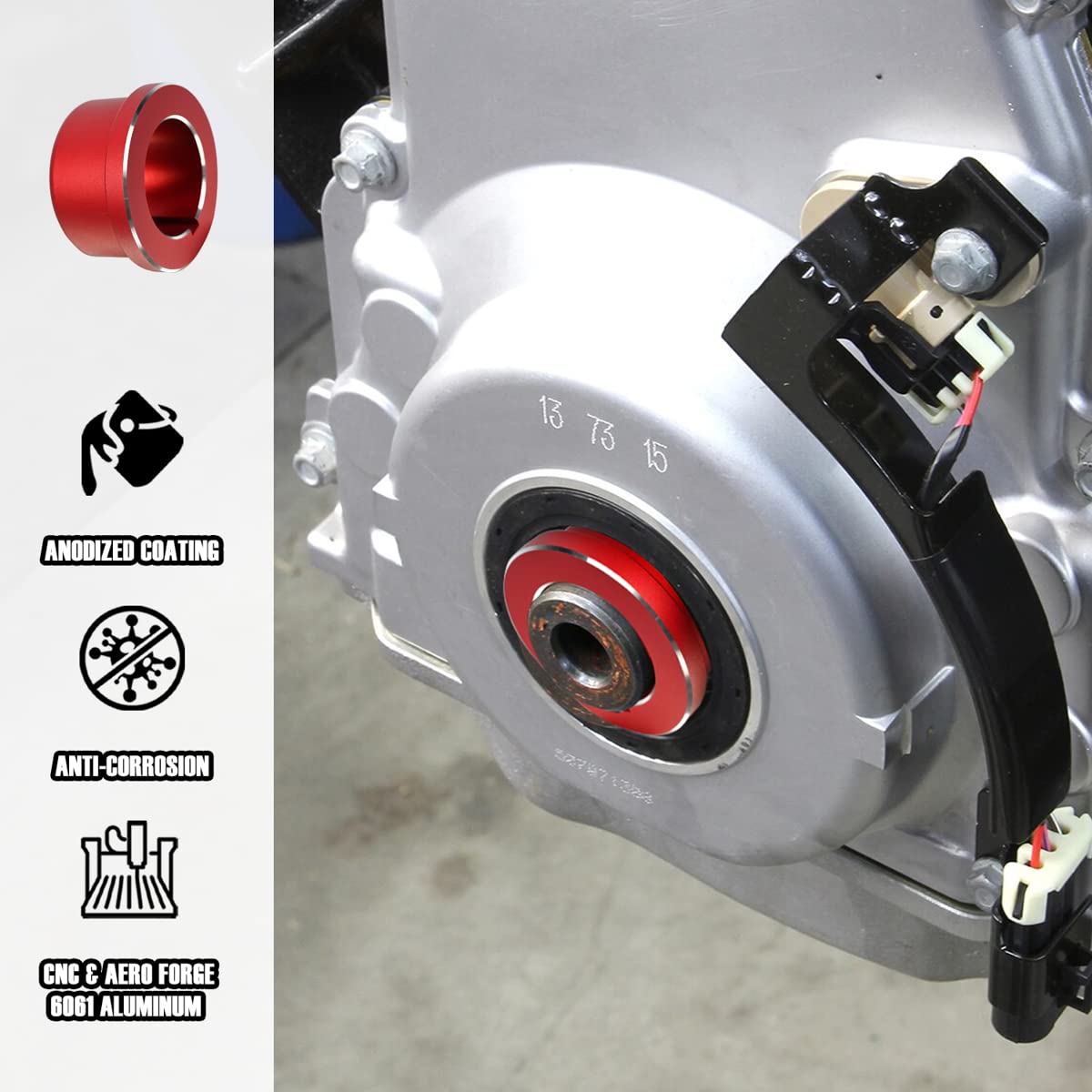

  • Designed to locate the seal around the crankshaft when the front cover is in place, supporting proper orientation before final tightening.
  • Two installation methods accommodate different service sequences, helping you choose the workflow that fits your engine build or repair.

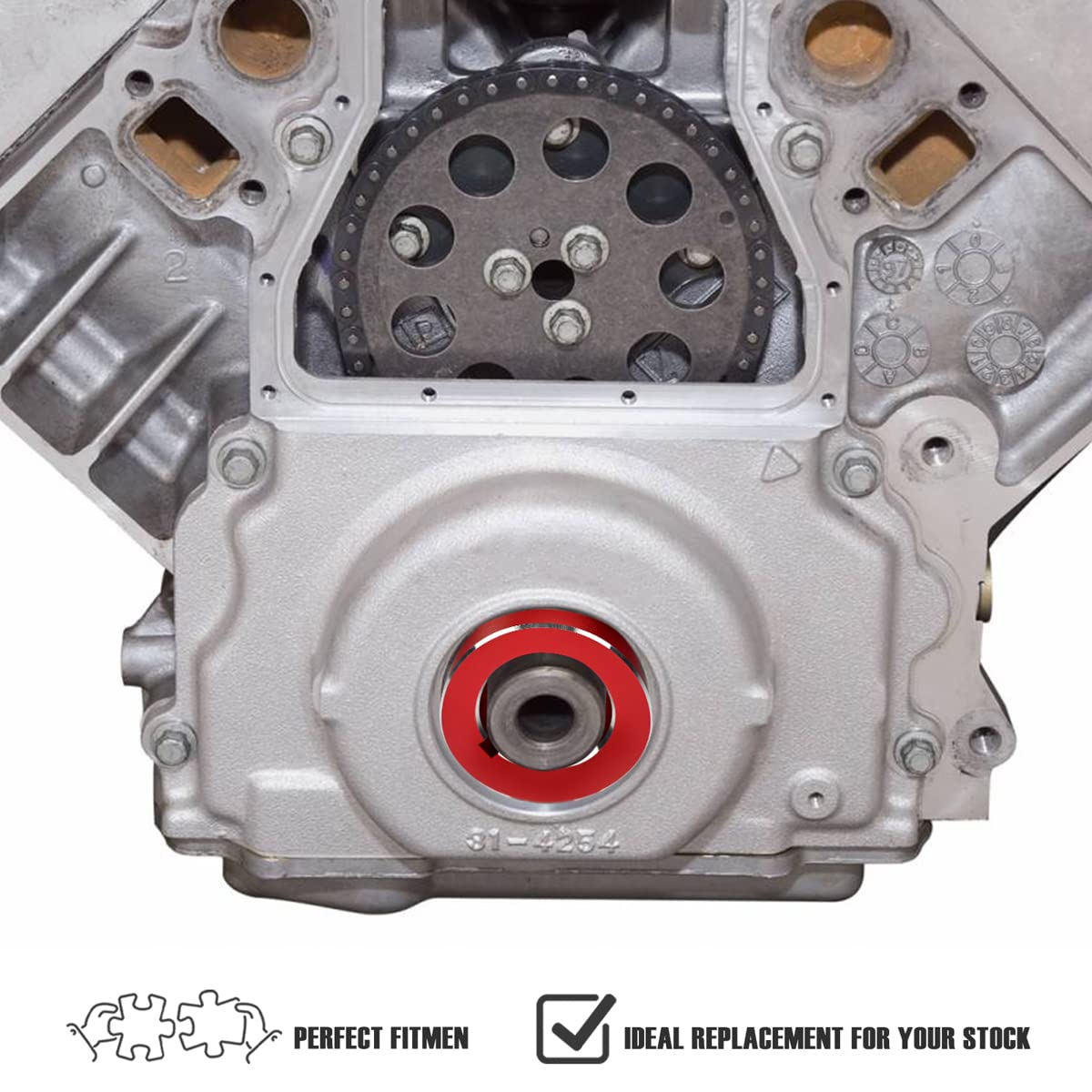

  • Incorporates two keyway slots 180 degrees apart to support single or dual keyway crankshafts, increasing compatibility with LS variants.

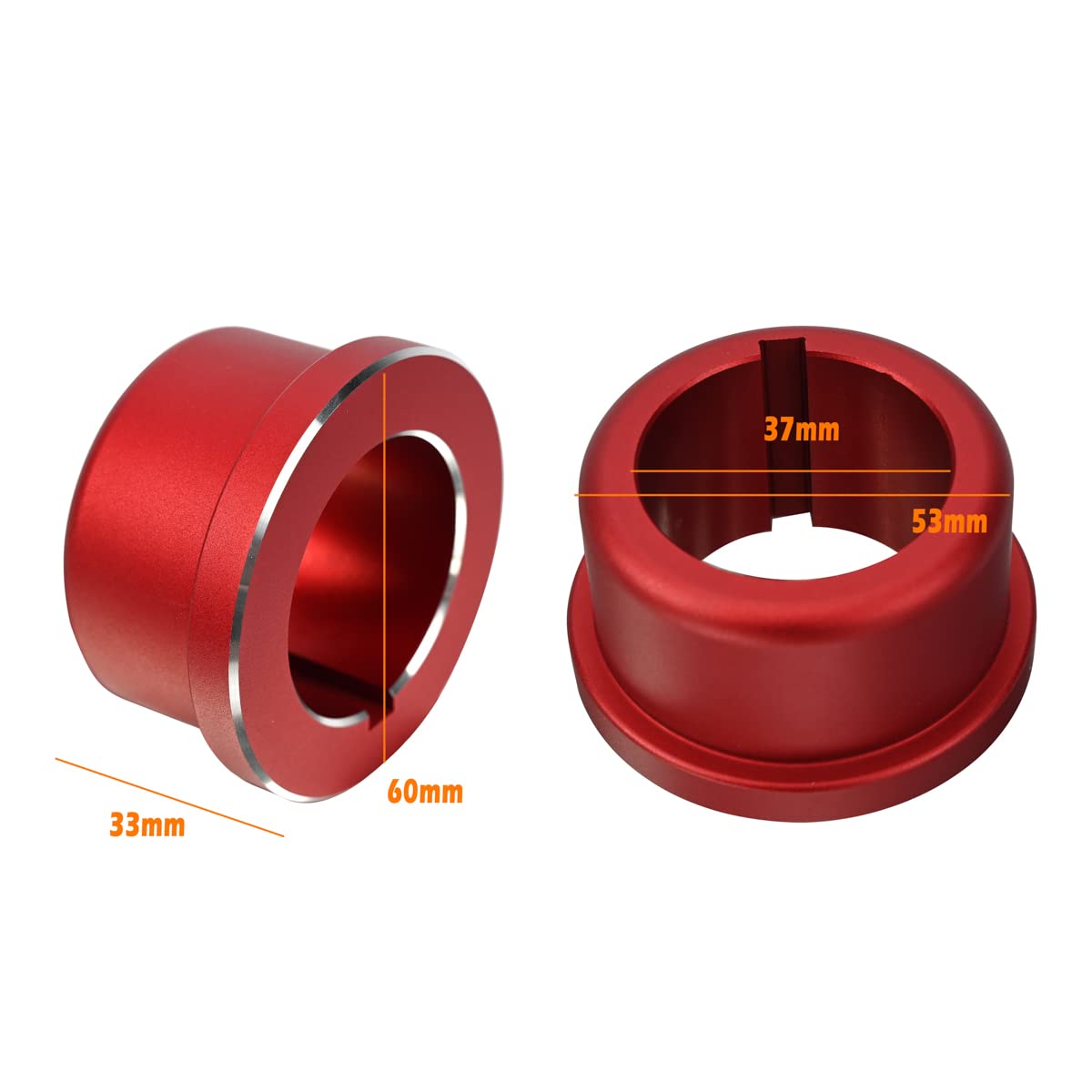

  • An intentionally slightly larger outer diameter assists fit within larger oil pump openings, aiding a snug, secure seat.

How to use in practice

  • Method A: Slip the seal tool over the crank snout, install the front cover loosely, check alignment to the oil pan, then tighten to specification, and finally install the balancer lip seal.
  • Method B: With the seal in the front cover, use the large end of the tool to confirm alignment to the pan before final tightening for a secure seal path.

Real world use and compatibility

Engine builders and mechanics who service GM LS engines can benefit from a tool that supports accurate front and rear cover alignment during seal replacement. While results vary by application, a centered seal and properly oriented cover can contribute to a smoother assembly process and repeatable outcomes across LS platforms.

FAQ

Q: Which LS engines is the BILLFARO LS Timing Cover Alignment Tool compatible with?

A: Designed for GM LS family engines (LS1, LS2, LS3, LS6, LQ4, LQ9; 4.8–6.2L); assists precise front and rear cover alignment during seal replacement.

Q: What installation steps does the tool support?

A: Two methods: install the new seal, loosely fit the cover and tool to check alignment, or use the large-end tool to confirm fit before final tightening.
