Boeray Bilge Pump Switch Panel with Fuse — 12V/24V DC, 15A SPST Marine Toggle
- £27.88
- £27.88
- Unit price
- per
Couldn't load pickup availability
Free UK Delivery on All Orders
Free Returns
Description
xOverview

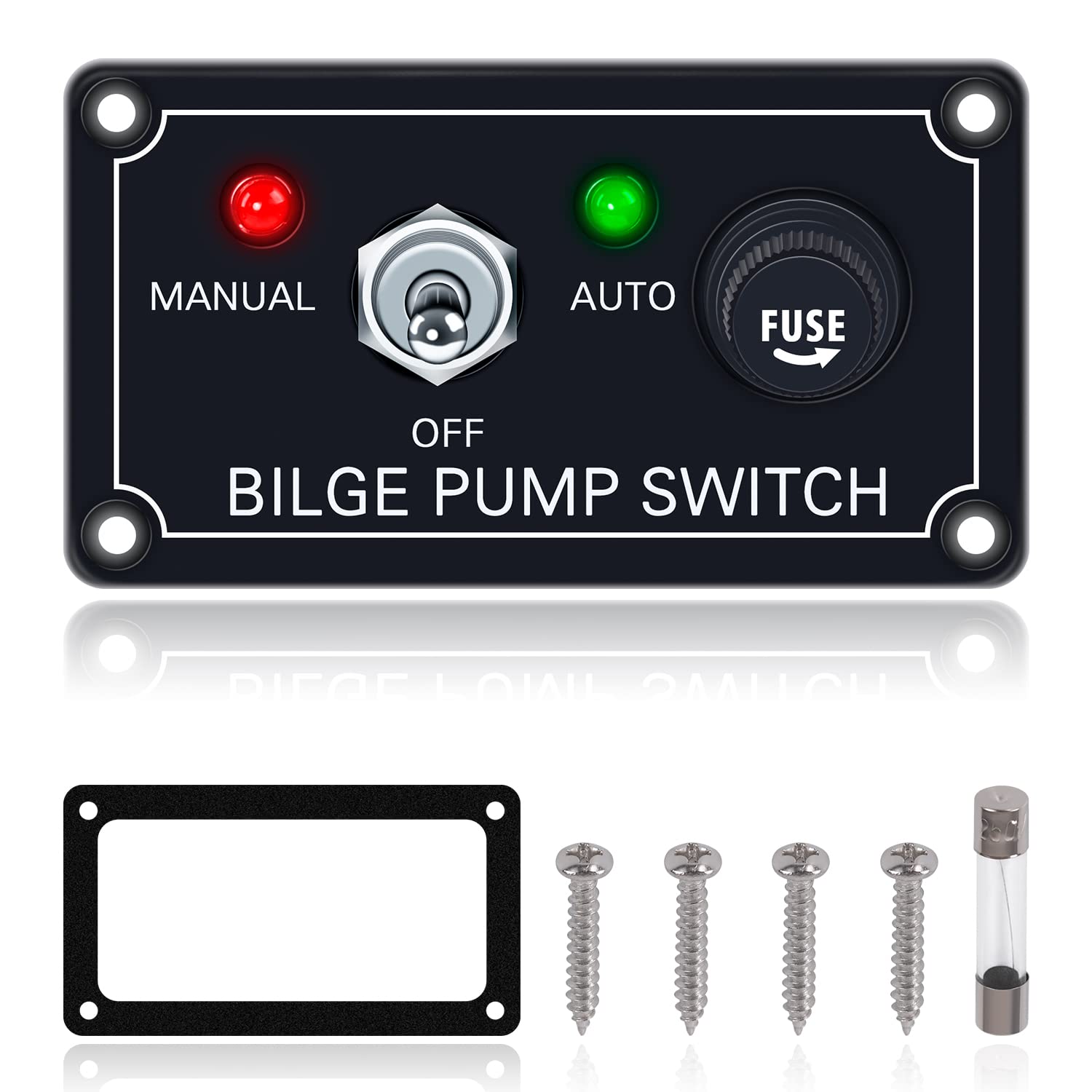

Discover the Boeray Bilge Pump Switch Panel, a compact, marine-grade control solution designed to simplify pump management on boats, RVs, and other watercraft. Built around a classic toggle switch with integrated fuse protection, it combines straightforward operation with reliable wiring compatibility for everyday use.

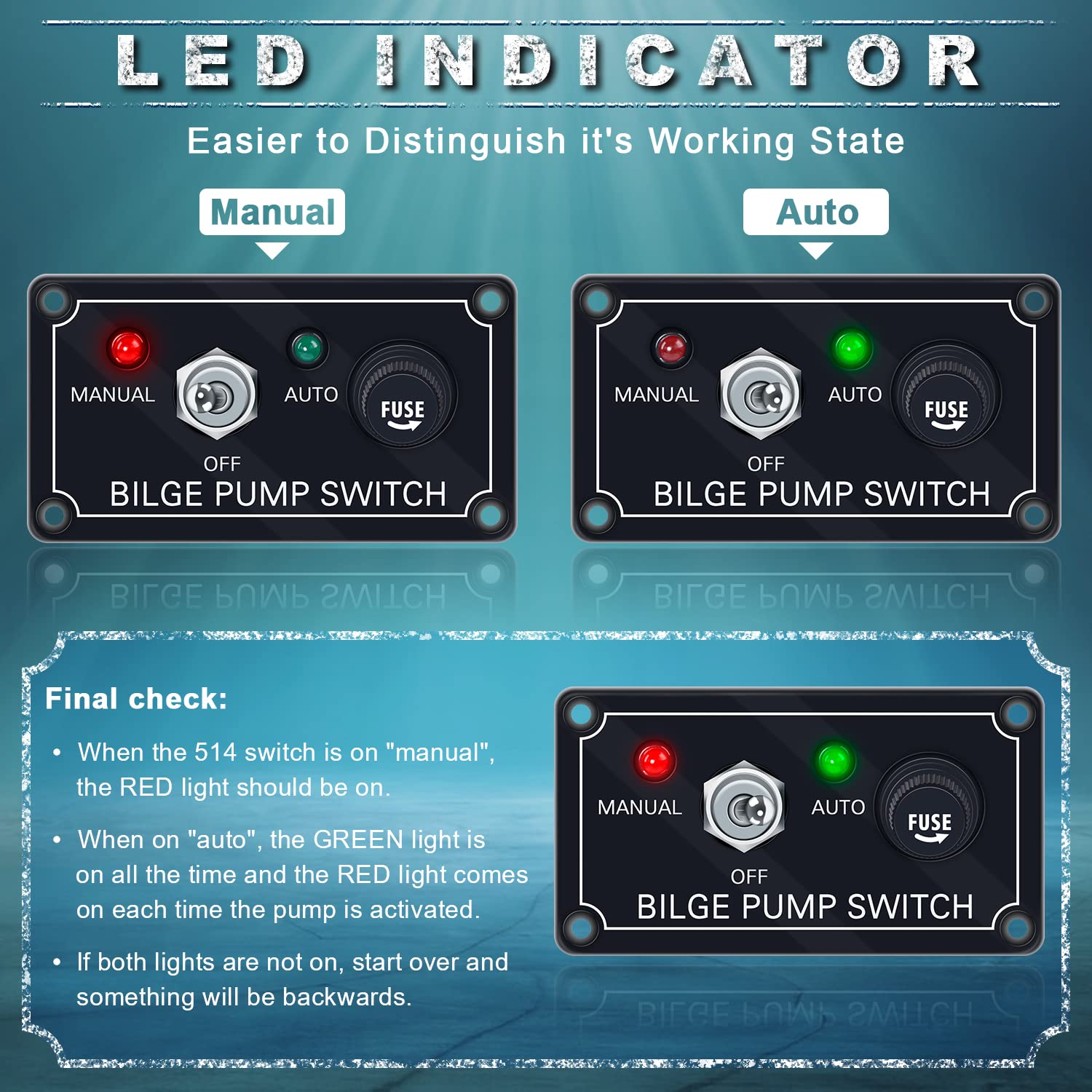

Two-color LED indicators clearly communicate status at a glance: green when in auto mode, red when manual ON is engaged. This visual cue supports quick checks during routine maintenance, calm lake days, or after unexpected splashes, helping you stay aware of your system’s state.
Key features

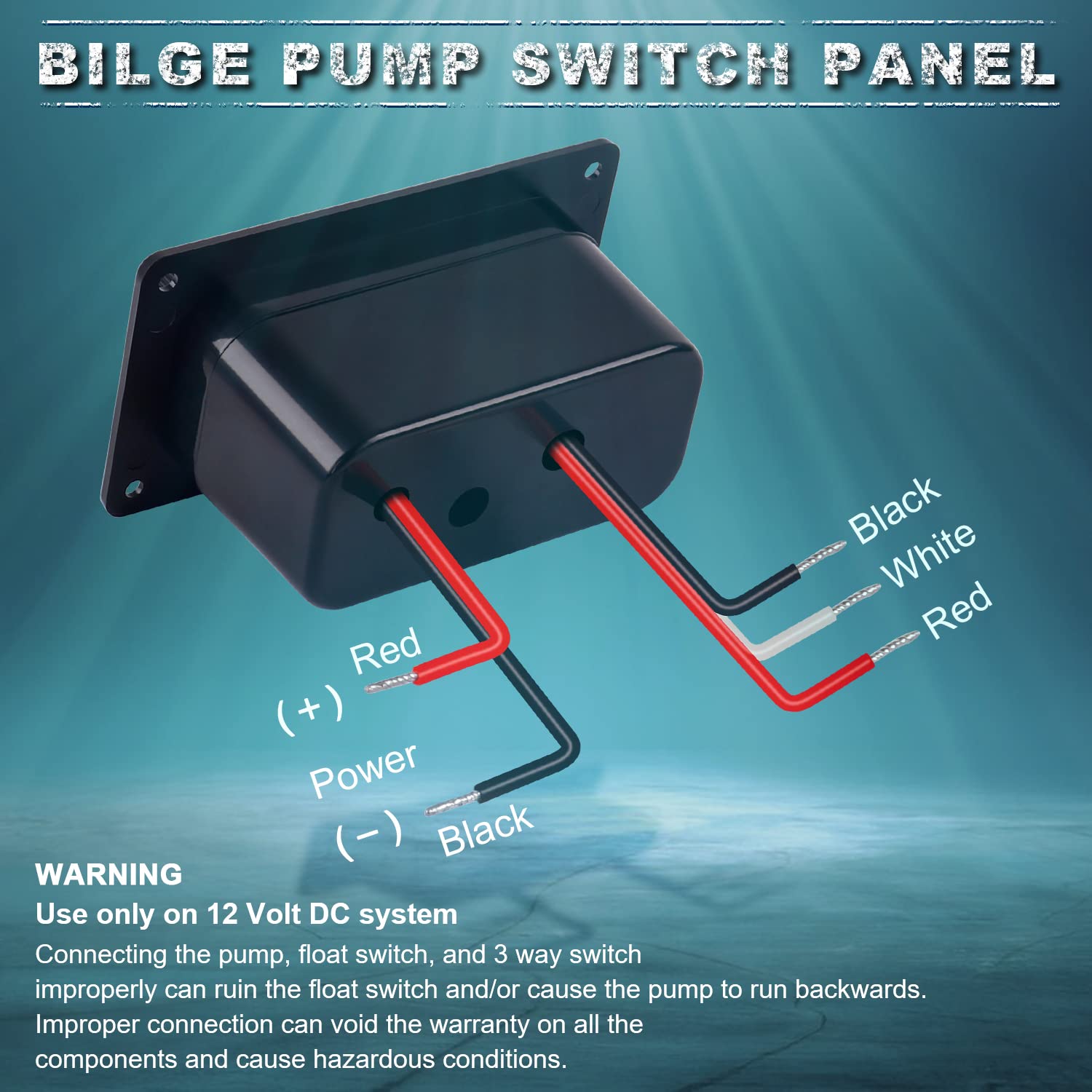

- Faceplate material: Bakelite for durable resistance in damp, salty environments.
- DC 12V switch rating with SPST ON/OFF configuration designed for marine circuits.
- Pre-installed 5A fuse holders provide built-in circuit protection without extra parts.

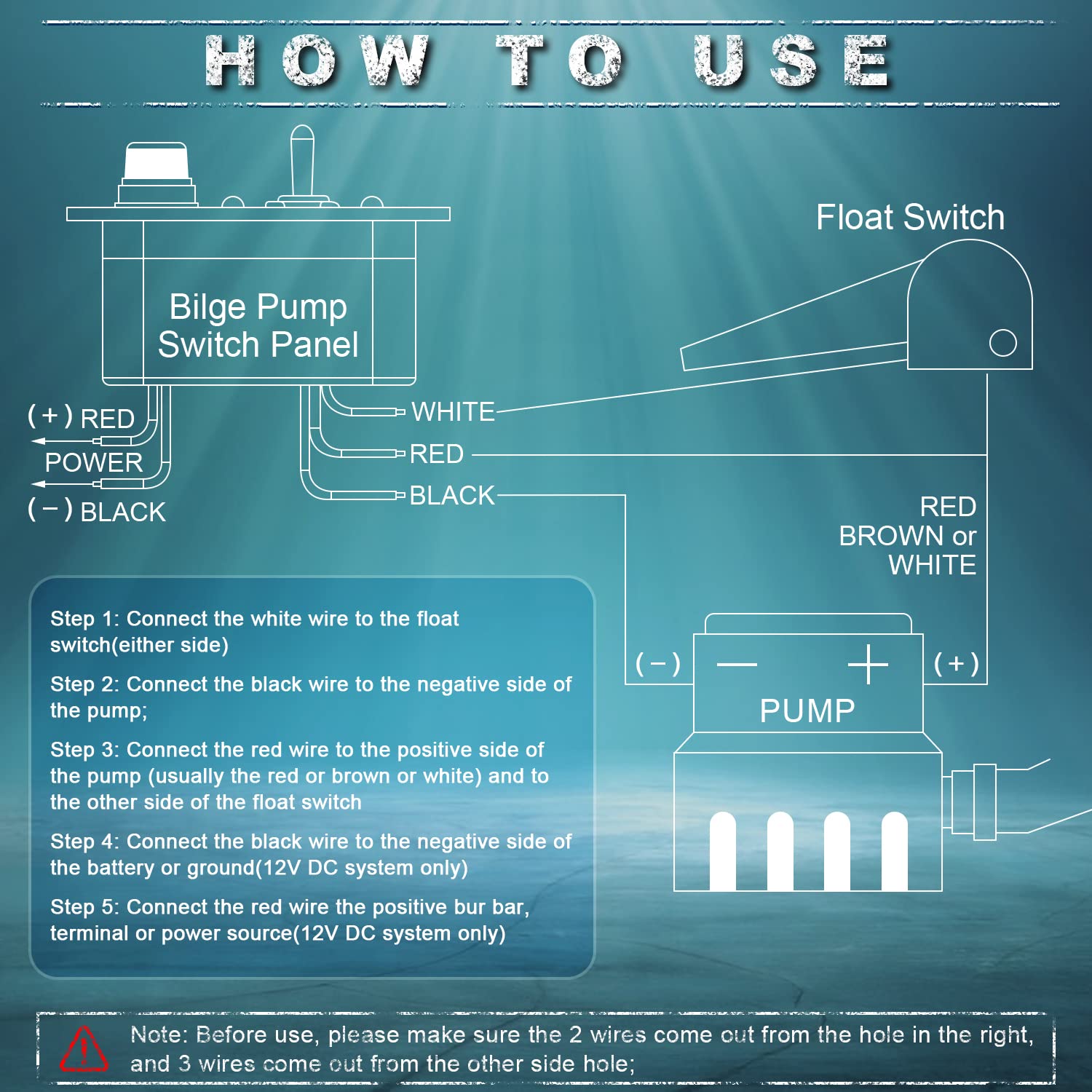

- Auto/Manual settings plus integrated circuit protection, with a wiring diagram included to simplify installation.
Technical specs

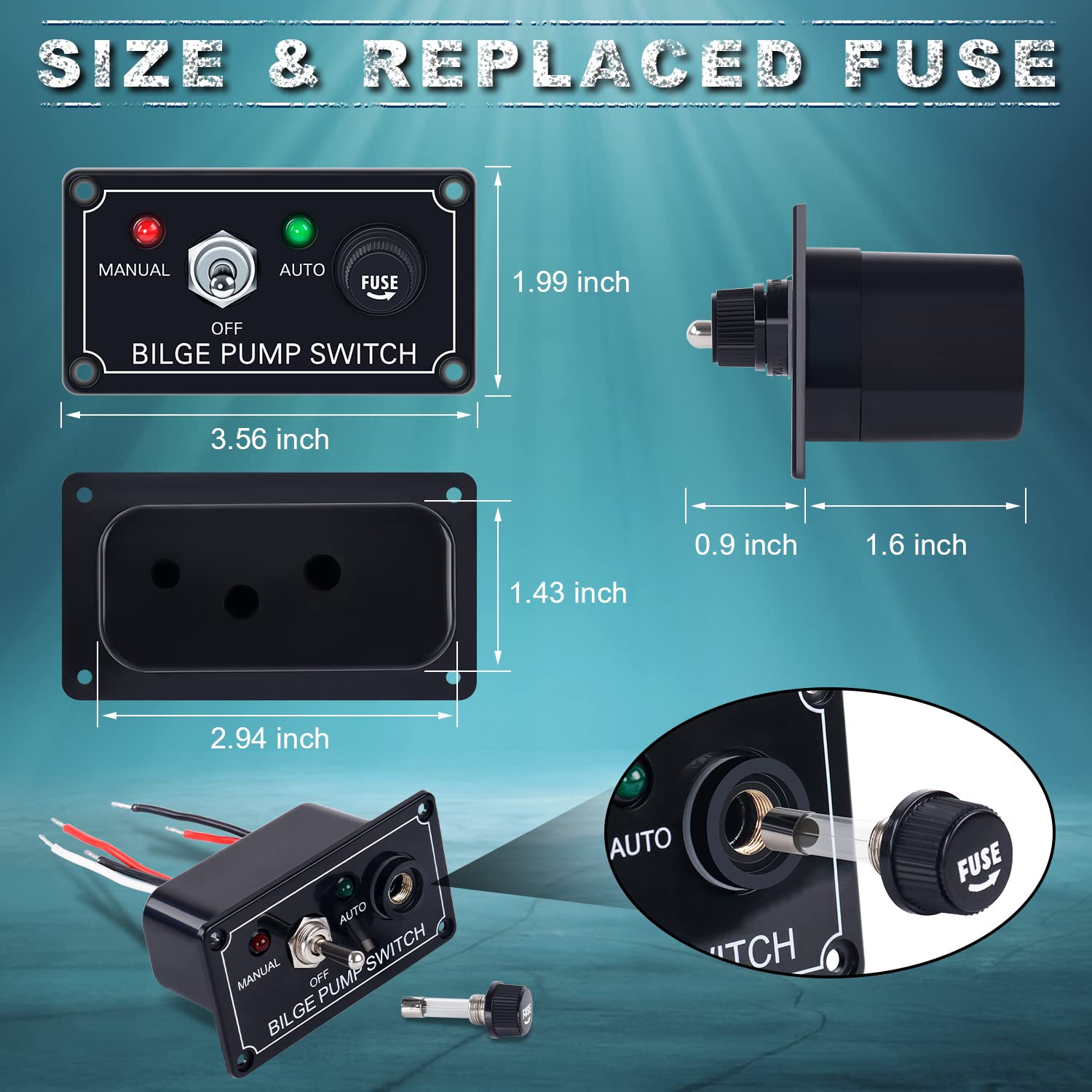

- Dimensions: 90x50x42.8 mm (3" x 1" x 1.6").
- Includes: Switch panel, 5A fuse, four screws, identification sticker.
- Certification: CE, suitable for marine electrical systems.
Practical use cases
- Compact control for bilge pumps where space is limited on deck or console panels.
- Seamless integration with automatic bilge systems or external float switches for responsive water management.
- Clear status visibility via two-color LED indicators during day or night operations on board.
Why choose Boeray
This panel offers a compact, reliable solution with easy wiring and labeling to support orderly vessel operation. While individual results vary, the design aims to provide straightforward control, practical protection, and the potential for safer routine checks on your marine setup.
FAQ
Q: What systems is the Boeray bilge pump switch panel compatible with?
A: Designed for DC 12V/24V systems; supports automatic bilge pumps and external float switches.
Q: Does the panel come with fuses and how easy is installation?
A: Includes a pre-installed 5A fuse and wiring diagram; screws and identification sticker are included for quick mounting.
