DROK DC 4.5-100V Digital Voltmeter Ammeter Panel | 0-50A LED Voltage Gauge
- £29.52
- £29.52
- Unit price
- per
Couldn't load pickup availability
Free UK Delivery on All Orders
Free Returns
Description
xOverview

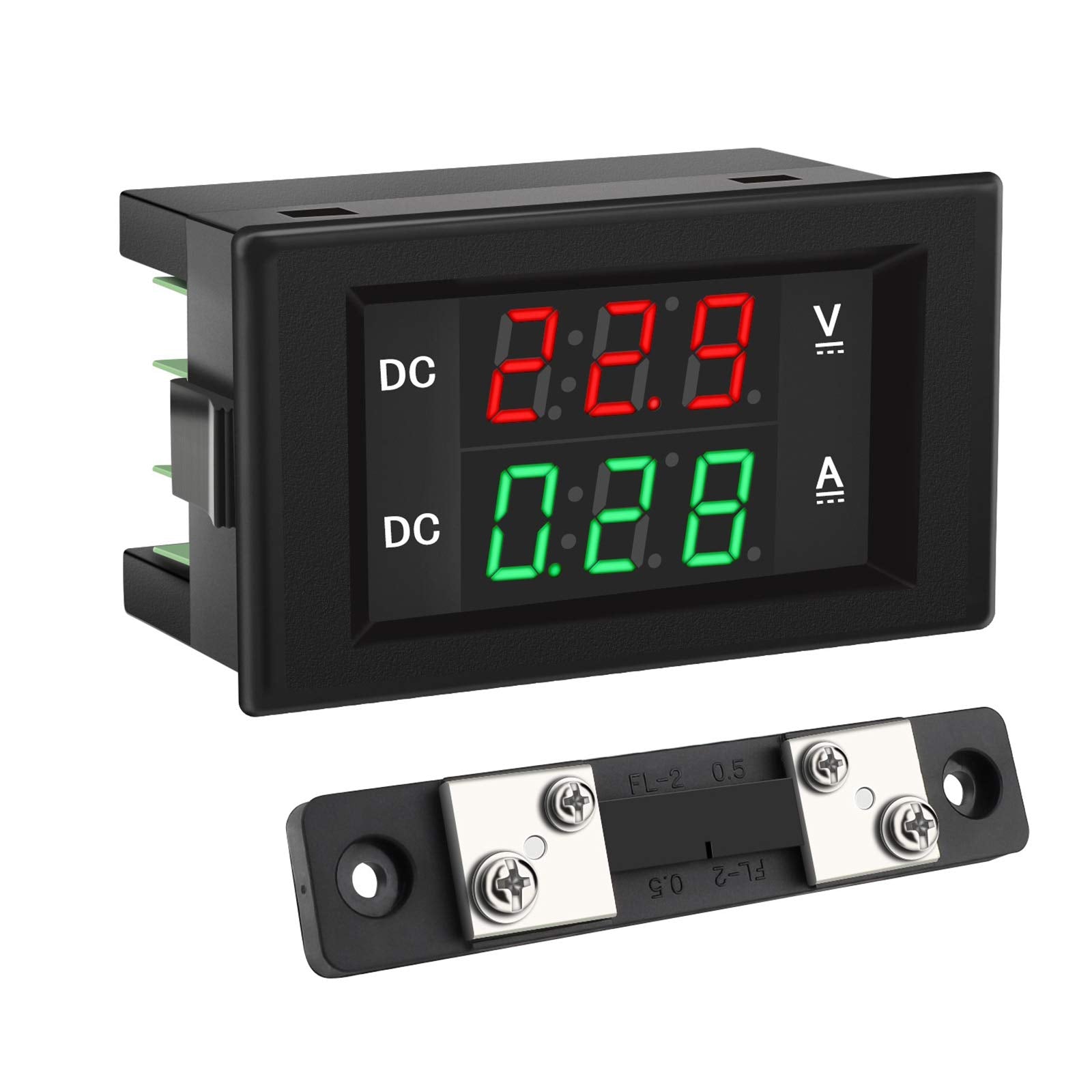

The DROK DC 4.5-100V Digital Voltmeter Ammeter Panel offers at-a-glance insight into both voltage and current in a compact, automotive-ready package. Covering a voltage range from 4.5V to 100V and a current range from 0 to 50A, this panel meter helps you monitor power flow across everyday setups with clarity and ease.
Key benefits at a glance
- Voltage range: 4.5–100V, suitable for a wide variety of battery and power sources.
- Current range: 0–50A, supporting common loads without extra hardware.

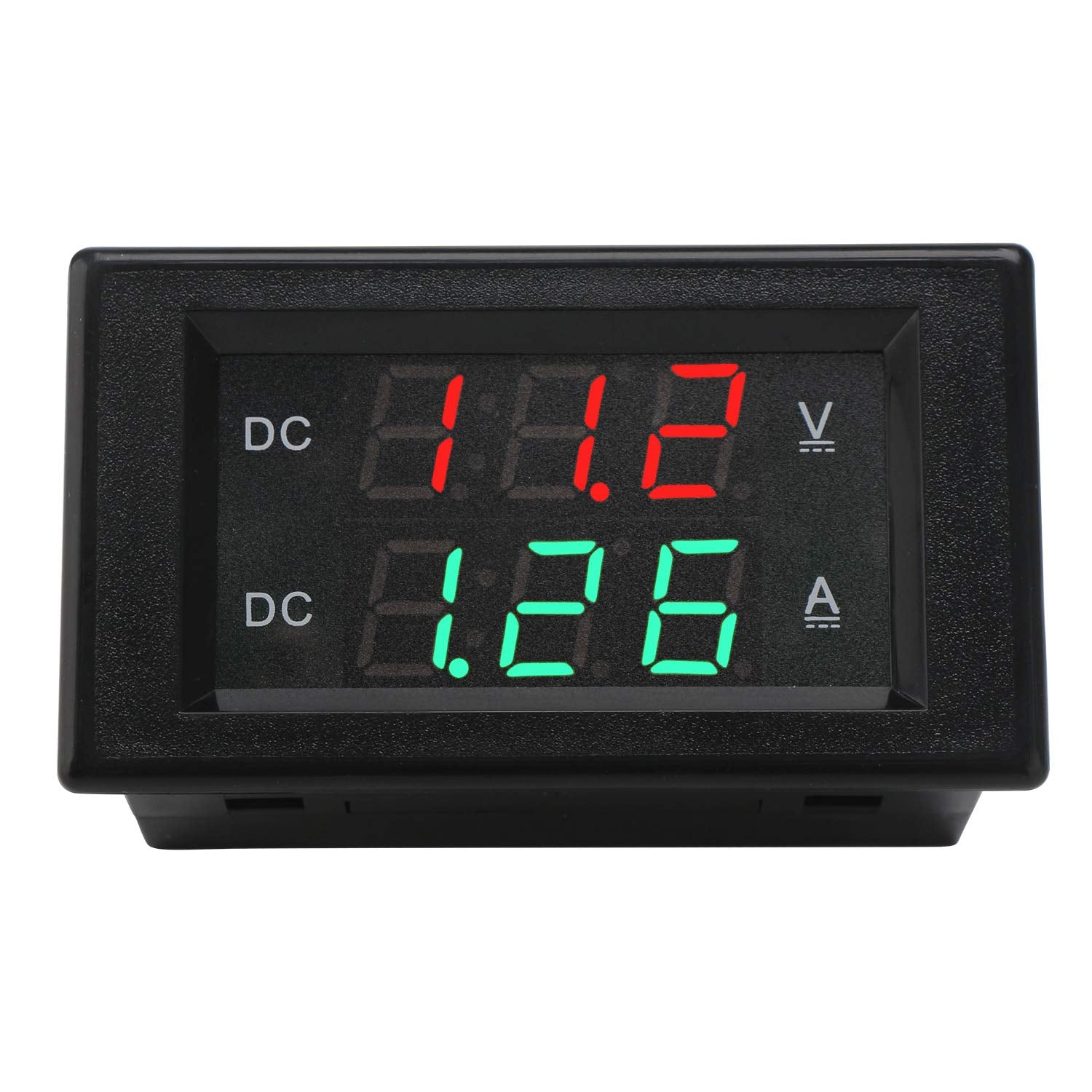

- 0.39" LED display: crisp, highly readable digits in different lighting conditions.

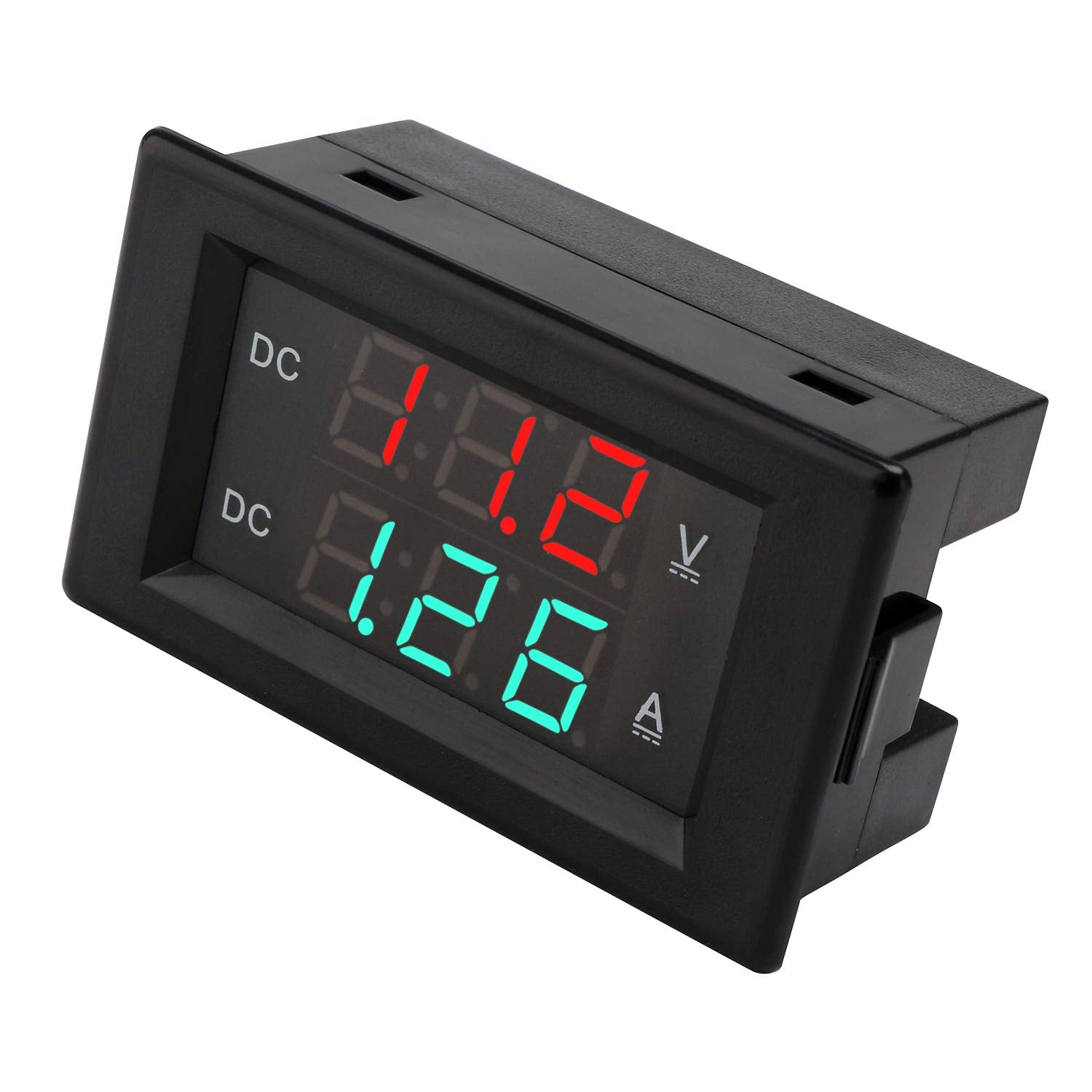

- Calibration potentiometer: allows fine-tuning to align readings with real-world values.
- Shunt guidance: proper wiring with the shunt helps protect the meter from damage.
Practical uses
Ideal for monitoring storage batteries, solar panel outputs, and hobbyist power supplies. It is well suited for RVs, motorcycles, model railroad power systems, and house battery banks where clear electrical feedback supports thoughtful power management.
Setup and notes

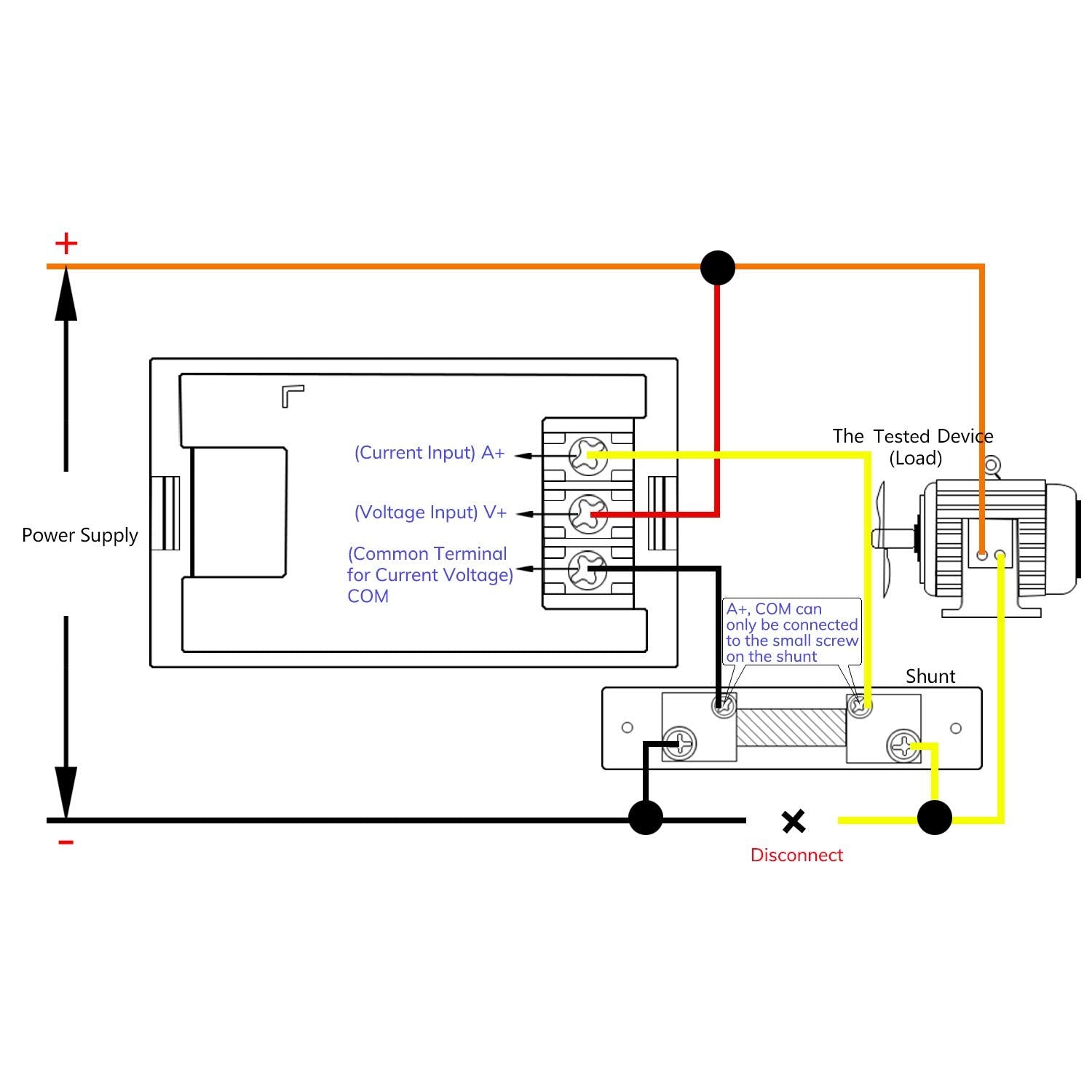

Wiring with the shunt in line is essential for safe operation. The device’s calibration control lets you tailor the readout to your setup, while the bright display remains legible in working environments with varying light. This panel meter is designed for simple panel mounting and straightforward integration with standard DC sources within its voltage range.
Installation tips
Mount in a dry, vibration-free area and route wires away from heat sources. Use the included shunt for accurate readings and periodically check calibration if system loads change significantly.
Conclusion
For compact, dependable power monitoring, the DROK panel meter provides a practical combination of range, readability, and configurability. It offers a clear window into electrical performance without promising outcomes, making it a useful addition for a range of hobbyist and practical power Tasks.
FAQ
Q: What can the DROK DC 4.5-100V panel meter measure?
A: It reads voltage from 4.5 to 100 V and current up to 50 A.
Q: Do I need to wire a shunt?
A: Yes, connect the shunt during wiring to prevent meter failure.
