E-cowlboy 6.0L Fuel Pressure Test Fitting Adapter for Ford Powerstroke (2003-2010) – Schrader Valve

Overview

The E-cowlboy 6.0L fuel pressure test fitting adapter is designed for Ford Powerstroke diesel engines from 2003 through 2010. It uses an OEM 1/4 inch Schrader connection, making it a straightforward add-on to your fuel pressure testing setup. This compact brass fitting threads into the secondary fuel filter housing, providing a dependable tap point for your fuel pressure gauge and test kit.

Why this matters

Low fuel pressure is a common cause of injector concerns on the 6.0L platform. The adapter is intended to streamline pressure checks, enabling you to observe readings with a tester more easily. While readings can guide maintenance decisions, results can vary with engine state, ambient conditions, and rest of the fuel system. View the adapter as a useful tool for informed, non-guaranteed assessment rather than a guaranteed outcome.

Key benefits

• Facilitates quick, repeatable fuel pressure checks with common testers
• Brass construction offers durability and a precise fit for long-term use
• OEM 1/4" Schrader connection plus 1/4" flare Schrader valve x 1/8" MNPT fitting broadens compatibility
• Specifically compatible with 2003–2010 Ford 6.0L diesel engines

What you get and compatibility

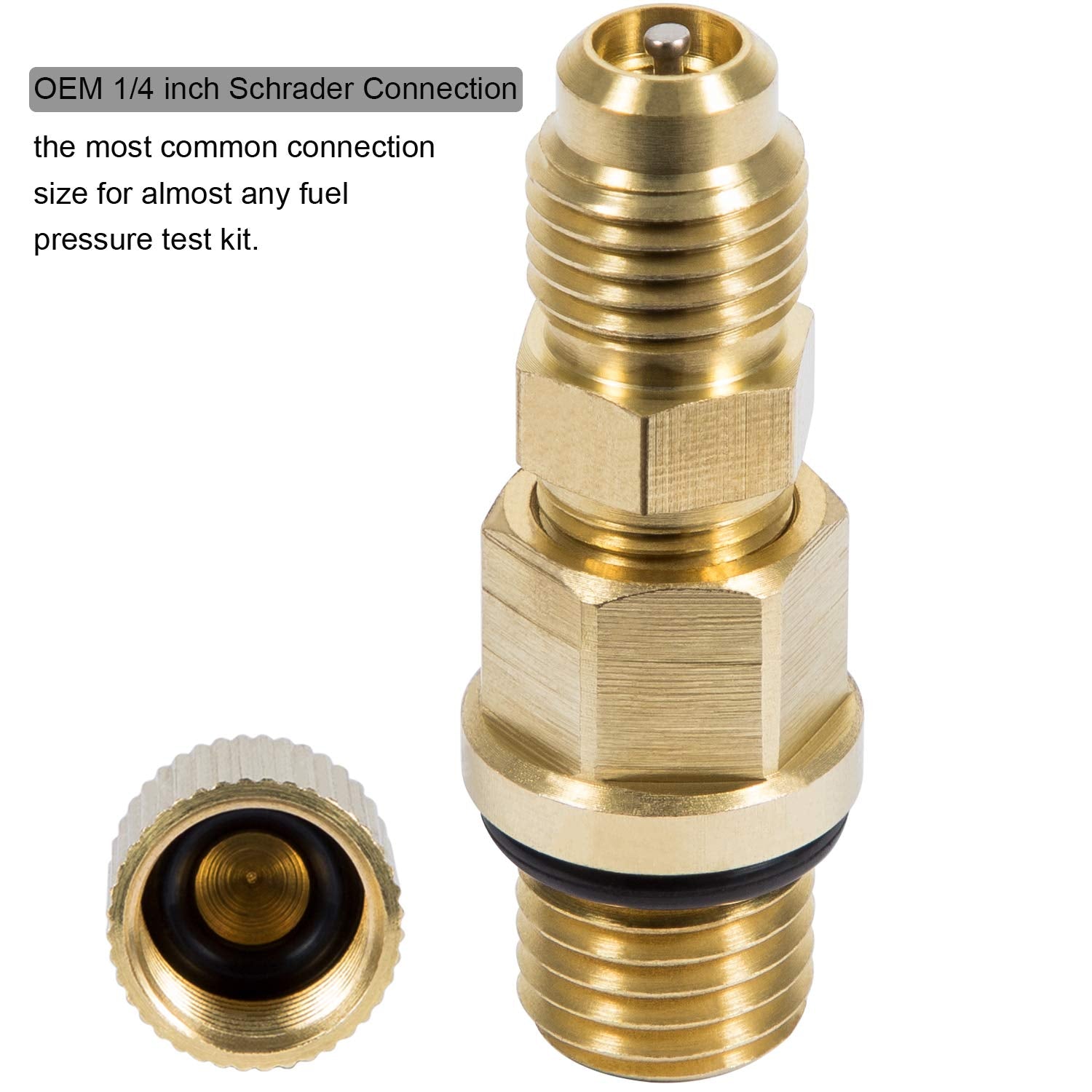

• OEM 1/4 inch Schrader connection for broad test-kit compatibility
• 1/4 inch flare Schrader valve x 1/8 inch MNPT fitting

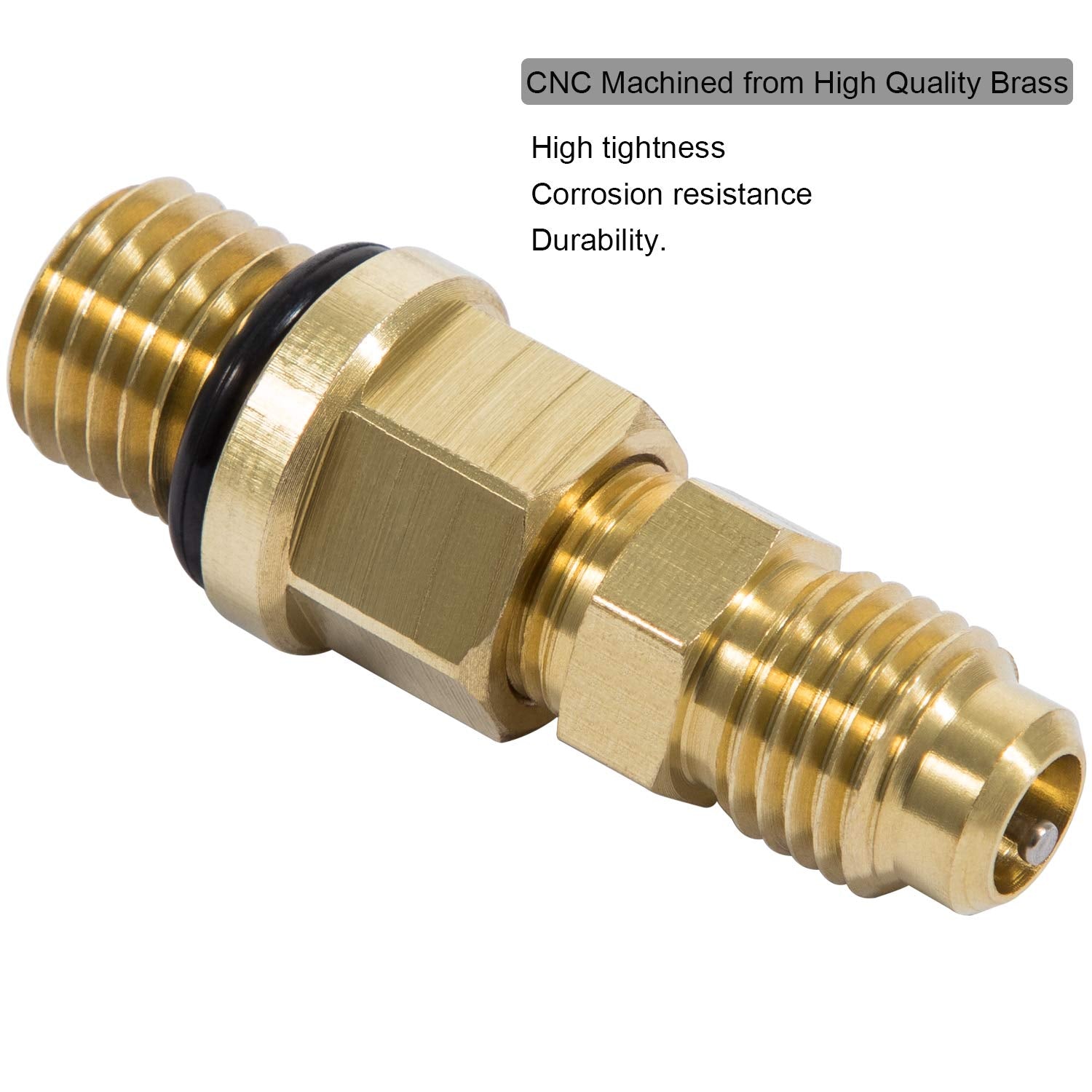

• CNC machined brass construction with tight tolerances

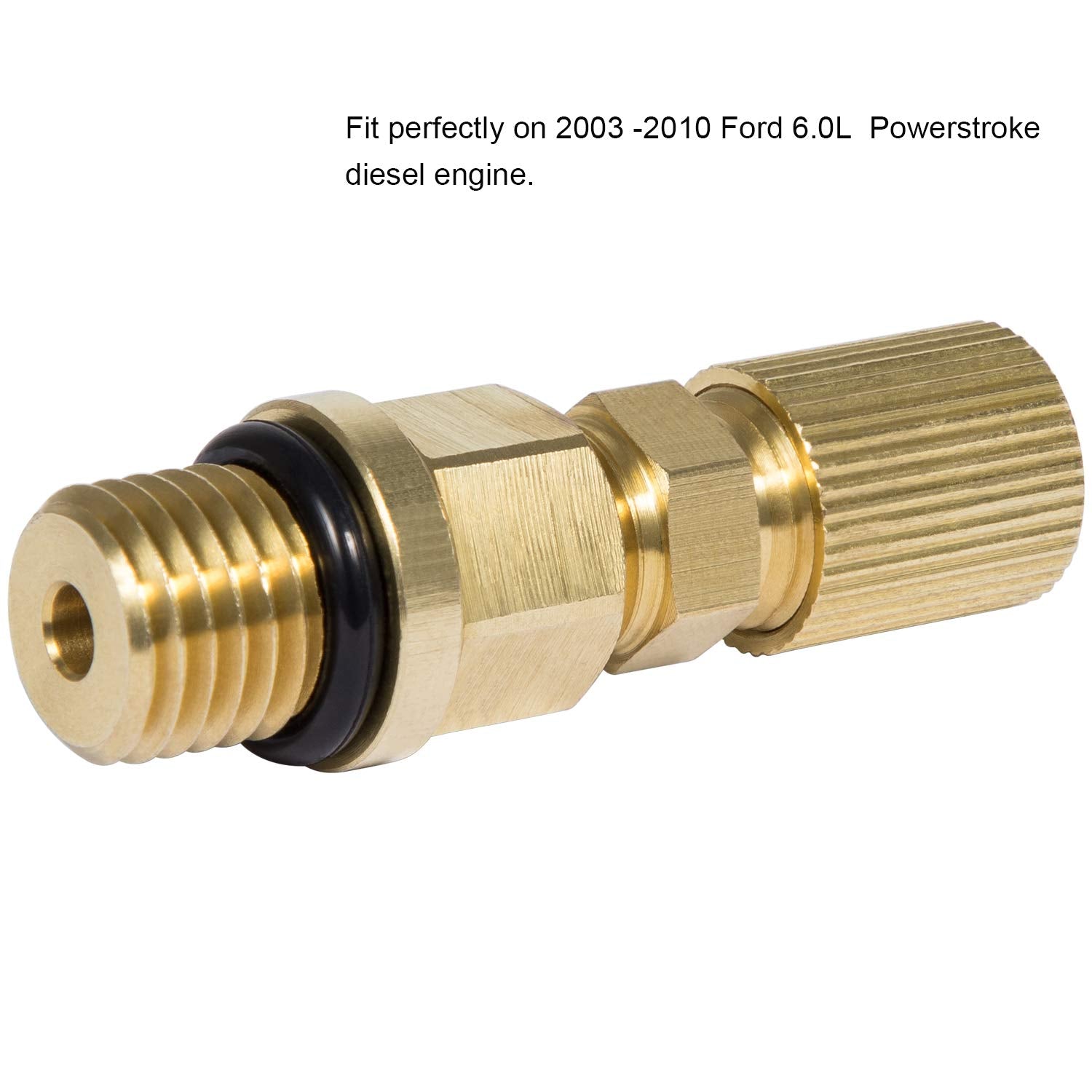

• Designed to fit 2003–2010 Ford 6.0L diesel engines

How to use

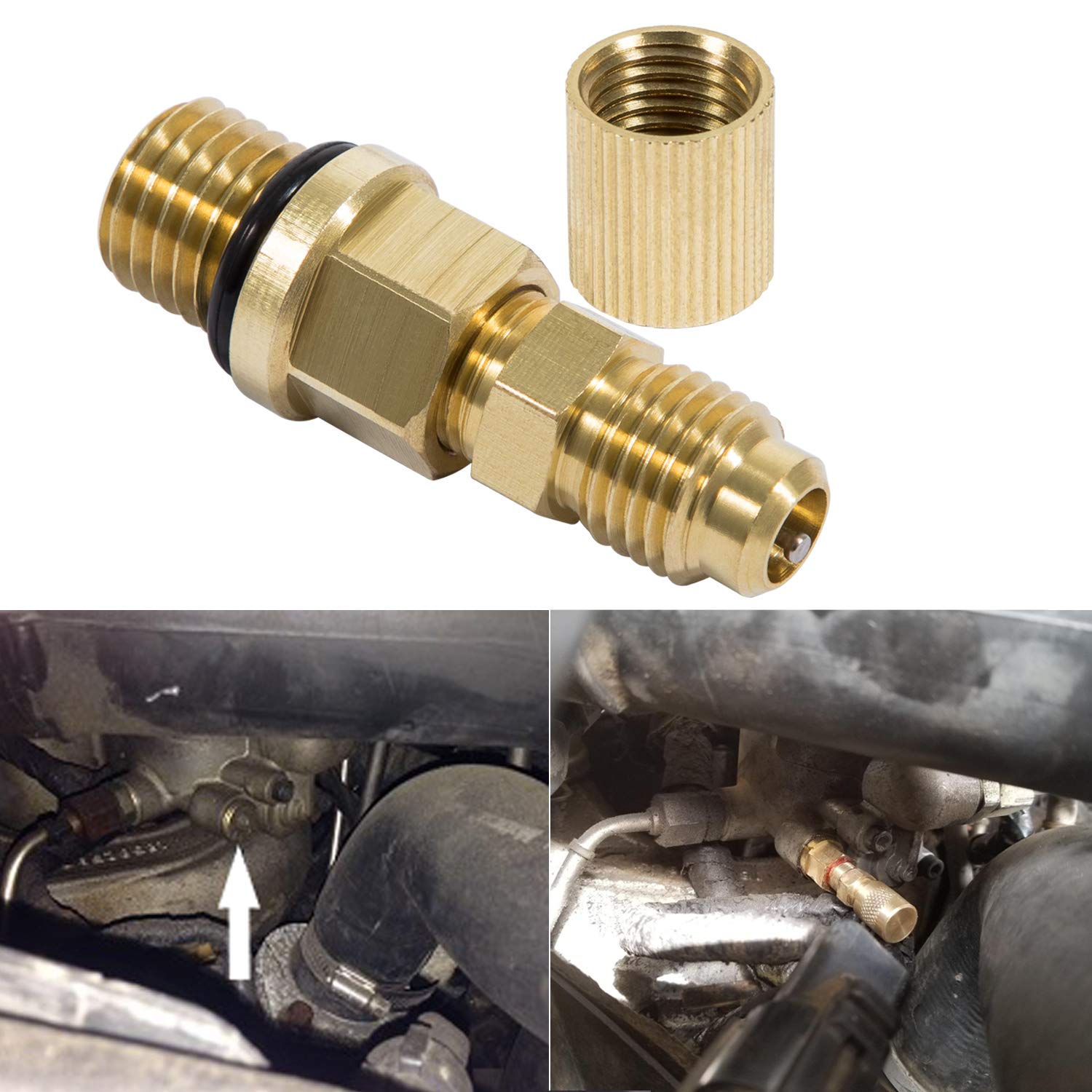

1. Remove the factory fuel pressure test plug on the secondary fuel filter housing
2. Thread in the adapter and lightly tighten to seat the O-ring
3. Attach your fuel pressure gauge and finger-tighten
4. Start the engine and carefully monitor for leaks
5. When finished, remove the gauge and adapter, then re-install the factory plug

Tips for best results

• Lubricate the O-ring before installation for a smooth seal
• Check fuel pressure anytime injectors are serviced or replaced
• Always wear safety glasses when working with pressurized fuel

This adapter is a practical addition for DIY maintenance or professional services, offering a dedicated connection point that helps you assess the fuel system with clarity and ease, while avoiding unnecessary disassembly.
