Elonn LS Rear Main Seal Alignment Tool for GM Gen III/IV Engines – Precise Fit

Meet the Elonn LS Rear Main Seal Alignment Tool

Engine builders and DIY enthusiasts alike appreciate tools that make complex tasks straightforward. The Elonn LS Rear Main Seal Alignment Tool is engineered to work with GM LS engines across Gen III and Gen IV families, including popular models such as 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, and more. Its purpose is to help you align the rear main seal and cover with confidence, reducing guesswork during installation and supporting a clean, professional result.

Designed for a perfect fit

Precision is at the heart of this tool. By matching the geometry of GM LS engines, it supports accurate placement when the rear seal goes in, helping you achieve a consistent, repeatable installation rather than a rushed repair.

Key benefits at a glance

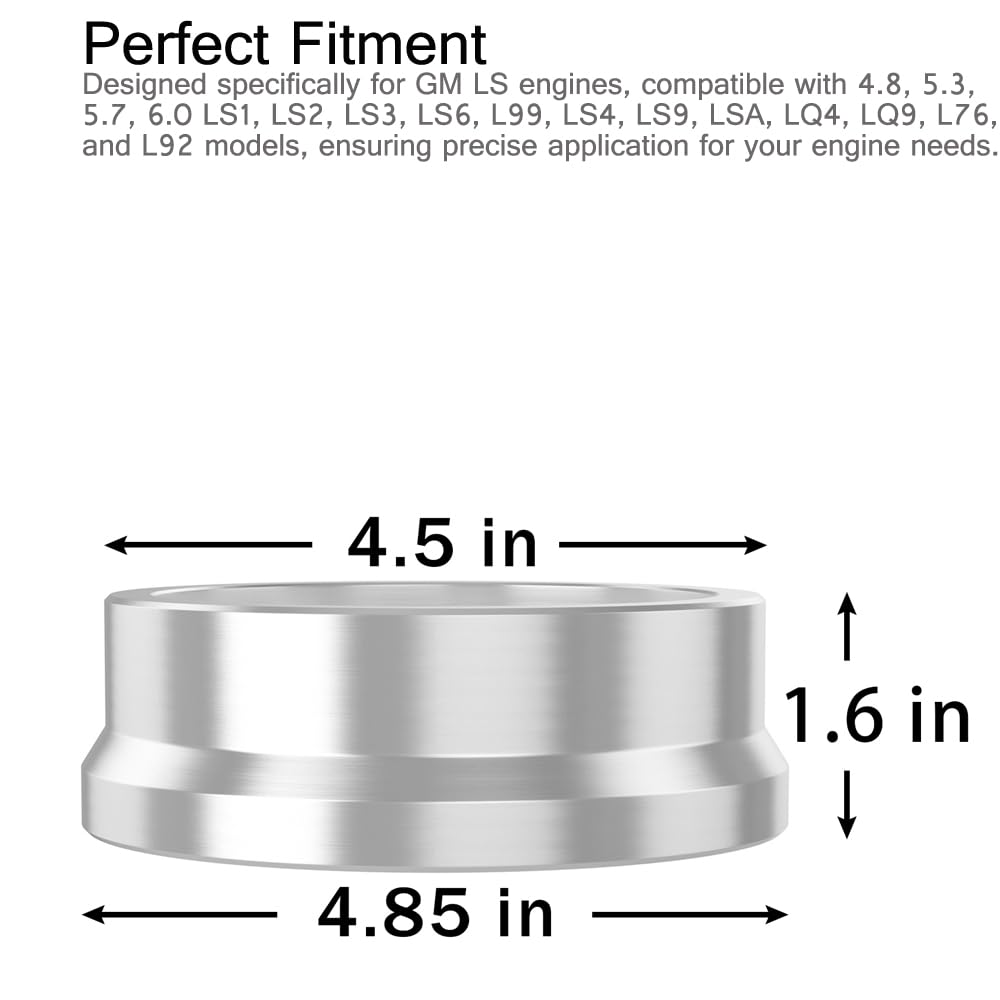

• Precise fitment across a wide range of LS models, from LS1 to L92.

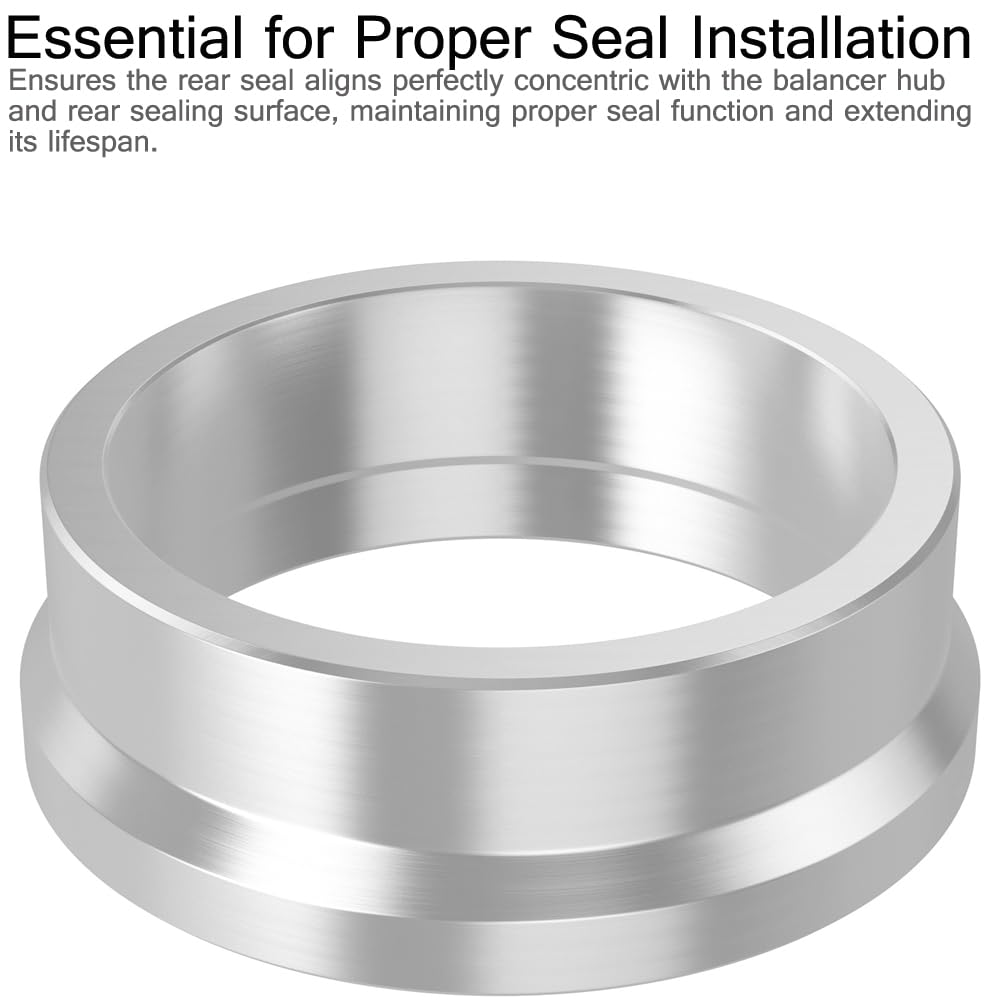

• Concentric alignment with the balancer hub and rear sealing surface to support uniform sealing surfaces.
• Durable billet aluminum construction built for repeated use in shops and home garages.

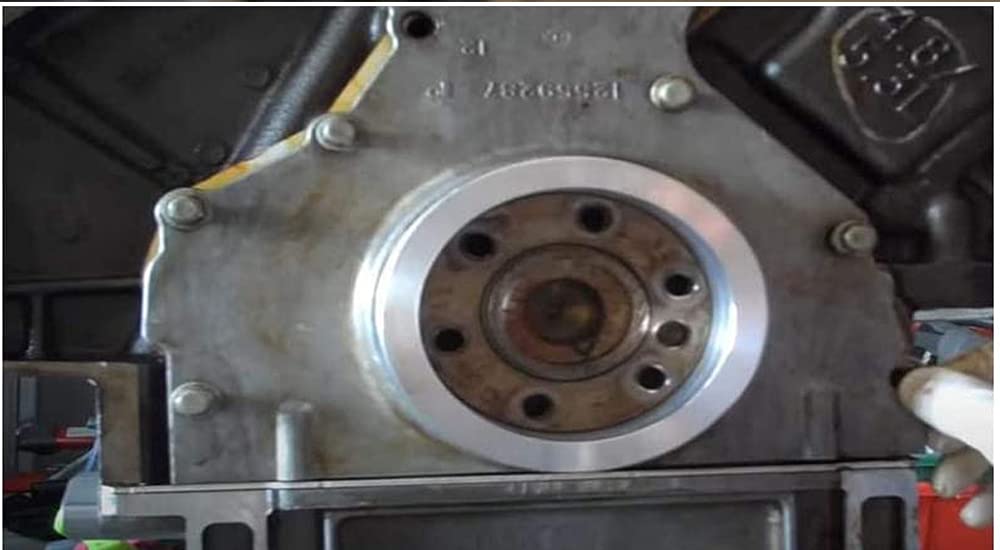

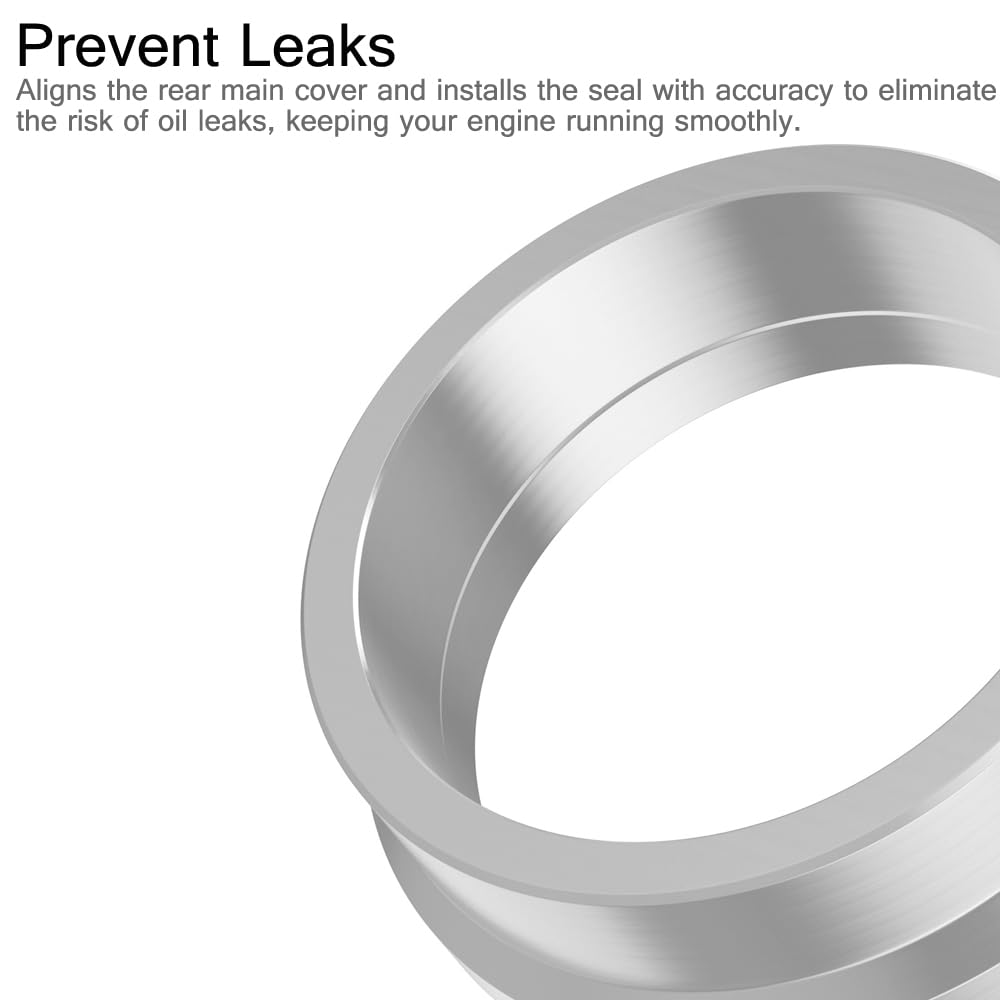

• Guides the seal and rear cover into proper position, potentially reducing rework and leaks.

What you feel in use matters as much as what you see. The tool’s solid billet aluminum is cool to the touch, showcasing clean machining and tight tolerances that help you work with confidence on engine assemblies. Its design emphasizes stability and control, helping you keep hands steady while aligning critical components.

Durability and design details

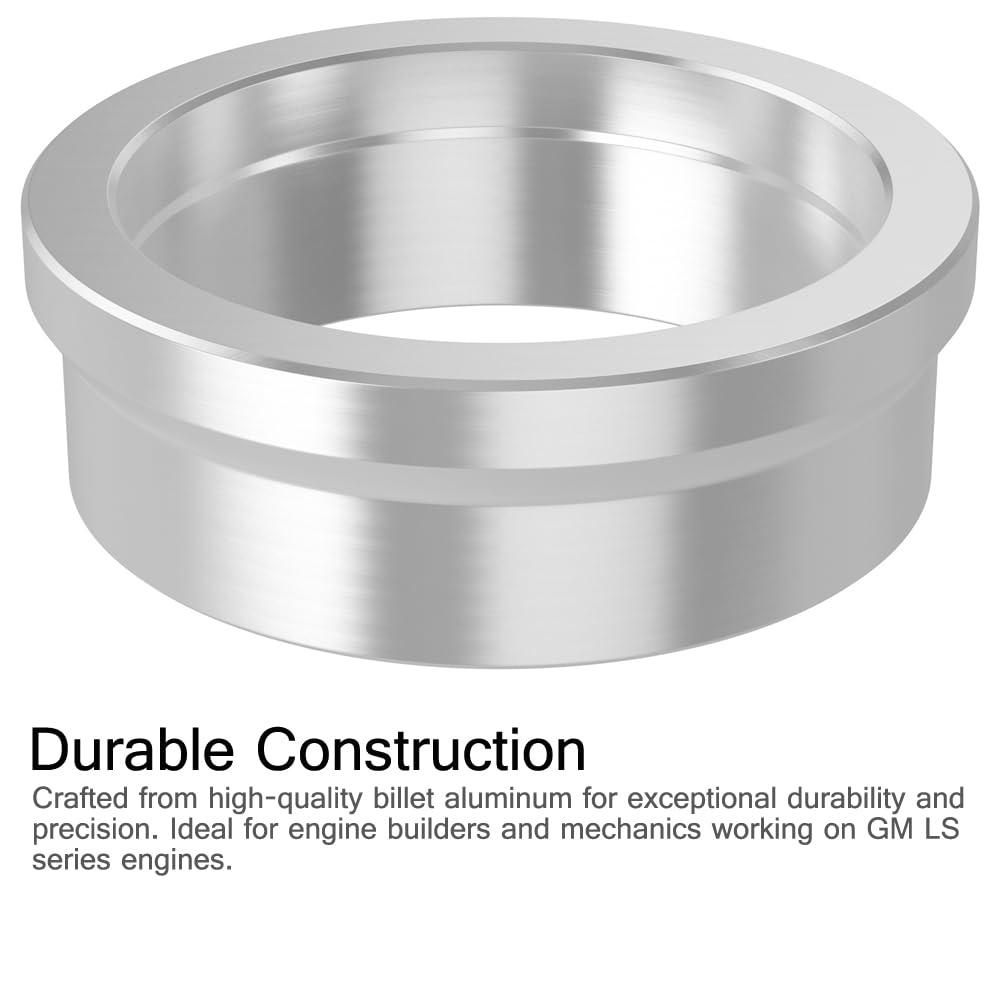

The billet aluminum construction is chosen for durability and precision. This material resists wear through frequent use, maintaining alignment accuracy over time. Thoughtful engineering focuses on ease of handling, so you can position, guide, and seat the seal with minimal fuss.

What’s included

• 1 Rear Cover Billet Alignment Tool

Whether you are a professional mechanic or a dedicated hobbyist, this tool is a practical addition to your LS engine toolkit. Pair it with standard hand tools and follow your engine manufacturer guidelines for the best results. This tool shines when you value consistent alignment, repeatable results, and a clean installation process.

Usage notes

• Verify engine model compatibility before use to ensure perfect fitment.
• Clean all contact surfaces to maintain a smooth seating experience.
• Follow torque and installation procedures recommended by the engine manufacturer for best results.
