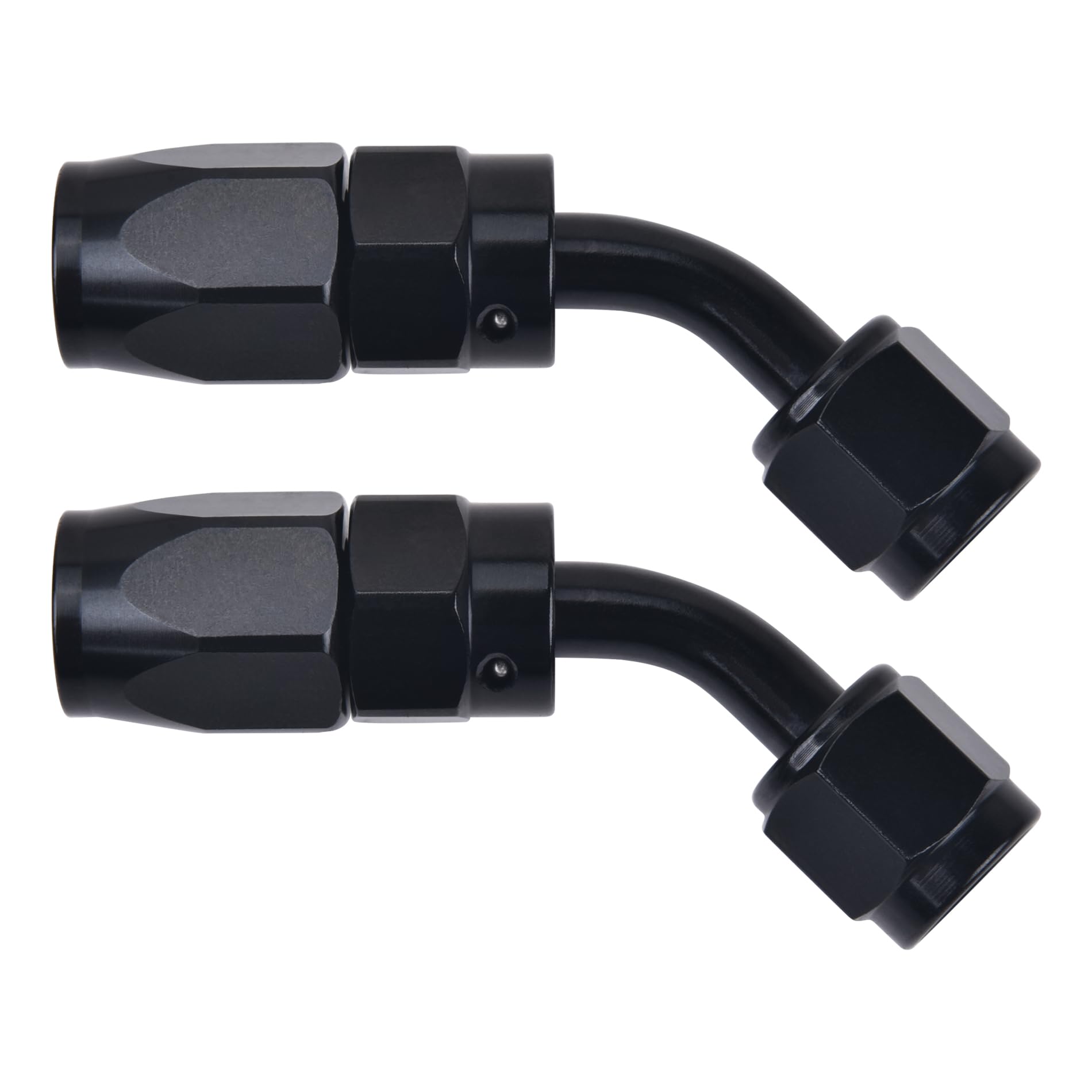

EVIL ENERGY 10AN Hose End Fitting 45° Swivel for CPE Braided Hose – 2 Pack
- £30.62
- £30.62
- Unit price
- per
Couldn't load pickup availability
Free UK Delivery on All Orders
Free Returns
Description
xOverview
Meet the EVIL ENERGY 10AN hose end fitting with a 45 degree swivel, designed to simplify high‑pressure braided hose layouts in tight spaces. Crafted from 6061‑T6 aluminum, this compact fitting balances strength with light weight, enabling secure connections without excess bulk.
What it can do for you
In real world installs, a swivel at the joint can help you route hoses more cleanly, reduce wear points, and access hard‑to‑reach areas in engine bays, race cars, or boats. The AN side uses a 37 degree seat to promote a tidy interface without modifying your existing hoses.
Key benefits
- 360° swivel design for flexible, space saving routing
- Compatible with stainless steel braided and nylon braided hoses

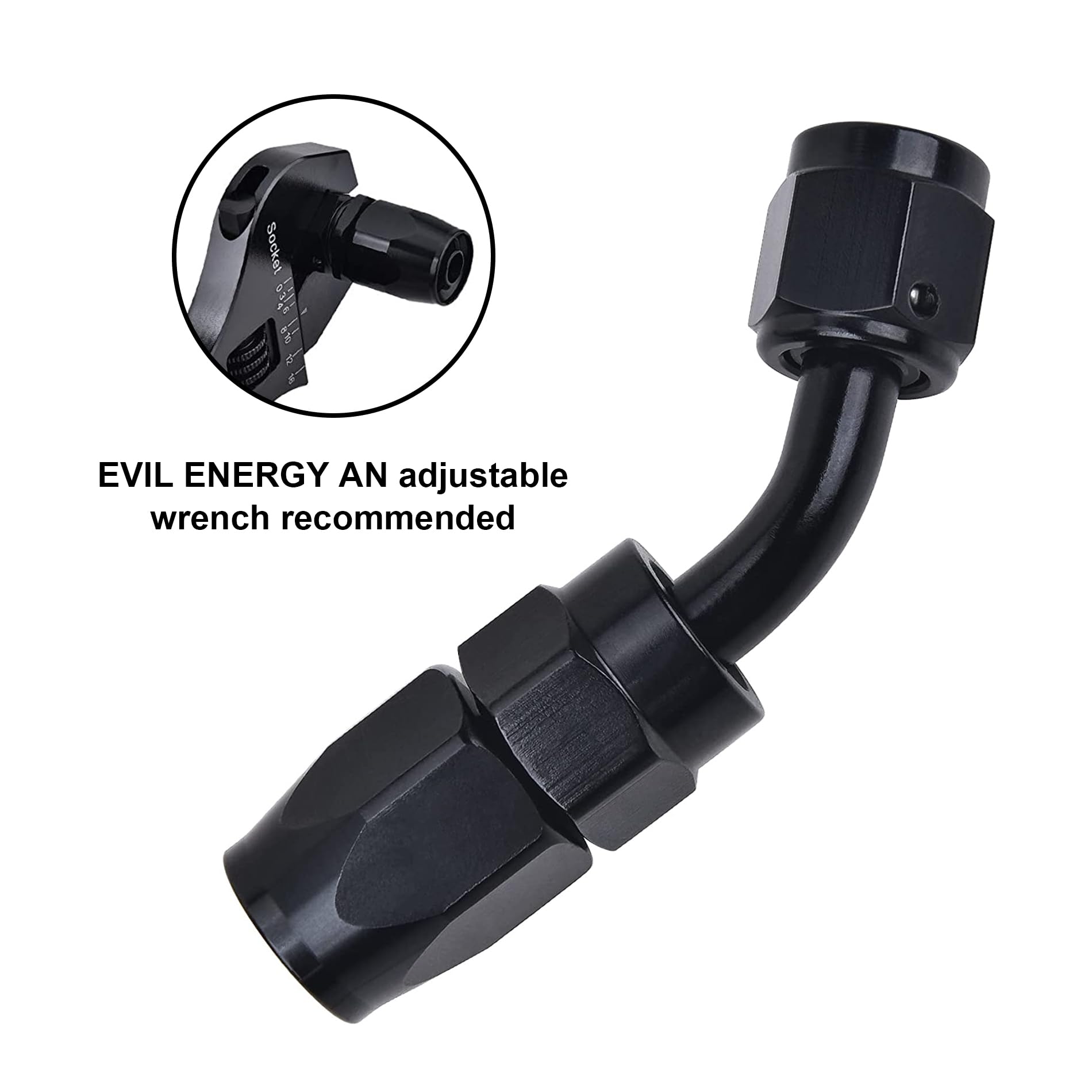

- 6061‑T6 aluminum alloy offers solid durability with light weight

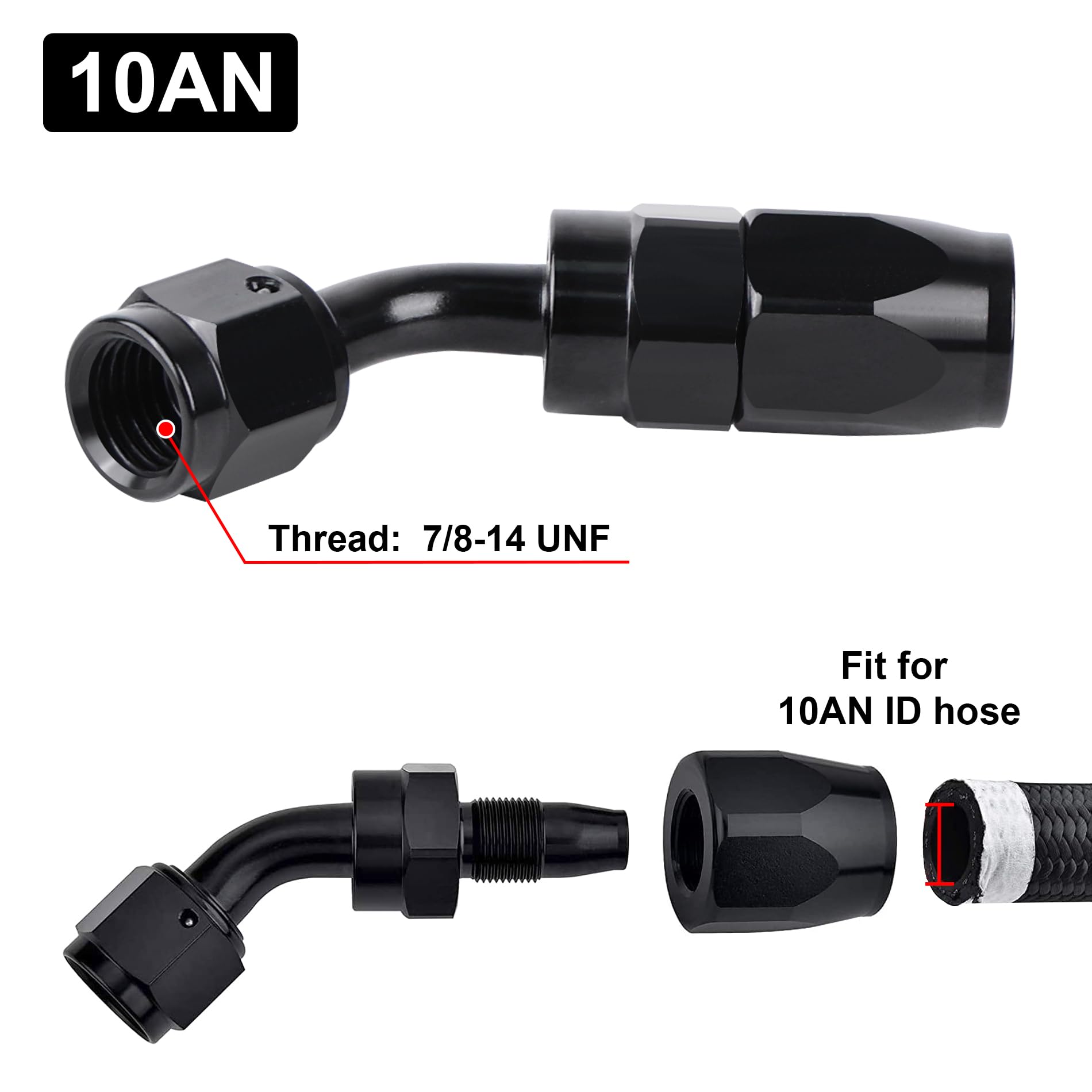

- 7/8‑14 UNF thread on the AN side with a 37° seat for a reliable seal
- Maximum working pressure up to 1,500 PSI
- Operating temperature range from −65°F to 252°F (−53°C to 122°C)
- Reusable and recyclable for sustainable maintenance

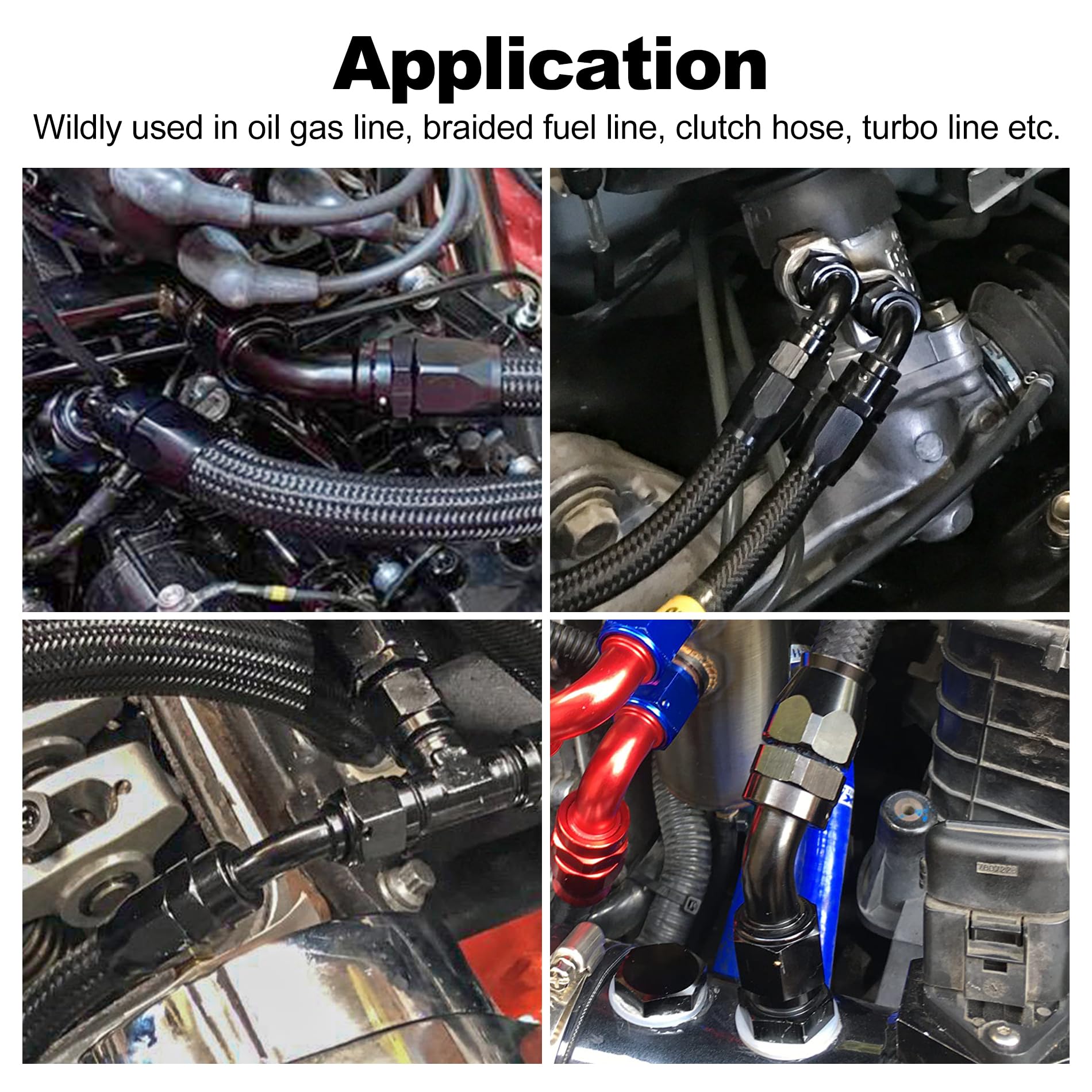

Typical use cases
- Automotive and motorsport projects requiring tight hose routing
- Marine installations where sturdy, corrosion‑resistant fittings are valued
- DIY and workshop upgrades using CPE braided hoses
- Repairs or reconfigurations where quick, tool‑free adjustments help
Specifications at a glance
Thread: 7/8‑14 UNF on the AN side. Material: 6061‑T6 aluminum. Max pressure: 1,500 PSI. Temp range: −65°F to 252°F.
Note: The swivel is designed for use with compatible braided hoses and may not suit all hose types.
FAQ
Q: What is the thread size and material of the EVIL ENERGY 10AN hose end fitting?
A: Thread size is 7/8-14 UNF, with a 6061-T6 aluminum body.
Q: Which hoses are compatible with this 45-degree swivel fitting?
A: Compatible with stainless steel braided and nylon braided hoses.
