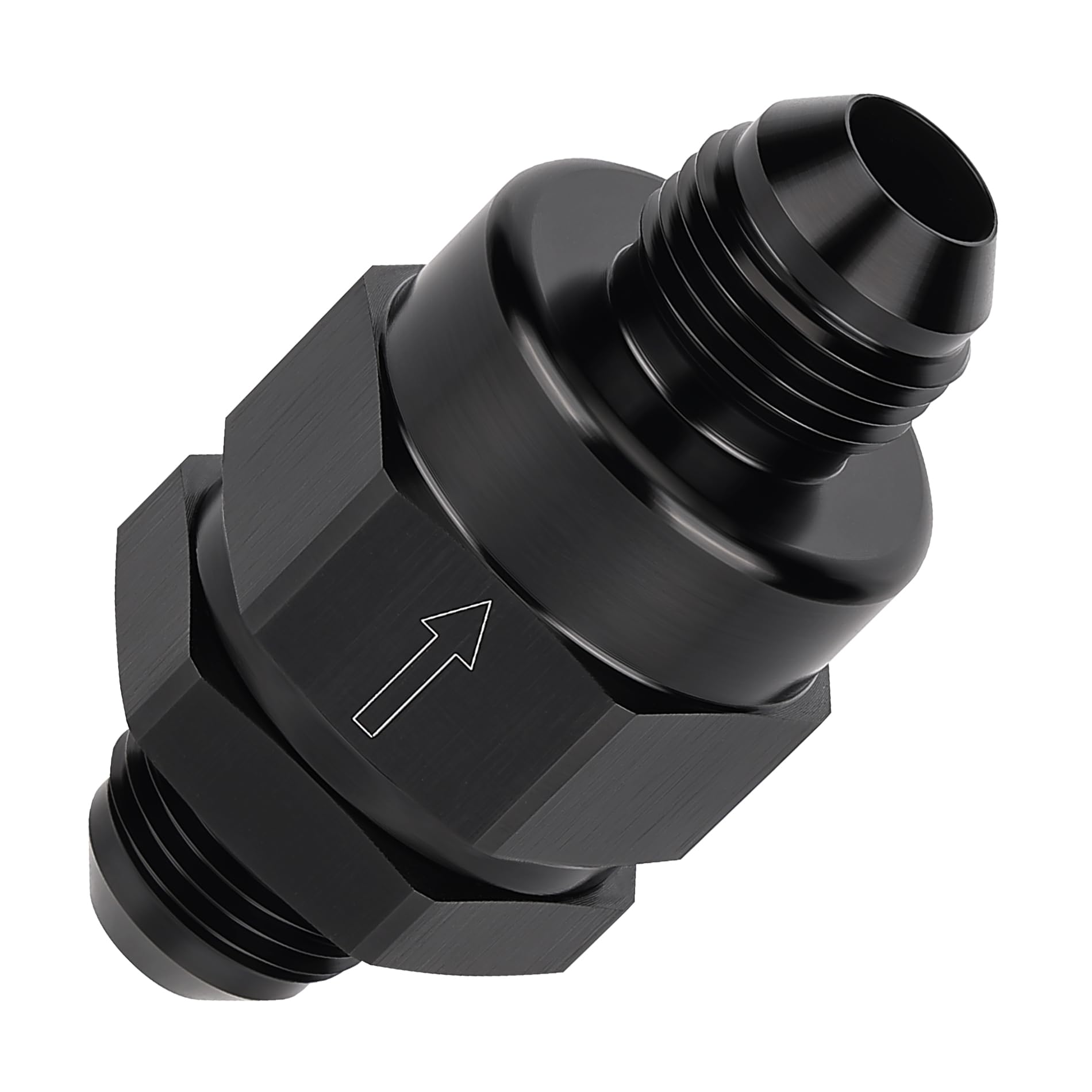

EVIL ENERGY 8AN Male Non-Return Inline Check Valve Fitting – Diaphragm, Aluminum, Black

Meet the EVIL ENERGY 8AN Male Non Return Inline Check Valve Fitting, a compact inline valve built for modern fuel and fluid lines where reliable one-way flow matters. Crafted from 6061-T6 aluminum and finished with a black anodized layer, this valve blends rugged durability with a precise diaphragm-style mechanism. A stainless steel spring works with the diaphragm to support steady forward flow while blocking reverse flow when pressure shifts or the line is shut down. This combination is designed to hold up under typical automotive and equipment conditions without relying on consumer-grade components.

Key specifications

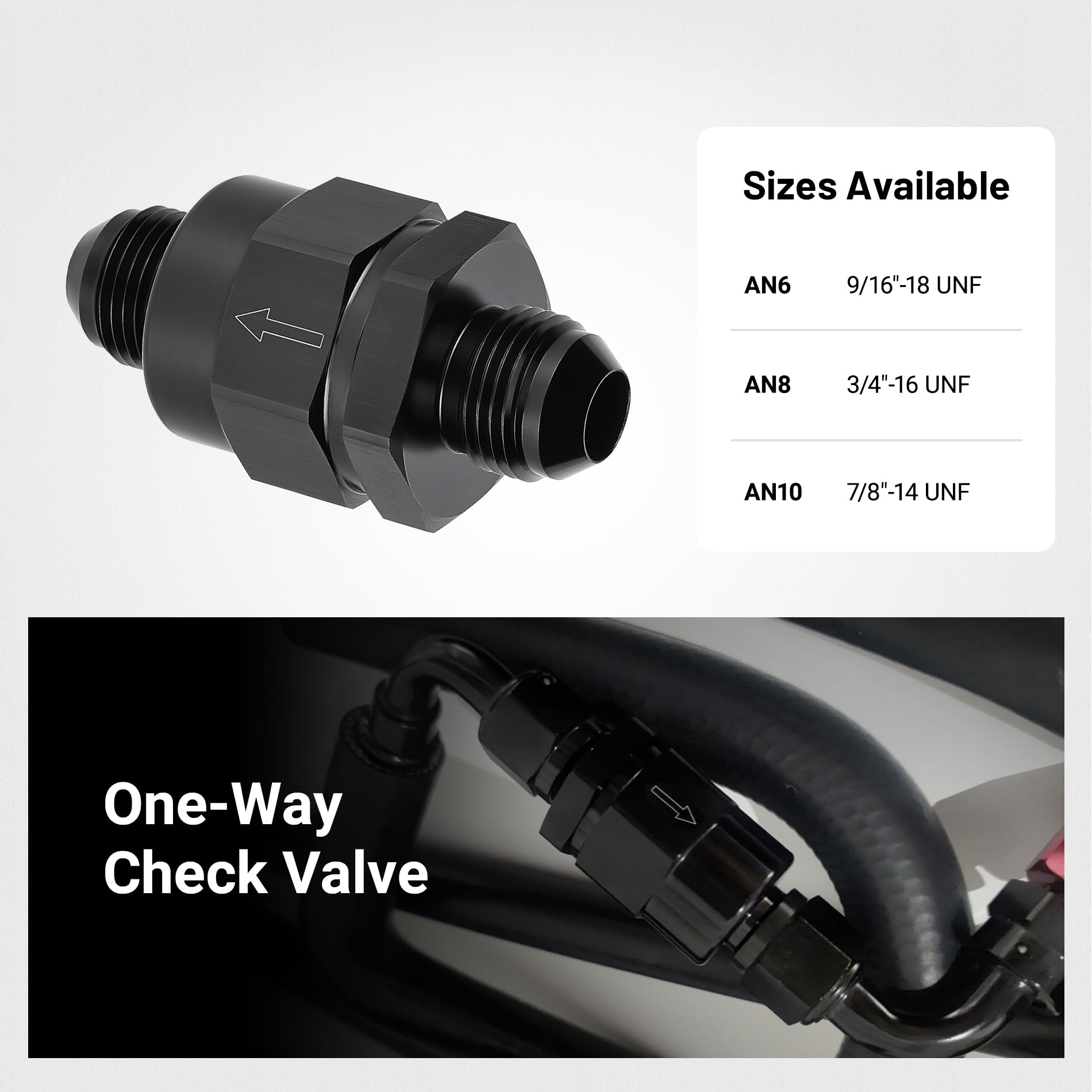

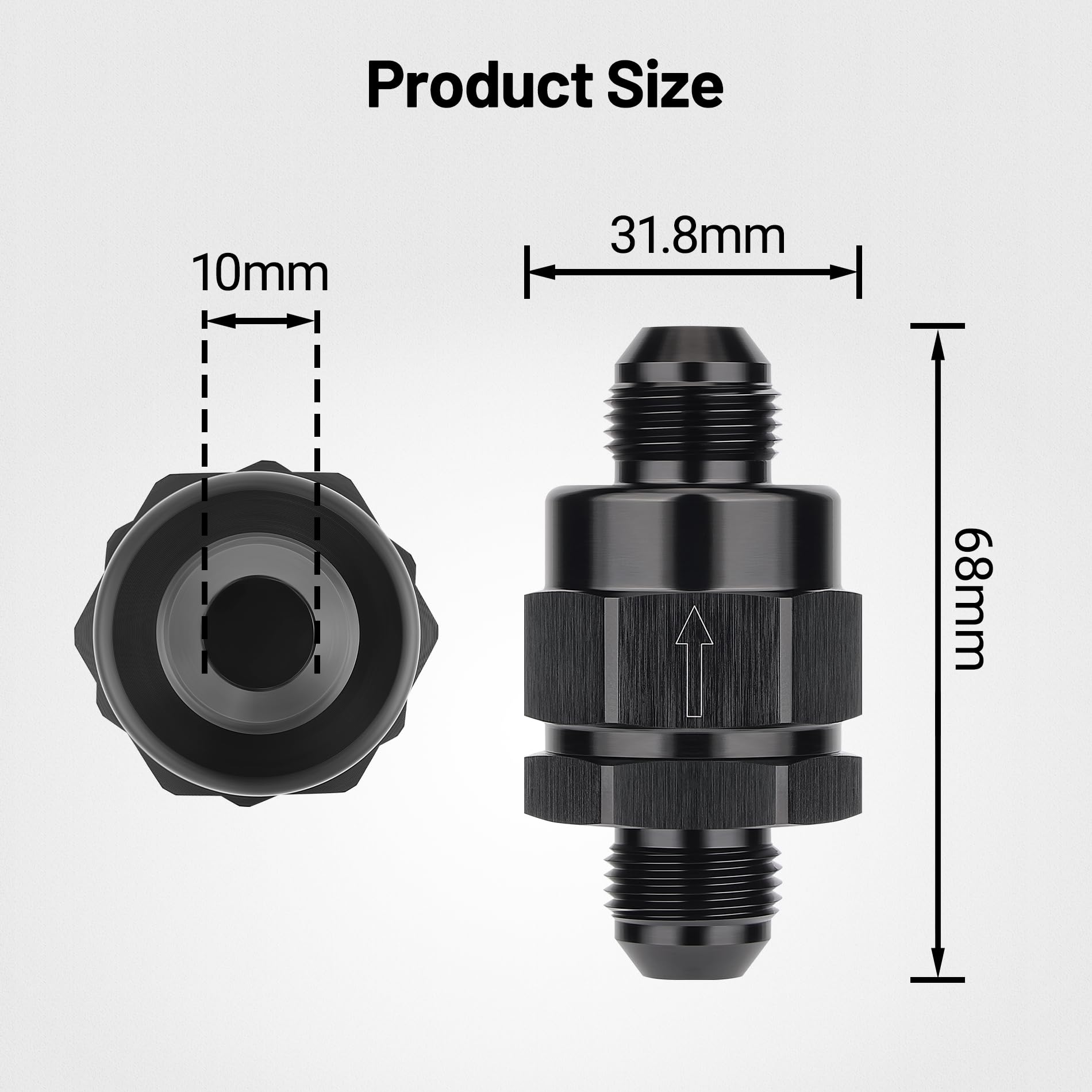

• 8AN male inlet/outlet with 3/4"-16 UNF threads; diaphragm-style design for controlled flow.

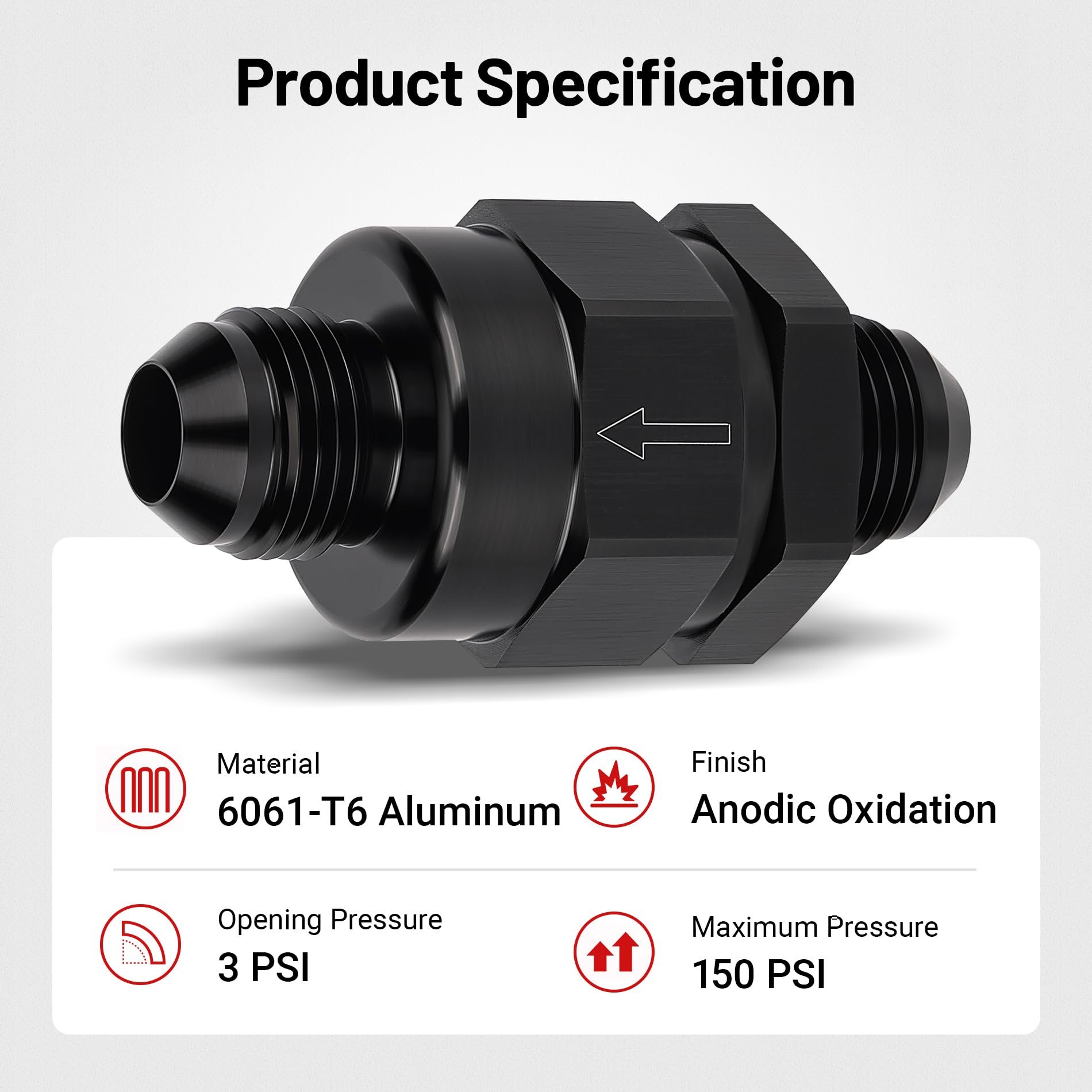

• Opening pressure 3 psi; maximum working pressure up to 150 psi.
• Constructed from 6061-T6 aluminum alloy; black anodized for improved corrosion and wear resistance.

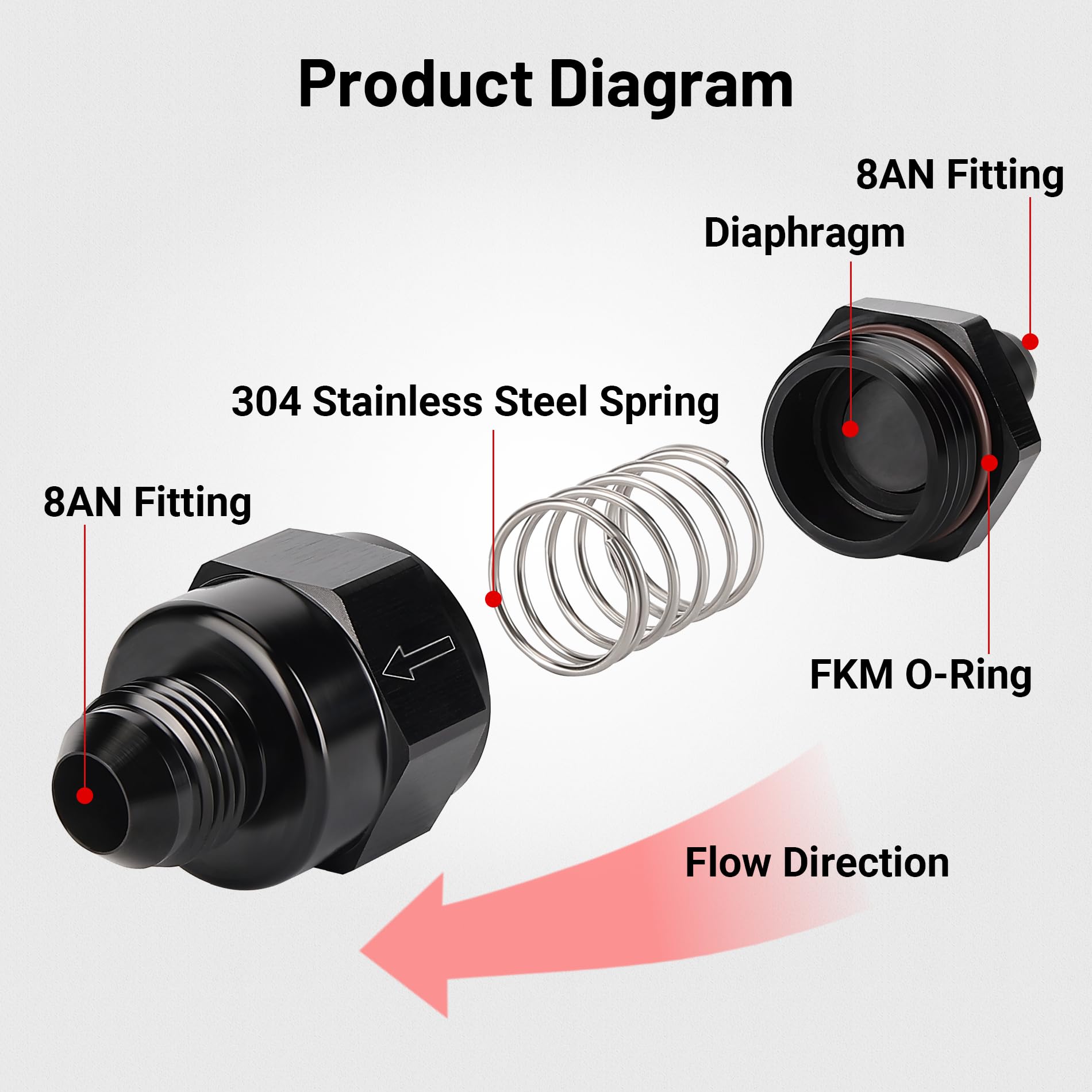

• Diaphragm-style operation with a stainless steel spring to achieve one-way flow and prevent backflow.

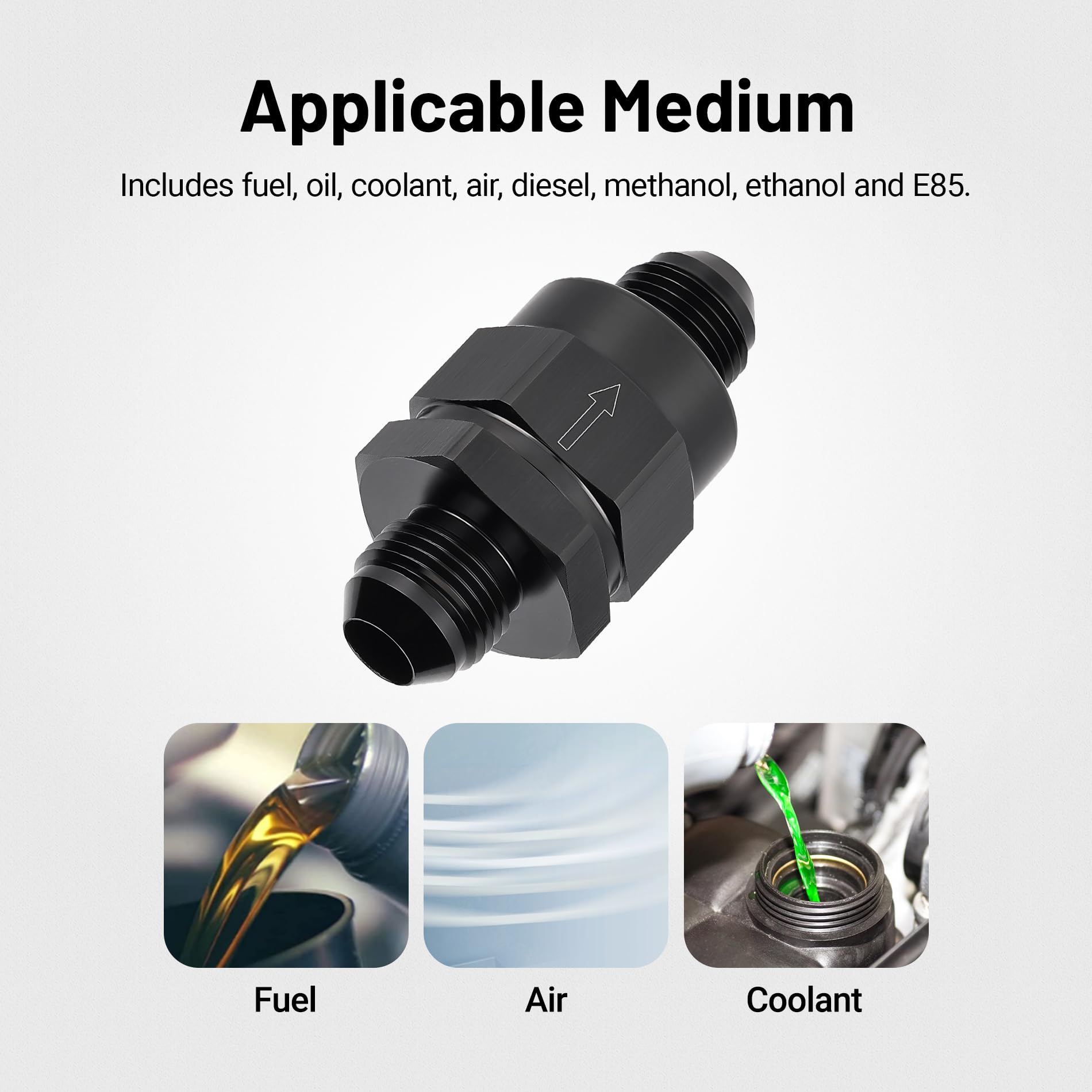

• Suitable for a range of media in fuel systems, including fuel, oil, coolant, air, diesel, methanol, ethanol, and E85.

Why this valve works for many setups

• Corrosion-resilient construction helps it endure exposure to fuels and additives common in engines.
• Inline form factor simplifies installation in tight engine bays or compact fuel lines.
• The diaphragm plus spring design offers predictable response to pressure changes, aiding system reliability.
• Stainless steel components inside resist fatigue and wear during repeated cycling.

Practical installation notes

• Verify compatibility: 8AN 3/4"-16 UNF threads are standard for many aftermarket fuel lines.
• Position the valve in the intended flow direction to ensure effective backflow prevention.
• Ensure media compatibility when using ethanol blends or methanol-containing fuels.
• Inspect the black anodized finish for uniform coverage and avoid overtightening fittings.

This valve is designed to enhance one-way flow in fuel systems without promising results in every scenario. It offers potential benefits such as reduced backflow risk, durable materials, and straightforward inline installation, making it a reasonable option to consider in compatible projects.
