GaiRen 3/4-Inch Heim Joints Rod End Kit – Dual Thread (4 Right + 4 Left), 28,000 lb Static Load, Chromoly

Overview

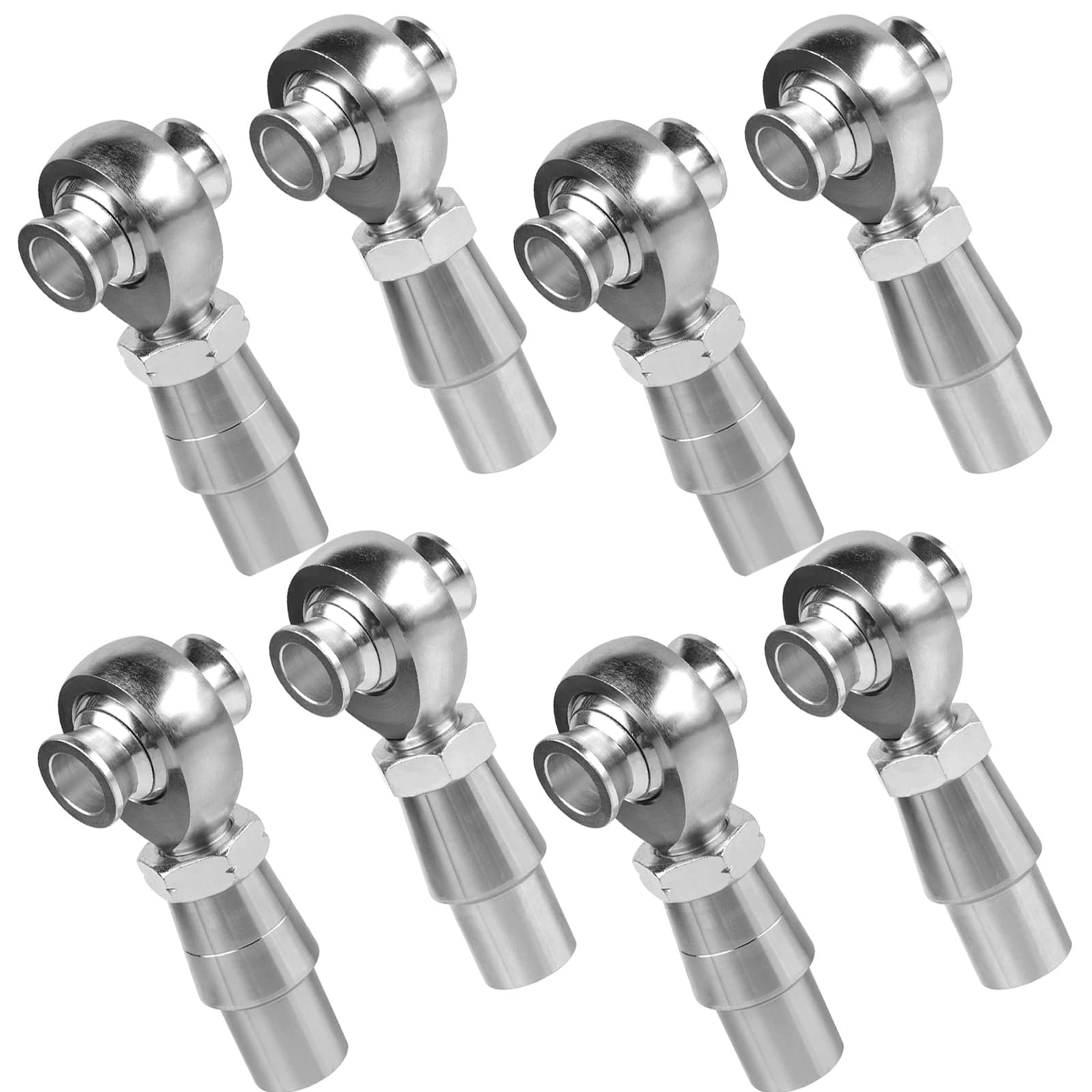

GaiRen presents a robust 3/4-inch Heim joint rod end kit designed to elevate steering and suspension projects. This dual-thread set includes four right-hand and four left-hand joints, complemented by jam nut spacers and a zinc-coated tube adapter. The result is a ready-to-install kit built for dependable, long-lasting performance in demanding environments.

With factory-grade finishes and precision engineering, the system is crafted to endure real-world use while maintaining smooth, responsive linkage behavior. The combination of durable construction and thoughtful components helps you approach build quality with confidence, without overpromising on outcomes.

Durable, heat-treated construction

The joints are heat treated and hard chrome plated, offering enhanced wear resistance and a longer service life under load. A static load rating of 28,000 pounds signals strong potential for heavy-duty performance in rugged setups, while keeping a focus on reliability rather than guarantees.

Fitment and compatibility

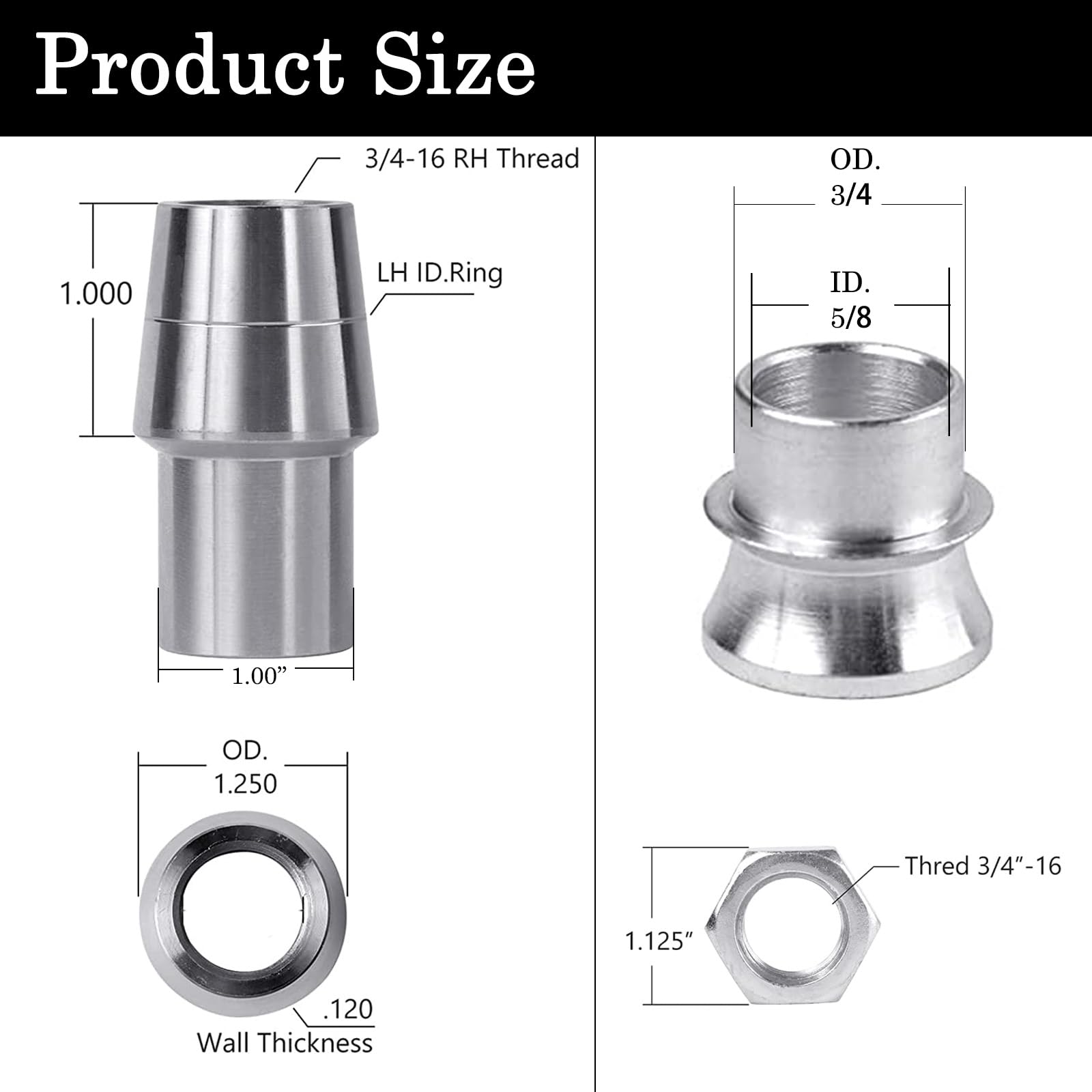

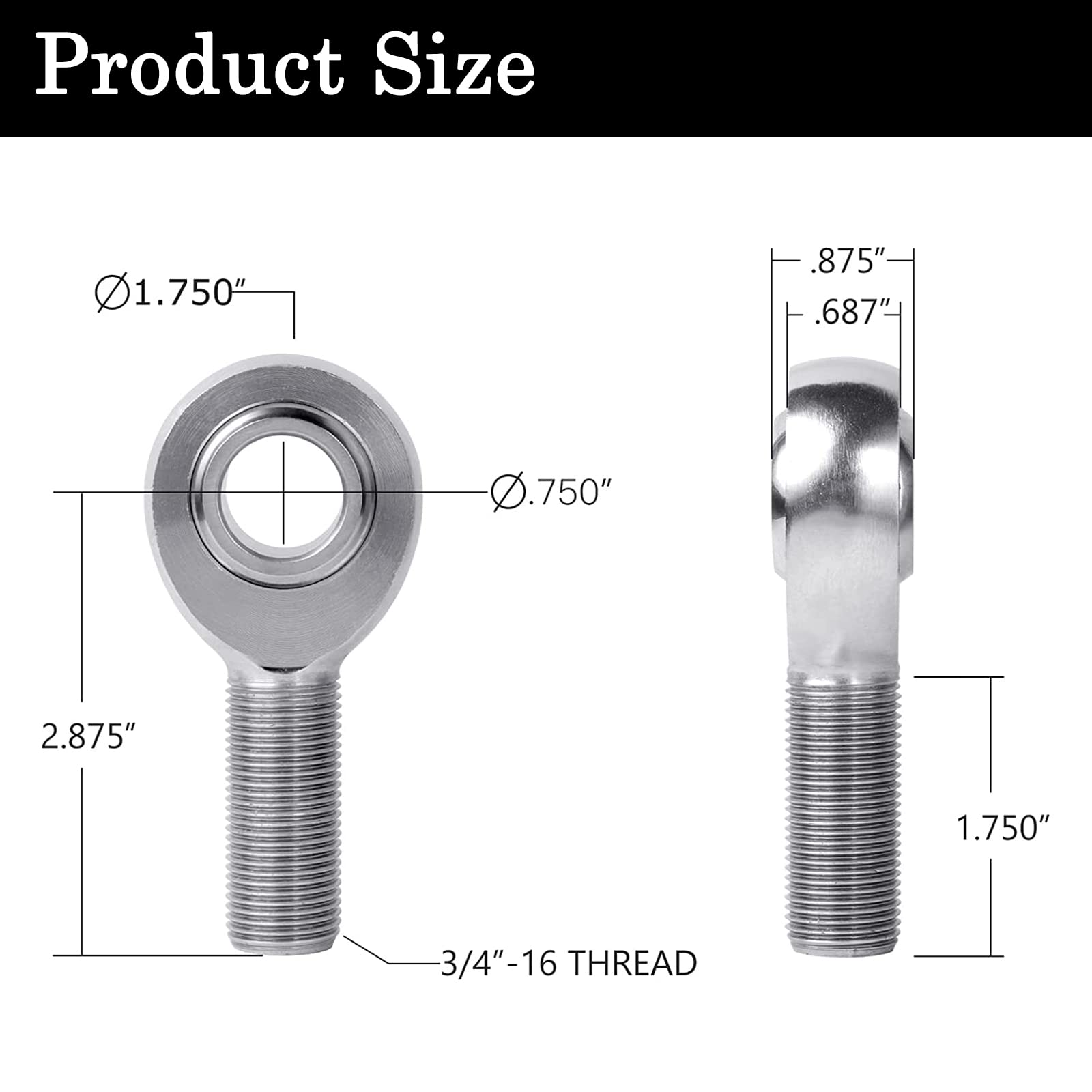

The 3/4-inch shaft uses 16tpi threading, delivering a robust connection that tolerates real-world vibrations and flex. Designed for tube sizing of 1 1/4 inches outer diameter with a wall thickness of .120 inches and an inner diameter of 1.01 inches, the mounting width measures 1-7/8 inches.

Applications and use cases

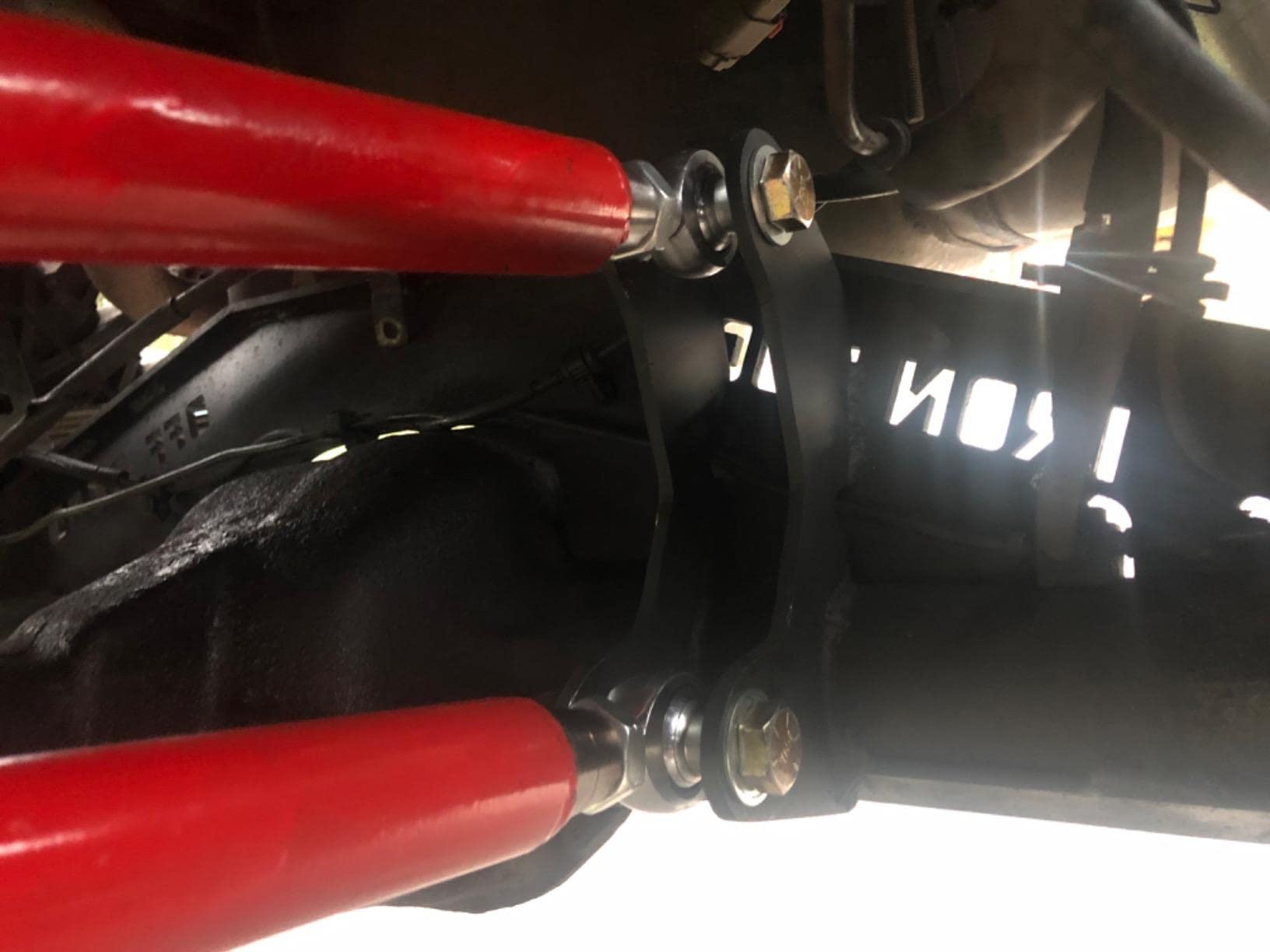

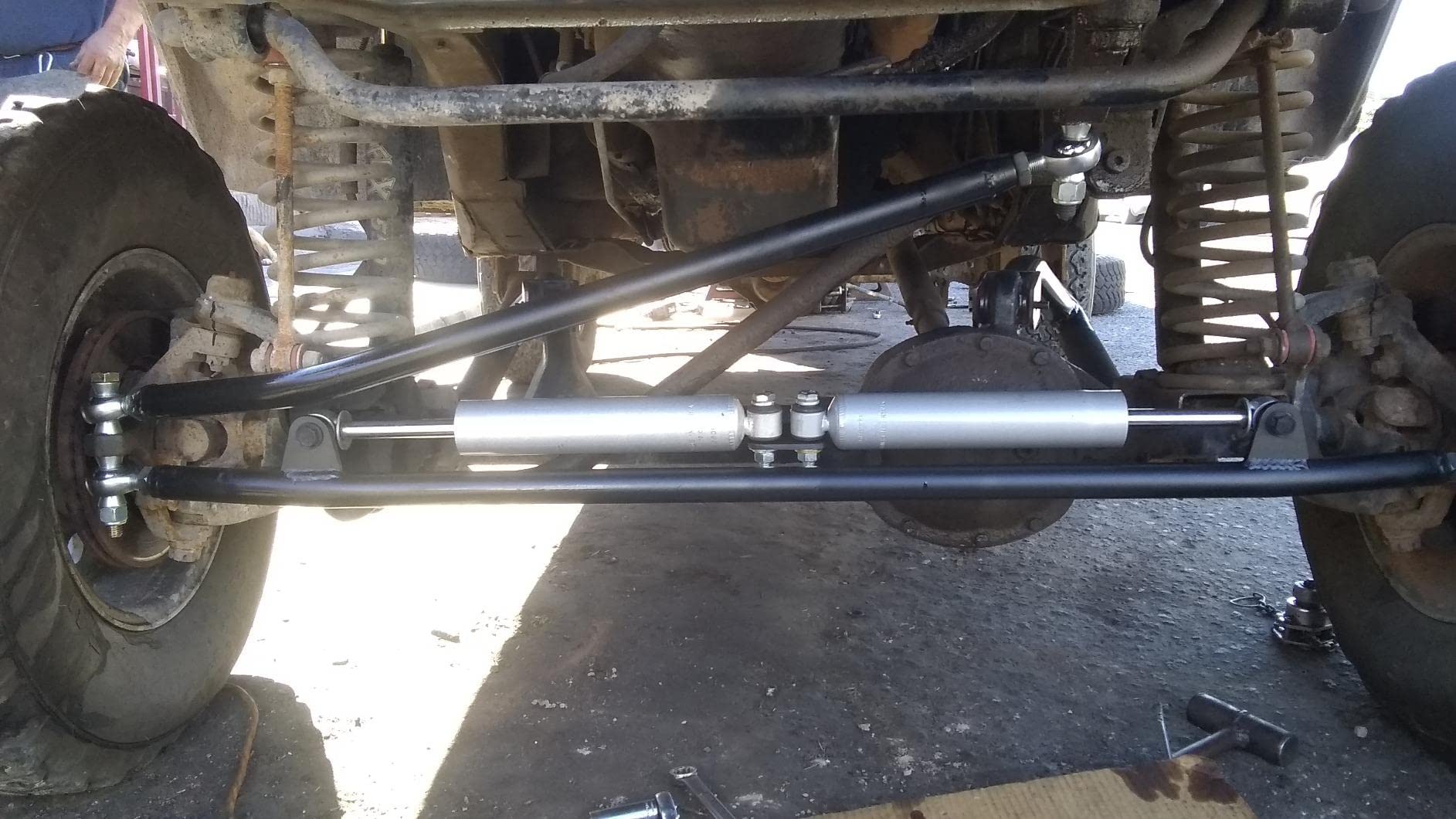

Widely applicable to steering and suspension components, this kit suits traction bars, panhard bars, steering joints, Johnny joints, tie rods, and various link joints on hot rods and custom builds. It offers a versatile option for upgrades and replacements in performance-focused projects.

In practical terms, installers may notice improved linkage stability, smoother articulation, and consistent performance across a range of driving conditions. The included spacers and jam nuts are designed to facilitate straightforward assembly and alignment checks.

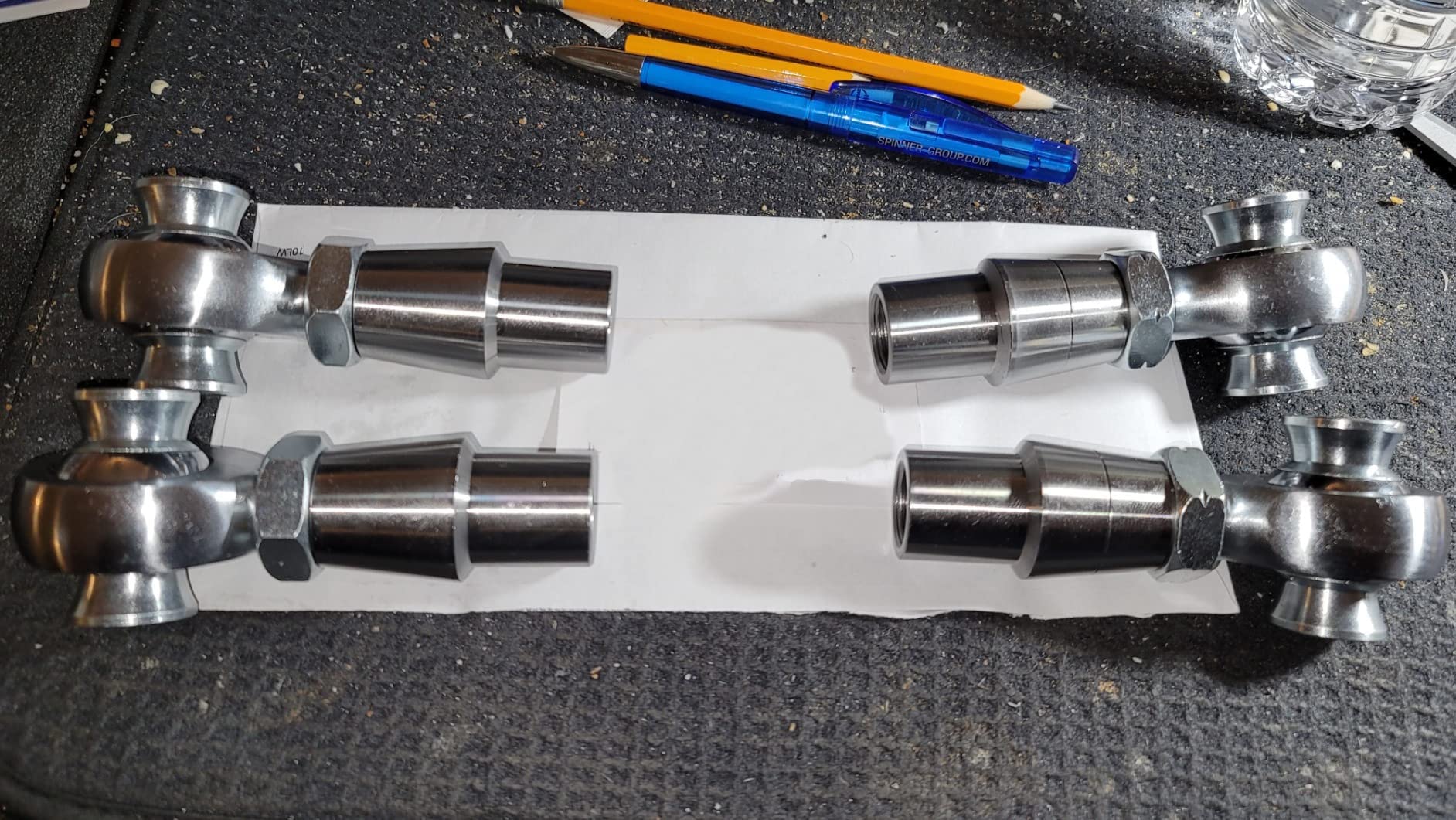

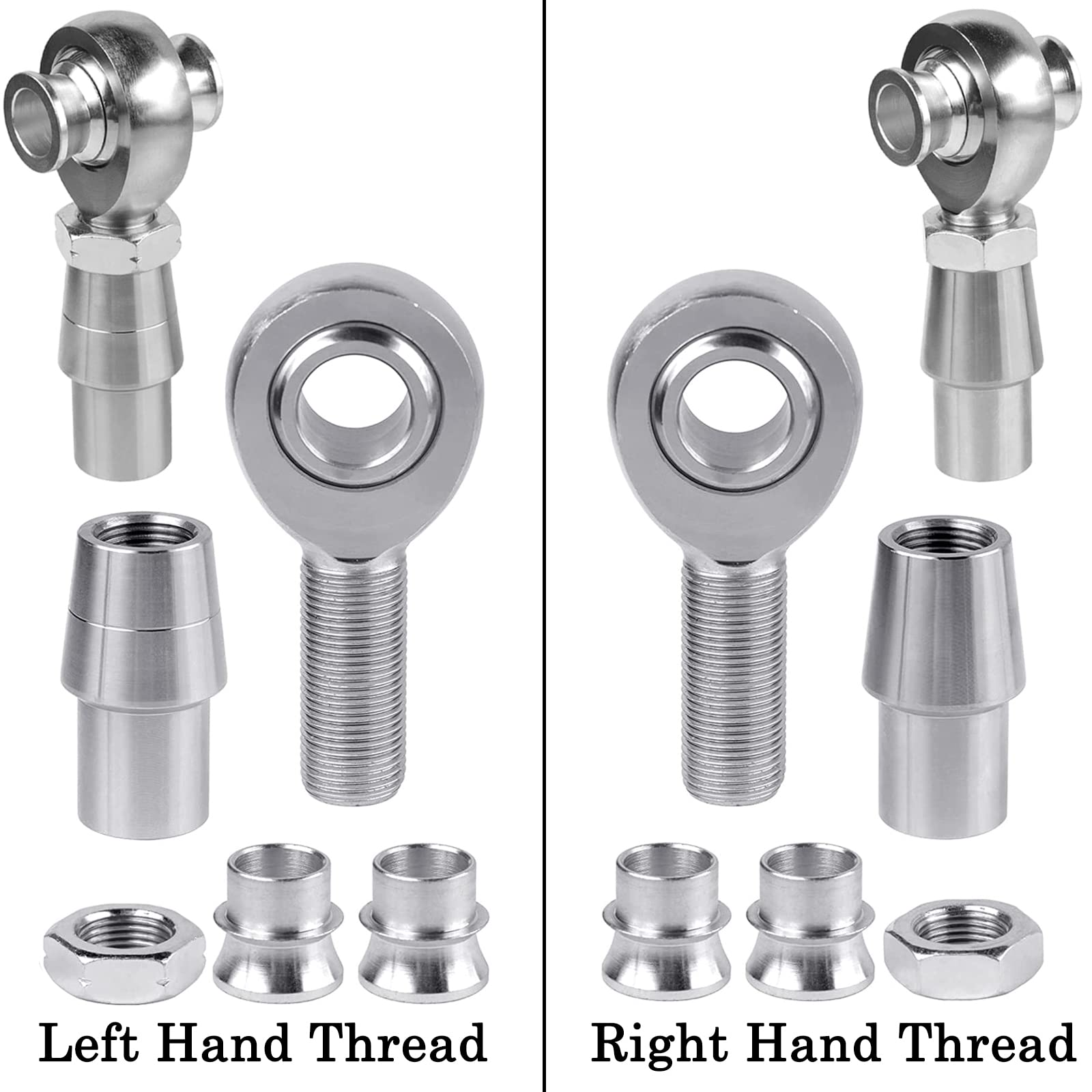

• Included components: 4 right-hand thread joints, 4 left-hand thread joints, jam nut spacers, and a zinc-coated tube adapter
• Finish and durability: zinc coating helps resist corrosion in exposed environments, aiding longevity

Installation and care

For installation, align the joints properly and secure fasteners to recommended torque levels. The 3/4-inch shaft with 16tpi enables solid assembly, while the tube compatibility allows for coordinated mounts and connectors in your build.

• Durability: heat-treated, chrome-plated joints for longer wear life
• Support: responsive customer service ready to answer questions within 24 hours

Choosing the GaiRen 3/4" Heim Joints Kit opens up possibilities for stronger, reliable linkages in your build. Use it as a practical upgrade to enhance steering feel and suspension control in demanding driving scenarios.
