Hypertune LS Swap Retrofit Aluminum Oil Pan Kit for 1955-1987 GM LS Gen III/IV V8 – Low Profile

Overview

The Hypertune LS Swap Retrofit Aluminum Oil Pan Kit is designed for classic GM muscle, 1955–1987 GM trucks, and LS Gen III/IV V8 installations. Crafted from corrosion-resistant aluminum, this low-profile rear-sump pan aims to clear chassis constraints while delivering dependable oil capacity for daily driving and weekend builds. It’s compatible with a traditional rear-sump setup and is intended for GM rear-wheel-drive applications that originally used a small- or big-block Chevy oil pan.

What you gain

Designed to balance weight, strength, and heat management, this kit combines several proven benefits that matter in real-world use. The aluminum construction is lightweight yet strong, offering rapid heat dissipation to help stabilize oil temperature during spirited driving and long highway sessions. The rear sump and low-profile design provide extra ground clearance, which is valuable when routing exhaust, suspension, or during aggressive cornering. The kit supports a 5.5-quart sump with a total capacity of 6.0 quarts when paired with a stock filter, giving you a solid buffer for lubrication under varied driving conditions.

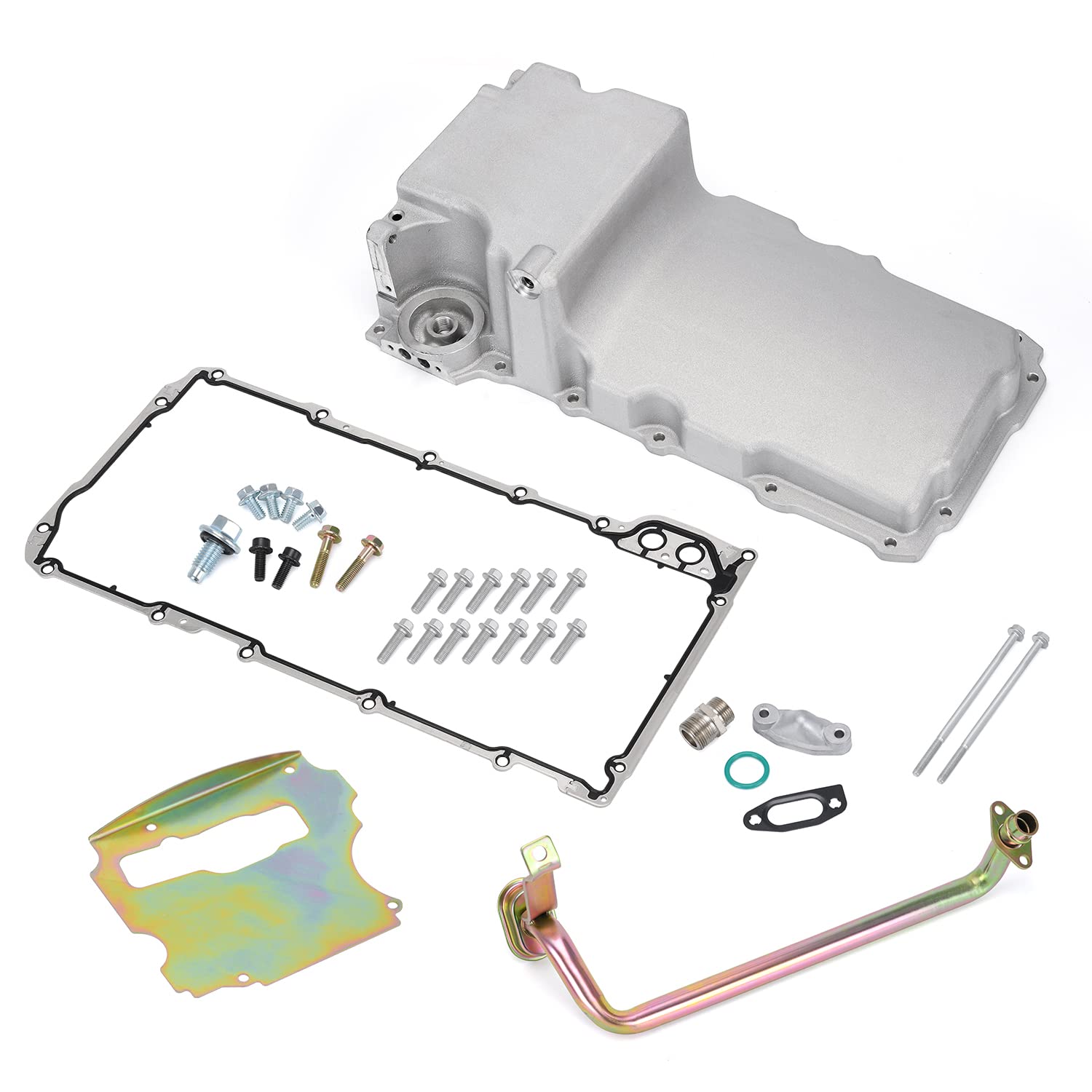

The package includes a full hardware set and essential components to simplify installation. A windage tray helps manage oil flow, while the pickup tube and sump baffle work together to maintain consistent oil delivery and reduce the risk of aeration. In addition to the pan itself, you receive a gasket, sump plug, 23 bolts, and necessary covers and O-rings, so you can complete the swap with confidence.

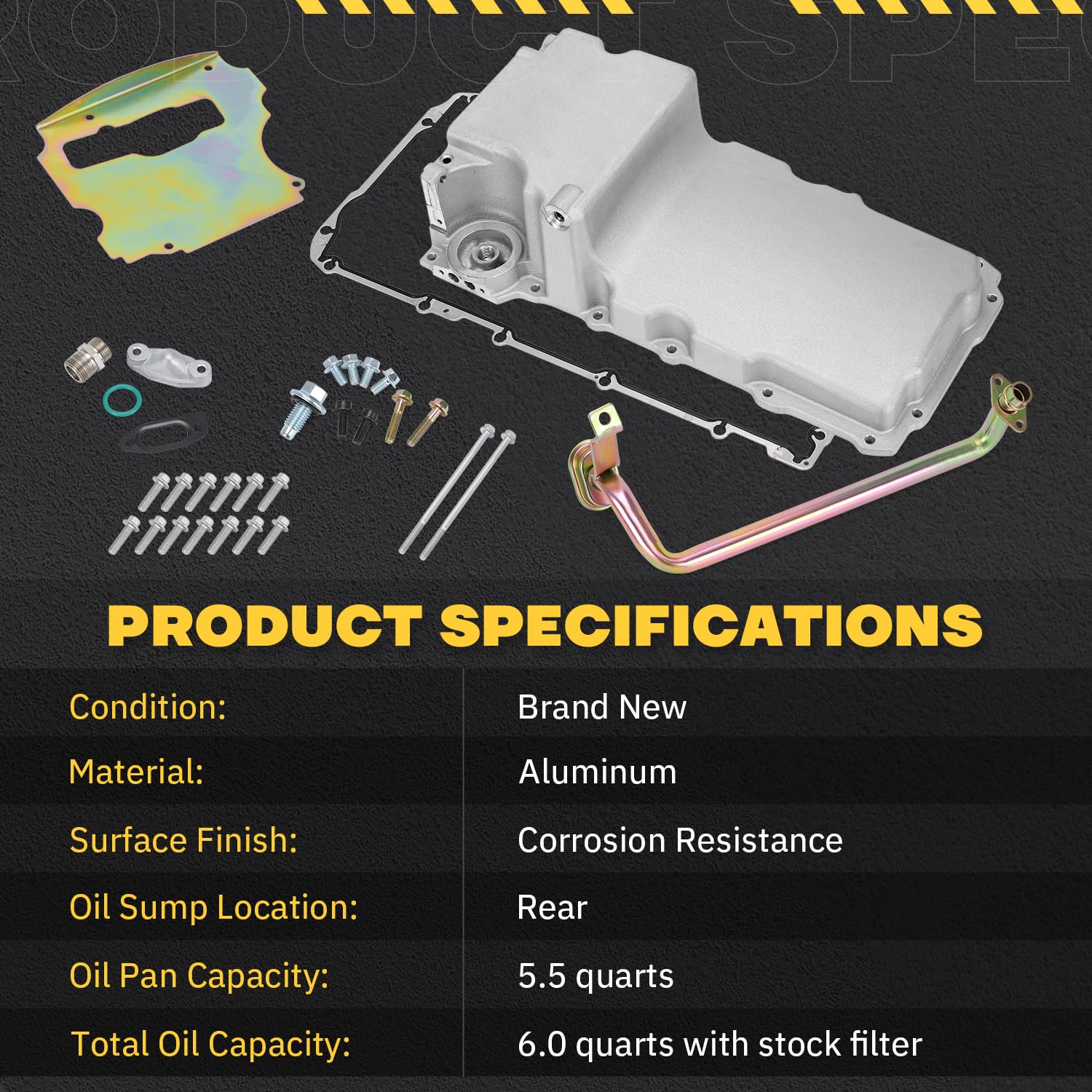

Key specifications

• Condition: Brand New
• Material: Aluminum
• Sump location: Rear
• Sump capacity: 5.5 quarts
• Total capacity with stock filter: 6.0 quarts
• Application: 1955–1987 GM Muscle/Classic cars and trucks with LS Gen III/IV V8 engines (NOT for 5.3L Gen IV)

Notes and compatibility

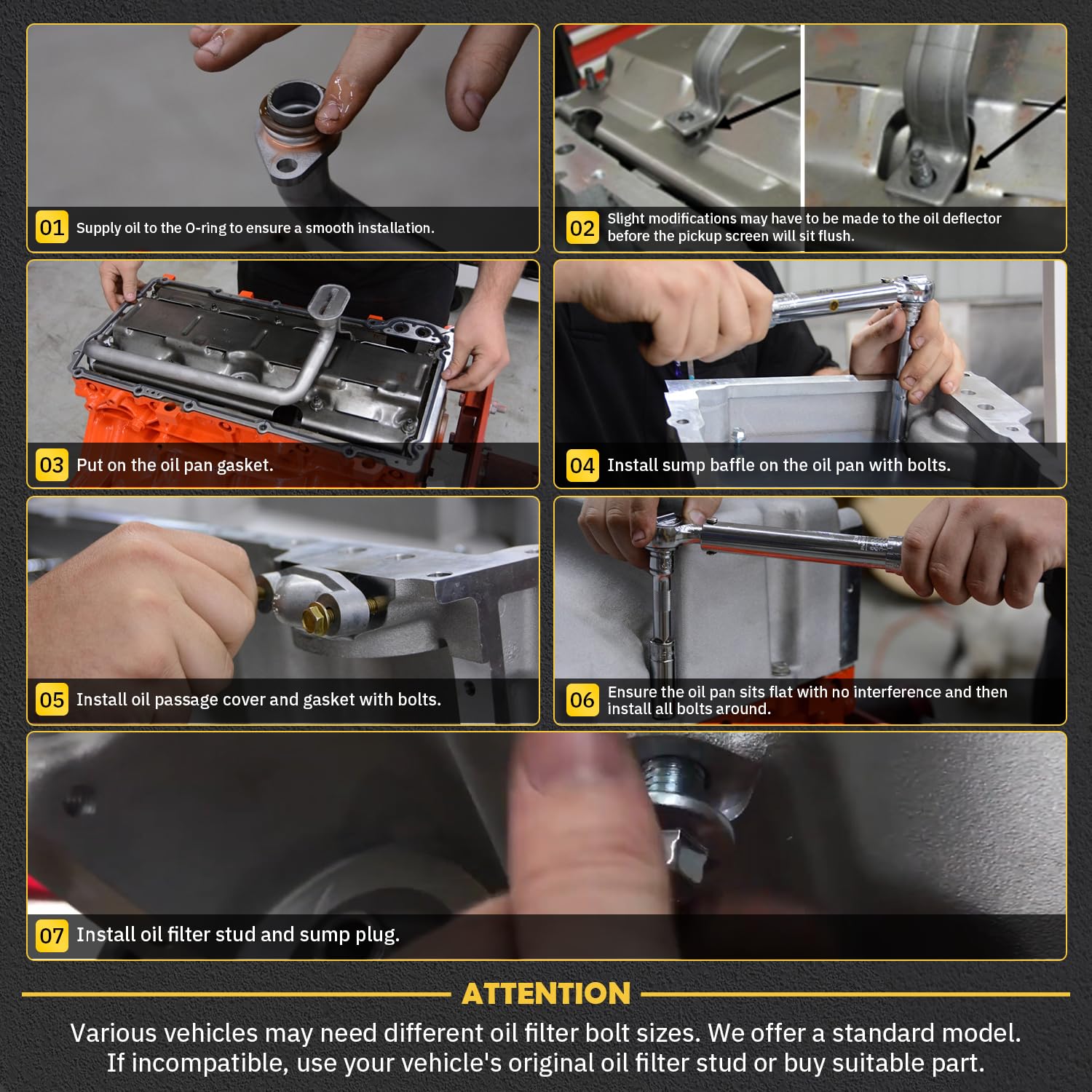

Please verify your application before ordering. Some vehicles may require a different oil filter bolt size; we provide a standard model and recommend using your original bolt if needed. The product note also mentions that the original factory dipstick may be incompatible with the oil pan if you need a precise oil level measurement.

Whats included

• 1x Oil Pan
• 1x Oil Pan Gasket
• 1x Sump Baffle
• 1x Pick-up Tube
• 1x Sump Plug
• 1x Oil Filter Stud
• 1x Oil Passage Cover
• 1x Oil Passage Gasket
• 1x O-ring
• 23x Bolts

Real-life use cases

Engine swaps often compete with tight clearances and routing challenges. This kit’s low-profile design may help you gain crucial ground clearance and improve oil routing in tight engine bays. The combination of sturdy aluminum and a full windage tray aims to provide steady oil pressure across a range of driving scenarios, from daily commuting to performance-oriented sessions at the track or on back roads.
