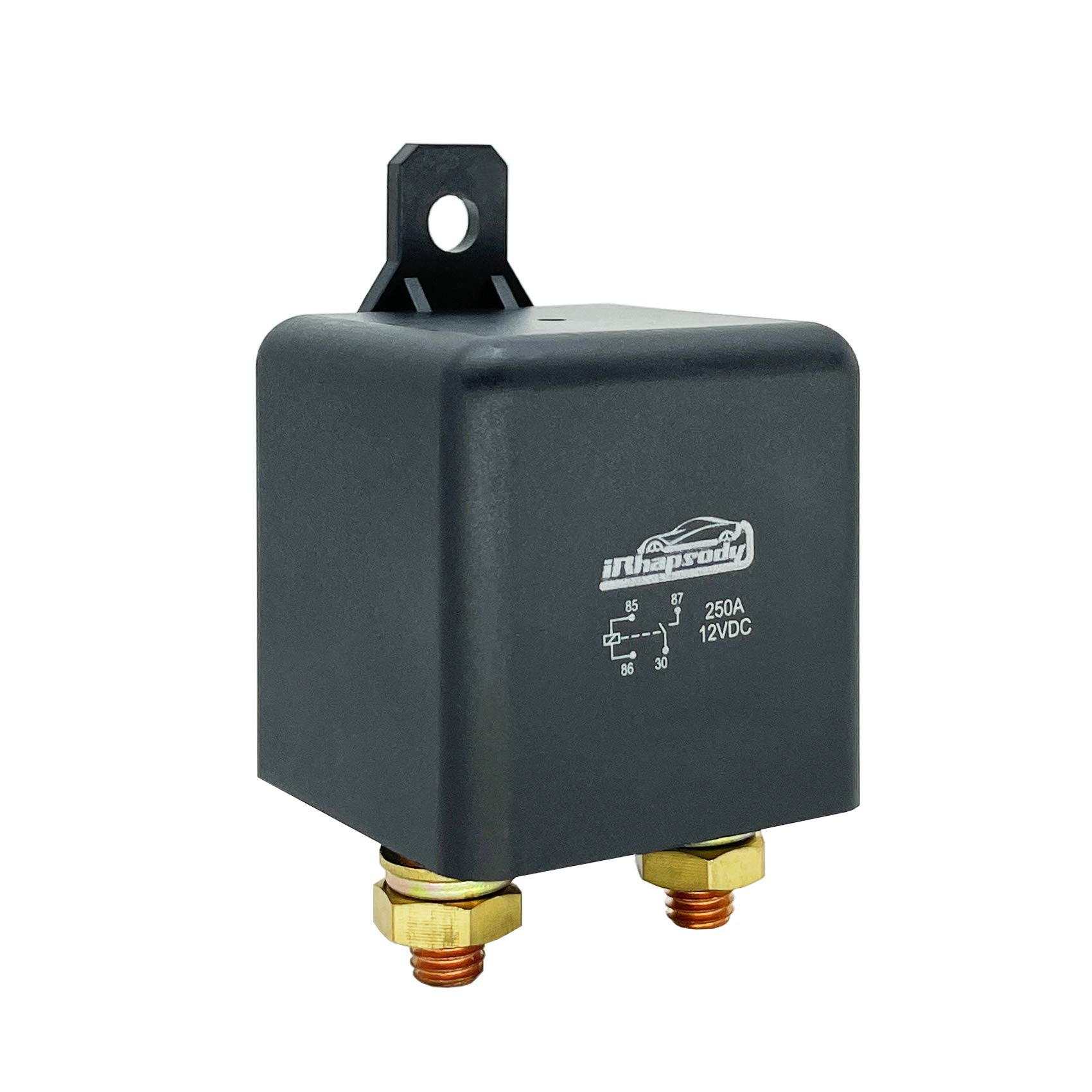

iRhapsody 250A 4-pin relay, top view, ready for high-current vehicle installations.

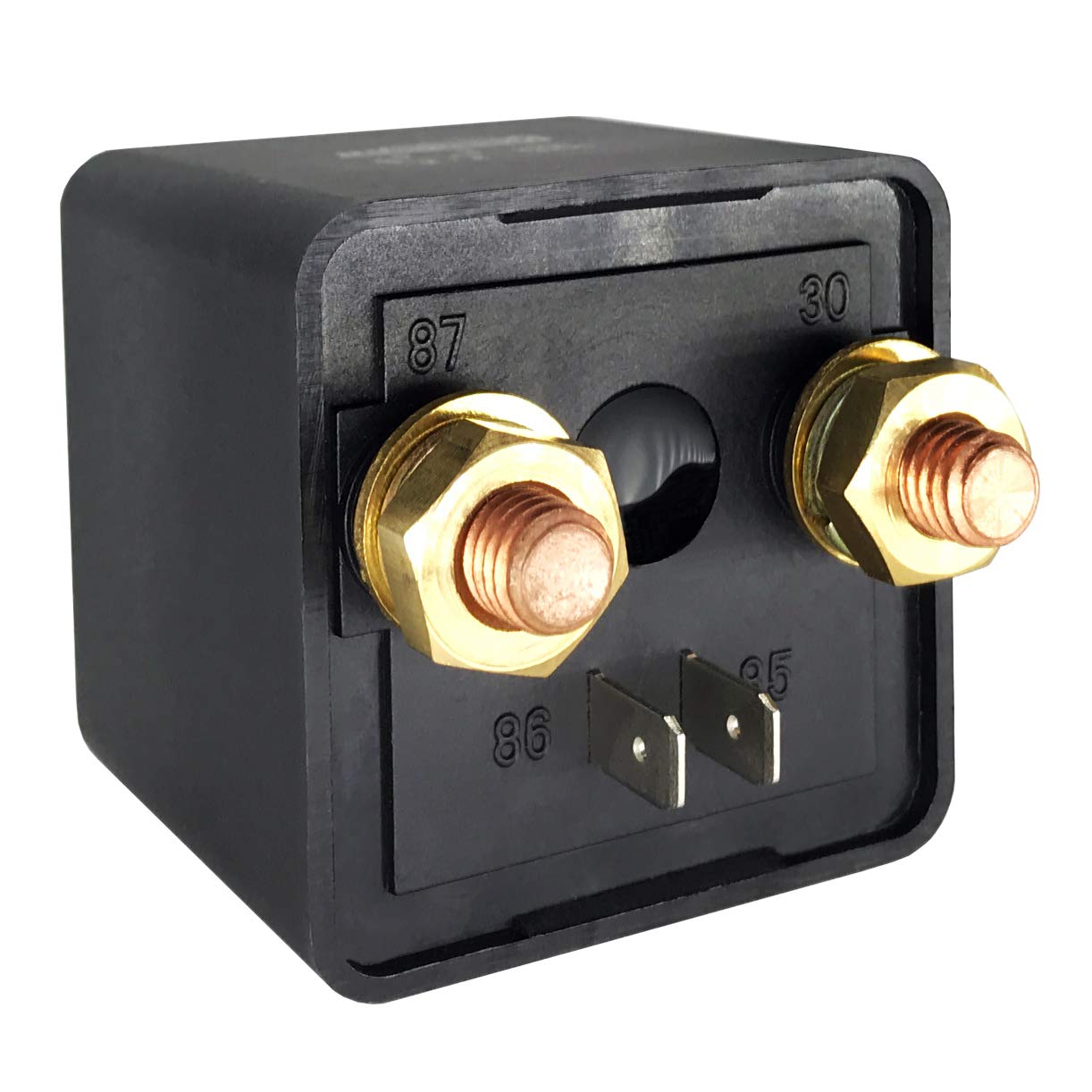

iRhapsody 250A 4-pin relay with side contacts for reliable switching.

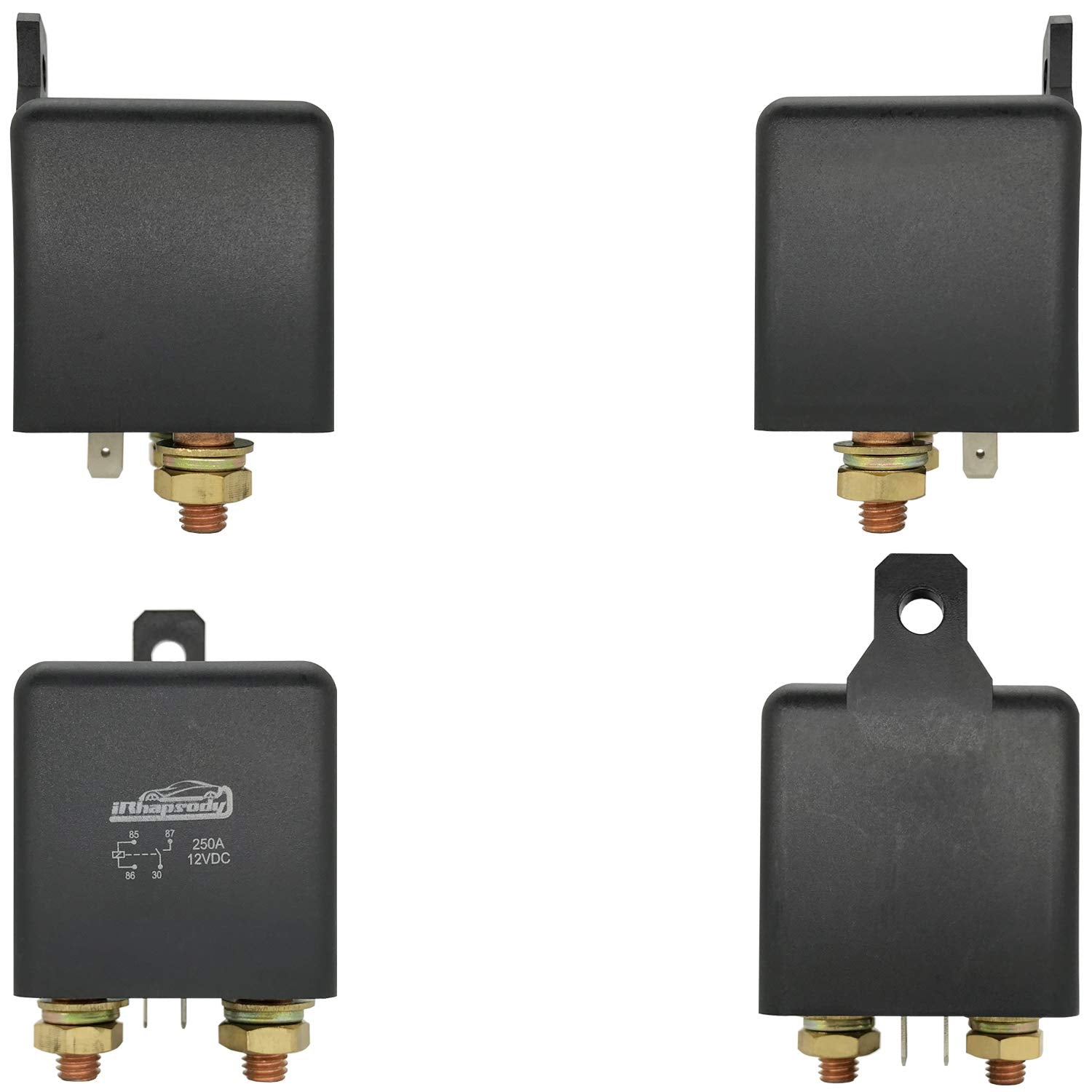

iRhapsody coil close-up shows 1.8W power efficiency.
iRhapsody 250A terminals M8, highlighting strong high-current connections.
iRhapsody 250A packaging image, includes 1x relay for easy install.

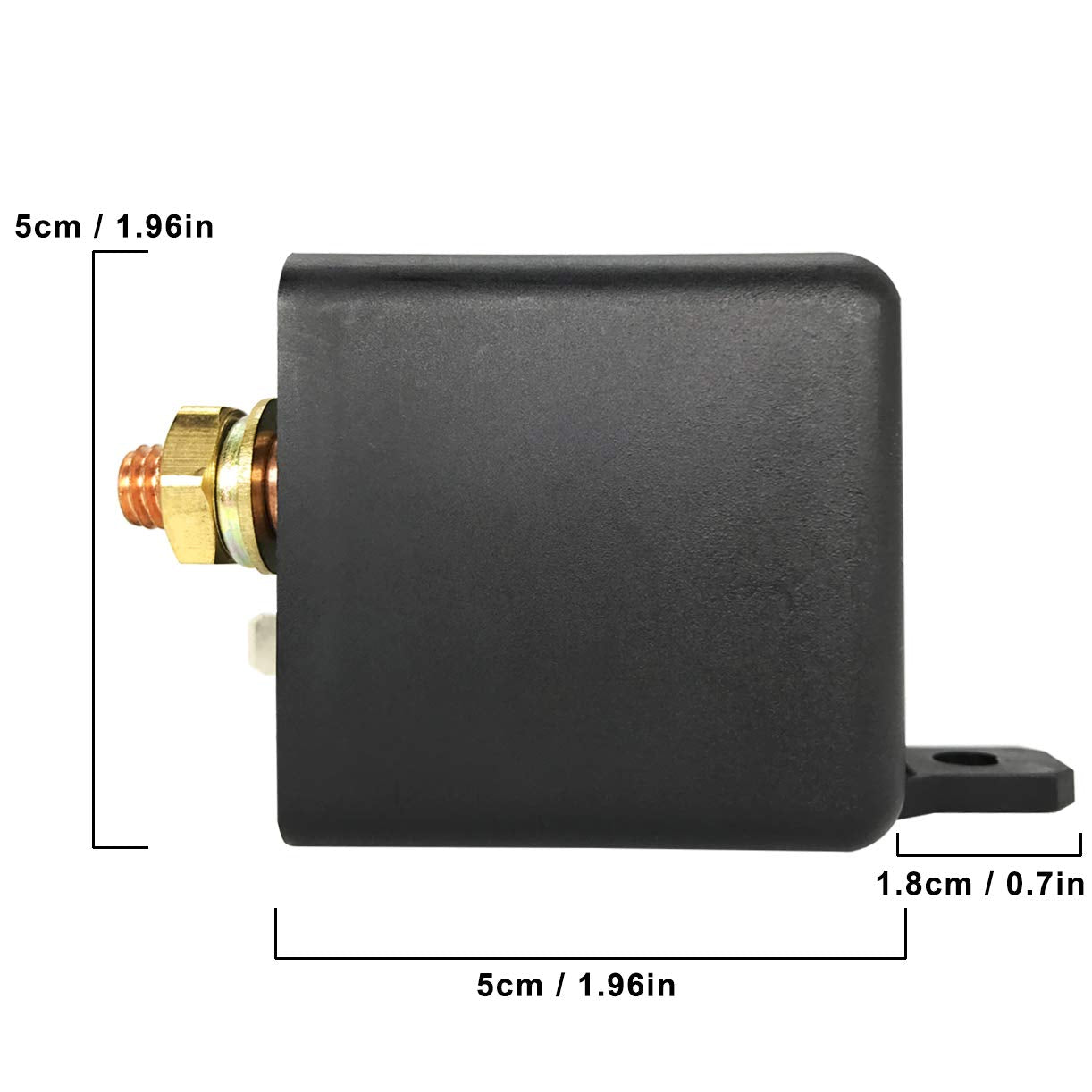

iRhapsody relay close-up with dimensions, aiding fit in compact panels.
iRhapsody 250A 4-pin relay, top view, ready for high-current vehicle installations.
iRhapsody 250A 4-pin relay with side contacts for reliable switching.
iRhapsody coil close-up shows 1.8W power efficiency.
iRhapsody 250A terminals M8, highlighting strong high-current connections.
iRhapsody 250A packaging image, includes 1x relay for easy install.
iRhapsody relay close-up with dimensions, aiding fit in compact panels.

iRhapsody Relay 250A 12V High Power 4-Pin SPST – Heavy-Duty Split-Charge Relay

Rugged 12V High-Power Relay for Demanding Electrical Tasks The iRhapsody Relay 250A is built to endure, delivering...
Vendor: iRhapsody
Availability: In stock
£28.97
£28.97
Please hurry! Only 5 left in stock
Subtotal: £28.97
10 customers are viewing this product

Free UK Delivery on All Orders

No Minimum Spend Fast & Reliable Delivery Ships Across the UK

Free Returns

30-Day Free Returns
iRhapsody 250A 4-pin relay, top view, ready for high-current vehicle installations.

iRhapsody Relay 250A 12V High Power 4-Pin SPST – Heavy-Duty Split-Charge Relay

£28.97
iRhapsody 250A 4-pin relay, top view, ready for high-current vehicle installations.
iRhapsody 250A 4-pin relay with side contacts for reliable switching.
iRhapsody coil close-up shows 1.8W power efficiency.
iRhapsody 250A terminals M8, highlighting strong high-current connections.
iRhapsody 250A packaging image, includes 1x relay for easy install.
iRhapsody relay close-up with dimensions, aiding fit in compact panels.

iRhapsody Relay 250A 12V High Power 4-Pin SPST – Heavy-Duty Split-Charge Relay

£28.97
Description
Description
x

Rugged 12V High-Power Relay for Demanding Electrical Tasks

The iRhapsody Relay 250A is built to endure, delivering a compact 4-pin SPST design with a robust 250A switching capacity. Its 12V DC coil and durable contacts are tuned for stable performance in vehicles and equipment that demand dependable power control.

Key features at a glance

  • Coil power is 1.8W and coil resistance 80 ohms, offering efficient operation compared with higher-wattage relays.
  • High current capacity: 250A maximum switching current; heavy-duty make/break construction built for demanding loads.
  • Rated for 12V DC systems with a pickup voltage of 8V and a dropout voltage of 1.2V.
  • Terminals use round M8/8mm studs for solid, reliable connections in tight spaces.
  • Operational range from -30°C to +80°C, suitable for diverse climates and environments.

Why it fits split charging and other high-power needs

The 250A capability makes this relay a strong match for split charging setups, providing a dedicated control point for power flow between batteries. It also supports other high-current switching tasks without adding complexity to the circuit.

Practical use and installation notes

  • Ideal for vehicles or equipment that rely on a high-power relay to manage battery charging or power routing.
  • For long-term reliability, consider staying 10–15% below the rated capacity in typical operating conditions.

Specifications at a glance

  • Nominal coil voltage: 12V DC
  • Pickup voltage: 8V DC; Dropout voltage: 1.2V DC
  • Max switching voltage/current: 14V DC / 250A
  • Temperature range: -30°C to +80°C
  • Package contents: 1 x 250A 4-pin relay

FAQ

Q: What is the iRhapsody Relay 250A best used for?

A: Ideal for split charging and high-current vehicle applications, with up to 250A switching in 12V systems.

Q: What are the key electrical specs to expect?

A: Coil 12V DC, pickup at 8V, dropout at 1.2V; max switching 250A at 12V DC.
