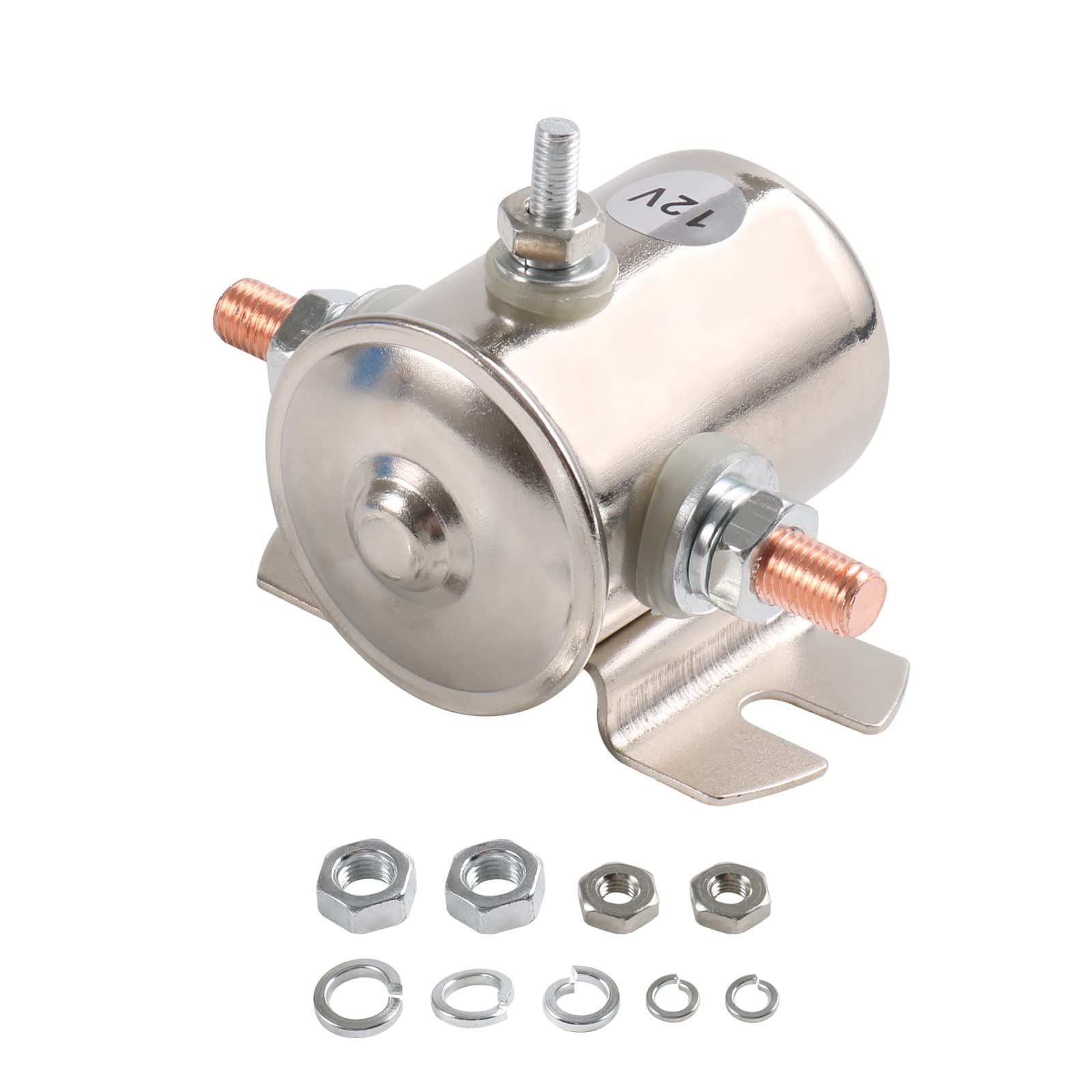

LDMINDA 200A 12V 3-Terminal Continuous Duty Solenoid Relay – Zinc Plated for Golf Carts, Winches & Marine

Overview

The LDMINDA 200A 12V three-terminal solenoid relay is built for demanding electrical tasks across golf carts, heavy-duty winches, and marine systems. Designed to deliver reliable switching under rugged conditions, this sealed, zinc-plated unit combines sturdy construction with responsive performance. Use it as a compact, robust battery isolation switch that helps manage high-current circuits with confidence.

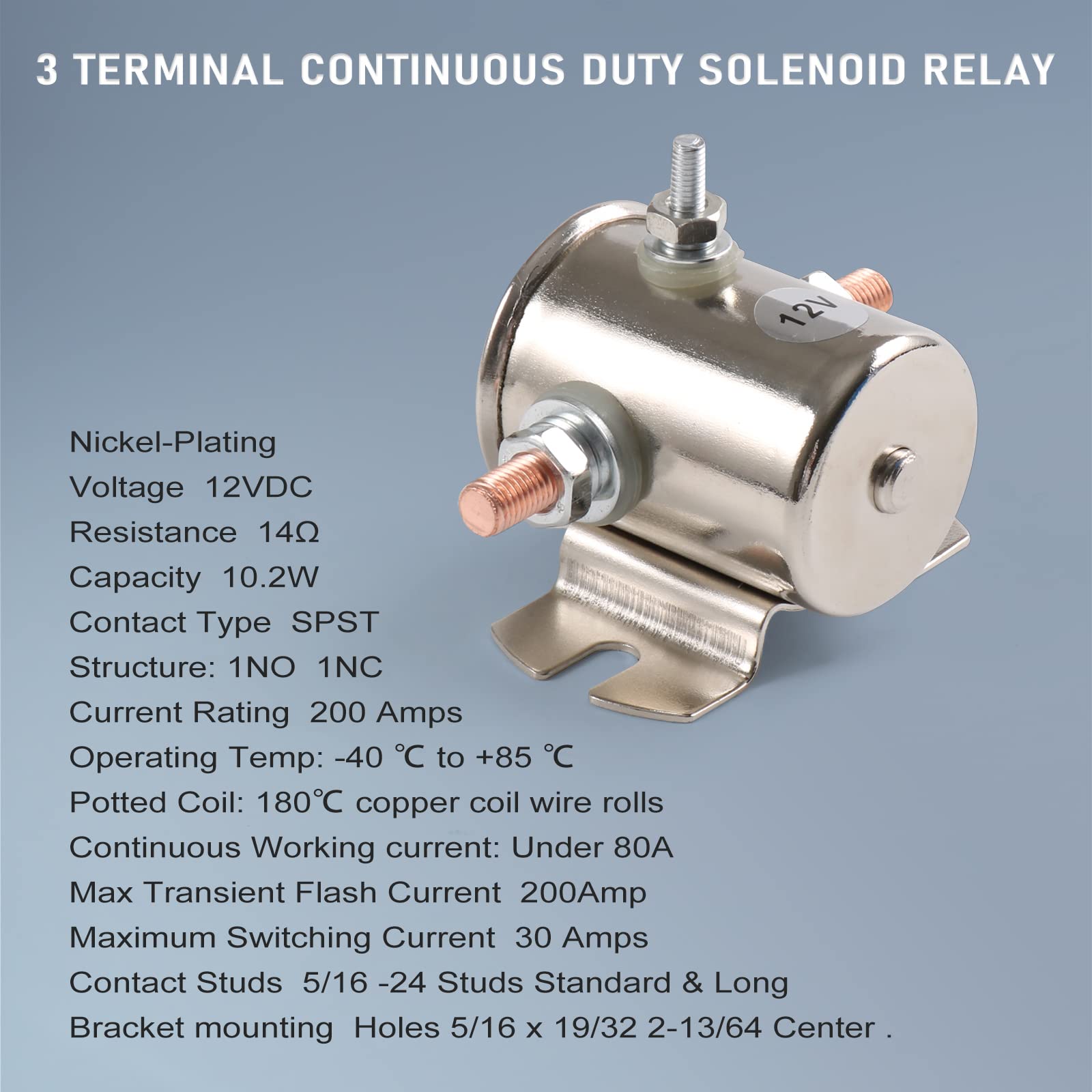

Key Specifications and Build

• 12VDC operation with 3 poles for versatile battery isolation
• 2 copper contact points for improved conductivity and lower resistance
• Housing plated steel case with environmental plating for corrosion resistance

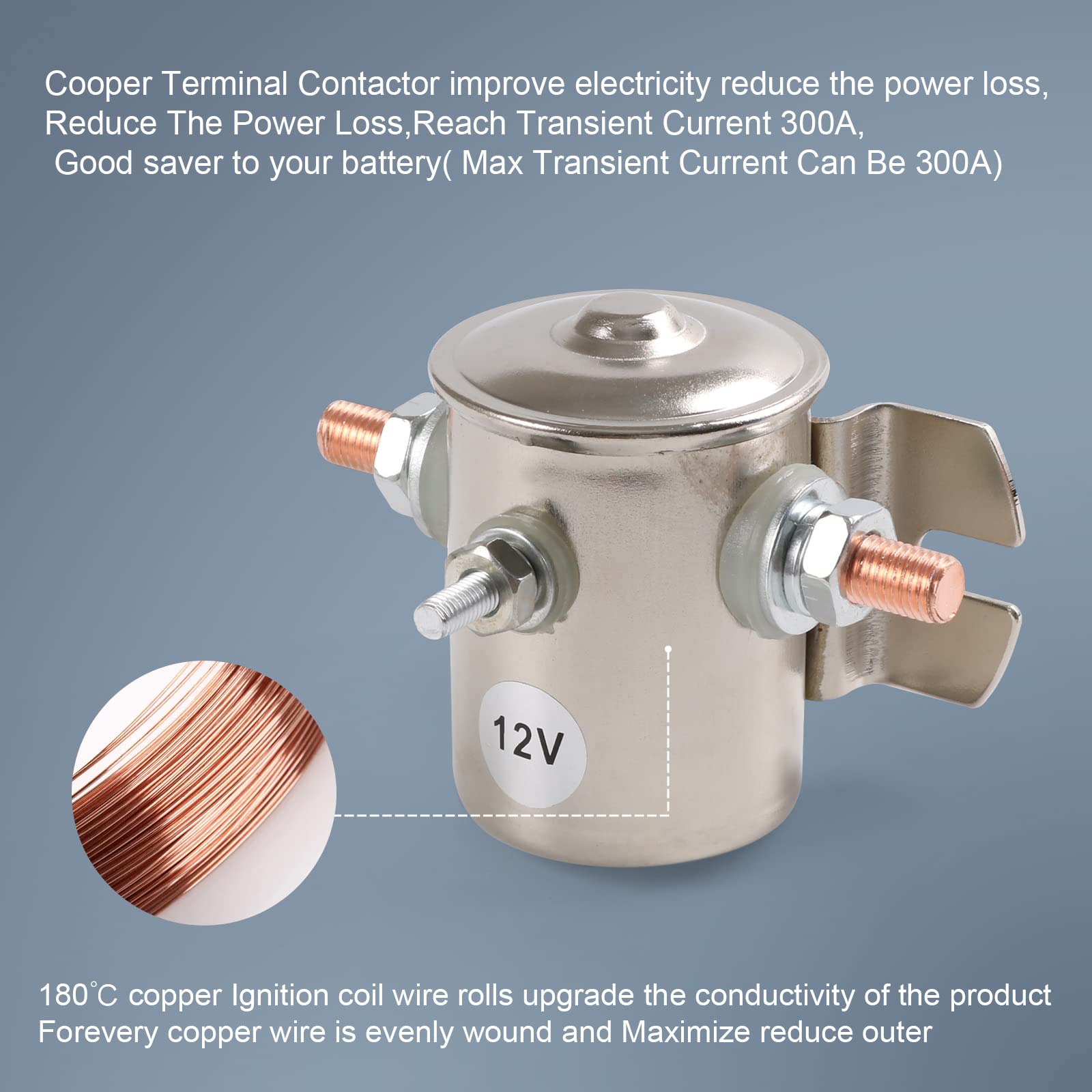

• 180°C copper coil wire boosts conductivity and durability
• Maximum transient current up to 200A; rated current around 100A
• NO contact configuration with a flat base metal case; 10-32 terminal
• 5/16-24 stud terminals; mounting holes spaced for easy installation
• Sealed unit design to withstand exposure to elements and harsh environments

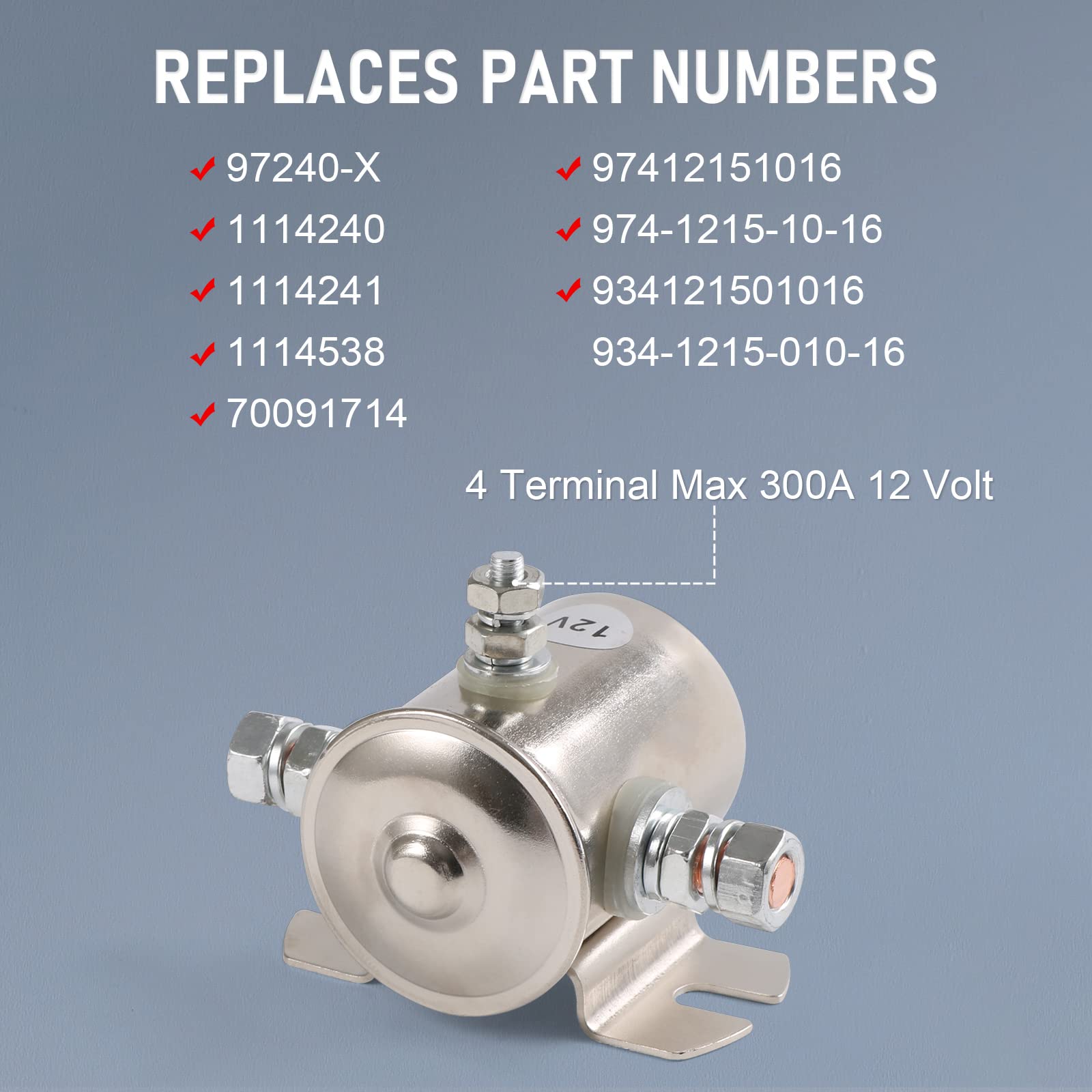

• Compatible with various part numbers for replacements; broad installation compatibility

Real-Life Scenarios and Benefits

In everyday use, this solenoid relay serves as a dependable link between your battery and high-current devices. Its sealed, nickel-plated exterior helps resist corrosion in marine or outdoor settings, while the copper coil’s robust construction supports quick actuation when you need it. Expect smoother current transitions, reduced power loss at the terminals, and a component designed to handle bursts up to 200A during brief demand spikes. For longer duty cycles, operate within safer ranges (around 100A) and allow cooling breaks to prevent overheating.

• Golf carts: steady switching for motor and accessory circuits with solid, heat-tolerant performance
• Winches and heavy-duty accessories: capable transient current support for short bursts while protecting battery health
• Marine installations: sealed, corrosion-resistant construction suitable for damp or salt-prone environments

How to Use and Care

Mount the relay securely using the listed holes, connect via the 5/16-24 studs and 10-32 terminals, and verify a tight, clean connection to minimize resistance. Keep the unit dry and free from excessive dirt to maintain optimal contact quality. When operating near the upper current range (close to 200A transient), ensure adequate ventilation and observe cooling practices if used in continuous duty scenarios.

What You Get

• A rugged, zinc-plated solenoid relay designed for wide environmental exposure
• High-conductivity copper coil and sturdy 3-terminal configuration
• Compatibility with multiple replacement part numbers for flexible installations
