LUTIFIX OBD2 Breakout Box - 16-Pin CAN/K-Line OBDII Protocol Detector, Power and Ground

Overview

The LUTIFIX OBD2 Breakout Box is a versatile automotive diagnostic companion designed for workshops, hobbyists, and students who want direct access to the vehicle data link. It mirrors the 16-pin OBDII interface and supports CAN, K line, L line, and PWM protocols, enabling you to observe protocol signals, power, and grounds in real time. This tool facilitates testing with multiple devices simultaneously by providing straightforward access to the vehicle data bus, helping you build clear, reliable test setups without removing components.

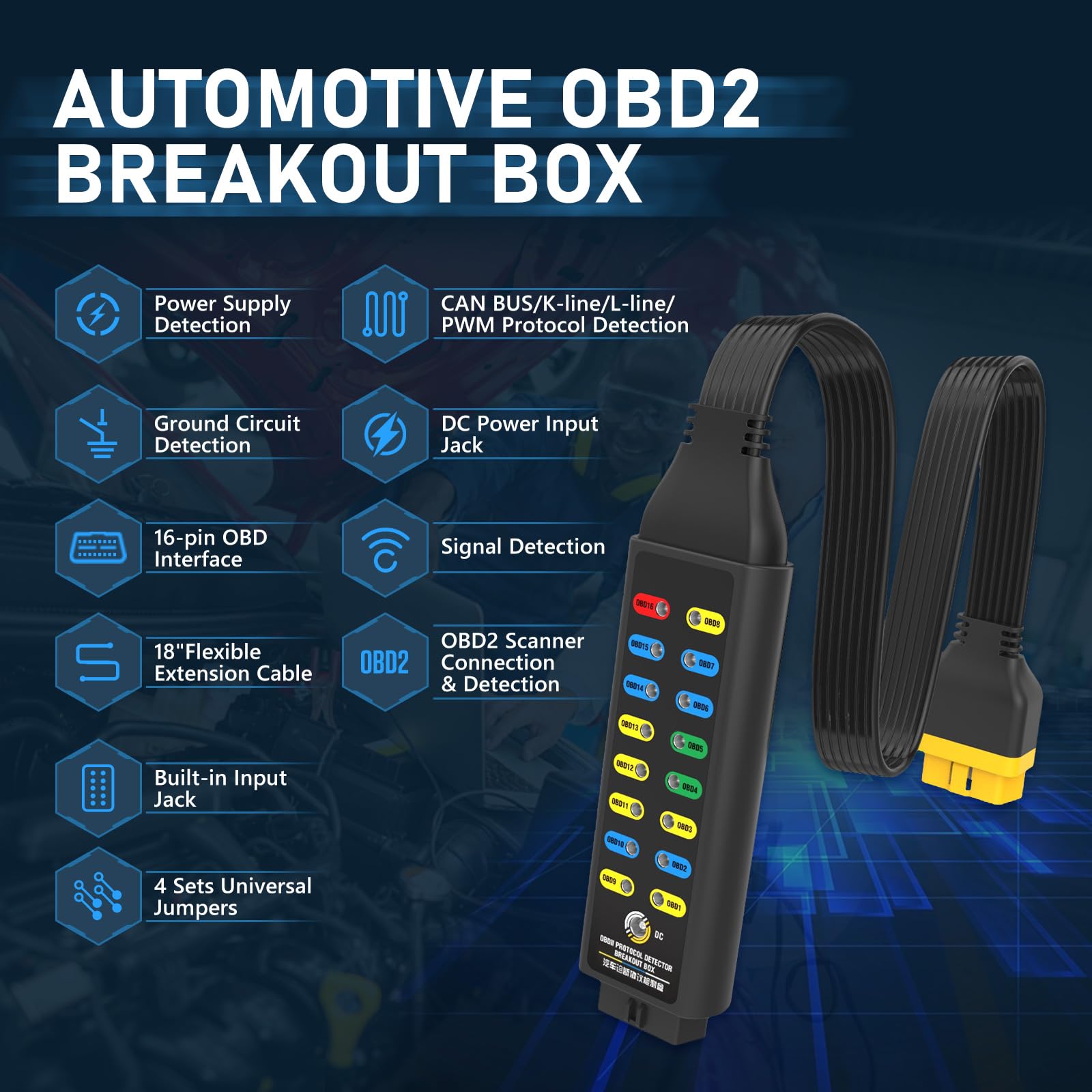

Key capabilities

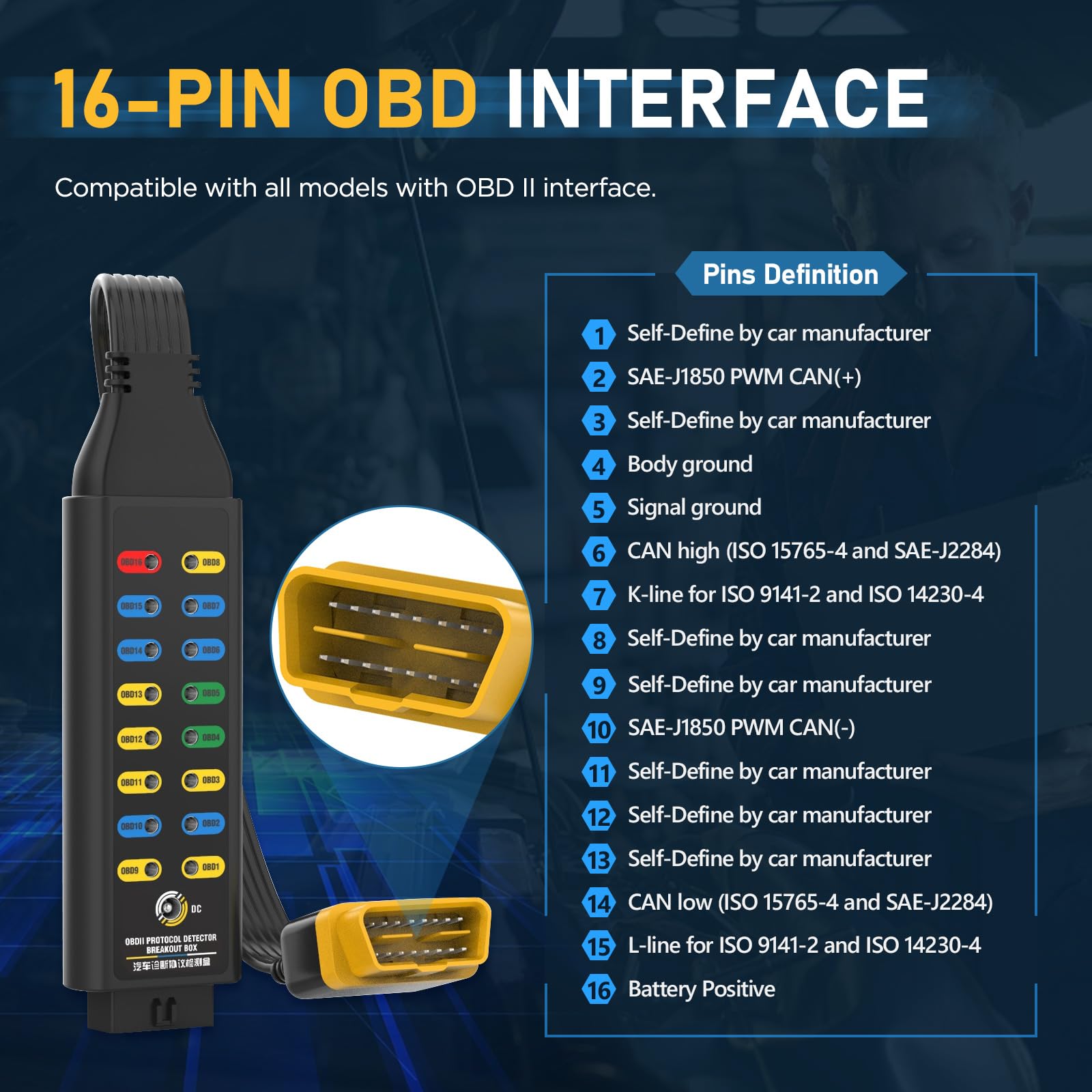

• 16-pin OBDII interface for rapid access to all pins and faster diagnostics.

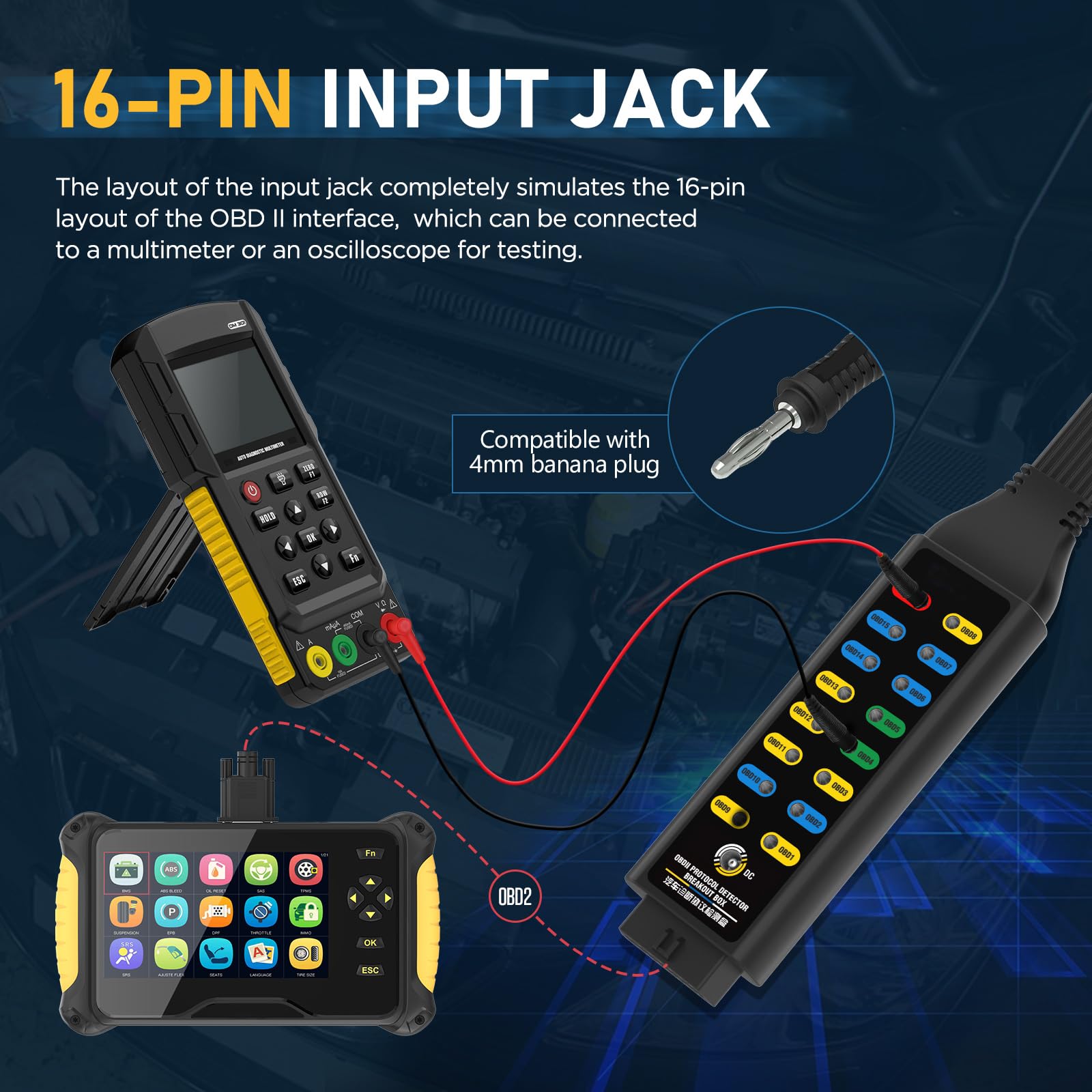

• Built-in 4 mm banana jacks for easy connections to multimeters or oscilloscopes.

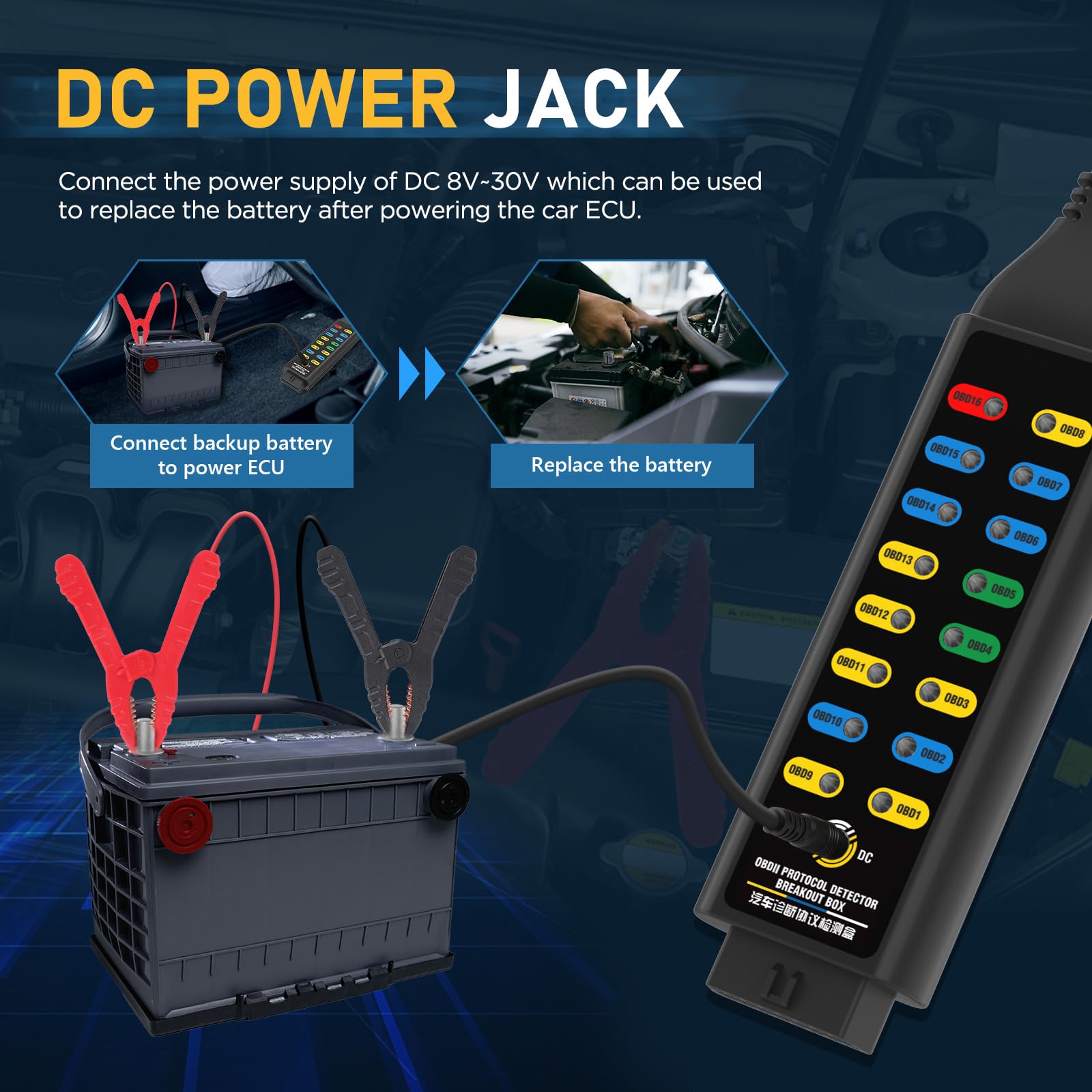

• Power the on board computer from a DC 8 to 30 V supply, supporting practical wiring scenarios in the field.

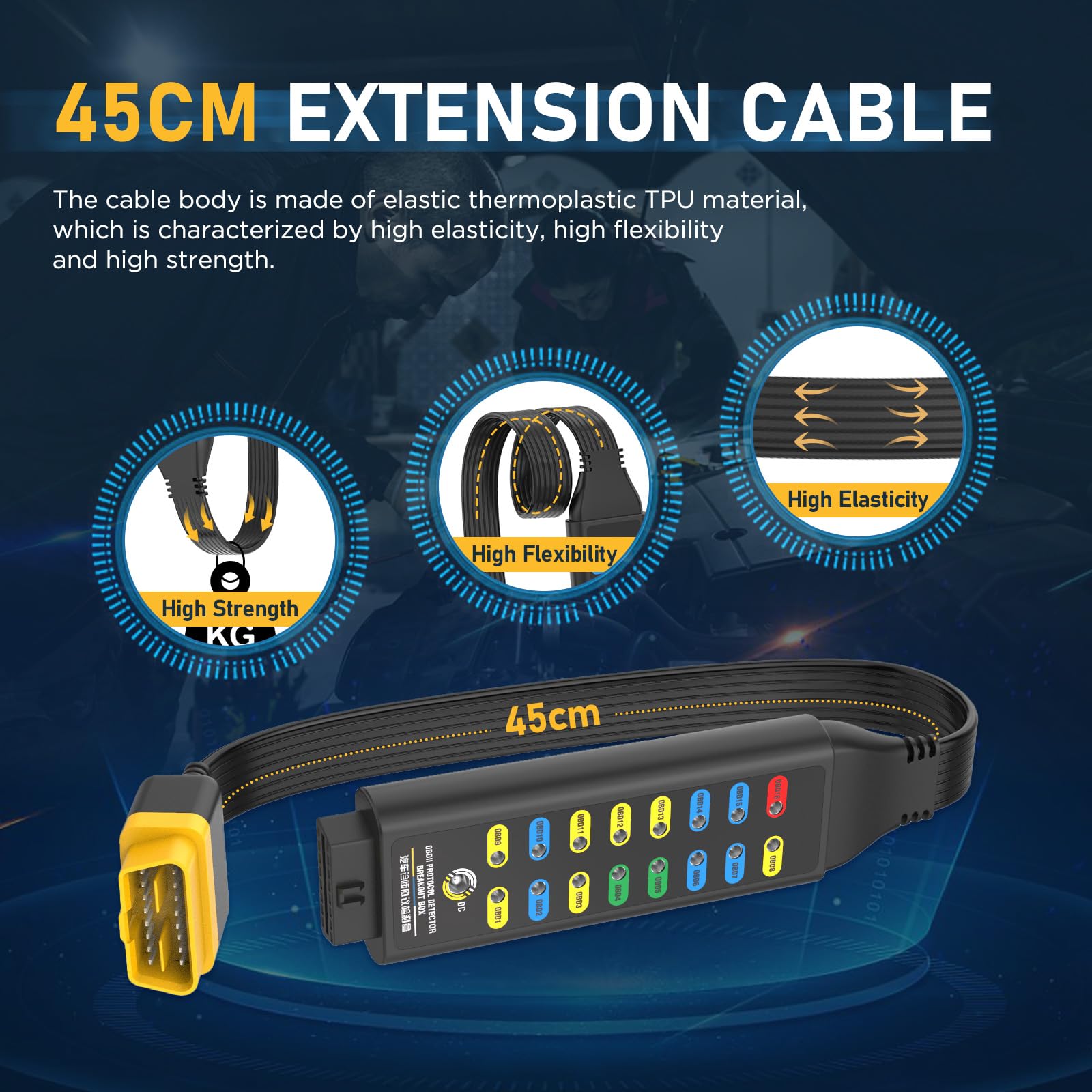

• Flexible cabling including a 17.7 inch extension and a 5 ft battery clip cable for DC 12 V operation.

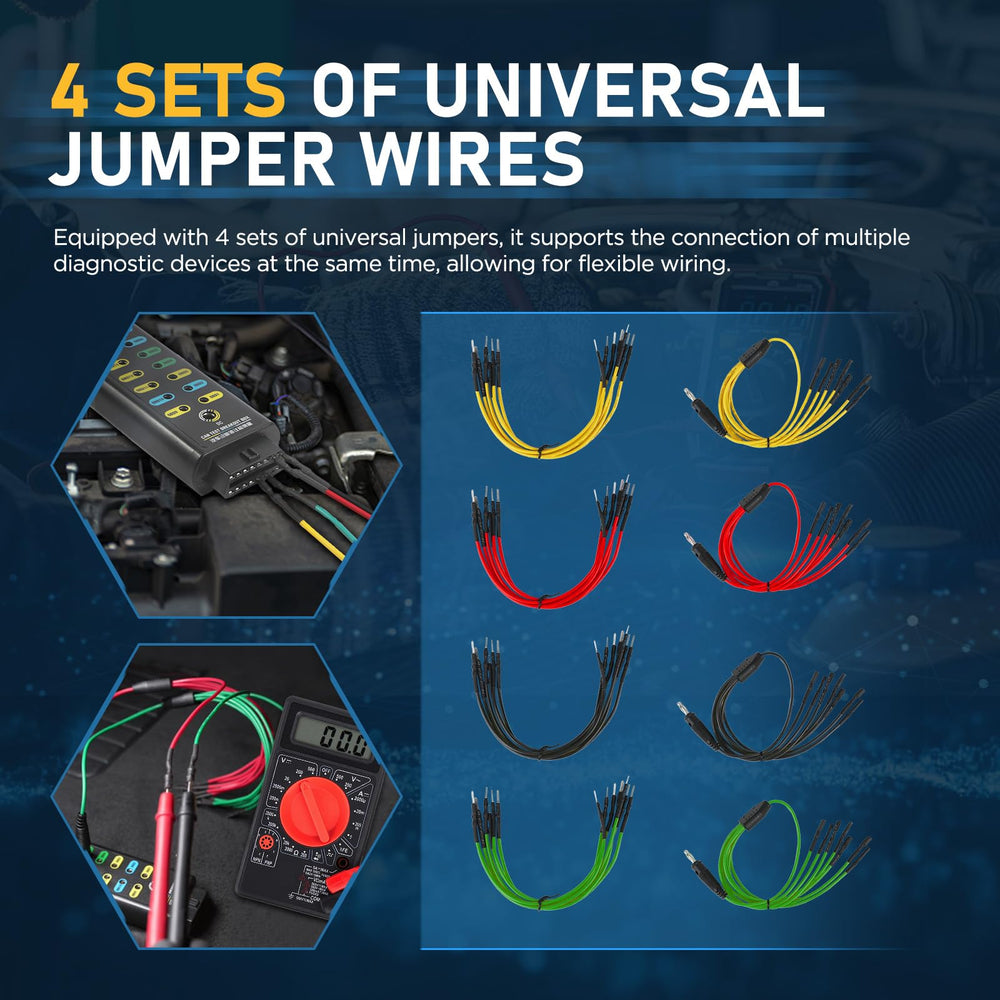

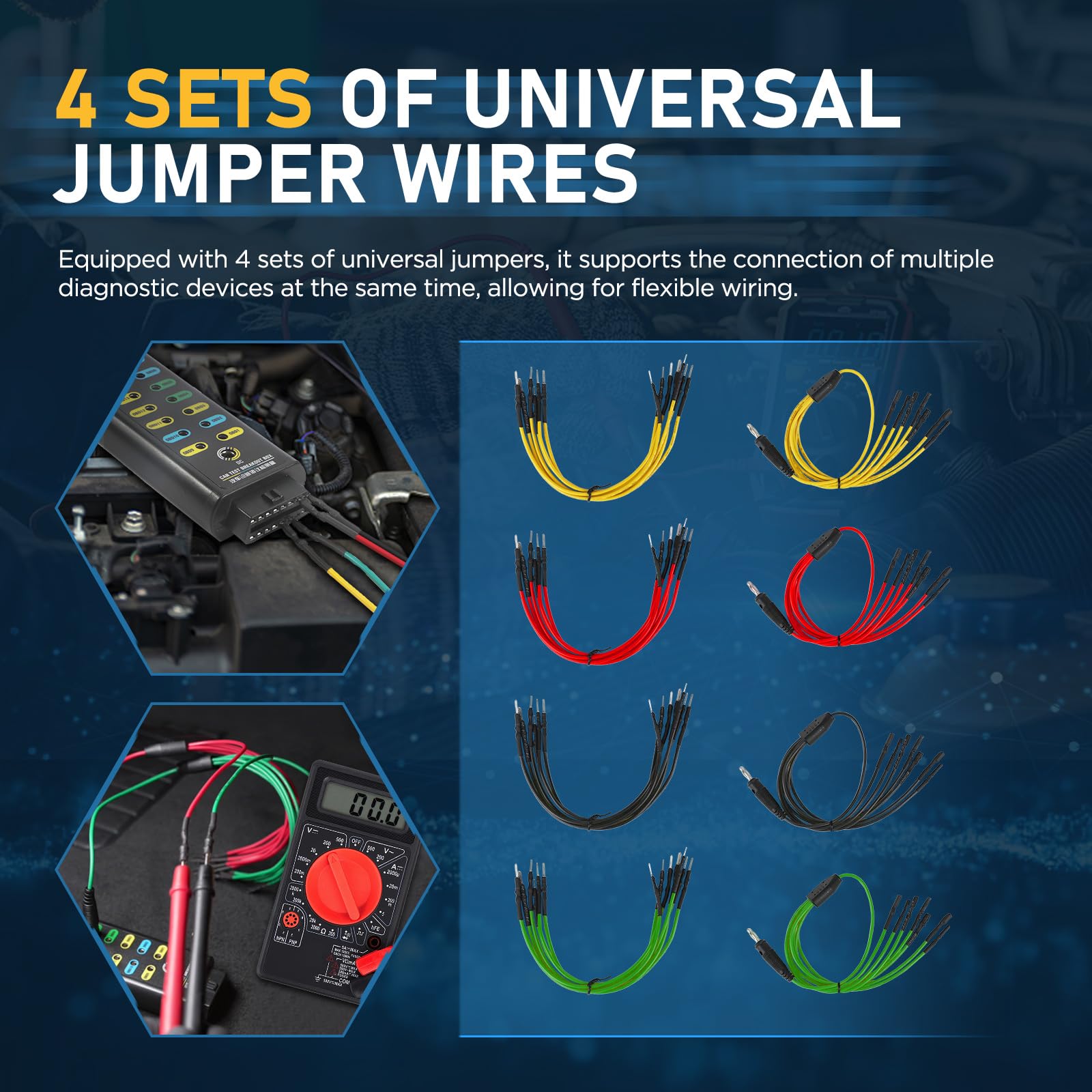

• Four universal wire jumpers enabling concurrent connections to multiple diagnostic devices for flexible wiring.
• Supports CAN bus, K line, L line, and PWM protocol testing for broad compatibility across vehicles.
• 3 year warranty against non human factors with responsive LUTIFIX support for troubleshooting.

Real-world workflows

Imagine pairing the breakout box with a portable scanner, a bench oscilloscope, and a test instrument to trace data lines, verify voltage rails, and observe timing. The sturdy, TPU built cable and the 16-pin layout simplify reconfiguring connections on busy workbenches, while the banana jacks offer a clean path for measurements. The setup is designed to accommodate multiple devices at once, allowing you to map how data and power flow through the vehicle network.

Safety and best practices

Important notes for safe operation include connecting directly to the vehicle data link and avoiding loads over 1 A. Do not short the 16th pin, the 4th pin, or the 5th pin. If there is any uncertainty about a configuration, pause and reassess before continuing.

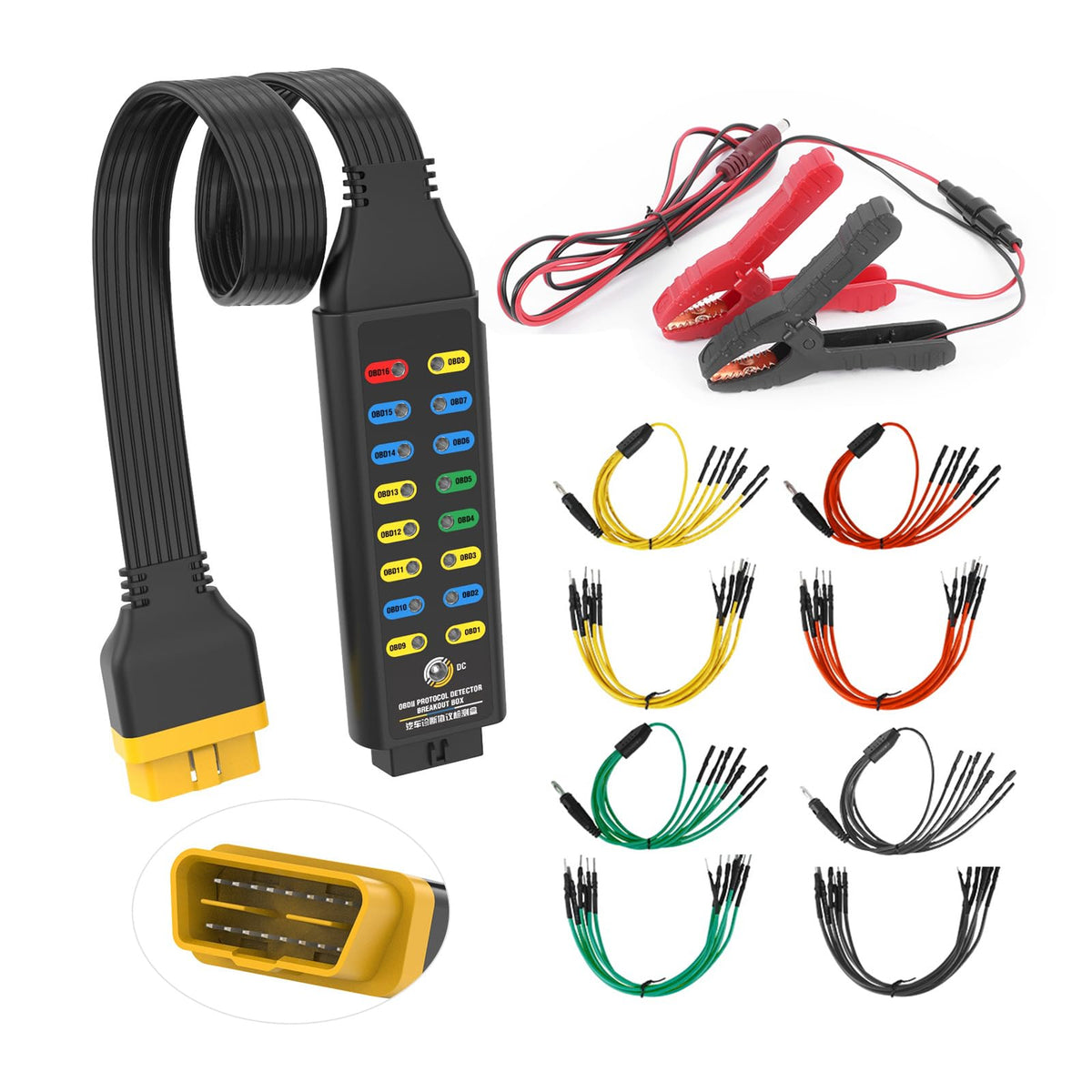

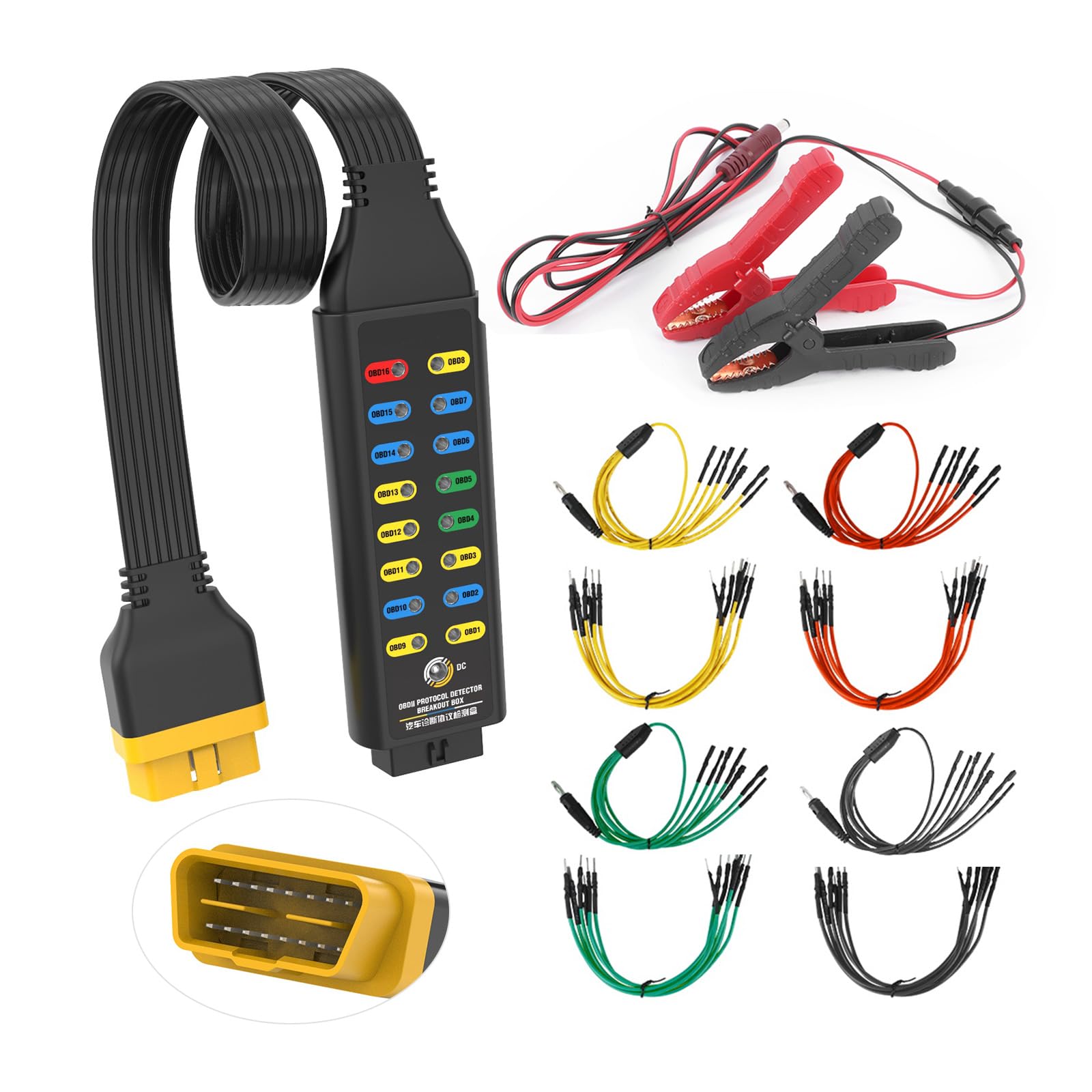

What’s included and how it helps

• OBD2 Breakout Box unit
• 17.7 inch extension cable
• 5 ft battery alligator clip cable
• 4 sets universal wire jumpers
• Built-in 4 mm input jacks
• Clear documentation and warranty support

Warranty and support

Backed by a 3-year warranty for damage not caused by user factors, LUTIFIX offers responsive support to help you resolve issues quickly and keep your testing workflow flowing smoothly.
