NexaNova 5/16-in Marine Fuel Line Hose Type A1-15 SAE J1527 – 5 Ft for Boats

Overview

NexaNova 5/16-in marine fuel line hose Type A1-15 SAE J1527 is designed to deliver dependable fuel transfer in diverse marine environments. Its flexible construction and durable materials support routine engine fueling on boats, ships, and other watercraft, helping you keep operations smooth from dawn to dusk.

Versatile fuel compatibility

This hose is built to handle a variety of fuels, including gasoline, diesel, biodiesel, kerosene, and ethanol blends. Whether you’re topping off an outboard, feeding a generator, or supplying a fuel line in a galley area, it offers adaptable performance without swapping hoses as fuel types change.

• Suitable for gasoline and diesel engines on smaller vessels
• Supports biodiesel and ethanol blend fuels for flexible usage
• Ideal for fuel lines in both deck compartments and engine rooms

Key specifications at a glance

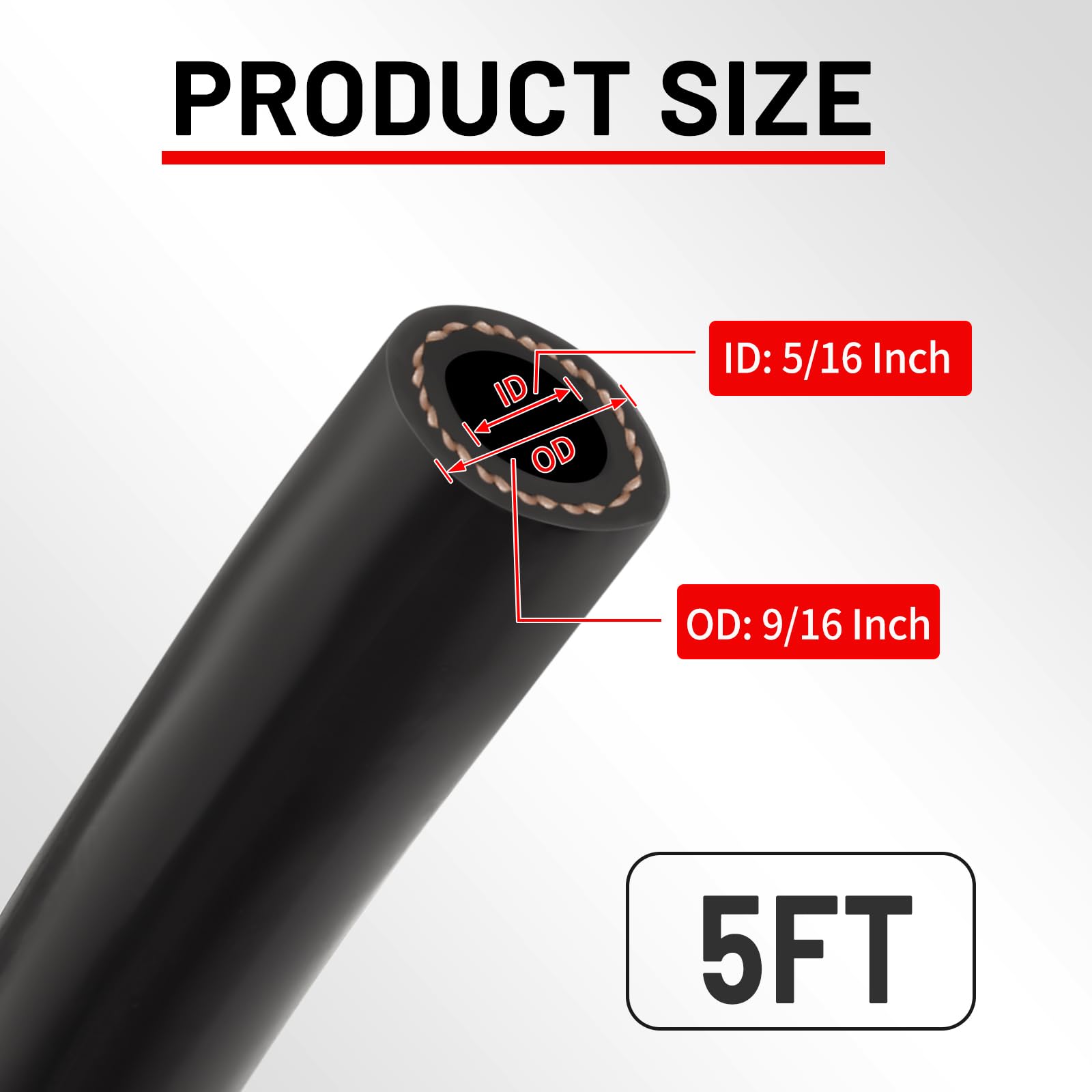

Size details: ID 5/16 inch (8 mm); OD 9/16 inch (14 mm); minimum bending radius 75 mm. These dimensions help with routing through tight spaces and around fittings on board.

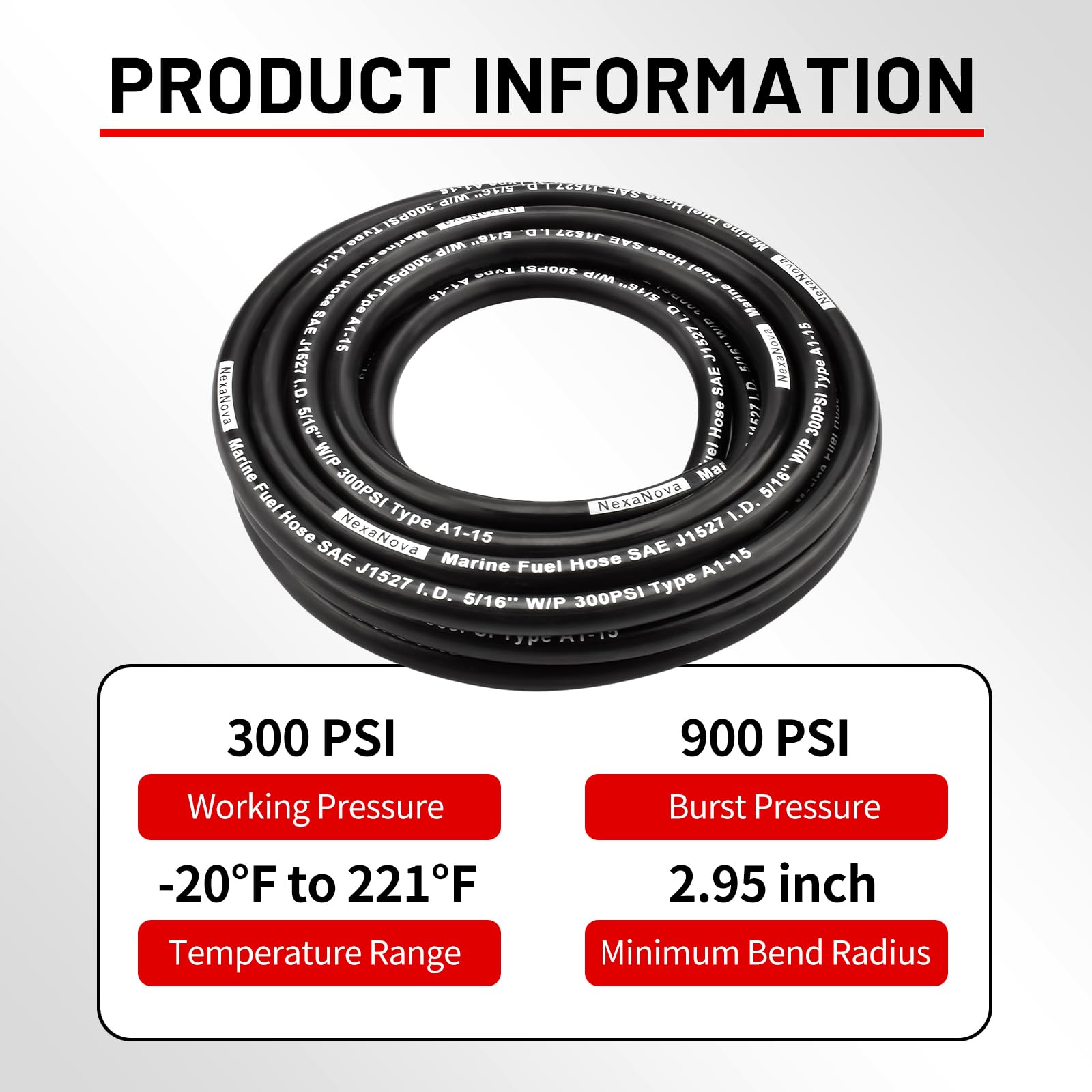

• Working pressure up to 300 PSI
• Burst pressure up to 900 PSI
• Temperature range from -20 °F to 221 °F (-30 °C to 105 °C)

Durable construction

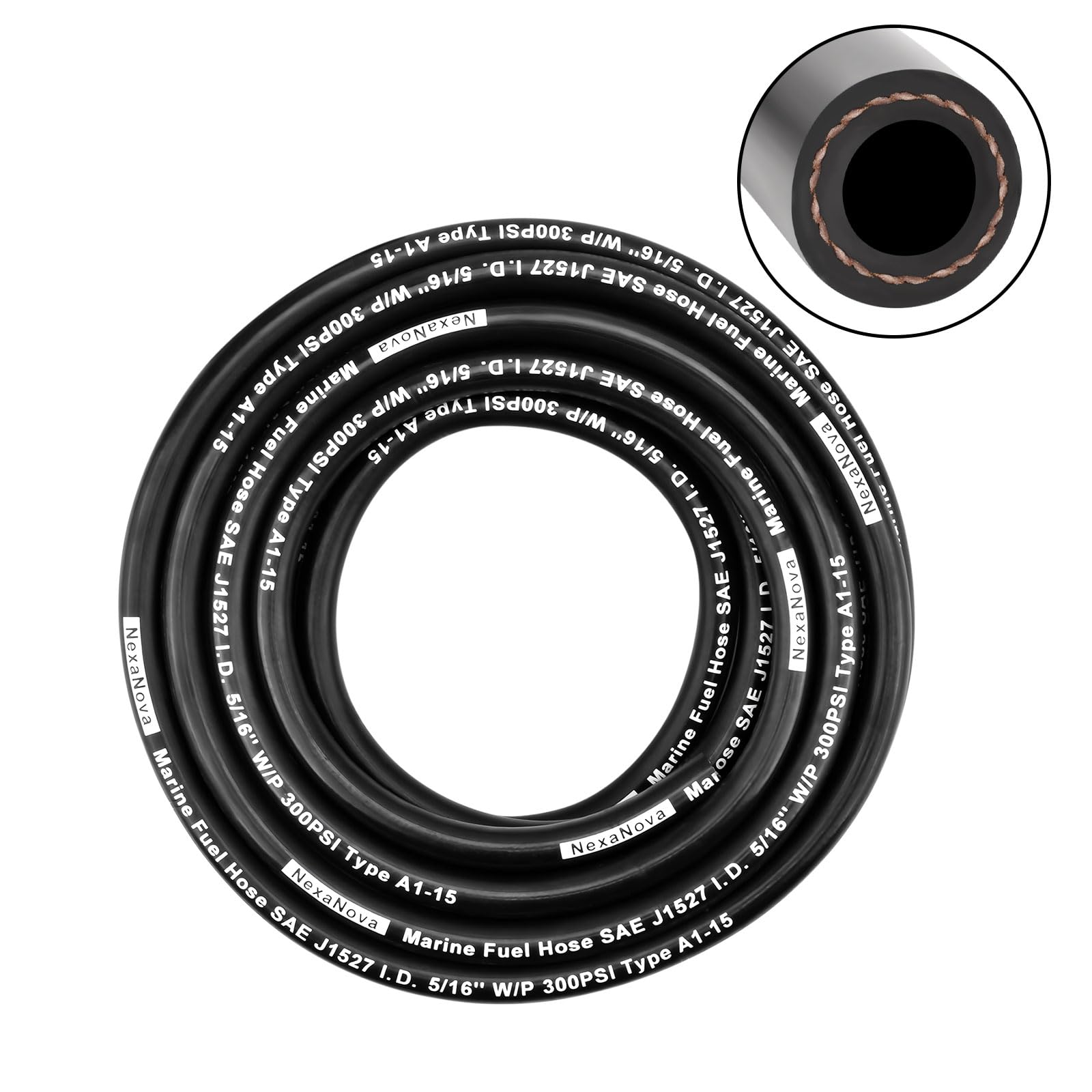

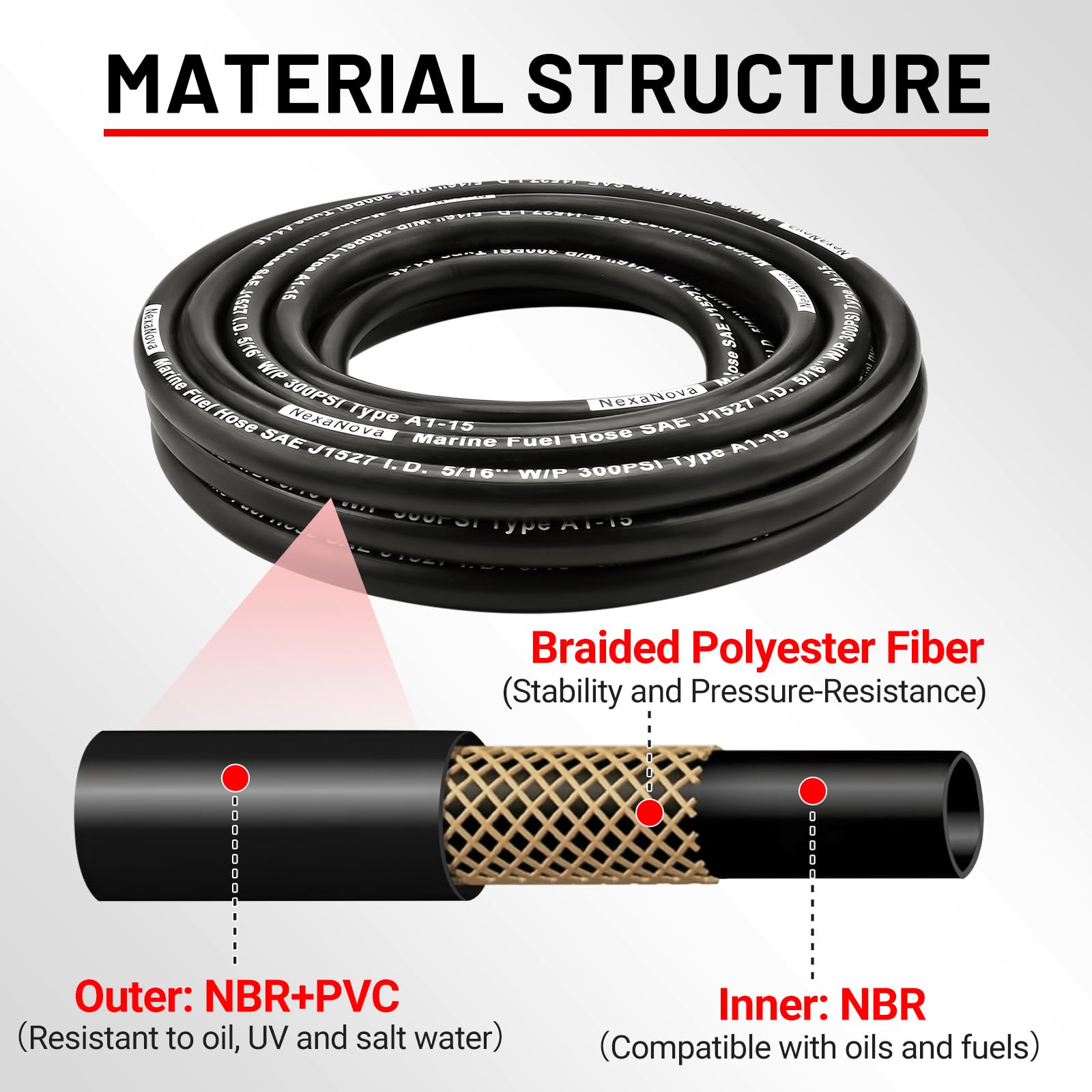

The hose features a robust NBR rubber inner layer with an NBR plus PVC outer layer, reinforced by a polyester fiber braid. This combination is designed to withstand the rigors of marine use, including vibration, weather exposure, and varying temperatures.

• Inner material: NBR rubber for reliable fuel contact
• Outer layer: NBR plus PVC for chemical and weather resistance
• Reinforced with polyester braid for added strength

Standards and safety

Compliant with SAE J1527, a widely recognized standard for marine fuel hoses, and meets Type A1-15 requirements for pleasure boats. This alignment supports safety-focused installations on a range of craft.

• SAE J1527 compliant
• Type A1-15 suitable for pleasure boats
• Designed for dependable, long-term marine use

Practical usage tips

Use on engines, pumps, and direct fuel lines where a flexible, durable hose is needed. Route away from heat sources, secure with clamps, and inspect regularly to maintain seal integrity in challenging sea conditions.

Why choose NexaNova

Combining sturdy materials with thoughtful sizing, this hose supports versatile fueling tasks while keeping installation straightforward for boat owners and technicians alike. Consider it as a reliable option when planning marine fuel line setups.
