Sound Troubleshooting Automotive Relay Tester — 4 & 5 Pin, 12V Handheld Diagnostic Tool, Battery Clips, Patented

Overview

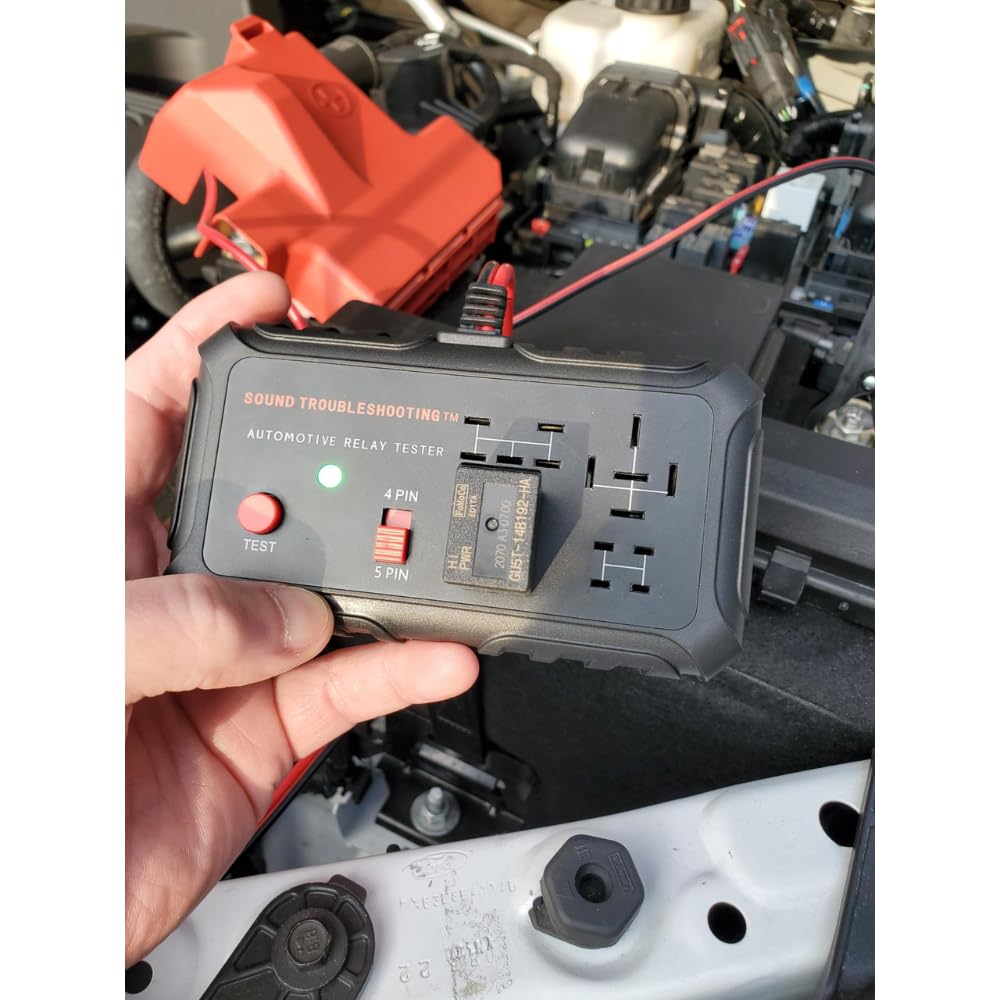

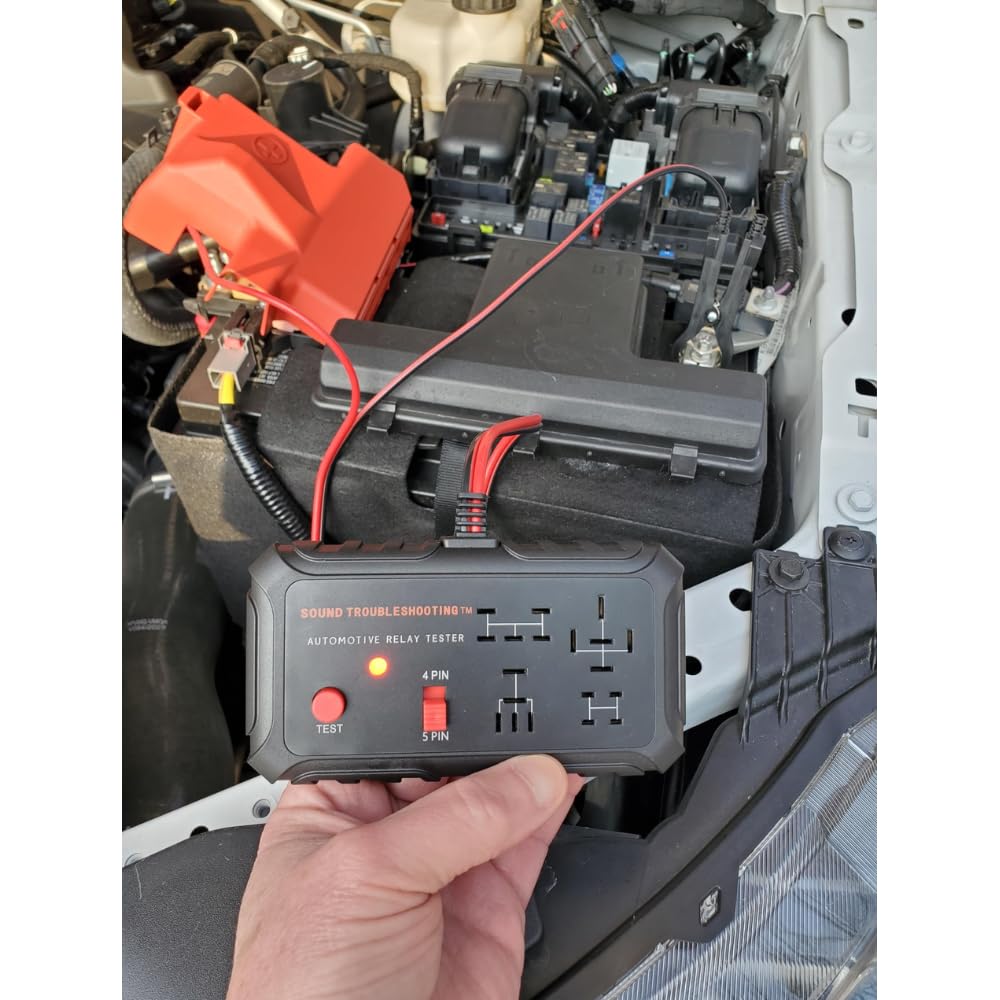

Meet the Sound Troubleshooting Handheld 12V Relay Tester — a compact tool designed to simplify the way you verify relays in modern vehicles. By delivering quick, sensory-friendly feedback through LEDs and automatic testing logic, this device helps you move from uncertainty to a confident diagnosis on the spot. It is designed for on-the-go use and easy storage, so you can bring it to the job site, the garage, or the driveway.

Why this relay tester fits your toolkit

• Automatic pin-position detection, release timing checks, and relay consistency during each test phase help you see at a glance whether a relay is functioning as expected; green means normal, red signals an abnormal result. This capability is US patented.

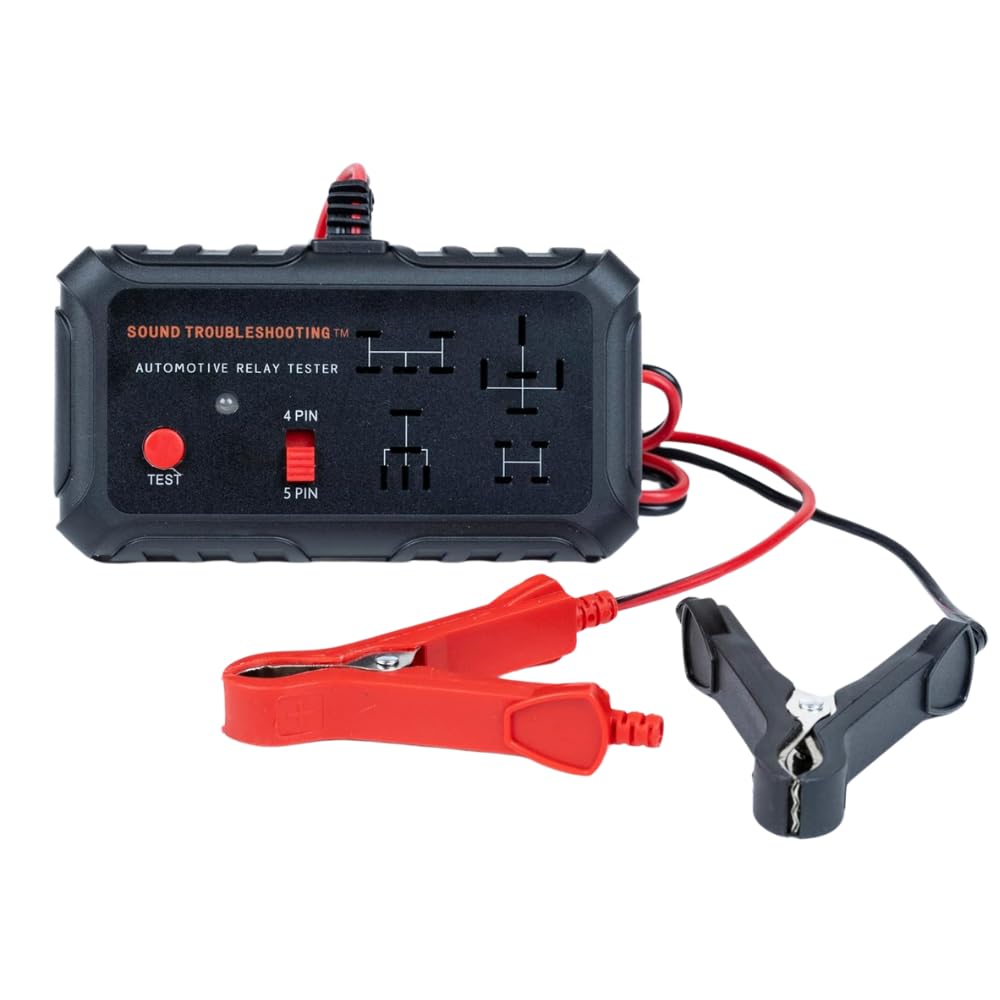

• Fast setup and operation: clip to the battery, choose 4-pin or 5-pin to match the relay, insert into the socket, press Test, and the device cycles the relay to verify its action.
• Broad compatibility for most general-purpose automotive relays on the market, requiring a 12V battery in the 11-15V range and coil resistance preferably above 20 ohms. Note: not intended for all BMW relays.
• Compact, handheld design that travels easily and stores in a toolbox or glove compartment, ready whenever you need a quick check.
• Clear, immediate results thanks to a simple red/green LED scheme, so you can assess the test at a glance without deep technical knowledge.

How to test a relay

Follow these steps to run a reliable check:

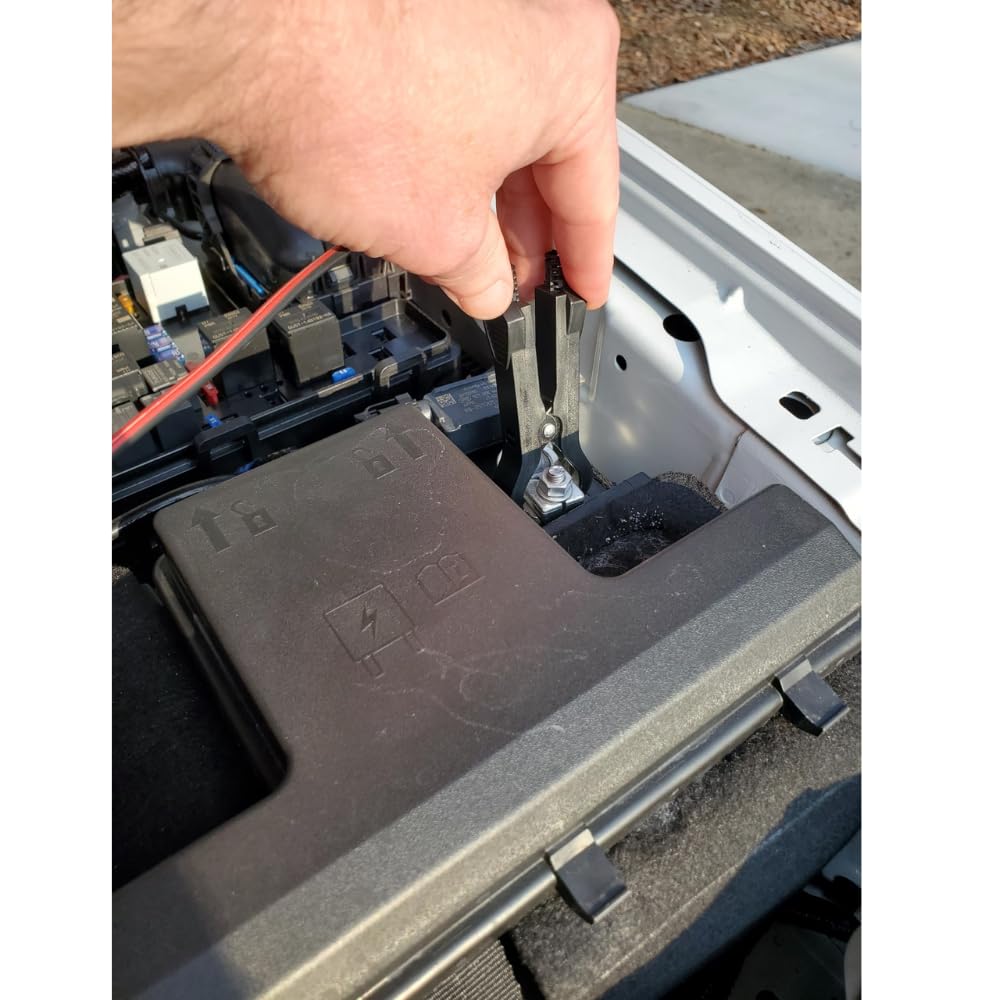

1. Connect the alligator clips to the car battery: black to negative, red to positive, and ensure the battery is within the 11-15V range.

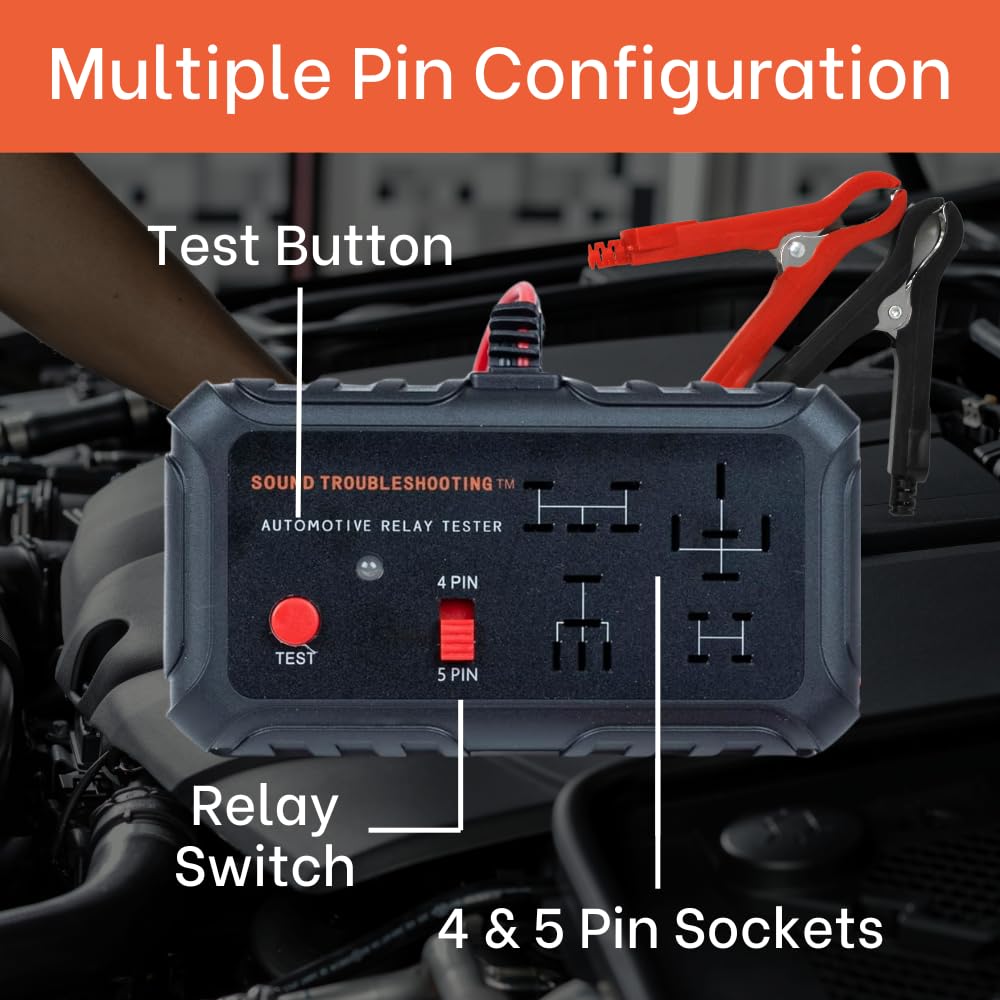

2. Set the tester switch to match the relay's pin count (4 or 5 pins).
3. Choose the correct socket for the relay, then insert the relay into the socket.
4. Press the Test button; the tester will energize the relay multiple times to verify its operation.

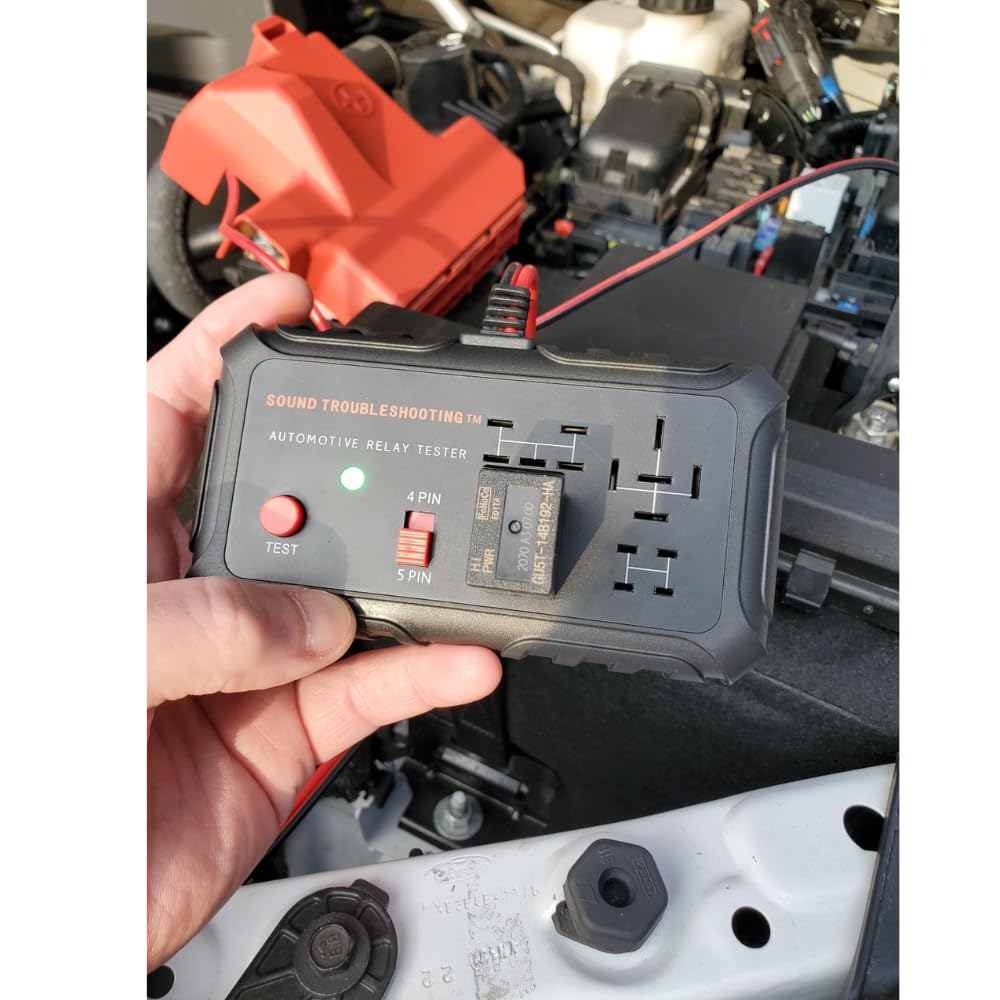

5. Watch the LED indicators: green means the relay passes the test, red indicates a potential fault.

Real-world use cases

• On-the-spot diagnostics during roadside repairs or impromptu service calls, letting you confirm relay health before a reinstallation.
• In a home workshop or shop, allowing quick verification after replacement or wiring changes to help you move forward with confidence.

What to know before you start

• Not intended for every BMW relay — some models may require alternative testing approaches.
• Power source requirements: use a 12V battery stack within 11-15V for accurate results.
• Coil resistance preference: above 20 ohms is recommended for stable operation during testing.
• The tester uses a compact, patent-protected design that emphasizes speed and clarity in results.

With Sound Troubleshooting, you get a portable tool that supports your decisions with fast feedback, helping you work more efficiently—without promising guaranteed outcomes. It’s a smart addition to any automotive diagnostic kit and a practical companion for DIYers and professionals alike.
