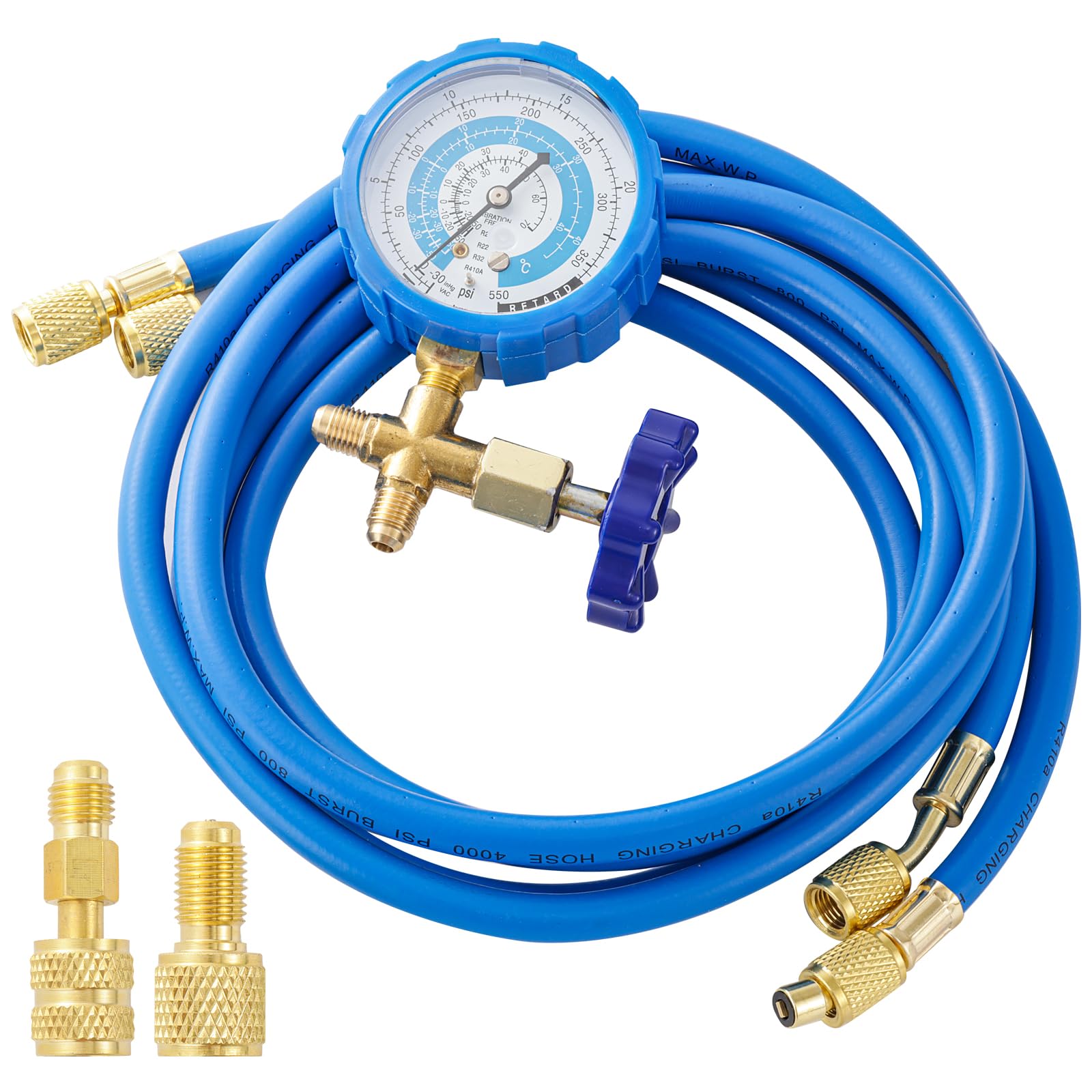

Tigbear R410A Recharge Kit – AC Charging Hose & Mini Split Gauge Set (59-inch)

Overview

The Tigbear R410A Recharge Kit is built for practical refrigerant charging and system checks. With 59-inch hoses, you gain flexible reach for mounted equipment, attic installations, or units tucked behind obstacles. The brass adapters pair with rugged hoses for a dependable feel under everyday service conditions, while the kit’s design emphasizes straightforward setup so you can focus on the task at hand.

Designed to support multiple common refrigerants, this kit helps you work across typical residential and light commercial setups. The low-pressure gauge reads 0–550 PSI, providing clear feedback during charging. The straight swivel adapter and R134A tank adapter broaden compatibility, and the removable valve core in the R134A adapter speeds up vacuuming and preparation before charging. This kit is suited for both DIY projects and professional field work, offering a balanced mix of quality, versatility, and value.

Why choose this kit

• Long 59-inch hoses give you reach around compact minis and wall-mounted units.
• Brass alloy and rubber construction emphasize durability for regular HVAC use.
• Low-pressure gauge with a 0–550 PSI range supports safe, steady charging readings.
• Adapters enable cross compatibility with R410A, R22, R134A, and R12 refrigerants.
• Two hoses plus a complete adapter set create a ready-to-use charging solution.

Key Features

• Maximum working pressure 800 PSI; burst pressure up to 4000 PSI for confident testing.
• 1/4 inch SAE flare threads on hoses for secure connections.

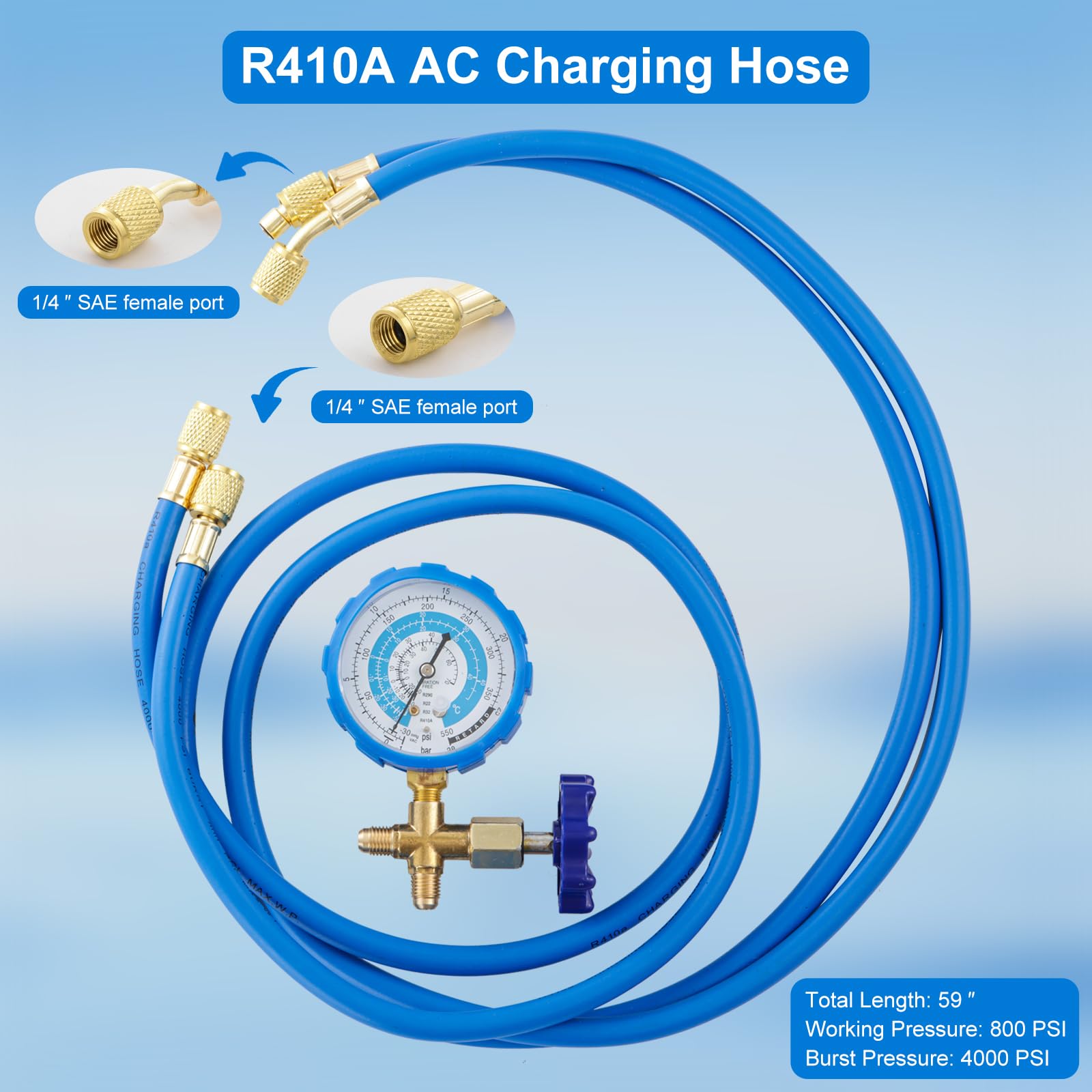

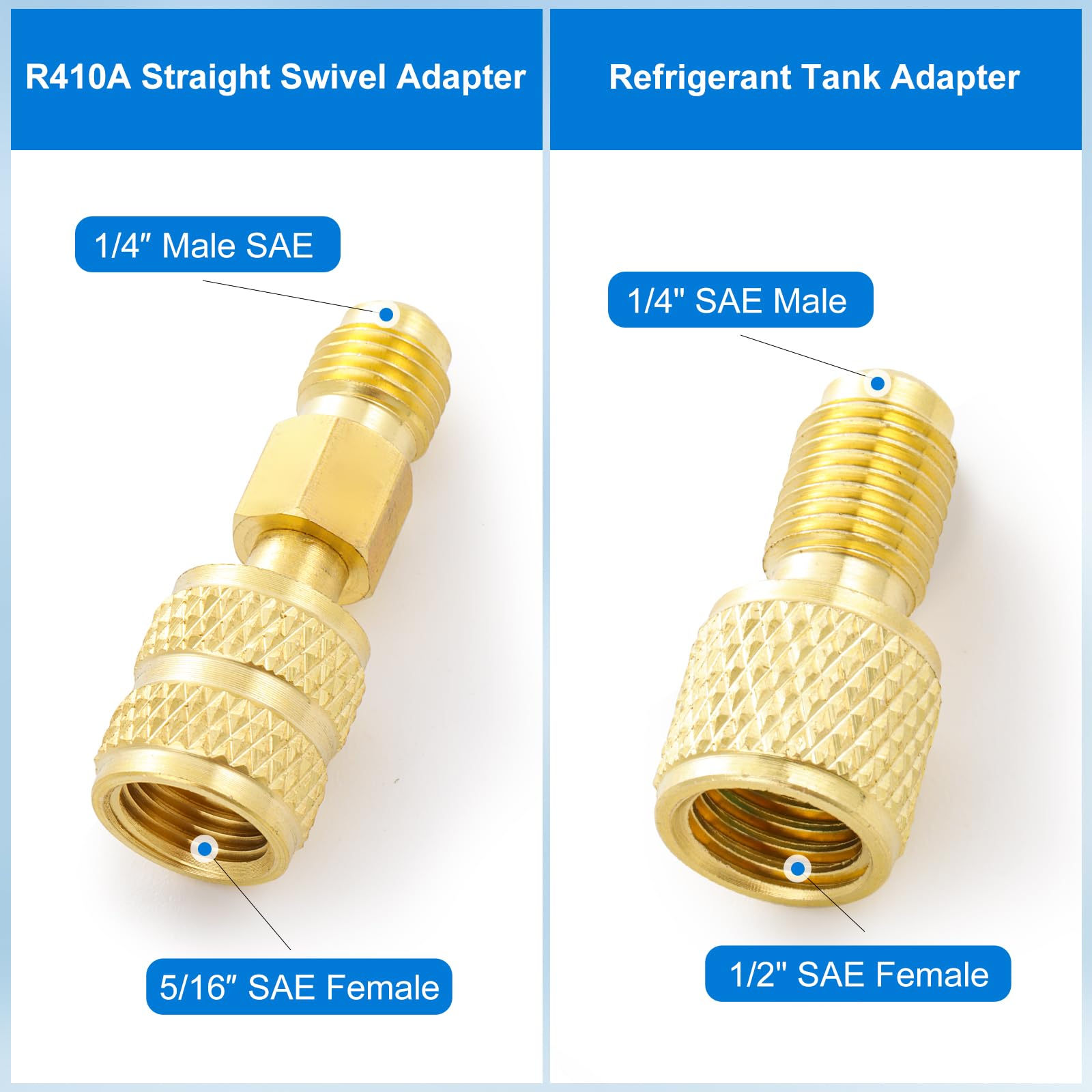

• R410A straight swivel adapter (1/4" SAE Male to 5/16" SAE Female).
• R134A tank adapter (1/4" SAE Male to 1/2" SAE Female) with removable valve core.

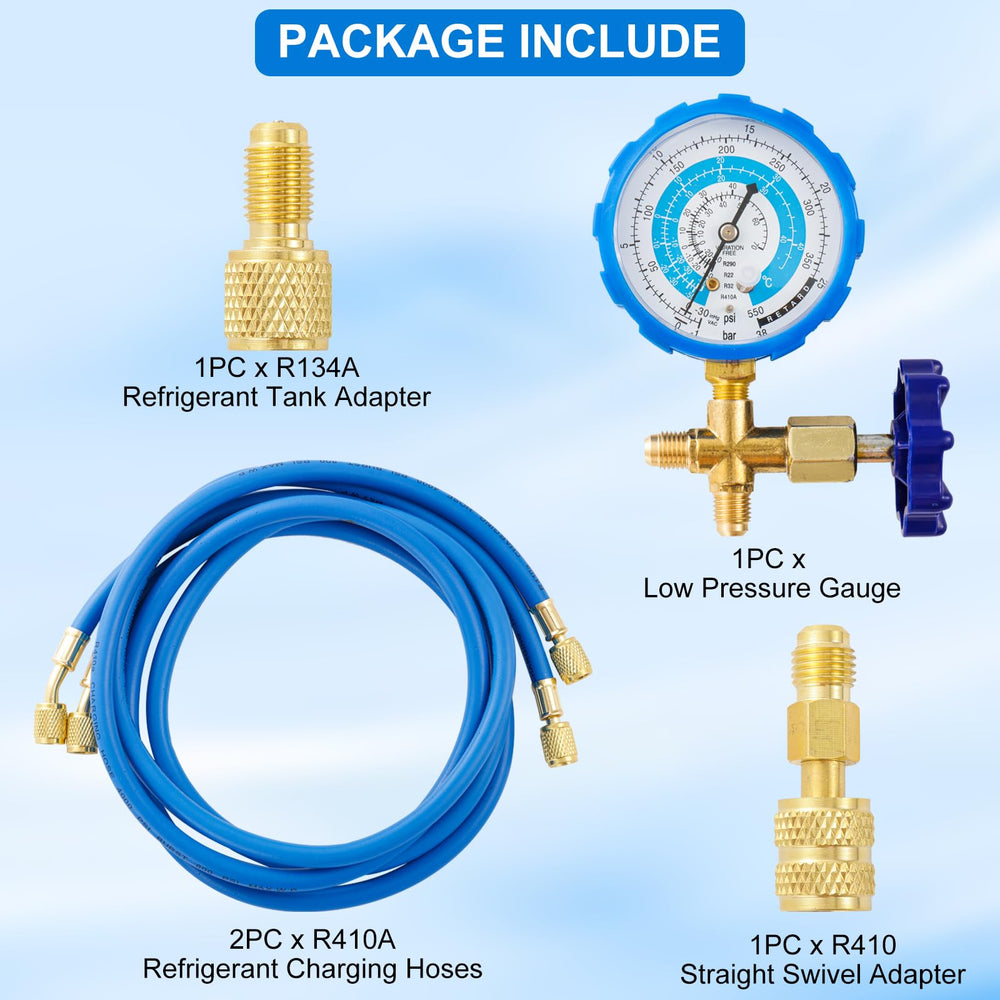

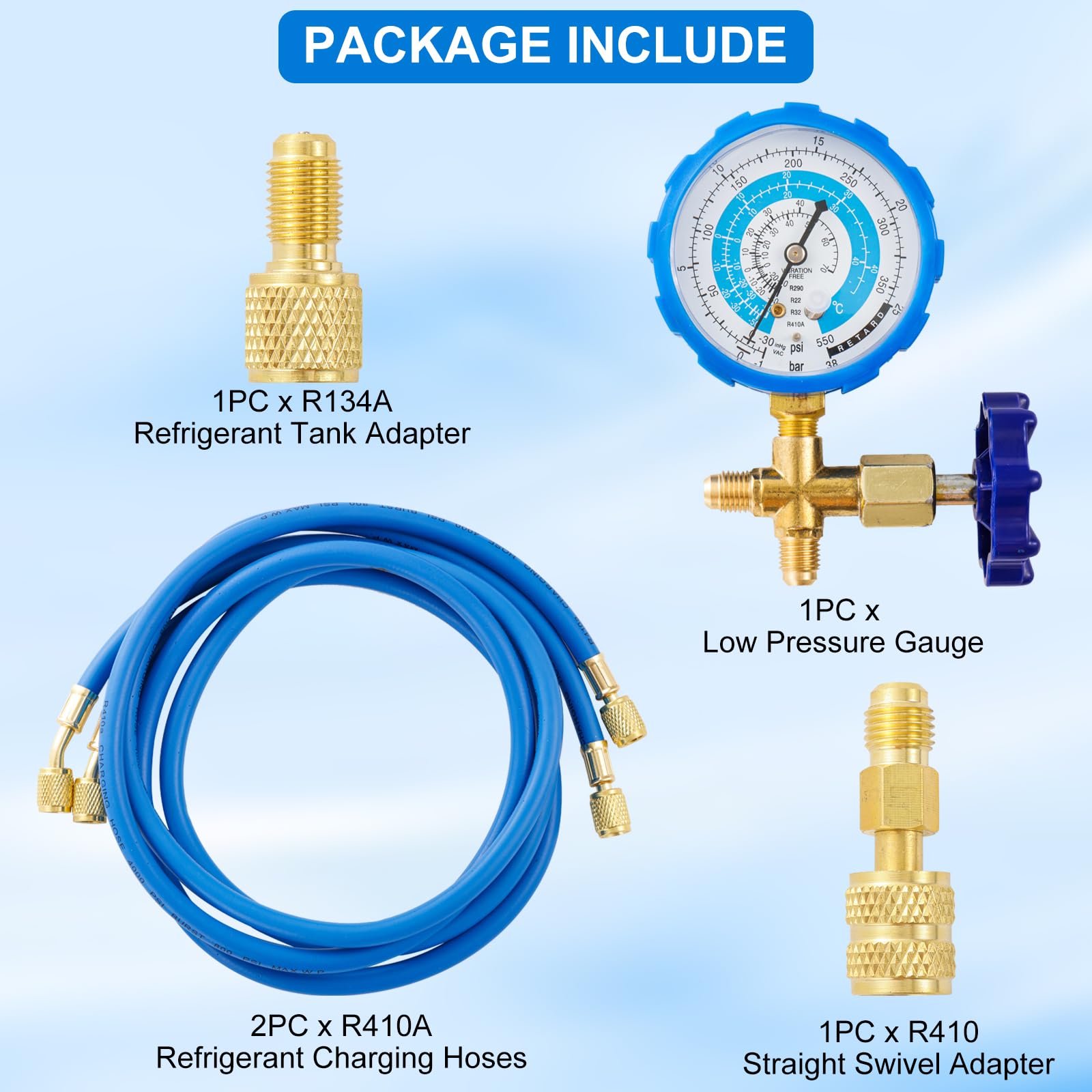

What’s Included

• Two 59-inch AC refrigerant charging hoses with 1/4 SAE male and female flare connectors for broad compatibility.

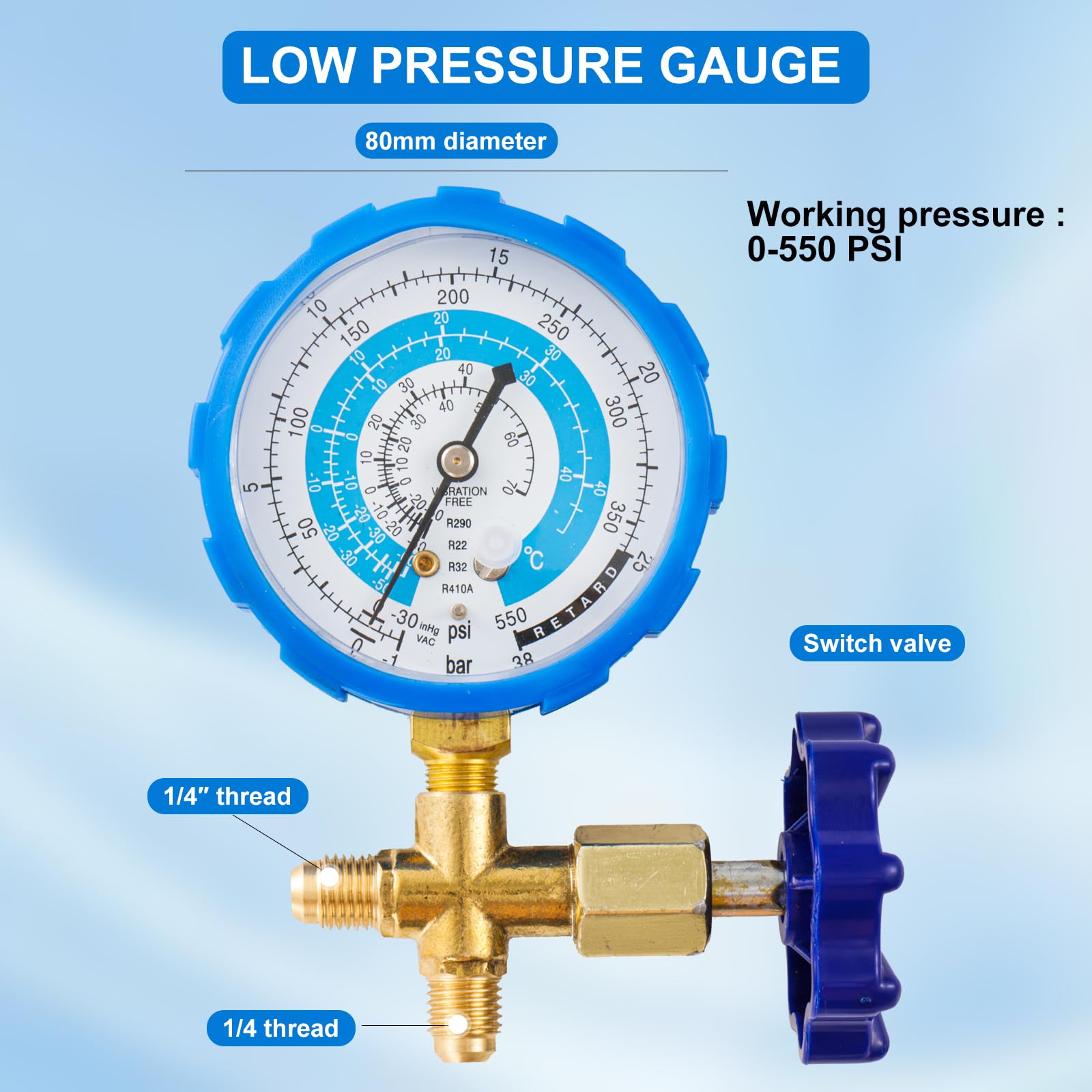

• One low-pressure gauge with switch valve for easy pressure control.
• R410A straight swivel adapter (1/4" SAE Male to 5/16" SAE Female) for smooth hose-to-port connections.
• R134A brass tank adapter (1/4" SAE Male to 1/2" SAE Female) with removable valve core to speed up vacuuming.

Usage Tips

Before charging, briefly vacuum the lines and ensure the gauge reads zero. If the needle sits off zero, open the gauge cap and adjust the knob to zero to establish a clear baseline.

Applications

Well suited for DIY mini split setups, routine maintenance, and cross-compatibility with common refrigerants such as R410A, R22, R134A, and R12. This kit aims to be a flexible addition to your toolkit without restricting your workflow.
