Victron Energy Battery Balancer – Equalize 12V/24V Battery Banks

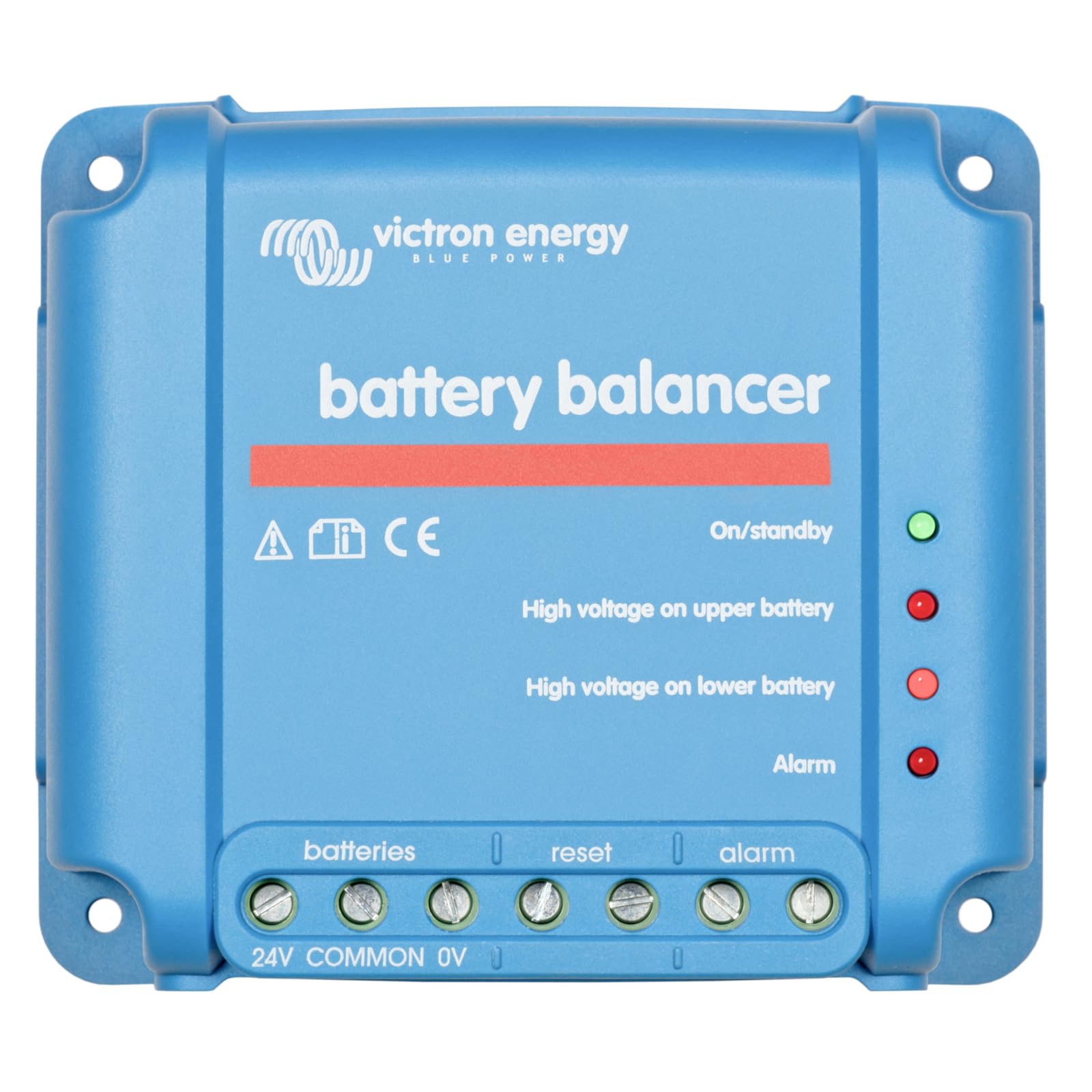

Product overview

The Victron Energy Battery Balancer is a compact device designed to address load imbalance across battery banks. By working with two series-connected 12V batteries or multiple parallel strings, it helps keep the pack operating with a more uniform state of charge, potentially contributing to steadier performance in variable loads.

What it does

• Eliminates the effect of load imbalance to help your battery bank age more evenly.
• Equalizes the state of charge of two series-connected 12V batteries or several parallel strings.
• Activates when a 24V system charge voltage rises above 27V, then compares the voltages across the two series-connected batteries.
• Draws up to 1 Amp from the highest-voltage battery, creating a differential that brings all cells toward the same SOC.

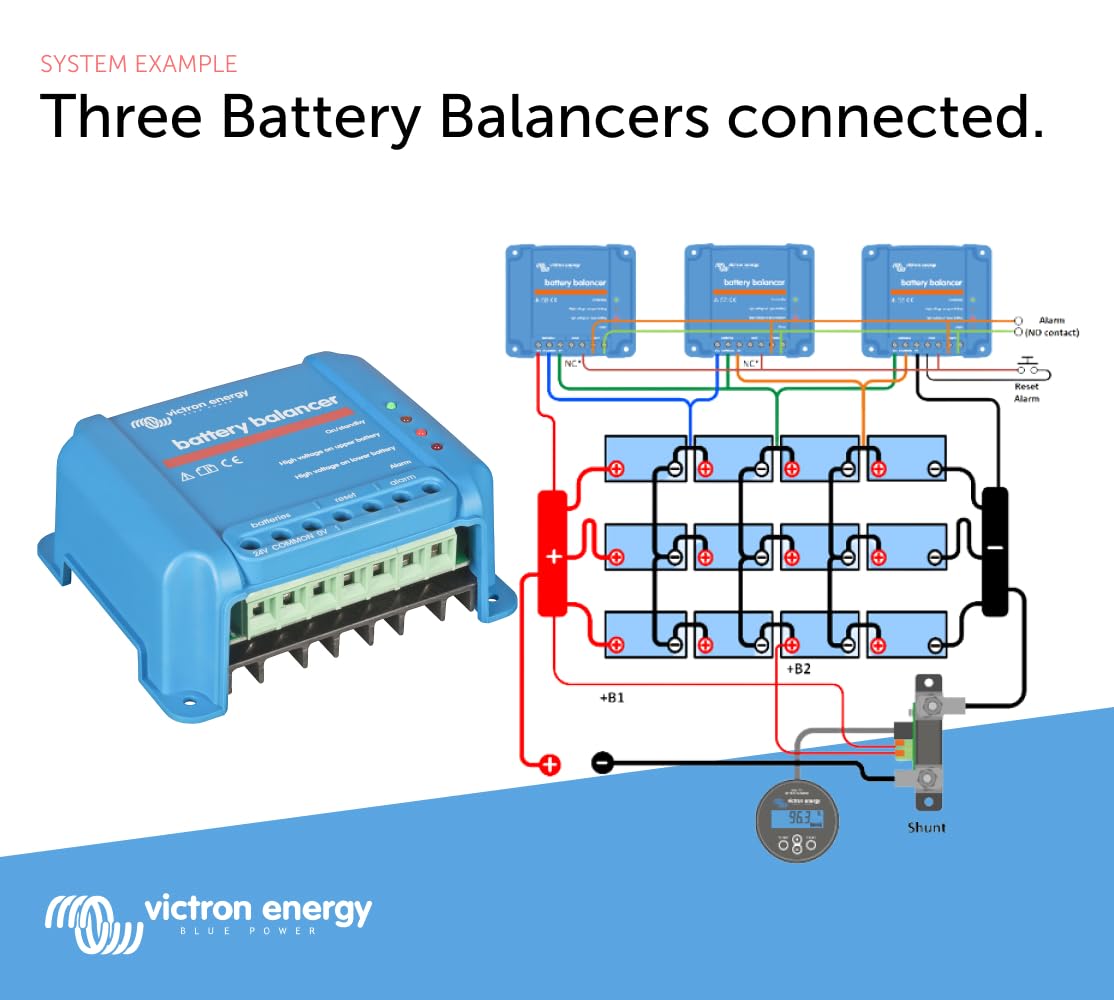

• Multiple balancers can be paralleled; a 48V bank can be balanced with three units.

In real-world use

In off-grid environments, sailing setups, or RV installations, even small imbalances can lead to uneven wear. The balancer’s approach—targeted balancing between series cells or parallel strings—offers a practical way to maintain consistent charging behavior during busy days of use and charging cycles.

• Off-grid cabins: helps maintain balanced charging as solar input fluctuates.
• Sailboats and motor caravans: supports reliable operation of banked 12V/24V systems under shifting loads.
• Solar storage arrays: potential to reduce stress on individual cells by keeping SOC levels aligned.
• Maintenance-friendly configuration: no complex re-wiring required for basic two-battery or parallel-string setups.

How it works

The balancer monitors the system voltage and, when needed, begins balancing by drawing current from the higher-voltage string. By facilitating a small, targeted current flow, it nudges the system toward a common state of charge without forcing aggressive charging or discharging.

For larger banks, you can add more units to maintain balance across a broader array of cells. This modular approach fits into existing Victron Energy systems and supports scalable configurations for different vehicle, boat, or cabin setups.

Installation and compatibility

• Works with two series-connected 12V batteries or with several parallel strings of series-connected cells.
• Intended for 24V systems; reference operating voltage to ensure compatibility with your installation.
• Paralleling multiple balancers is supported to balance larger banks; a 48V bank can be balanced with three units.

Note: This device is designed to complement, not replace, good battery maintenance practices. Proper ventilation, correct wiring, and regular battery health checks remain important for best results.
