WPL 232306 & 232282 Thermostat Water Heater Limit Switch Kit – 12V & 120V T-Stat for Suburban RV SW Series

Overview

The WPL 232306 & 232282 Thermostat Kit reimagines RV hot water control with a dual‑voltage design that covers both 120V and 12V configurations. This setup supports Suburban SW Series heaters and serves as a practical replacement for older models, making upgrades straightforward for many RVs.

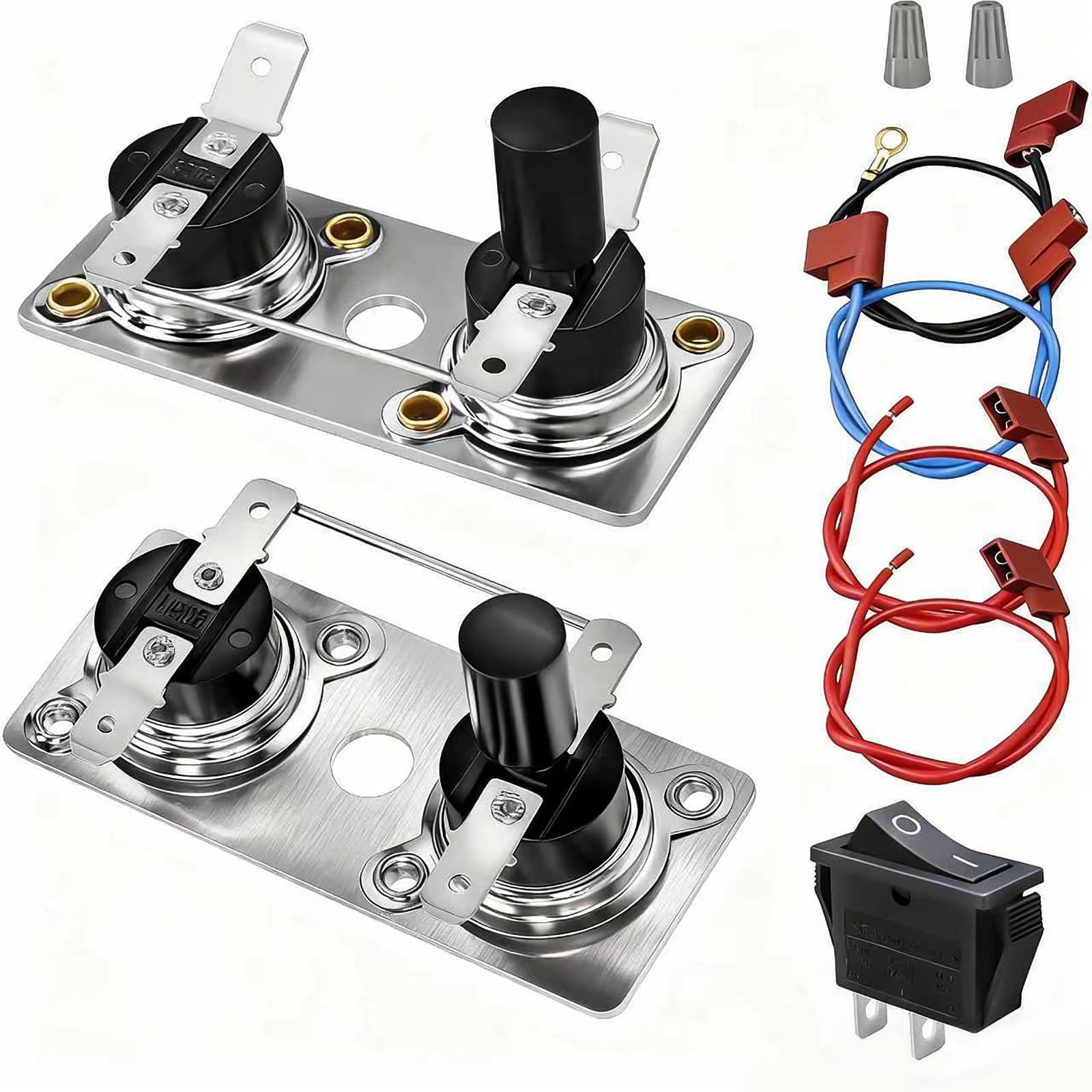

What you get

• 1 x 232306 thermostat limit switch
• 1 x 232282 thermostat limit switch
• 1 x power control switch
• 2 x wire nuts
• 4 x terminal wires

With all essential components included, you’ll have a complete repair and upgrade kit in one package, designed to simplify maintenance and restore control over your RV’s hot water system.

Key benefits

• Wide compatibility with Suburban SW Series heaters and related models, reducing compatibility frustration during replacements.

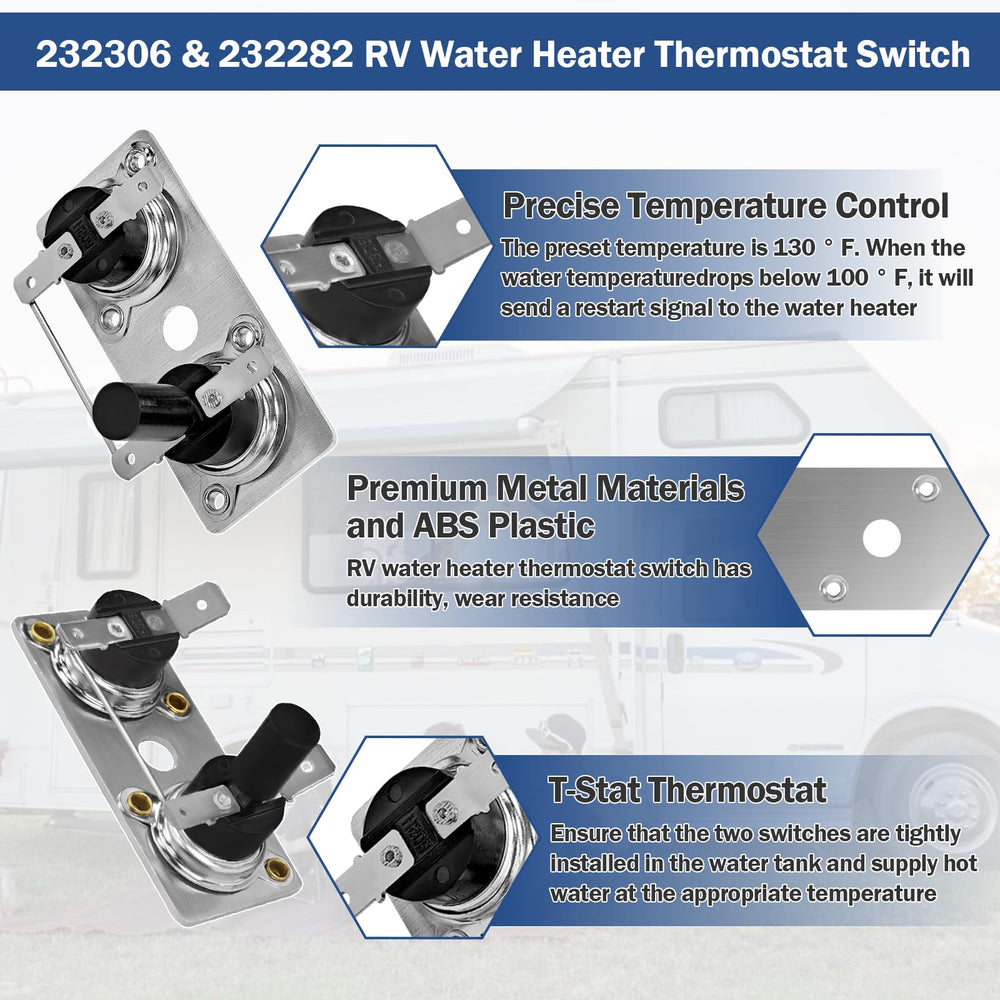

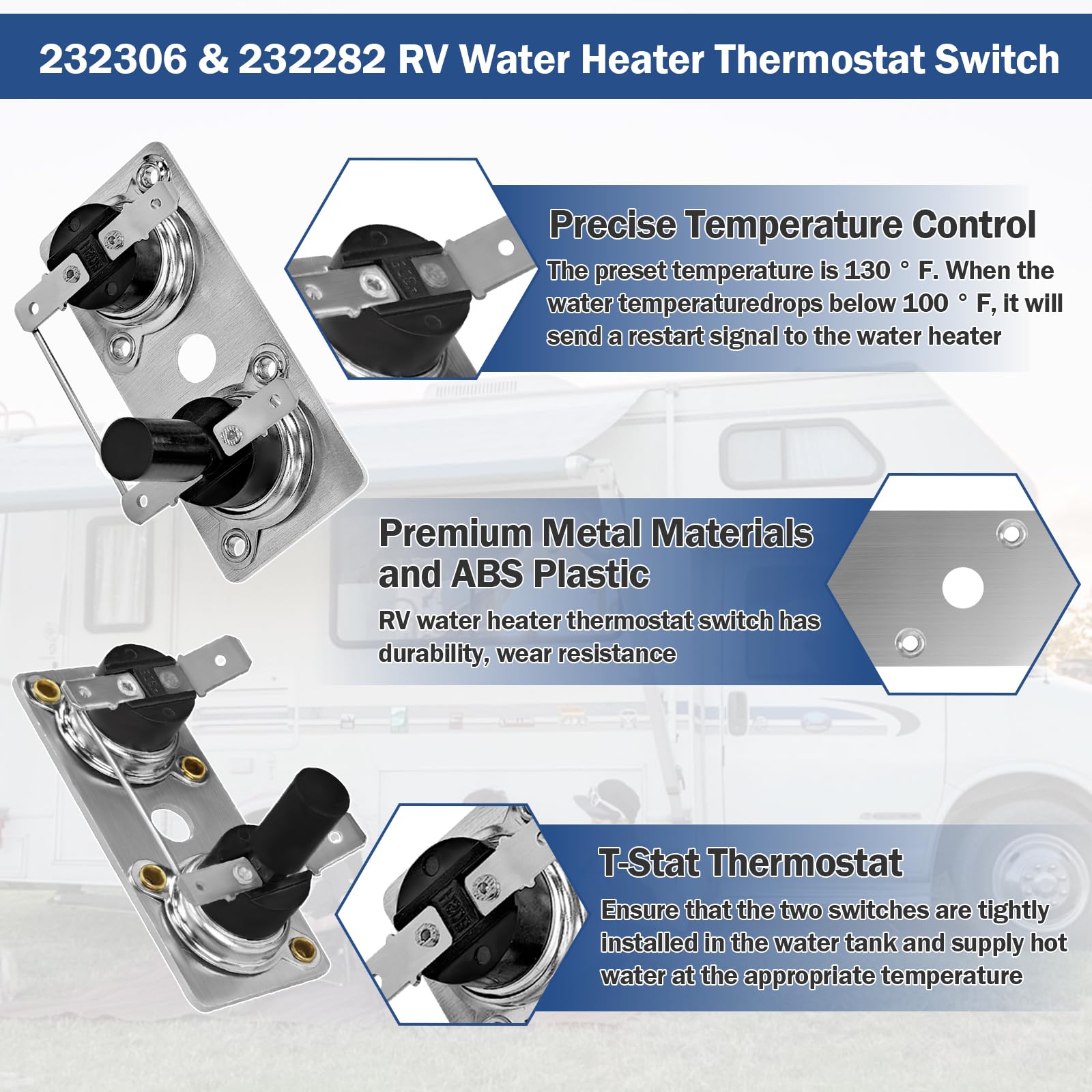

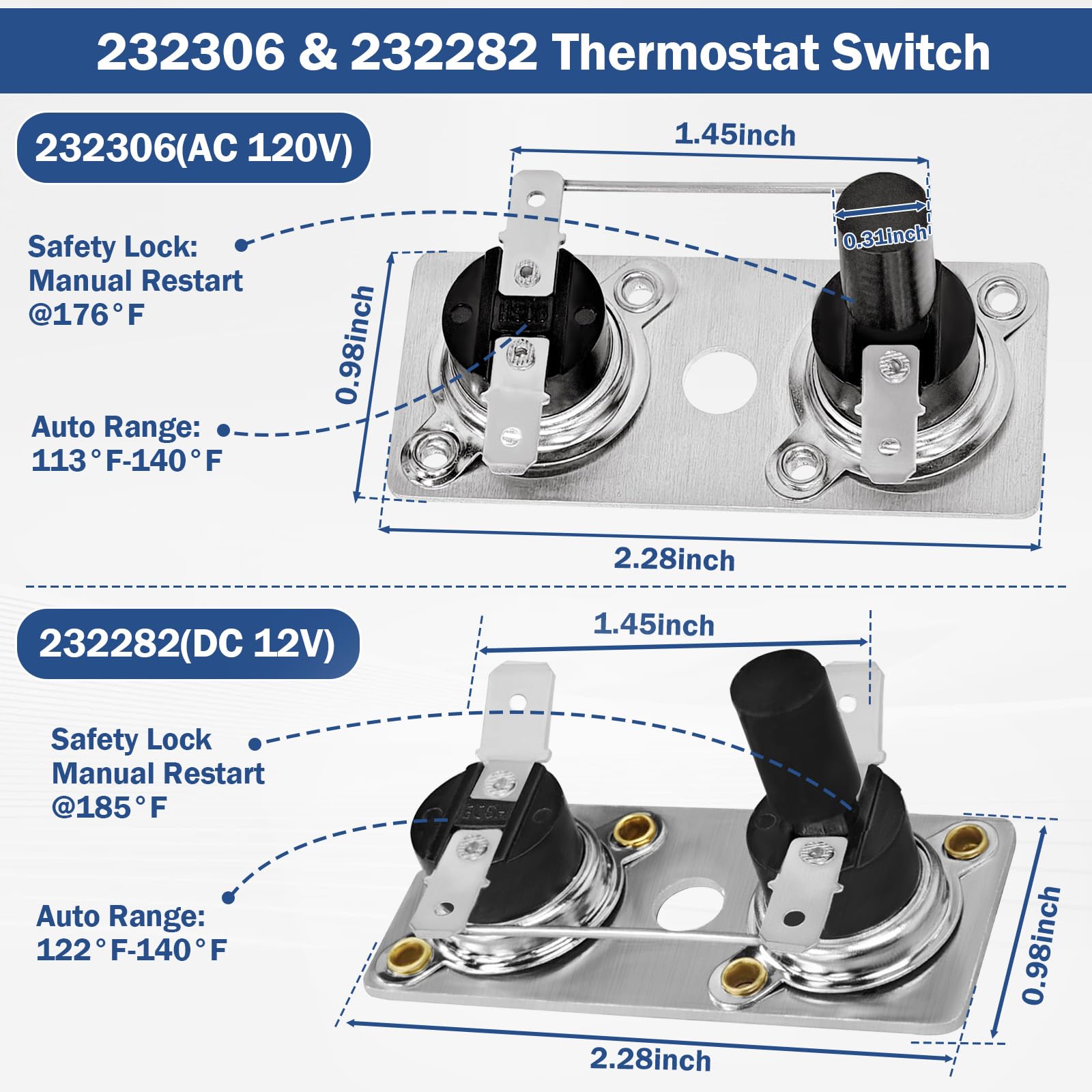

• Dual‑voltage design: 120VAC module operates within roughly 113°F–140°F, while 12VDC module covers about 122°F–140°F for flexible use.
• Durable construction using high‑temperature resistant plastics and metal components, built to withstand RV vibration and humidity.
• All‑in‑one kit simplifies installation and future maintenance, eliminating the need to source individual parts separately.

Practical use scenarios

• Maintain a steady hot water supply on long trips, even when living off‑grid for short periods.
• Restore reliable temperature control after thermostat wear or minor system issues.
• Benefit from automatic cut‑offs that help prevent overheating and protect the system during busy use.
• Enjoy a straightforward DIY upgrade that minimizes downtime and service calls.

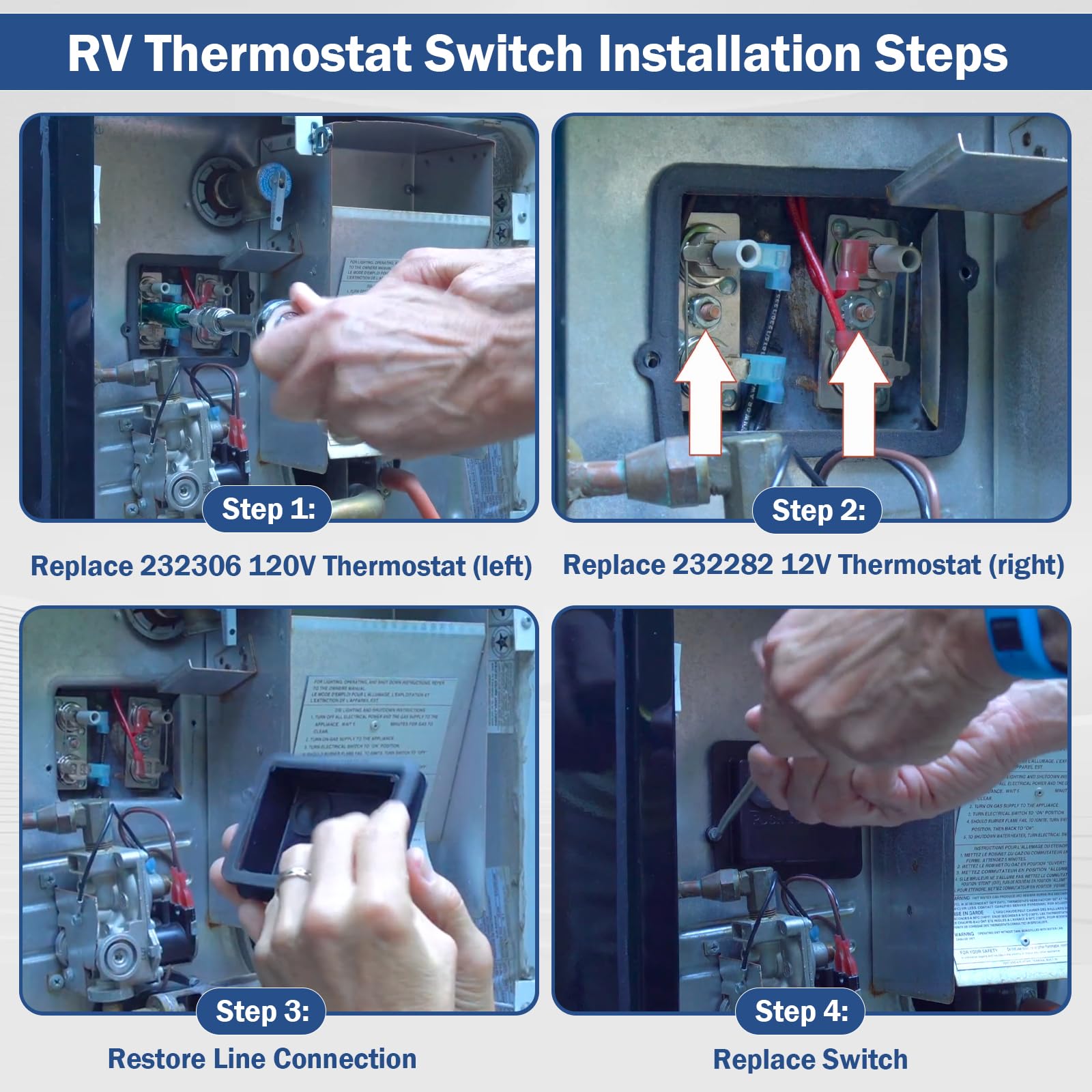

Installation tips

1. Disconnect power to the water heater and remove the old thermostat assembly.
2. Connect the new kit wires to the existing circuitry according to the wiring diagram.
3. Secure the thermostat modules, attach the knob and power switch, then reassemble the unit.
4. Power up and test to ensure the thermostat and limit switch operate correctly.

In short, the WPL kit offers a practical upgrade path for RV owners who value dependable hot water control, straightforward maintenance, and adaptable operation across varied travel scenarios. The design emphasizes reliability, ease of installation, and real‑world usability without promising guarantees.
