Auxbeam AS-R40 4-Gang Slim RGB Switch Panel – Auto Dimmable Backlight, 12–24V, 60A, 3-Year Warranty

Compact control panel built for rugged environments

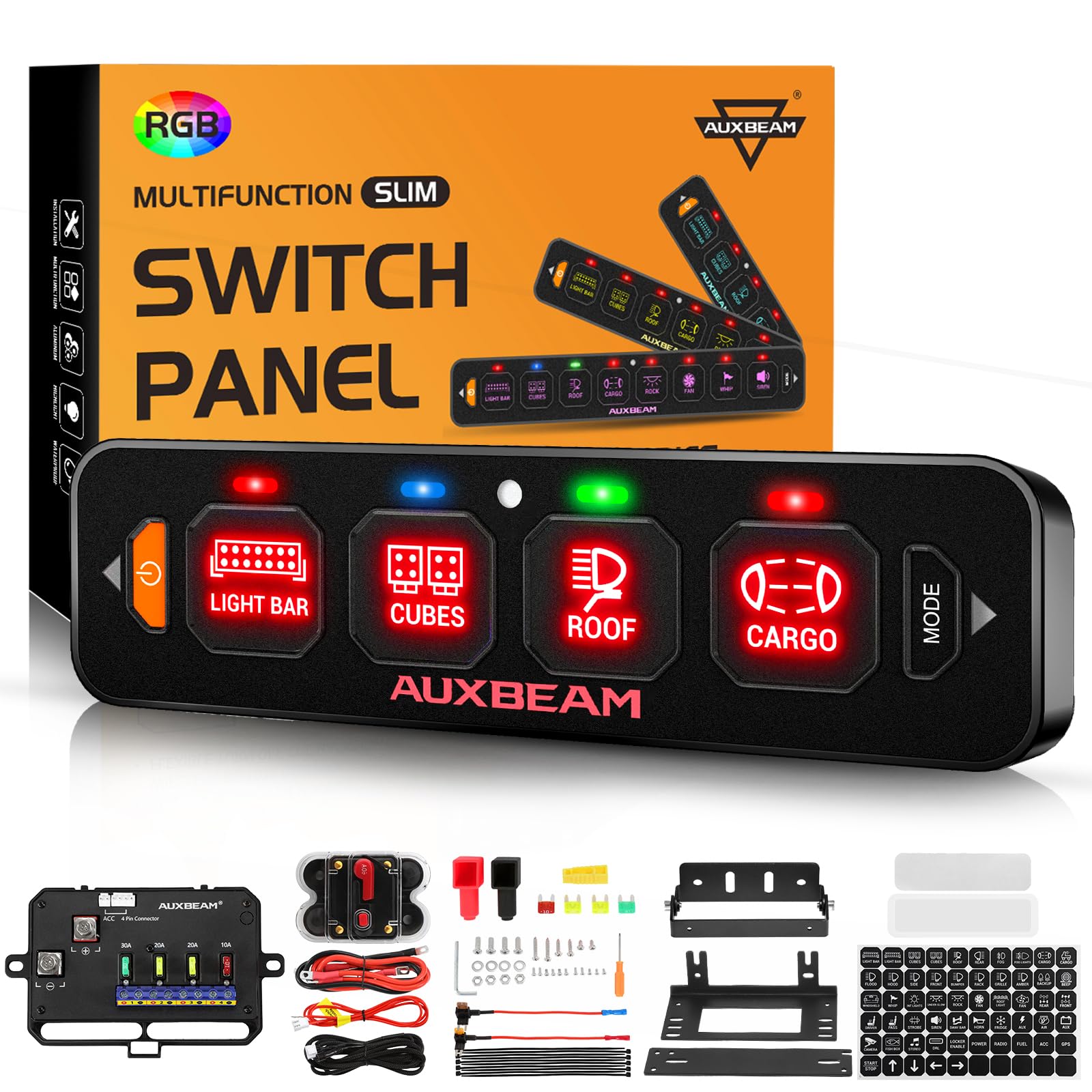

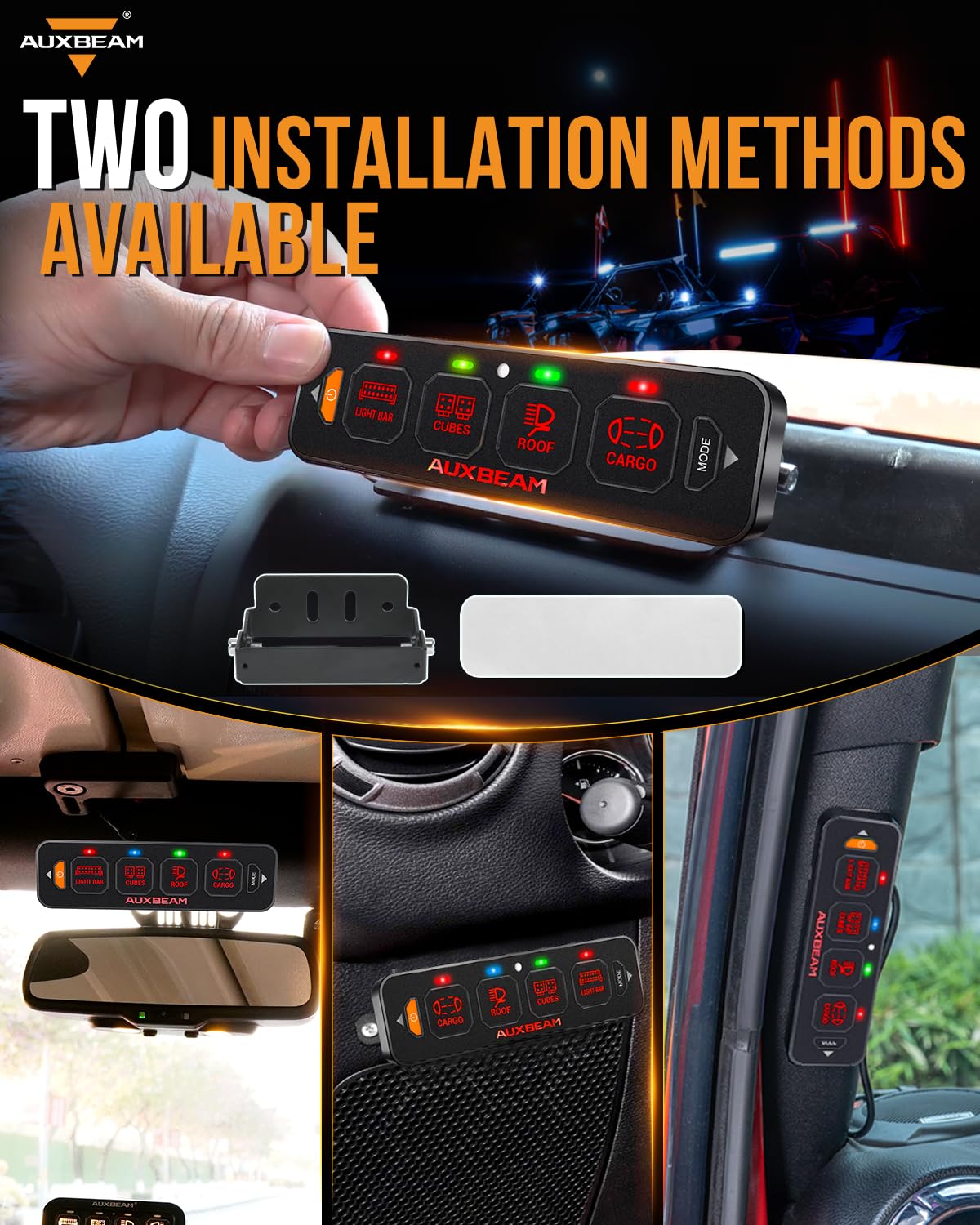

The Auxbeam AS-R40 4-Gang Slim Switch Panel brings four independent switches into a sleek, single-row housing that fits tight dashboards and vertical sticker layouts. This patent-protected design helps you keep essential controls within reach, whether you’re in a pickup, a boat, or a weathered off-road rig. The compact form minimizes clutter while preserving reliability, so you can focus on the task at hand without sacrificing visibility or access.

Three lighting modes that adapt to the moment

Three distinct lighting modes let you tailor visibility to your task and environment. Each mode has a color cue and a memory function to preserve your preferred setup for quick access tomorrow.

• TOGGLE mode uses red illumination for steady state, easy recognition in low light.
• MOMENTARY mode uses blue illumination and activates only when a switch is pressed, ideal for brief signals like a horn.
• PULSED mode uses green illumination to support flashing or strobe-like signaling when needed.
• The built-in memory function remembers your last-used settings for rapid operation.

RGB backlight and smart dimming for calmer visibility

With unlimited RGB backlight options, you can harmonize the panel with interior LEDs or your preferred color theme. The backlight brightness automatically adapts to ambient light, reducing glare in bright conditions and eye strain in dim environments. A dedicated MODE button makes it easy to switch how the backlight behaves without hunting through menus.

• RGB backlight offers broad color customization to match your style.
• Smart dimming adjusts brightness to surroundings for comfortable viewing.
• Backlight can be turned off for a minimal, distraction-free look.

Durability, accessories, and easy integration

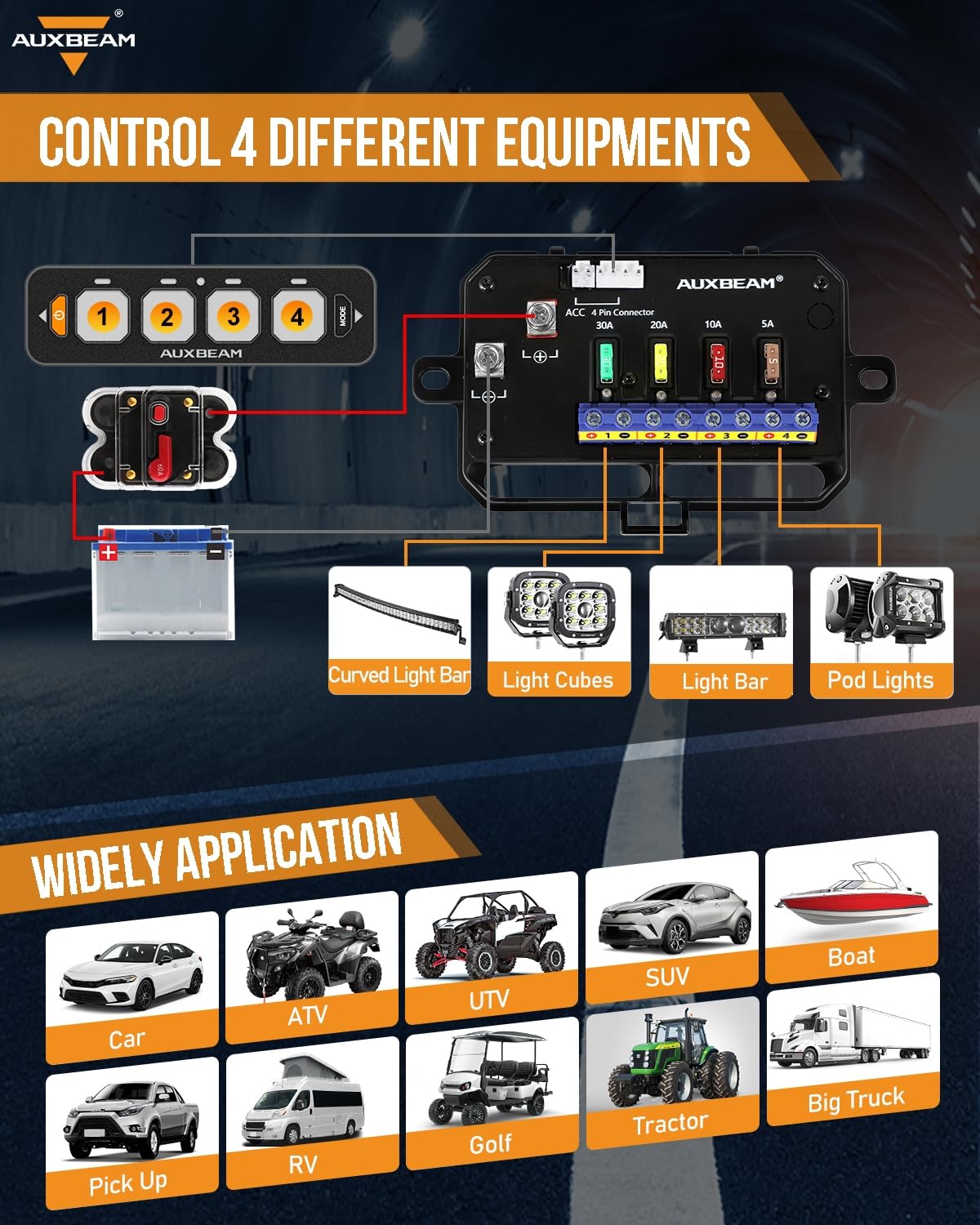

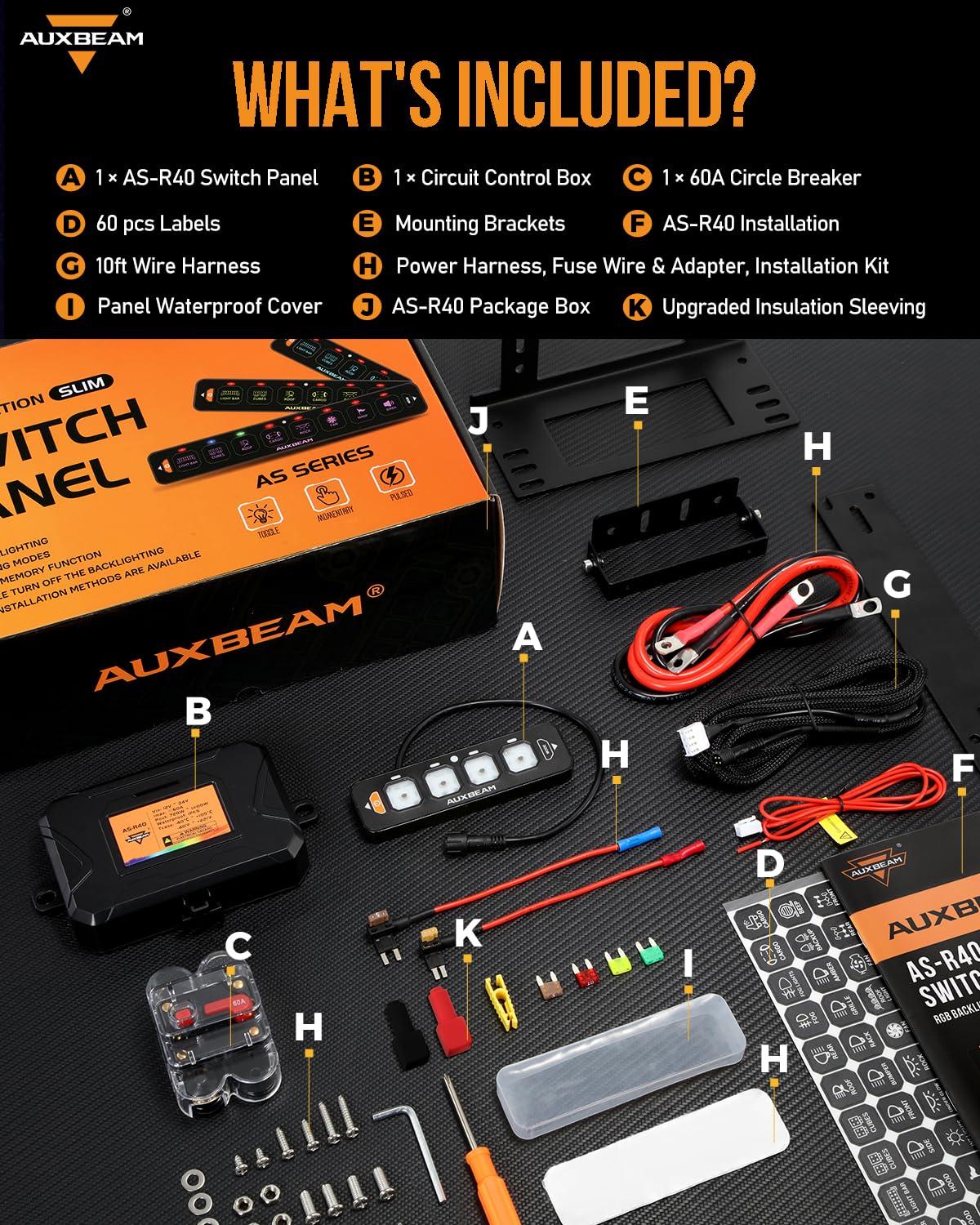

The AS-R40 ships with upgraded components, including a circuit box with a solid-state relay, a 60A resettable circuit breaker, fuses, 60 stickers, mounting brackets, and a 10 ft wiring harness. A dust cover helps keep the panel clean in dusty or wet conditions, supporting steady performance wherever you go.

Specifications and warranty

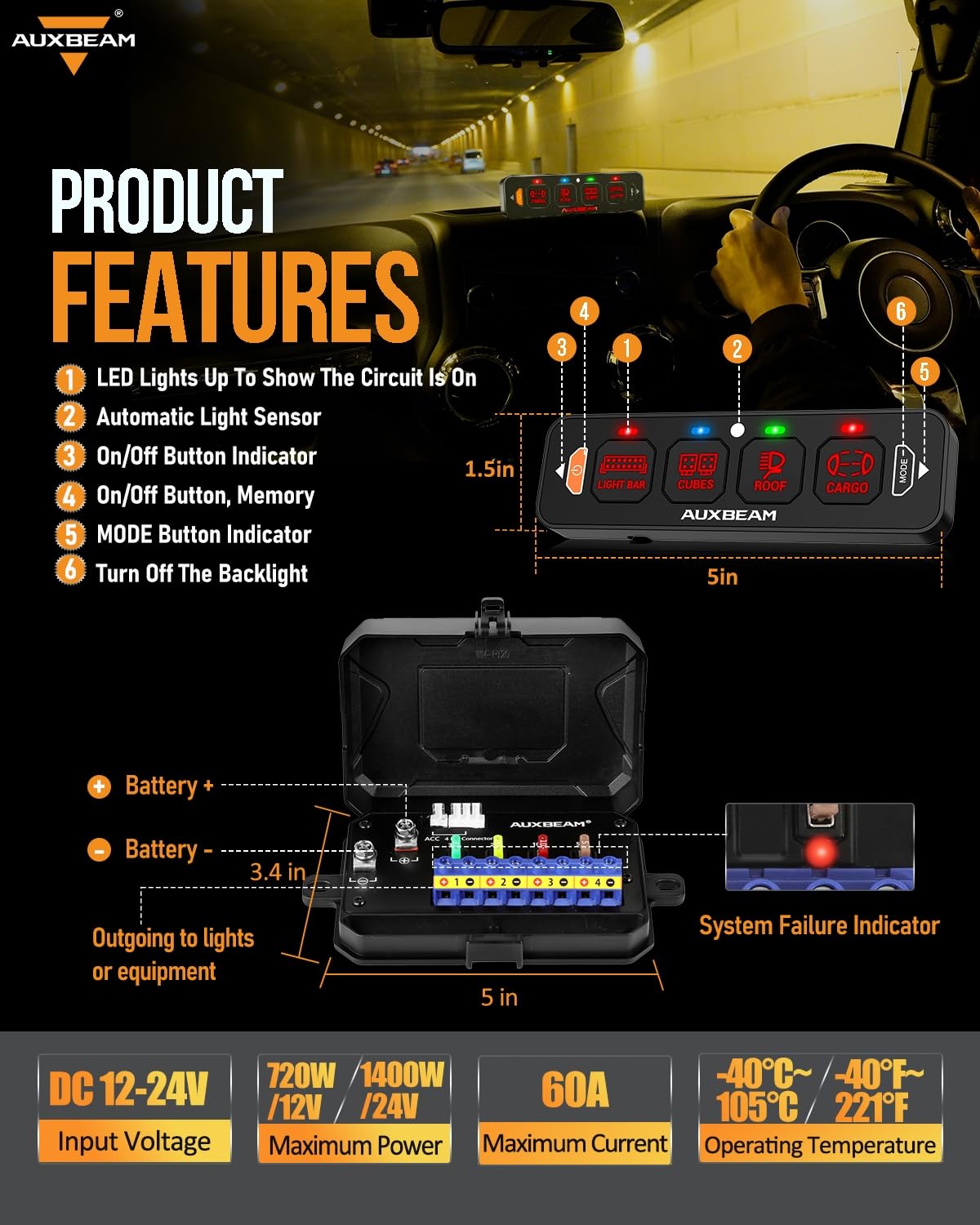

Operating voltage: DC 12–24V; maximum power: 720–1400W; maximum current: 60A. IP65 waterproof rating and a wide operating temperature range (-40 to 221 F). Backed by a 3-year warranty. Note: Bluetooth app control is not supported; functions are accessed via the physical switch panel.
