BOOTOP PIN Complete ATV Wiring Harness Kit for 49cc–125cc Chinese Engines

All-in-one wiring solution for your ride

The BOOTOP PIN Complete ATV Wiring Harness Kit delivers a full electrics package designed to power a wide range of Chinese-made engines from 49cc up to 125cc. This universal kit combines essential components into one cohesive assembly, streamlining replacement and helping you restore reliable electrical performance on your ATV, quad, dirt bike, or go-kart. Built for practicality and durability, it emphasizes clean routing and consistent power delivery, so you can focus on the ride rather than tinkering with individual parts.

With this kit, you gain a complete set of parts that typically wear out or become brittle over time. The assembly encompasses a wiring harness, CDI (5-pin AC), ignition coil with lead, spark plug, solenoid relay, rectifier (voltage regulator), stator (magneto generator), ignition switch (two keys, waterproof), and an upgraded multi-functional ATV switch. The red wire marks the positive pole and the black wire the negative pole, a simple reminder to help guide installation and reduce miswiring when you’re replacing or upgrading components.

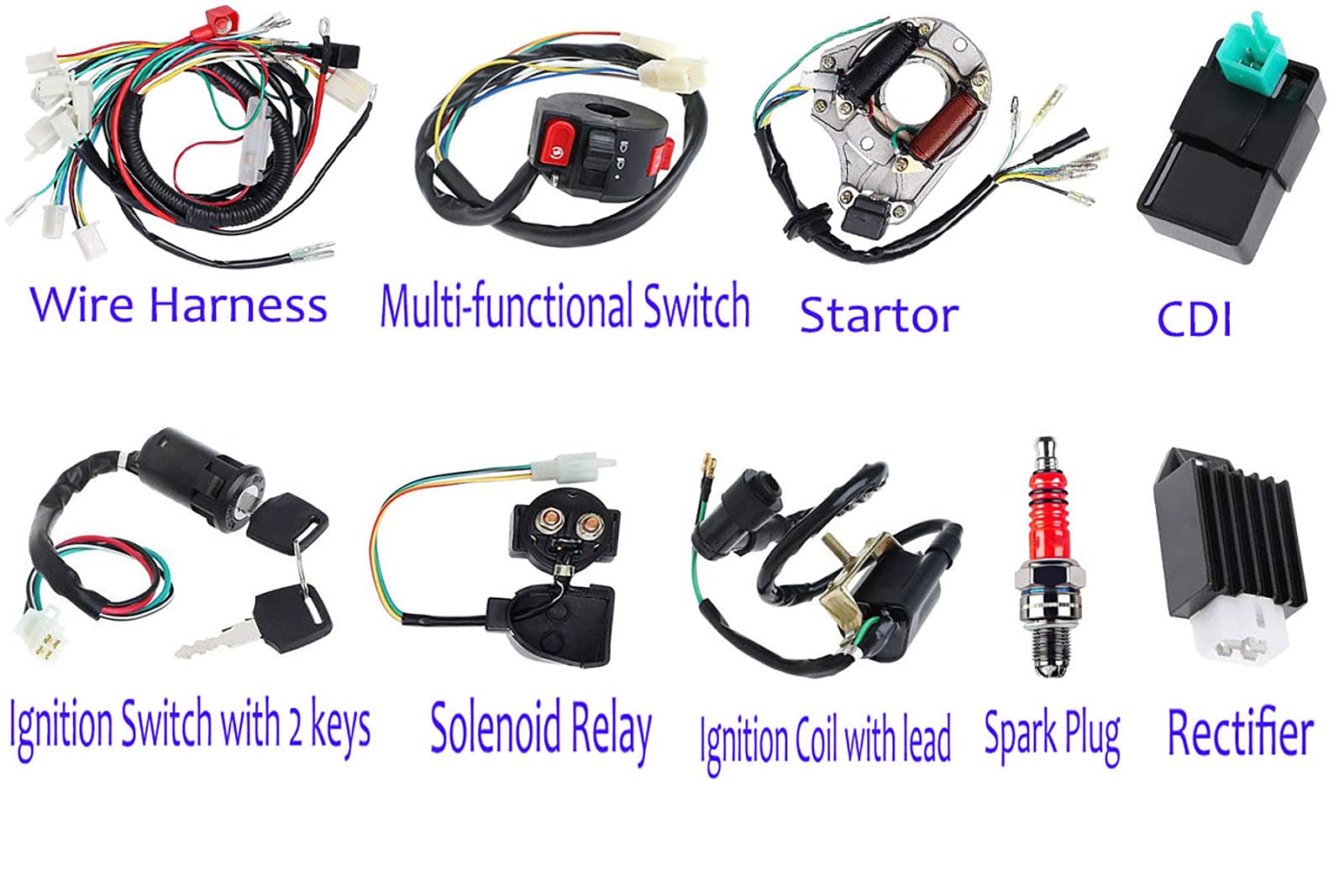

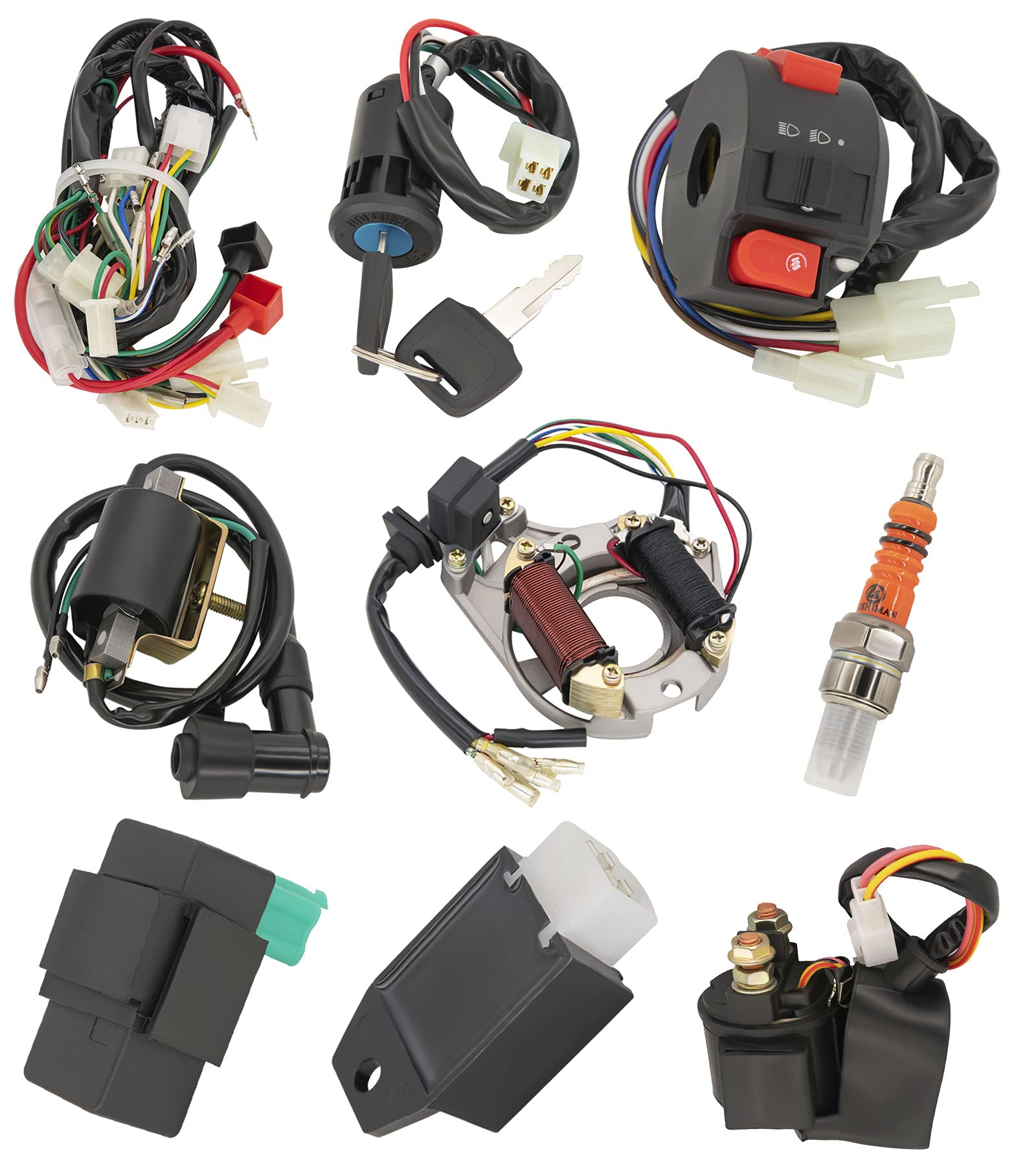

Included components

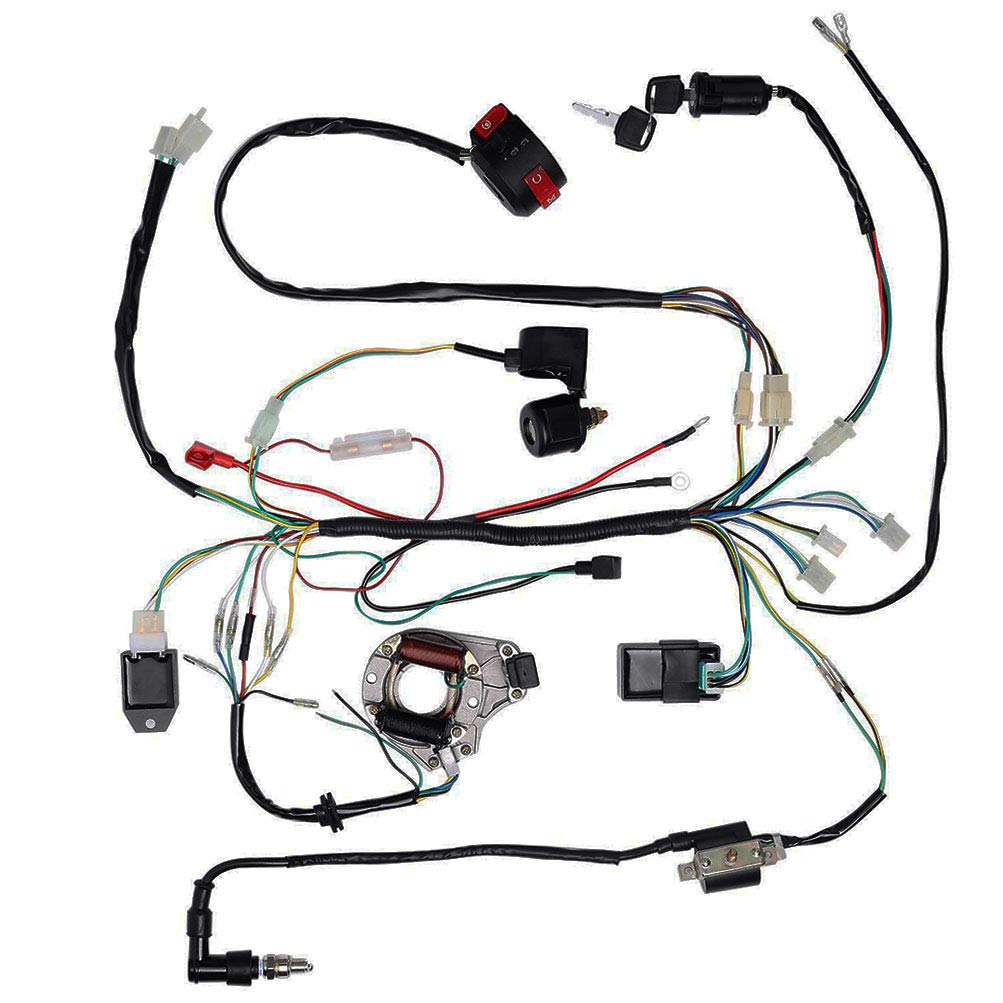

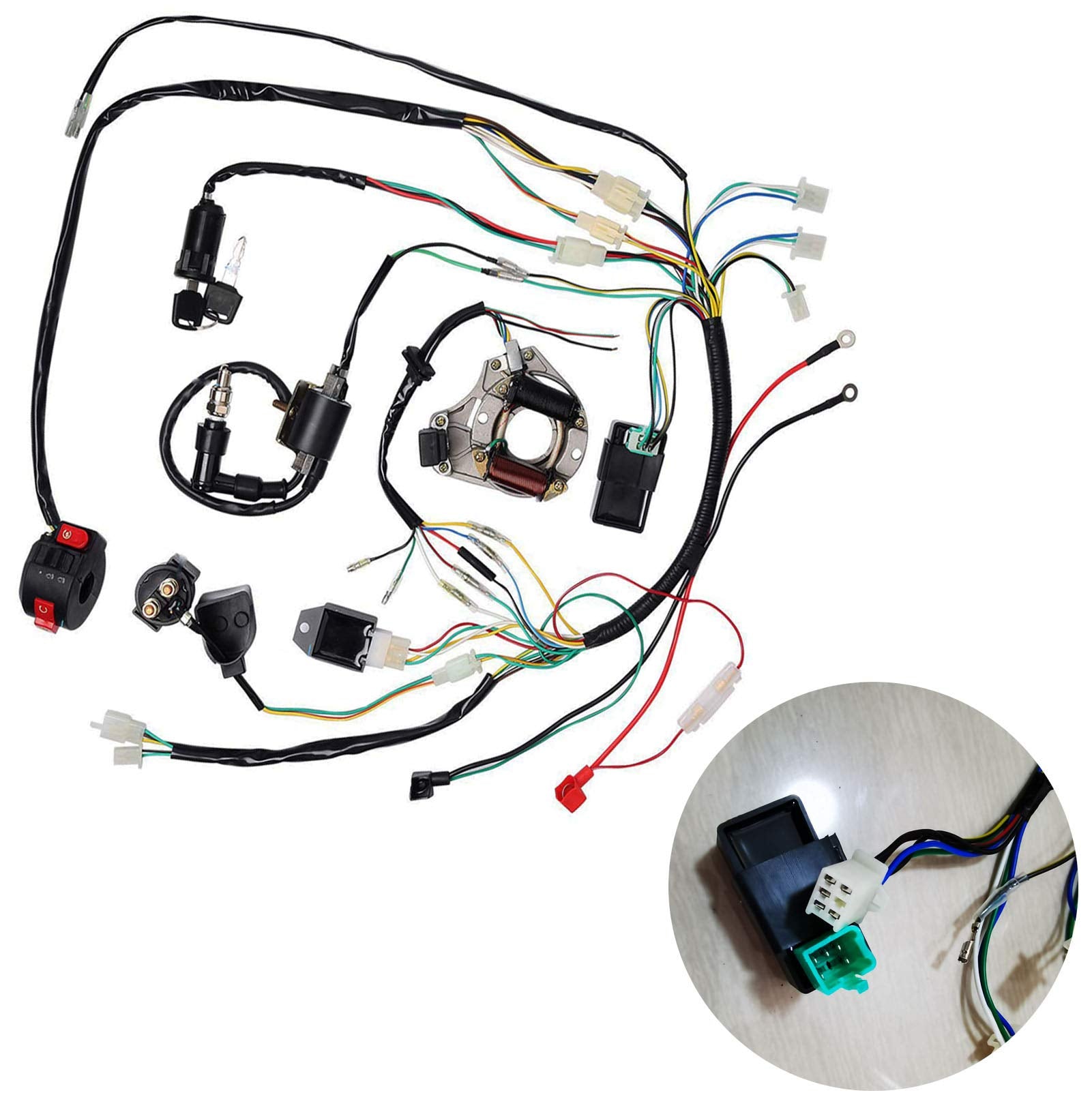

• 1 x ATV Wire Harness
• 1 x CDI (5Pin AC)

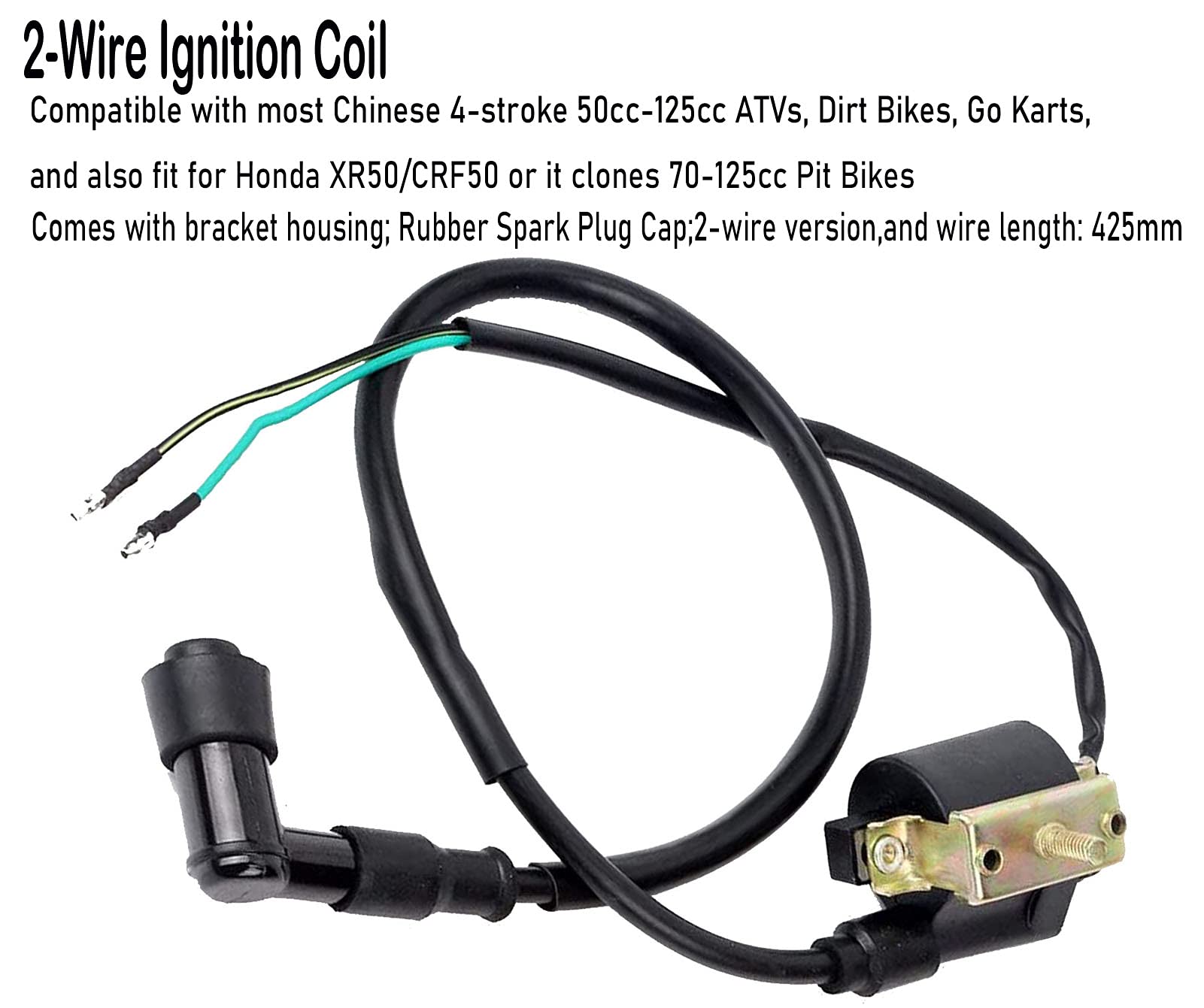

• 1 x Ignition Coil with Lead
• 1 x Spark Plug
• 1 x Solenoid Relay
• 1 x Rectifier (Voltage Regulator)

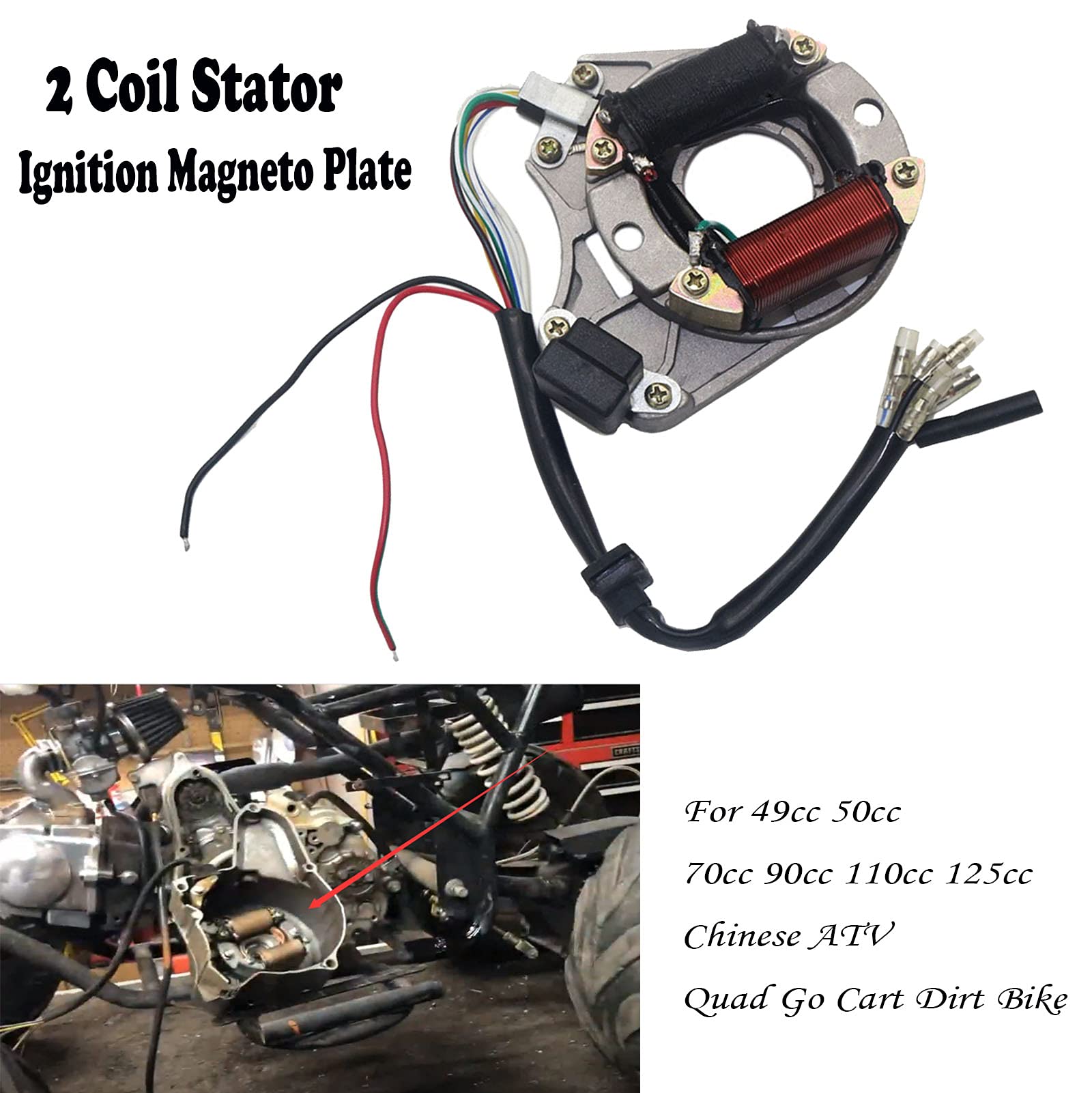

• 1 x Stator (Magneto Generator)

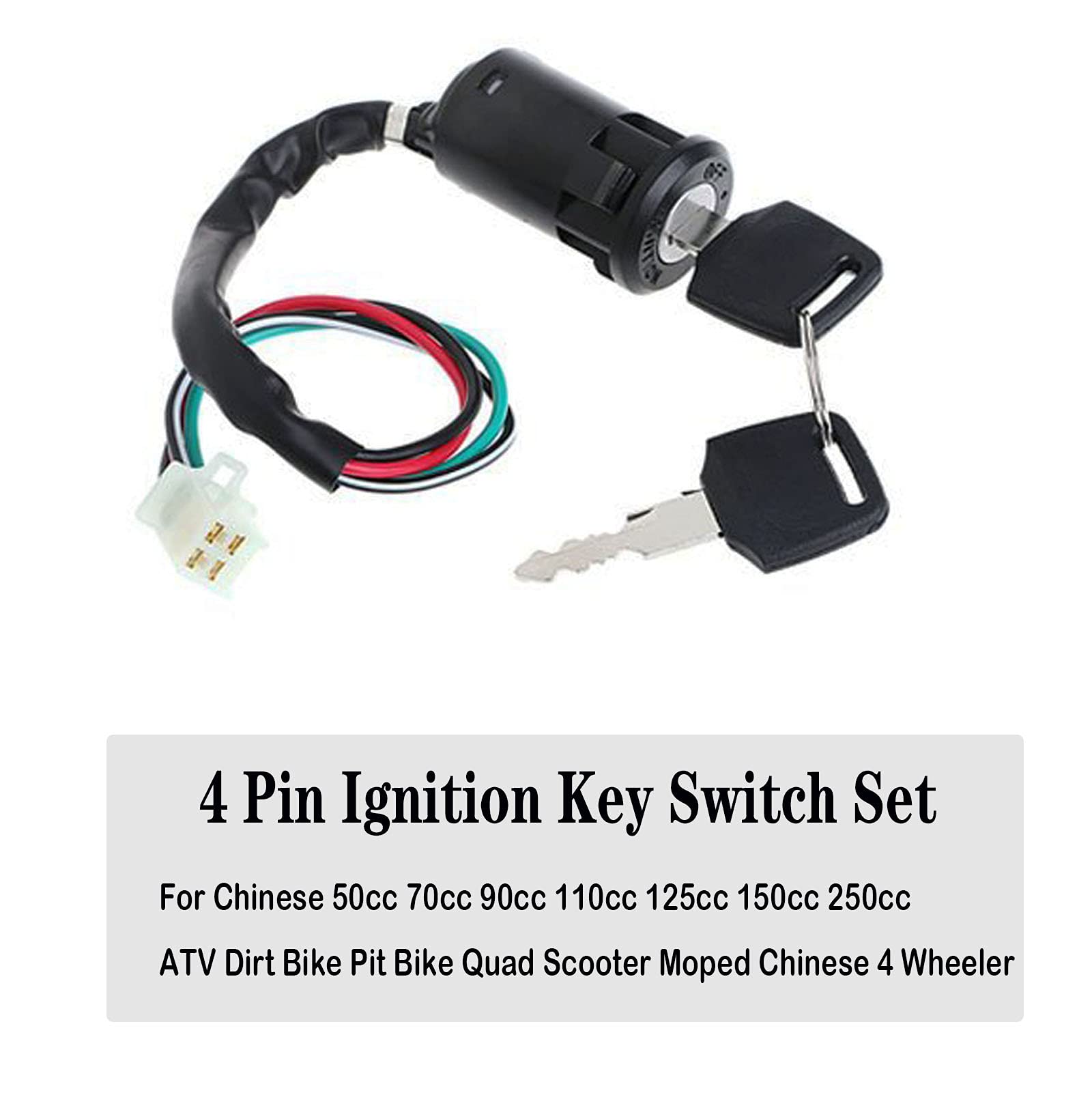

• 1 x Ignition Switch (2 keys, waterproof)
• 1 x Upgraded Multi-functional ATV Switch

Why choose this kit

• Universal fit for many 49cc–125cc upright engines, including common Taotao, Kazuma, and other brands
• Comes as a complete, ready-to-install wiring solution to simplify replacements
• High-quality components designed to withstand everyday riding conditions
• Two waterproof keys and a multi-functional switch for convenient operation
• Professional installation is highly recommended to ensure correct wiring and safe performance

Notes: This kit is not intended for Gy6 150cc engines or significantly different stator/CDI configurations. Always confirm model compatibility before purchasing, and consider professional installation to minimize the risk of wiring issues. By design, the system supports dependable starts and steady electrical flow across a variety of light off-road vehicles.

Whether you’re replacing a failing harness after a long weekend ride or refreshing an aging electrical system on a go-kart or pit bike, this complete kit offers a coherent, all-in-one upgrade path. It’s built to be a practical, cost-effective solution that helps you keep your ride ready for your next adventure, without overhauling multiple parts at once.
