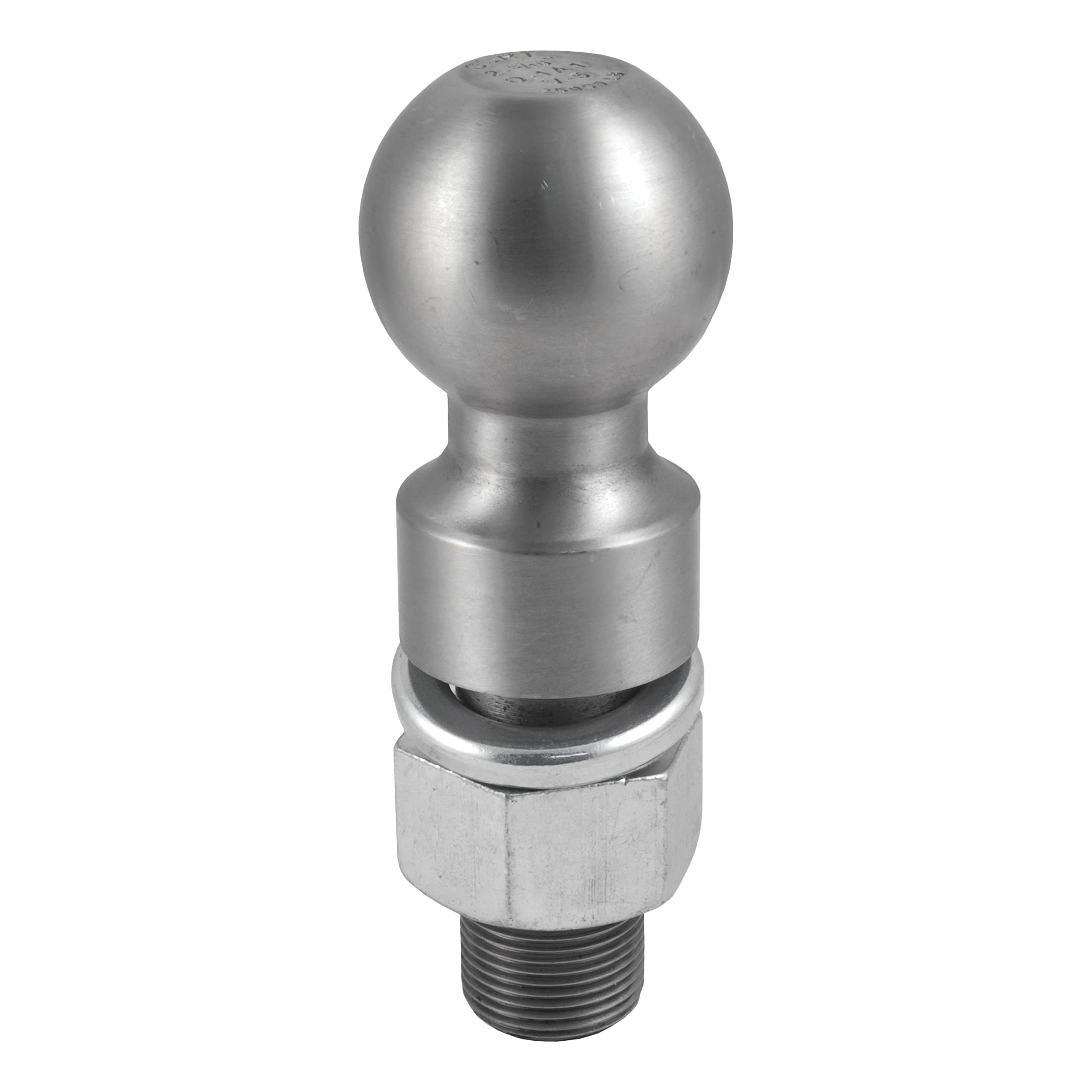

CURT 40086 raw steel trailer ball body for heavy towing durability.
CURT 40086 raw steel trailer ball shank detail ensures secure hitch connection.

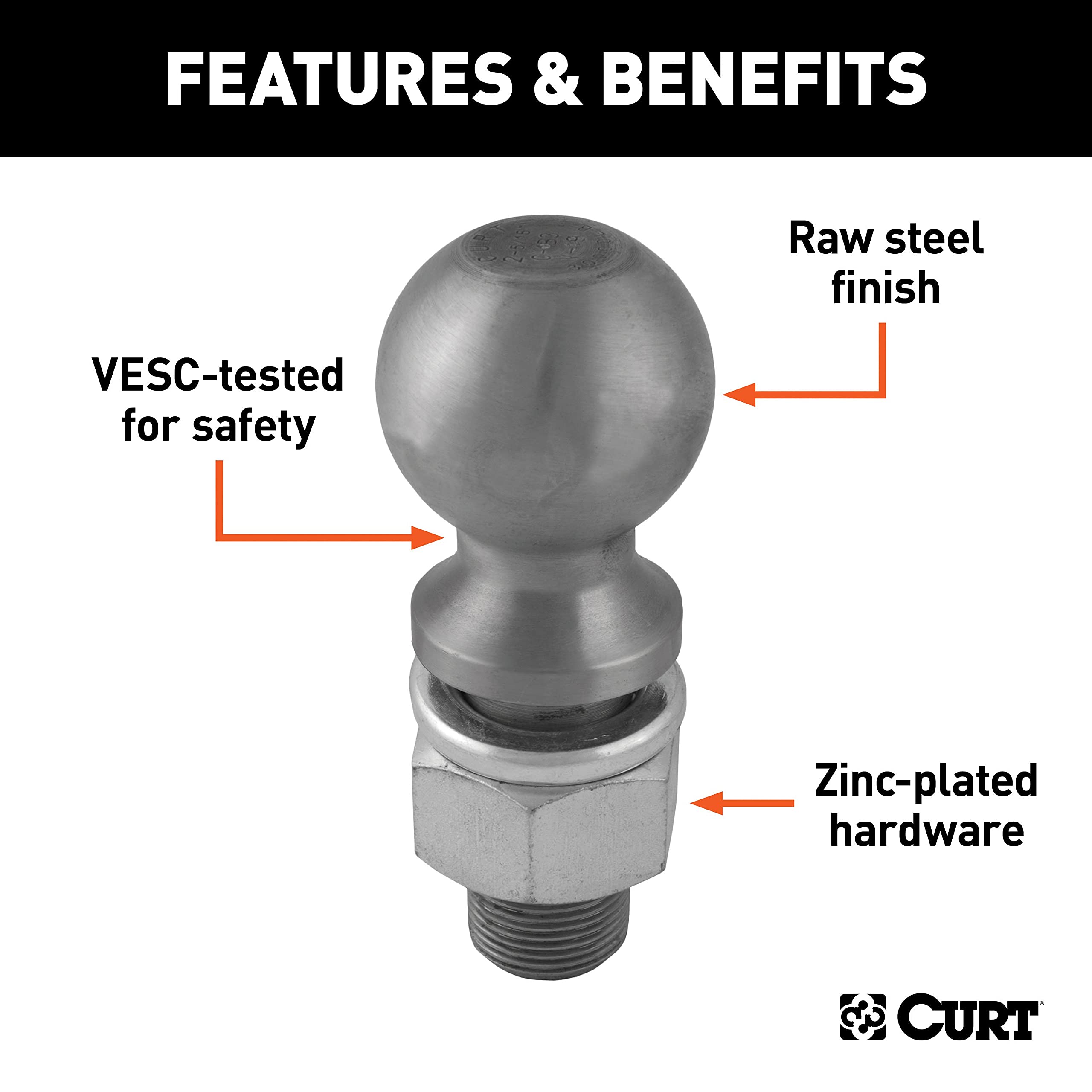

CURT 40086 hardware with nut and lock washer supports secure installation.

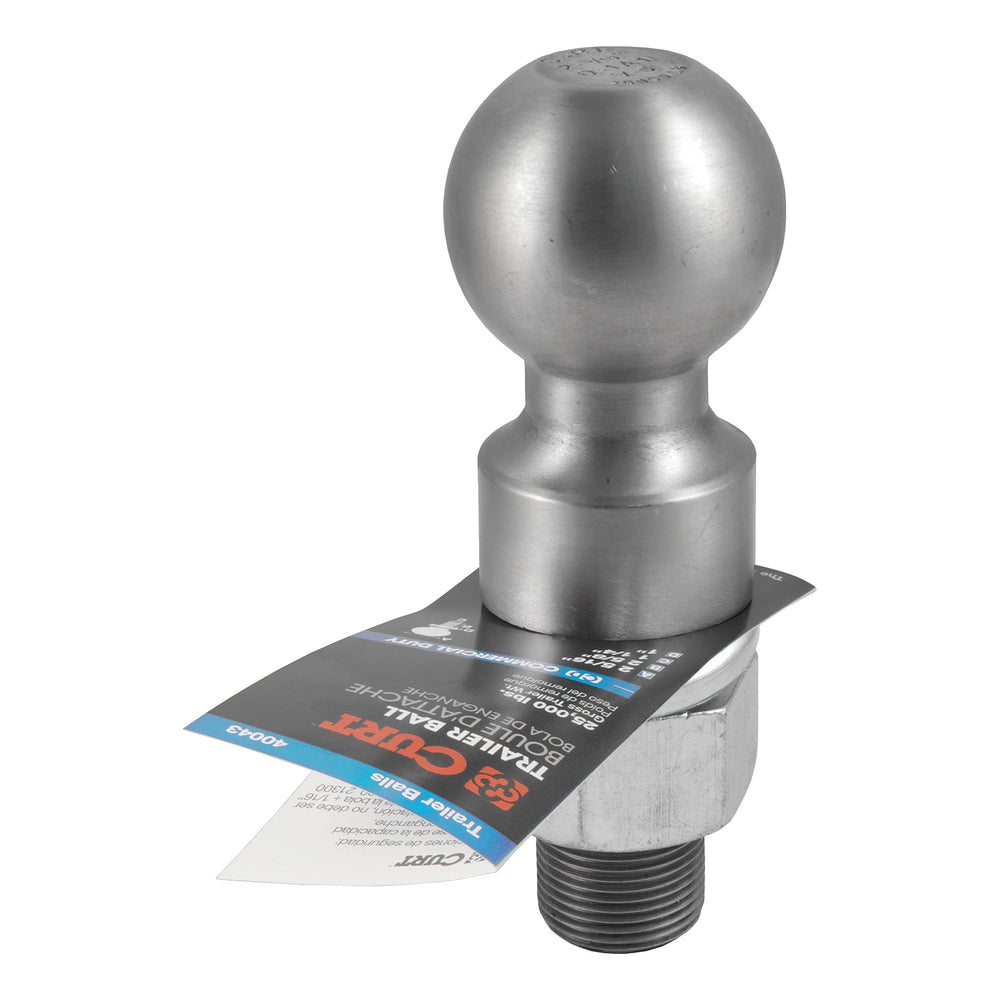

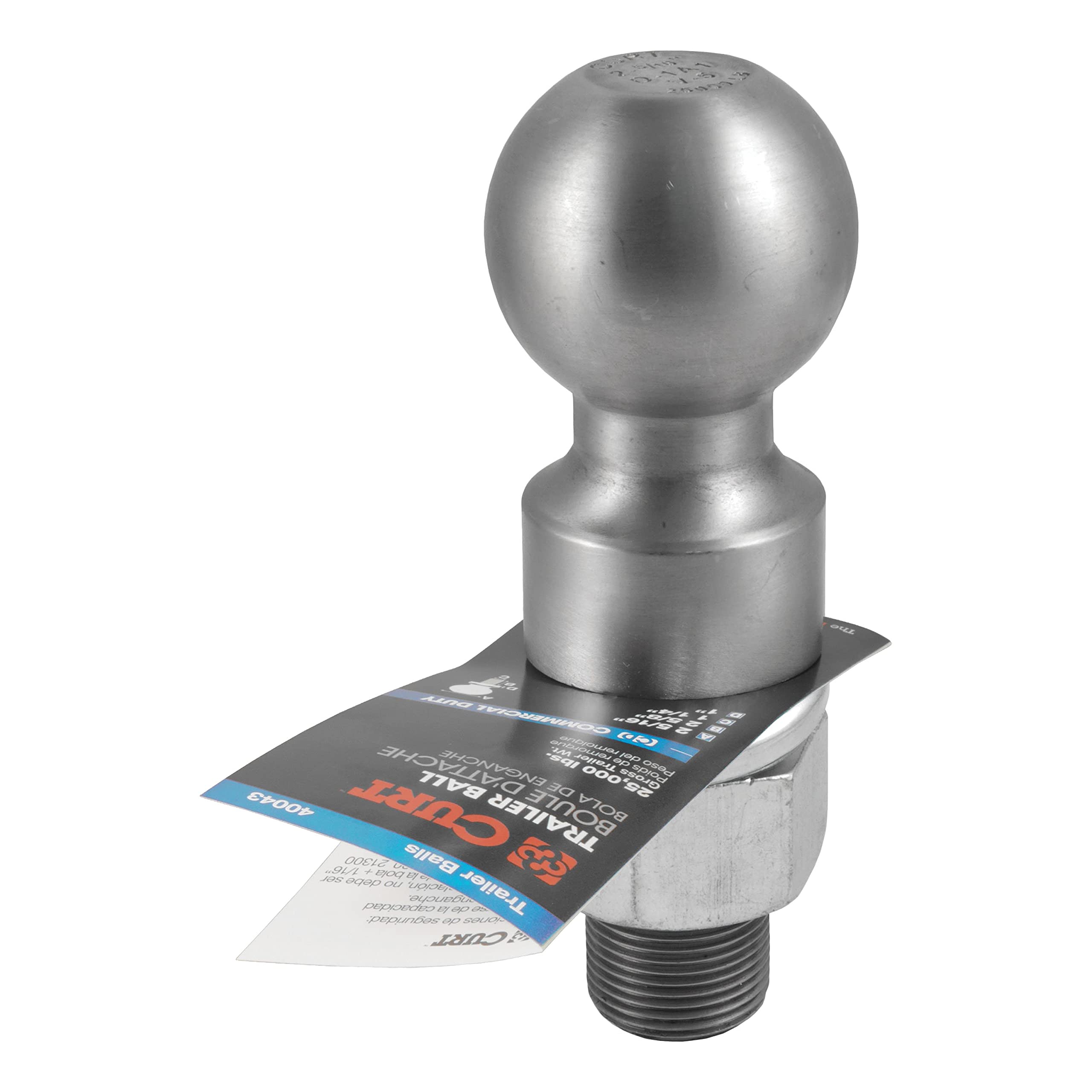

CURT 40086 installed on a trailer demonstrates rugged outdoor durability.
CURT 40086 raw steel trailer ball body for heavy towing durability.
CURT 40086 raw steel trailer ball shank detail ensures secure hitch connection.
CURT 40086 hardware with nut and lock washer supports secure installation.
CURT 40086 installed on a trailer demonstrates rugged outdoor durability.

CURT 40086 Raw Steel Trailer Hitch Ball - 25,000 lbs, 2-5/16 Diameter, 1-1/4 x 2-5/8 Shank

Overview The CURT 40086 raw steel trailer ball is built for demanding towing tasks with confidence. With...
Vendor: CURT
Availability: In stock
£63.75
£63.75
Please hurry! Only 5 left in stock
Subtotal: £63.75
10 customers are viewing this product

Free UK Delivery on All Orders

No Minimum Spend Fast & Reliable Delivery Ships Across the UK

Free Returns

30-Day Free Returns
CURT 40086 raw steel trailer ball body for heavy towing durability.

CURT 40086 Raw Steel Trailer Hitch Ball - 25,000 lbs, 2-5/16 Diameter, 1-1/4 x 2-5/8 Shank

£63.75
CURT 40086 raw steel trailer ball body for heavy towing durability.
CURT 40086 raw steel trailer ball shank detail ensures secure hitch connection.
CURT 40086 hardware with nut and lock washer supports secure installation.
CURT 40086 installed on a trailer demonstrates rugged outdoor durability.

CURT 40086 Raw Steel Trailer Hitch Ball - 25,000 lbs, 2-5/16 Diameter, 1-1/4 x 2-5/8 Shank

£63.75
Description
Description
x

Overview

The CURT 40086 raw steel trailer ball is built for demanding towing tasks with confidence. With a capacity of up to 25,000 pounds gross trailer weight, it pairs with compatible class 5 hitch hardware to support a wide range of heavy trailers—from dump trailers to deluxe RVs.

Strength you can feel

  • Hot-forged steel and a heat-treated finish deliver enduring towing strength while the raw steel surface resists the elements.
  • Rigorous testing and quality standards help ensure reliable performance on the road.

Precise fit and secure attachment

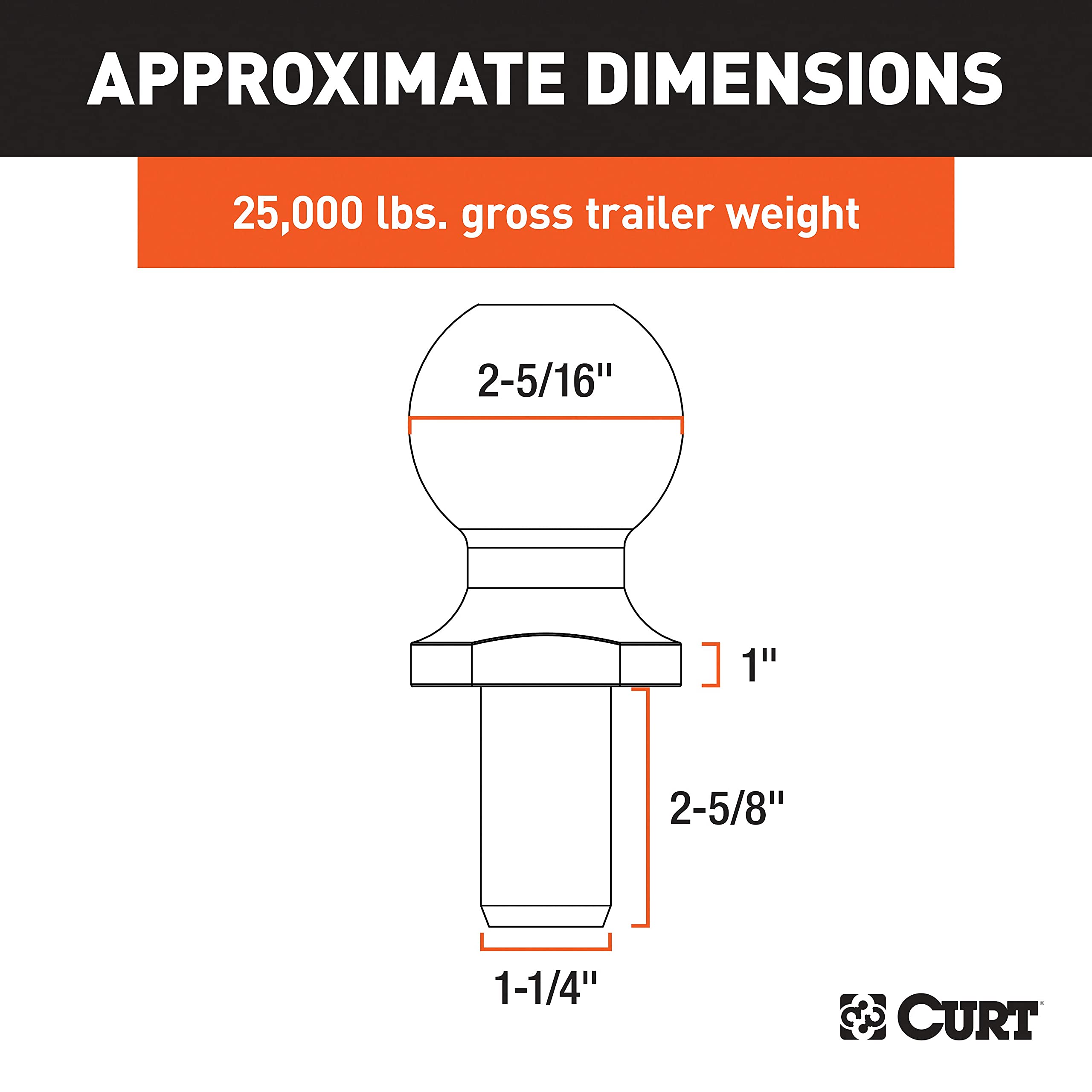

The ball features a 2-5/16-inch diameter to fit most 2-5/16-inch couplers. The shank is 1-1/4 inches in diameter and 2-5/8 inches long, with a 1-inch rise for a proper tow profile.

  • Includes a zinc-plated hex nut and a helical lock washer for dependable installation.
  • Fine threads and a typical installation torque around 450 ft-lbs provide a secure hold on the hitch.

Safety and compatibility

This CURT tow ball is tested to meet safety standards and designed to work with your existing mounting hardware. Always observe the weight rating of the entire towing system and never exceed the lowest rated component.

Real-world use cases

Ideal for heavy receiver-style trailers, including dump trailers, toy haulers, farm trailers, chopper boxes, dual-axle utility trailers, deluxe RVs, and even some yachts. The 25,000 lb capacity supports sizable or demanding loads while maintaining versatility.

Installation and maintenance tips

For secure towing, follow the recommended torque, ensure proper fit, and periodically inspect the ball for wear or corrosion. Re-torque as needed according to your hitch manufacturer's guidelines.

FAQ

Q: What is the weight capacity of the CURT 40086 trailer ball?

A: Rated up to 25,000 pounds gross trailer weight for compatible towing setups.

Q: What hardware and compatibility are included with CURT 40086?

A: Fits most 2-5/16-inch couplers; includes a zinc-plated nut and helical lock washer for secure installation.
