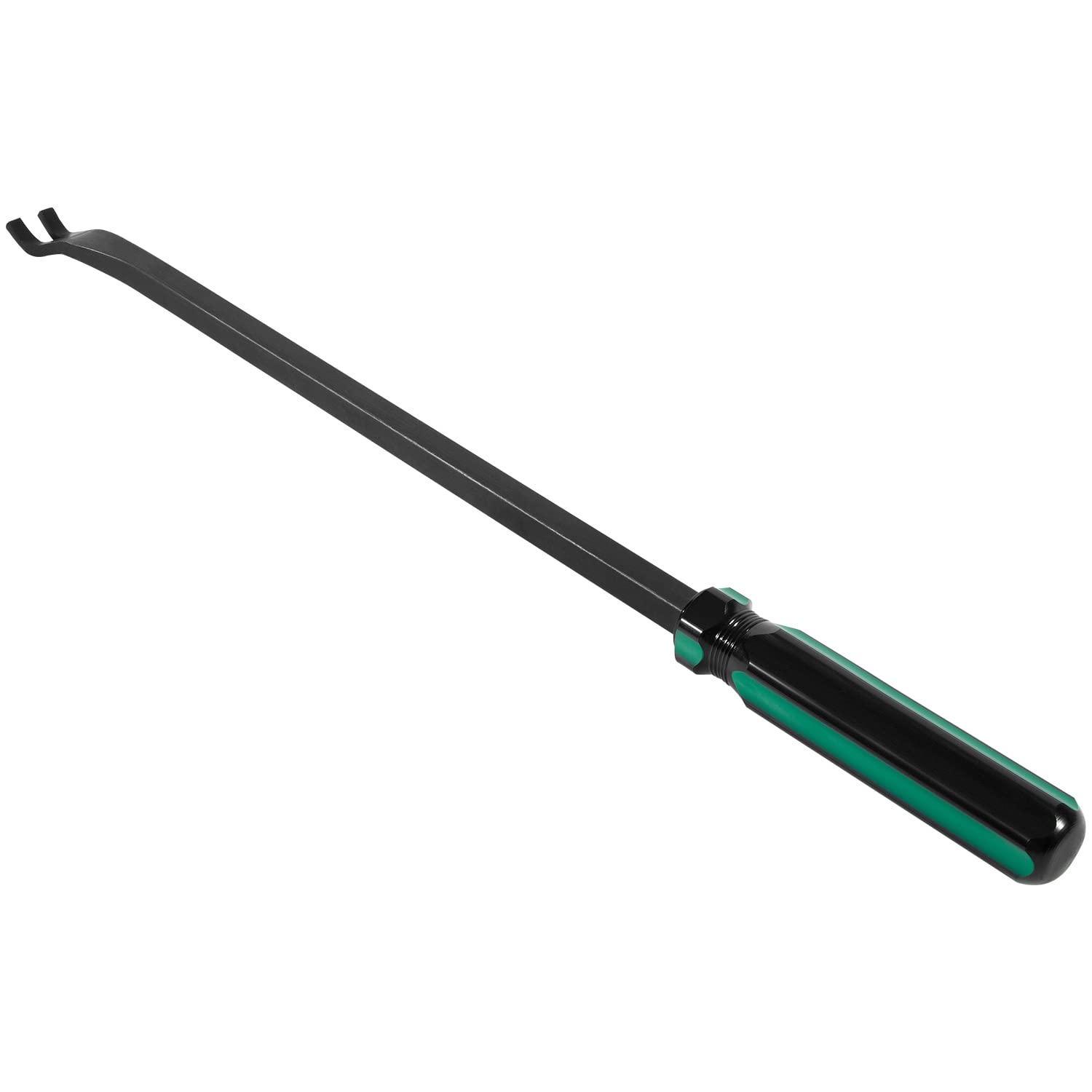

E-cowlboy BT-105SPT Brake Return Spring Tool for Trucks & Trailers

Overview

The E-cowlboy BT-105SPT Brake Return Spring Tool is purpose-built for heavy-duty brake work on commercial trucks and trailers. Its unique cup design keeps the return spring in place, reducing the risk of slips and injuries while you work. The tool is designed to help technicians install and remove return springs quickly and with confident control, so routine brake service can feel more predictable in a busy shop or on the road.

Durability and a thoughtful design come together in a tool that feels solid in hand. The black powder-coated steel resists oxidation, while the extended handle offers steady leverage for precise engagement. When you open the hood, you’re holding a tool that’s built to handle repeated use in demanding environments without wobble or fatigue.

Key benefits

• Durable steel construction with a black powder coating resists rust and stands up to daily shop use.

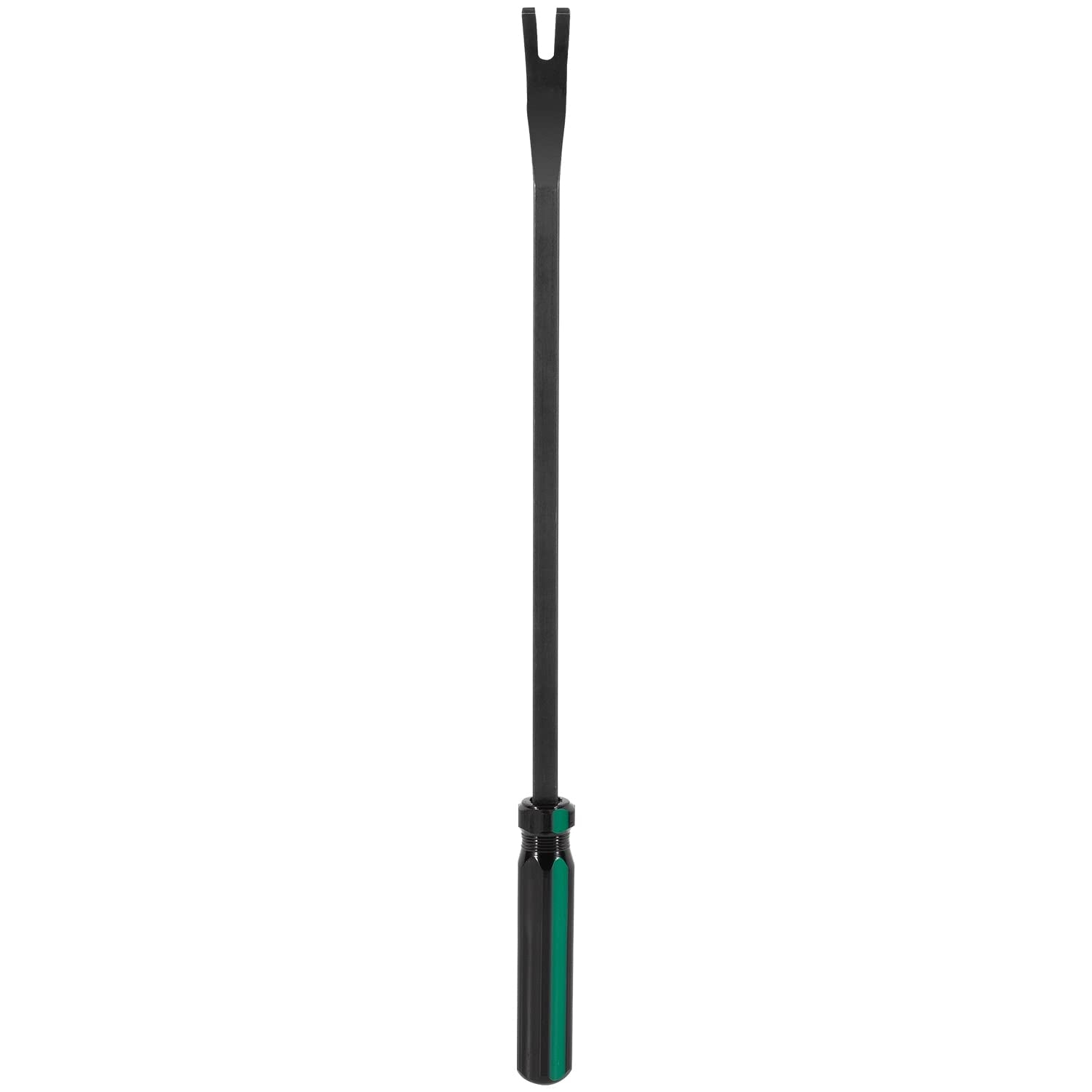

• Long, comfortable handle provides leverage for precise placement and less hand fatigue.
• Special cup geometry captures the spring, preventing it from slipping during handling and installation.
• Not a general-purpose pry bar—this is a focused tool that supports safe cam-driven brake spring work.

How it works in your shop

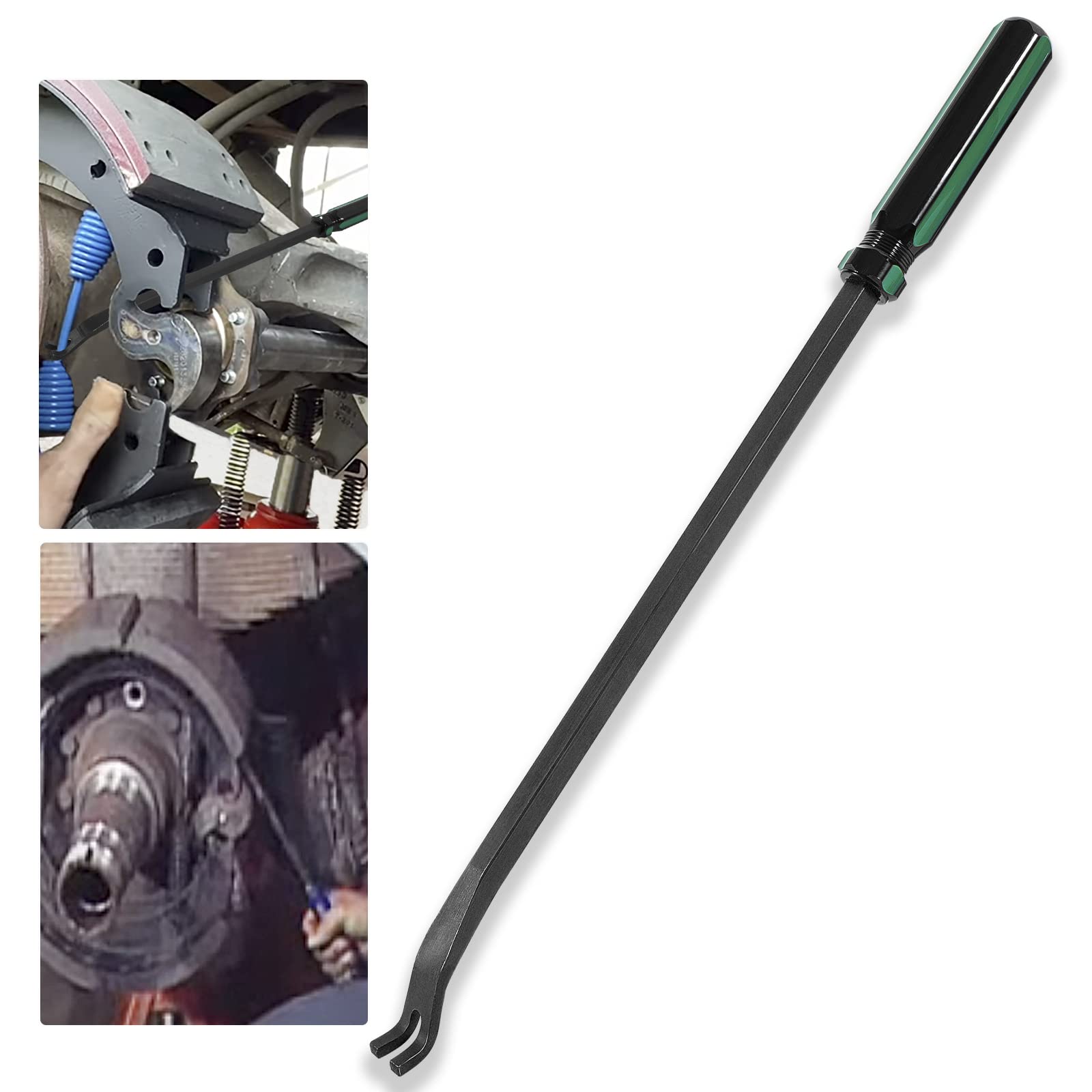

In practice, you rotate the S cam to seat the rollers in the lowest position, then slide the tool between the shoe webs over the top roller. The top of the return spring hooks below the upper coil, and a controlled pull on the handle completes the transfer to the pin. The sequence is designed to be quick and repeatable, helping technicians keep fleets on schedule.

• Install both roller and roller retainers in both shoes, then add the return spring pins if required.
• Hang anchor springs from the top shoe, then attach the lower shoe with the springs and rotate into position.
• Install the return spring on the lower shoe with the upper spring opening facing the roller.
• Slide the tool between the shoe webs over the top roller and hook the spring below the upper coil.
• Push down on the handle and hook the spring over the pin by pulling back or pushing forward as needed.

Care and notes

Machined from quality steel and finished with a corrosion-resistant coating, the BT-105SPT is built for durability in shop and field settings. A note: this is a specialized tool, not a general-purpose pry bar. To avoid damage, follow the cam movement guidance and release the pawl as directed before rotating the cam backwards.

Who benefits

Fleet technicians, mobile brake service teams, and shop crews responsible for trailer brakes may find this tool speeds routine maintenance while keeping the process controlled and predictable. It’s designed to be a trusted companion for those who value consistent, repeatable results in demanding environments.
