EATAKWARD Accumulator Piston Kit for 4L60E/4L65E/4L70E – Pinless 1-2 3-4

Overview

The EATAKWARD Accumulator Piston Kit is engineered for GM automatic transmissions in the 4L60E, 4L65E, and 4L70E families. It replaces older parts (77987-01K and 7798-03K) and is designed for the 3-4 accumulator location in 200-4R applications. The pinless design emphasizes stability and precise hydraulic control across cycles, supporting a clean, consistent path for gear engagement.

Why wear happens and how this kit helps

Over time, the accumulator bore can wear at the piston pin bore interface from repeated movement. When wear becomes significant, fluid flow can stumble, and pump volume may drop. The kit features a pinless piston and extended length to minimize bore leakage, stabilize piston position, and preserve hydraulic volume through thousands of cycles. This combination aims to keep forward clutch engagement predictable without altering the original design intent.

Highlights and benefits

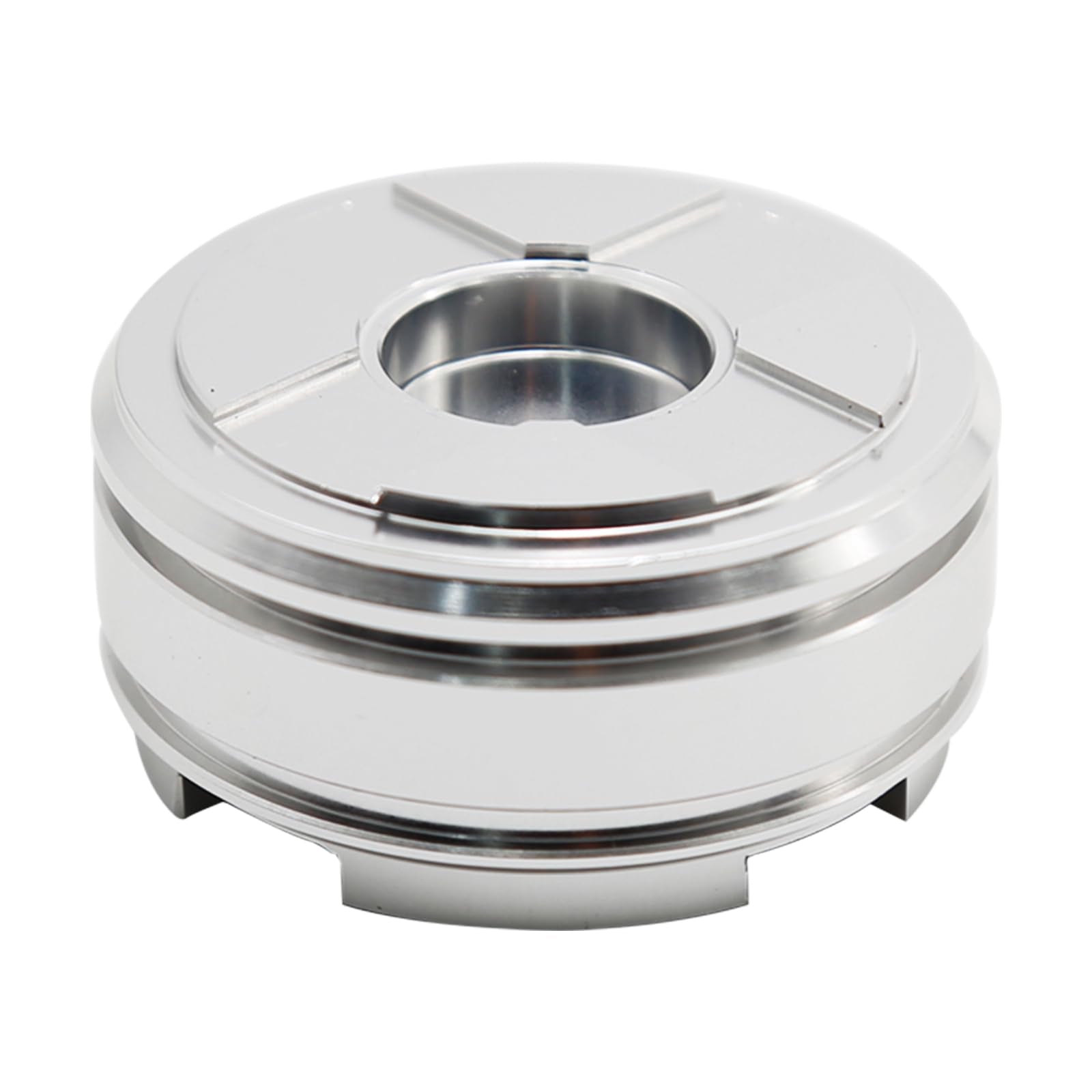

• Pinless design reduces leakage risk and maintains piston alignment over time.

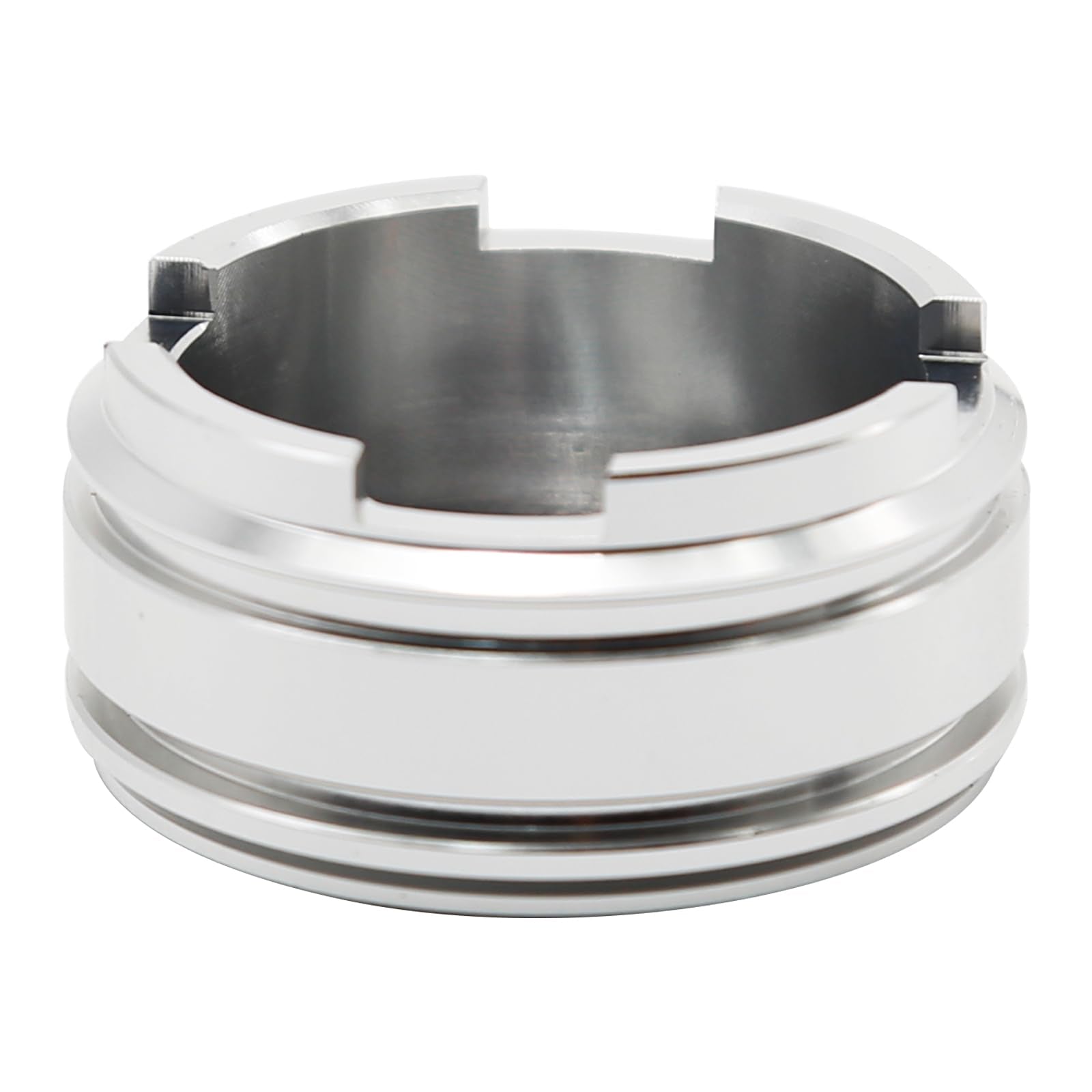

• Dual seals create a robust bore seal, helping retain hydraulic volume as the piston cycles.

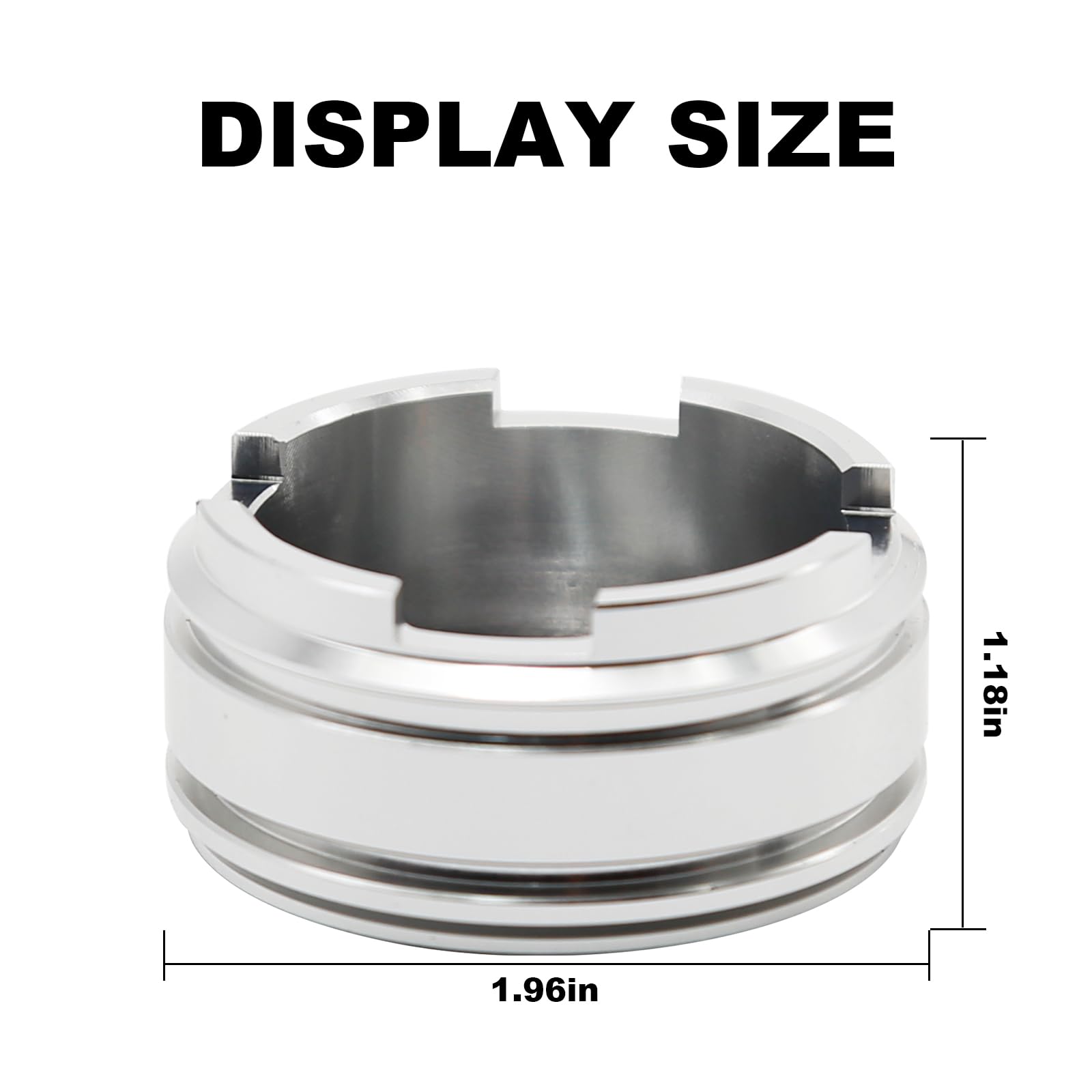

• Extended piston length aids stability and reduces the chance of piston cocking during operation.

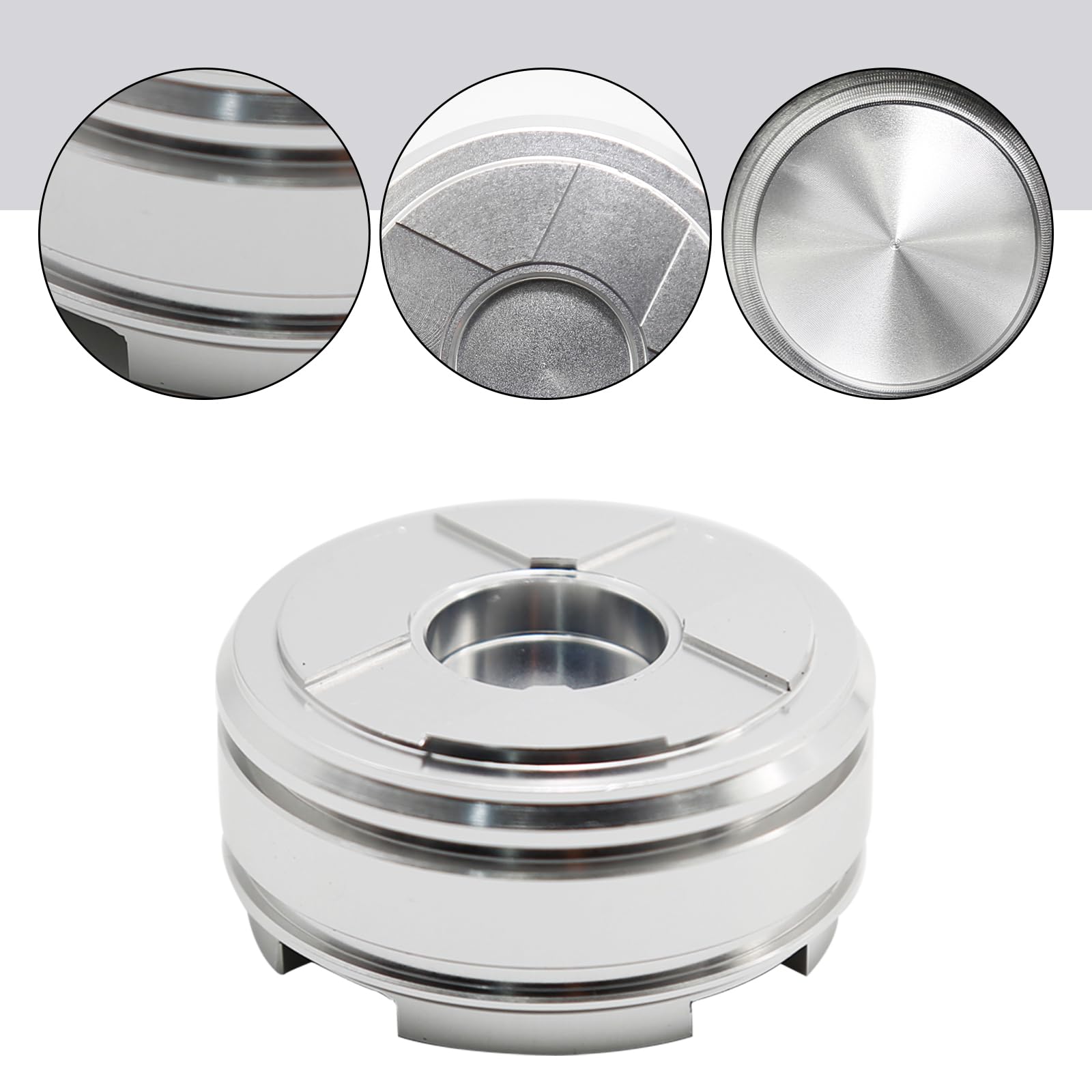

• Broad compatibility across 4L60E, 4L65E, and 4L70E transmissions supports multiple GM platforms.
• Includes essential components for a complete replacement in the specified accumulator locations.

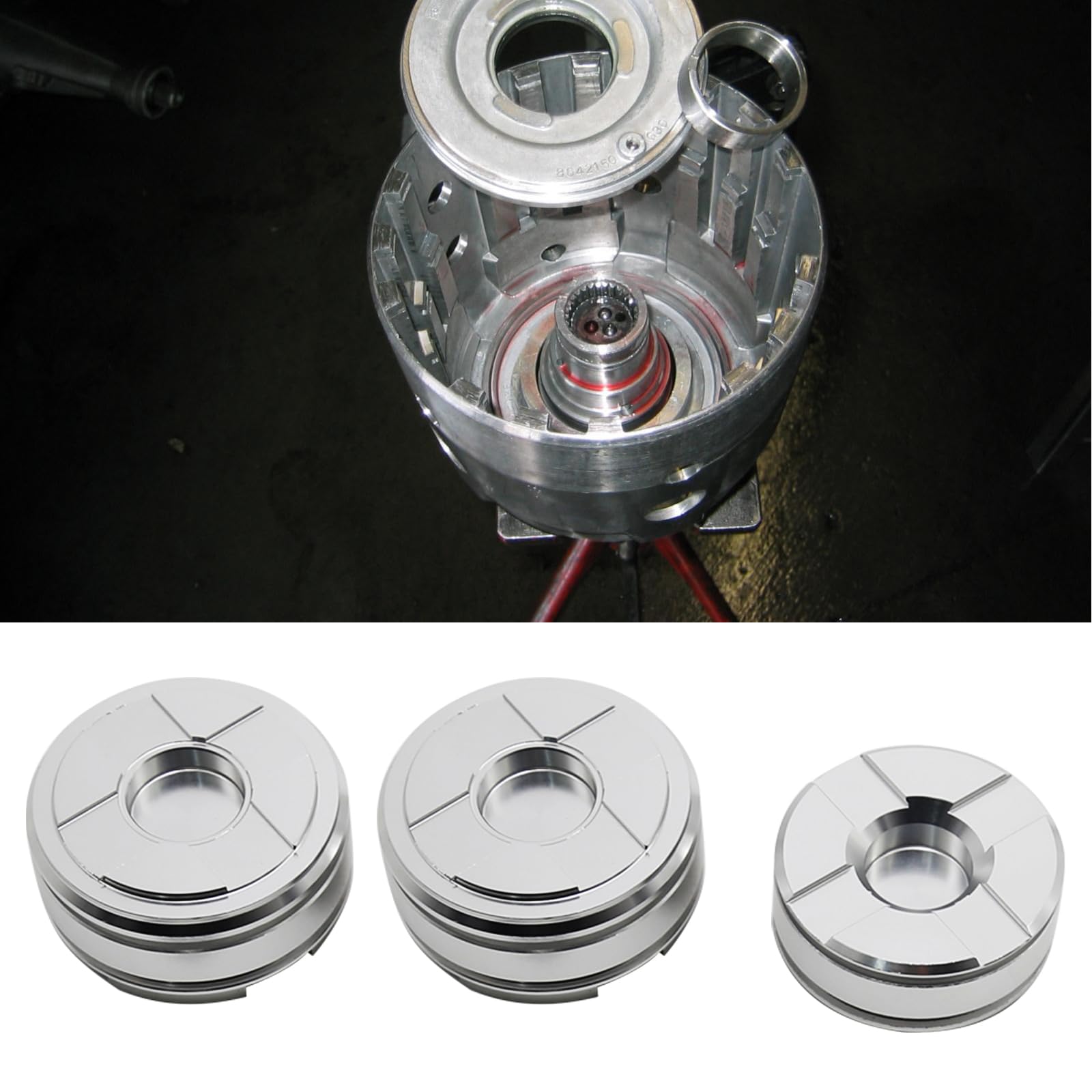

Practical use and driver experience

In daily driving, you may notice more consistent engagement and smoother shifts, especially when moving between gears under load or during highway transitions. Individual results vary with vehicle condition and driving style; no guarantees are implied.

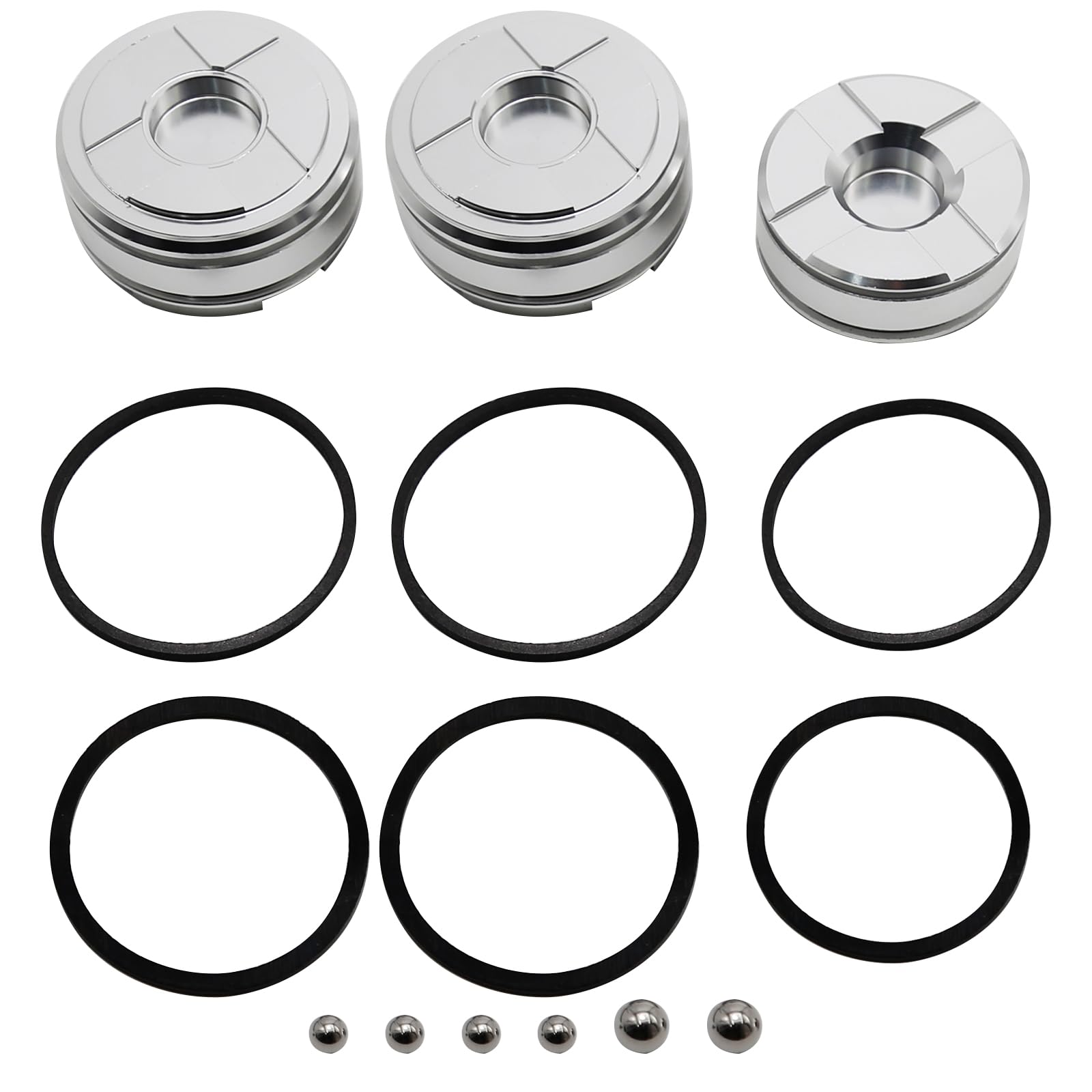

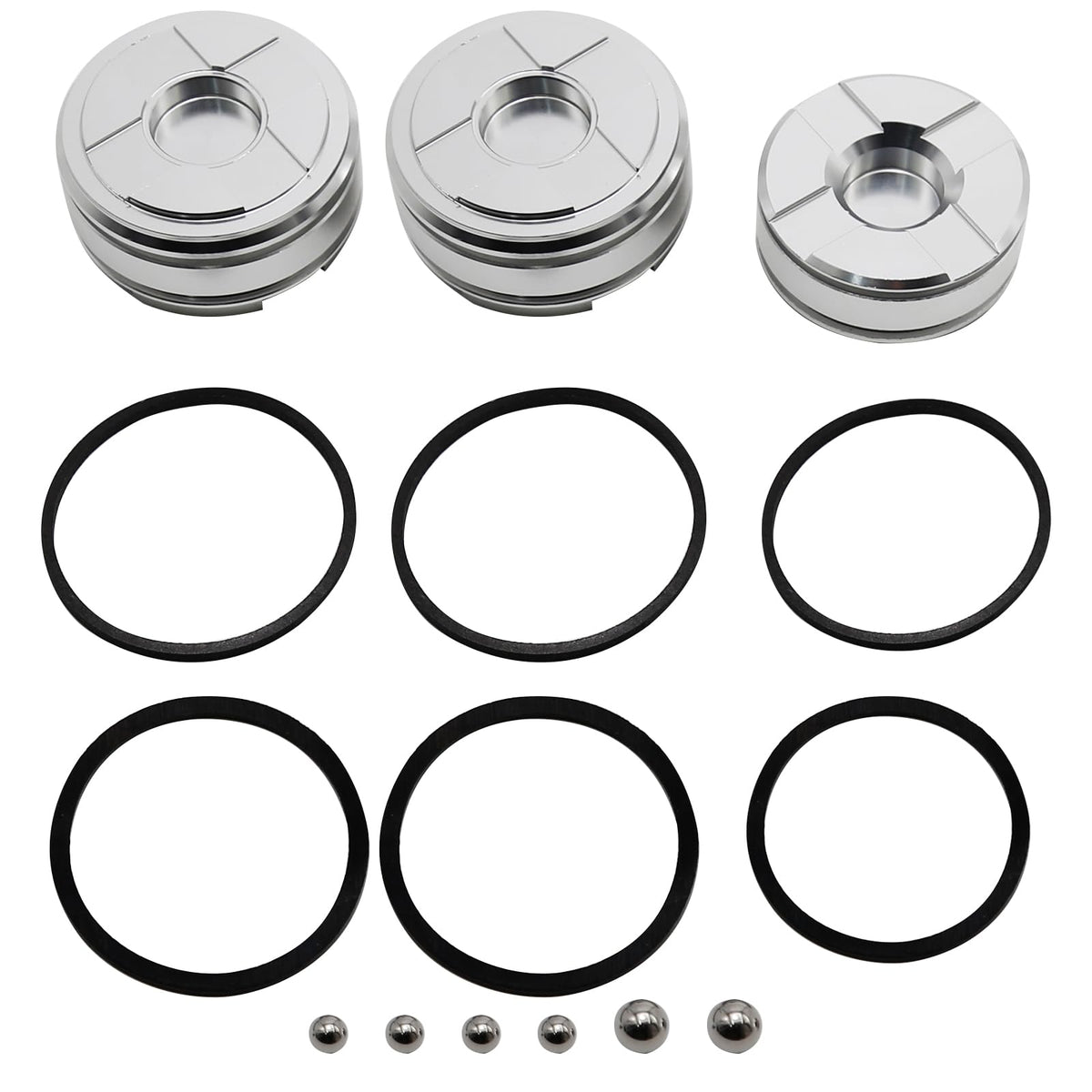

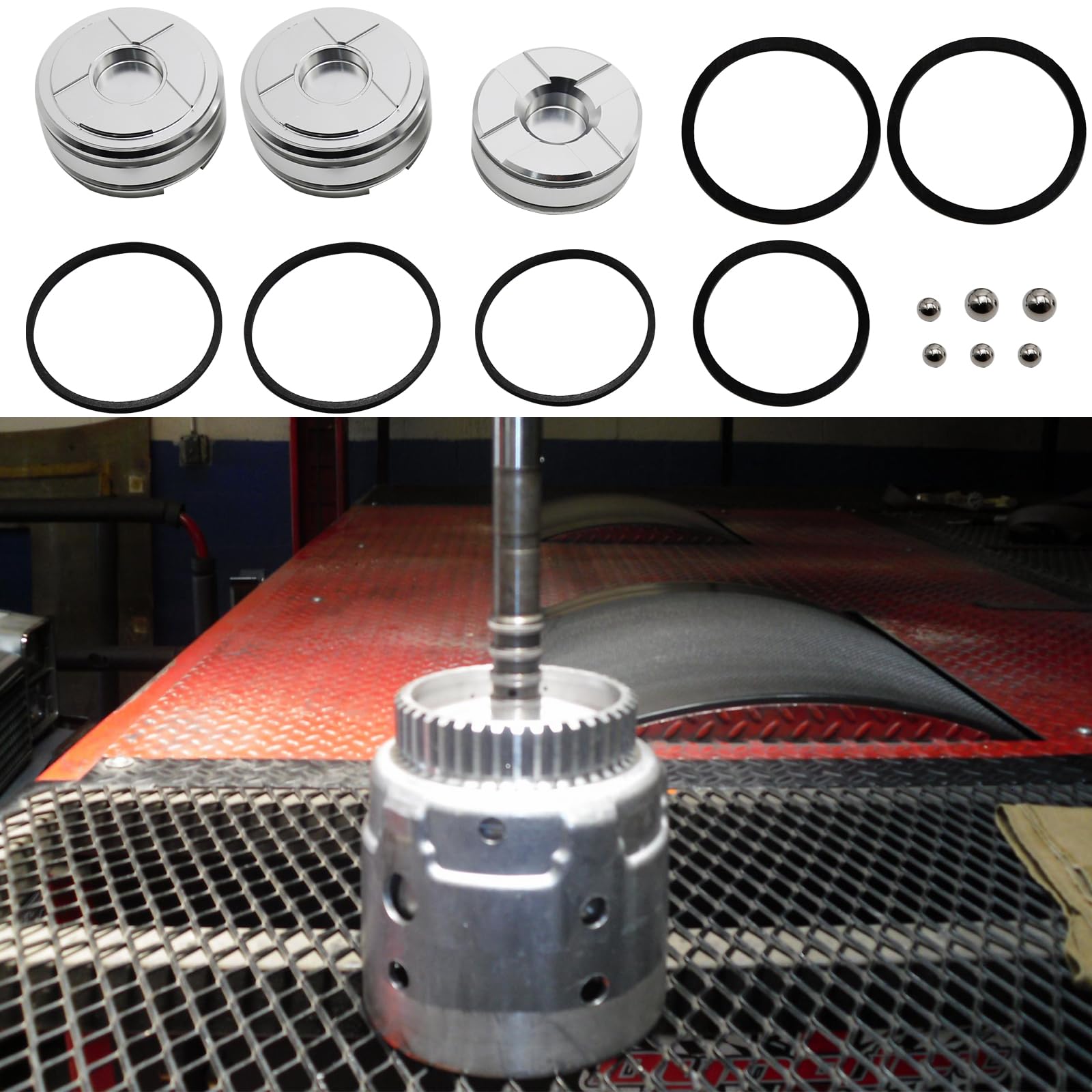

Contents and installation notes

• Pinless piston with dual seals and steel balls to plug existing pin bores as required by the design.
• Replacement for part numbers 77987-01K and 7798-03K (2PC) in the appropriate accumulators.
• Designed for straightforward installation with standard tools used for this transmission family.

Choosing this kit emphasizes bore integrity and consistent hydraulic response, preserving the intended accumulator function across many miles of use.
