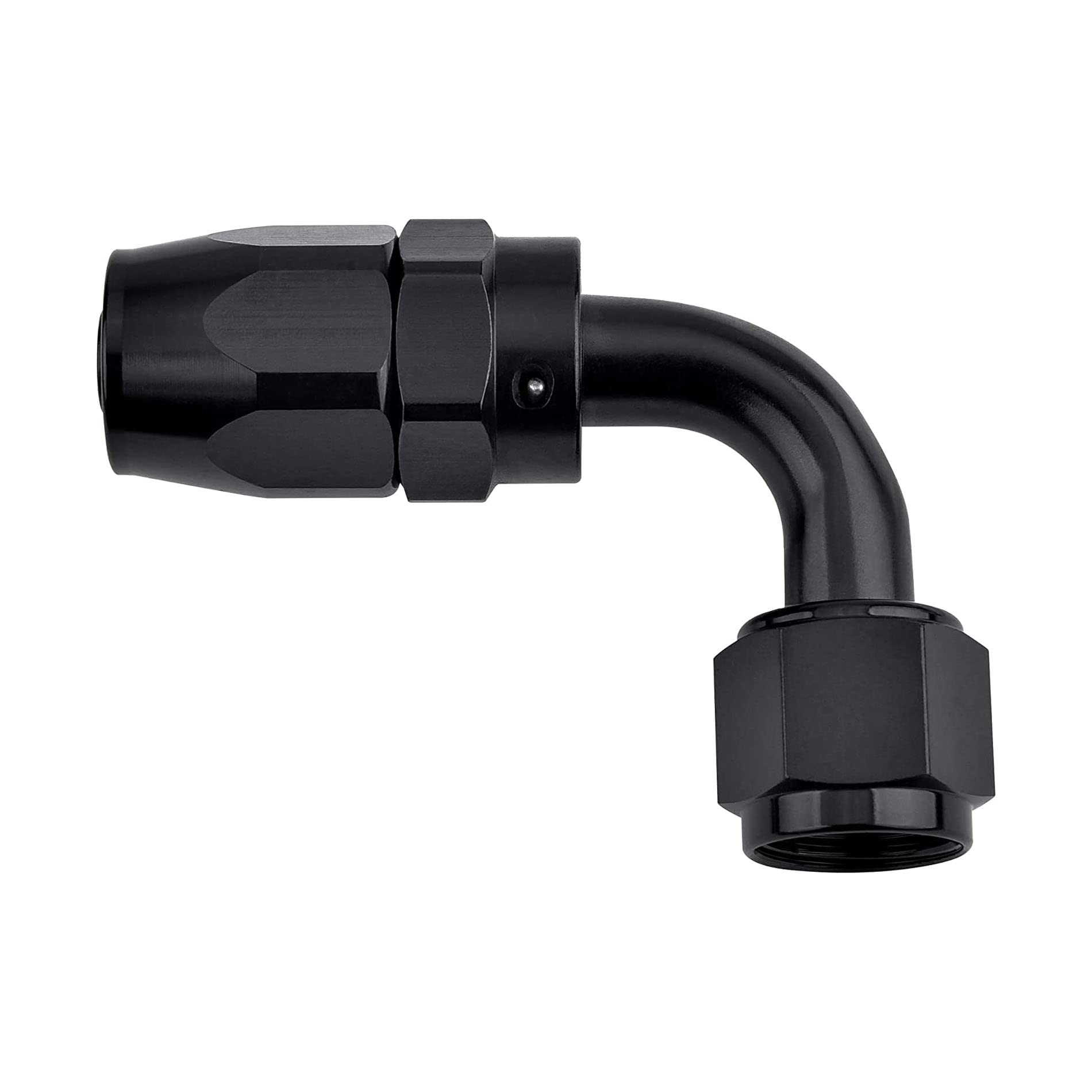

EVIL ENERGY 10AN Hose End Fitting 90° Swivel for CPE Braided Hose – Black

Overview

Meet EVIL ENERGY's 10AN hose-end fitting with a 90-degree swivel, designed to pair with CPE braided hoses in automotive and performance environments. The compact aluminum body keeps lines tidy, while the 7/8-14 UNF thread provides a familiar, secure mounting option. The AN side is sealed at a 37-degree angle to help align the hose end during installation, reducing guesswork when you’re fitting lines in tight spaces.

Key benefits

• 360° swivel joint for flexible routing and easier assembly in cramped engine bays
• Sealed AN side at 37 degrees helps with confident sealing and alignment
• 6061-T6 aluminum alloy offers strong, lightweight construction and recyclability
• Reusability and recyclability support sustainable maintenance and upgrades

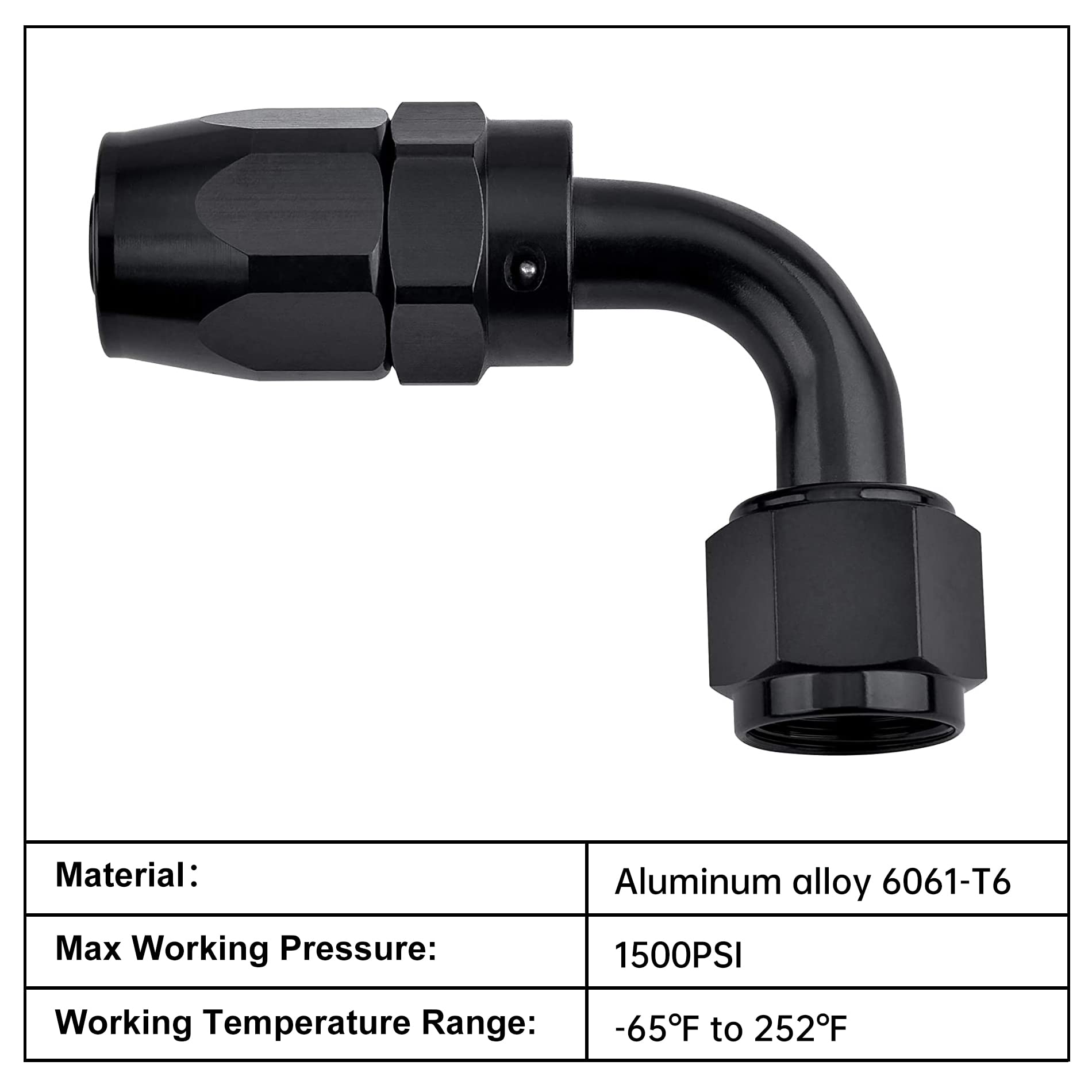

Specifications

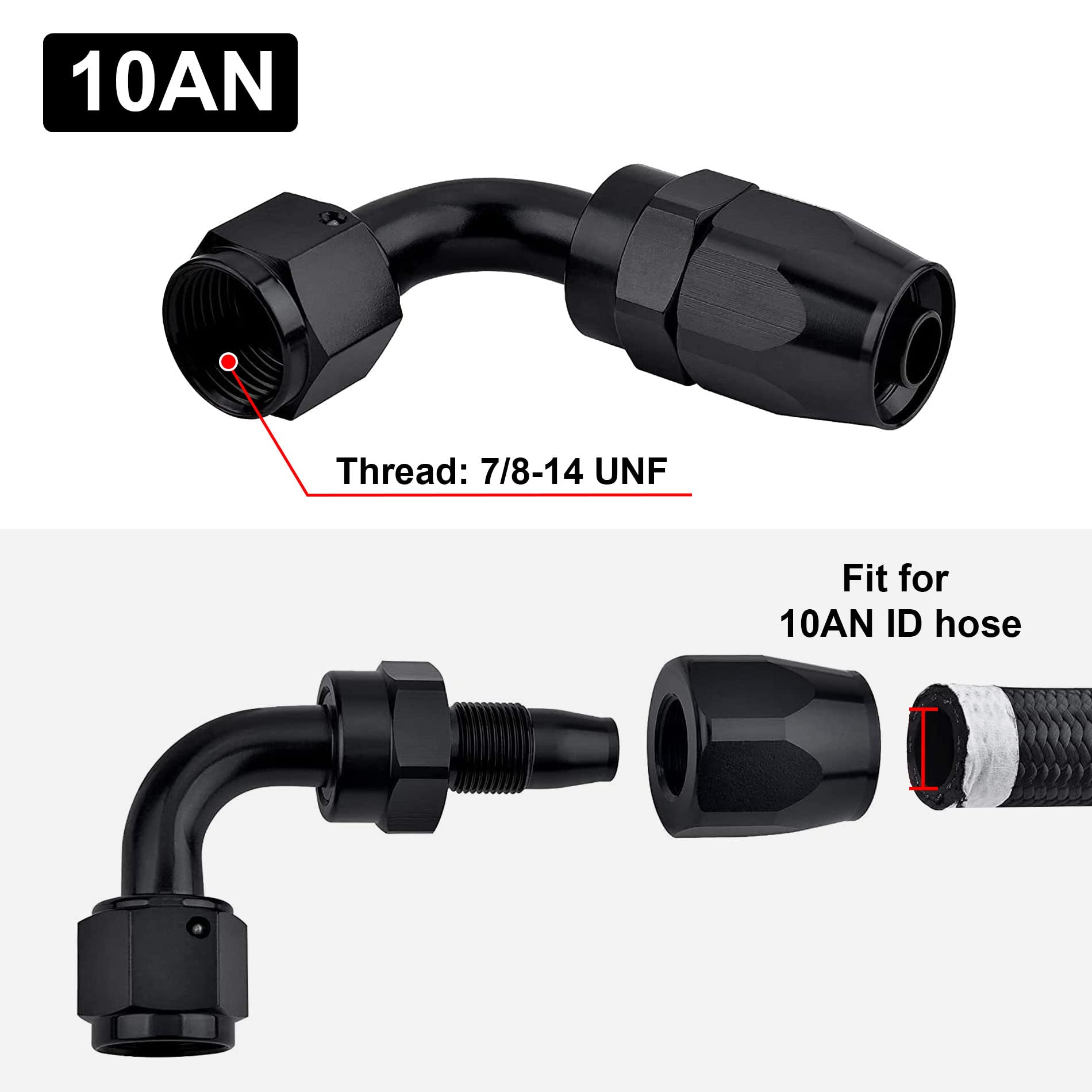

• Thread size: 7/8-14 UNF
• Operating pressure: up to 1,500 PSI
• Temperature range: -65°F to 252°F (-53°C to 122°C)
• Material: 6061-T6 aluminum alloy
• Compatibility: works with stainless steel braided and nylon braided hoses

Material and build

The 10AN 90-degree fitting is built from a corrosion-resistant aluminum alloy, chosen for strength under high pressure while staying relatively light. The design emphasizes reusability and straightforward disassembly for maintenance or upgrades.

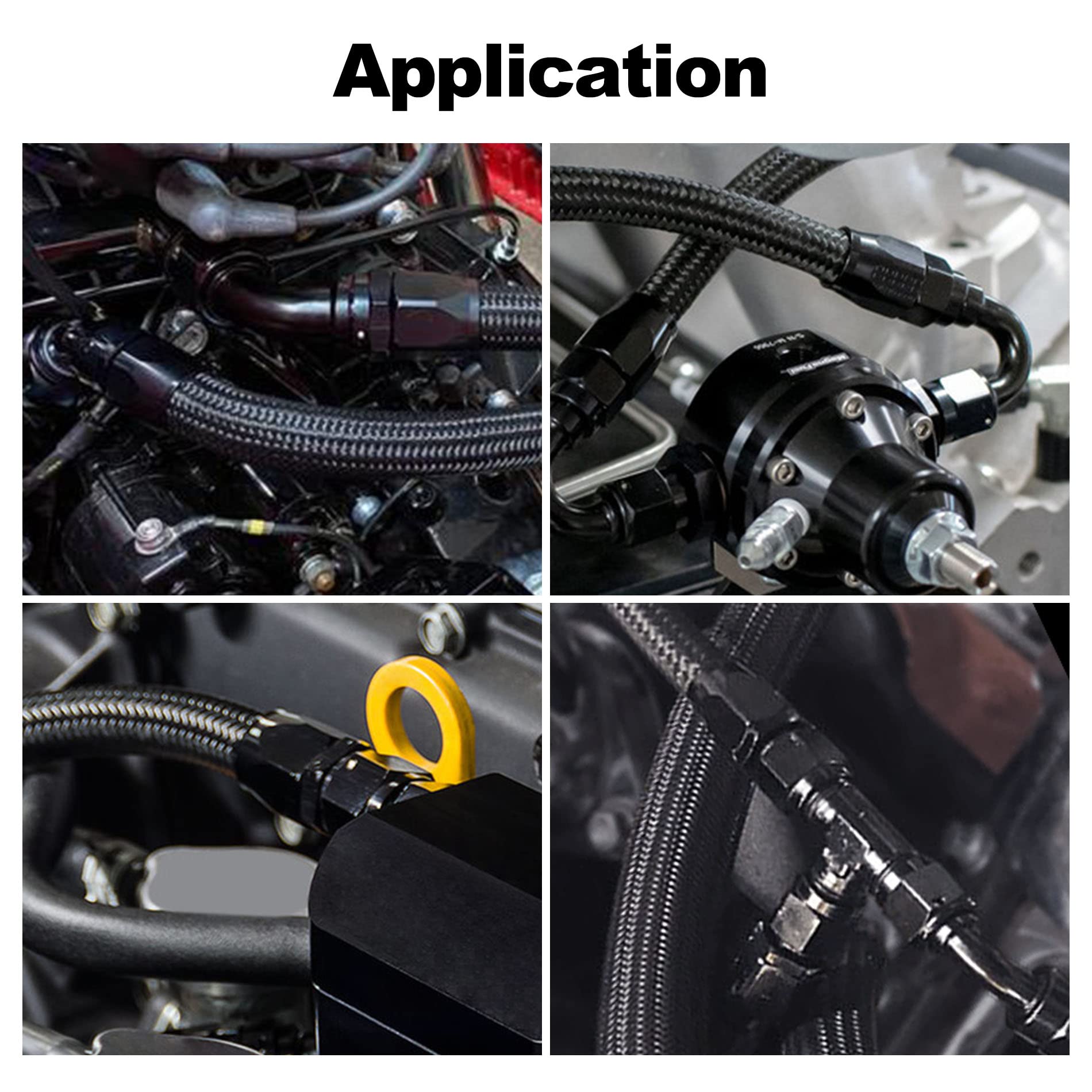

Applications and installation tips

• Ideal for automotive builds, turbo kits, or performance upgrades where space is tight
• Ensure hose compatibility before installation and follow standard tightening practices to avoid cross-threading
• Keep spare O-rings or seals on hand for quick service during upgrades

Note: This fitting is designed to work with compatible braided hoses. Always confirm the hose style and compatibility with your hardware before purchasing or installing.
