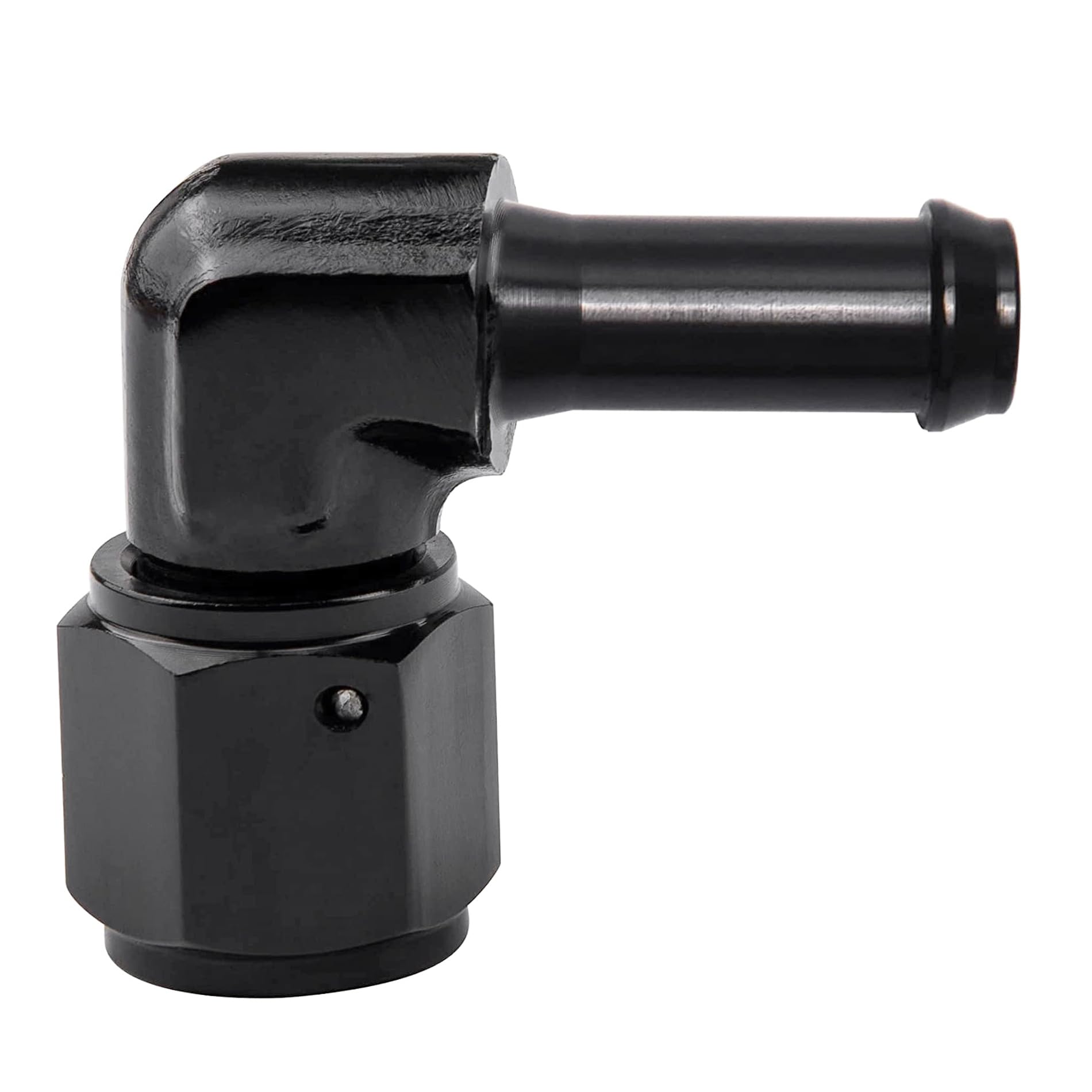

EVIL ENERGY 6AN Female to 5/16 Barb Hose Fitting 90 Degree Swivel

Overview

The EVIL ENERGY 6AN Female to 5/16 Barb Hose Fitting with a 90-degree swivel is a compact, dependable connector designed for tight hose runs and versatile angles. Crafted for automotive, marine, and industrial uses, this fitting blends precision machining, durable materials, and user-friendly features into a single, package-friendly component. It’s built to perform consistently in challenging environments, helping you build reliable hose assemblies without adding unnecessary bulk.

Why this fitting stands out

• Compact profile with a 90-degree swivel that eases routing in restricted spaces.
• Solid, lightweight construction that won’t add excessive mass to sensitive lines.
• Reputable 6AN thread and 5/16 inch barb enable a straightforward hose pairing.
• Precision flare seating and robust materials contribute to long-waste resistance and service life.

Key specifications at a glance

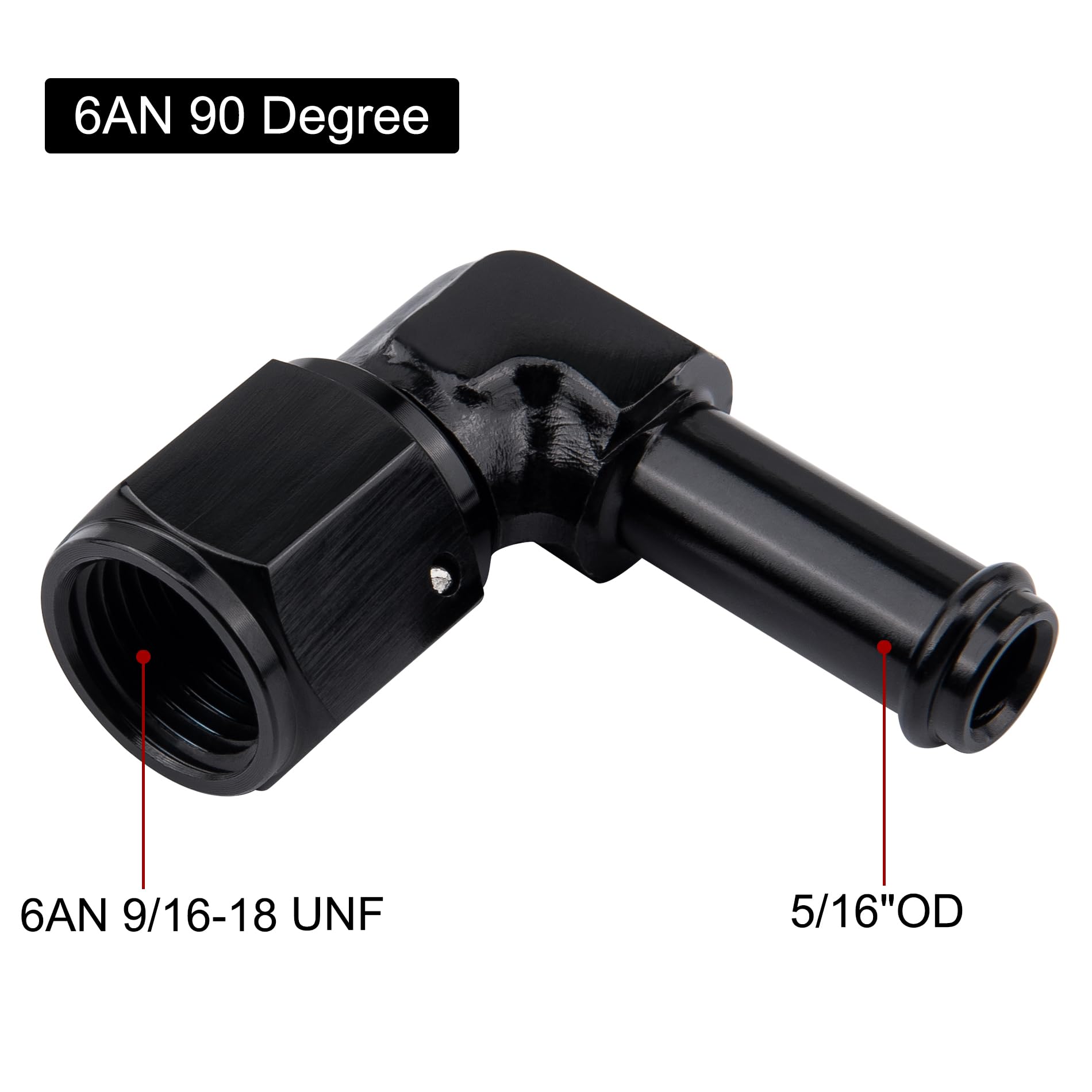

• Thread size: 6AN (9/16-18 UNF); barb OD: 5/16 inch, designed for standard hoses.
• Material: aluminum alloy 6061-T6 for strength, lightness, and corrosion resistance.
• Seal: AN side uses a 37-degree flare seating for a stable contact surface.

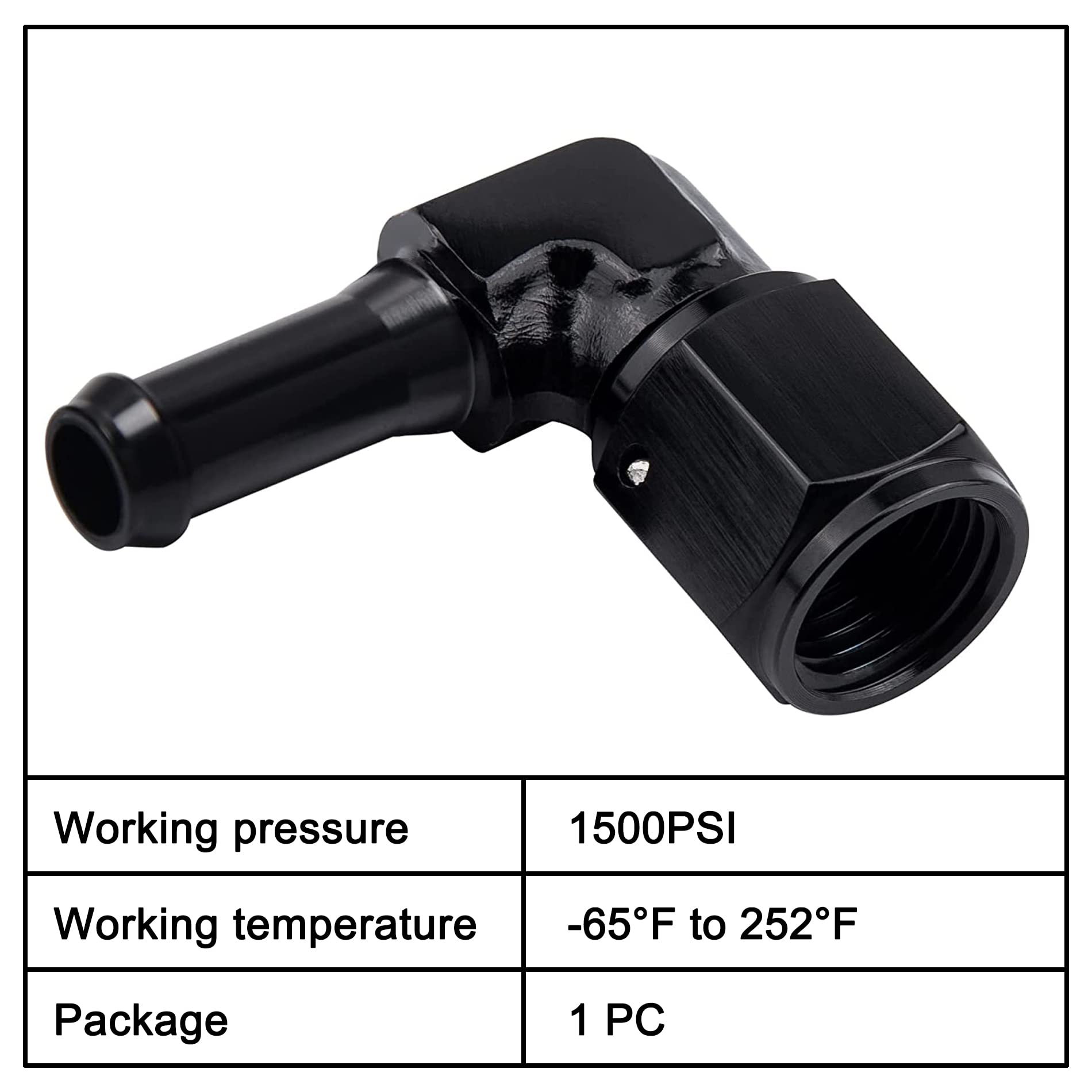

• Operating range: supports up to 1500 PSI and temperatures from -65°F to 252°F.
• Installation note: push the barb into the hose and use a clamp to secure a tight seal.

Design and durability

Machined from premium 6061-T6 aluminum, this fitting offers a balanced combination of stiffness and lightness. Its finish and precision tolerances promote smooth mating with compatible hoses, reducing the risk of misalignment during assembly. The 37-degree flare seat provides a reliable seal point without requiring excessive torque, which helps maintain hose integrity over time.

Compatibility and best practices

Ideal for high-pressure hose runs where a right-angle connection is beneficial. Pair with hoses that match the 5/16 inch barb and ensure clamps are used where recommended to maximize seal reliability. Avoid overtightening clamps, and verify fitment before pressurizing the system.

Installation quick start

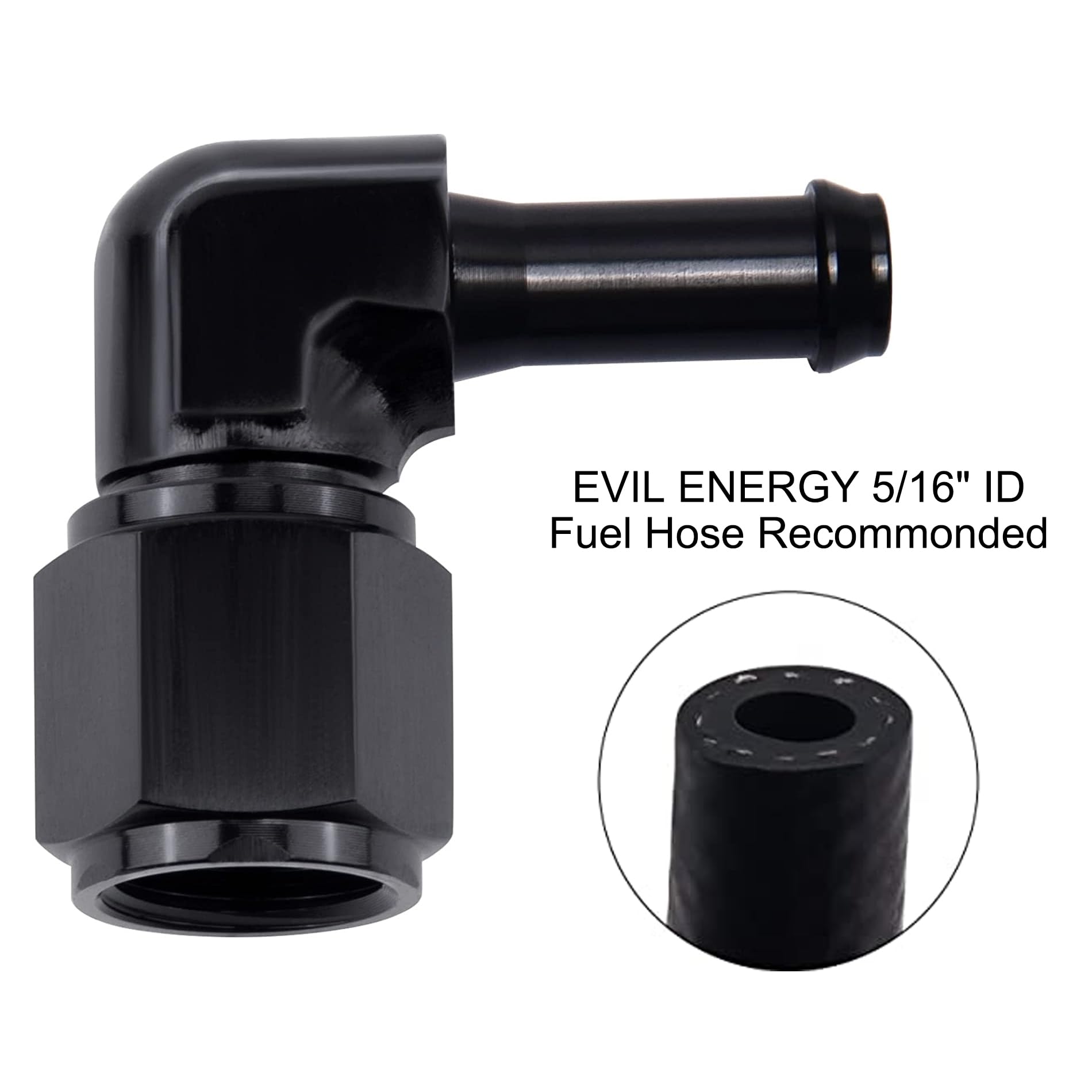

• Choose a hose with an inner diameter that accommodates the 5/16 inch barb.
• Slide a suitable hose clamp onto the hose first.
• Push the barb end into the hose until it seats firmly.
• Position the clamp around the barb and tighten to an appropriate resistance.
• Inspect for leaks after assembly and recheck connections during initial operation.

Real-world use possibilities

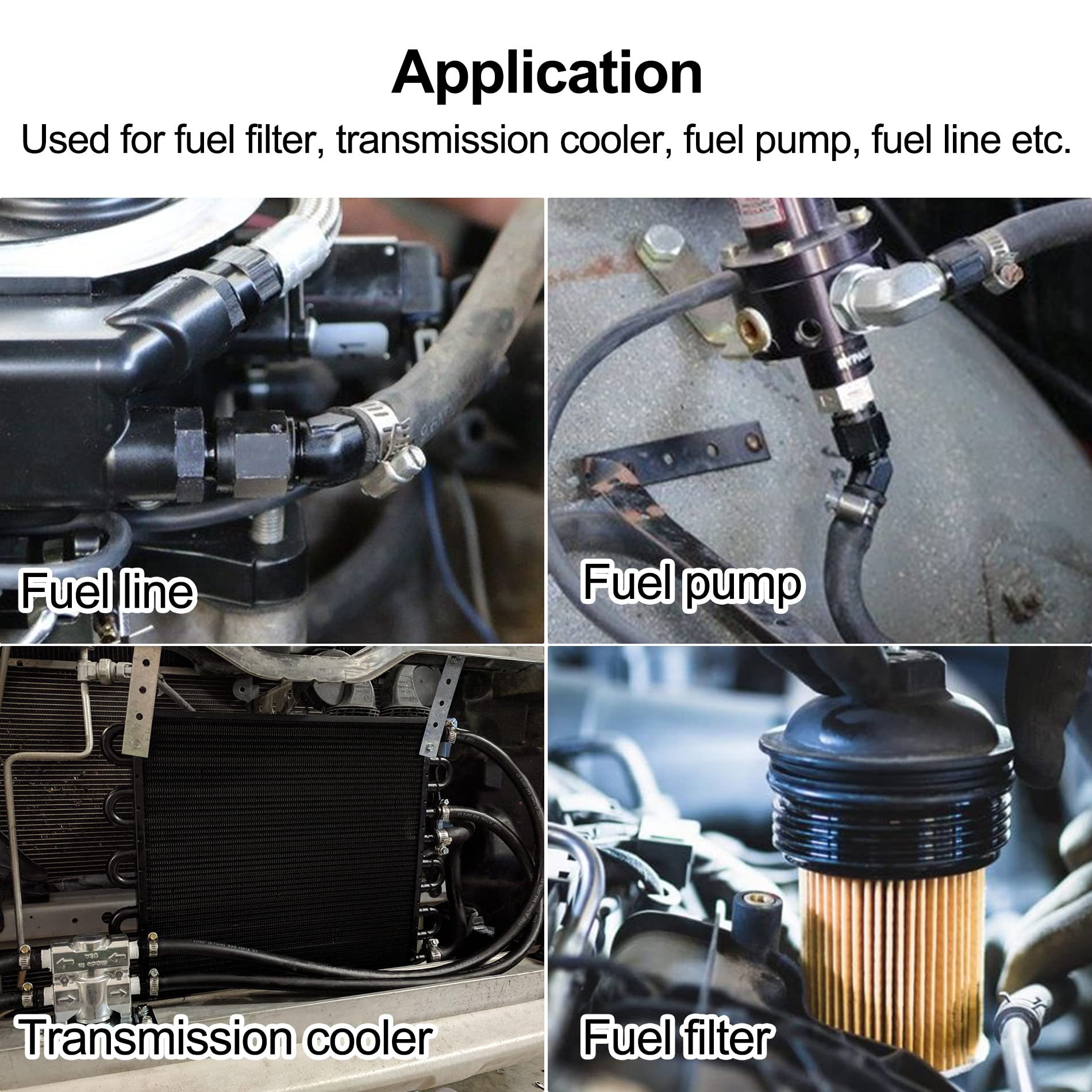

Whether you’re configuring a compact engine bay, re-routing lines in a marine setup, or assembling a rugged industrial hose path, this fitting offers a dependable, space-saving option. Think of it as a versatile link that can adapt to angled routing while maintaining a sturdy connection across a range of temperatures and pressures.

Why choose EVIL ENERGY

EVIL ENERGY focuses on practical, durable fittings designed to support confident custom builds and routine maintenance alike. This 6AN to 5/16 barb connector embodies that approach, delivering clear value through precise machining, robust materials, and a user-friendly installation process.
