EVIL ENERGY 6AN Fuel Line Kit — 16ft Nylon Braided Hose, Black
- £92.11
- £92.11
- Unit price
- per
Couldn't load pickup availability
Free UK Delivery on All Orders
Free Returns
Description
xOverview
Elevate your fluid routing with the EVIL ENERGY 6AN Fuel Line Kit. This 16‑foot, nylon braided hose assembly blends strength and flexibility, designed for high‑pressure, high‑temperature automotive environments and performance builds.

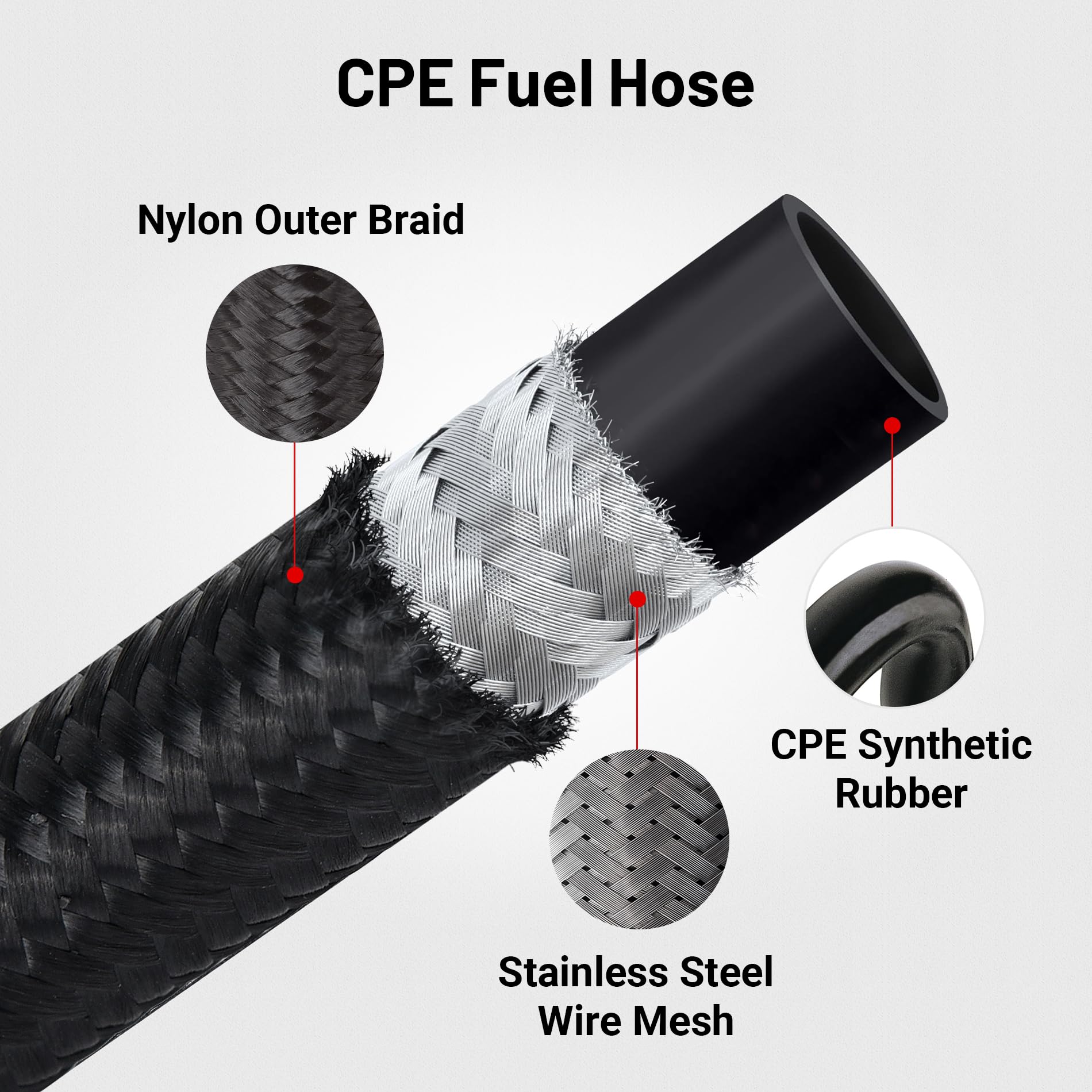

The kit centers on a 6AN braided hose with a CPE rubber core, reinforced by 304 stainless steel wire and finished with a rugged nylon outer braid. This construction helps resist abrasion and wear while remaining pliable enough to snake through tight engine bays.

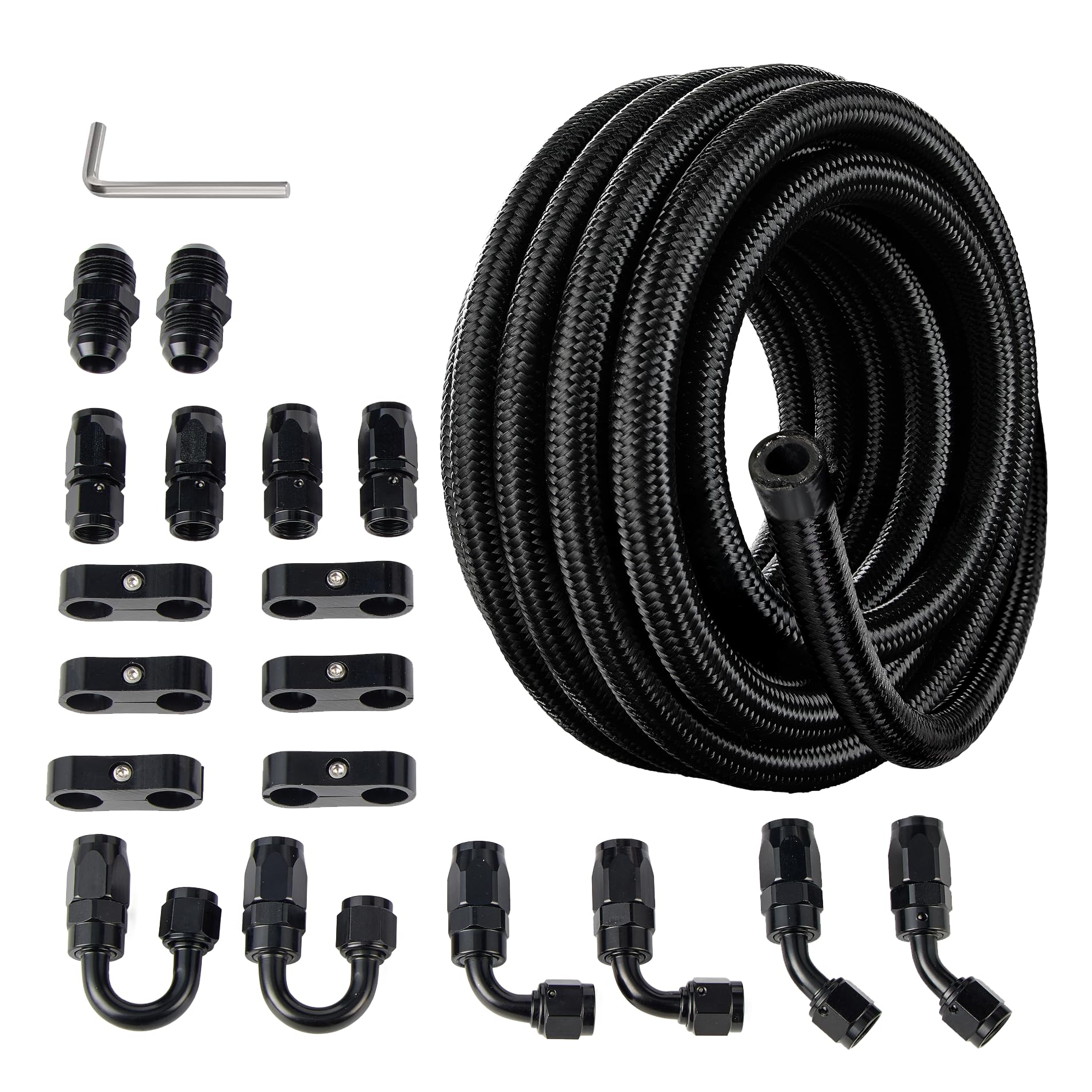

What’s included
- 10 swivel hose ends in multiple angles: 4 straight, 2 at 45°, 2 at 90°, 2 at 180° for versatile routing
- 6 hose separator clamps to keep lines organized and protected
- 2 AN‑to‑6AN adapters for easy compatibility with existing fittings

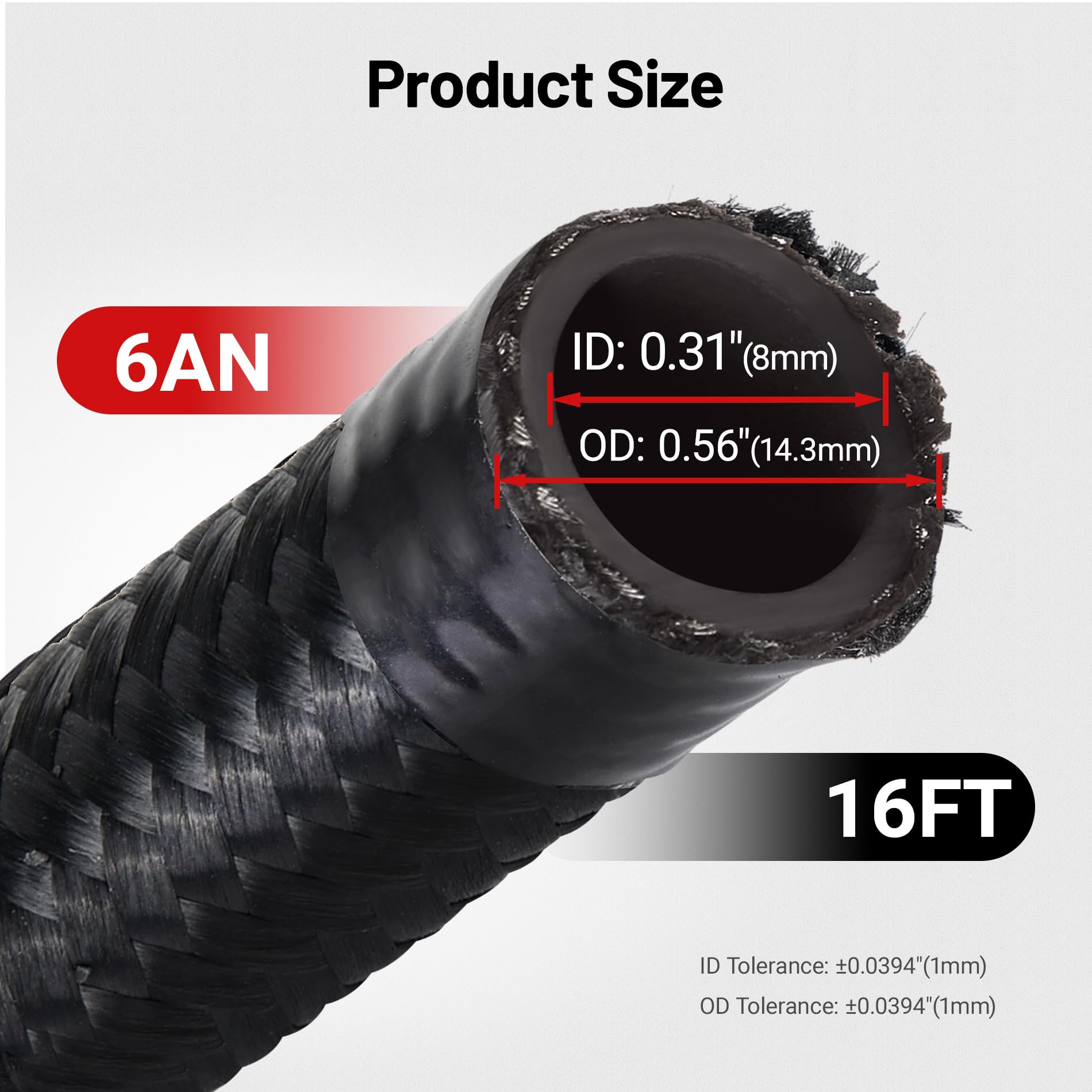

- 6AN braided hose, 16 ft long, with ID 0.31 in and OD 0.56 in
Key specs and materials

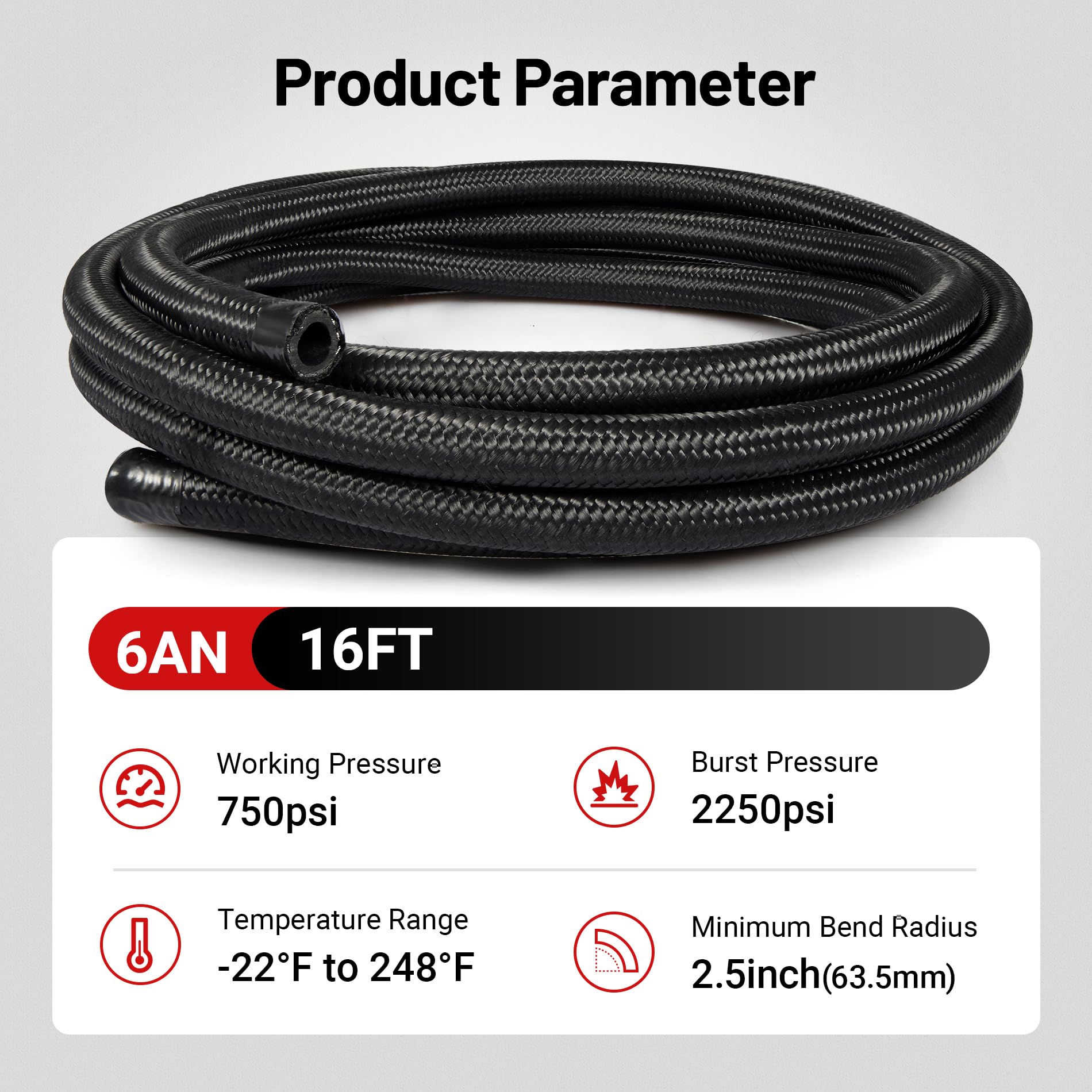

- Maximum working pressure: 750 psi
- Burst pressure: 2250 psi
- Temperature range: -22°F to 248°F (-30°C to 120°C)
- Inner core: CPE rubber; reinforcement: 304 stainless steel wire; outer layer: nylon braid
- Fittings: aluminum alloy
Ideal uses and compatibility
- Widely used as transmission oil cooler line, fuel supply/return line, coolant hose, fuel gauge line, vacuum line, turbo cooler line, or oil feed line

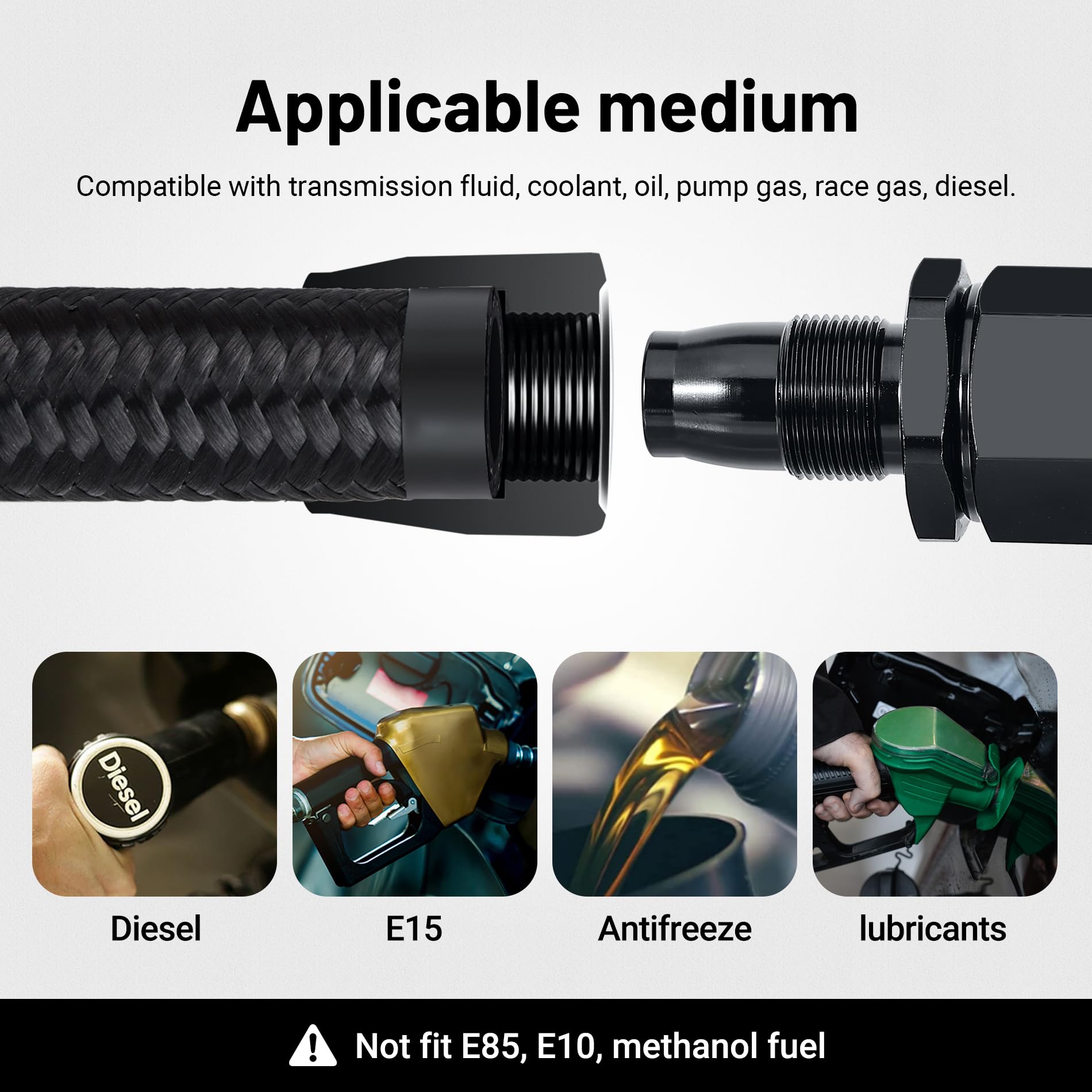

- Compatible with transmission fluid, oil, race gas, vacuum, hydraulic fluid, diesel and fuel
Tips for installation

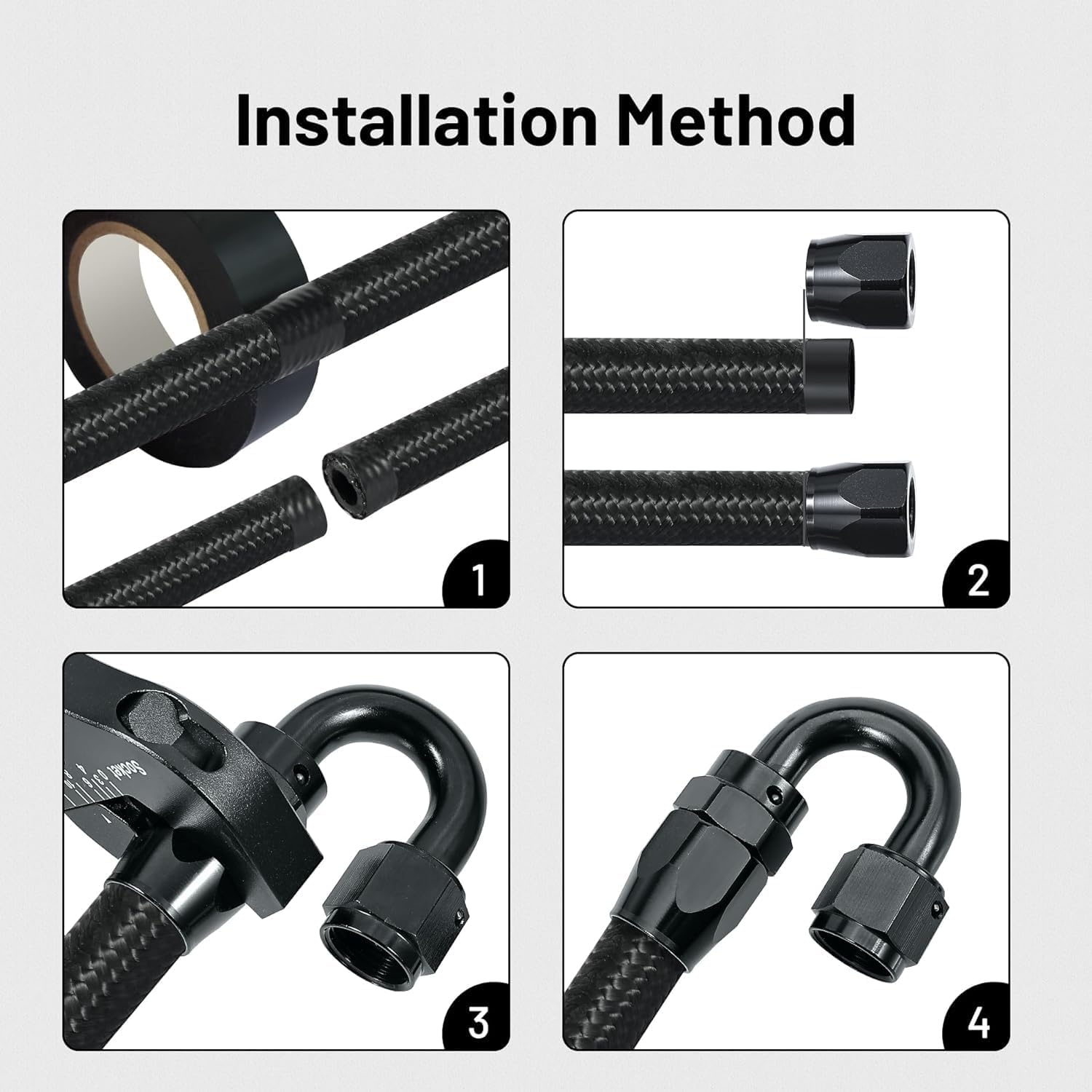

Plan routing to minimize sharp bends and heat sources. Use the included clamps to secure the hose and prevent chafing. Ensure hose ends are fully seated and fittings aligned with the hose axis.
Why EVIL ENERGY
EVIL ENERGY designs components that balance durability with ease of use. The nylon braided hose and aluminum fittings deliver a sturdy, corrosion‑resistant connection, while a range of end options helps adapt to various installations without compromising flow or reliability.
FAQ
Q: What is the length of the EVIL ENERGY 6AN fuel line kit?
A: The kit provides 16 feet of 6AN braided hose.
Q: What fluids and systems is the hose compatible with?
A: Suitable for transmission fluid, oil, race gas, diesel, vacuum, and hydraulic fluid.
