EVIL ENERGY 8AN Male to 3/8 in SAE Quick-Disconnect Fuel Rail Fittings (2-Pack)
- £29.41
- £29.41
- Unit price
- per
Couldn't load pickup availability
Free UK Delivery on All Orders
Free Returns
Description
xOverview

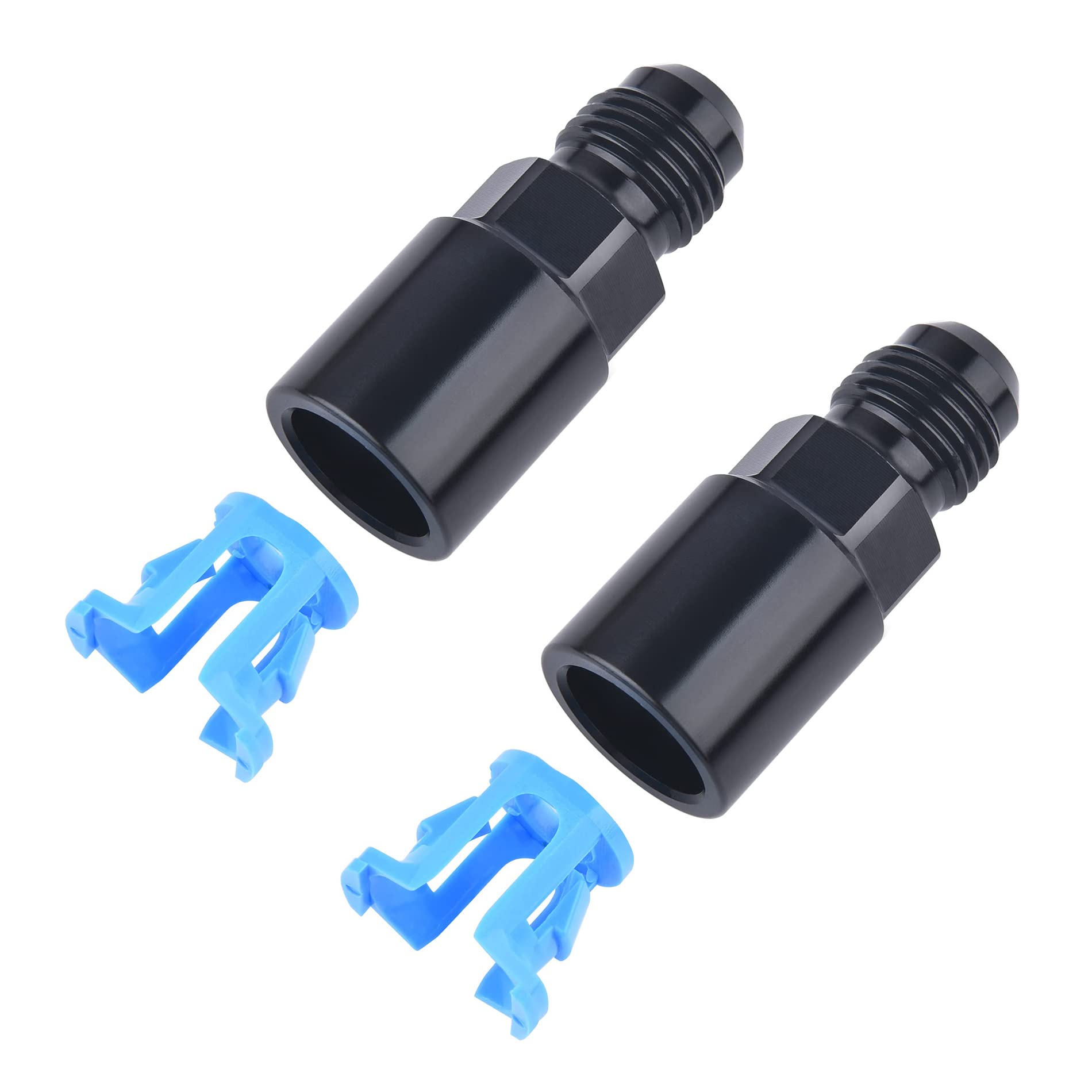

EVIL ENERGY 8AN to 3/8 in SAE quick disconnect fuel rail fittings come in a convenient 2 pack for EFI upgrades and performance builds. The compact aluminum body fits neatly to compatible fuel rails, and the 37 degree flare seal helps minimize leaks while keeping a lightweight profile. The push on design aims to simplify installation and reduce hassle during upgrades or routine maintenance.
Key specifications

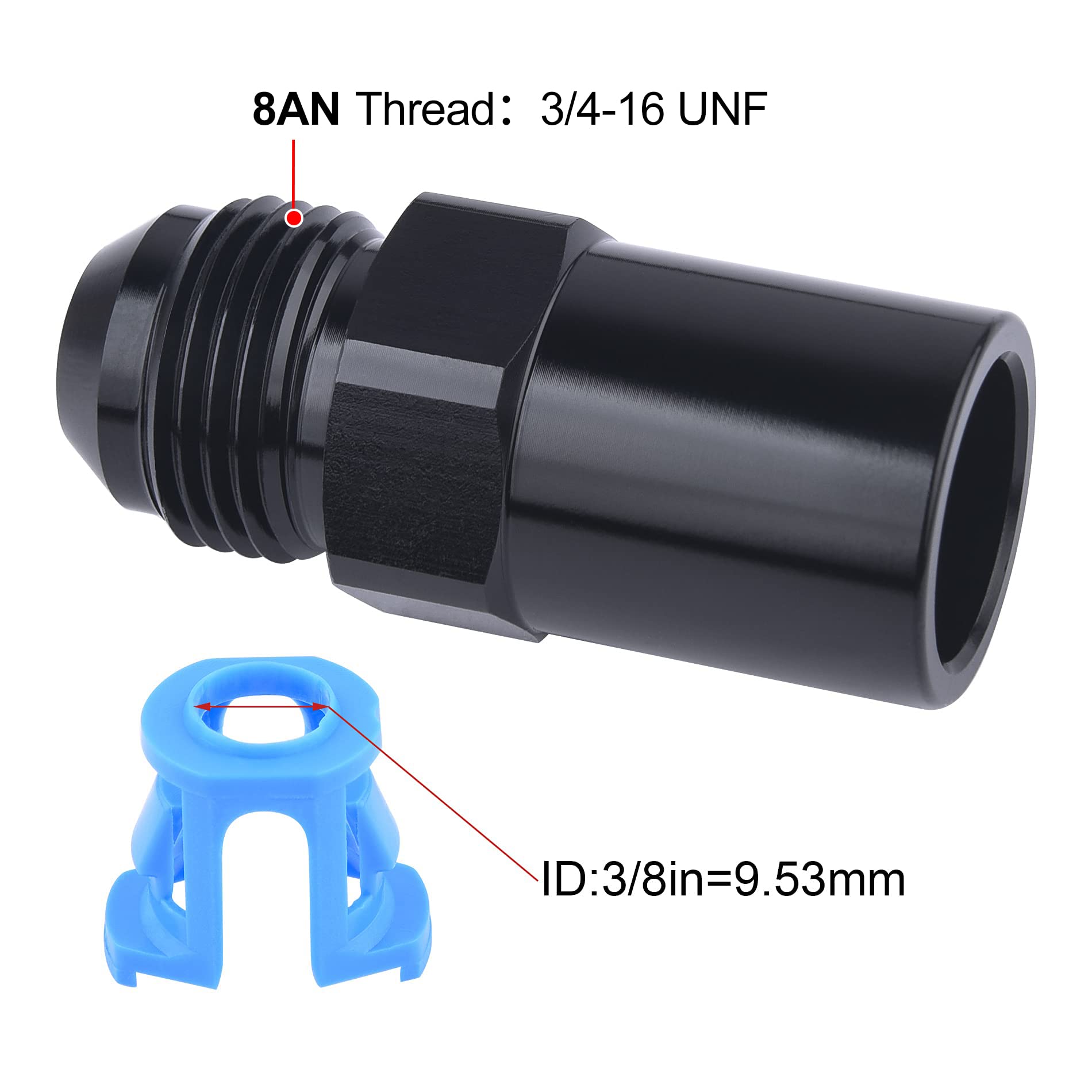

- Size and seal: The thread size of 8AN is 3/4-16 UNF with a 3/8 inch spring lock ID.
- Seal type: 37 degree flare seal helps prevent leakage during operation.

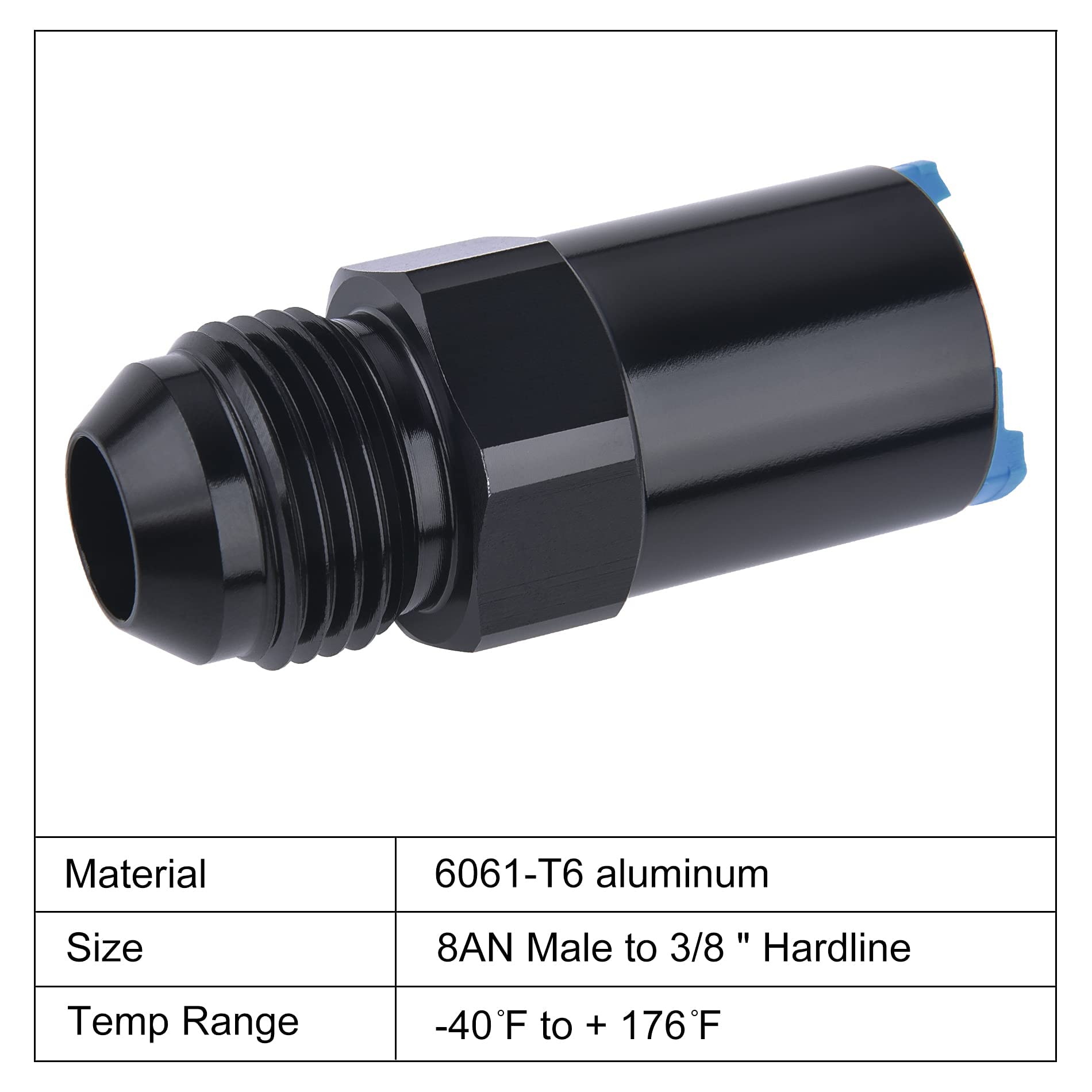

- Parameters: Working pressure up to 1500 psi; temperature range from -40°F to 176°F.

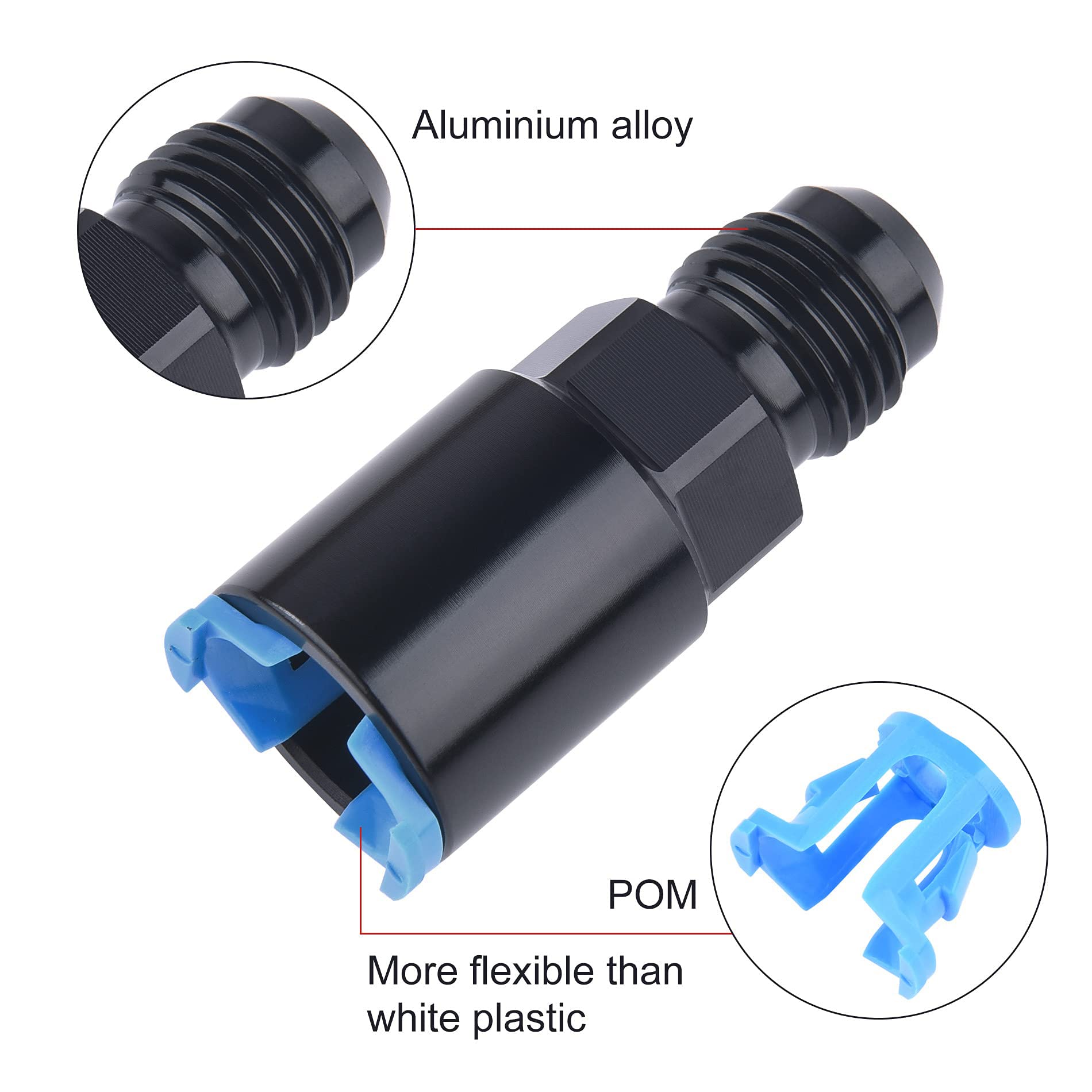

- Material: Aluminum alloy 6061-T6; spring lock made of plastic for flexible but secure retention.

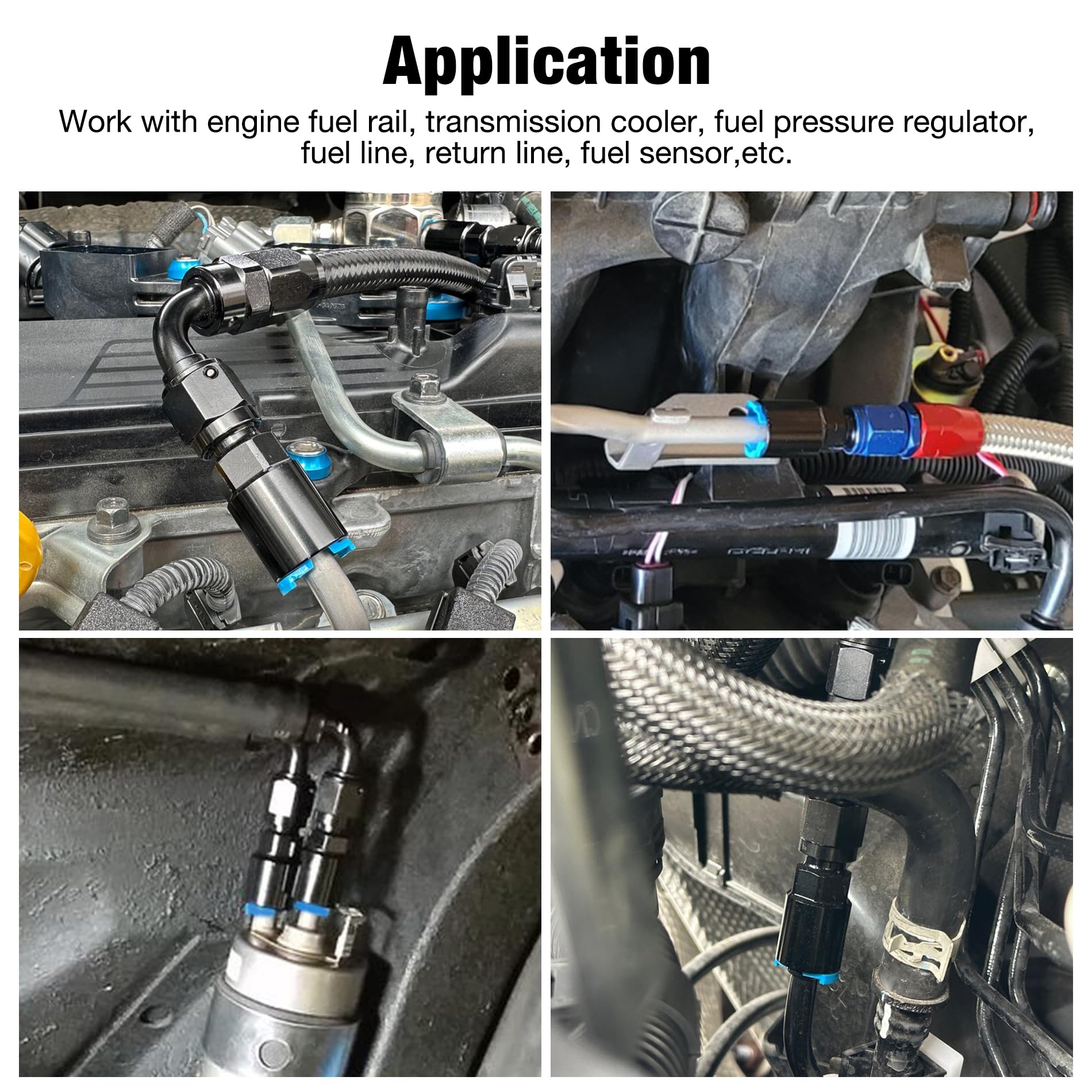

- Application: Widely used on engine fuel rails, LS swap setups, transmission coolers, return lines, and fuel sensors.
Durability and construction
The aluminum 6061-T6 body delivers a sturdy yet lightweight build suited for automotive environments. The plastic spring lock adds a practical balance of rigidity and flexibility, enabling reliable connections without excessive stress on hoses or fittings.
Real world uses and benefits
- Push on connection can streamline installations during EFI upgrades or maintenance cycles.
- Lightweight construction supports easier routing and less strain on nearby components.
- 37 degree flare helps maintain a steady seal in diverse operating conditions.
- Two pack provides ready to use parts for multi line installations or spare inventory.
- Compatible with standard 8AN lines, enabling flexible integration with existing setups.
Tips for installation
Prepare the lines clean and dry, align the fitting with the hose end, and push firmly into place until the lock engages. Confirm the flare seat is seated evenly to ensure a good seal in your application.
FAQ
Q: What is the thread size and seal type for this fitting
A: The thread is 3/4-16 UNF for 8AN, with a 37-degree flare seal to help prevent leaks.
Q: What are common uses for these fittings
A: Ideal for engine fuel rails, LS swaps, transmission coolers, return lines, and fuel sensors in compatible setups.
