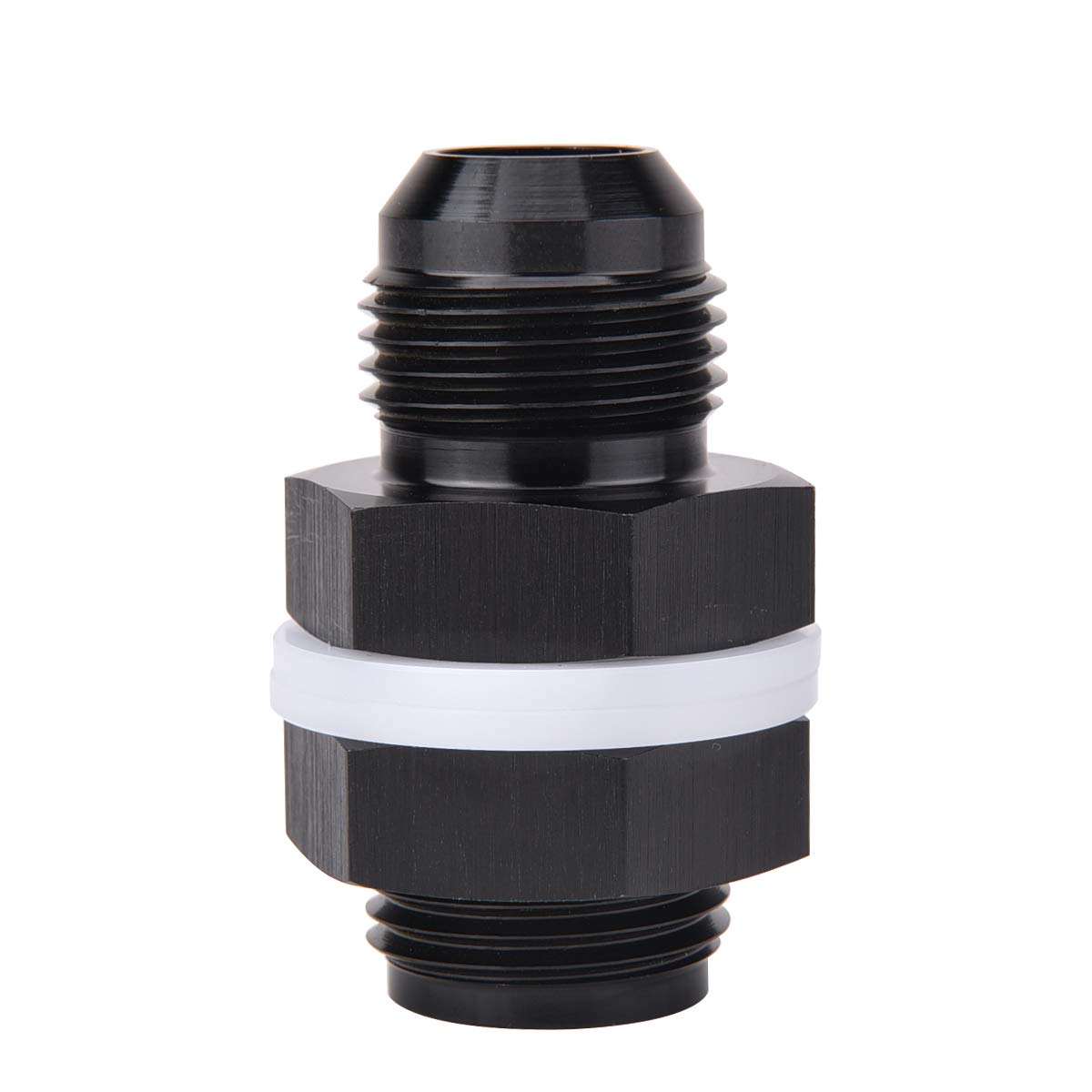

EVIL ENERGY Male 6AN Bulkhead Fitting – Aluminum Straight Adapter
- £27.33
- £27.33
- Unit price
- per
Couldn't load pickup availability
Free UK Delivery on All Orders
Free Returns
Description
xOverview
The EVIL ENERGY male 6AN bulkhead fitting blends rugged aluminum construction with precise flare seating to support demanding fuel system layouts. This straight adapter is designed for straightforward integration where a bulkhead connection is needed, bringing a clean, professional look to performance builds.
Crafted from 6061-T6 aluminum and finished in a resilient anodized black, it offers a lightweight yet sturdy solution for enthusiasts who value durability and a sleek appearance in their fuel pathways. The 37-degree flare seal provides reliable seating, helping to minimize leaks in dynamic environments.
Key specs at a glance

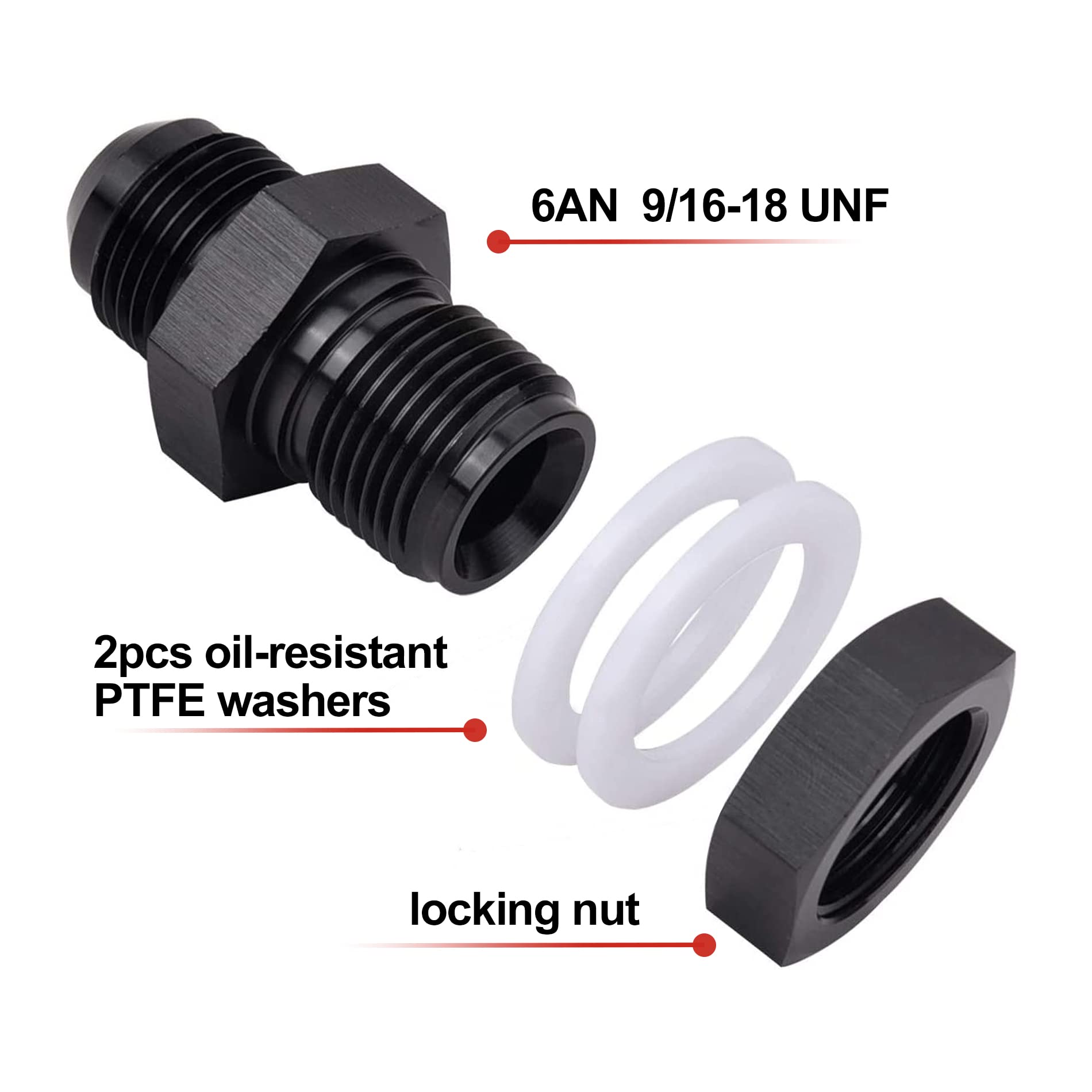

- Thread size: 9/16-18 UNF for standard 6AN hoses and fittings

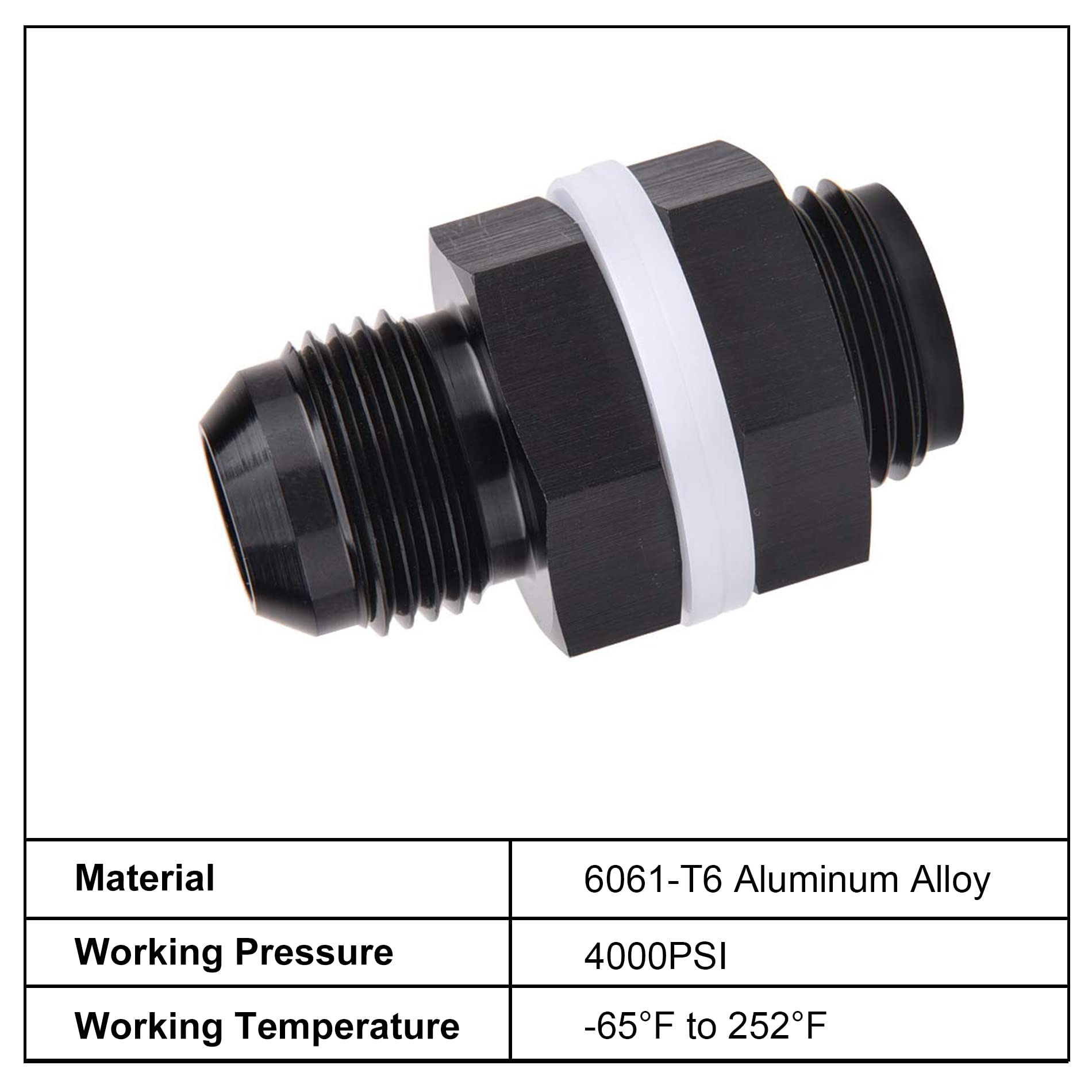

- Material: Aluminum alloy 6061-T6 with anodized black surface
- Seal: 37-degree flare seat for consistent compression
- Max working pressure: 4000 PSI, suitable for high-demand systems
- Temperature range: -65°F to 252°F (-54°C to 122°C)

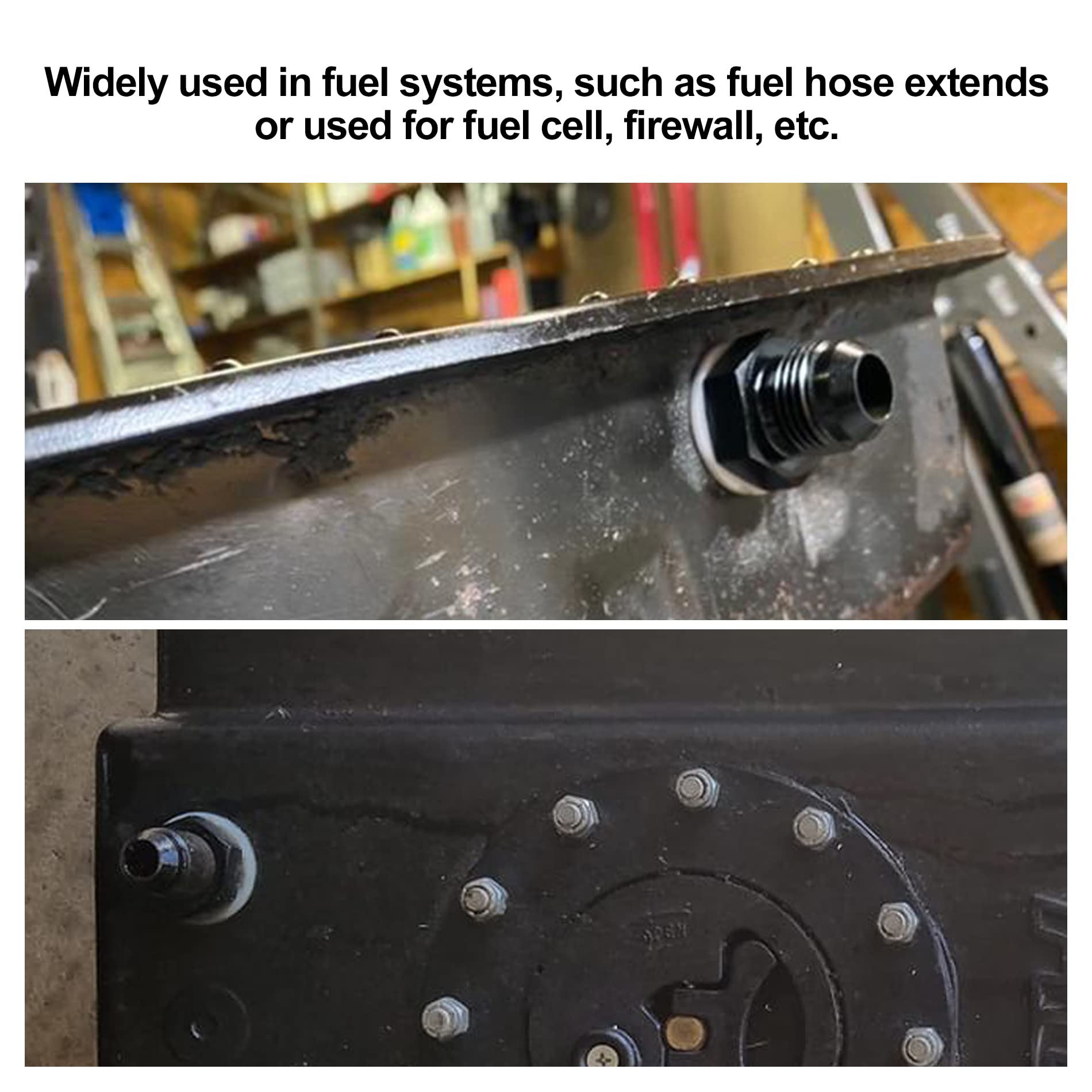

- Application: Ideal for fuel hoses, return lines, fuel cells, firewall routing, and more
Versatile use in real-world setups
- Fuel hose extensions and clean firewall installations for race or street builds
- Return line routing where a secure bulkhead connection is needed
- Fuel cell fittings and other high-pressure fuel system components
- Compact, space-saving installation in tight engine bays
In practice, the combination of a rigid aluminum body and a crisp anodized finish delivers a cool-to-the-touch feel, a stable grip during installation, and a professional-looking finish that holds up under demanding conditions. While outcomes depend on the broader system, this bulkhead fitting is positioned to contribute to clean routing and dependable, repeatable connections.
Why choose EVIL ENERGY
- Robust, corrosion-resistant finish designed for fuel environments
- Standard 9/16-18 UNF threading for broad compatibility
- Solid mechanical seal with a 37-degree flare to minimize leaks
- Lightweight yet strong aluminum construction for easier handling and installation
Note: Benefits described here reflect features and typical use cases. Individual results may vary based on system configuration and maintenance. This bulkhead fitting is designed to support secure, flexible fuel-system design and installation possibilities.
FAQ
Q: What is the thread size and compatibility of the EVIL ENERGY 6AN bulkhead fitting?
A: The fitting uses 9/16-18 UNF thread, compatible with most 6AN hoses and bulkhead adapters in standard fuel systems.
Q: What environments can this aluminum bulkhead resist?
A: Made from 6061-T6 aluminum with an anodized black finish, it tolerates up to 4000 PSI and a wide temperature range from -65°F to 252°F.
