Factor 55 FlatLink E Expert 00080-01 – 16,000 lb Max Load, Replaces Winch Hook with Strong Shackle/D‑Ring Mount – Red

Overview

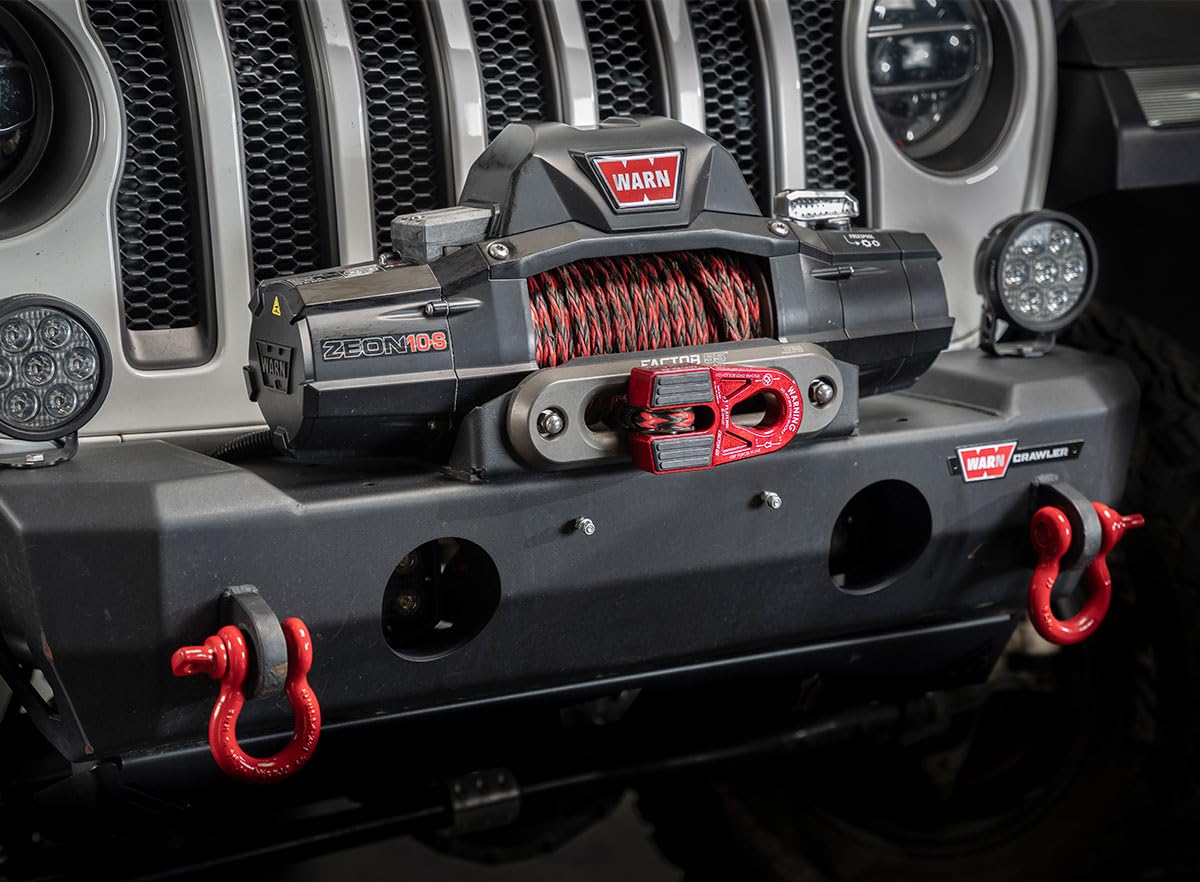

The Factor 55 FlatLink E Expert introduces a streamlined recovery point that swaps the conventional winch hook for a robust shackle D‑ring mount. When not in use, it folds neatly into the fairlead, delivering a lower profile and a cleaner front end for your winch system.

Why choose the FlatLink E Expert

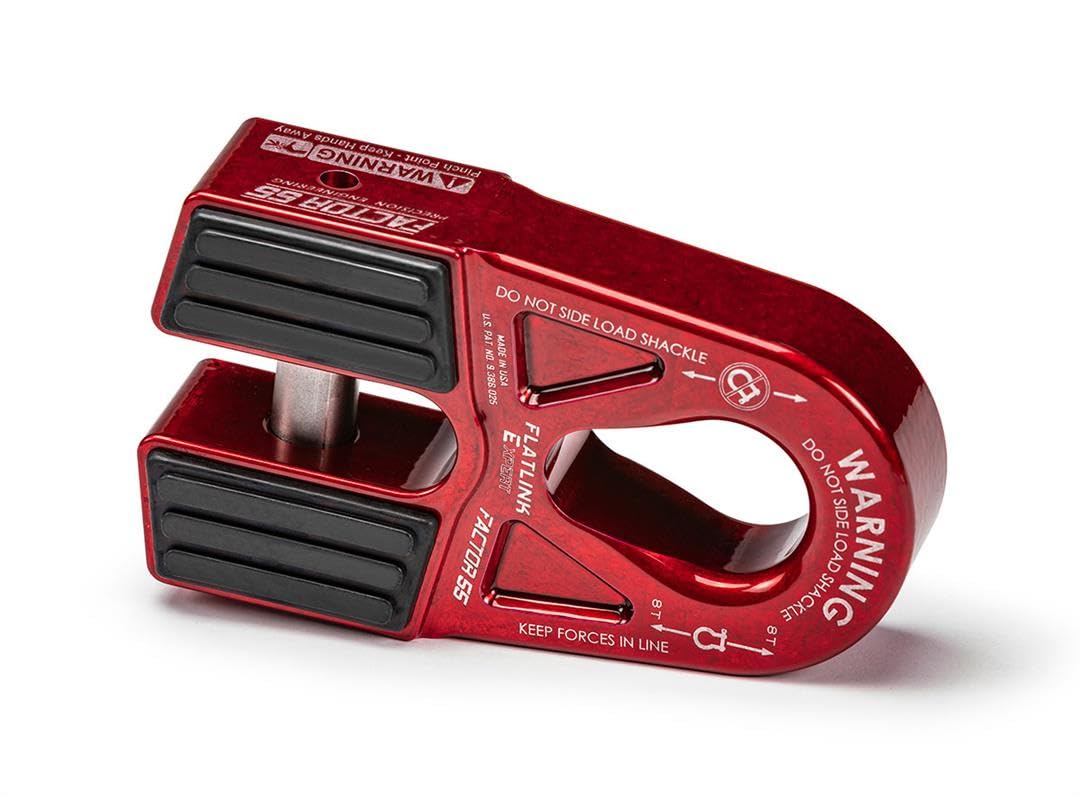

• Replaces the standard hook with a purpose built shackle D‑ring mount for secure connections.
• Folds into the fairlead to maintain a compact profile and improve approach angles compared to some alternatives.

FlatLink system and rope compatibility

The FlatLink system does not require splicing and works with steel or synthetic ropes. It uses an aerospace grade double shear titanium pin and a snap ring for quick, sturdy installation. EPDM guards protect alloy fairleads and help reduce rattling during operation.

Closed system winching

Designed for Closed System Winching, a technique that uses only closed link hardware. This approach adds security and confidence during demanding recoveries while keeping your rig aligned with the recovery plan.

Key technical details

• Max load: 16,000 lbs
• Ultimate failure: greater than 40,000 lbs
• Weight: 26 oz
• Rope compatibility: steel or synthetic ropes up to 3/8 inch diameter
• Rope eye diameter: 5/8 inch

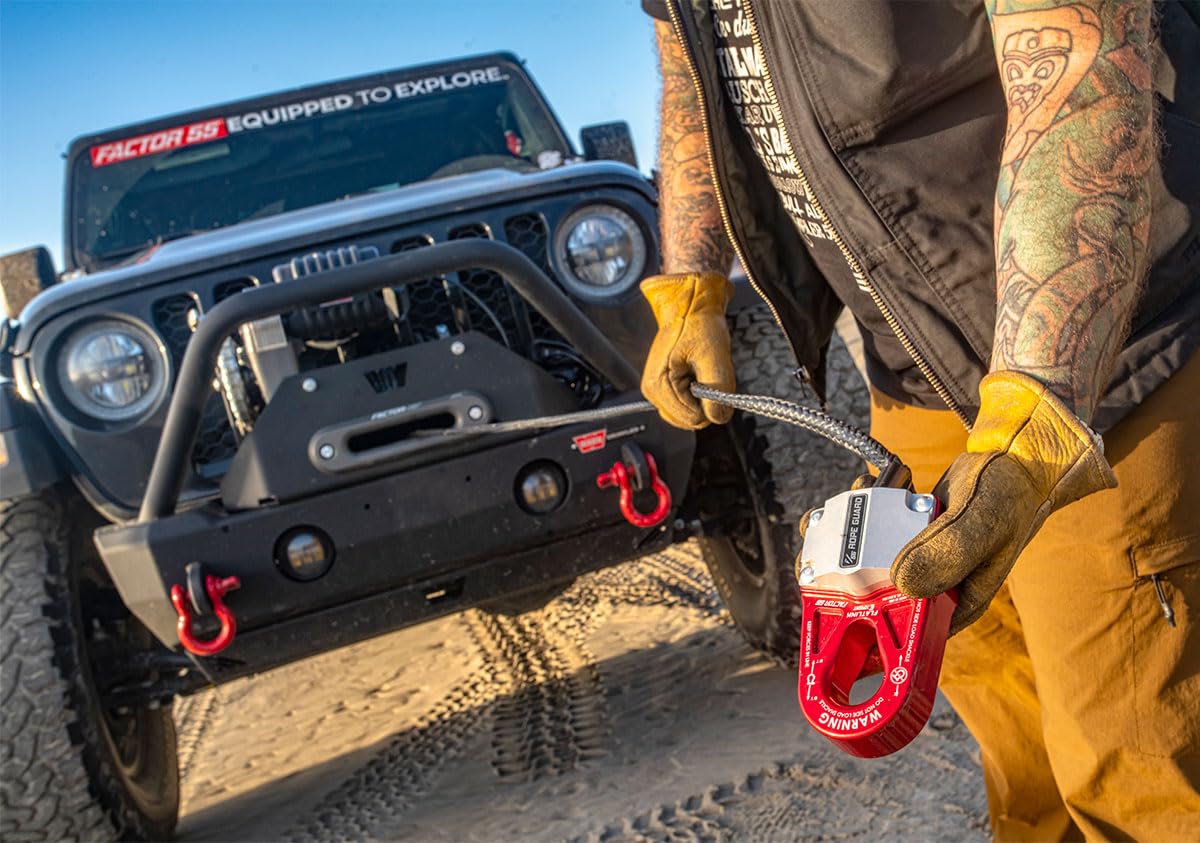

• Material and finish: 6000 series billet aluminum with Mil-Spec hard anodized gray finish
• Shackle compatibility: works with 3/4 inch shackles and soft shackles up to 3/4 inch

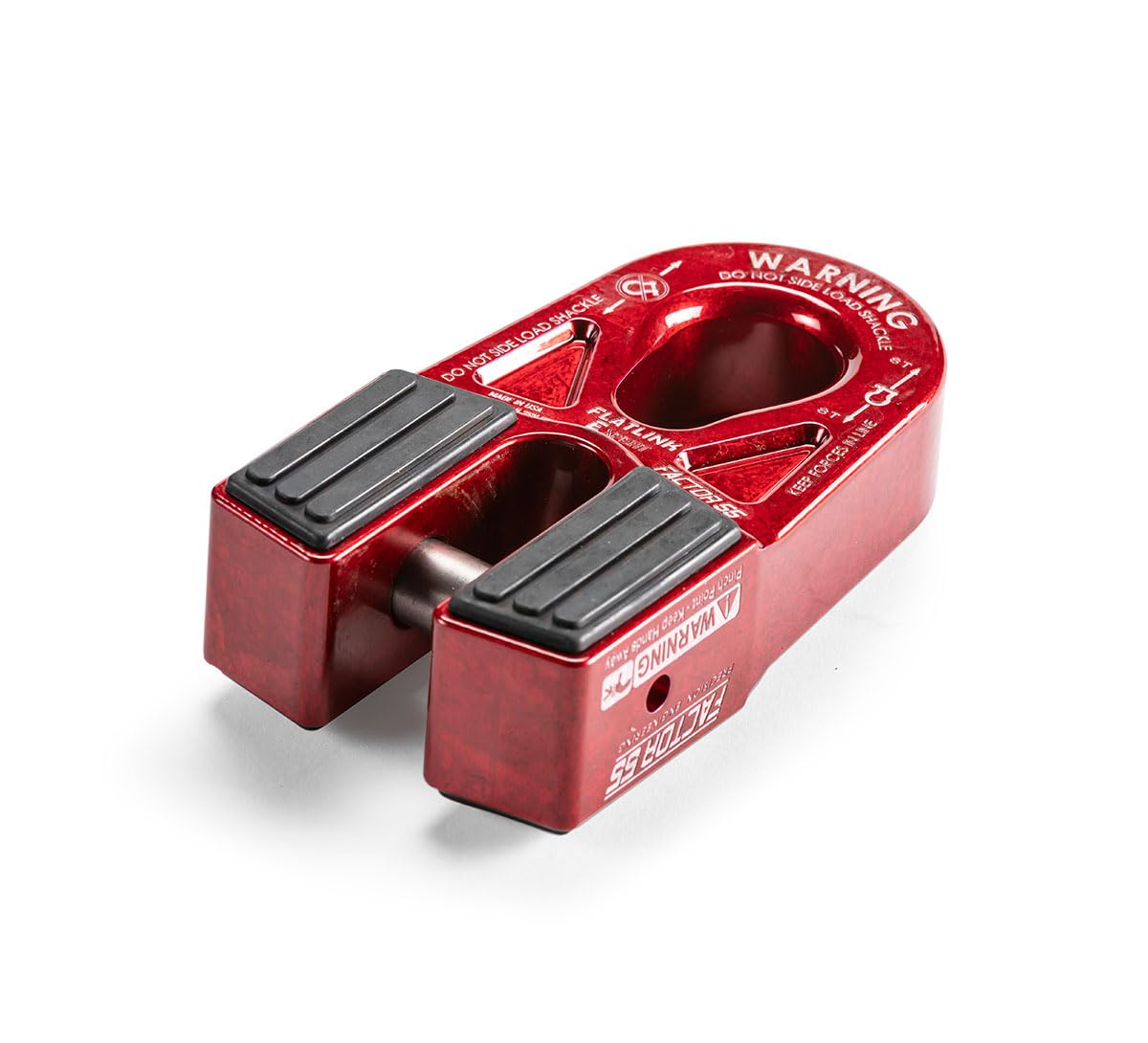

• Folded thickness: less than 1.75 inches

Installation and use

Easy to install and simple to swap with common fairlead brackets. The FlatLink engages with a snap ring and is designed for quick access to the shear pin when maintenance is needed.

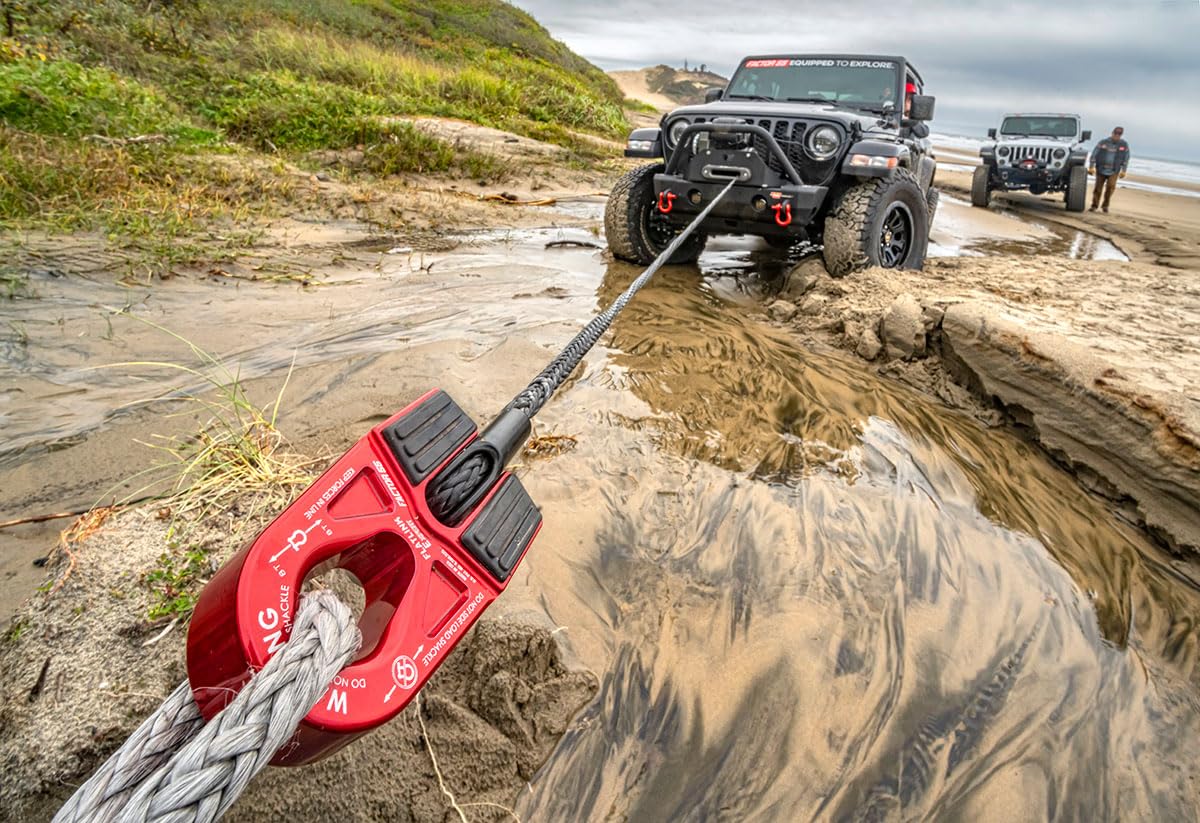

Practical applications

From trail recoveries to rugged off road operations, the FlatLink E Expert is built for environments where a strong, low profile recovery point matters. Its flexibility with both steel and synthetic lines adds adaptability to your setup.
