Factor 55 FlatLink E (Expert) – 16,000 lb Rated, Ultimate > 40,000 lb, Low-Profile Shackle/D‑Ring Mount

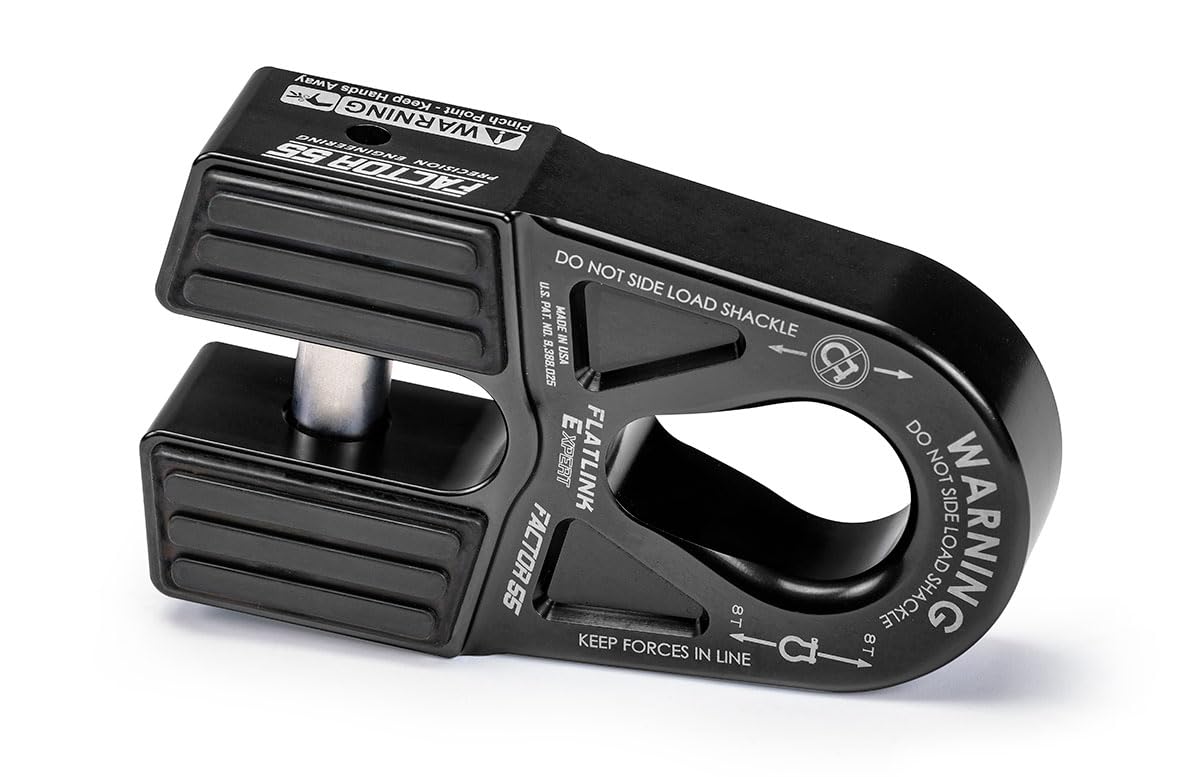

Meet the Factor 55 FlatLink E (Expert), a thoughtful upgrade for winch setups. It replaces the conventional winch hook with a stronger shackle/D‑ring mount, and it folds neatly into the fairlead when not in use. This integration creates a lower profile and a more forgiving approach angle, helping you clear obstacles with confidence rather than forcing a rigid headache of hardware sticking out. The design prioritizes reliable connections, straightforward installation, and clean integration with your existing recovery gear, so you can focus on the task at hand rather than the hardware itself.

Why choose FlatLink E for your recovery kit

• Rugged construction with an aerospace-grade titanium rope eye and a durable billet aluminum body delivers a secure, lightweight connection that’s built to endure rugged environments.

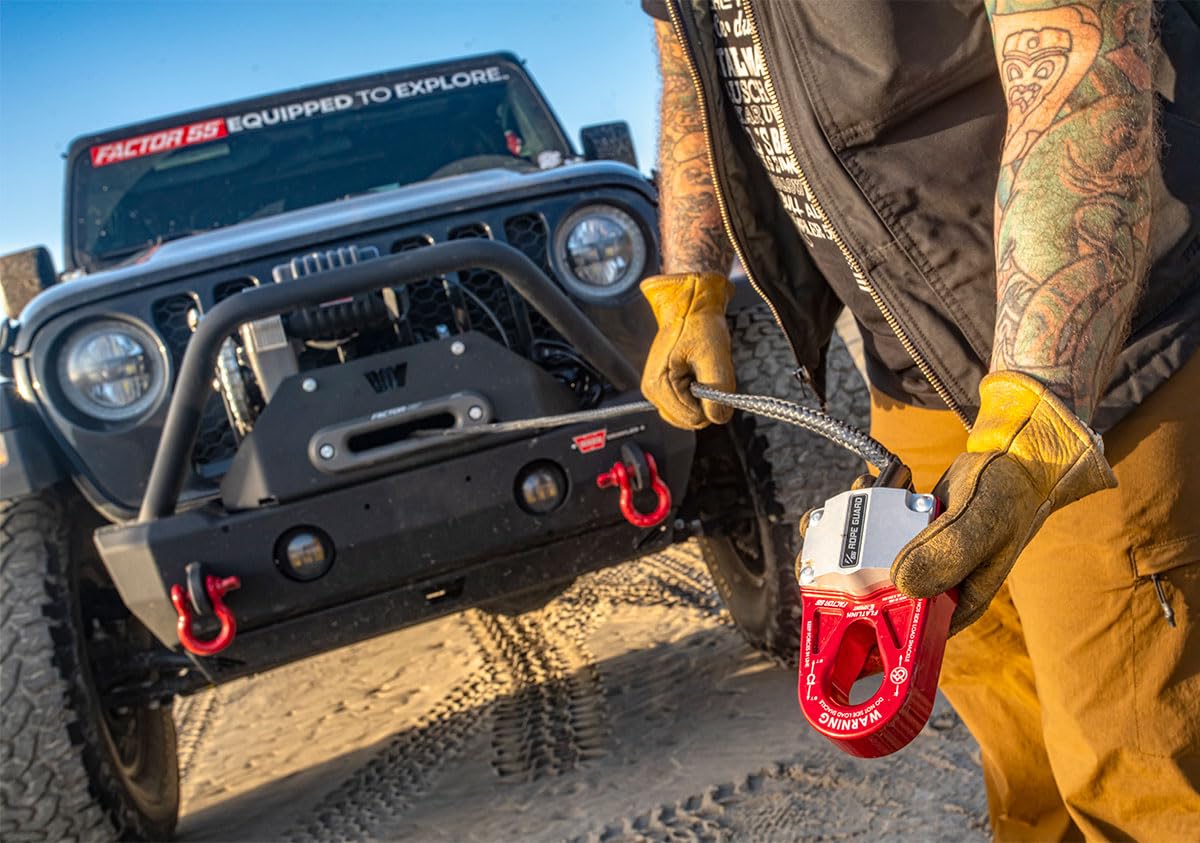

• Precision mounting with a large pear-shaped shackle hole accepts common pins and OEM recovery points, enabling quick, confident connections under load.

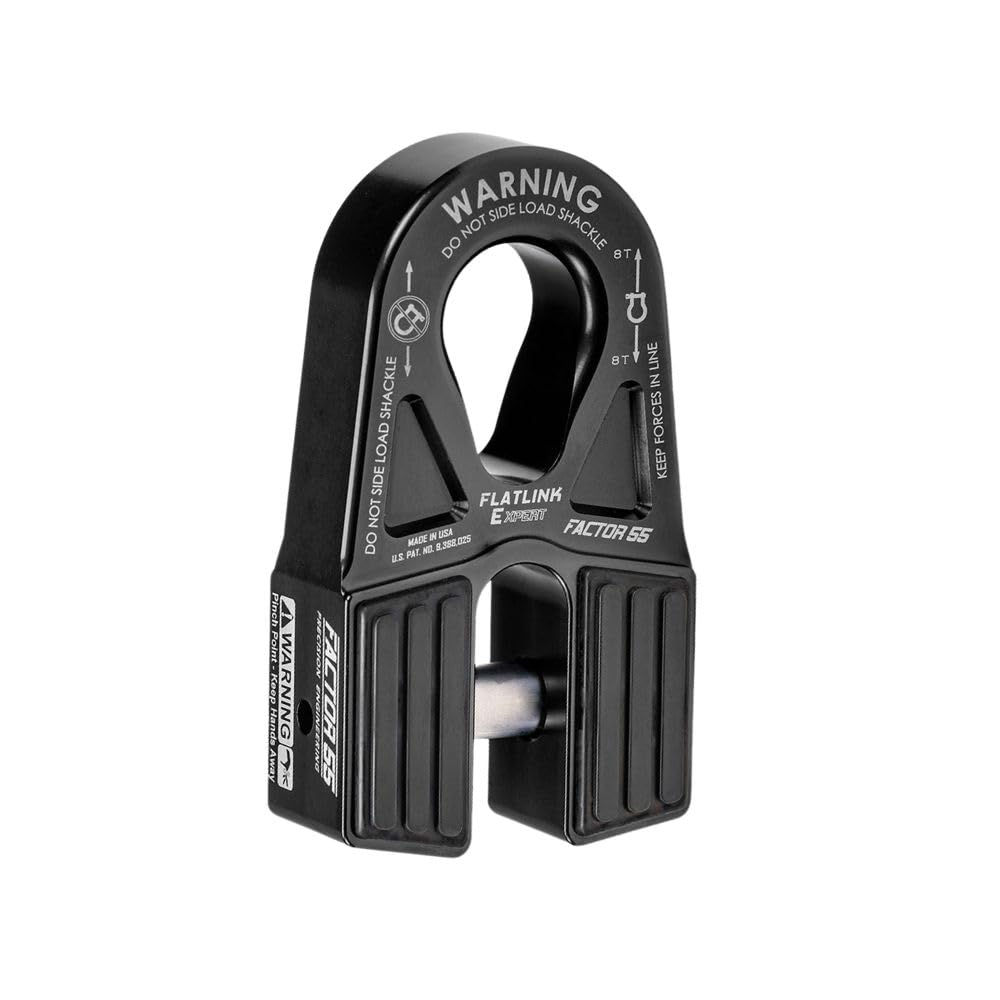

• The folding design sits flush in the fairlead, providing a lower profile and smoother line path to reduce snagging on uneven terrain.
• Compatibility with steel or synthetic winch lines up to 3/8” diameter makes it flexible for various rigging setups, without the need for rope splicing.

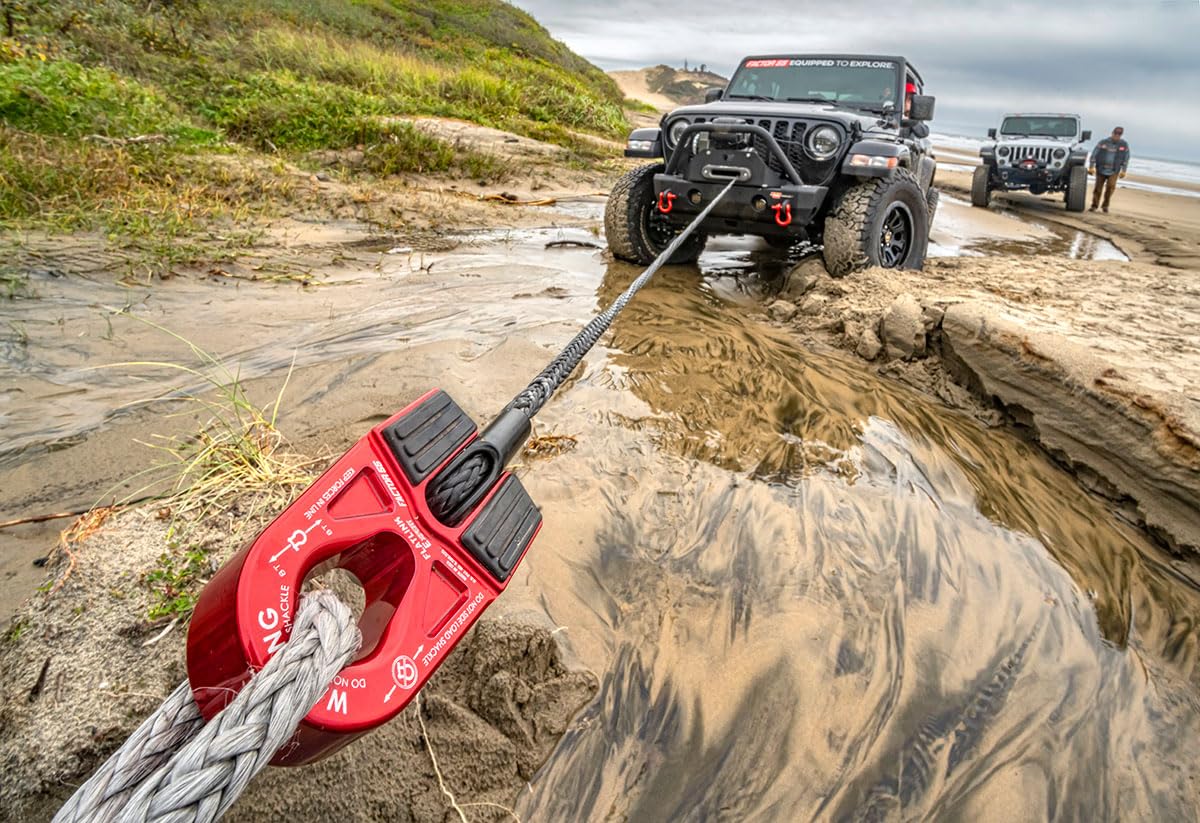

• EPDM rubber guards cushion the assembly and protect alloy fairleads from rattling and abrasion during use.

Materials, build, and compatibility

• Machined from 6000-series billet aluminum and finished with Military Specification Anodizing (Type III) for long-lasting gray aesthetics.
• A 5/8” diameter, 6AI-4V titanium rope eye provides a secure, repeatable connection point.

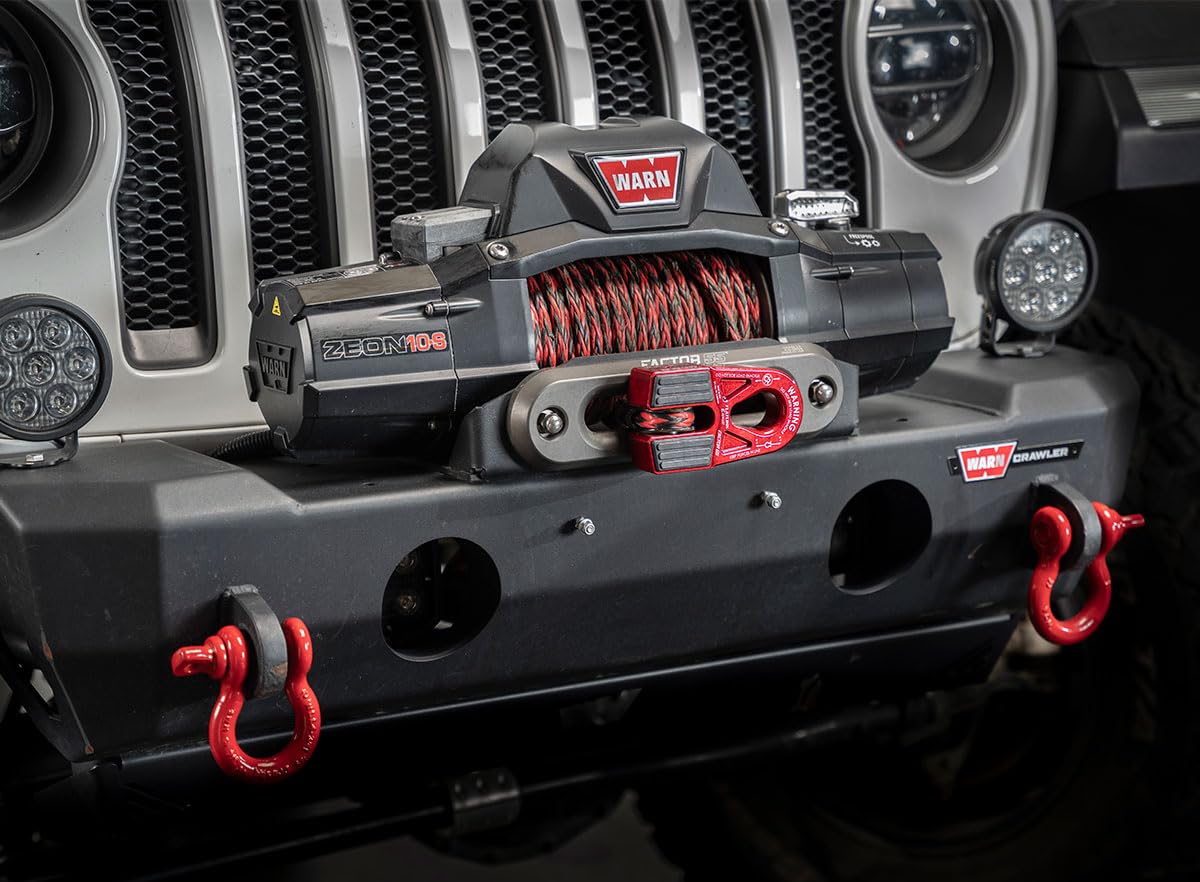

• Aerospace-grade double-shear titanium pin and snap ring ensure a robust, quick-install experience.
• About 26 oz of weight keeps the solution compact without adding excessive bulk to your recovery kit.
• Designed for Closed System Winching, enabling a strictly closed-link hardware setup for added security during demanding recoveries.

Real-world benefits and usage scenarios

In off-road and overland settings, the FlatLink E can simplify winch recoveries by reducing the number of moving parts between the line and the anchor. Its low-profile profile helps maintain a clean approach to rocky ledges or tight passes, while the strong, fixed mounting point supports steady pulls even when terrain throws a curveball. The blend of high load rating and a generous safety margin helps operators plan recoveries with confidence, recognizing that results depend on operator ability and site conditions. This accessory is designed to augment your existing gear without promising guaranteed outcomes; it highlights what is possible when hardware is purpose-built for recovery workflows.

Key specs at a glance

• Maximum load: 16,000 lbs
• Ultimate failure: greater than 40,000 lbs
• Weight: 26 oz
• Compatible with 3/4” shackles (pin and bow end) and soft shackles up to 3/4”
• Works with common roller fairlead mounting brackets
