GAsupply 4x110 to 4x156 Wheel Adapters for Pioneer 500/700-2/700-4 Big Red – 12x1.5, 74.1mm Hub, 4pcs

Upgrade your ATV with confidence

GAsupply 4x110 to 4x156 wheel adapters are engineered to simplify tire and wheel compatibility on popular Honda Pioneer and Big Red models. CNC machined from 6061-T6 aluminum, these spacers pair strength with a lighter footprint, helping your ride feel responsive without added weight. The set comes with pre-installed 10.9 grade bolts and a durable anodized finish designed to endure trails, mud, and weather, so you can focus on the ride ahead.

Fitment and core specs you can rely on

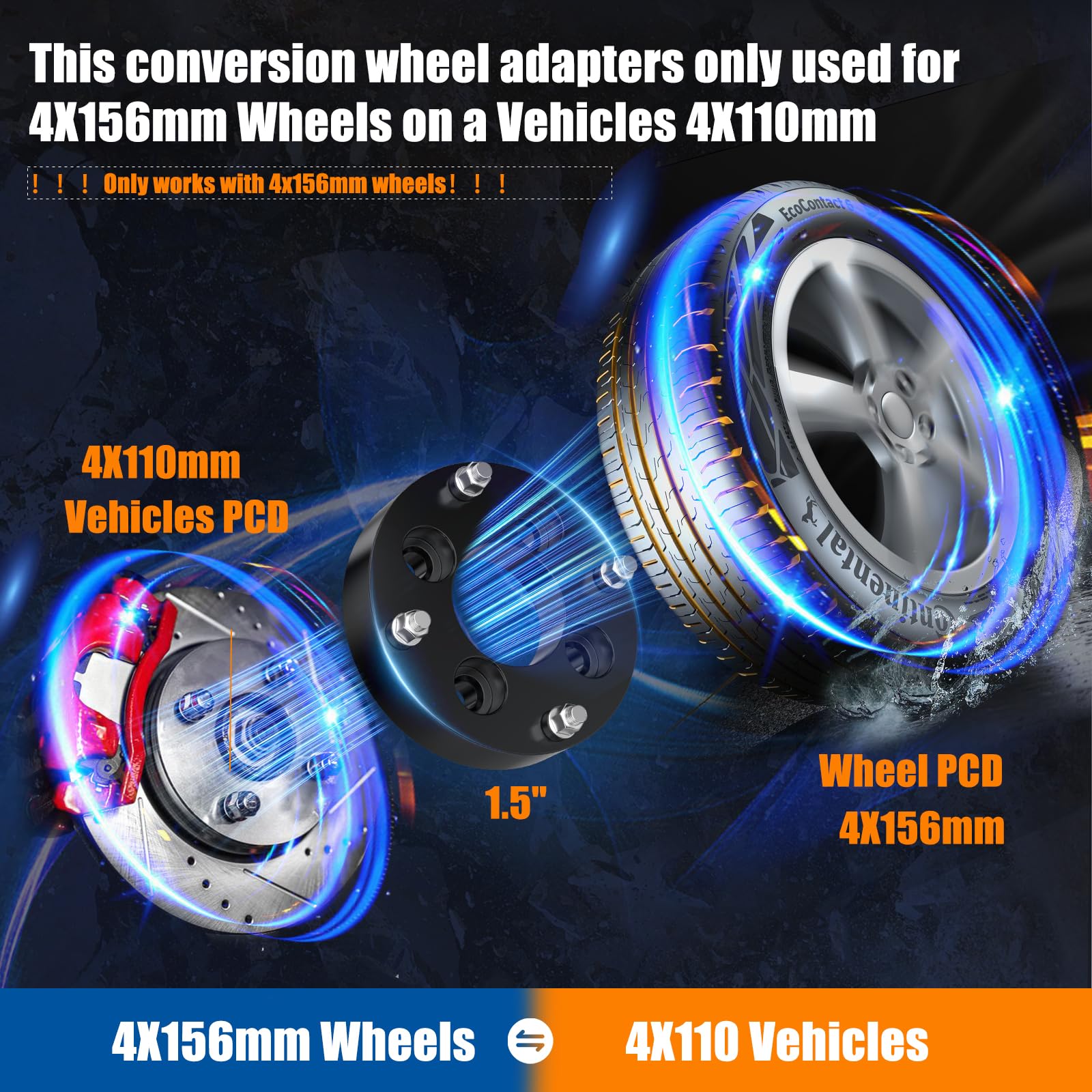

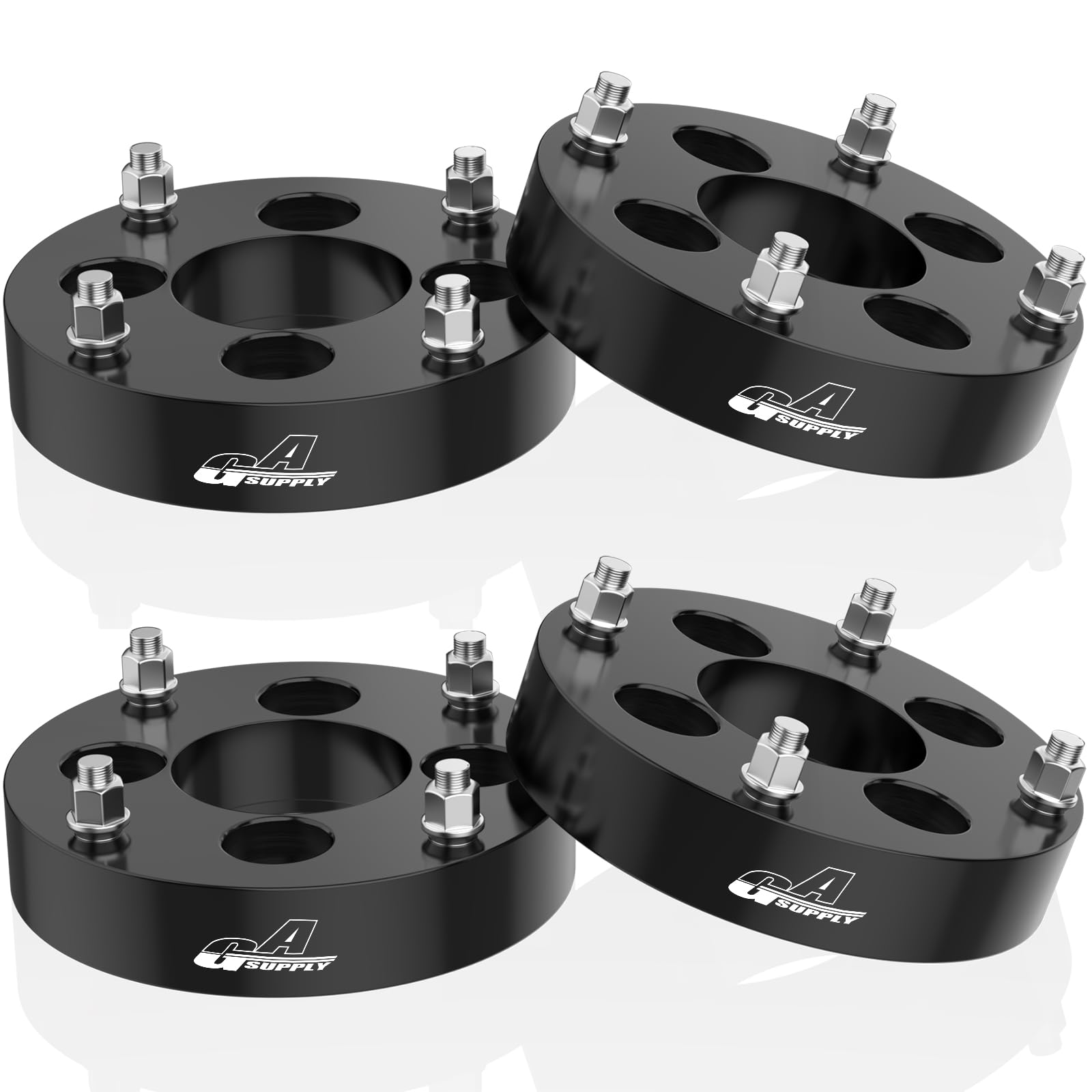

Designed to work with Honda Pioneer 500 from 2015 to 2021, Pioneer 700-2 from 2014 to 2021, Pioneer 700-4 from 2014 to 2021, and Big Red MUV700 from 2009 to 2014. They convert from 4x110mm to 4x156mm with a hub bore of 74mm, a thickness of 38mm, and 12x1.5mm thread pitch. Each order contains four adapters to suit 4-lug wheels.

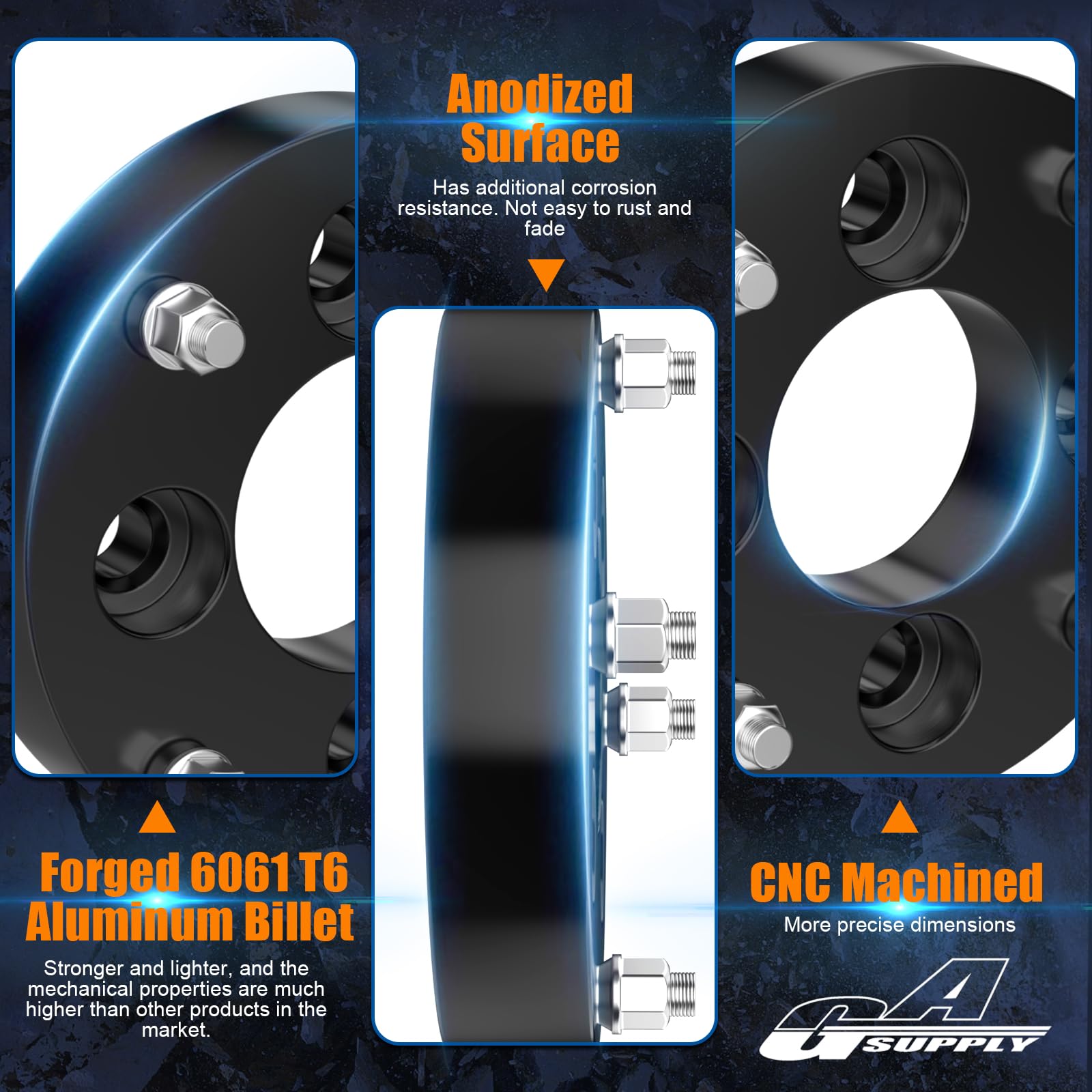

• Material and finish: CNC machined 6061-T6 aluminum with anodized coating for corrosion resistance

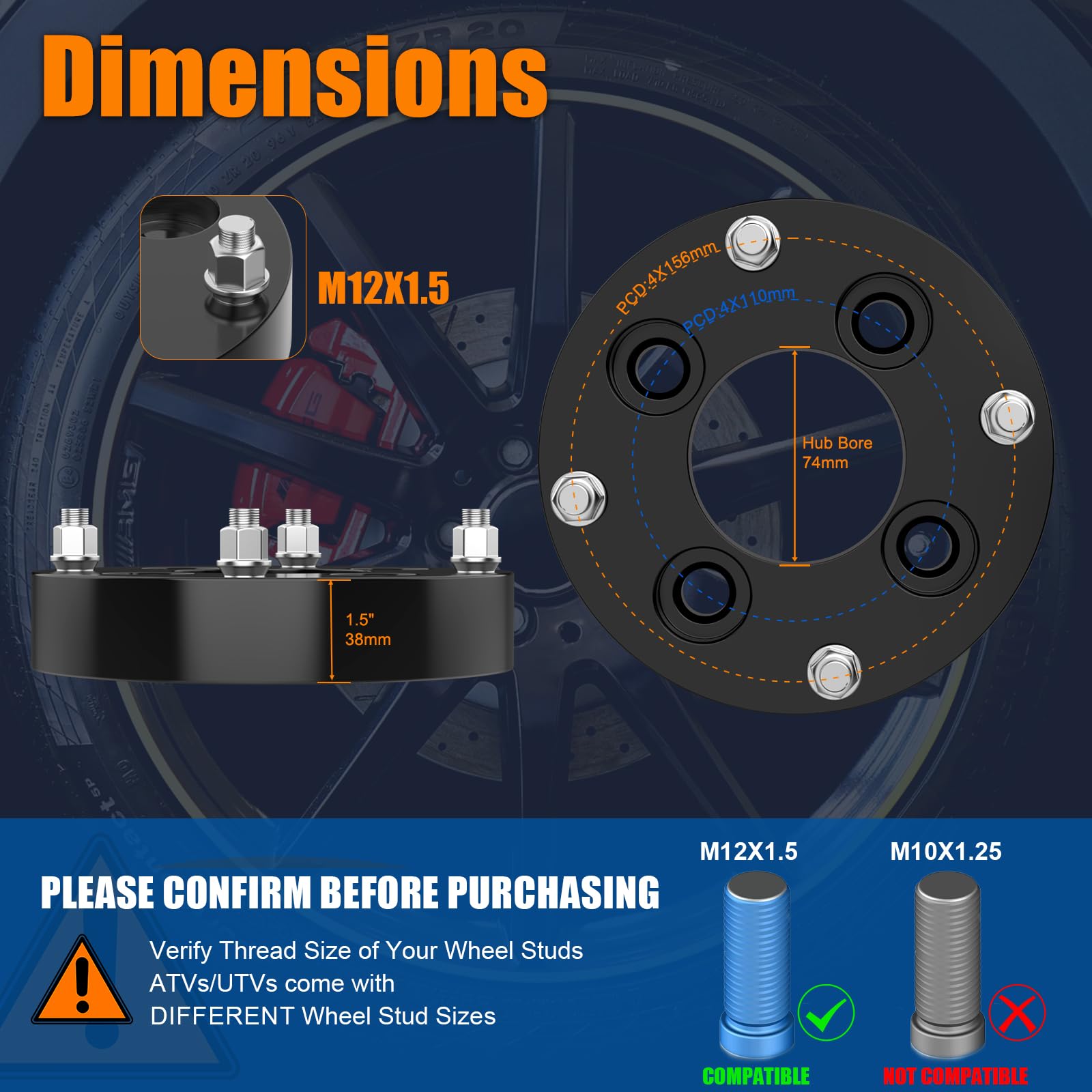

• Key specs: 4x110mm to 4x156mm pattern, 74mm hub bore, 38mm thickness, 12x1.5mm threads

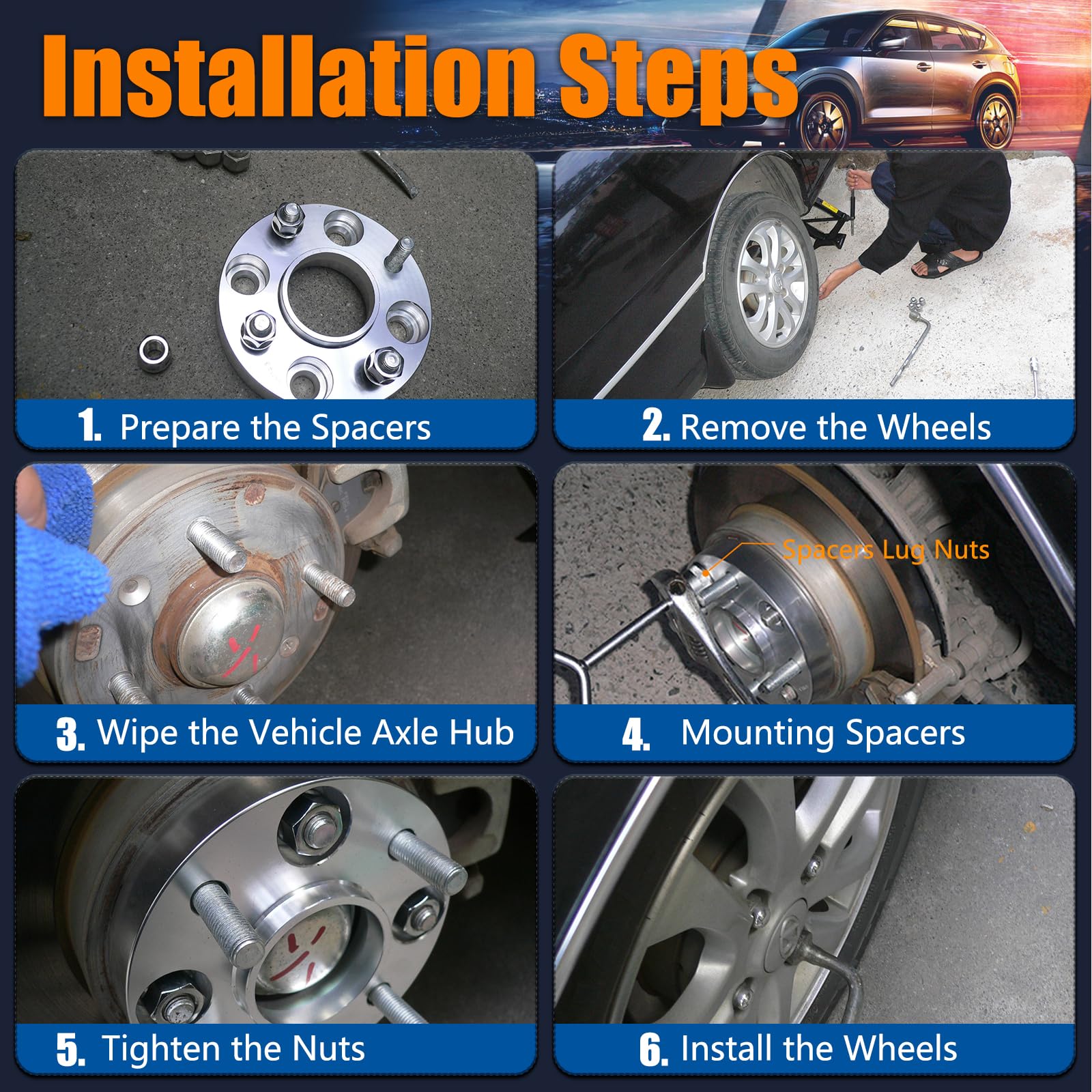

• Included hardware: Pre-installed 10.9 grade bolts for quick, reliable installation
• Finish and care: Black anodized surface is designed to resist rust and fading in challenging environments

• What you gain: Increased tire clearance and the potential to fit wider or high-traction tires
• Appearance and stance: A more aggressive look that complements rugged ATV styling
• Usage note: Ideal for improving fitment on compatible models without altering hub or brake components

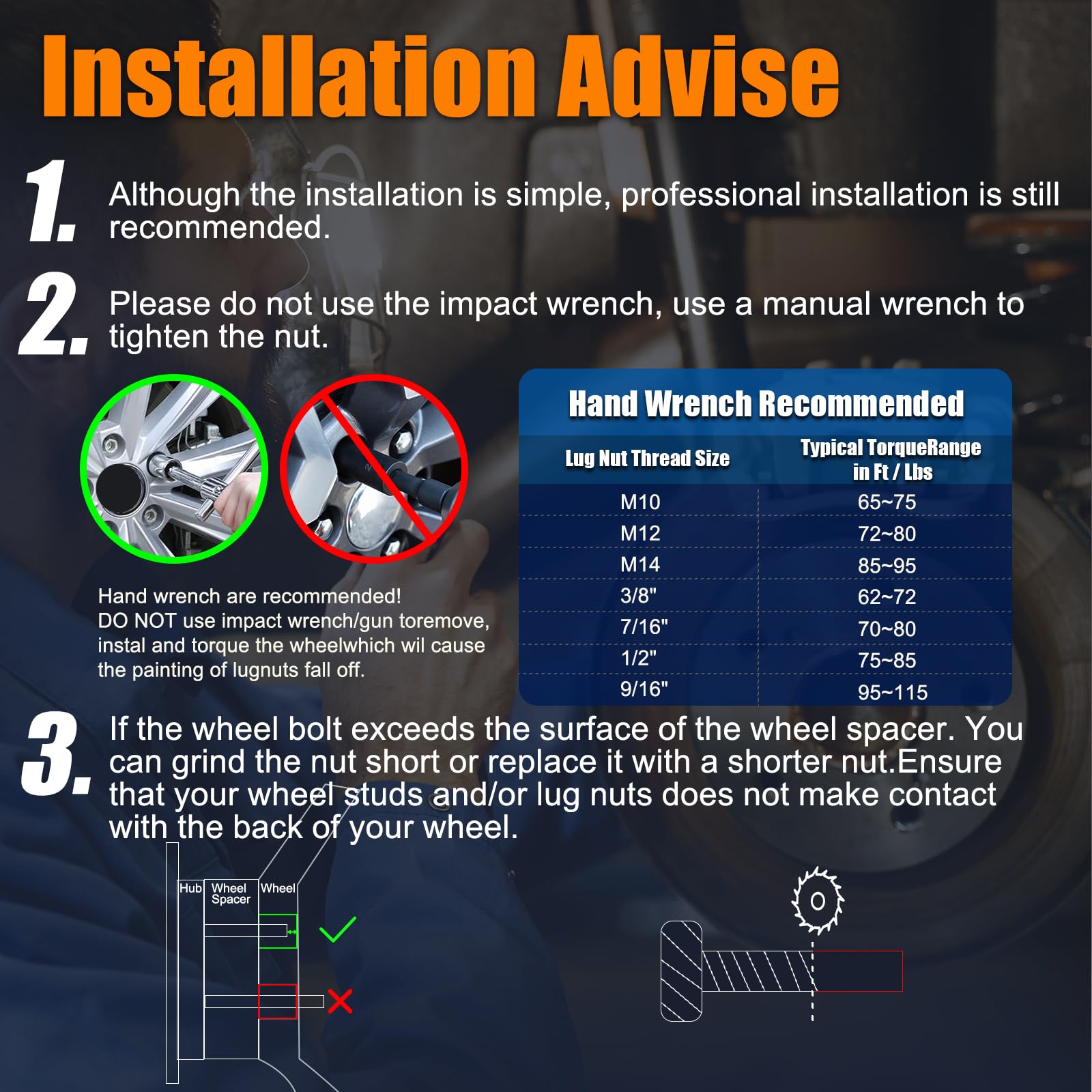

• Care guidance: Check wheel stud compatibility and torque specifications after installation

Important installation notes

These adapters are intended for wheels with 12x1.5 studs and are not compatible with 3/8-24 or 12x1.25 studs. If you’re unsure whether these spacers fit your vehicle, contact us for guidance and a recommended solution.
