GODIAG GT100+ GPT ENET DOIP OBDII Breakout Box for ECU Bench Testing & Car Diagnostics

Overview

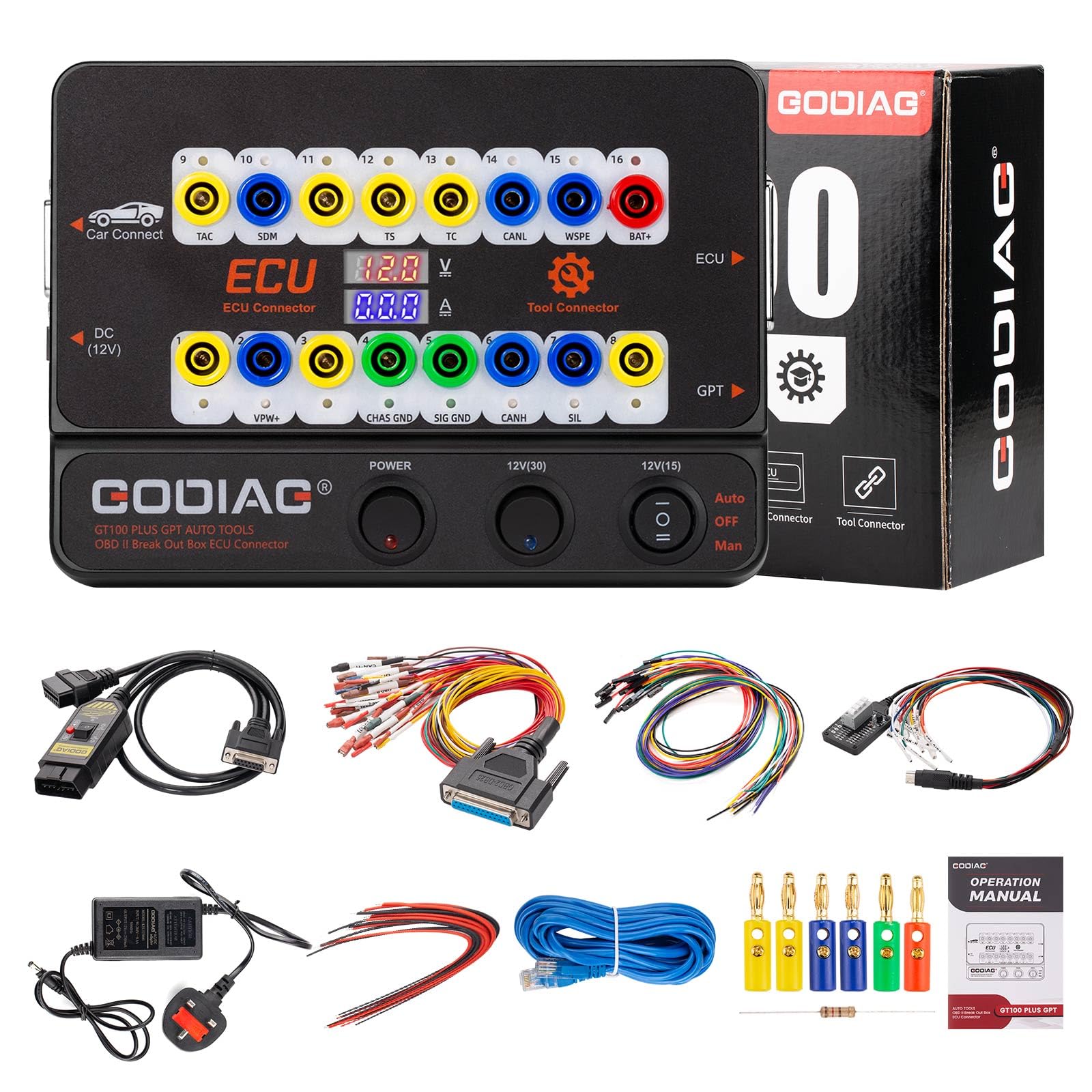

The GODIAG GT100+ GPT ENET DOIP OBDII Breakout Box is a compact, rugged tool designed for ECU bench testing and diagnostics in the shop or lab. It combines a 24V to 12V power conversion, DOIP-ENET communication, and GPT enabled data access, with shielded CANH and CANL cables to minimize electromagnetic interference and keep signals stable during demanding tests.

Key capabilities

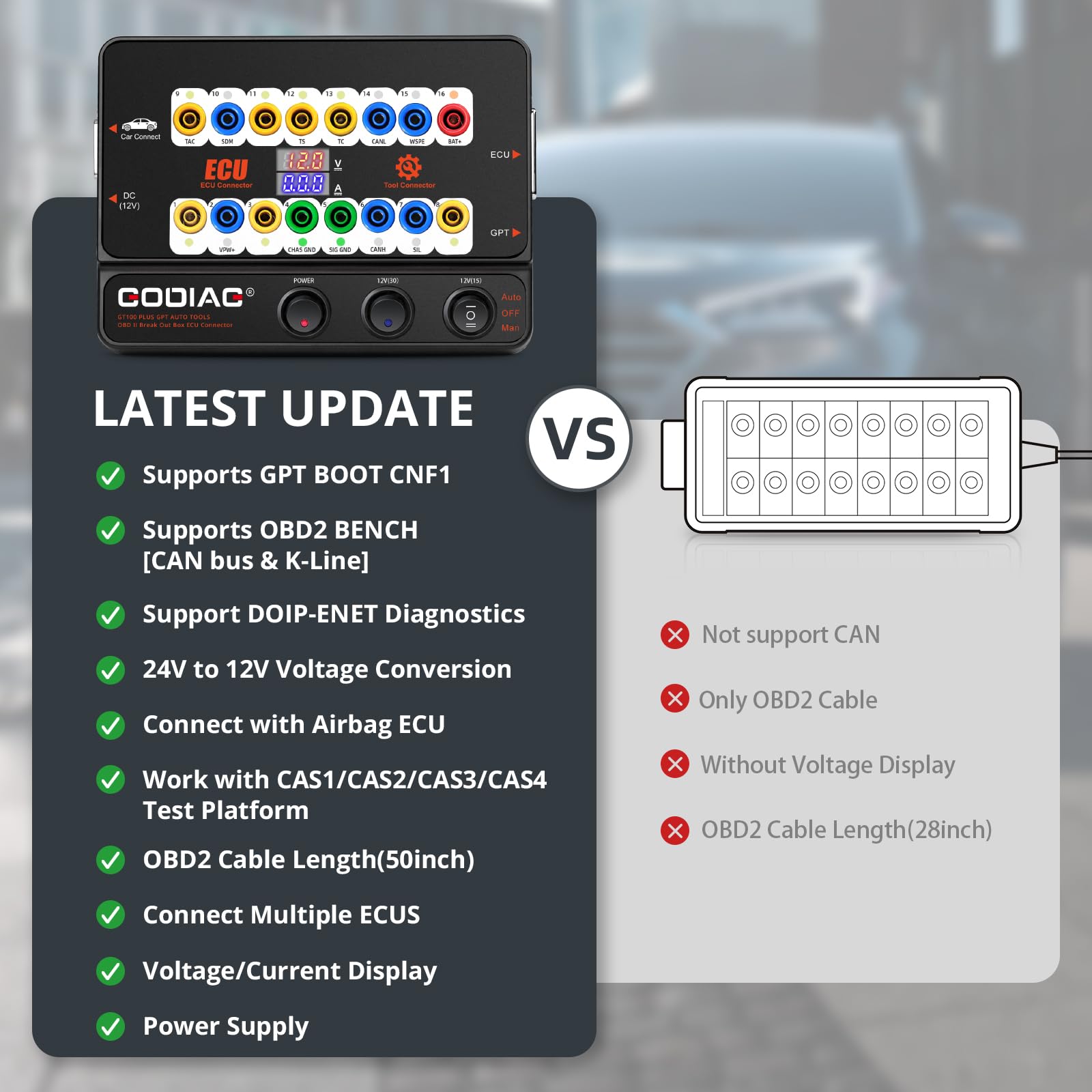

• Latest Upgrade Version: The GT100+ supports 24V to 12V conversion, DOIP-ENET connectivity, GPT read/write, and shielded CAN cables to boost signal integrity and reliability in busy test environments.

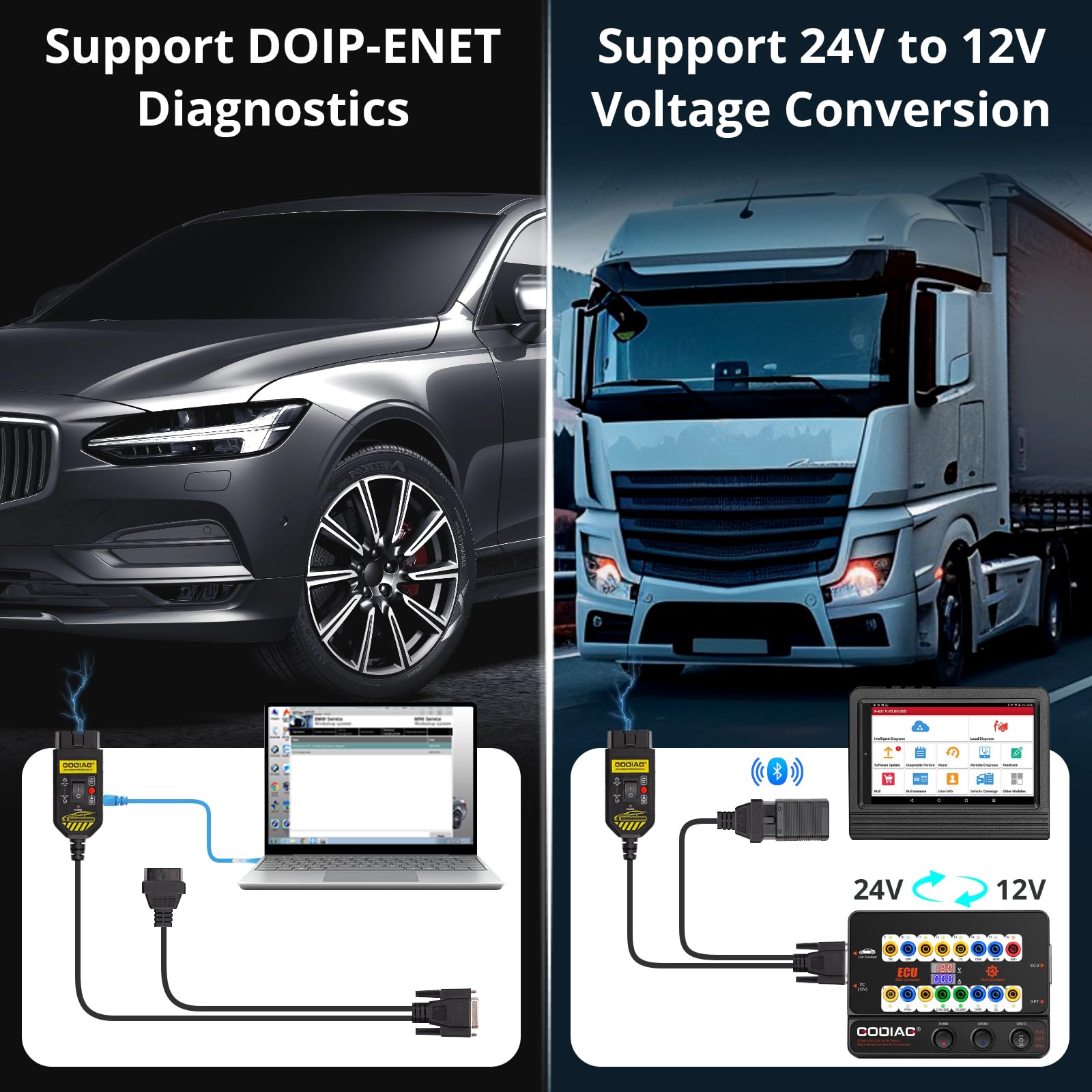

• Added DOIP-ENET & GPT Protocol: Use GPT to read and write ECU data with compatible devices; perform read/write actions without disassembling the ECU; supports OBD2 BENCH CAN bus and K-Line, plus GPT BOOT CNF1 and DOIP-ENET communications.
• ECU Bench Tool: Read and write ECU data on the bench using GPT or OBD2 BENCH methods, allowing engineers to work on the ECU while it remains installed, reducing cross-module risk during vehicle testing.

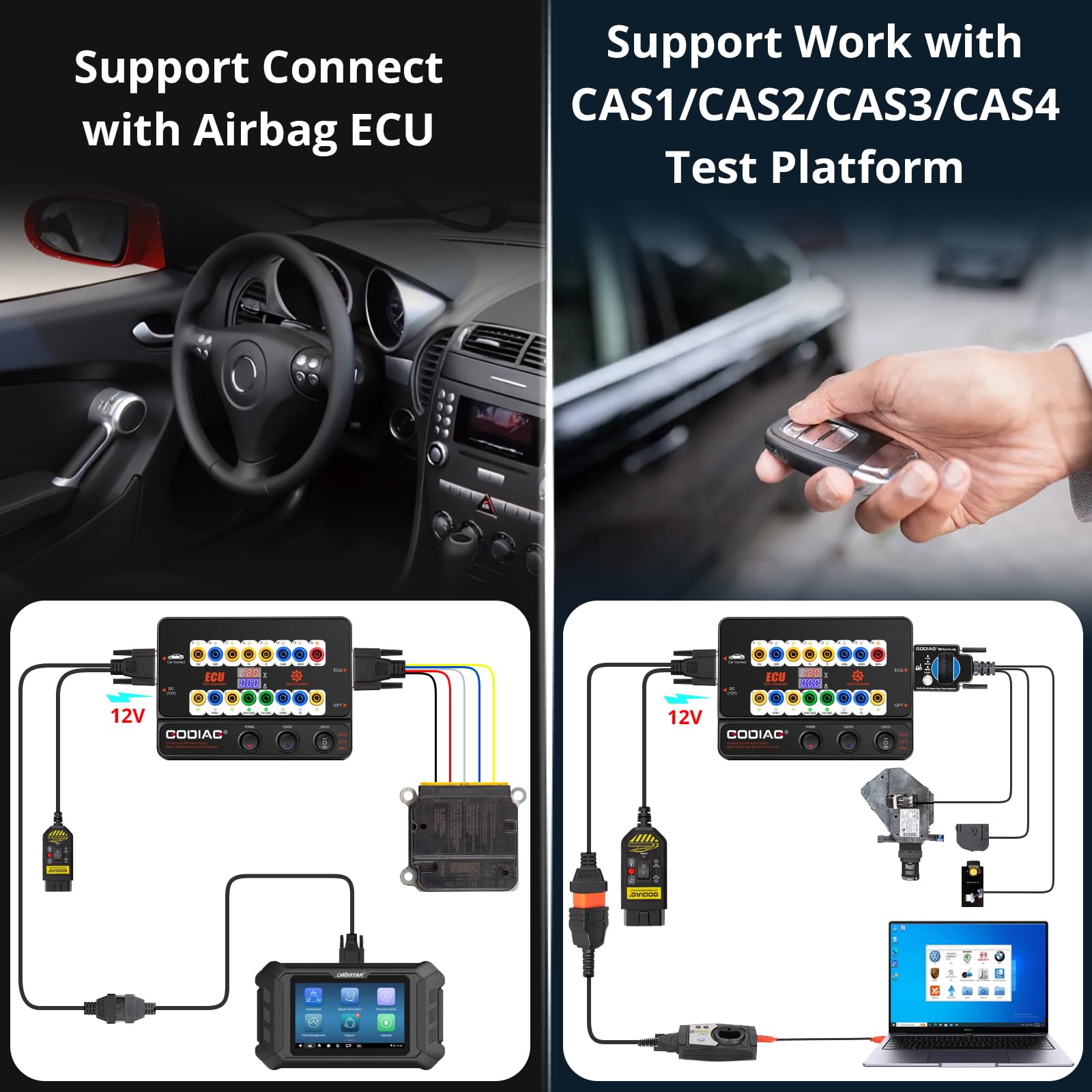

• Connect Single or Multiple Modules: Converts the OBD2 interface into a 16-pin layout for flexible signal detection; attach single modules or multiple modules and verify overall car communication with other diagnostic tools.
• OBDII Interface Communication & Display: An LED indicator shows the health of the link between vehicle and diagnostic tool; if the voltage drops below 11V, pause diagnostics to avoid data loss or startup issues.

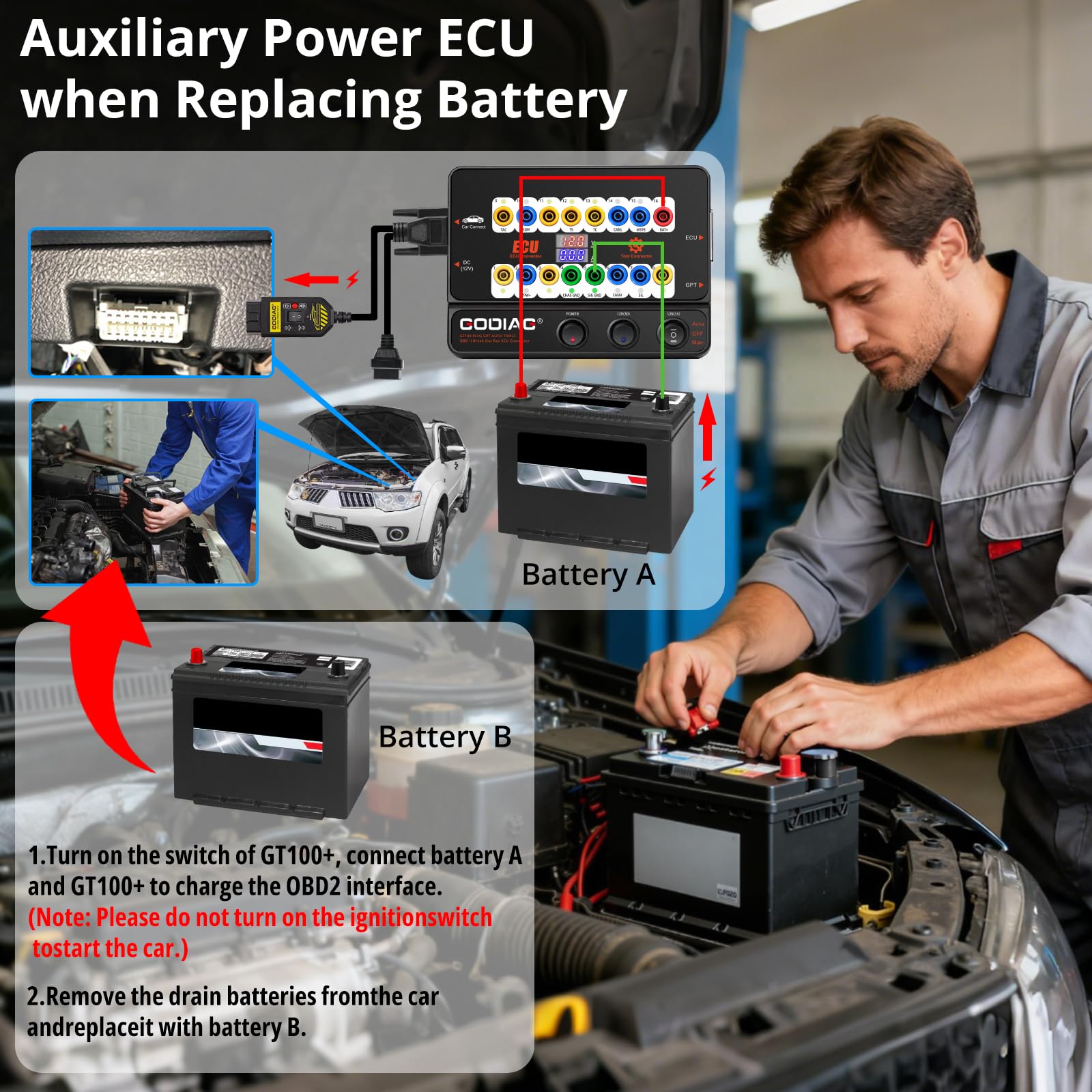

• Power ECU During Battery Changes: Power the ECU via the OBDII breakout box before battery replacement, helping ensure sufficient power for diagnostics and reducing data loss or ECU misbehavior during service.

Real-world use cases

• Bench development and testing: technicians can access ECU data and observe behavior in a controlled bench setup, supporting calibration, software validation, and fault analysis without moving the vehicle.
• On-vehicle diagnostics: quick checks of CAN and K-Line communication help confirm tool readiness, signal quality, and network health in a live system.
• Power-sensitive servicing: maintain stable power to ECUs during maintenance tasks to minimize resets and unexpected reboots during reprogramming or parameter changes.

Note: The GT100+ is designed to expand your diagnostic workflow. Actual results depend on the vehicle, ECU model, and software used. This overview highlights capabilities and typical workflows rather than guaranteeing outcomes.
