Hantek 1008C+HT201+HT30A+HT307 | 8-Channel Automotive Diagnostic Oscilloscope/DAQ/Generator

Overview

Meet the Hantek 1008C+HT201+HT30A+HT307, a compact PC USB 8‑channel device that blends automotive diagnostics with general‑purpose oscilloscope features and a programmable signal generator. It’s designed for hands‑on engineers, technicians, and curious hobbyists who want a versatile tool for signal awareness and quick fault sensing. The setup emphasizes tactile feedback from live waveforms, while the integrated diagnostic suite provides structured paths to investigate vehicle electrical systems without overwhelm.

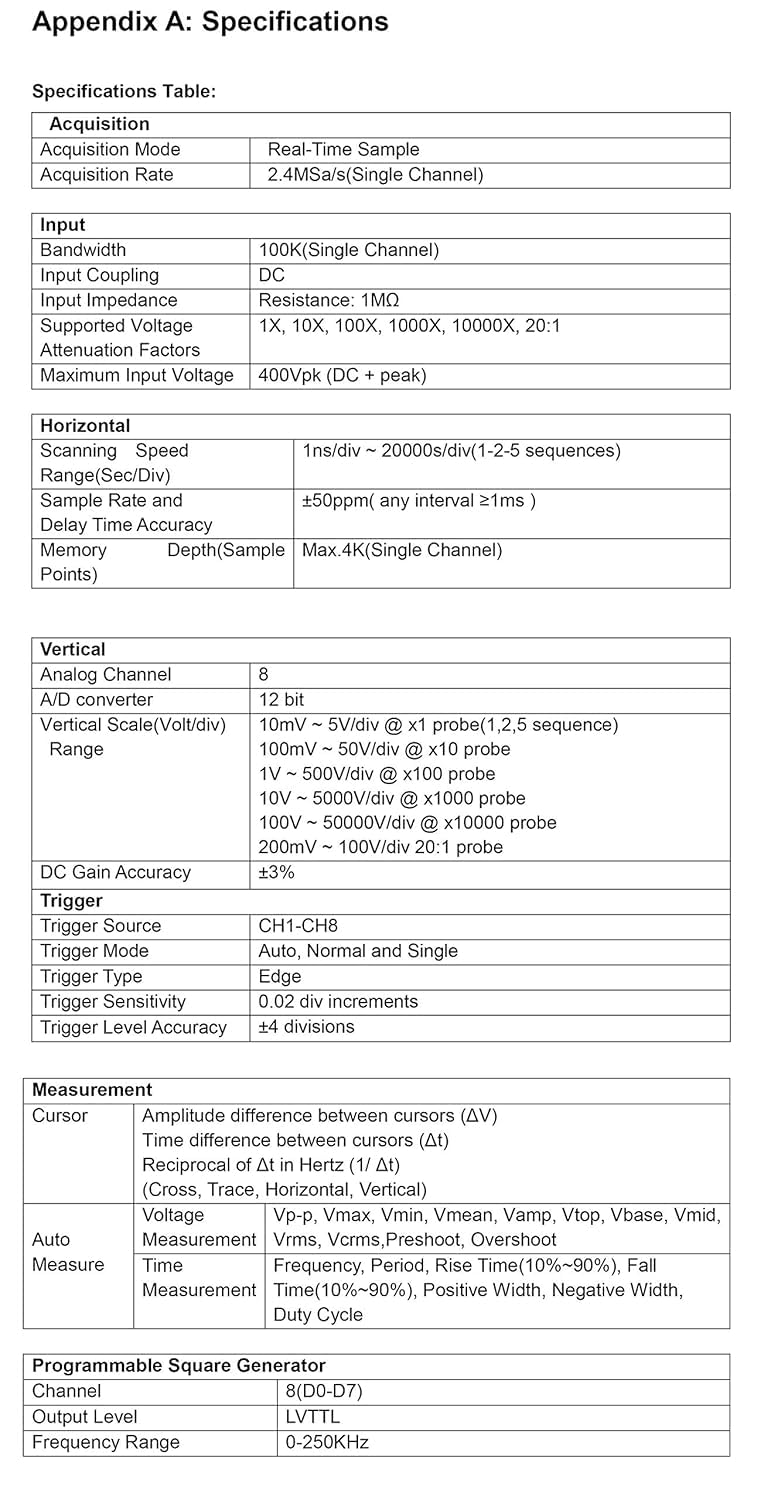

Key capabilities at a glance

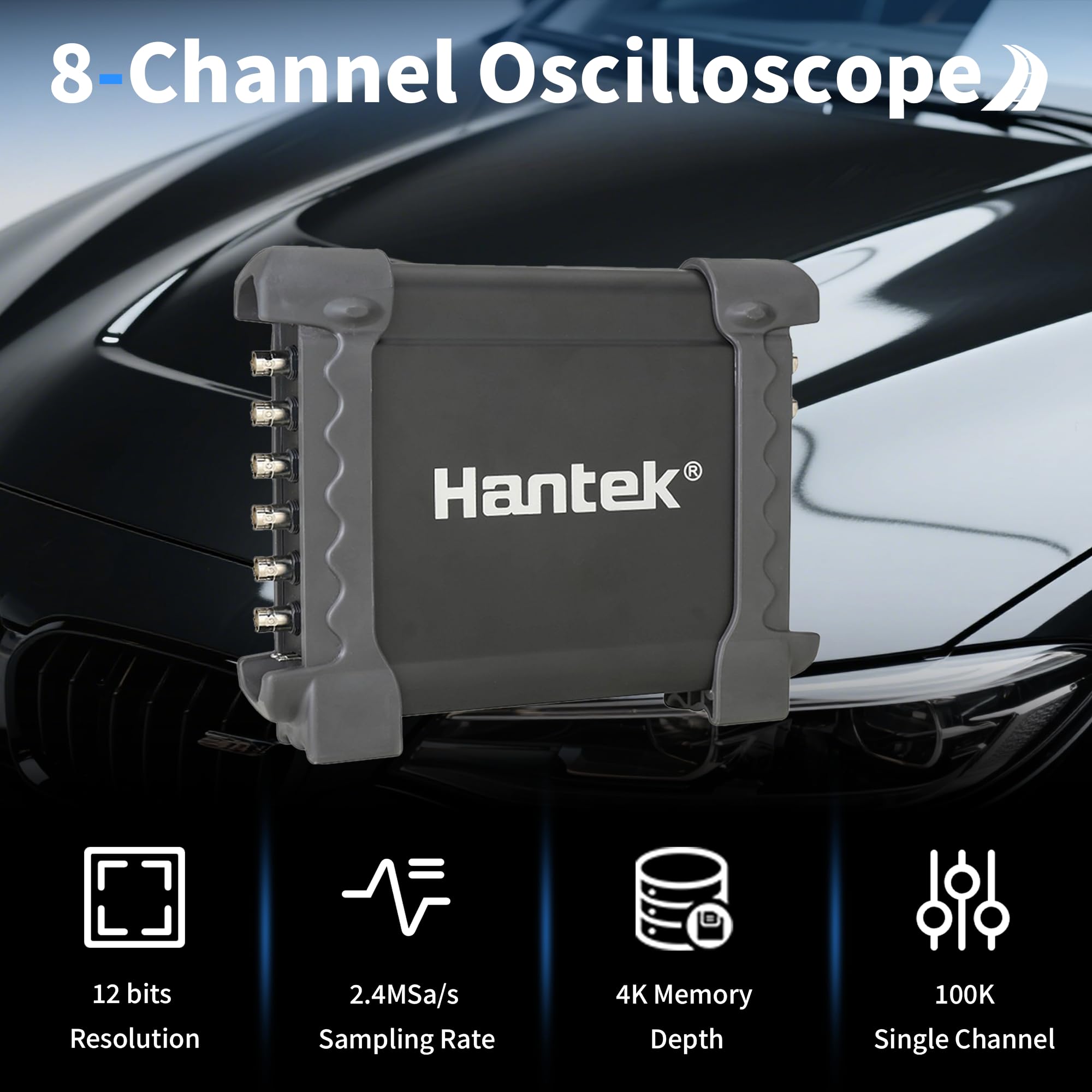

• 8‑channel analogue oscilloscope with 12‑bit resolution
• 4K memory depth and 2.4 MSa/s real‑time sampling

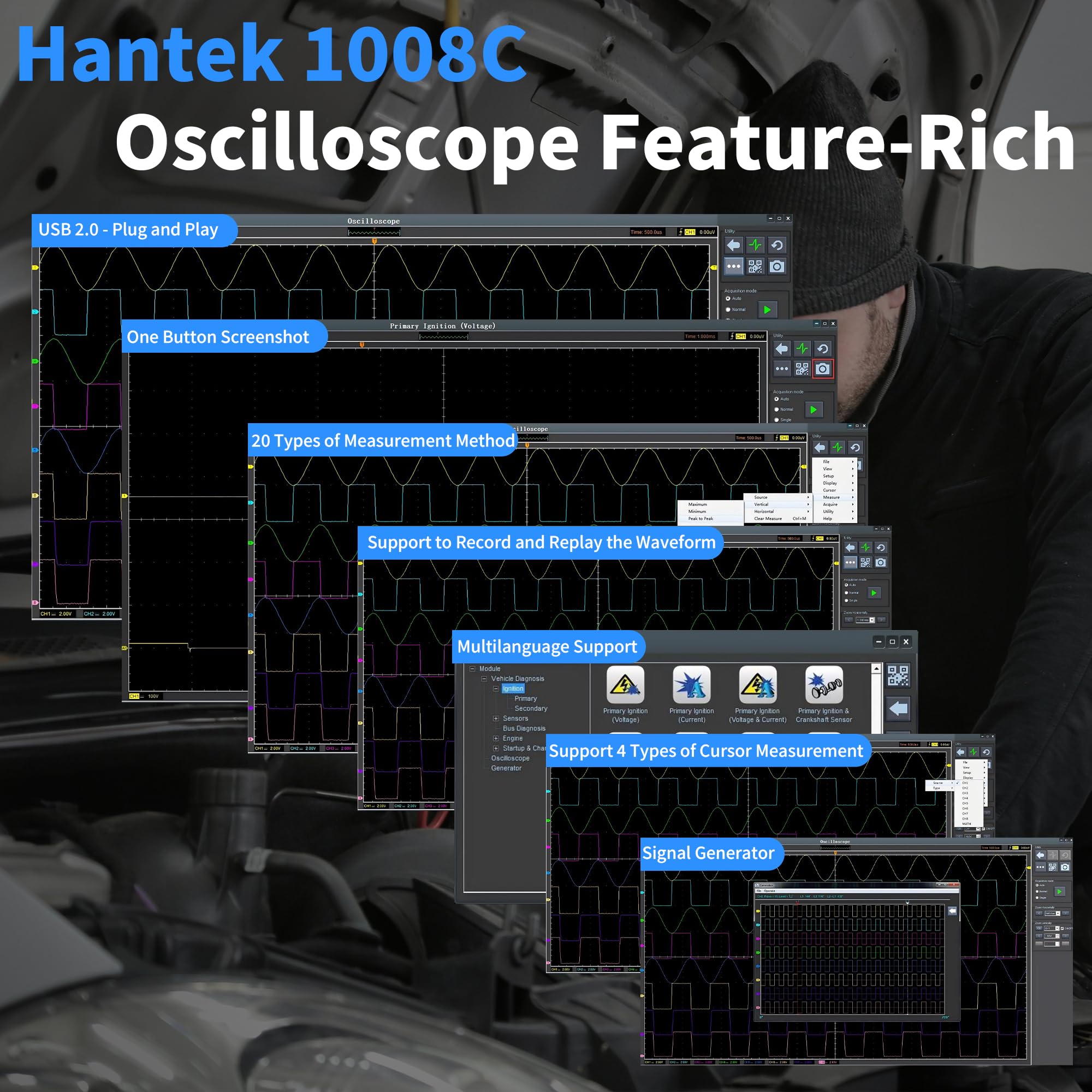

• 20 automatic measurement modes for fast signal analysis

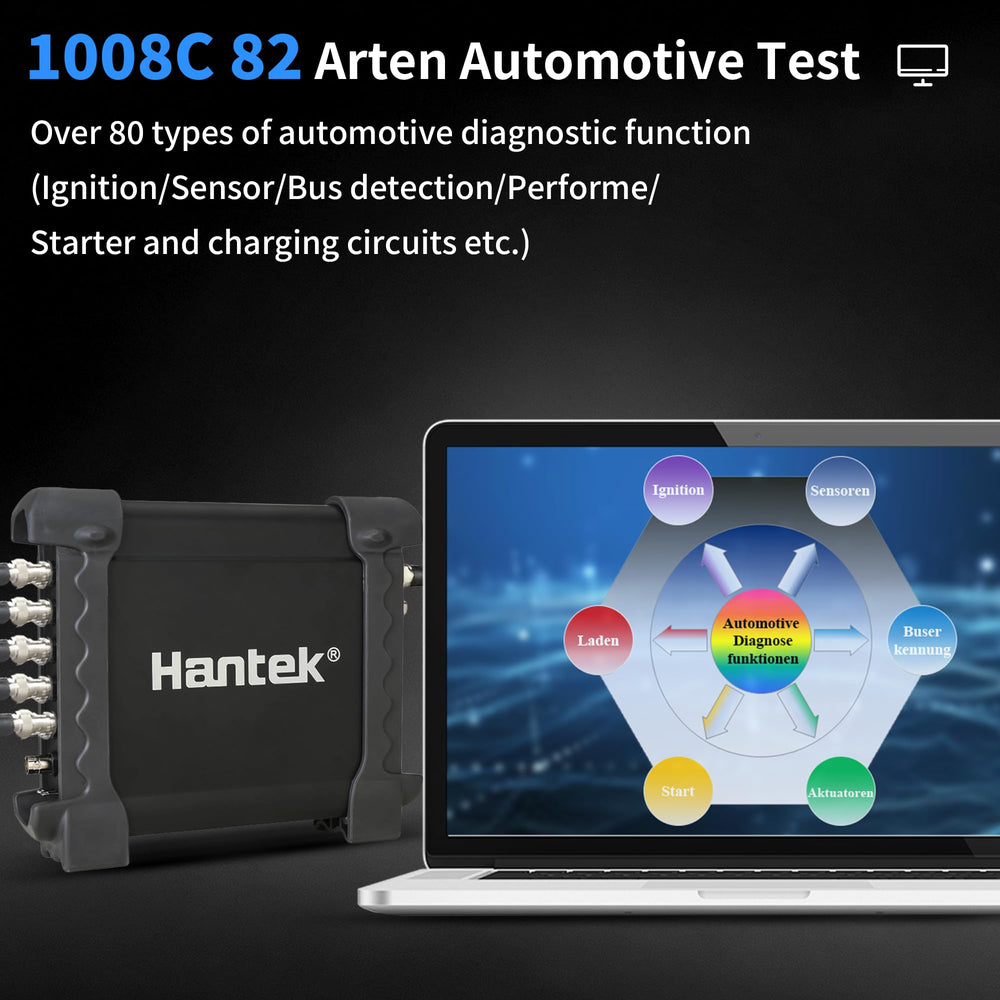

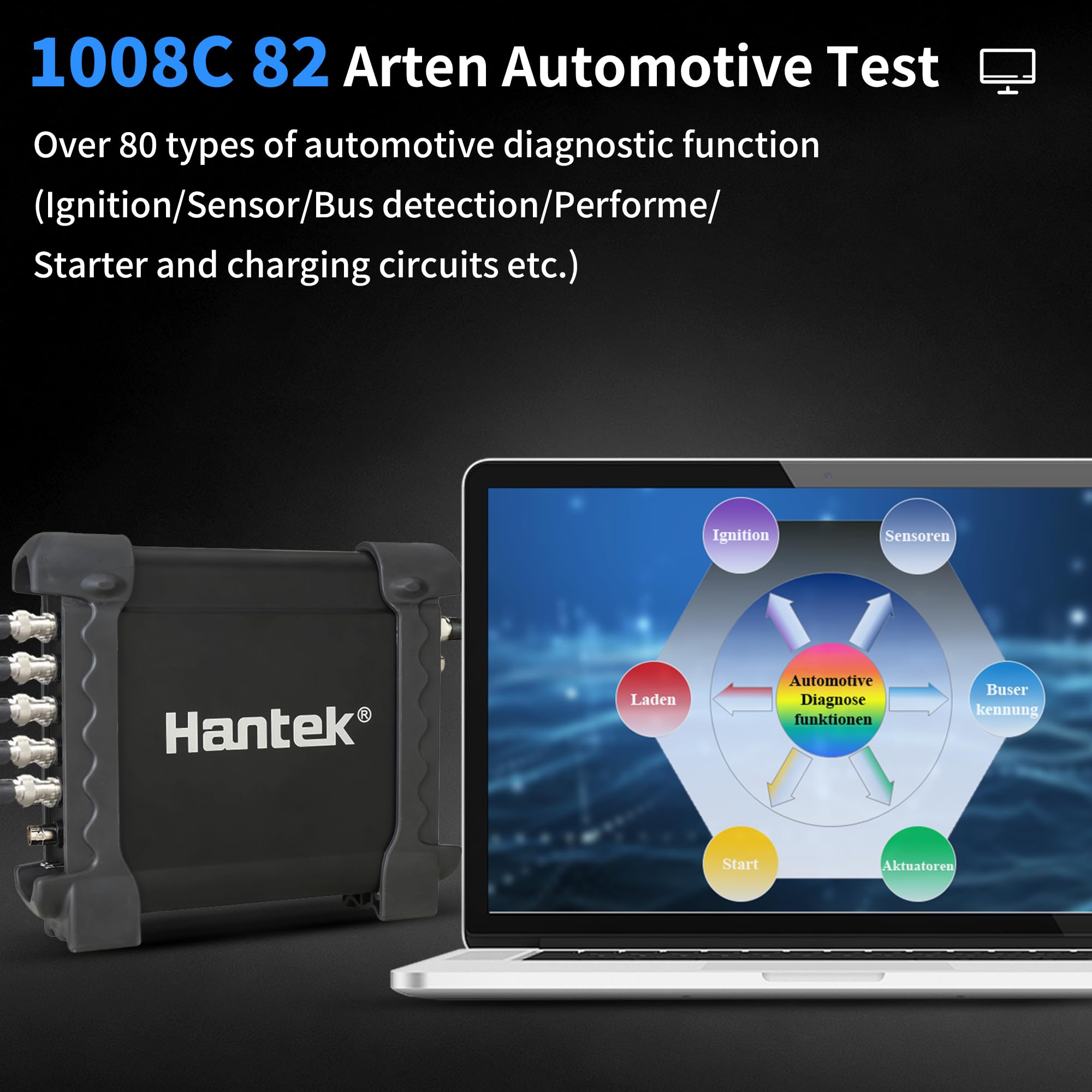

• Automotive diagnostic functions covering Ignition, Sensors, Bus, Actuators, Starting & Charging

• Programmable signal generator with 8 LVTTL outputs
• Frequency range 0–250 kHz to simulate engine timing signals

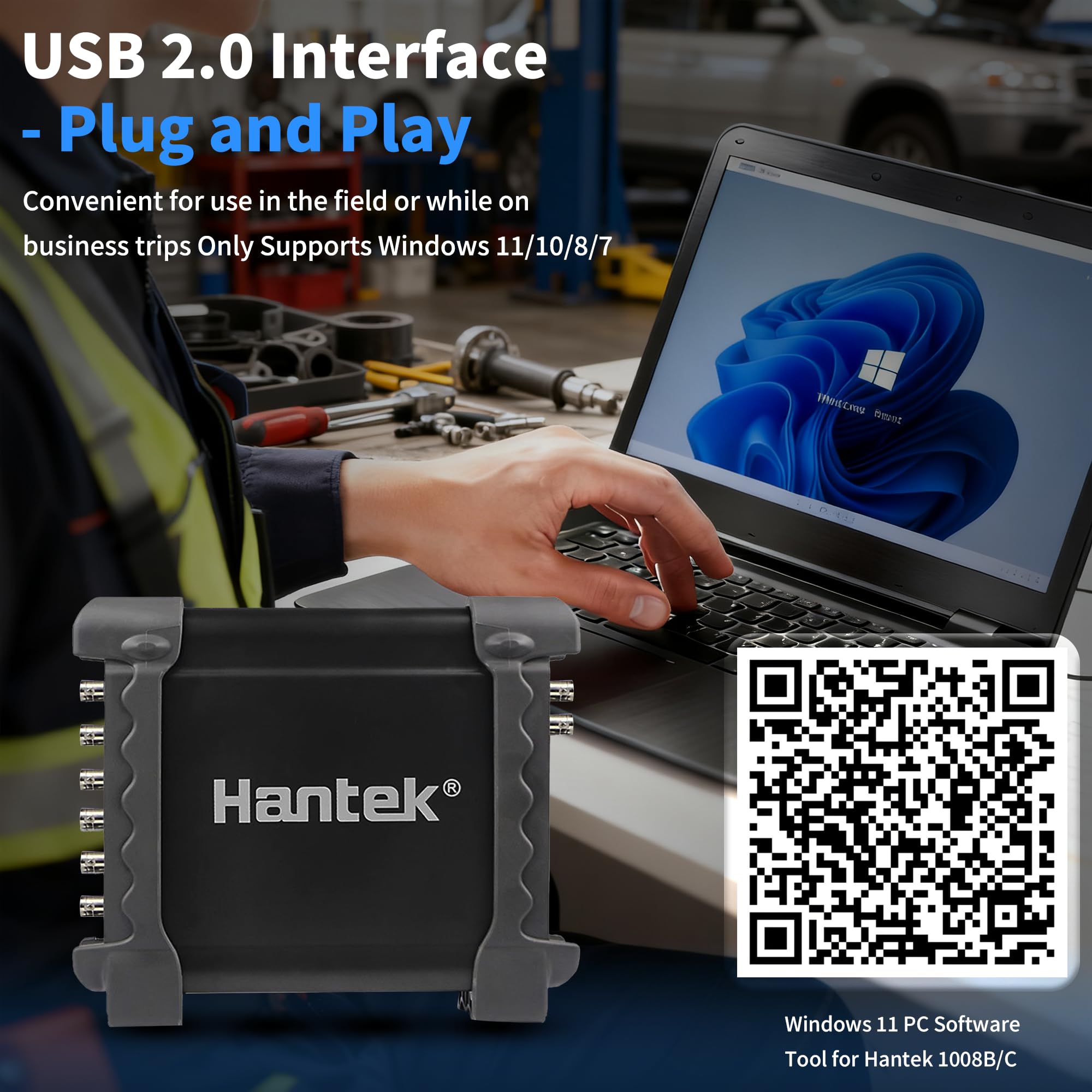

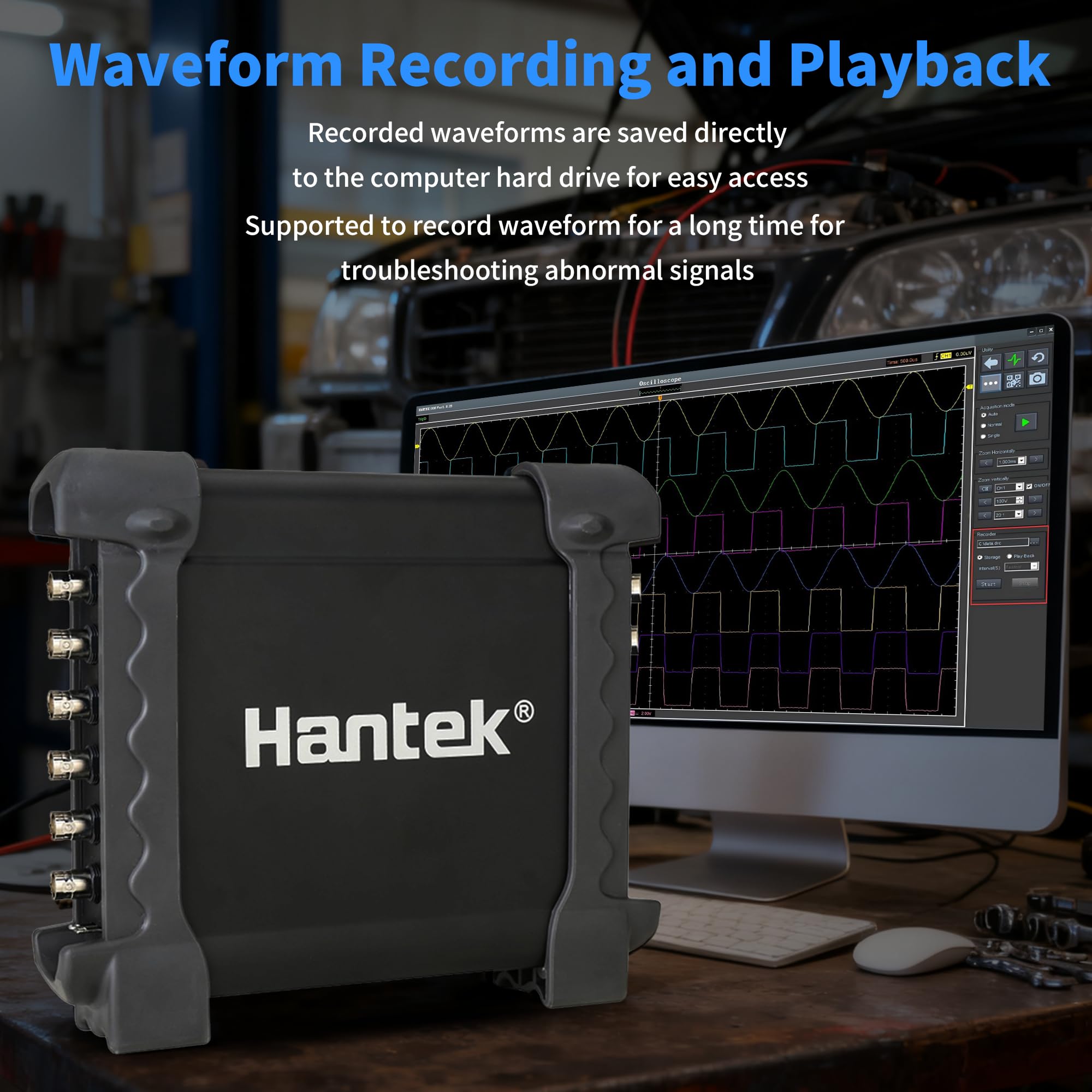

• USB 2.0 data transfer to PC software on Windows
• Intuitive, approachable workflow for electricians, technicians, and electronics enthusiasts

How it fits into your workflow

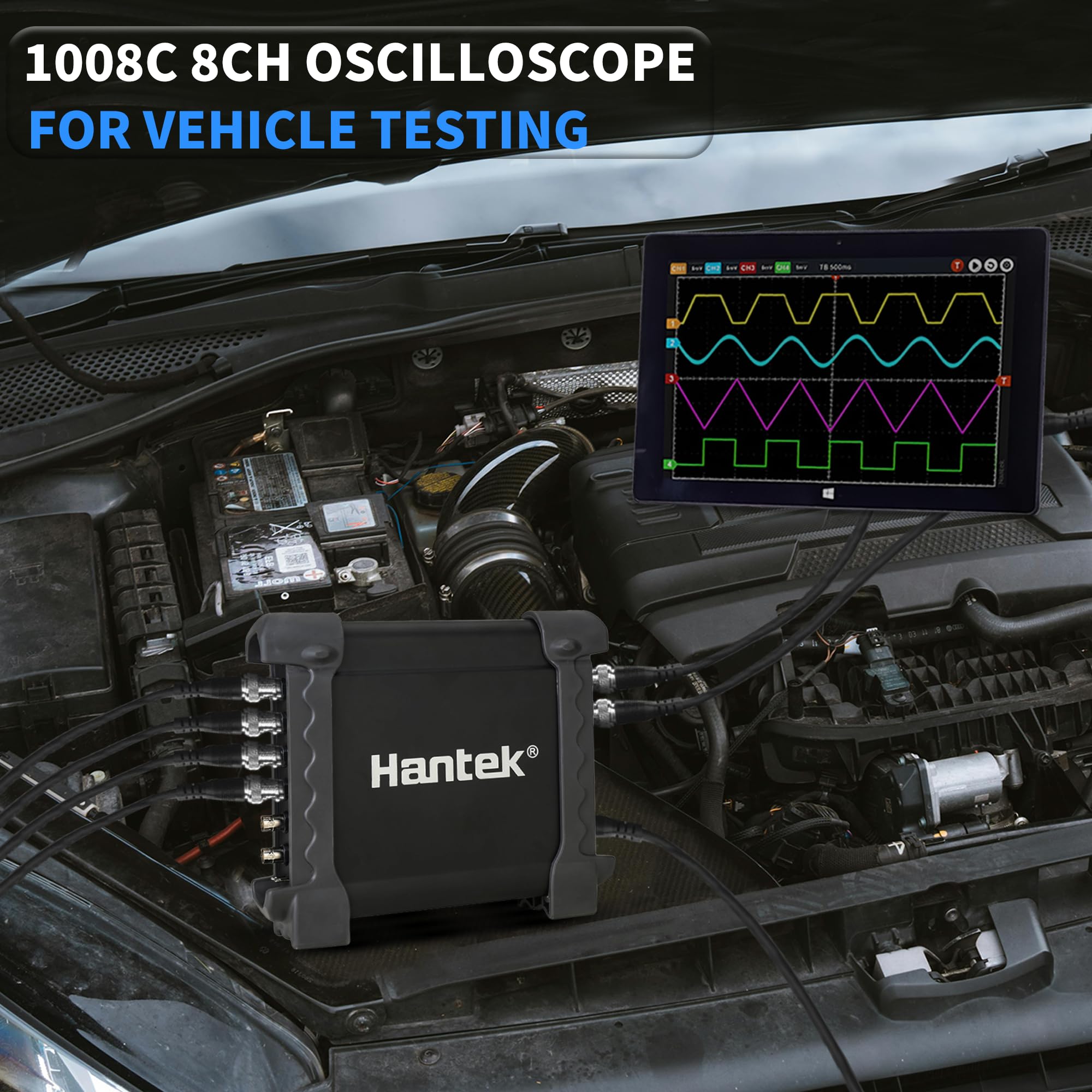

Connect the device to a Windows PC and capture live waveforms while comparing sensor outputs against expected patterns. The automatic measurement modes simplify signal reading, and the diagnostic suite provides structured checks across ignition, sensor, and bus systems. USB 2.0 keeps data moving to your PC for logging and analysis.

Real‑world use cases

Ideal for workshop diagnostics, home electronics troubleshooting, and learning basic circuit behavior. Its combination of scope, diagnostics, and signal generation supports timing verification, signal replication, and rapid fault tracing in a compact, portable form factor. The tool’s flexibility makes it suitable for both professional settings and hobbyist projects where timing and signal integrity matter.

Performance notes

The device is designed for Windows environments and uses USB 2.0 for signal transfer. A compact footprint keeps it portable for in‑shop or field use, with a straightforward setup that helps you start analyzing signals quickly. The 8‑channel architecture supports layering multiple signals for correlation studies without crowding the display.

Build and usability

Built for everyday use, the interface emphasizes clarity and responsive controls. It’s a practical companion for learning basic circuit diagnostics, troubleshooting electronics in automobiles, home appliances, and other electronics products, while remaining approachable for technicians at any experience level.
