HP Tuners PROLINK+ Cable — Analog 0-5V Inputs, CAN Bus, MPVI2+/MPVI3 Compatible

Overview

The HP Tuners PROLINK+ Cable is a purpose-built accessory that expands how you gather sensor data from your vehicle. Designed to work with MPVI2+ and MPVI3 scan tools, this cable is all about giving you more measurement points without cluttering your engine bay. It is sold as a cable only, so you can pair it with your existing hardware setup and tailor data collection to your needs. Expect a clean, plug-and-play experience that supports external sensors and real-time data streams during on-vehicle sessions.

Key capabilities

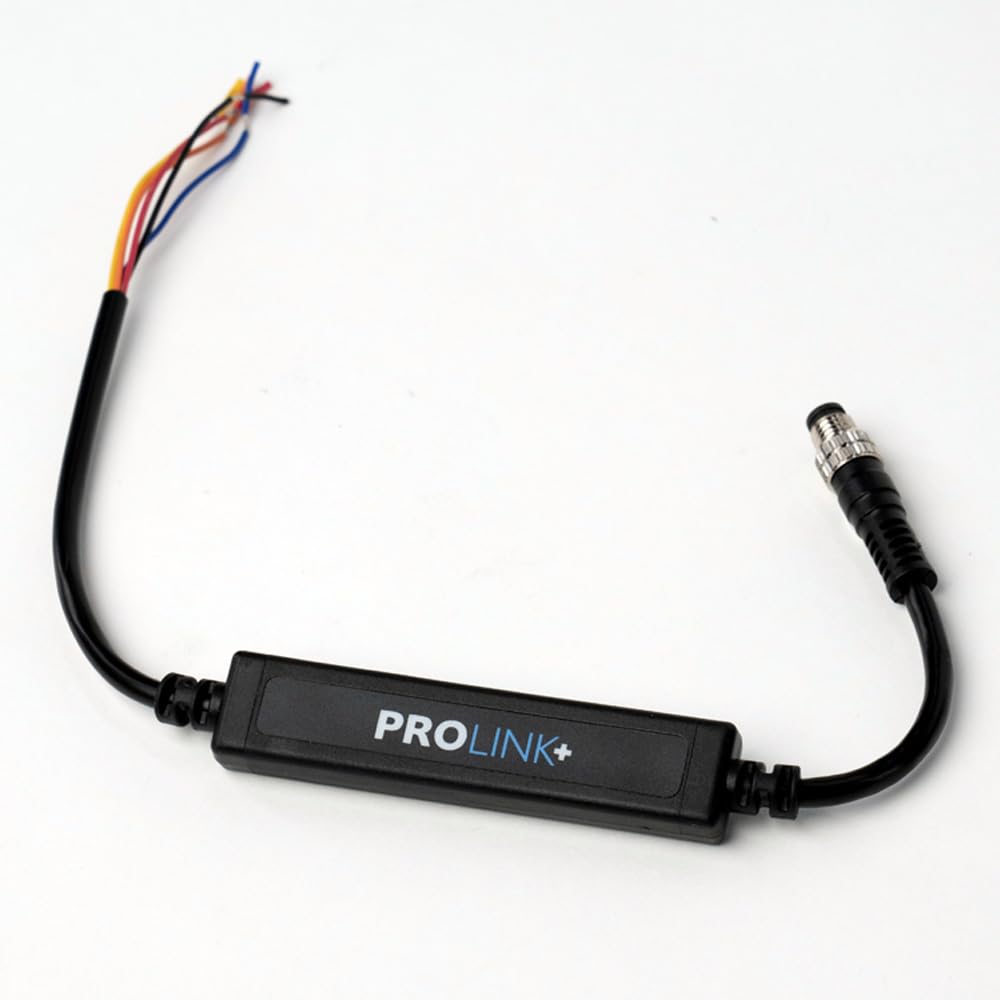

• 2x dedicated 0-5V analog inputs for external sensors such as temperature, pressure, or voltage signals

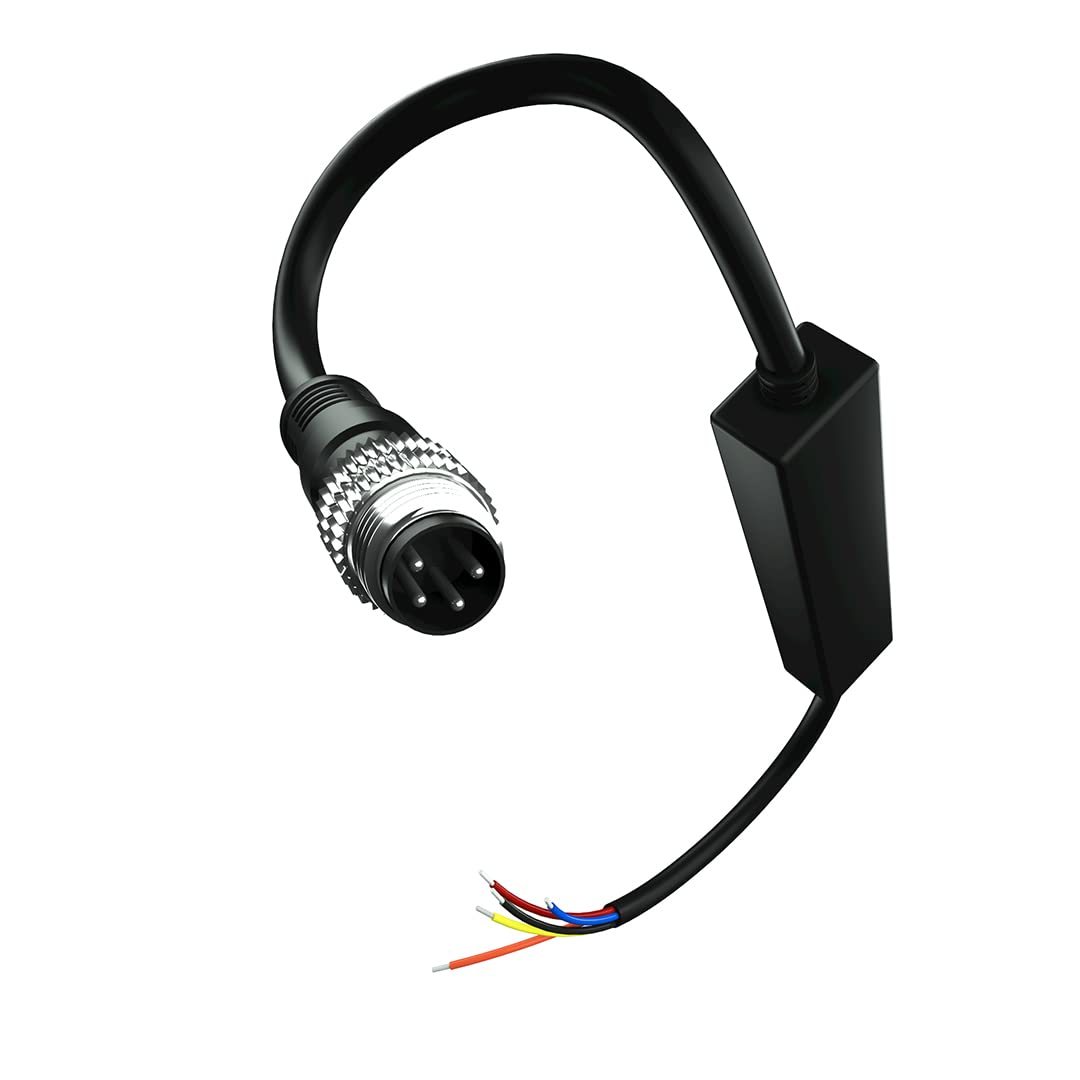

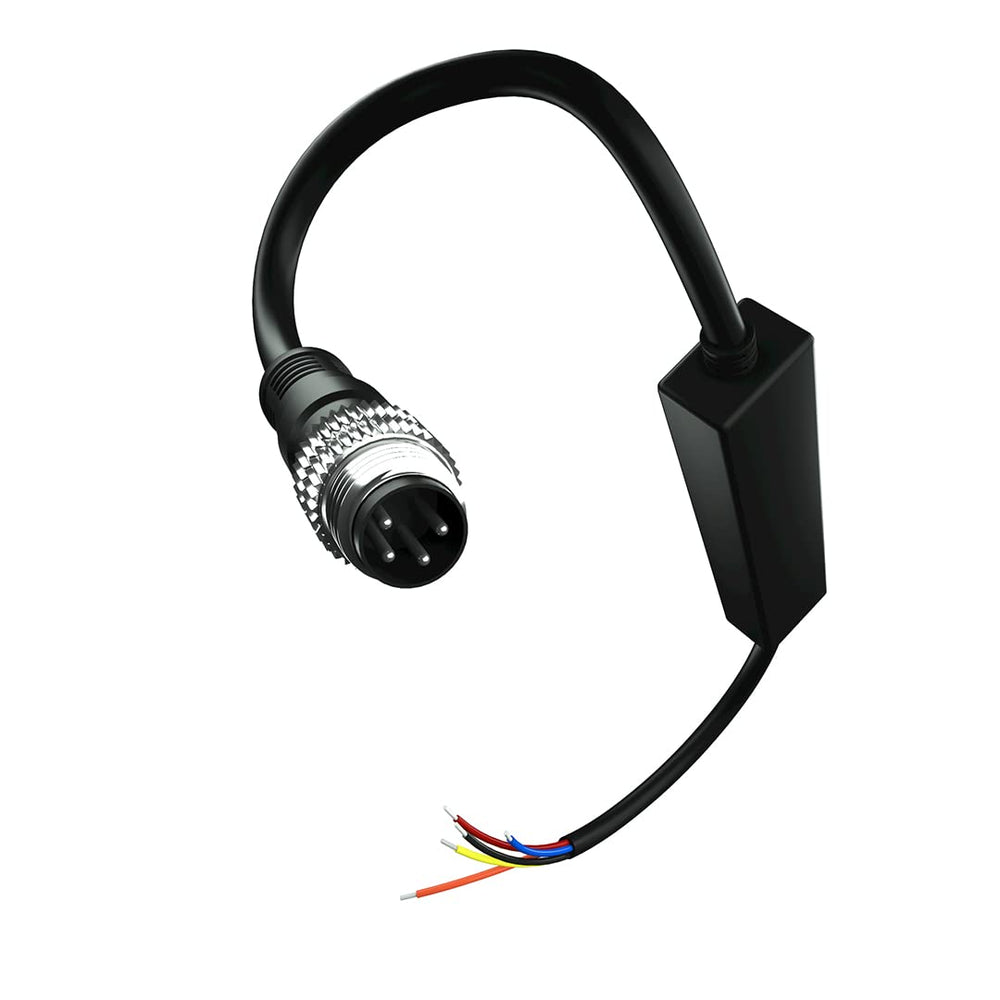

• 1x CAN bus input (500 kbps) to tap into standard vehicle networks for additional data

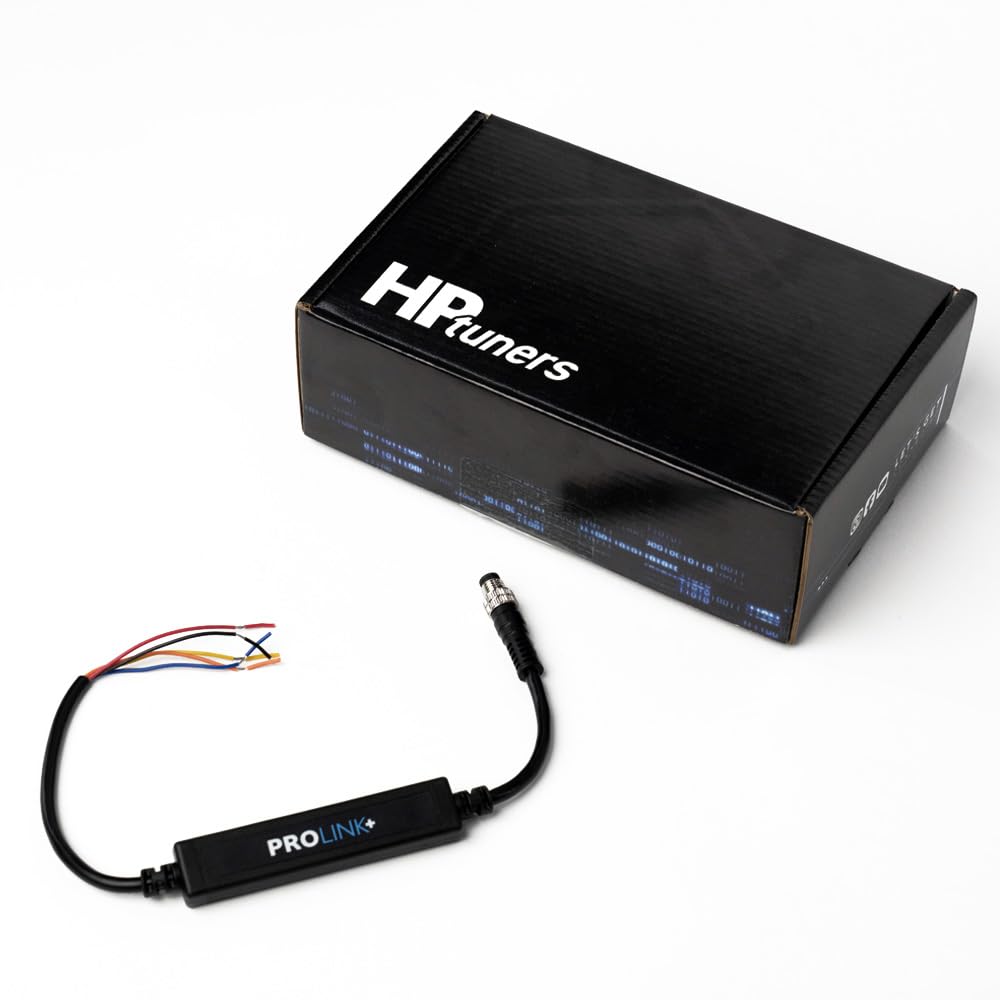

• 100 Hz sampling rate to capture swift changes and provide smoother time-series data

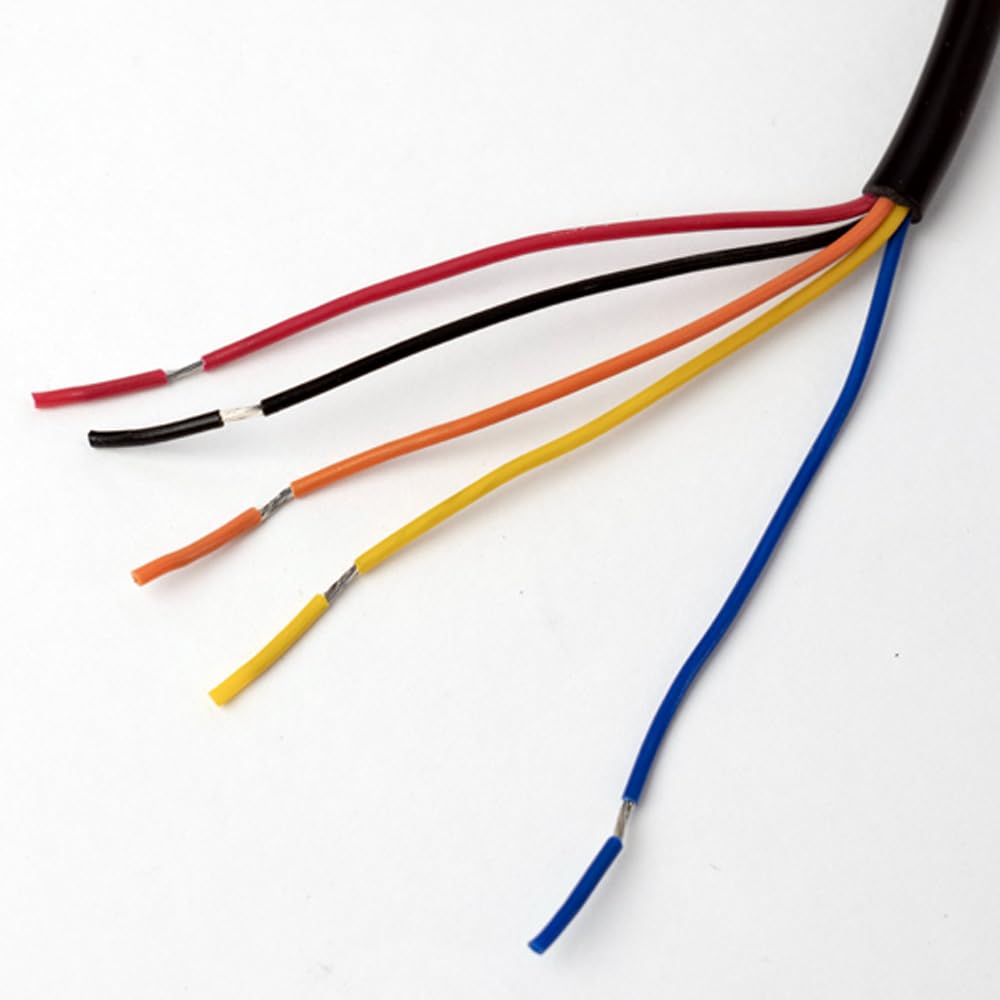

• M8 connector to 5-wire harness for a secure, robust connection in demanding environments

Compatibility & installation notes

• Compatible with MPVI3 interfaces and MPVI2+ when the Pro Feature Set is purchased
• MPVI2+ users must acquire the Pro Feature Set to enable PROLINK+ functionality
• Simple, cable-only accessory that integrates with your existing HP Tuners workflow

Real-world use often centers on enhanced data capture. With PROLINK+, you can correlate sensor readings to live vehicle behavior, supporting more informed decisions during testing and tuning sessions. The combination of analog and CAN inputs offers flexibility for a wide range of sensors and vehicle networks, while the 100 Hz sampling rate helps ensure you don’t miss fast transient events. While this cable can expand your data view, it does not guarantee specific outcomes; the benefits depend on your setup, sensor quality, and how you interpret the data you collect.

What it means for your workflow

• More sensor channels mean broader visibility into how your vehicle behaves under different conditions
• High-frequency data capture supports more nuanced analysis of rapid changes
• Seamless integration with HP Tuners software preserves your existing data practices
